Index
1. Welcome..........................................................................................................................................3
2. Before Installation............................................................................................................................4
Maintenance and Service...................................................................................................................................5
3. Maintenance and Service .................................................................................................................5
Optional Charcoal Filter (only for recirculation)...............................................................................................6
Electrical Cord.....................................................................................................................................................6
For Users..............................................................................................................................................................7
Replacing the Light Bulb....................................................................................................................................7
4. Description .....................................................................................................................................8
Main Rangehood ................................................................................................................................................8
5. Operation ........................................................................................................................................9
Switch Control.....................................................................................................................................................9
6. Installation .......................................................................................................................................10
Mounting Instructions ........................................................................................................................................10
For Installers........................................................................................................................................................11
Mounting Points ................................................................................................................................................11
Installation Guide ...............................................................................................................................................12
Ducting Installation.............................................................................................................................................15
Roof Cowls / Roof Seal.......................................................................................................................................16
Ducting ................................................................................................................................................................17
7. Condensation Information ...............................................................................................................18
Cooking with Induction Cooktops ....................................................................................................................18
8. Troubleshooting...............................................................................................................................19
Faulty Installation ...............................................................................................................................................19
Service ................................................................................................................................................................19
9. Specications...................................................................................................................................20
Technical Specications .....................................................................................................................................20
10. Disclaimer ........................................................................................................................................21
Page 3
1. Welcome
Welcome
Thank you for purchasing this Scandium appliance.
To achieve the optimal performance from your appliance, and to avoid the risk of accident or damage, it is
essential to read this manual before installation and rst time use.
This guide contains important information on the use and maintenance of the appliance, as well as important
safety notes.
Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving
the manufacturer.
Please keep this instruction manual in a safe place so you can refer to it at any time.
ATTENTION
Installation, regulation or maintenance, of both gas and electric appliances, should
only be executed by qualied and authorised personnel who are aware of the
installation regulations in force.
Please make sure to read this booklet carefully, containing general instructions for the
Installation, Operation and Maintenance of your appliance, before installation and
operation.
It is extremely useful to know, in detail, the best way of operating and maintaining
this appliance so you can enjoy its benets and be assure of the best results.
Please keep this instruction booklet with the appliance in case you pass it on to
someone else.
Page 4
2. Before Installation
Important
• Upon collection or delivery of the appliance, any damage or defects MUST be reported within 48 hours to
the retailer or the customer service centre, or no claim will be recognised.
• Before installing the electrical connections, you should:
– Verify that the indicated electrical data coincides with the voltage values and frequency of the electrical
circuit in the house where the rangehood is to be installed.
– Check that the premises has electrical protection against short circuits and electrocution, pursuant to the
applicable legislation.
– Always switch off the power using the double-pole switch before maintenance and turn the power on
again for normal use only when the operation has been completed.
• DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
• If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs
associated with the repair, replacement, removal or re-installation of the appliances.
• Please read the entire instruction manual before installing the rangehood.
• Always switch power off prior to installation. All electrical work must be carried out by a registered
electrician in accordance with local and national electrical codes as applicable. For your safety, this product
must be earthed.
• The power socket must be accessible and enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
• The power outlet must be within reach of the power cord from the rangehood.
• Check all contents of the packaging, including all electrical functions of the rangehood before installation.
• The rangehood is heavy. Please ensure adequate care when installing to prevent personal injury.
• The rangehood is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance.
• The room must have adequate ventilation when the rangehood is used at the same time as appliances
burning gas or other fuels.
• There is a potential re risk if cleaning is not carried out in accordance with the instructions. You MUST read
the details concerning the method and frequency of cleaning.
• Do not ambé under the rangehood. This will void the warranty.
• Exhaust air must not be discharged into an existing ue which is used for exhausting fumes from appliances
burning gas or other fuels.
• The minimum distance between the hob surface and the lowest part of the rangehood is 650mm. This
distance should be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the
gas hob specify a greater distance, adhere to those instructions.
• Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air
Page 5
3. Maintenance and Service
is fullled. Even a partial obstruction will restrict the efciency of the rangehood.
• Stainless steel is very easily damaged during installation if scratched or knocked by tools. Protect the
rangehood with the cardboard box or a plastic bag during installation.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• This appliance must be installed and repaired by a qualied technician.
• It is dangerous to modify any part of this appliance. Modication of any kind, will void the warranty.
• The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
• Please consult local laws and regulations and install in accordance.
• Use an electrical connector with earth that is correct for your location.
• Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
• This appliance must be connected to an electrical supply with a ground connection.
• Check that the installation and electrical connections are made by a qualied technician and indicated
instructions and local regulations in force are met, using materials that are compliant with the applicable
legislation.
• The company will not be responsible for any installations executed by non-qualied persons and
installations that fail to heed the applicable legislation on electrical safety (with regard to both modes and
materials).
• The electrical technical data can be found inside the rangehood, after removing the grease lters.
• The exible power cable supplied is already connected internally and emerges from the rangehood near the
air outlet tube.
Maintenance and Service
• Always switch off and disconnect the power before cleaning.
• The exterior rangehood surface should be cleaned with a soft cloth and non-corrosive detergent, ie. warm
soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any
part of this appliance. Always make sure to dry the appliance fully after cleaning and never leave wet, as
this will cause irreparable damage.
• Clean the interior of the rangehood with a damp cloth and a neutral detergent or methylate spirits.
• For better results, you can use a high quality cleaning and protection product (eg. Steel Kleen) to clean the
rangehood.
• Do not leave the rangehood surface wet after cleaning.
• Particular care must be taken with aluminium lters They must be periodically cleaned (at least every month,
this will vary depending on cooking frequency and type of foods cooked).
Page 6
• Remove the grease lters and wash them either by hand using hot soapy water or in the dishwasher using
mild detergent. DO NOT scrub.
NOTE: some discolouration of the frame may occur when washing in the dishwasher.
CAUTION
Never use abrasive or oil based liquid cleaners.
• If the grease lters are very dirty, the motor will extract only a small quantity of air, which reduces its
efciency. The grease deposits that build up on the lter are highly ammable and COULD EASILY CATCH
FIRE. The manufacturer is not responsible in the event of re due to poor maintenance of the grease lters.
• To remove the lter, gently press down on the lter clip and pull the lter down and out. To reinstall the lter,
place back of the lter in then push it back in place.
• IMPORTANT: Never attempt to repair this appliance by yourself. Always refer to a qualied Service
Technician. Remember to always switch off the electricity and unplug the connection before conducting
maintenance or cleaning.
Optional Charcoal Filter (only
for recirculation)
Operation - Carbon lters can be used only when the hood is not
connected to any ventilation duct. Filters with active carbon can absorb
odours until they are saturated. They cannot be washed or regenerated
and should be replaced at least every 2 months or more frequently in
case of very intensive use.
To replace, dismantling of charcoal lter is shown on the right.
Electrical Cord
Ensure the electrical cord is not exposed to heat, chemicals or sharp objects. If the electrical cord is damaged,
it must be replaced by the manufacturer, service agent or a similarly qualied person, in order to avoid a
hazard.
3. Maintenance and Service
Page 7
3. Maintenance and Service
Replacing the Light Bulb
Step 1

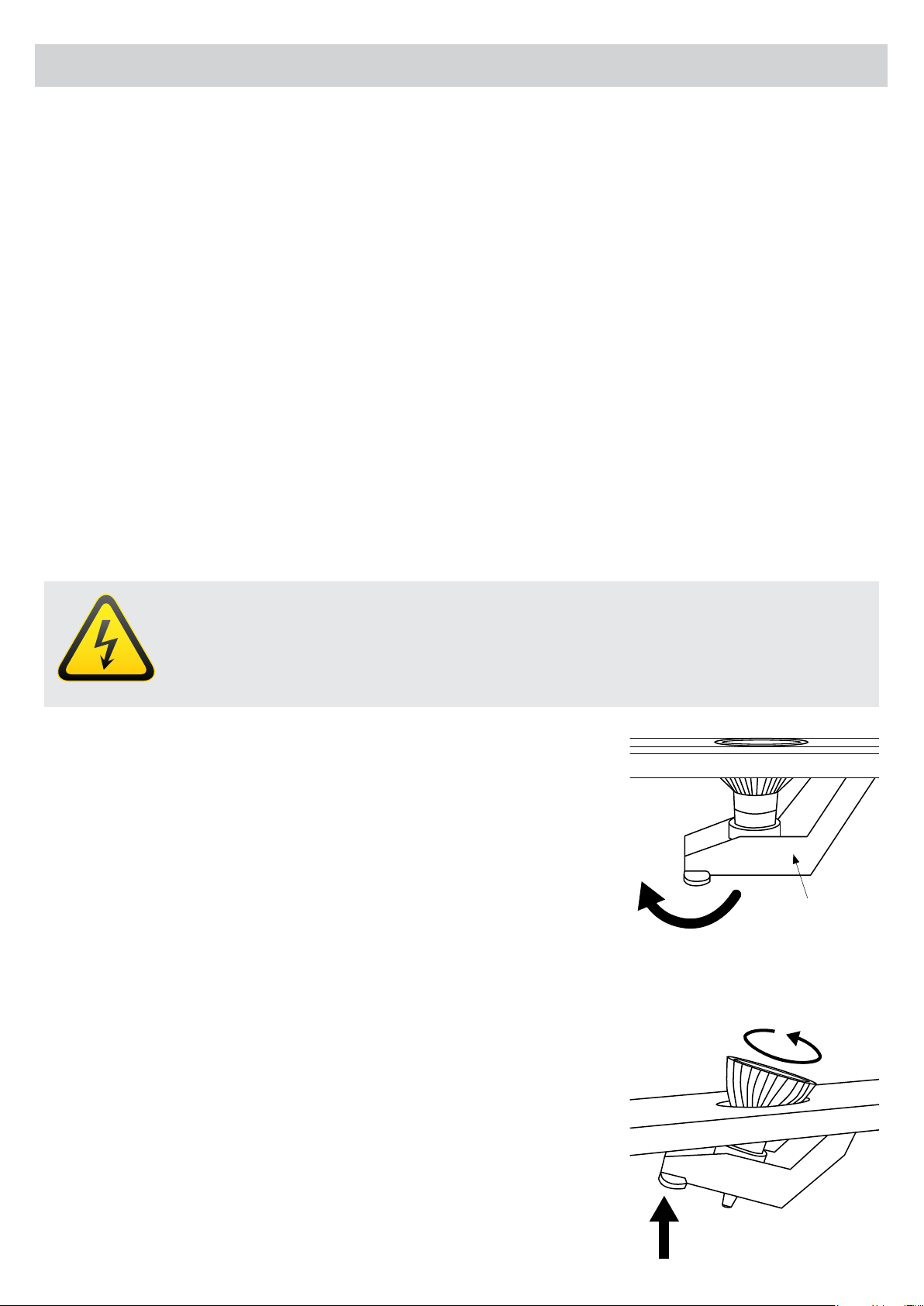

Remove the lters from the rangehood. Gently push the light tting
upwards, see gure on the right.
NOTE: Please use halogen of the same specication as those installed
as standard in the rangehood.
Step 2
While holding the light holder upwards, gently turn light bulb anti-
clockwise and remove it from the light holder. Insert a new light bulb by
lining up the pins of the light bulb with the larger holes inside the light
holder. Once the pins are in place, turn clockwise to secure the light
bulb.
DANGER
Always switch off and disconnect the power supply before replacing any light bulbs. Failure
to do so may cause serious injury. Please be aware that the light bulb will retain heat for a
short period of time after being switched off.
For Users
• This product is designed for domestic use only and should NOT be used outside or for commercial
applications.
• After use, always ensure controls are left in the “OFF” position. When frying with a gas ame, take particular
care not to allow the oil or grease in the pan to catch re. (Flambé)
• Do not leave the frying pan or fryer unattended, as the oil could overheat and catch re.
• Never ambé any foods beneath the rangehood. The ames can cause a re.
• Before carrying out any operations inside the rangehood, unplug the appliance from the electrical mains.
• Adhere to the cleaning frequencies and intervals for changing lters, otherwise the accumulated grease can
cause a re or damage the product.
• Any alterations made to the rangehood will void the warranty.
Light tting
Page 8
4. Description
Main Rangehood
Male Plug (Main Power 240V)
Halogen lights
1
Ducting Outlet 120mm
2
Filters
3
4
NOTE: Filter and light quantity may vary from model to
model.
12
3
4
Page 9
5. Operation
Switch Control
This rangehood is tted with a limit switch. Retracting
telescopic arm will cut off power to the motor. The
limit switch does not cut power to the lighting.
This rangehood is operated by means of switch
controls located in the front part of the rear panel,
behind the slide out panel. To turn off the hood, use 0
switch, or push in the telescopic element. To start the
rangehood, extend the telescopic element and select
a motor speed (I, II or III). The light can be switched on
using the switch.
Light
Fan
Page 10
6. Installation
Mounting Instructions

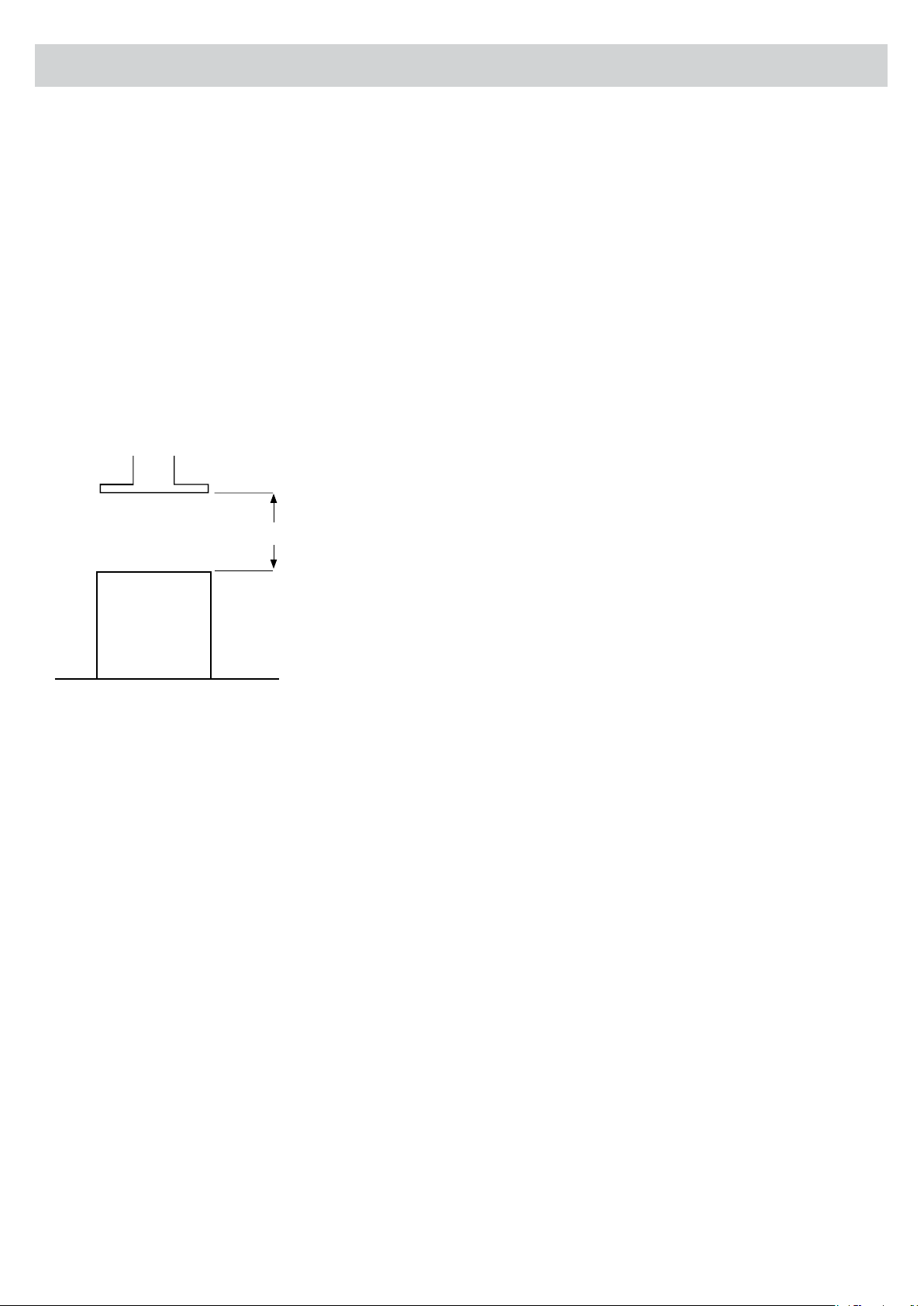

This rangehood is designed for installation between 650 to 750mm above the cooking surface. Any installation
above 750mm will compromise extraction performance.
Minimum height from the cooktop surface to the underside of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop

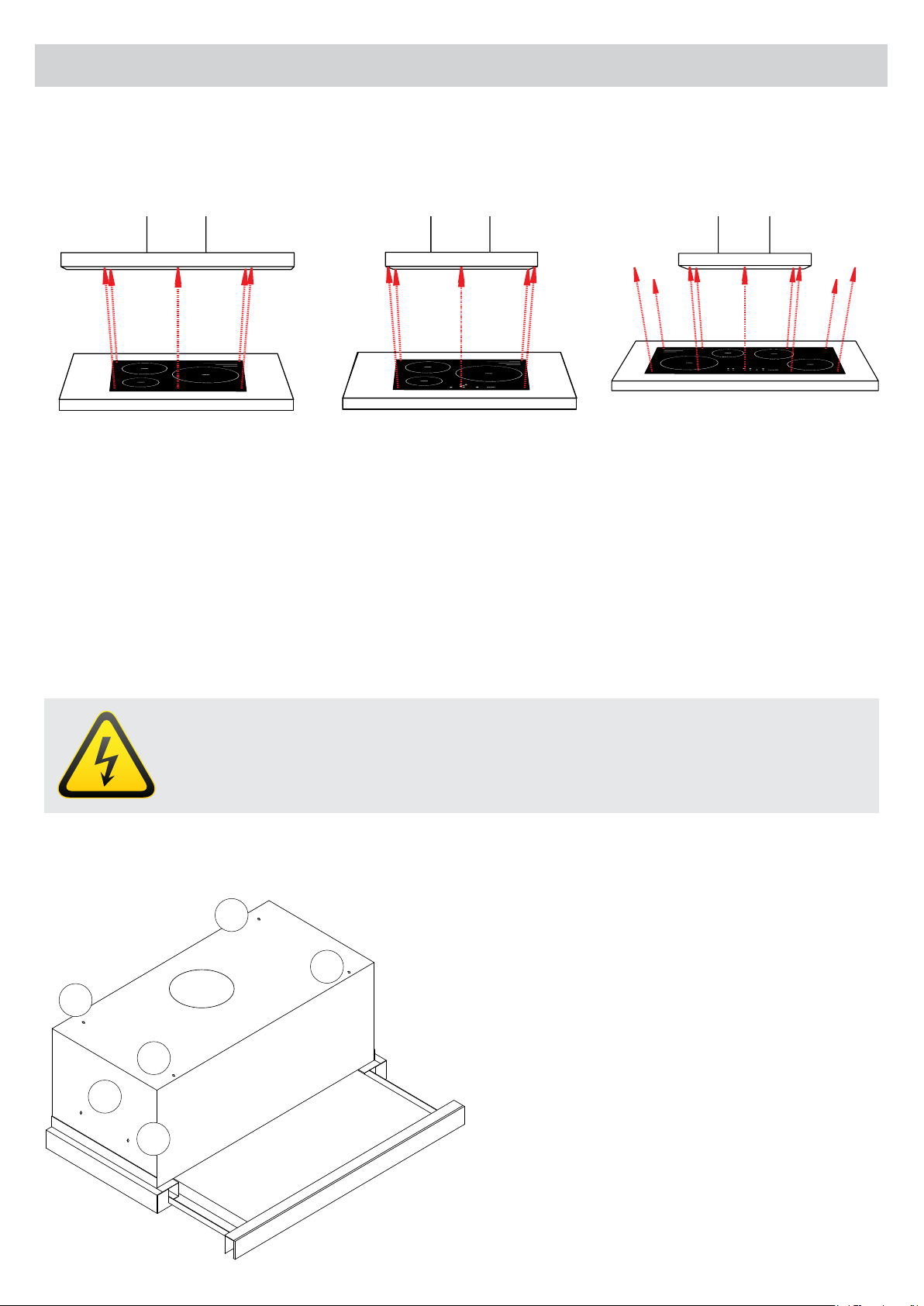

Induction Cooktop
Suggested installation height for induction cooktops is 700mm. For more information, please refer to
“Cooking with Induction Cooktops”.
NOTE: If the instructions for the gas hob specify a greater distance, this must be taken into account.
• The installation location must have permanent openings for ventilation.
• Regulations concerning the expelling of air have to be fullled.
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop, this will
greatly improve its performance.
*IMPORTANT: If the user decides to install the rangehood at a
distance less than the minimum height specied above the cooking
surface, Scandium declines responsibility for any damages suffered by
the rangehood due to excess heat or damage to objects, people and
others caused directly or indirectly by a malfunction, breakage or re.
Cooktop
Rangehood
Distance
Page 11
6. Installation
OPTIMAL
Rangehood bigger than the
cooking area.
ADEQUATE
Rangehood equal to the
cooking area.
NOT RECOMMENDED
Rangehood smaller than the
cooking area.
For Installers
• In addition to size, the height of the rangehood above the cooktop is important to obtain the best performance.
Mounting Points
DANGER
Always switch off and disconnect the power supply before installing the rangehood. Failure
to do so may cause serious injury.
NOTE: Please make sure all plastic protection on the rangehood and lters in removed before use.
*IMPORTANT: Please check all State and Federal Laws in relation to the minimum and maximum
installation heights, regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.
A
B
C
D
E
F
Mounting points for the cabinet
A, B, C, D, E, F.
Page 12
6. Installation
Installation Guide
WARNING
Please remove lters before installations. Failure to do so may damage the lters.
Step 1
To install the back draft and ducting adaptor, place it on
top of the outlet and gently press the sides to clip it onto
the outlet.
Step 2
Prepare cabinetry.
Step 3
Insert rangehood into cabinetry.
Back draft and
ducting adapter
120 + 10mm
560 + 2mm
130 + 2mm
120 + 10mm
Page 13
6. Installation

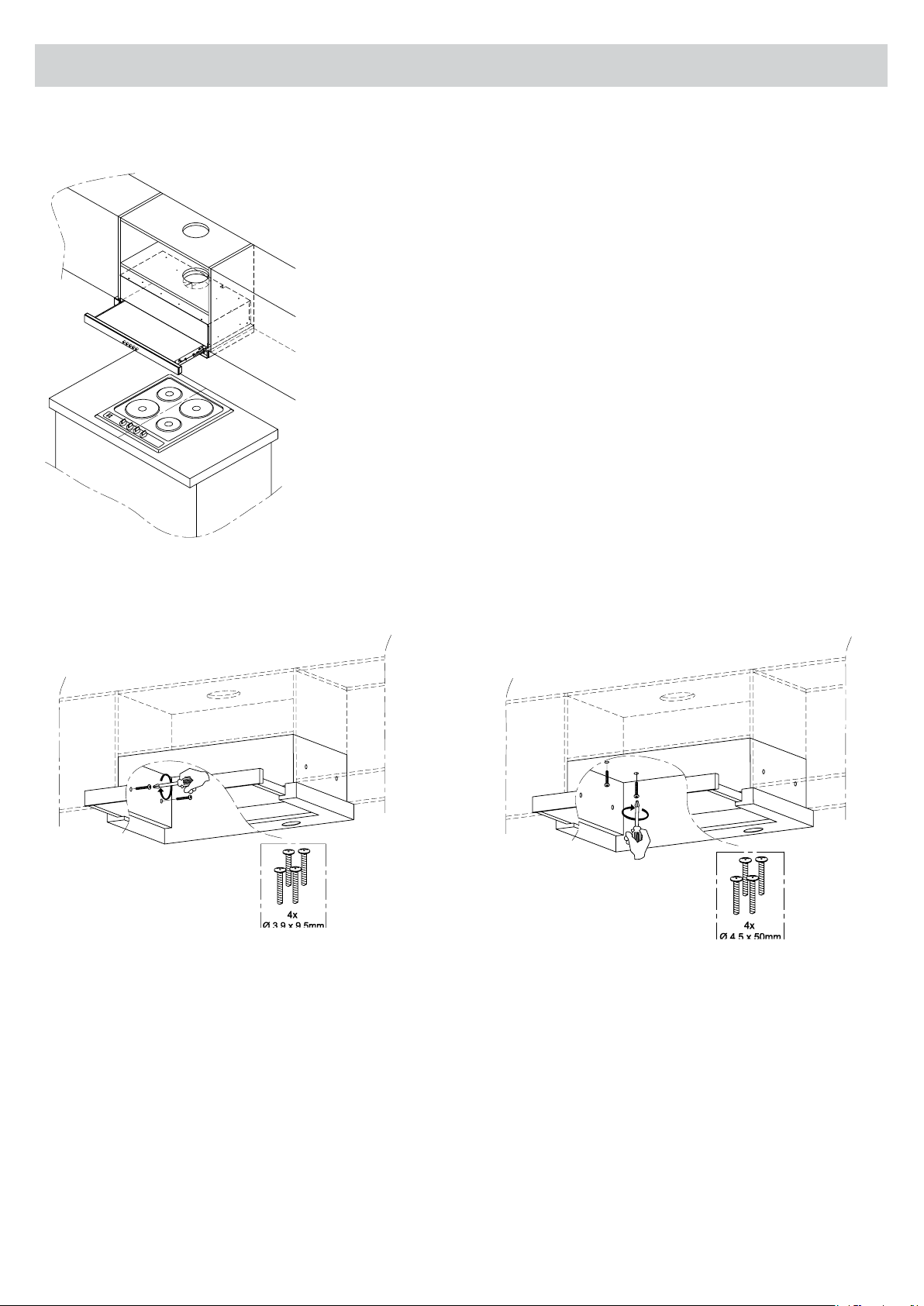

Step 4
Secure the side of the rangehood by
using the screws provided.
Secure the top of the rangehood by
using the screws provided.
Fix rangehood into cabinetry
using mounting points.
Page 14
6. Installation
Step 5
Attach the ducting to adaptor and feed through the cabinetry. Keep ducting length to a minimum, no longer
than 3m. DO NOT reduce ducting diameter. DO NOT kink ducting and avoid sharp bends.
Page 15
6. Installation

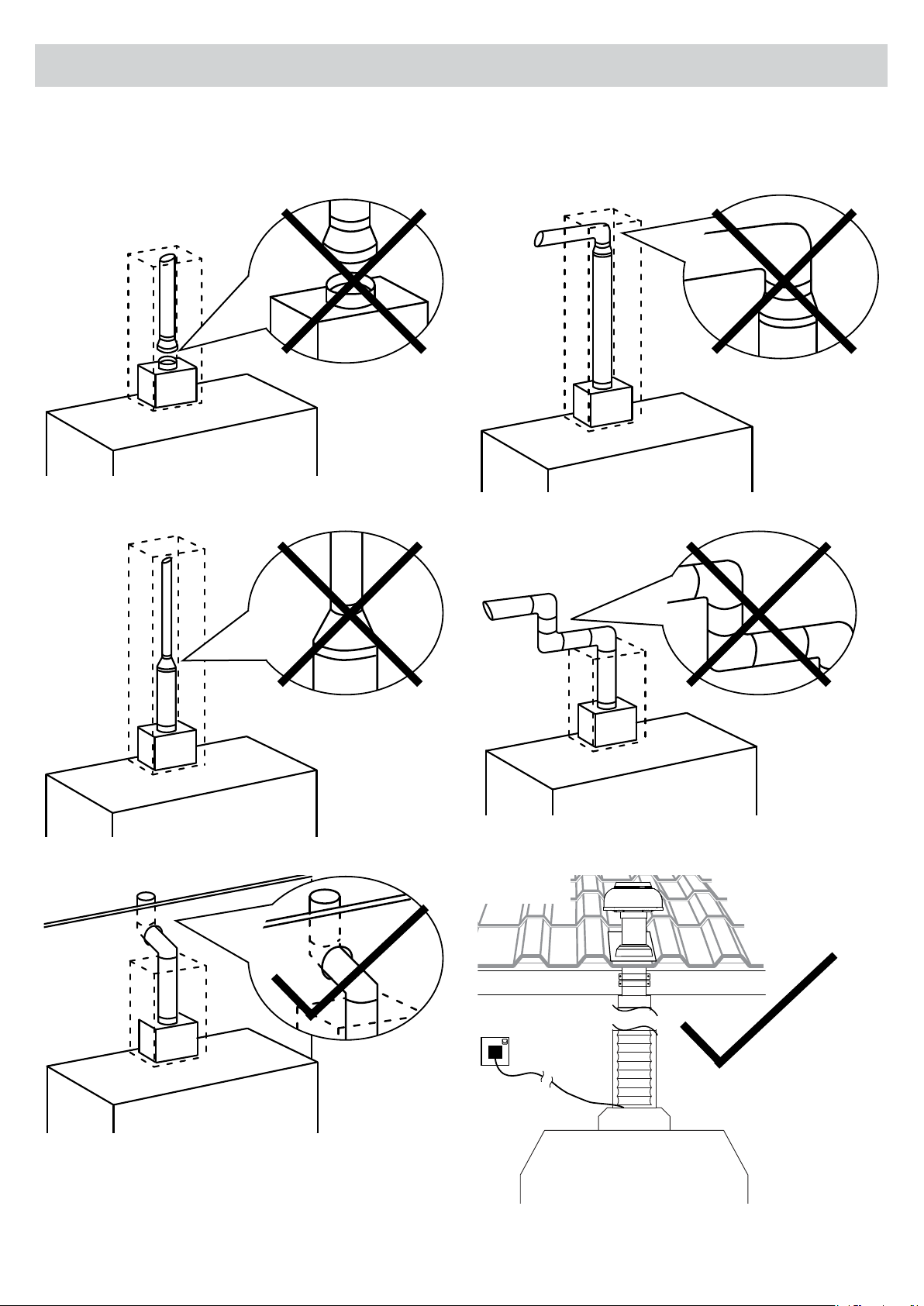

Figure 1
Figure 3 Figure 4
Figure 2
Figure 5
Ducting Installation
Figure 6
Page 16
6. Installation

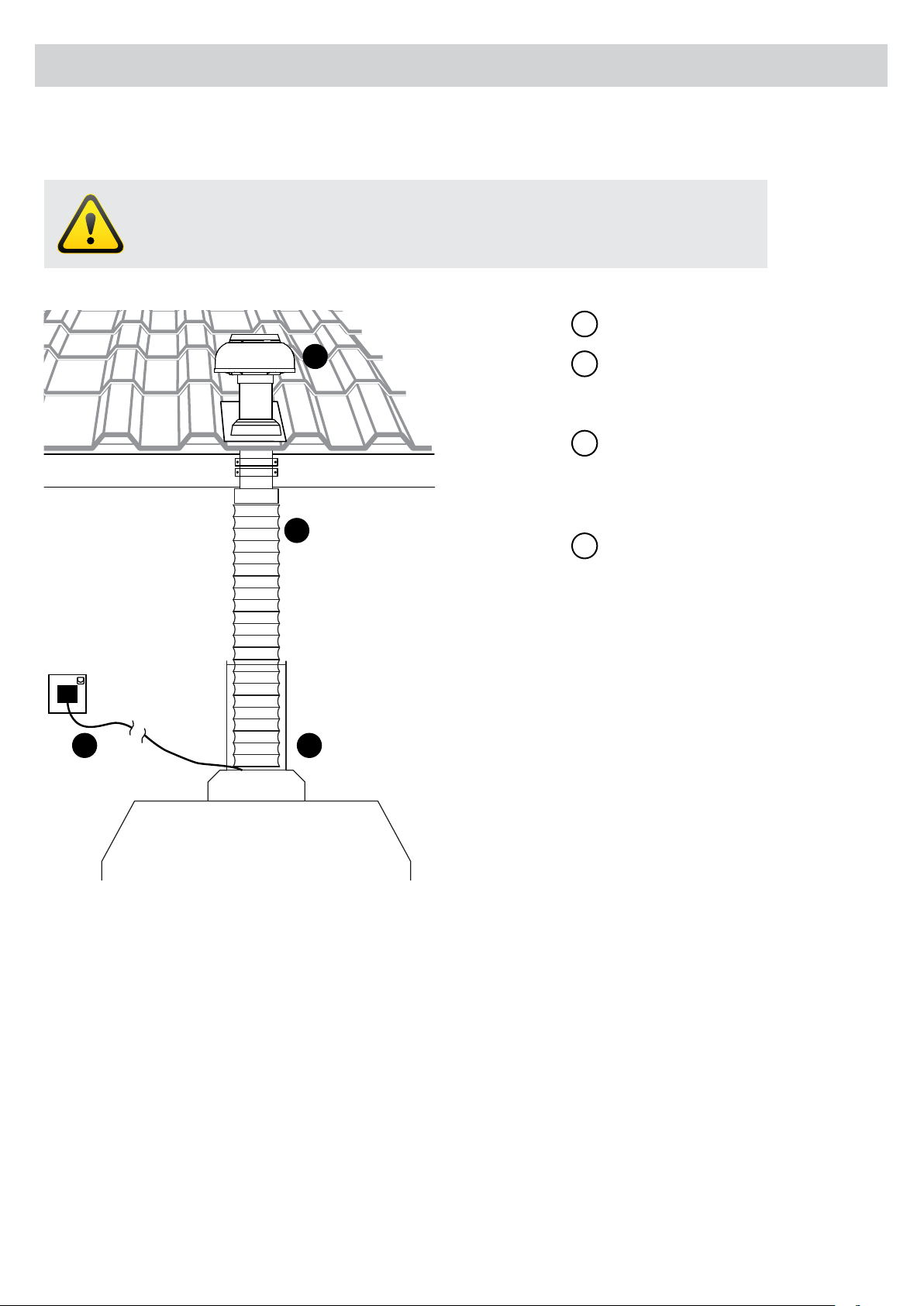

Roof Cowls / Roof Seal
1
2
34
*NOTE: Motor system does not include the roof seal/roof cowls, cable tie, duct tape or the support straps.
For best result, please install ducting in a straight line and duct length no longer than 3 metres.
Do not reduce the ducting diameter, this will reduce airow.
Main Power Lead (Male Plug)
Roof Cowls*
Flexible Ducting must be pulled
taut. DO NOT crush or kink the
ducting.
Connect exible ducting to the
outlet on rangehood using duct
tape or cable ties. Please DO NOT
rip the ducting.
4
1
2
3
WARNING
Electrical connection MUST be accessible.
Page 17
Ducting

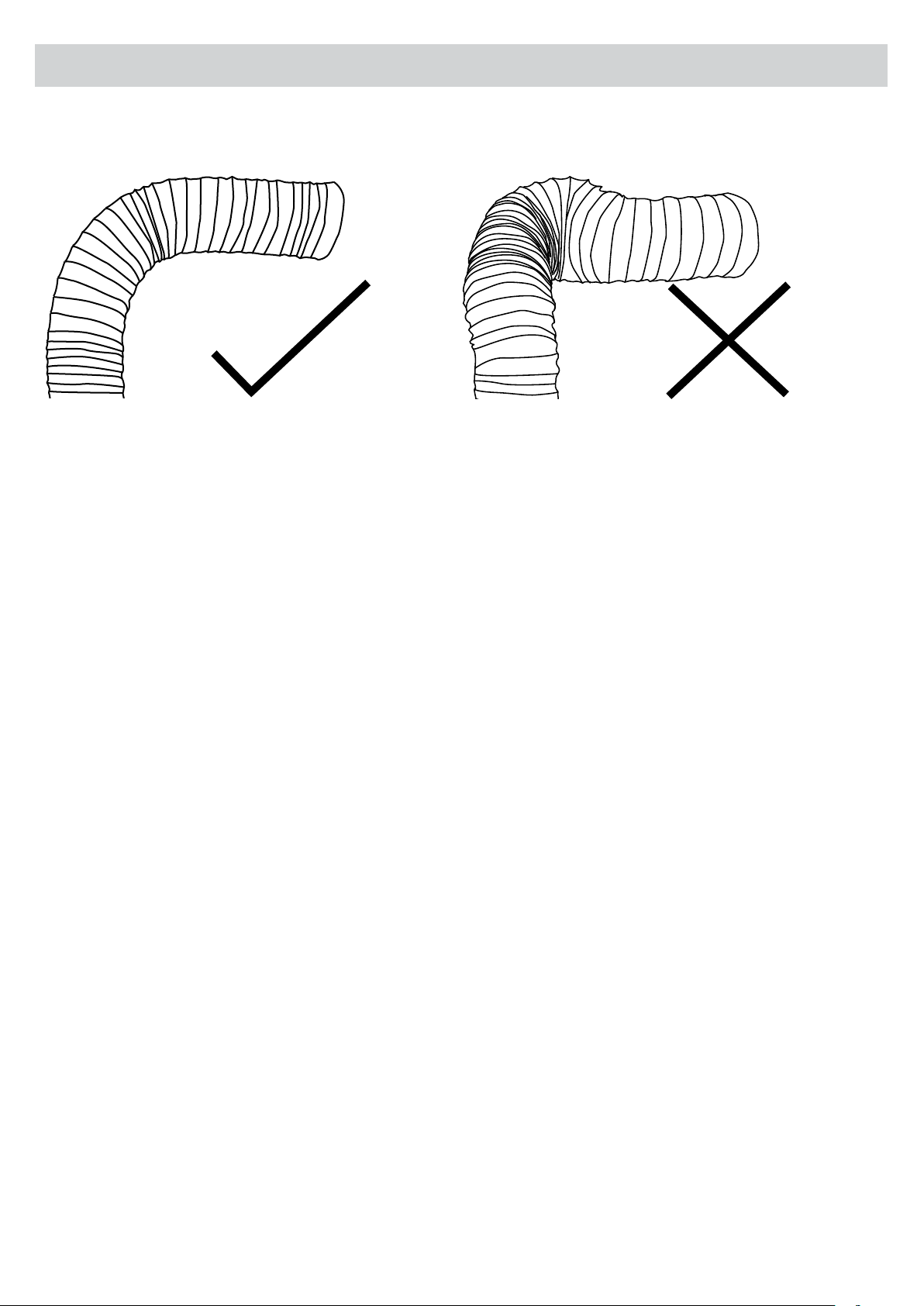

Please DO NOT crush or kink ducting, as it will reduce air ow and may cause noise to occur through the
system. Ducting needs to be kept taut at all times.
6. Installation
Page 18
7. Condensation Information
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces
vapours rapidly. Because of this rapid process, the rangehood lters do not have enough time to warm, which
increases the chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but are not
limited to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Installation distance from cooktop to the rangehood
• Speed of food & liquid heating
• Angle of ducting – Scandium ‘S’ bend preferred
• Filter size - larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following the installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 5-10 minutes after cooking; this
helps clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to warm up.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact your induction
cooktop manufacturer.
Page 19
8. Troubleshooting
Faulty Installation
It is not the responsibility of Scandium to rectify any incorrect installations. A service call out fee will be
charged for any Scandium technician that attends a call, whereby it is established that the fault is due to an
incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the
service agent is unable to gain access to the appliance, the person/s who own the premises or the property
where the appliance resides — will be responsible to provide access to the appliance at their expense.
Service
In the event that the failure is not due to the faults mentioned in Troubleshooting, please contact customer
service.
A service request will require the purchase date, the rangehood model, motor type and the rangehood serial
number or batch number (this information is printed on a label inside the rangehood).
Troubleshooting
If the product does not work:
Before you contact the service centre, make sure the product is plugged in, the electrical fuse (on selected
models) is in correctly and electrical wiring is connected. Do not take any action that will damage the product.
Check electrical connection. Voltage of the
electrical network should be between 220 - 240V.
Rangehood should be connected to grounded
plug and turned on.
Check motor switch. Please ensure that there is
power to the rangehood and the rangehood is
switched on.
Check lamp switch. Lamp switch should be at
on position.
Check metal lters. Metal lters should be
washed regularly, see lter cleaning.
Check lamps. Lamps should be rm.
Check outlet. Outlet should be open.
Check lamps and fuse. Make sure they are not
broken or faulty.
Please make sure there is no obstruction in
ducting or back draft ns.
Check the outlet, make sure it is not blocked
and you have the correct diameter ducting
installed.
Rangehood does not work X X
Lights do not work X X X X
Rangehood air suction is weak X X X X
Rangehood does not expel air out (through
chimney) X X
Loud noises from the rangehood X
Page 20
9. Specications
Technical Specications
Model SCRH60
Feeding Voltage 240V 50Hz
Lamp Power — Halogen (W) 2 x 20W (supplied)
Weight 6.7kg
Measurements in mm.
Table of contents
Other Scandium Ventilation Hood manuals
