Scandium SCUM-9C Owner's manual

INSTALLATION · OPERATION · MAINTENANCE GUIDE
UNDERMOUNT RANGEHOOD
SCUM-9C

Page 2
Index
1. Welcome..........................................................................................................................................3
2. Before Installation............................................................................................................................4
3. Maintenance and Service .................................................................................................................5
Electrical Cord.....................................................................................................................................................6
For Users..............................................................................................................................................................6
Replacing the Light Bulb....................................................................................................................................7
4. Description & Installation.................................................................................................................8
Main Rangehood ................................................................................................................................................8
Speed Control.....................................................................................................................................................8
5. Operation ........................................................................................................................................9
Push Button Control Panel.................................................................................................................................9
6. Installation .......................................................................................................................................10
Cutout Size..........................................................................................................................................................10

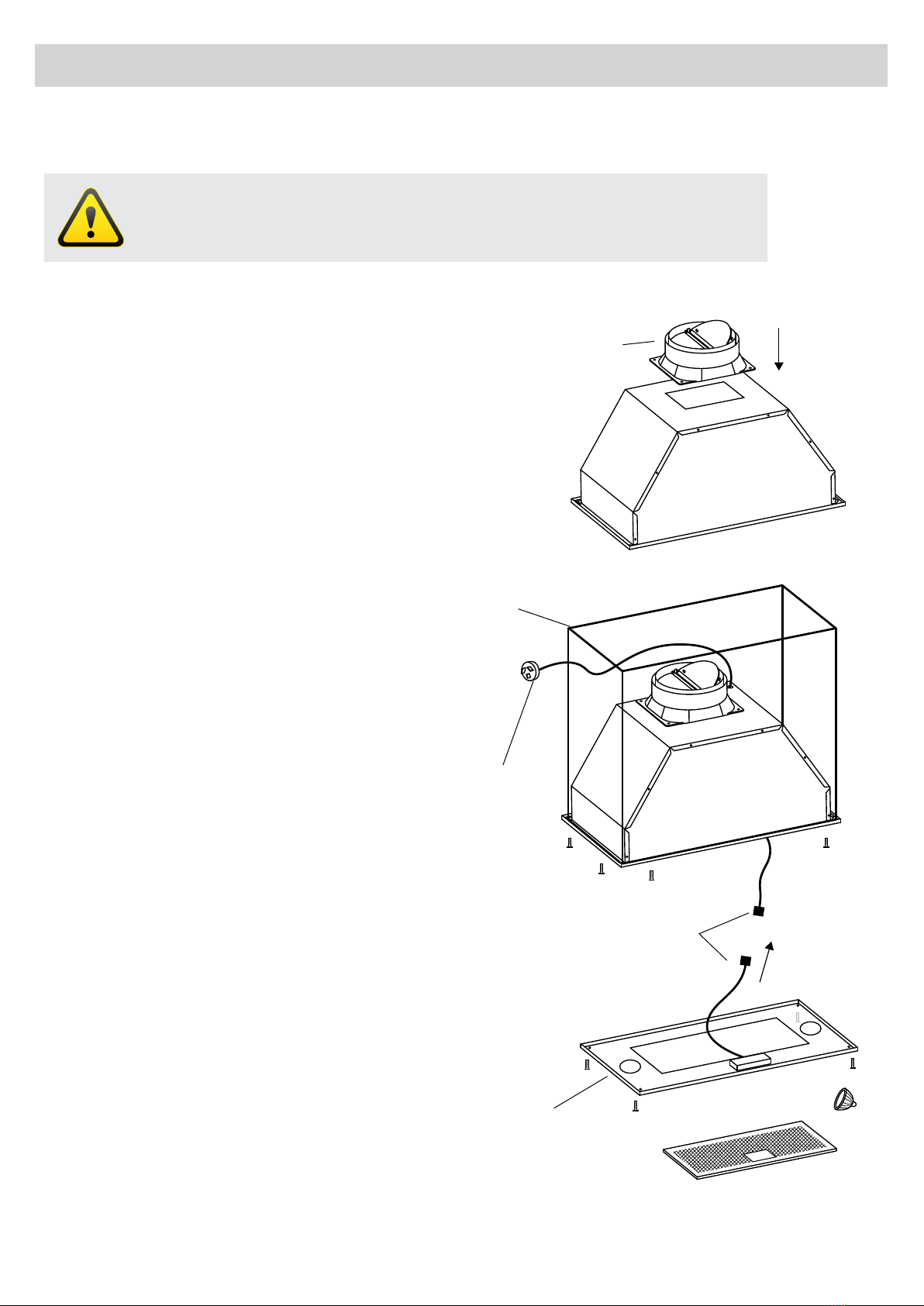

Mounting Instructions ........................................................................................................................................10
Overhead Cabinet Rangehood Installation Position ......................................................................................11
For Installers........................................................................................................................................................12
Mounting Points ................................................................................................................................................12
Installation Example ..........................................................................................................................................13

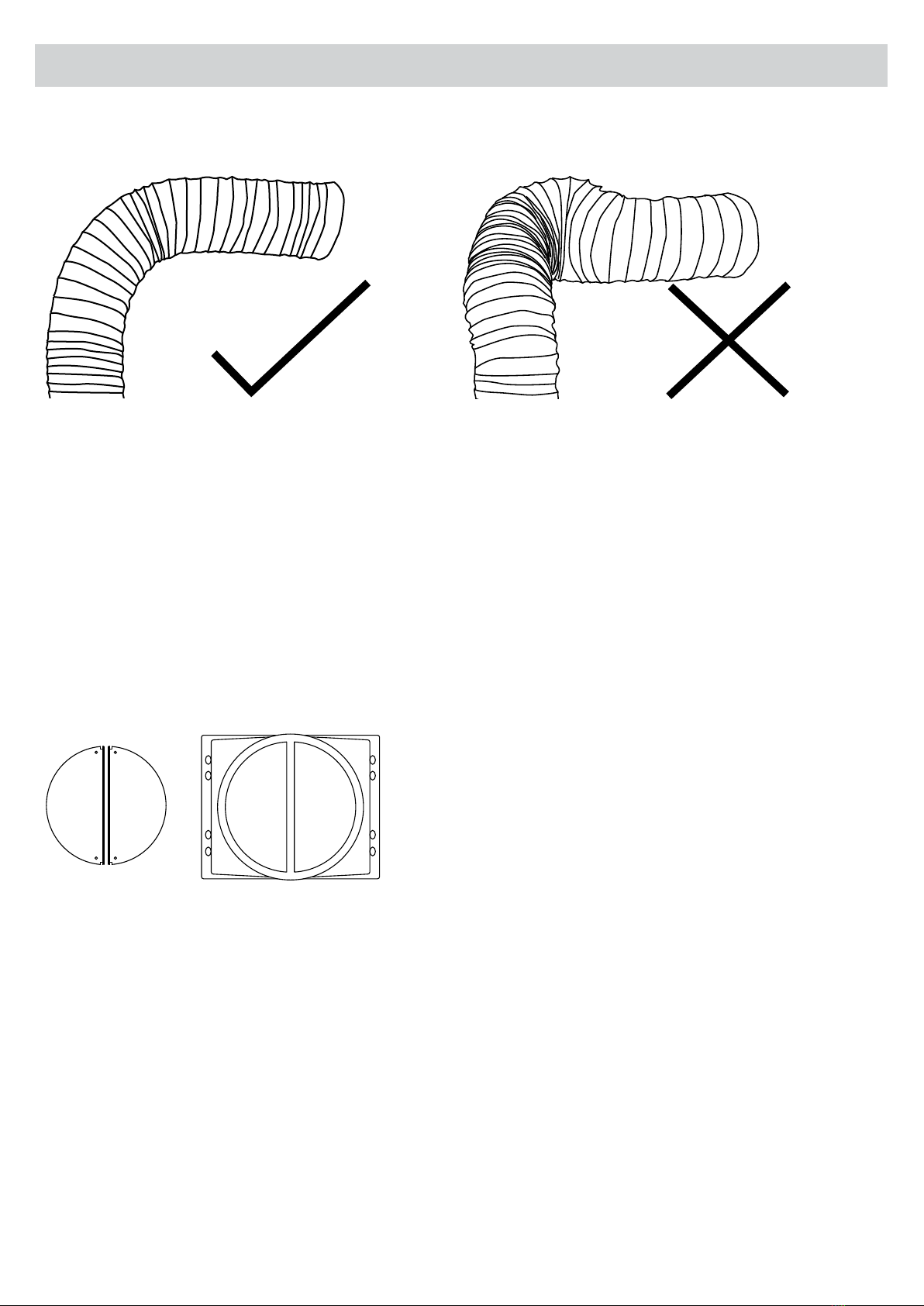

Ducting ................................................................................................................................................................14
Back Draft Fins ....................................................................................................................................................14
Installation Advice ..............................................................................................................................................15
Adding Charcoal Filters (optional) ....................................................................................................................15
Example Installation ...........................................................................................................................................16
Roof Cowls / Roof Seal Kit .................................................................................................................................17
7. Condensation Information ...............................................................................................................18
Cooking with Induction Cooktops ....................................................................................................................18
8. Troubleshooting...............................................................................................................................19
Service ................................................................................................................................................................20
Faulty Installation ...............................................................................................................................................20
9. Specications...................................................................................................................................21
Technical Specications .....................................................................................................................................21
10. Disclaimer ........................................................................................................................................22

Page 3
1. Welcome
Welcome
Thank you for purchasing this Scandium appliance.
To achieve the optimal performance from your appliance, and to avoid the risk of accident or damage, it is
essential to read this manual before installation and rst time use.
This guide contains important information on the use and maintenance of the appliance, as well as important
safety notes.
Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving
the manufacturer.
Please keep this instruction manual in a safe place so you can refer to it at any time.
ATTENTION
Installation, regulation or maintenance, of both gas and electric appliances, should
only be executed by qualied and authorised personnel who are aware of the
installation regulations in force.
Please make sure to read this booklet carefully, containing general instructions for the
Installation, Operation and Maintenance of your appliance, before installation and
operation.
It is extremely useful to know, in detail, the best way of operating and maintaining
this appliance so you can enjoy its benets and be assure of the best results.
Please keep this instruction booklet with the appliance in case you pass it on to
someone else.

Page 4
2. Before Installation
Important
• IMPORTANT: Upon collection or delivery of the appliance, any damage or defects MUST be reported
within 48 hours to the retailer or the customer service centre, or no claim will be recognised.
• Before installing the electrical connections, you should:
– Verify that the indicated electrical data coincides with the voltage values and frequency of the electrical
circuit in the house where the rangehood is to be installed.
– Check that the premises has electrical protection against short circuits and electrocution, pursuant to the
applicable legislation.
– Always switch off the current using the double-pole switch before maintenance and turn the power on
again for normal use only when the operation has been completed.
• DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
• If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs
associated with the repair, replacement, removal or re-installation of the appliances.
• Please read the entire instructions before installing the rangehood, always switch power off prior to
installation. All electrical work must be done by a registered electrician in accordance with local and national
electrical codes as applicable. For your safety, this product must be earthed.
• The power socket must be accessible and enable the end user to isolate the rangehood from the power for
the purpose of internal cleaning or maintenance.
• A power outlet should be within reach of the power cord exit from the rangehood.
• Check the contents of the packaging, check all electrical functions of the rangehood before installation.
• The rangehood is heavy. Please ensure adequate care when installing to prevent personal injury.
• The rangehood is not intended for use by persons (including children) with reduced physical, sensory
or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• There must be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels.
• There is a re risk if cleaning is not carried out in accordance with the instructions. You MUST read the
details concerning the method and frequency of cleaning.
• Do not ambé under the rangehood. This will void the warranty.
• Exhaust air must not be discharged into an existing ue which is used for exhausting fumes from appliances
burning gas or other fuels.
• The minimum distance between the hob surface and the lowest part of the rangehood is 650mm. This
distance should be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the
gas hob specify a greater distance, adhere to those instructions.
• Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air
is fullled. Even a partial obstruction will restrict the efciency of the rangehood.
• Stainless steel is very easily damaged during installation if scratched or knocked by tools. Protect the

Page 5
3. Maintenance and Service
rangehood with the cardboard box or plastic bag during installation.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• We recommend this appliance be installed and repaired by a qualied technician.
• It is dangerous to modify any part of this appliance. Modication of any kind, will void the warranty.
• The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
• Please consult local laws and regulations and install in accordance.
• Use an electrical connector with earth that is correct for your location.
• Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
• This appliance must be connected to an electricity supply with a ground connection.
• Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with the
applicable legislation.
• The company will not be responsible for installations executed by non-qualied persons and installations
that fail to heed the applicable legislation on electrical safety (with regard to both modes and materials).
• The electrical technical data can be found inside the rangehood, after removing the grease lters.
• The exible power cable supplied is already connected internally and emerges from the rangehood near the
air outlet tube.
Maintenance and Service
• Always switch off and disconnect power before cleaning.
• The rangehood surface should be cleaned with a soft cloth and non-corrosive detergent. Wash with warm
soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any
part of this appliance. Always make sure to dry the appliance after cleaning and never leave wet, as this will
cause irreparable damage.
• Clean the interior of the rangehood with a damp cloth and a neutral detergent.
• For better results, you can use a high quality cleaning and protection product (eg. Steel Kleen) to clean
rangehood.
• Do not leave the rangehood surface wet after cleaning.
• Particular care must be taken with the aluminium lters which must be periodically cleaned (at least every
month, this will vary depending on cooking frequency and type of foods cooked).

Page 6
• Remove the grease lters and wash them either by hand using hot soapy water or in the dishwasher using
mild detergent. DO NOT scrub.
NOTE: some discolouration of the frame may occur when washing in the dishwasher.
CAUTION
Never use abrasive or oil based liquid cleaners.
• If the grease lters are very dirty, the motor will extract only a small quantity of air, which reduces its
efciency. The grease deposits that build up on the lter are highly ammable and COULD EASILY CATCH
FIRE. The manufacturer is not responsible in the event of re due to poor maintenance of the grease lters.
• To remove the lter, gently press down on the lter clip and pull the lter down and out. To reinstall the lter,
place back of the lter in then push it back in place.
• IMPORTANT: Never attempt to repair this appliance by yourself. Always refer to a qualied Service
Technician. Remember to always switch off the electricity and unplug the connection before conducting
maintenance or cleaning.
Electrical Cord
Ensure the electrical cord is not exposed to heat, chemicals or sharp objects. If the electrical cord is damaged,
it must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a
hazard.
For Users
• This product is designed for domestic use only and should not be used outside or for commercial
applications.
• After use, always ensure that all controls are in the “OFF” position. When frying with a gas ame, take
particular care not to allow the oil or grease in the pan to catch re. (Flambé)
• Do not leave the frying pan or fryer unattended, as the oil could overheat and catch re.
• Never ambé any foods beneath the rangehood. The ames could cause a re.
• Before carrying out any operation inside the rangehood, unplug the appliance from the electrical mains.
3. Maintenance and Service

Page 7
3. Maintenance and Service
Replacing the Light Bulb
Step 2
Gently turn light bulb anti-
clockwise, pull the light bulb
down and remove it from the light
holder.
Step 3
Insert a new light bulb by lining
up the pins of the light bulb with
the larger holes inside the light
holder. Once the pins are in place,
turn clockwise to secure the light
bulb.
Step 1
Remove the lters from the
rangehood.
DANGER
Always switch off and disconnect the power cord before replacing any light bulbs. Failure
to do so may cause serious injury. Please be aware that the light bulb will retain heat for a
short period of time after being switched off.
• Adhere to the cleaning frequencies and intervals for changing the lters, as otherwise the accumulated
grease could cause a re or damage the product.
• Any alterations made to the rangehood will void the warranty.

Page 8
4. Description & Installation
Main Rangehood
Speed Control
This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speed for heavy frying or heavy cooking.
Male Plug (Main Power 240V)
GU 10 halogen light
1
Single Outlet 150mm
2
Filter
3
4
NOTE: Filter and light quantity may vary from model to
model.
1
2
3
4

Page 9
5. Operation
Push Button Control Panel
Turn off the rangehood
High speed setting
Medium speed setting
Low speed setting
Turn on/off the lamp

Page 10
6. Installation
Mounting Instructions
The rangehood is designed for installations between 650 to 750mm above the cooking surface. Any
installation above 750mm will compromise the extraction performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Induction Cooktop
Suggested installation height for induction cooktop is 700mm. For more information, please refer to “Cooking
with Induction Cooktops”.
NOTE: If the instructions for the gas hob specify a greater distance, this must be taken into account.
• The location of the installation must have permanent openings for ventilation.
• Regulations concerning the expelling of air have to be fullled.
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop, this will
greatly improve its performance.
*IMPORTANT: If the user decides to install the rangehood at a
distance of less than minimum height above the cooking surface,
Scandium declines responsibility for damages suffered by the
rangehood due to excess heat or damage to objects, people and
others caused directly or indirectly by a malfunction, breakage or re.
Cooktop
Rangehood
Distance
494mm approx.
269mm approx.
Cutout Size
Use this as a guide only when designing your cabinet. We advise you to take the rangehood to your cabinet maker
so they can tailor the cabinet to t correctly.
Note: Please make sure that all plastic protection on the rangehood and lters are removed before use.
Dimensions may be subject to change.

Page 11
6. Installation
Overhead cabinet Rangehood Installation position
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account for all
circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
STANDARD*
310mm
600mm
Side View
GOOD
600mm
400mm
Side View
BETTER
600mm
450mm
Side View
BEST
600mm
500mm
Side View
When the overhead cabinetry is constructed and installed deeper than standard, ensure the rangehood
is installed as close to the front as possible. This will increase the rangehood extraction results as there is
a greater coverage of the cooktop surface area.
*Overhead cabinets standard depth are approximately 300-310mm. This provides poor extraction
for the rangehood as the surface area of the cooktop is not covered, particularly the front
burners.

Page 12
6. Installation
OPTIMAL
Rangehood bigger than the
cooking area.
ADEQUATE
Rangehood equal to the
cooking area.
NOT RECOMMENDED
Rangehood smaller than the
cooking area.
For Installers
• In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance.
FRONT VIEWSIDE VIEW
FRONT VIEWSIDE VIEW
FRONT VIEWSIDE VIEW FRONT VIEWSIDE VIEW
Mounting Points
DANGER
Always switch off and disconnect the power supply before installing the rangehood. Failure
to do so may cause serious injury.
NOTE: Please make sure all plastic protection on the rangehood and lters are removed before use.
*IMPORTANT: Please check all State and Federal Laws in relation to the minimum and maximum
installation heights, regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.

Page 13
FRONT VIEWSIDE VIEW FRONT VIEWSIDE VIEW
FRONT VIEWSIDE VIEW FRONT VIEWSIDE VIEW
Installation Example
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
Male Plug
(Main power)
Back Draft Base
Cabinet
Face Plate
6 pin connector
Step 2
Secure the undermount into cavity using screws.
All screws are installed from the bottom of the
rangehood into the cabinet.
Step 3
Connect the 6 pin connector (on the face plate)
to the rangehood before securing the face plate
to the cabinet using provided screws. Insert the
light globes and lter into place last.
Step 1
Please make sure the cut out size is correct
before installing the rangehood.
Install the back draft base to the rangehood.
FRONT VIEWSIDE VIEW
FRONT VIEWSIDE VIEW
WARNING
Please remove lters before installations. Failure to do so may damage the clips.
6. Installation

Page 14
Ducting
Please DO NOT crush or kink ducting, as it will reduce air ow and may cause noise to occur through the
system. Ducting needs to be kept taut at all times.
Back Draft Fins
Back Draft Fins
Should your Back Draft Fins get stuck, this is not a warranty issue.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation.
NOTE: Please make sure when ducting is installed, that it does not impede the Back Draft Fins
from operation.
Back Draft Base
6. Installation

Page 15
Installation Advice
• Never reduce ue diameter right next to the rangehood outlet tting, refer to gure 1.
• Never t reductions next to curves or bends in the installations. They must always be in straight sections and
as far as possible from the rangehood, refer to gure 2.
• Avoid excessive reduction of the ue size, as this drastically reduces extraction capacity, refer to gure 3.
• You should not have more than one bend in the installation, refer to gure 4.
• Keep the curves or bends to a minimum. If they do exist, try to keep the angles as open as possible, refer to
gure 5.
• Keep ducting as short as possible, refer to gure 6.
Adding Charcoal Filters (optional)
If you are using the appliance in the recirculation mode, a carbon lter must be tted.
• Detach the grease lter rst.
• Press the lock and pull it downward.
• Plug the activated carbon lter into the unit and turn it in a clockwise direction.
• Repeat the same on the other side.
• Please ensure that the lter is securely locked, otherwise it can come loose and become a hazard.
• When the carbon lter is attached, the suction power may be lower.
• Please replace the carbon lter every 4 to 6 months; depending on cooking frequency & method, you may
need to replace the lter more or less frequently.
6. Installation

Page 16
Figure 1
Figure 3 Figure 4
Figure 2
Figure 5
Example Installation
Figure 6
6. Installation

Page 17
6. Installation
Roof Cowls / Roof Seal Kit
1
2
34
WARNING
Electrical connection must be accessible.
*NOTE: Motor system does not include the roof seal/roof cowls, cable ties, duct tape or support straps.
For best result, please install ducting in a straight line and duct length no longer than 3 metres.
Do not reduce the ducting diameter, this will reduce airow.
Main Power Lead (Male Plug)
Roof Cowls*
Flexible Ducting must be pulled
taut. DO NOT crush or kink the
ducting.
Connect exible ducting to
the outlet on rangehood using
aluminium foil tape and cable ties.
Please DO NOT rip the ducting.
4
1
2
3
Maximum of 4
metres of ducting
for best result

Page 18
7. Condensation Information
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces
vapours rapidly. Because of this rapid process, the rangehood lters do not have enough time to warm up,
which increases the chance of condensation forming.
There are many variables that may contribute to condensation forming, some of which include but are not
limited to:
• Variance in climate – geographical location
• Position of your home & kitchen – morning/afternoon sun
• Installation distance from cooktop to the rangehood
• Speed of food & liquid heating
• Filter size - larger canopy preferred
• Quality of pots or cookware you are using – high quality recommended
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following the installation guide
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 5-10 minutes after cooking; this
helps clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to warm up.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer advice.
For further advice, tips or information regarding cooking with induction, please contact your induction
cooktop manufacturer.

Page 19
8. Troubleshooting
Troubleshooting
If the product does not work:
Before you contact the customer service centre, make sure the product is plugged in, the electrical fuse (on
selected models) is in correctly and electrical wiring is connected. Do not take any action that will damage the
product.
Check electrical connection. Voltage of the electrical network should be between 220 - 240V. Rangehood should be connected to grounded plug and turned on. Check motor switch. Please ensure that there is power to the rangehood and the rangehood is switched on. Check lamp switch. Lamp switch should be at on position. Check metal lter. Metal lter should be washed regularly, see lter cleaning. Check lamps. Lamps should be rm. Check outlet. Outlet should be open. Check lamps and fuse. Make sure they are not broken or faulty. Please make sure there is no obstruction in ducting or back draft ns. Check the outlet, make sure it is not blocked and you have the correct diameter ducting installed.
Rangehood does not work X X
Lights do not work X X X X
Rangehood air suction is weak X X X X
Rangehood does not expel air out (through
chimney) X X
Loud noises from the rangehood X

Page 20
8. Troubleshooting
Service
In the event that the failure is not due to the faults mentioned in Troubleshooting, contact the customer
service centre.
In Australia,
Customer Service 1300 829 066
In New Zealand,
Customer Service 0800 200 510
Lodging an Online Service Request
In the event that failure is not due the reason/s in the trouble shooting section, you can lodge an online
Service Request. To lodge Service Request, visit our website www.scandiumappliances.com.au/service-request
and click on the link and complete the service request form.
A service request will require the following information:
• The purchase date
• The model number
• The serial number or batch number (is on either the sticker on the bottom edge of the door or back of oven
or inside the rangehood).
• A copy of the purchase receipt (without a receipt your service request cannot be processed).
Faulty Installation
It is not the responsibility of Scandium to rectify any incorrect installations. A service call out fee will be
charged for any Scandium technician that attends a call, whereby it is established that the fault is due to an
incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the
service agent is unable to gain access to the appliance, the person/s who own the premises or the property
where the appliance resides — will be responsible to provide access to the appliance at their expense.
