Scandlight 935793 Gepard User manual

1

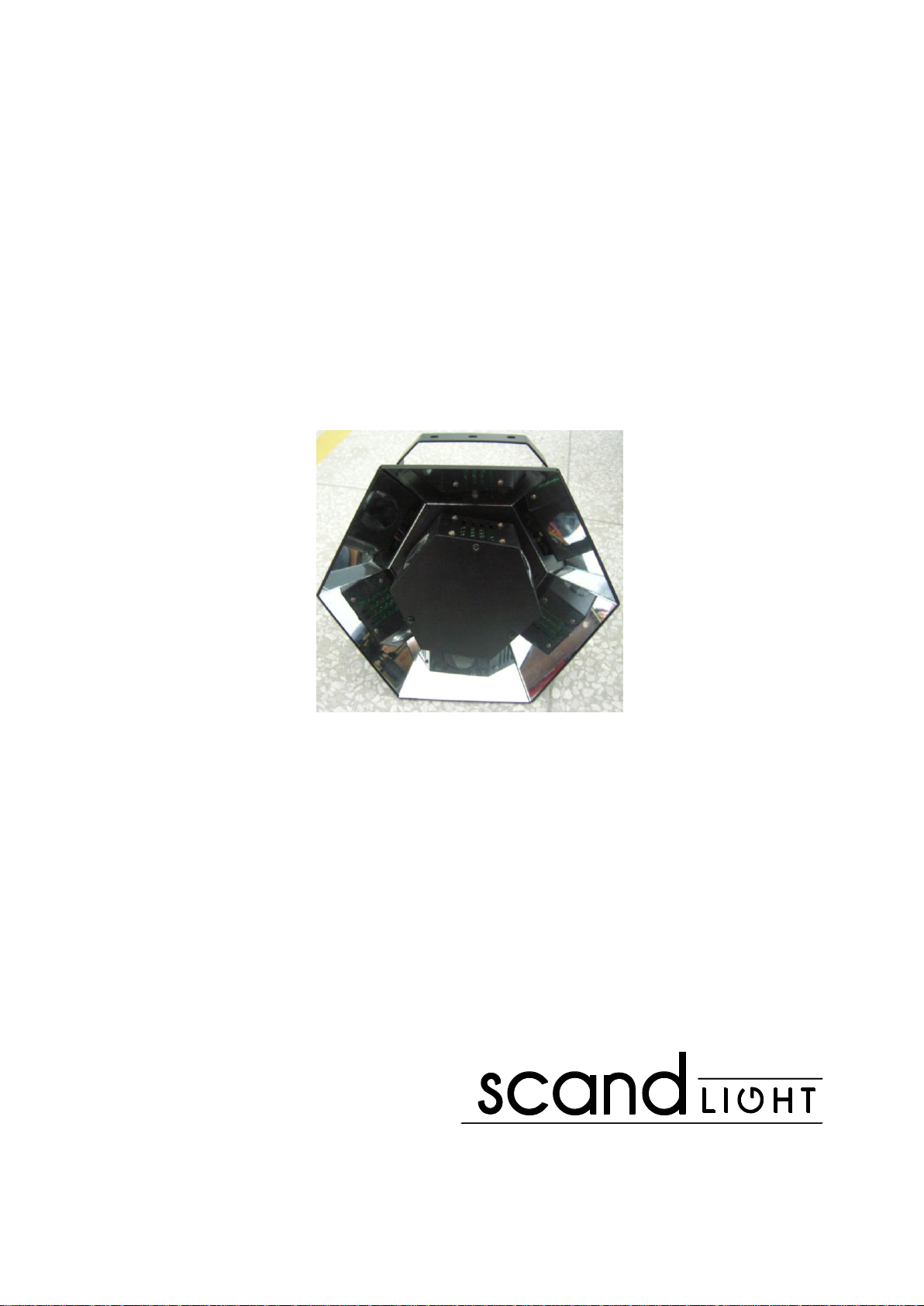

Scandlight DJ LED Gepard
User’s Manual
Item no: 935793

2
I、Preface
Thank you for using our SCANDLIGHT DJ LED GEPARD. For your
safet y, please read the User ’s Manual carefull y before your operation.
Note：This Manual includes the important information of installation、
operation、safety instruction. Please install and operate as requested in the
Manual, meanwhile, please keep the manual for any unexpected requirement.
This Manual includes the important information of installation and
operation. Please install and operate the light according to the instructions
strictly. And it must be power off when open the light or before repair.
A：Please read the complete contents of this manual（please keep this manual
attach with the light for any preview）
B：In order to make sure the correct and safety installation、operation and
maintenance, well know and follow to the instructions of Manual is
necessary.
C：We will not take any responsibility to the light damage、property loss or body
injure which caused by the incorrect installation、operation and maintenance.
NOTICE：the data which inside the Manual maybe changed due to the continuous
improvement, and we’ll not make another notice. We will keep the right to
any specification update during improvement
Warning：if the protection screen、lens or UV screen got a visible damage，
e.g.: scratch or chasm.
1．Packing Content
（accessories）（Selectable）
1：Power Cable（1PCS）a: Bracket
2：User ’s Manual (1PCS ）b：Clamp
3：Maintenance Card（1PCS）d：Safety Cable
2．Unpacking Instruction：
Please check if all the contents are completed after unpacking？then, check if
the light is undamaged？Please you can keep the original package and return to
the factory if it’s damaged
3．AC Power：Check if the voltage is accordance with the rated power.

3
4．Safety Specifications ：All the safety items of operation (includes
installation) and before operating.
（1）Unpacking the light case and take out all the accessories，and open the poly
package, take out the light from the flight case, and put it in a certain
platform for operation.
（2）This device for indoor use only，the protection grade is: IP20. the light must
keep dry and avoid to use under the Moist、Overheat or Dusty surroundings.
And keep the light far away from the water or other liquid.
（3）Installing of the light must keep a distance with any flammable objects by
1M at least.
（4）Please never install the light on the surface of the flammable objects.
（5）The installation、operation and maintenance must be managed by the
qualified professional, and make sure to operate it under the instruction of
the Manual.
（6）Make sure the work environment temperature of the light maximum 40℃,
and minimum 20℃
（7）The temperature of the light surface will up to 85℃even under the normal
cooling, so never touch it by hand.
（8）The light was designed by electric shock protection type, and must connect
to the power supply system which well earthed. Furthermore, the ground
wire of the light must connect to the ground wire of the power supply
system, ground wire interface of the light must well connect with the light
body (or light must well earthed)
（9）Please check if the voltage is accordance with the rated power before installing.
（10）Please never use the power cable which was damaged the insulation cover,
meanwhile, never put the power cable on any other wire. Please pull out the
power cable by handle the plug when light is stop working or cleaning,
never pull out it roughly or handle the wire directly.
(11) The bottom of light with a insurance rope connected insurance hole, for
security reasons, To auxiliary hoisting please put insurance rope of the
light through the insurance rope connector hole.
（12）The light doesn’t include any spare parts for repair, please check if all the
parts are well installed and screws are drove tightly before operating.
It’s prohibited to use the light when the cover is opened.
Notice：Please make sure it’s power off bef ore any installation、repair and
clean!

4
Ⅱ、Introduction
1. Product Features:
Many LED design, change dynamic, small power consumption, long life lamp,
security, high-performance, wide voltage range can be normal work, Very
suitable for small private rooms and small and medium entertainment places.
Include three kinds of modes（1）auto running mode、（ 2）sound control mode、（ 3）
master slave mode
2. Technical Features
（1）Control channel : 11 DMX channel
（2）Operating modes : DMX512 standard control、program auto running、master
slave、sound control (adjustable sound sensitivity)
（3）Appearance: Metal shell, streamlined designs
（4）Working environment: indoor, 20 ℃~ 40 ℃
（5）IP degree: IP20
III、Technology Parameter
1．Voltage：AC100V-240V 60/50HZ
2．Power：16W
3．Outline Size：320×280×210mm
Packing Size：420×420×293mm
4．N/W：3.5Kg
G/W：4.6Kg
5．LED Lamp：96 LED (red, green, blue)
（1）LED Size：φ5
（2）LED Project angle：24o±1 o
Ⅳ、Installation
If there is any damage of LED light-emitting diodes, please arrange the technical
personnel to carry out maintenance.

5
First, after unscrewed the 6pcs screw on the cover and then pull out it. Then
unscrewed the 4pcs screw on the LED board and pull out it, if found the LED is
broken, then take out them by thermostat electric iron. Installation method is just
the opposite.
Warning
1: The light power supply must be disconnected when replacement
of the LED does not bright
2: you can repair the light before you must use a thermostat with
anti-static electric iron, and wear anti-static rings
2. Power supply, wire Connection
Using a dedicated plug to connect the SCANDLIGHT DJ LED GEPARD and
power. LED GALAXY LIGHT should pay attention to whether the voltage and
frequency between signs and on the power supply are the same or not. Suggested
that each light has a separate power supply switch, this can be turned on or off at
random for each LED GALAXY LIGHT. LED GALAXY LIGHT selection of input
voltage and frequency parameters as follows:
Voltage
AC100V～240V
Frequency
60/50Hz
If the power cable is damaged, please contact the area agents or ask professional
to replace; please use the same specification cable when you replace the power
cable.
Tip: When connecting the power, ground wire must (yellow / green color wire)
safety ground, electrical installation must comply with all relevant standards.
3. Fixed installation of lighting (including light hook and safety rope how to
Unscrew
ed the
6pcs
screws
on the
cover
Unscrewed
the 4pcs
fixed
screws on
the LED
board

6
use)
Before positioned the light, ensure the stability of the installation site. In
the reverse hanging installation, use two sets of M10 bolts with a professional
big hook, link the hanging screw hole on the bottom of the light, must be ensure
that the light will not fell down from support rack, through the support rack and
light hand use the safety rope for auxiliary lifting handle to ensure safety, to
prevent the light falling and sliding. Light in the installation, the bottom prohibit
pedestrians. Safety rope regularly checked whether there is wear and tear,
whether there is loose hook. The manufacturer does not take any responsibility if
the light falling because hanging installation is not stable.
Warning
1. Hook use only for light lifting.
2. Hook as a handle move the light to prohibit, carrying, please use the
handle.
V、Operation
1．DMX Address Code Setting
Every light should be set with DMX address code when you are using the
controller to control multi lights, it is used to receive the signal from the
controller.
Since the product uses "address code dial code" set the address code, so
each dial code corresponding to address values are as follows:
Dial code
1
2
3
4
5
6
7
8
9
Corresponding
1
2
4
8
16
32
64
128
256

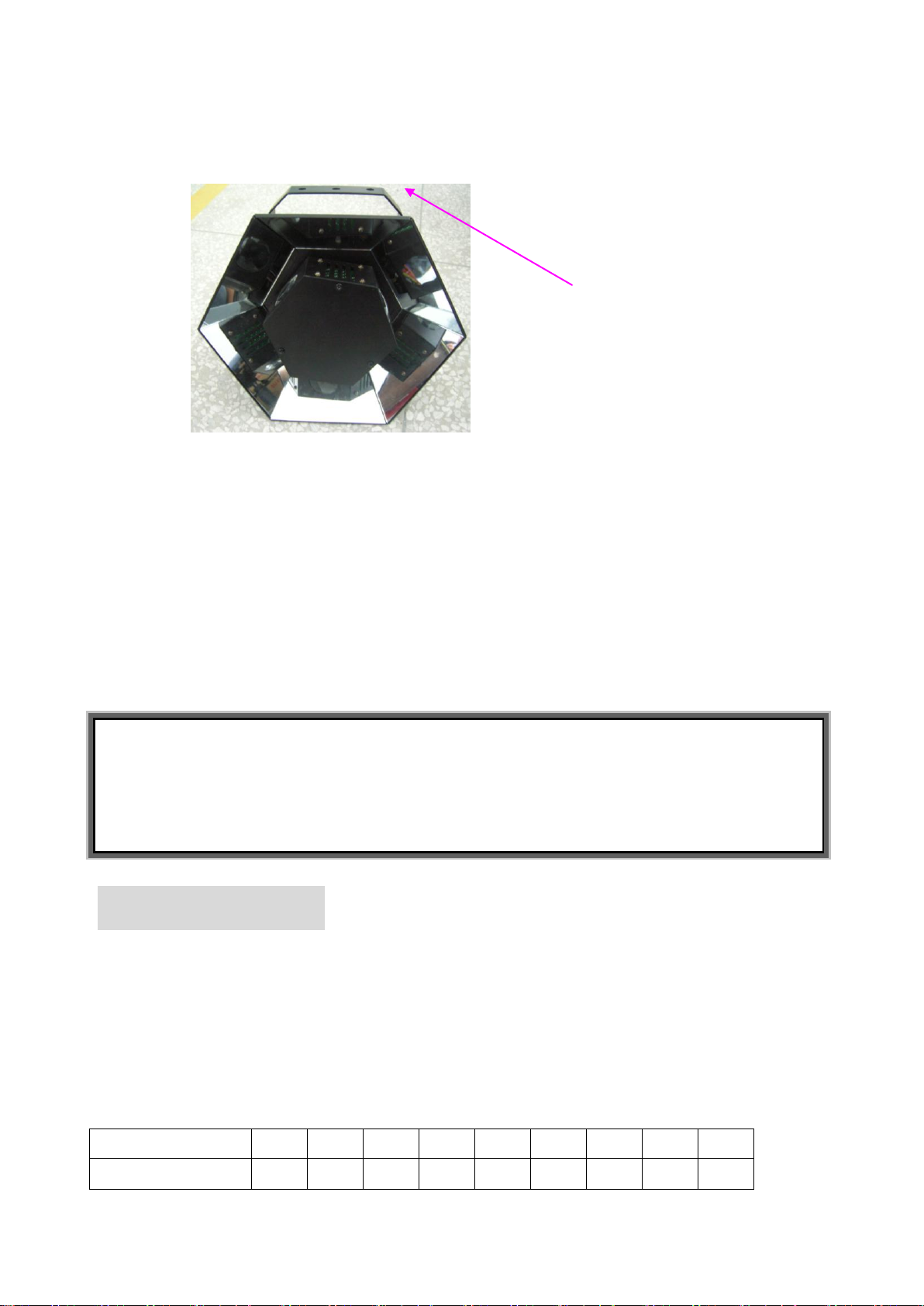

Hook installation

7
The present address code of the light =（address code of last light）+（channel
quantity of the light）. LED GALAXY LIGHT with 11 Channels，so it should be
under the “16channle” control mode, the DMX address code of the first light is
1，the corresponding dial code is "1" (or all of the dial code not dial),the second
should be: 1+16=17，the corresponding dial code is "1 +5", the third light address
value is 1+16 * 2 = 33, the corresponding dial code is "1 +6 ", The fourth should
be 1 +16 * 3 = 49, the corresponding dial code is" 1 +5 +6 ", analogously.
2. Auto mode setup
Both dial code 10 and 8 to ON, LED GALAXY LIGHT is in auto-running mode.
However, dial code 1、2、3 and 4 transfer to different mode of auto running, the
list as below:
DIP No.
Function
description
Remark
10+8
Auto running
mode 5
10+8+1
Auto running
mode 1
10+8+2
Auto running
mode 2
10+8+3
Auto running
mode 3
10+8+4
Auto running
mode 4
2. Sound control setup
Both dial code 10 and 7 to ON, LED GALAXY LIGHT is in sound control mode.
However, dial code 1、2、3 and 4 transfer to different mode of sound control, the
list as below:
to address code
value

8
DIP No.
Function
description
Remark
10+7+1
Sound control
mode 1
[sound control auto running]
10+7+2
Sound control
mode 2
[flash sound control mode]
10+7+3
Sound control
mode 3
10+7+4
Sound control
mode 4
10+7+5
Sound control
mode 5
10+7
Sound control
mode 6
4．Master slave mode setup
When setting the master machine is dial code 10 to the ON, can control the slave
machine by DMX interface. When the slave machine receiving, all
the "dial codes" to OFF; when dial 10 to OFF, 1 to 9 is based light
address code settings (8421 binary code format), are all OFF, the
address is 001.
Warm Tip: The auto running effect of the light are selected from the control
channel with the proceeds, so users can make the program effect
which their own need by use have storage capabilities of the
DMX-controlled.
Function
DIPNo.（ON）
Description
Remark
Program
auto running
10+8
Auto running mode 1
10+8+1
Auto running mode 2
10+8+2
Auto running mode 3
10+8+3
Auto running mode 4
10+8+4
Auto running mode 5
Sound
control
10+7+1
Sound control mode 1
[sound control auto running]
Adjustable potentiometer to
change the sound sensitivity
to suit different
environments.
10+7+2
Sound control mode 2 [flash
sound control mode]
10+7+3
Sound control mode 3
10+7+4
Sound control mode 4
10+7+5
Sound control mode 5
10+7
Sound control mode 6
All
brightness
10+9
All LED brightness

9
1st light
2nd light
3rd light
Resi
stor
IN
OUT
IN
OUT
IN
OUT
120R 1W
DMX
control
（receive）
10 为off，[1---9] is based light address code settings (8421 binary code format),
are all OFF, the address is 001.
Set to slave
machine
All DIP dial to“OFF”
Ⅵ、Appendix
1、Usage of the Signal Cable、Connector
The connection between the output and input, it’s available to use the 3 pins
XLR cable which provided by the manufacturer. Signal cable from the DMX
output of the controller to the input of the first master light, and connect to the
DMX input of second slave light from the DMX output of the first master light,
analogously，till connected all the slave lights, and insert the last connector to
the output of the final light.
If you want to prolong the connection of signal cable, the connection of the pins
between male connector and female connector should be:1 to 1; 2 to 2; 3 to 3,or
it will cause communication interruption.（Notice：the diameter of core of every
cable should be 0.5mm at least，double core shelter cable should be used）.The
signal connecting must use the attached 3 pins XLR cable. Notice, all the
internal lead wire of the 3 pins XLR cable should not touch to each other or
connect to the connector.
The light is available to receive the DMX512 signal, connect the signal plug to
the panel which marked with “IN” ，and connect it to the next light. then, connect
to the “IN” of next light from the “OUT”. The DMX signal terminal organ is
recommended when the lighting signal is connecting. It will avoid to damage the
signal which caused by the noise, DMX terminal organ is a XLR connector,
connect with a 120Ω resistor between the pin 2 and pin 3 of the XLR connector, and connect
it to the last OUTPUT socket of the final light. Follow picture:

10
2、DMX channel value list
chann
el
Function
Value
Description
CH1
Motor
function
0—15
position（adjust the position by CH2）
16—215
Come and back rotation（range 16—255，short—long）
CH2
Motor
speed/posi
tion
0—255
slow—fast / position(0—175degree)
CH3
dimmer/st
robe
Switch
0—7
Off
8—232
strobe (slow----fast)
233—25
5
On
CH4
Strobe
space %
0—255
Proper adjustment of this value, obtained a stronger sense of
visual impact, auxiliary CH3 adjust strobe
CH5
LED
select
gobo
0—16
Gobo
1
（gobo group A，the value is off LED）
17—34
Gobo
2
35—50
Gobo
3
51—67
Gobo
4
68—84
Gobo
5
85—101
Gobo
6
102—11
8
Gobo
7
119—13
5
Gobo
8
136—15
2
Gobo
9
153—16
9
Gobo
10
170—18
6
Gobo
11
187—20
3
Gobo
12
204—22
0
Gobo
13
221—23
7
Gobo
14
238—25
Gobo

11
5
15
CH6
LED
select
group
0—16
Gobo
group
A
Static gobo group
17—33
Gobo
group
B
Static gobo group
35—50
Gobo
group
C
Static gobo group
51—67
Gobo
group
D
Static gobo group
68—84
Gobo
group
E
Static gobo group(3group
LED output different
gobo)
85—101
Gobo
group
F
Lock position static gobo
group
102—11
8
Gobo
group
G
Lock position static gobo
group
119—13
5
Gobo
group
H
Move gobo group
136—15
2
Gobo
group
I
Move gobo group
153—16
9
Gobo
group
J
Move gobo group
170—18
6
Gobo
group
K
Move gobo group
187—20
3
Gobo
group
L
Move gobo group
204—22
0
Gobo
group
M
Move gobo group
221—23
7
Gobo
group
N
Gradient move gobo
group
Adjust CH4to change
gradient speed
（fast—slow ）； when
CH5 is 255 too，can show
238—25
Gobo
Gradient move gobo

12
5
group
O
group
all the gobo
CH7
Movement
speed
0—255
slow——fast（0 no effective，stop movement）
CH8
Light
group
1dimmer
0—255
Brightness——dark
Gradient, the dimmer is no
effective
CH9
Light
group
2dimmer
0—255
Brightness——dark
CH
10
Light
group
3dimmer
0—255
Brightness——dark
CH
11
OFF
0 —22
Auto move mode/sound
control mode off
CH1——CH10 effective
Program
auto
running
mode
23 —45
Auto move mode 1
CH1——CH10 control no
effective
46 —68
Auto move mode 2
69 —91
Auto move mode 3
92
—114
Auto move mode 4
115—13
7
Auto move mode 5
[Collection1—4 mode]
Sound
control
mode
138—16
0
Sound control mode 1 [sound
control auto running]
161—18
3
Sound control mode 2 [flash
sound control mode]
184—20
6
Sound control mode 3
207—22
9
Sound control mode 4
230—25
5
Sound control mode 5
Ⅶ、Maintenance
1．Clean and use frequency
To confirm the power supply have cut off before disconnect the light or repair it ,it is very
important to keep the light cleaning .not only can keep the light maximum brightness output but
also can prolong their use life . please use the high quality professional glass and soft cloth to
clear up the equipment ,not permission to use the alcohol and organic liquid clean at least once
each year use vacuum dust collector .
When the light does not start, check whether the light power supply fuse

13
blown or not, if blow, install the appropriate fuse, and start the light after find
out troubleshooting, but please attention to the technically person allowed to
carry out maintenance work.
2．Products returned
If it is the products quality problem, the customer can be based on the actual
situation, to decide whether need the product parts to replace.
3．Complain
（1）The salesman will check the details of complained problem, included the
item no、delivered quantity、delivery time、faulty and pictures, and the
requirement of customer
（2）The customer service technicians to analyze and contact with customers by
phone, to guide customer.
(3) Quality Technology Department analysis of customer complaints and give a
preliminary identified. The units must be offer analysis and treatment
measures on time.
Ⅷ、Faulty Disposal
Familiar Faulty
Disposal
Light can not start
1．Check if the fuse burnt out or not
2．Check if the power connect well or not
3．Check if the circuit board +12V or +5V short circuit of
earth
Light can be shine well, but can
not be control by controller
1．Check if the light’s DMX original address setup right or
not. Check the connection details of communication
control wire
Some of LED not brightness
1、Check if LED lamp damage or not
