Scandlight DJ LED Diamond User manual

USER MANUAL
Version 1.0
DJ LED Diamond
Art nr: 943547

1
Unpacking Instructions
Read Manual before Operation
Please note the warnings in bold which will ensure the safe and smooth operation. These warnings are
important to a certain extent.
Attention! Indicates a skill or other useful information for special situations.
Important! Indicates important information to protect personnel from laser incident or injury.
Caution! Prevent damage or injury from incorrect operation.
Laser! Laser safety warming labels.。
Warning Data
As receiving a fixture, carefully unpack the carton, checking contents to ensure that all parts are in
good condition. Informing the shipper immediately and retaining packing material for inspection if any
parts damaged from shipping or device damaged. Keep packing materials as evidence for shipper's
confirmation.
This unit is in perfect condition before delivery; please check all accessories when unpacking the unit.
User should follow this user manual to operate this unit, and make sure that you are clear on all laser
safety information and unit operation before power it on. Any wrong operation will make this unit out of
warranty.
Carefully move after receiving it, checking whether there is any damage from shipping, and all the
accessories in it.
Attention!
Dear user,
Thanks for choosing our laser device, believing this brand new product will bring you unlimited marvel
and happiness. Before operating this device, please read this manual thoroughly, and retain it for future
reference.
Unpacking Instructions
Warning!
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord
or cord exclusively available from the manufacturer or his service agent.
Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such
an extent that their effectiveness is impaired, for example by cracks or deep scratches.
The lamps shall be changed if it has become damaged or thermally deformed.
NAME
Laser Light +LED system
Power Cord
IR Remote controller
Keys(for key switch)
Interlock switch
User manual
PCS
1
1
1
2
1
1

Never expose the lens to direct sunlight, even for a short period, This may damage the light effect or even
cause fire!
Safety Instructions
2
Warning! Avoid direct eye contact with laser beams during operation, especially when the laser beams
stay still, or injury to eyes may occur.
Laser Safety Warnings
According to EN 60825-1:2007, this product belongs to class 3R. Direct
eye contact may cause injury.
◆
◆
◆
◆
This is so-called show laser, emitting radiation with a wavelength spectrum between 400 and 700nm and
producing lighting effects for shows.
International laser safety regulations require that the vertical height from installment to ground is more than
3 meters, horizontal distance is 2.5 meters from audience.
Never direct the laser beam to people or animals and never leave this device running unattended.
The legal requirements for using laser entertainment products vary from country to country. The user is
responsible for the legal requirements at the location/country of use.
◆This product is for laser show only. The class 3R laser light should be operated by
professional operator only.
Caution!The laser security measures are designed according to the specific terms of the relevant
international laser safety standards and has the following laser safety protection means.
Laser key switch: laser is available only when the key is turned on.
Laser Emergency switch: remote connecting switch,it will cut off the laser light path emergently once the device in
potential hazard;
Laser safety label：The labels of according with European standard are sticked on the device body.
Laser Safety Protection Feature
Safety Instructions
0.2m
To protect the environment, please try to recycle the packing material as much as possible.

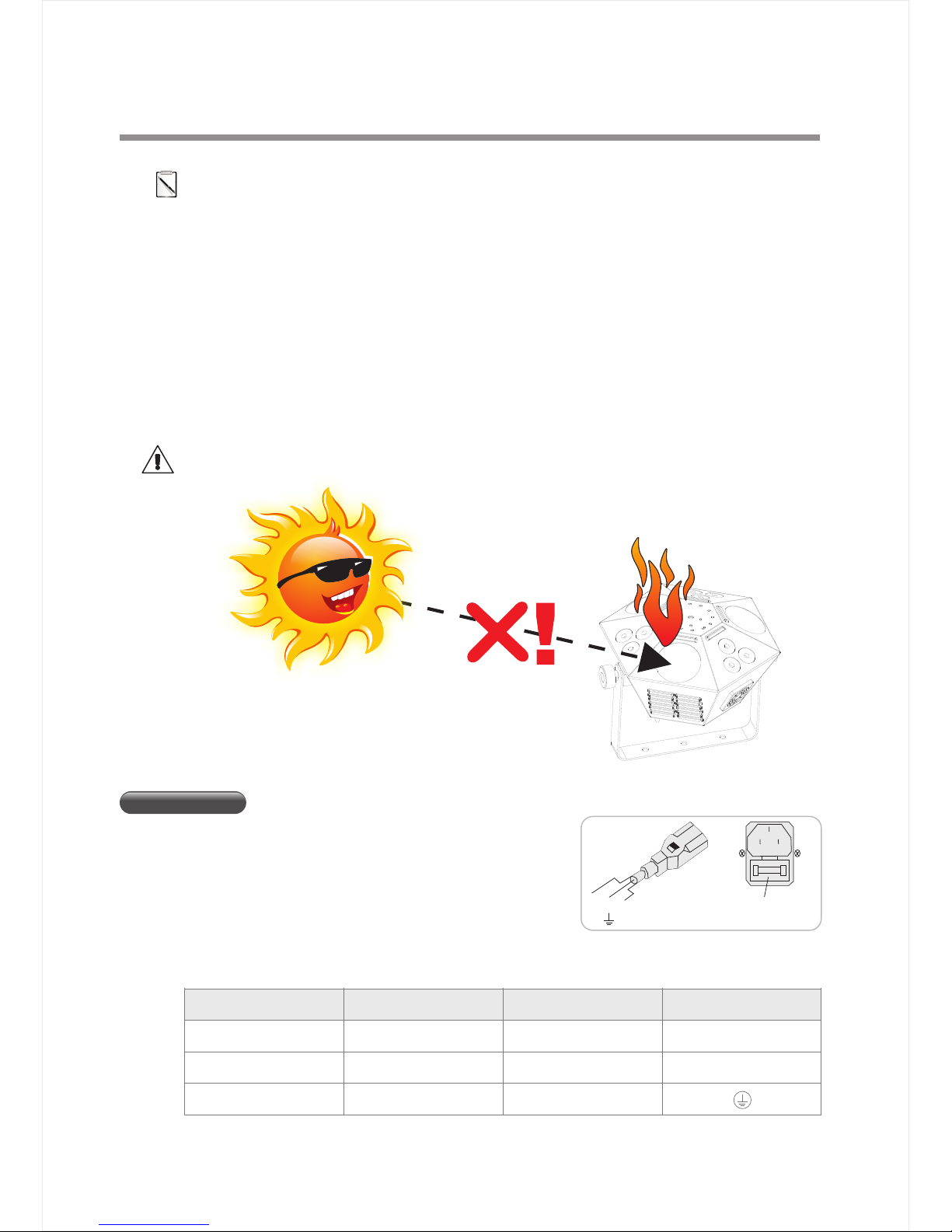

The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and
moisture, excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic
objects
Don’t throw this product away just as general trash, please deal with the product follow the abandon
electronic product regulation in your country.
Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture
must be fixed at least 20cm from surrounding walls
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding temperatures when
bringing it into a warm room after transport.
Condense sometimes prevents the unit from working at full performance or may even cause damages
Don’t install it on flammable object.
Don not use it when maximum ambient temperature is higher than 40 degree,
Unplug the unit when it is not used for a longer time or before replacing the bulb.
Don’t open the top cover to avoid unit damage.
Please use the original packing when the device is to be transported.
◆
◆
◆
◆
◆
◆
◆

Overhead Rigging
3
Attention! The installation must be carried out by qualified service personal only. Improper installation can
result in serious injuries and /or damage to property. Overhead rigging required extensive experience!
Working load limits should be respected, Certified installation materials should be used, the installed
device should be inspected regularly for safety.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The
fixture must be fixed at least 50cm from surrounding walls
The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
The device should be well fixed; a free swinging mounting is dangerous and may not be considered!
Do not cover any ventilation opening as this may result in overheating
Before the first time use, it must be inspected by professional staff to make sure safety, inspection regularly
every year..
◆
◆
◆
◆
◆
◆
The power cord specification table:
Cable(EU)
Brown
Liht blue
Yellow/Green
Cable(US)
Black
White
Green
Pin
Live
Neutral
Earth
International
L
N
Please use the attached power, note that power voltage
and frequency are the same as the marked voltage and
frequency of device when connecting power. Every device’s
power should be connected separately, so that device can
be controlled individually.
AC Power
L E N FUSE: 5×20mm
250V 1A slow
Never expose the lens to direct sunlight, even for a short period, This may damage the light effect or even
cause fire!

4

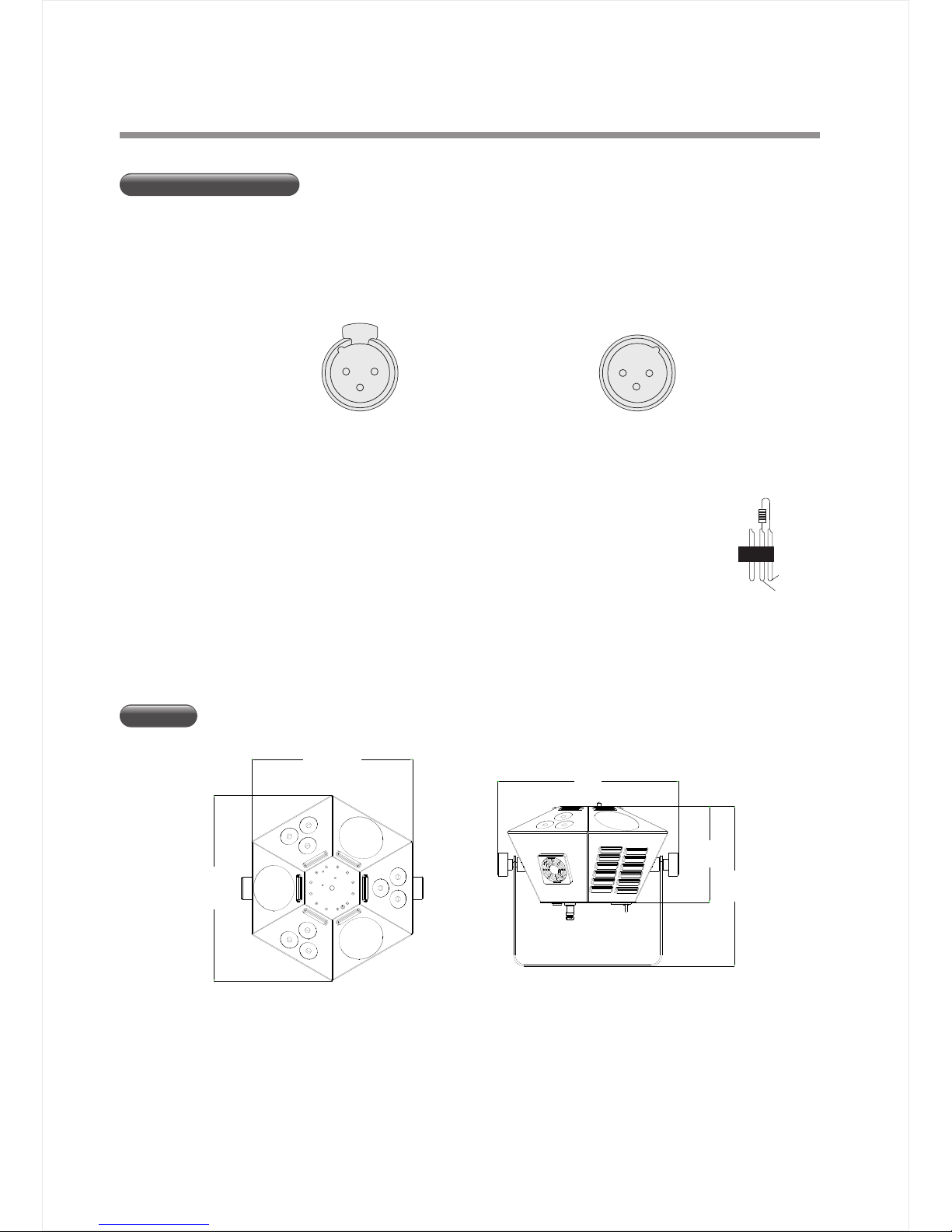

DMX-output
XLR mounting-sockets(rear view):
DMX-input
XLR mounting-plugs(rear view):
1-Shield
2-Shield(-)
3-Shield(+) 12
3
1
2
3
Overhead Rigging
Connection between laser lights and DMX must use the shied cable of diameter more than 0.5mm.
Please use the attached 3 pin XLR plug/socket to connect the DMX output/input interface. The
connection between socket and cable as below( note the plug/socket’s 3 pin number and position).
◆
Note, XLR plug/socket’s 3pin can not be touched by inner hull, connection between pins is not
allowed. Except above connection, XLR plug/socket can not be connected with XLR control line.
Device receives international standard DMX512(1990) control signal.
◆
When using standard DMX512 control signal, the last device’s output interface must
be connected to a DMX plug. This plug is putting a 120 ohm resistance between
“canon” plug’s 2 pin and 3 pin. Showing as below pic. Sticking this plug into the last
device’s signal output interface, it will avoid the interference during the process of
signal transmission.
PIN3
PIN2
DMX connection
◆
Mess
275
165
276.85
318.9

5
NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Function

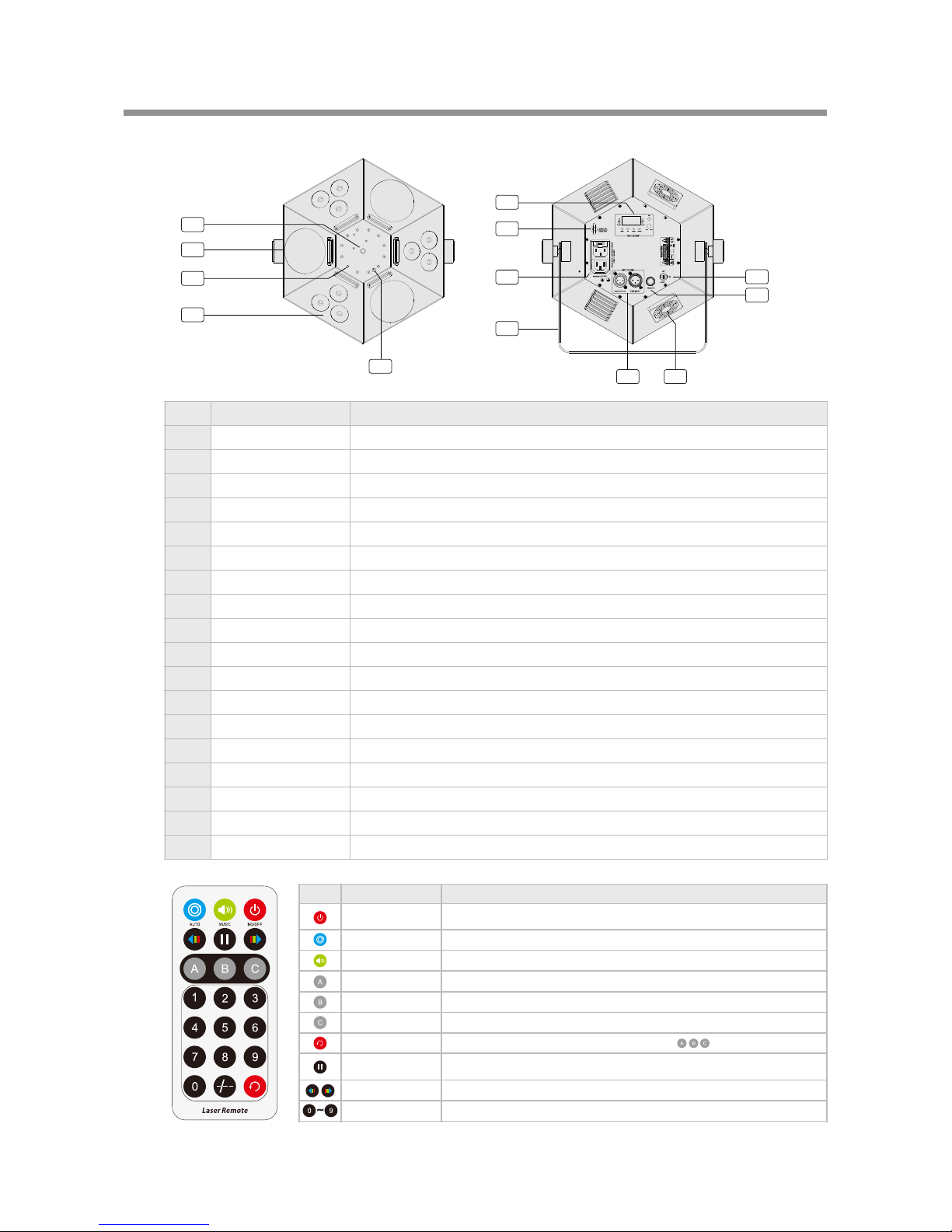

Operation instructions
Name
LED 5 colors output
LED white color output
Laser aperture
Remote
Hanging bracket
DMX indicator
MUSIC indicator
AUTO indicator
SLAVE indicator
Mic
Potentiometer
LED display
Urgent and safe switch
Key switch
DMX output
DMX input
Safety eye
4×(RGBWY×1W)
12×0.5W
Laser show, do not look directly into the hole
The receiver of remote controller
For hang and angle adjustment
In DMX model, red indicate light on after DMX connected
In sound model, green indicate light on.
In Auto model, blue indicate light on.
In slave model, orange indicate light on
Receiving sound signal
Turn the knob to adjust the sound activated sensitivity
For setting model
Switch off the laser manualy if error occurs
Make sure the professional person use
3PIN female XLR interface, for DMX communication
3PIN male XLR interface, for DMX communication
Attach the safety cable
Power input socket, built-in protective tube and spare tube
Power input
Button Function
ON/OFF
Mix auto mode
Mix sound mode
PAR light auto mode
Laser light auto mode
Flash light auto show
Auto/Sound switching
Puse
Color changing
Nmeric keys
Function Description
Power on/off, When power is on, press it to light on; press again to light off; circle as it
Per click for different sets of Mix auto show(AM01-AM08)
Per click for different sets of Mix sound show(SM01-SM08)
Per click for different sets of PAR light show(AP01-AP20)
Per click for different sets of laser light show(AL01-AL06)
Per click for different sets of flash light show(AF01-AF10)
Switching between auto mode and sound mode under pattern
Program or color change will be paused, no matter under auto mode
or sound mode.
Selecting the color of PAR light
Adjusting the speed of auto program
1
3
4
2
5
10
11
12 13
7
8
9
6

6
Auto wash show(AP01-AP08)
Auto beam show(AP01-AP10)
Auto laser show(AL01-AL06)
Auto LED strobe show(AF01-AF10)
Auto mix effect show(AM01-AM08)
Setting effect speed.01 is the slowest,99 is the fast
Sound wash show(AP01-AP08)
Sound beam show(AP01-AP10)
Sound laser show(SL01-SL06)
Sound LED strobe show(SF01-SF10)
Sound mix effect show(SM01-SM08)
Auto
Built-in
programs
FUNC UP DOWN ENTER
DMX mode
When choosing the SLAVE mode,through the DMX signal
cable,the machine will follow the master's
built-in program mode
Slave
If the letters are twinkling on the screen,
that means the signal is not connected well,
please check the cables.
3CH(d001-d510)
11CH(d001-d502)
ENTER
Sound
Built-in
programs
AUTP Par light auto show AUTB
AUTF LED strobe auto show AUTL Auto laser
AUTM Mix auto show
Press UP/DOWN to choose channels and addresses,
press ENTER to confirm
System
setting
LED power-saving operation mode. ON:Turn on OFF:Turn off
LEDR
Aging test program
Restore the factory initial setup
Once after every power on laser, the VERSION and MANUFACTURE INFORMATION will be shown in LCD
monitor of rear panel. When laser is powered on, LCD monitor on rear panel shows the current operating
standalone mode or DMX address of DMX mode. With help of LCD control panel, is very easy to set and
change the operating mode of laser. After every resetting and saved, the new mode information will be
shown on LCD monitor at next power on.
Confirmation, to confirm the laser to show the present mode at the next operation.
UP/DOWN, to change operating mode, parameter or DMX address.
Menu operating instruction
Mode Option, to choose the operating mode of laser.
FUNC
ENTER
UP DOWN
Initial setting
UP/DOWN to choose display speed
S 1 is slowest
S 99 is fastest
into speed choice
confirm
LED display Functional description
SOUP Par light auto show SOUB
SOUF LED strobe auto show SOUL Auto laser
SOUM Mix auto show
Press UP/DOWN to choose channels and addresses,
press ENTER to confirm
Aging test program
Restore the factory initial setup
Choosing DMX channel modes
Setting channel address
Enter into slave mode
LED power-saving operation mode. ON:Turn on OFF:Turn off
LED display mirror
5CH(d001-d508)
28CH(d001-d485)

7
Menu operating instruction
Note: In sound model, device will close light in 5 seconds automatically, if there isn’t any sound signal.
Light on until sound signal recived.
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
FUNC FUNC
UP/DOWM
FUNC
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
ENTER
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
ENTER
UP/DOWM
FUNC
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
ENTER UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
UP/DOWM
ENTER
UP/DOWM
ENTER
FUNC

8
Value
000-005
006-055
056-105
106-155
156-205
206-255
Description
Blackout
Auto Par/ Sound Par
Auto Beam/ SoundBeam
Auto Laser/ Sound Laser
Auto Flash LED/ Sound Flash LED
Auto MIX/ Sound MIX
CH1
3CH
DMX instructions
This device adopts large storage and high speed chip, which has been written lots of effect
based on laser light DMX application. There are many kinds of model in channel one.
Channel
000-005
006-032
033-064
065-096
097-128
129-160
161-192
193-224
225-255
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP06
AP08/ SP06
CH2
Wash
Blackout
AL01/ SL01
AL02/ SL02
AL03/ SL03
AL04/ SL04
AL05/ SL05
AL06/ SL06
000-005
006-046
047-088
089-130
131-172
173-214
215-255
Laser
000-005
006-030
031-055
056-080
081-105
106-130
131-155
156-180
181-205
206-230
231-255
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP06
AP08/ SP08
AP09/ SP09
AP10/ SP10
BEAM
Blackout
AF01/ SF01
AF02/ SF02
000-005
006-032
033-064
Strobe

5CH
9
Value DescriptionChannel
AF03/ SF03
AF04/ SF04
AF05/ SF05
AF06/ SF06
AF07/ SF07
AF08/ SF08
065-096
097-128
129-160
161-192
193-224
225-255
DMX operation instructions
CH2
000-005
000-085
086-170
171-255
000-250
251-255
Strobe
Beam
Blackout
AM01/ SM01
AM02/ SM02
AM03/ SM03
0: slow，255: fast
Sound actived show
Speed
Sound active
CH3
Value DescriptionChannel
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP07
AP08/ SP08
000-005
006-032
033-064
065-096
097-128
129-160
161-192
193-224
225-255
000-005
006-030
031-055
056-080
081-105
106-130
131-155
156-180
181-205
206-230
231-255
000-005
006-046
047-088
089-130
131-172
CH1
Wash
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP06
AP08/ SP08
AP09/ SP09
AP10/ SP10
Blackout
AL01/ SL01
AL02/ SL02
AL03/ SL03
AL04/ SL04
CH2 BEAM
CH3 Laser

11CH
Value DescriptionChannel
Red brightness
Green brightness
Blue brightness
UV brightness
Total Brightness
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
000-255
000-255
000-255
000-255
000-100
101-250
251-255
CH1
CH2
CH3
CH4 Wash
Blackout
R
G
B
A
RG
RB
RA
GB
GA
BA
RGB
RGA
RBA
GBA
RGBA
COLOR CHANGE
CH6 LED
10
DMX operation instructions
Value DescriptionChannel
AL05/ SL05
AL06/ SL06
173-214
215-255
000-005
006-032
033-064
065-096
097-128
129-160
161-192
193-224
225-255
000-250
251-255
CH4
Strobe
Blackout
AF01/ SF01
AF02/ SF02
AF03/ SF03
AF04/ SF04
AF05/ SF05
AF06/ SF06
AF07/ SF07
AF08/ SF08
Sound actived shows
Speed
Sound active
CH5
CH3 Laser
0: slow，250: fast
CH5
000-005
006-018
019-032
033-046
047-060
061-074
075-088
089-102
103-116
117-130
131-144
145-158
159-172
173-186
187-200
201-214
215-228

28CH
Value DescriptionChannel
Red brightness
Green brightness
Blue brightness
UV brightness
Total Brightness
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
000-255
000-255
000-255
000-255
000-100
101-250
251-255
CH1
CH2
CH3
CH4 Wash 1
CH5
11
DMX operation instructions
Value DescriptionChannel
COLOR CHANGE 2
COLOR CHANGE 3
229-242
243-255
000-005
006-250
251-255
000-250
251-255
000-005
006-048
049-089
090-131
132-173
174-215
216-255
000-005
006-250
251-255
000
001-127
128
129-255
000-005
006-0010
011-250
251-255
CH7
If 6CH is
006-214
No Strobe
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
0: slow，250: fast
Sound activated
LASER
CH8
CH6 LED
If 6CH is
215-255
Block out
R
G
RG
R flash G on
R on G flash
RG flash
No Strobe
Strobe slow to fast(0.3HZ-20HZ)
Sound activated
Stop
Rotate clock from slow to fast
Stop
Rotate wise-clock slow to fast
CH9
CH10 Motor
Block out
On
Strobe slow to fast（0.3HZ-20HZ）
Sound activated
CH11 Strobe
Red brightness
Green brightness
Blue brightness
UV brightness
Total Brightness
000-255
000-255
000-255
000-255
000-100
CH1
CH2
CH3
CH4 Wash 2
CH5

12
DMX operation instructions
Blackout
R
G
B
A
RG
RB
RA
GB
GA
BA
RGB
RGA
RBA
GBA
RGBA
Color change 1
Color change 2
Color change 3
LED1
000-005
006-018
019-032
033-046
047-060
061-074
075-088
089-102
103-116
117-130
131-144
145-158
159-172
173-186
187-200
201-214
215-228
229-242
243-255
Value DescriptionChannel
Wash2
Red brightness
Green brightness
Blue brightness
UV brightness
Total Brightness
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
000-255
000-255
000-255
000-255
000-100
101-250
251-255
CH11
CH12
CH13
CH14 Wash 3
CH15
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
101-250
251-255
CH10
CH16
000-005
006-250
251-255
000-250
251-255
CH17
If 6CH is
006-214
No Strobe
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
Show speed, 0: slow, 250: fast
Strobe activated by sound
If 6CH is
215-255
Blackout
R
G
B
A
RG
RB
LED2
000-005
006-018
019-032
033-046
047-060
061-074
075-088
CH18

13
DMX operation instructions
Value DescriptionChannel
000-005
006-250
251-255
000-250
251-255
CH19
If 18CH is
006-214
No Strobe
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
Show speed, 0: slow, 250: fast
Sound active
If 18CH is
215-255
RA
GB
GA
BA
RGB
RGA
RBA
GBA
RGBA
Color change1
Color change2
Color change3
LED2
089-102
103-116
117-130
131-144
145-158
159-172
173-186
187-200
201-214
215-228
229-242
243-255
CH18
Blackout
R
G
B
A
RG
RB
RA
GB
GA
BA
RGB
RGA
RBA
GBA
RGBA
COLOR CHANGE1
COLOR CHANGE2
COLOR CHANGE3
LED3
000-005
006-018
019-032
033-046
047-060
061-074
075-088
089-102
103-116
117-130
131-144
145-158
159-172
173-186
187-200
201-214
215-228
229-242
243-255
CH20
000-005
006-250
251-255
000-250
CH21
If 20CH is
006-214
No Strobe
Strobe slow to fast（0.3HZ-20HZ）
Strobe activated by sound
Show speed, 0: slow, 250: fast
If 20CH is
215-255

14
DMX operation instructions
Value DescriptionChannel
CH21 If 20CH is
215-255 251-255 Sound active
Block out
R
G
RG
R flash G on
R on G flash
RG flash
No Strobe
Strobe slow to fast(0.3HZ-20HZ)
Strobe activated by sound
Stop
Rotate clock from slow to fast
Stop
Rotate wise-clock from slow to fast
Blackout
ON
Strobe slow to fast(0.3HZ-20HZ)
Strobe activated by sound
Blackout
Auto Par/ Sound Par
Auto Beam/ SoundBeam
Auto Laser/ Sound Laser
Auto Flash LED/ Sound Flash LED
Auto MIX/ Sound MIX
Laser
000-005
006-048
048-89
090-131
132-173
174-215
216-255
000-005
006-250
251-255
0
001-127
128
129-255
000-005
006-010
011-250
251-255
000-005
006-055
056-105
106-155
156-205
206-255
CH22
CH23
CH24
CH25
CH26
Motor
Strobe
Modes
000-005
006-032
033-064
065-096
097-128
129-160
161-192
193-224
225-255
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP06
AP08/ SP06
CH27
Wash
000-005
006-030
031-055
056-080
081-105
106-130
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
BEAM

15
DMX operation instructions
Value DescriptionChannel
AF03/ SF03
AF04/ SF04
AF05/ SF05
AF06/ SF06
AF07/ SF07
AF08/ SF08
065-096
097-128
129-160
161-192
193-224
225-255
161-192
193-224
225-255
AP06/ SP06
AP07/ SP06
AP08/ SP06
CH27
Wash
Blackout
AL01/ SL01
AL02/ SL02
AL03/ SL03
AL04/ SL04
AL05/ SL05
AL06/ SL06
000-005
006-046
047-088
089-130
131-172
173-214
215-255
Laser
000-005
006-030
031-055
056-080
081-105
106-130
131-155
156-180
181-205
206-230
231-255
Blackout
AP01/ SP01
AP02/ SP02
AP03 /SP03
AP04/ SP04
AP05/ SP05
AP06/ SP06
AP07/ SP06
AP08/ SP08
AP09/ SP09
AP10/ SP10
BEAM
Blackout
AF01/ SF01
AF02/ SF02
000-005
006-032
033-064
Strobe
000-005
000-085
086-170
171-255
000-250
251-255
Mixed shows
Blackout
AM01/ SM01
AM02/ SM02
AM03/ SM03
Show speed, 0: slow, 250: fast
Show activated by sound
Speed
Sound show
CH28

16
Product parameter
Product parameter
Model
Mess
Weight
Power input
Power type
Range
Rated consumption
Fuse
Light source
Class
Power
LED Quantity/Color
LED power rate
Stepping motor
Work environment
Max
Coll system
Control
Auto show
Sound show
Channel
5V
104°F（40℃）
Fan
Class 3R
R 100mW 650nm G 30mW 532nm
3CH/5CH/11CH/28CH
Wash: 8 Beam: 8
Wash: 8 Beam: 8
Strobe: 10
Strobe: 10
Laser: 6
Laser: 6
Mixed shows: 3
Mixed shows: 3
Scandlight DJ LED Diamond
280 x 230 x 170MM
2.6Kg
Switch power(international)
100-240V 50/60Hz
70W
6A
12×Strobe LED
0.5W
4×(1R/1G/1B/1W/1A)LED
1W
24R/18G/18B/24A Beams
0.75W
