X9WG-NagaV
X9WS-NagaV
User’s Manual

i
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interferences to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution:
To comply with the limits for an FCC Class B computing device, always
use the shielded signal cord supplied with this unit.

ii
The Federal Communications Commission warns that changes or
modifications of the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CE mark for Class B ITE (Following European standard EN55022/1998; EN61000-
3-2/1995; EN61000-3-3/1995, EN55024/1998, EN60950/1992+A1+A2+A3+A4+A11)
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take
adequate measures.
Canadian Doc Notice
For Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
“Le présent appareil numérique n’èmet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la class B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par
le ministère des Communications du Canada."

iii
TABLE OF CONTENTS
TABLE OF CONTENTS ..........................................................................................III
Your New LCD Monitor 1
Unpacking 1
Identifying Components 3
Adjusting the Tilting Angle 5
Connecting AC Power and Video Cable 6
Power Management System 6
How to install the detacheable stand 7
The LCD Monitor's Control Panel 8
Adjusting the Monitor’s Display 9
TFT LCD Monitor Specifications 14
Supported Timing 16
Troubleshooting 17

1 Rev.1
The LCD Monitor
Your New LCD Monitor
Your LCD Monitor has been designed to be versatile, ergonomic and
user-friendly. The LCD Monitor is capable of displaying most
standards, from 640x400 VGA to 1440x900 WXGA+. The digital
controls located on the front panel allow the user to easily adjust the
Monitor’s display parameters, and the LCD Monitor’s small footprint
gives you more room in your workspace for other peripherals.
Lightweight and compact, the LCD Monitor is the perfect solution for
users on the go. You can use the LCD Monitor for everything from
making business presentations to playing computer games. The
Monitor also has a VESA wall-mount function for added convenience.
The architecture of the LCD Monitor incorporates an LCD panel that
produces a clear display with low radiation emission. And with its low
power consumption, the LCD Monitor helps you reduce your power bill.
Unpacking
Before unpacking your LCD Monitor, prepare a suitable workspace for
your LCD Monitor and computer. Look for a stable, level and clean
surface near a wall outlet. Even though the LCD Monitor uses very
little power, you should put it in a location which allows sufficient
airflow to ensure that the LCD Monitor and your computer do not
overheat. Set up your LCD Monitor so that the panel is not facing a
window where sunlight often comes in. The glare caused by sunlight
reflecting off of the LCD Monitor’s screen will make it difficult to use
the Monitor for viewing.

2 Rev.1
Note: Using a computer for an extended period of time with a poor workstation
set-up and incorrect working habits can cause health problems. The science of
ergonomics studies the relationship between health and a suitable working
environment. There is a section on ergonomics at the end of this chapter. For
more information on ergonomics, contact your nearest computer bookstore, or
local library. The Internet also has information on this and other subjects.
If you previously were using a CRT monitor instead of a LCD monitor,
please do not connect the LCD monitor to your computer yet. Please
use the CRT monitor and turn on your computer. Make sure your video
card’s refresh rate is at 60hz in the Display Setting’s Advance Menu
under the Display Adapter tab. Once that is achieved you can then turn
off the computer and plug your new LCD monitor in
After unpacking your LCD monitor, make sure the following items are included
in the box and are in good condition:
•LCD monitor
•Power Cord
•Monitor-To-PC Analog signal cable 15pin
•Monitor-To-PC DVI signal cable
•1.5M stereo Jack Audio Cable
•User’s manual
If you find that any item to be missing or appear to be damaged,
contact your dealer immediately. Do not throw away the packing
material or shipping carton in case you need to ship or store the LCD
monitor in the future.

3 Rev.1
Identifying Components
A. The LCD Monitor — Front View
Figure 1-1: The LCD Monitor Front View
1. Power-On Indicator
This foursquare LED indicator blue lit when the power is on
and red lit when the LCD monitor is in power-saving mode.
2. Monitor Stand
3. LCD Screen
The LCD monitor screen is a 19-inch TFT 1440 x 900 Wide
WXGA+ screen.
4. LCD Monitor Control Panel
Refer to Chapter 2 for more details.
3
2
1
4

4 Rev.1

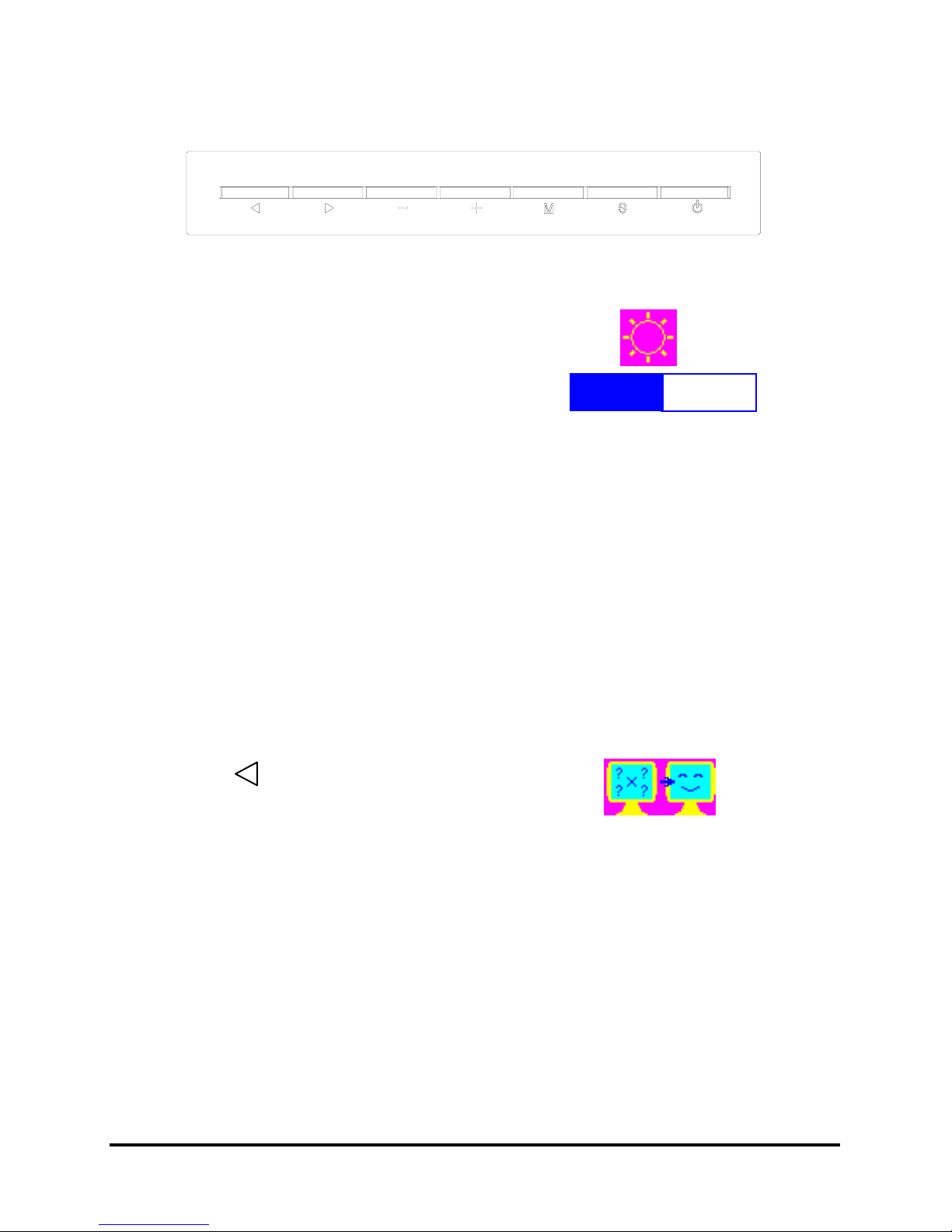

B. "Hot Keys" for Quick Adjustment of Monitor Settings
Figure 1-2: "Hot Keys"
1. Brightness adjustment "hot key":
Press - or + buttons to allow you to
adjust the brightness function
50
2. Source select “ Hot Key :
Press “ S “ button to allow you to
change the input source between DVI
port and RGB port, if the screen can’t
detect signal, then it will switch to the
next automatically
If DVI port connects to a PC , display
PC screen.
Source D-Sub
Source DVI
3. Auto adjustment “ Hot Key “
Press this to allow you to do the
auto adjustment to get the optimized
view
( For VGA port only, DVI port can’t
adjustment )

5 Rev.1

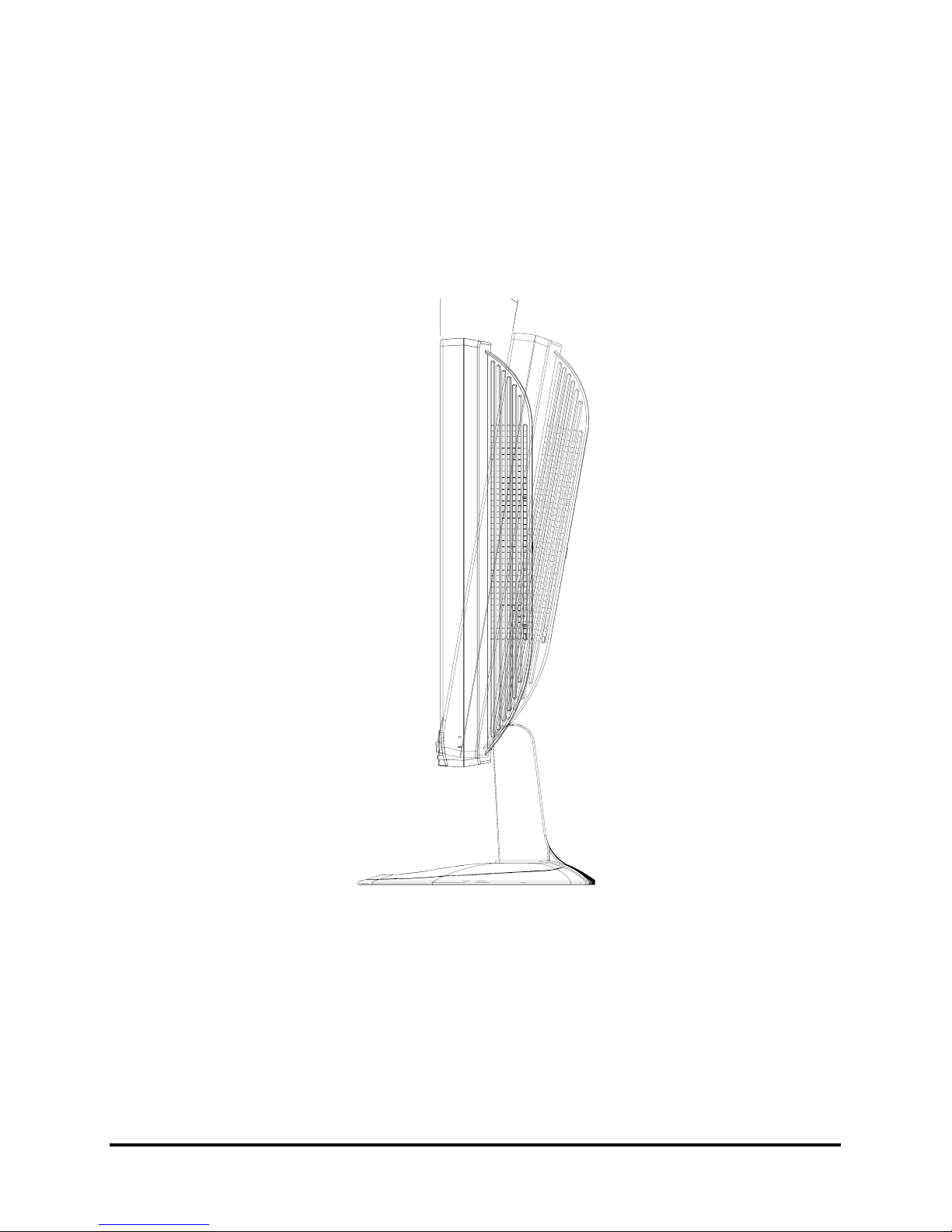

Adjusting the Tilting Angle
The LCD Monitor’s angle settings range from 0°to 10°.
10
Figure 1-3: Tilting the Monitor
0 to 10

6 Rev.1
Connecting AC Power and Video Cable
Note: Turn off your PC and the LCD monitor before connecting your LCD
monitor to the computer.
DVI
VGA
Audio
AC-IN
AC Outlet
(Wall Socket) Computer Power Cord
Figure 1-4: The AC Adapter
Power Management System
This LCD Monitor complies with the VESA DPMS power management
proposal.
When the LCD Monitor is in power-saving mode or detects an incorrect
timing, the monitor screen will be blank and the power LED indicator from
blue lit change to red lit and the power LED indicator starts blinking.

7 Rev.1
How to install the detacheable stand:
Please see the below drawing.

8 Rev.1
The Display Controls

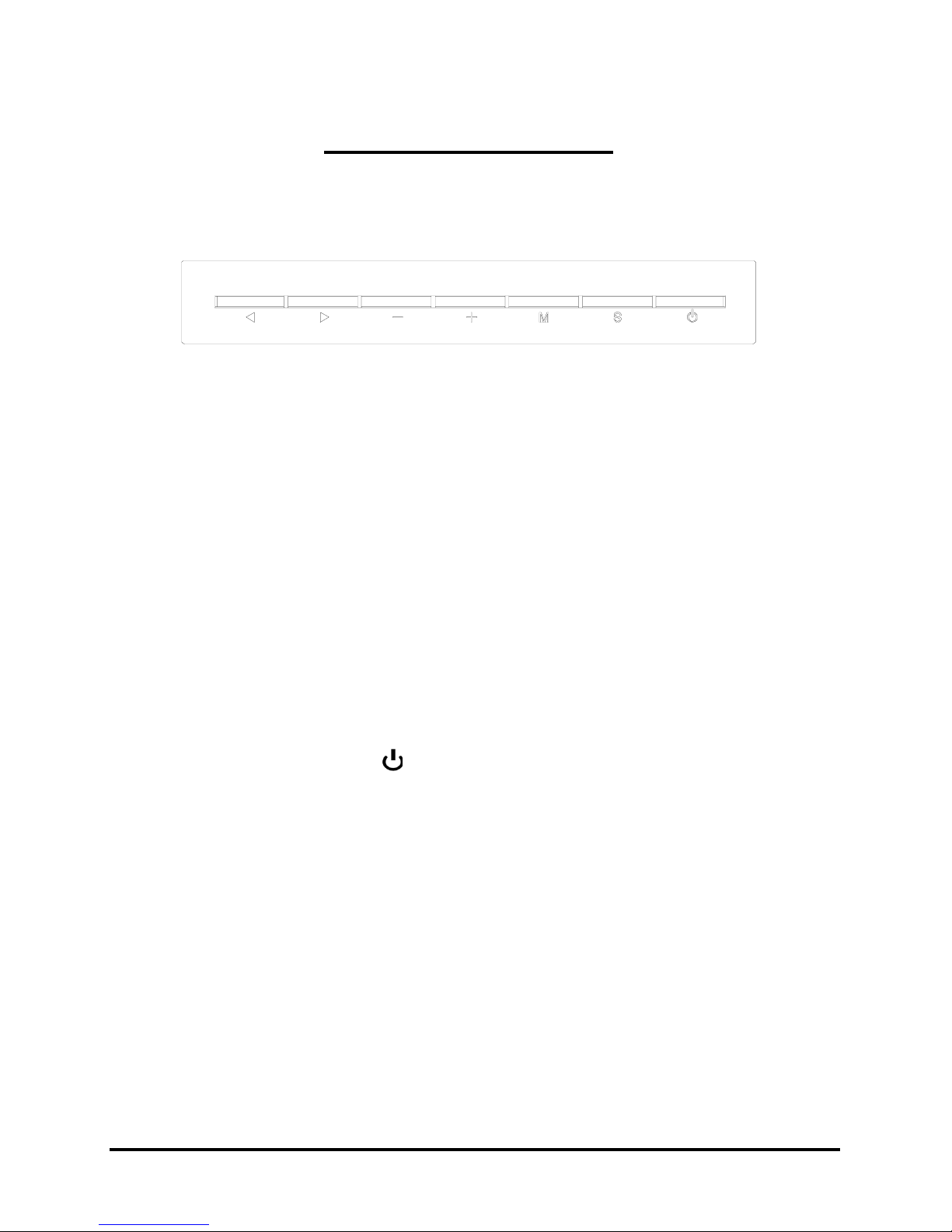

The LCD Monitor’s Control Panel
Figure 2-1: The Control Panel
1. Cursor Movement button Y&Z
These buttons let you move horizontally across your settings
2. Ajustment button - & +
These buttoms let you to change the setting value or move
to next sub-menu
3. Menu: OSD Menu button
Press this button to display the OSD (On-Screen Display)
menu.
4. Source: Source select hot key
Press this button to change the input source from D-Sub to
DVI
5. Power Switch
This button lets you turn power for the LCD monitor ON or
OFF.

9 Rev.1
Adjusting the Monitor’s Display

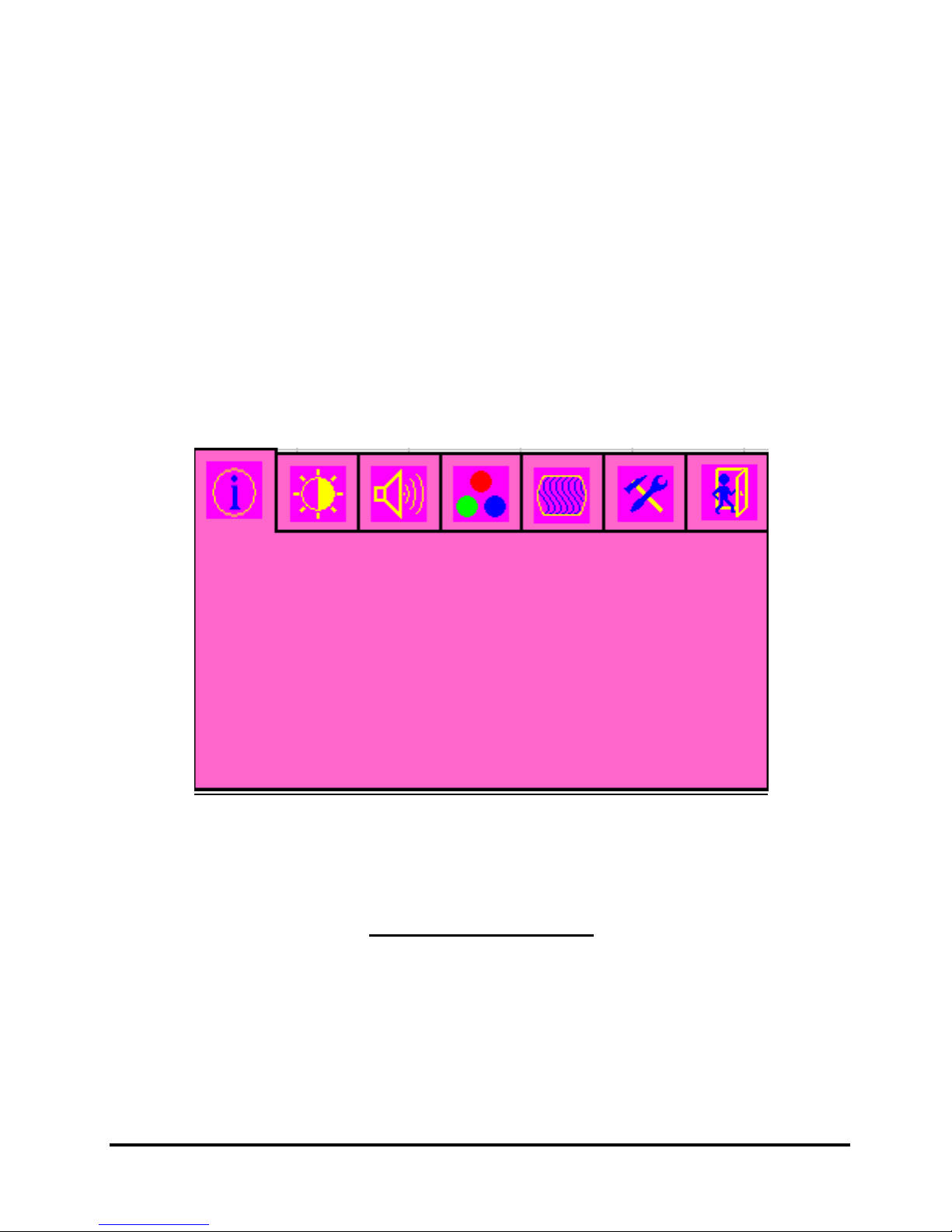

OSD Main Menu
1. Pressing the OSD Menu button causes the screen below to appear.
2. Use the Y&Zkey to select the desired group, then press - & + key
to the sub-menu
3. Repeat step 2 to select the changed item, then press - & + to change the
value.
4. Press the Menu to return to the sub-menu item 3 to another adjustment
The OSD Main Menu
OSD Main SCREEN
Timing : 1440 x 900
V/H Freq : 60Hz 55KHz
SCEPTRE X9WG-NagaV
Recommend 1440 x 900

10 Rev.1
Auto Adjust Option
The Auto Adjust option lets the monitor determine and
select the settings that are most appropriate for your
system requirements.
Note: it only apply for Analog RGB input
Provides you with the current display timing information.
Brightness and Contrast Adjustment
Adjusts the Brightness value
Adjusts the Contrast value
Execute the white balance function
Return to the previous Menu
Audio Function
Volume : Adjust the speaker volume
Mute : Mute the speaker
Return

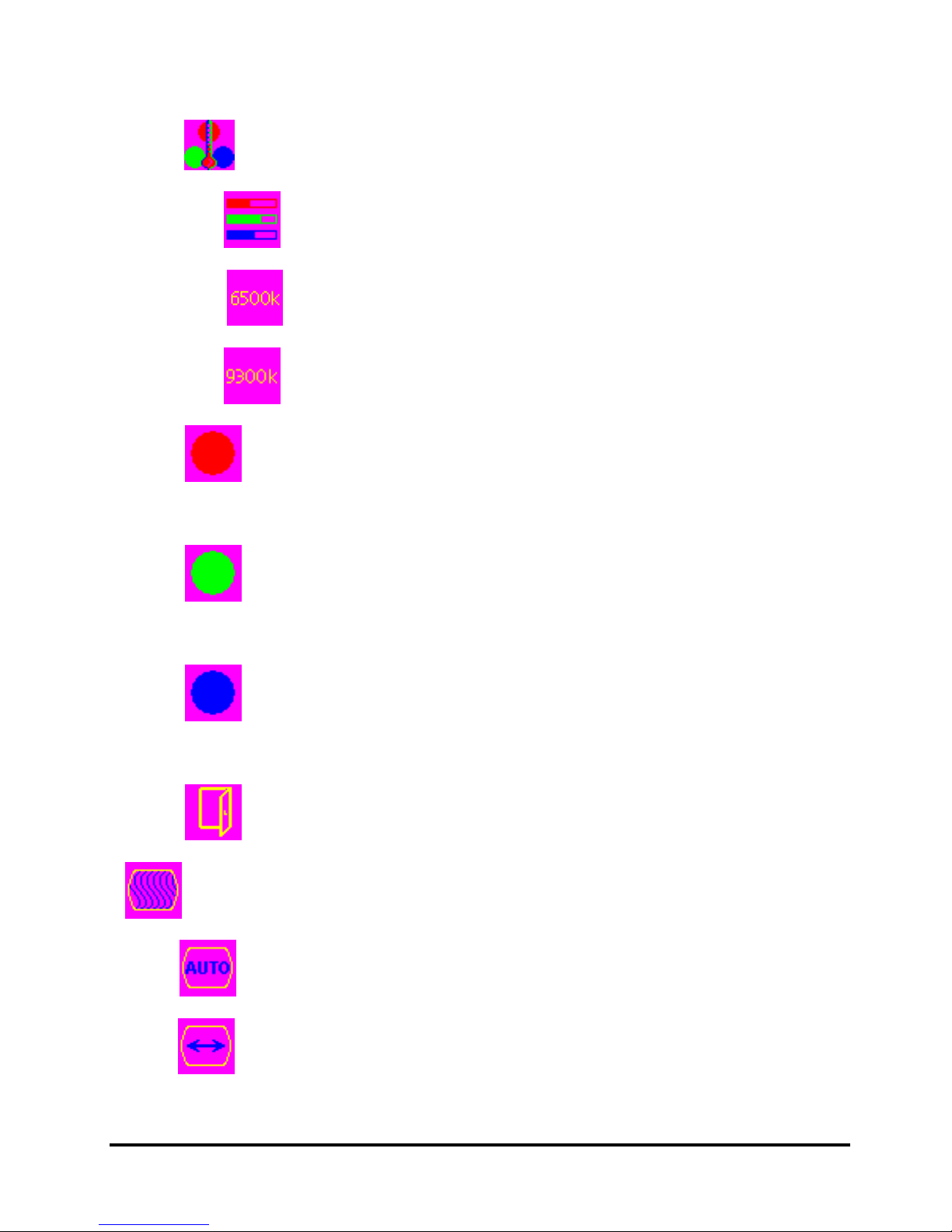

Color Temperature Adjustment

11 Rev.1
Set up the color temperature value
User Mode
Sets the color temperature to 6500K
Sets the color temperature to 9300K
Red change Red gain for the color temperature
(only valid when color temperature set at user mode )
Green change Green gain for the color temperature
(only valid when color temperature set at user mode )
Blue change Blue gain for the color temperature
(only valid when color temperature set at user mode )
Return to the previous Menu

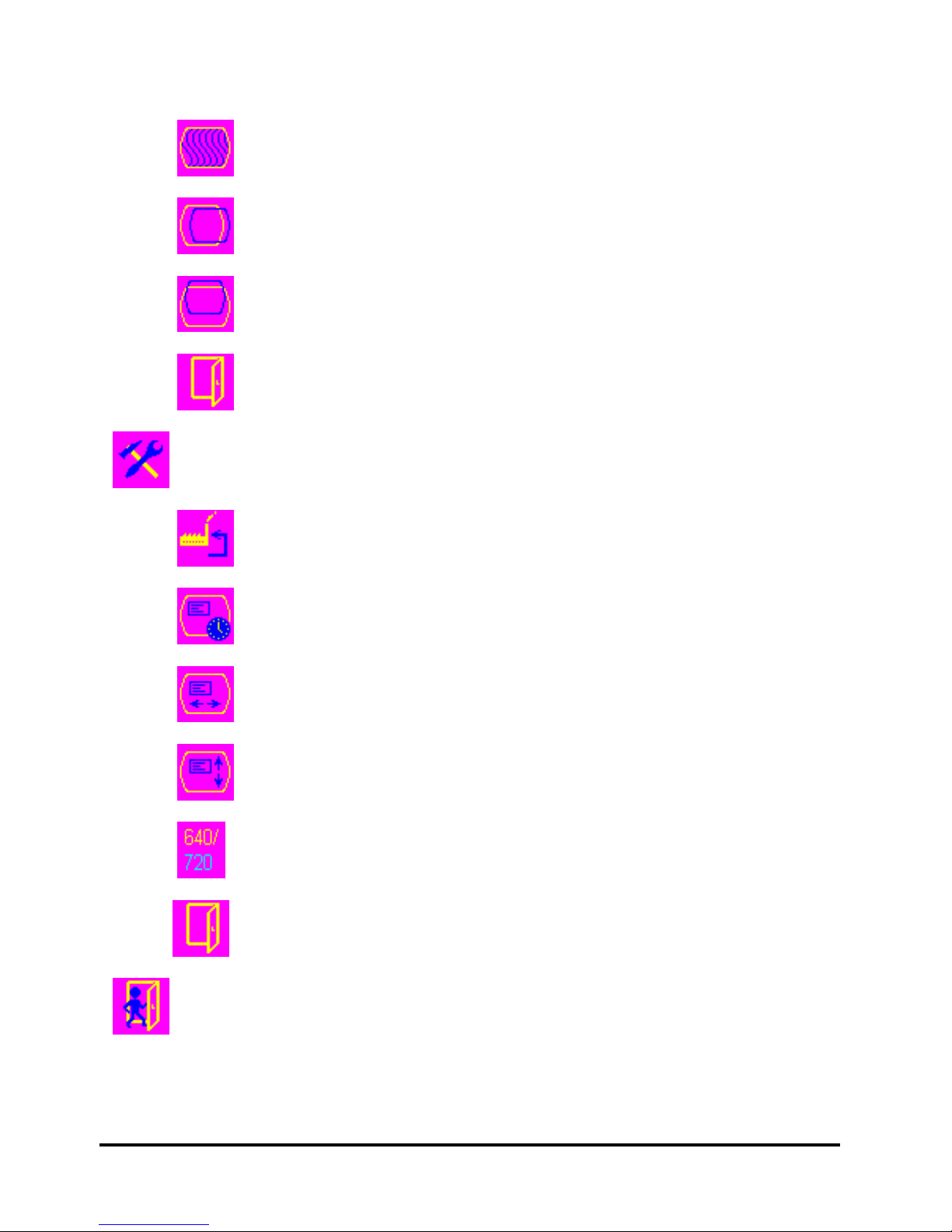

Display Quality Adjustment
Auto Adjust: use this option to apply automatically setting
Changes the screen viewing size

12 Rev.1
Adjusts phase tracking to reduce display flicker
Moves the whole screen right or left
Moves the whole screen up or down
Return to the previous Menu
OSD Adjustment
Restores settings to factory default values
Sets the OSD timer
Moves the OSD menu horizontally
Moves the OSD menu vertically
Set the graphic mode or text mode
Return to the previous Menu
Exit the OSD screen

13 Rev.1

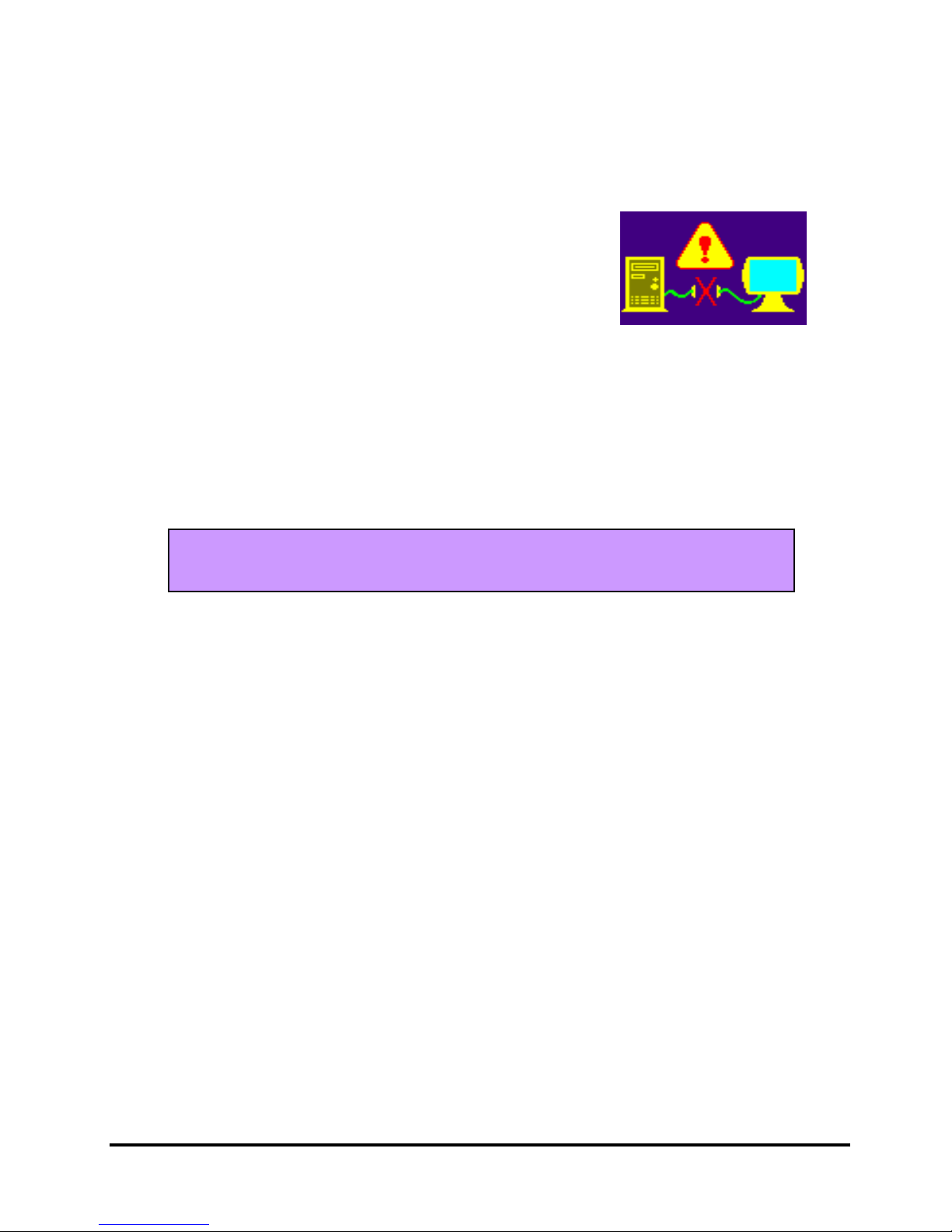

Note:
1) No video
When the monitor is ON and there is no video
signal received, the following message will be
displayed
2) Signal out of range
When the frequency range of the signal is out of the Monitor’s specifications,
(over 85HZ) the display will show the following message
Out of Range

14 Rev.1
Appendix A
TFT LCD Monitor Specifications
Item Specification
LCD Panel 19" WXGA+
Control
Functions
Power
Software Power switch with LED indicator
(ON/OFF)
Main Menu Submenu
Information
Brightness
/Contrast Control
Brightness/Contrast/White
balance/Exit
Audio Control Volume/Mute/Exit
Color temperature
Control
User mode, 9300K, 6500K
R,G,B, gain value
Display Quality Auto Adjustment/Phase
adjustment/Screen Size/ Screen
Horizontal position/Screen Vertical
position/Exit
OSD adjsutment Restore to the default/OSD timer/OSD
Horizontal Position/OSD Vertical
Position/640&720/Exit
On-Screen
Display
(OSD)
Exit
Display Area
(mm)
408.24 x 255.15
(19" diagonal)
Display
Colors
16.7 M
Video
Interface
VGA Compatible Analog RGB
Digital DVI interface

15 Rev.1
Item Specificaiton
Scanning Frequency
H/V, Hz
24-80K
50-75
Power Management Meets VESA DPMS
Power Consumption
(ON/OFF, W)
40W/1W Max.
Dimensions
WxHxD
18.72 x 16.14 x 6.89 in.
(475.4 x 410 x 175mm)
Net Weight
(approx.)
13.2 lbs
(6 Kg)
Power Supply Universal Input AC Socket
Environment Operating Temperature: 32 to 104°F (0 to 40° C)
Relative Humidity: 10% to 90%
Regulatory FCC B DoC,UL/cUL,Energy star

16 Rev.1
Appendix B
Supported Timing
Item Standards Resolution Dot Clock
(MHz)
Vertical
Scanning
Frequency
(Hz)
Horizontal
Scanning
Frequency
(kHz)
1 NEC PC98 640x400 21.05 56.42 24.83
2 MAC 13" mode 640x480 30.24 66.67 35.00
3 MAC 16" mode 832x624 57.28 74.55 49.73
4 MAC 17" mode 1024x768 80.00 75.02 60.24
5 VGA 640x350 25.18 70.09 31.47
6 VGA 640x400 25.18 70.09 31.47
7 VGA 640x480 25.18 59.94 31.47
8 VESA 640x480 31.50 72.81 37.86
9 VESA 640x480 31.50 75.00 37.50
10 VESA 800x600 36.00 56.25 35.16
11 SVGA 800x600 40.00 60.32 37.88
12 VESA 800x600 50.00 72.19 48.08
13 VESA 800x600 49.50 75.00 46.88
14 VGA 720x400 28.32 70.09 31.47
15 XGA 1024x768 65.00 60.00 48.36
16 VESA 1024x768 75.00 70.07 56.48
17 VESA 1024x768 78.75 75.03 60.02
18 VESA 1152X864 108. 75.00 68.70
19 Non-VESA 1280x720 74.02 60 44.7
20 VESA 1280X1024 108 60 63.98
21 VESA 1280X1024 135 75 80
22 VESA 1440x900 106 60 55
*Once a mode is optimized, there is no need to make any further adjustment
as long as the VGA card remains unchanged.
*Specifications are subject to change without notice.
