Schiit Yggdrasil+ User manual

THE FULLY MODULAR DAC
44 48X1 X2 X4 X8
SE OUTS BALANCED OUT 012345678
115VAC 30W
44 48X1 X2 X4 X8
SE OUTS BALANCED OUT 012345678
115VAC 30W

The following is required by the roughly 9,542 government
agencies and regulations we have to comply with. If you have
some common sense, they should seem pretty straightfor-
ward. In any case, read these instructions before proceeding farther,
follow all instructions, and heed all warnings. Or else!
1. If you don’t know how to install audio devices, get a qualied profes-
sional to help.
2. Never use this device near water, and clean only with a dry cloth.
3. Assure adequate ventilation, do not block any ventilation openings, or
place near heat sources.
4. Use only the supplied power cord or suitable replacement. Route
cords away from trac areas and protect them from being pinched.
Unplug the cord from the outlet if the apparatus is unused for a long
period of time.
5. To prevent electric shock, do not use the plug with an extension cord,
receptacle, or outlet unless blades can be fully inserted.
6. Refer all servicing to qualied service personnel. Service is required
when the device has been damaged, including cord or plug damage,
liquid has been spilled or objects have fallen into the device, the device
has been exposed to rain or moisture, does not operate normally, or has
been dropped.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS DEVICE
TO RAIN OR MOISTURE.
INTRO
Yggdrasil+ is simply the ultimate Schiit DAC—and maybe
the ultimate DAC, period. With insane design throughout,
from the choke-input power supply to unique time- and
frequency-domain digital lter, to complete modularity
that ensures you’re ready for the future, Yggdrasil is a
true agship. Enjoy!
44 48X1 X2 X4 X8
SE OUTS BALANCED OUT
012345678
115VAC 30W

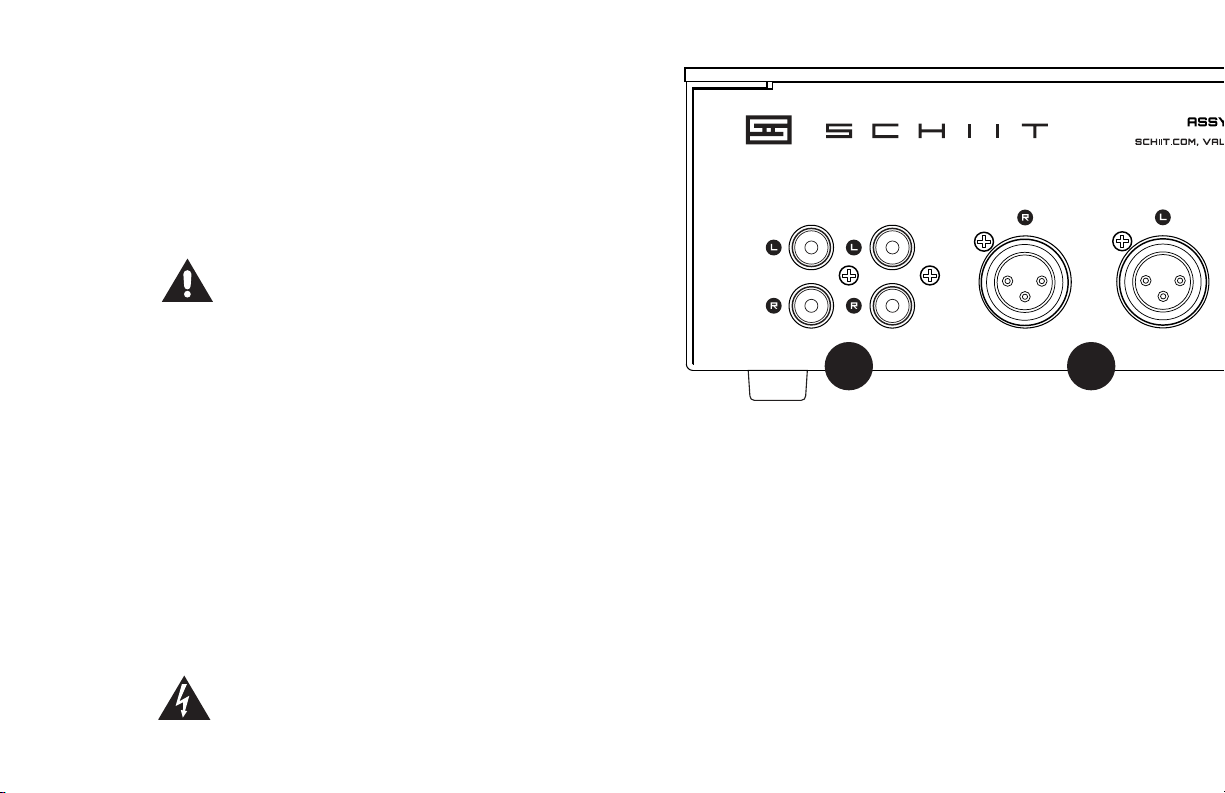

CONNECTIONS
1
2
LEGALESE
1 Connect the XLR outputs to your
balanced preamp or integrated amp.
Use good-quality XLR cables. We do not
recommend connecting directly to your
amp, even if you are using digital volume
control on your source.
2 If you don’t have XLR inputs on your
preamp, connect the RCA outputs to your
preamp or integrated amp. Two sets of
outputs are provided. All outputs—balanced
and single-ended—are active at the same

44 48X1 X2 X4 X8
SE OUTS BALANCED OUT
012345678
115VAC 30W
3
4
567
8
9
time, so feel free to connect to subwoofers
and other devices as well as a preamp or
integrated.
3 Connect the Unison USB™ input to
your streamer, computer, or tablet. Use
a short (2m or less), USB 2.0-rated cable.
Depending on your source, you may need
an A-B, C-B, or Mini-B USB cable.
4 Connect the optical input with a short
(3m or less), high-quality Toslink-style
cable. Some lower-quality cables,
especially long cables, will not be able to
support 176K and 192K sample rates.
5 Connect the RCA coaxial digital input
with a high-quality 75 ohm coaxial cable.
6 Connect the BNC input with a 75 ohm co-
axial cable to a BNC digital source, (if you
have one, these seem to be rare these days!
7 Connect the AES/EBU input with a high-
quality digital-rated XLR cable. If you aren’t
using Unison USB, we highly recommend
AES/EBU.
8 Plug in the power cord. Use the supplied
IEC cord. The other end goes in the wall.
Yep, we know you knew that. And yes, you
can use another power cord if it makes you
feel better.
9 Turn on the power using the power
switch. Up for on, down for off. Very
simple. You can leave Yggdrasil on all the
time if you’d like, or turn it on and off as
you use it.

44 48X1 X2 X4 X8
SE OUTS BALANCED OUT 012345678
115VAC 30W
4 This is lit when phase is inverted. Press
button 2 to go back to normal phase.
5 This is lit when you’re in NOS mode.
Press and hold button 2 to leave NOS mode
6 The Sample Rate LEDs indicate what
format is coming in to Yggy—44.1K or 48K,
plus the multiple (1, 2, 4, or 8X.)
7 The Input LEDs show what input you’ve
selected. Hopefully it doesn’t show more
than one.
1 Push the Input Select button to pick your
input. Miss your input? Keep pressing.
2 Use the Phase & Mode button to switch
absolute phase and to use NOS mode.
Push once, quickly, to invert the phase, or
to leave inverted phase mode. Push and
hold to enter or leave NOS mode.
3 Use the Mute button to mute output.
Press and hold to mute. When in mute, LED
3 lights.
CONTROLS
1
2456
10

44 48X1 X2 X4 X8
SE OUTS BALANCED OUT 012345678
115VAC 30W
8 The Low Quality Source lights when
clock regeneration must loosen its
algorithm due to poor source. AKA the
“buy better gear” light. You should pretty
much never see this light. If you do, check
your source and cables.
9 This lights when muted. Press button 3
to unmute. It also ashes when Yggdrasil
is rst turned on and it’s doing self-checks.
10 This is the remote control sensor. Don’t
block it if you want the remote to work.
13
789
The remote allows you to cycle
through inputs, mute the output,
and invert the output.
Changing the Battery
1. Push the remote open by inserting the
end of an open paper clip into the hole in
the back and pressing rmly.
3. Replace the battery inside with one of
the same type.
4. Reassemble the remote by rst inserting
the clear LED in the front, then drop-
ping the panel down onto the matching
magnets.
REMOTE
1
2
3
1
2
3
Yggdrasil+ is upgradable via its modular
design—the USB Input, SPDIF Input, DSP,
and DAC/Analog cards are all updatable.
When it’s time for your upgrade, we’ve taken great care
to ensure that Yggdrasil+ won’t have to come back to us.
However, if you want the condence of a factory-installed
upgrade, the Schiit Upgrade Queueing system ensures
you can keep your DAC until the moment we’re ready to
do the upgrade.
If you’d like to be the rst to know about upgrades as they
become available, sign up on the SPAM link on our site.
UPGRADES

I hear hum from Yggdrasil+. What do I do?
Yggdrasil’s noise oor is insanely low, so it’s most likely a
ground loop. To x a ground loop, try a HumX or a ground
loop isolator.
Hey, this thing clicks between songs/between inputs/etc!
Yes, it does.
Care to explain why, smartass?
Sure. That’s the muting relay engaging when there’s no
input. Many computer sources turn off the digital audio out-
put between songs and when changing sampling rates. We
went with a muting relay because it’s the best way to ensure
there are no clicks or pops when the input is unlocked. But
it does click a bit.
It takes a few seconds to change inputs and play music!
Yes, it does. Yggdrasil+ is doing a lot when you change
inputs. It’s actually looking at the quality of the input signal
and making a decision on which clock regeneration system
to use, as well as which clock frequency is appropriate to
the sampling rate. It’s a hell of a job, so it can take a little
while to lock in.
My computer doesn’t see the Yggdrasil via USB. What’s up?
It depends on the computer. Some Mac and PC operat-
ing systems have draconian restrictions on the amount of
power their USB ports can provide. Check schiit.com/faq/
USB-problems for some possible solutions.
FAQ
How do I install the Windows USB drivers?
No modern Windows computer needs drivers. We are fully
UAC2 compliant, so we work with Windows, Mac, Linux
(most streamers), Android, and iOS.
What if I’m still having glitches or intermittent
connectivity when connected to a computer?
Start at schiit.com/faq/DAC-problems for troubleshooting.
I don’t get any sound from Yggdrasil+!
Are your sources on? Check those rst. If you’re using a
computer source, ensure that your computer’s sound out-
put is set to go to the Yggdrasil via SPDIF or USB in BOTH
the Control Panel/System Preferences AND your music
player software.
Can I leave my Yggdrasil on all the time?
Sure, if you want to. In fact, we leave all our DACs on all the
time. It won’t hurt anything.
So when do I get the next upgrade from you?
Make sure you’re on the mailing list, and we’ll let you know
when we’ve released new USB or analog boards.
It doesn’t turn on, what do I do?
Plug it in to a different AC socket. Ensure you are not cur-
rently in a blackout. Then email us if it still doesn’t turn on.

Schiit Audio warrants to the original purchaser that the product shall be free from defects in material and workmanship for ve (5) years from the
date of purchase. Exceptions: Tubes and remote controls. Tubes are covered by a 90-day limited warranty with the same terms, and remotes are
covered by a 1-year limited warranty with the same terms. If a defect covered by this warranty occurs during this warranty period, Schiit Audio will
repair the defective product, free of charge. Date of purchase will be based on customer-submitted receipts, otherwise date of manufacturing will be
used to determine warranty period.
OBTAINING WARRANTY SERVICE
If you believe you need warranty service, contact us rst. There may be a simple solution to your problem. Schiit Audio products sent back to us
without a Return Authorization (RA) will be returned to the sender without repair. To contact us and obtain an RA, email [email protected]. We will
respond quickly to email inquiries.
WARRANTY LIMITATIONS
THIS WARRANTY SHALL NOT APPLY IF THIS PRODUCT: (a) IS MODIFIED OR TAMPERED WITH; (b) IS DAMAGED BY NEGLIGENCE, ACCIDENT,
UNREASONABLE USE, COFFEE, OR BY OTHER CAUSES UNRELATED TO DEFECTIVE MATERIALS OR WORKMANSHIP; OR (c) HAS HAD THE SERIAL
NUMBER ALTERED, DEFACED OR REMOVED.
ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
HEREBY LIMITED IN DURATION TO THE WARRANTY PERIOD (5 YEARS). IN NO EVENT SHALL SCHIIT AUDIO BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES RESULTING FROM THE BREACH OF ANY IMPLIED OR EXPRESS WARRANTIES. SOME STATES DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSION OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATIONS MAY
NOT APPLY TO YOU.
This warranty gives you specic legal rights. You may also have other rights which vary from state to state or province to province.
WARRANTY

SCHIIT.COM
[email protected]
(1) Yggdrasil+
(1) Power cord
(Various) Stickers and stuff
(Innite) Appreciation from the whole
Schiit crew in Valencia, CA and Corpus
Christi, TX
(Even more) Thanks from our chassis
and PCB guys in California, Nevada,
and Utah.
This product is in compliance with standards
and regulations of the European Community.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
IN THE BOX
