Schertler STAT Series User manual

Schertler SA
Via Beroldingen 18
6850 Mendrisio
Switzerland
T [phone]
F [phone]
[e-mail]
www.schertler.swiss
Facebook @schertler.sa
Instagram @schertleraudio
Youtube @Schertler SA
#shareyourschertler
QUICK GUIDE V1
STAT series
QUICK GUIDE
THANK YOU
FOR
CHOOSING
SCHERTLER
QUICK START
INSTALLATION
The pickup should be tted in the bridge hole under
the higher strings with the cork facing upwards.
The upper side of the cork must be led so that it
matches the top of the bridge hole exactly.
Once installed, is the pickup is too loose in position,
it might get a low output signal, while if it is installe
dtoo tightly, the sound might result boomy or
distorted.
Please refer to the USER GUIDE for all the details.
CONNECTION
Connect the STAT pickup to an instrument channel
of a preamp, amp or mixer.
The pickup requires 10V to work so remember to
eventually provi e it (this is one automatically on
the STAT PRE, but must be activate on YELLOW
preamps, any SCHERTLER acoustic amp or mixer).
USER GUIDE available at www.schertler.co
Scan the QR code
to open
the USER GUIDE

RECOMMENDED
POSITIONING
min. 6 mm
(1/4”)
If the bridge hole tting is too small
(especially on the violin), it may
have to be slightly enlarged towards
the top.

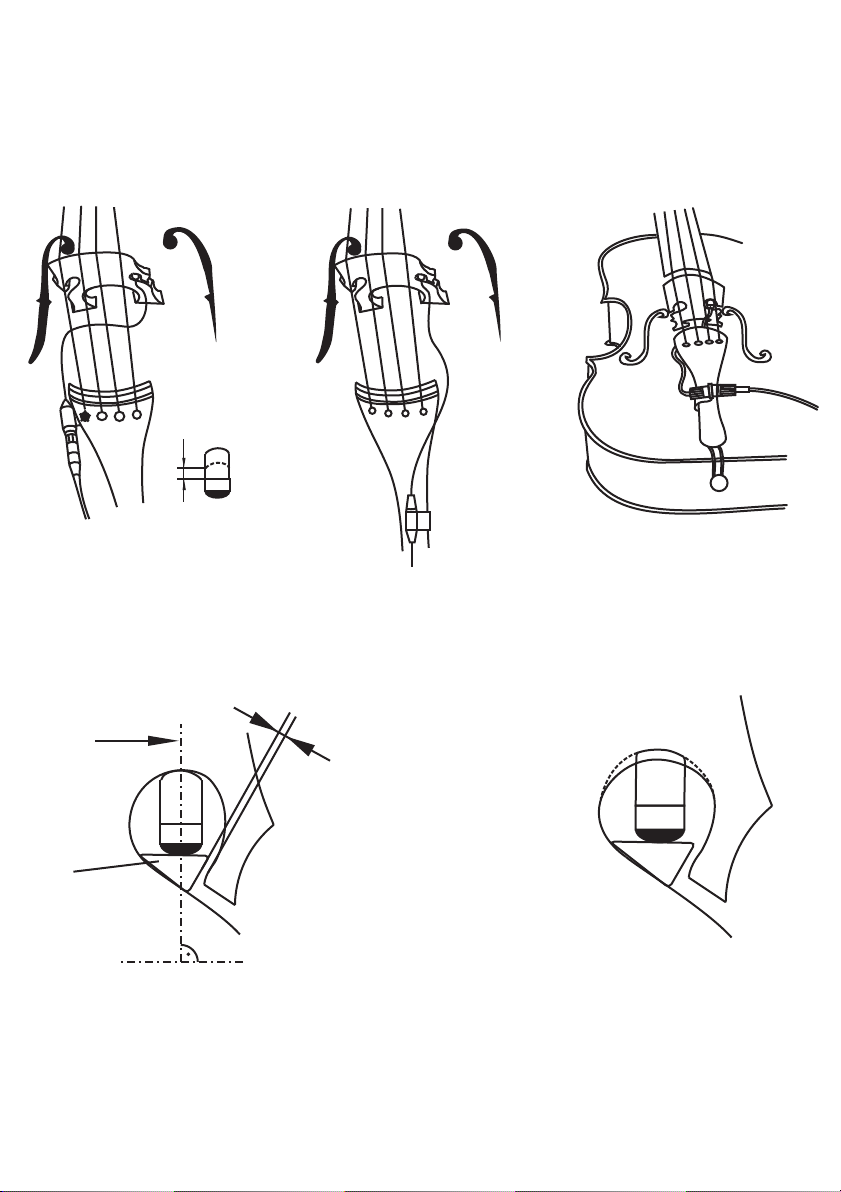

he pickup capsule should be tted more or less verticallly
in the bridge hole under the higher string’s side. (S A B
pictured here; for S A C and S A V the references are
the same, but without the small wood bloc provided)
S A B S A C S A V
vertical
wood
space > 1 mm

Grind the top of the cork until the capsule ts precisely in the hole. (If necessary, you can use a sharp knife to
cut the cork before grinding.) The upper side of the cork must be shaped so that it matches the top of the bridge
hole exactly. Failure to do this correctly (as shown abo e) will compromise the sound results.
If the bridge holes are ery small, it may be
necessary to shorten the bridge wings to allow the
wedge to be xed deeper, thus allowing more space
for the capsule
