schroff nvent 11850-029 User manual

1U 4-slot MTCA Shelf
User‘s Manual
Product Number:
11850-029
Doc-No: 63972-397_R1.1 July 2021

Impressum:
Schroff GmbH

Langenalber Str. 96 - 100
75334 Straubenhardt, Germany
The details in this manual have been carefully compiled and
checked - supported by certified Quality Management System
to EN ISO 9001/2000
The company cannot accept any liability for errors or misprints.
The company reserves the right to amendments of technical
specifications due to further development and improvement of
products.
Copyright2021
All rights and technical modifications reserved.
R1.0 November 2020 Initial release
R1.1 July 2021 Pinout eCLK Module corrected

11850-029
R1.1, July 2021 I
1 Safety ....................................................................................................................... 1
1.1 Safety Symbols used in this document.............................................................................. 1
1.2 General Safety Precautions ............................................................................................... 1
1.3 References and Architecture Specifications...................................................................... 1
2 Hardware Platform ................................................................................................... 2
2.1 Introduction ...................................................................................................................... 2
2.2 Front and Rear View.......................................................................................................... 3
2.3 ESD Wrist Strap Terminal .................................................................................................. 3
3 Backplane ................................................................................................................. 4
3.1 Backplane Topology .......................................................................................................... 4
3.2 Backplane Features ........................................................................................................... 5
3.3 Intelligent Platform Management Bus (IPMB) .................................................................. 5
3.3.1 IPMB-L................................................................................................................ 5
3.4 Power Management.......................................................................................................... 5
3.5 Third party clock module .................................................................................................. 6
4 Cooling ..................................................................................................................... 8
4.1 Air Filter............................................................................................................................. 8
4.2 Air filter swap .................................................................................................................... 8
4.3 Cooling .............................................................................................................................. 8
4.4 Power Supply..................................................................................................................... 9
5 eMCH (embedded MicroTCA Carrier Hub)............................................................... 10
5.1 Front Panel and LEDs....................................................................................................... 11
5.2 Command Line Interface (CLI)......................................................................................... 12
5.2.1 COM-Settings ................................................................................................... 12
5.3 Setting the fat pipe / extended fatpipe configurations................................................... 13
5.4 Firmware Update ............................................................................................................ 16
6 Technical Data ........................................................................................................ 17
6.1 Dimensions...................................................................................................................... 18

11850-029
II R1.1, July 2021

11850-029
R1.1, July 2021 Safety 1
1 Safety
The intended audience of this User’s Manual is system integrators and hardware/software
engineers.
1.1 Safety Symbols used in this document
1.2 General Safety Precautions
• Use of this product in a manner not specified by the manufacturer may impair the safety protec-
tion of this equipment.
• Service personnel must know the necessary electrical safety, wiring and connection practices for
installing this equipment.
• Install this equipment only in compliance with local and national electrical codes.
• For additional information about this equipment, see the PICMG MicroTCA 
Specification (www.picmg.com).
1.3 References and Architecture Specifications
•PICMG
®MTCA.0 Specification
(www.picmg.com)
•PICMG
®AMC® Base Specification
(www.picmg.com)
Hazardous voltage!
This is the electrical hazard symbol. It indicates that there are dangerous voltages inside the
Shelf.
Caution!
This is the user caution symbol. It indicates a condition where damage of the equipment or
injury of the service personnel could occur. To reduce the risk of damage or injury, follow all
steps or procedures as instructed.
Danger of electrostatic discharge!
The Shelf contains static sensitive devices. To prevent static damage you must wear an ESD
wrist strap.
Warning!
Voltages over 60 VDC can be present in this equipment. As defined in the PICMG 3.0 Speci-
fication, this equipment is intended to be accessed, to be installed and maintained by 
qualified and trained service personnel only.

11850-029
2Hardware Platform R1.1, July 2021
2 Hardware Platform
2.1 Introduction
The 4-slot SCHROFF MicroTCA System is designed to accommodate two double Mid-size AMC
modules with RTM and 2 Single Mid-size AMCs for maximum computing power in minimal
space.
The integrated eMCH (Embedded MicroTCA Carrier Hub), power supply and cooling unit
allow easy servicing.
The SCHROFF MTCA.4 1U System contains power and cooling management mechanisms to
ensure a high degree of reliability.
The system components are linked directly to the existing network infrastructure using an
1 GbE switch connected to an 1 GbE uplink.
The System allows the integration of an optional 3rd party eCLK module that routes external
clock and trigger signals to the AMC slots.
Features:
• Shielded steel case
• 2 AMC Double Mid-size slots with RTM slots
• 2 AMC Single Mid-size slots
• MicroTCA Backplane
• EMCH (Embedded MicroTCA Carrier Hub) with GbE uplink and USB
• Power management controller on the backplane
• Built-in fan unit with MTCA Cooling Unit Management
• Side-to-side cooling with air filter
• Integrated 400 W AC Power Supply with wide range AC input and 12 V DC output.
• AC mains/line module with IEC 60320-C14 connector, integrated mains/line fuses and
mains switch
• 1 U height, 19” width, 373 mm depth
• Fat pipe /extended fat pipe lanes prepared for 40 GbE and PCIe Gen3
Note: To achive a maximum height of 1 U, the card cage is installed rotated by 180°. 
This must be considered when installing the AMC modules!

11850-029
R1.1, July 2021 Hardware Platform 3

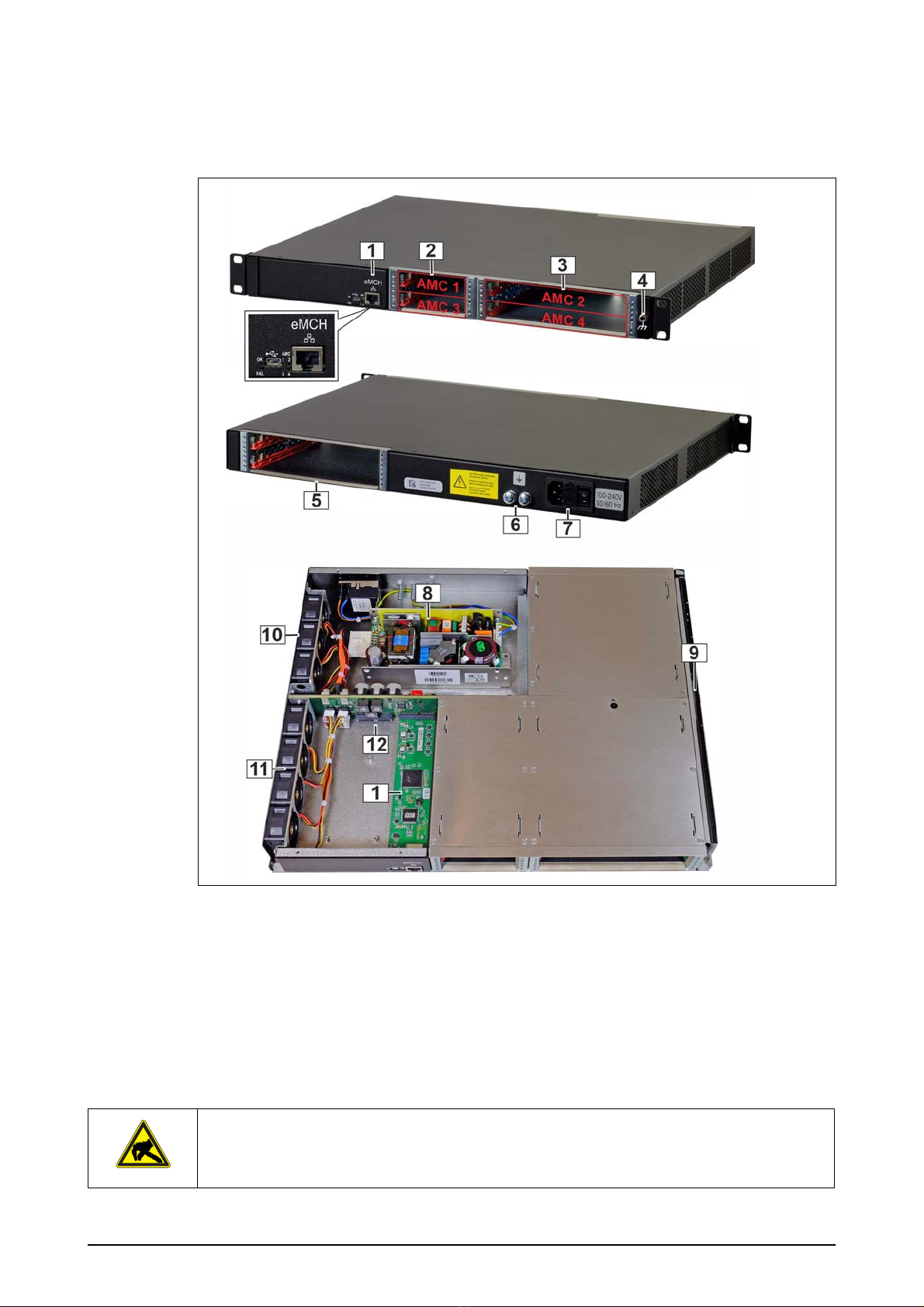

2.2 Front and Rear View
Figure 1: Front and RearView
2.3 ESD Wrist Strap Terminal
The ESD Wrist Strap Terminal (4 mm banana jack) is located right to the card cage.
1eMCH 7AC input with Mains/line switch and fuse
2AMC slots 1 & 3 8PSU
3AMC slots 2 & 4 9Air filter
4ESD Wrist Strap Terminal 10 Fans rear section
5RTM slots 11 Fans front section
6Ground Terminal (Equipotential bonding) 12 Connector for 3rd party eCLK module
Danger of electrostatic discharge!
The Shelf contains static sensitive devices. To prevent static damage you must wear an ESD
wrist strap.

11850-029
4Backplane R1.1, July 2021
3 Backplane

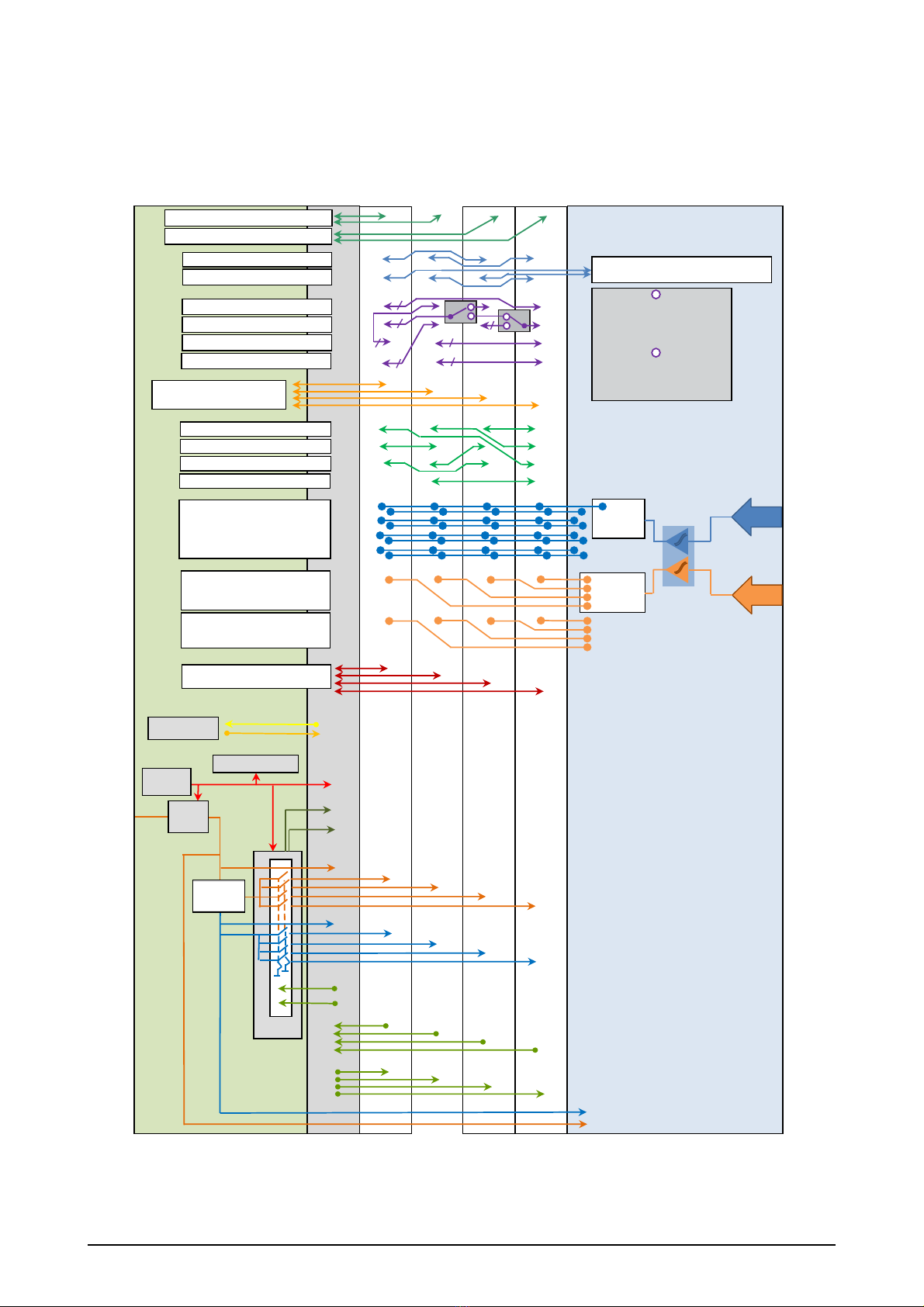

3.1 Backplane Topology
AMC1
Single
Mid-Size
Fabric 1/A to AMC Port 0
Clocks - FCLKA AMC
(1:1 connection) on BPL
Clocks - TCLKB AMC
Clocks - TCLKA AMC
HotSwap
AMC Port 2 (SATA)
AMC Port 3 (SATA)
eMCH
AMC Port 4-5
Fabric 2/A to AMC Port 0
I²C
Carrier Number
EEPROM
FRU
AMC Port 8-9
AMC4
Double
Mid-Size
+RTM
IPMB_L
FAN_Tacho
FAN 1..8 FAN_Control
+12V Current
Sense
PPWR_2
PPWR_1
PPWR
PPWR_3 PPWR_4
PRST_1 PRST_2 PRST_3 PRST_4
EN_AMC1 EN_AMC2 EN_AMC3 EN_AMC4
EN_HSC_1
EN_HSC_2
IR_HotSwap 1
IR_HotSwap 2
MP_2
MP
MP_1
MP_3 MP_4
+3.3V
DC/DC
Converter
Port 12
Port 13
Port 14
AMC2
Double
Mid-Size
+ RTM
Port 15
Triggers, Clocks, Interlocks
Port [17:20]
2
AMC3
Single
Mid-Size
SATA-Headers (on eCLK)
M.2 S-ATA module (3.3V main power)
2
2
AMC Port 6-7
AMC Port 10-11 22
2
Configuration 1
AMC1 port 4-5 to AMC4 port 4-5;
AMC1 port 6-7 to AMC3 port 4-5;
AMC1 port 8-11 to AMC2 port 4-7;
AMC2 port 8-11 to AMC4 port 8-11;
AMC3 port 6-7 to AMC 4 port 6-7
Configuration 2
AMC1 port 4-5 to AMC4 port 4-5;
AMC1 port 6-7 to AMC4 port 6-7;
AMC1 port 8-11 to AMC2 port 4-7;
AMC2 port 8-11 to AMC4 port 8-11;
LVDS
FanOut
MLVDS
Tx
SMA
SMA
Trigger
Clock
Backplane
MP
PPWR
eCLK
2
1
2
1
2
1
2

11850-029
R1.1, July 2021 Backplane 5
3.2 Backplane Features
• GbE Links from MCH to all AMC Slots
• Direct S-ATA / SAS connections:
- AMC 1 <-> AMC 3: Port 2
- AMC 2 <-> AMC 4: Port 3
- AMC 1 & 3: Port 3 <-> SATA Headers on eCLK connector
• Fat pipe and extended fat pipe contains 4 PCIe Gen 3 x4 MUX’s that allows the user to
select through the eMCH two different fat pipe / extended fat pipe configurations
Configuration 1
- AMC1 port 4-5 to AMC4 port 4-5;
- AMC1 port 6-7 to AMC3 port 4-5;
- AMC1 port 8-11 to AMC2 port 4-7;
- AMC2 port 8-11 to AMC4 port 8-11;
- AMC3 port 6-7 to AMC 4 port 6-7
Configuration 2
- AMC1 port 4-5 to AMC4 port 4-5;
- AMC1 port 6-7 to AMC4 port 6-7;
- AMC1 port 8-11 to AMC2 port 4-7;
- AMC2 port 8-11 to AMC4 port 8-11
Note:
As 4 PCIe MUX’s are in the fat pipe / extended fat pipe backplane signal lines, only AMC
modules that support PCIe on fat pipe / extended fat pipe can be installed.
• FCLK for PCIe Gen3 clock generated on backplane
• eMCH / Backplane provide power and cooling unit functionality
3.3 Intelligent Platform Management Bus (IPMB)
MicroTCA uses an Intelligent Platform Management Bus (IPMB) for management
communications.
3.3.1 IPMB-L
Radial IPMB from eMCH to the AMCs.
3.4 Power Management
The integrated power management circuitry on the backplane provides 12 V payload power
distribution branches to the AMC Slots. It also generates the 3.3 V management power and
distributes it to all slots.
The current to the AMC slots is limited to:
•8A(PayloadPower)
• 250 mA (Management Power)

11850-029
6Backplane R1.1, July 2021
3.5 Third party clock module
The system provides a connector and mounting space for a third party clock module.
Clock Module Connector Pinout
Pin Signal name Direction Functionality/Description Notes
1 PS1_eClock# out Presence signal of the eClock module,
active low
2 GA0 / RFU passive Geographic Address 0 / Reserved for
3 IPMBL-SCL-eClock inout IPMB-L clock line Connect to the eMCH EEPROM FRU I2C line or future IPMBL
4 MP power Management Power 3V3
5 IPMBL-SDA-eClock inout IPMB-L data line Connect to the eMCH EEPROM FRU I2C line or future IPMBL
6 TxFA_eClock+ out Port 0 (MCH Fabric A) Ethernet link TX + Configuration Interface from backplane or intelligent eClock
connected to Common Options
7 GND Ground
8 TxFA_eClock- out Port 0 (MCH Fabric A) Ethernet link TX - Configuration Interface from backplane or intelligent eClock
connected to Common Options
9 RxFA_eClock+ in Port 0 (MCH Fabric A) Ethernet link RX + Configuration Interface from backplane or intelligent eClock
connected to Common Options
10 GND Ground
11 RxFA_eClock- in Port 0 (MCH Fabric A) Ethernet link RX - Configuration Interface from backplane or intelligent eClock
connected to Common Options
12 TxFB-1-eClock+ /
AMC1_TCLKD+
inout AMC1 port 2 to eClock TX + / TCLKD to
AMC1 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
13 GND Ground
14 TxFB-1-eClock- /
AMC1_TCLKD-
inout AMC1 port 2 to eClock TX - / TCLKD to
AMC1 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
15 RxFB-1-eClock+ /
AMC1_TCLKC+
inout AMC1 port 2 to eClock RX + / TCLKC to
AMC1 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
16 TxFB-3-eClock+ /
AMC3_TCLKD+
inout AMC3 port 2 to eClock TX + / TCLKD to
AMC3 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
17 RxFB-1-eClock- /
AMC1_TCLKC-
inout AMC1 port 2 to eClock RX - / TCLKC to
AMC1 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
18 TxFB-3-eClock- /
AMC3_TCLKD-
inout AMC3 port 2 to eClock TX - / TCLKD to
AMC3 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
19 RxFB-3-eClock+ /
AMC3_TCLKC+
inout AMC3 port 2 to eClock RX + / TCLKC to
AMC3 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
20 GND Ground
21 RxFB-3-eClock- /
AMC3_TCLKC-
inout AMC3 port 2 to eClock RX - / TCLKC to
AMC3 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
22 TxFB-2-eClock+ /
AMC2_TCLKD+
inout AMC2 port 2 to eClock TX + / TCLKD to
AMC2 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
23 GND Ground
24 TxFB-2-eClock- /
AMC2_TCLKD-
inout AMC2 port 2 to eClock TX - / TCLKD to
AMC2 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
25 RxFB-2-eClock+ /
AMC2_TCLKC+
inout AMC2 port 2 to eClock RX + / TCLKC to
AMC2 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
26 TxFB-4-eClock+ /
AMC4_TCLKD+
inout AMC4 port 2 to eClock TX + / TCLKD to
AMC4 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
27 RxFB-2-eClock- /
AMC2_TCLKC-
inout AMC2 port 2 to eClock RX - / TCLKC to
AMC2 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
28 TxFB-4-eClock- /
AMC4_TCLKD-
inout AMC4 port 2 to eClock TX - / TCLKD to
AMC4 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
29 RxFB-4-eClock+ /
AMC4_TCLKC+
inout AMC4 port 2 to eClock RX + / TCLKC to
AMC4 +
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
30 GND Ground
31 RxFB-4-eClock- /
AMC4_TCLKC-
inout AMC4 port 2 to eClock RX - / TCLKC to
AMC4 -
Future use for SATA/NVME drive on eClock or intelligent eClock
connected to FatPipe
32 MLVDS-19-RX+ inout Bus LVDS Port 19 RX+

11850-029
R1.1, July 2021 Backplane 7
Pin Signal name Direction Functionality/Description Notes
33 GND Ground
34 MLVDS-19-RX- inout Bus LVDS Port 19 RX-
35 MLVDS-17-RX+ inout Bus LVDS Port 17 RX+
36 PP power Payload Power 12V Current Capability 2.8A max (derated to 1.5A)
37 MLVDS-17-RX- inout Bus LVDS Port 17 RX-
38 MLVDS-19-TX+ inout Bus LVDS Port 19 TX+
39 PP power Payload Power 12V Current Capability 2.8A max (derated to 1.5A)
40 MLVDS-19-TX- inout Bus LVDS Port 19 TX-
41 MLVDS-17-TX+ inout Bus LVDS Port 17 TX+
42 GND Ground
43 MLVDS-17-TX- inout Bus LVDS Port 17 TX-
44 MLVDS-20-RX+ inout Bus LVDS Port 20 RX+
45 GND Ground
46 MLVDS-20-RX- inout Bus LVDS Port 20 RX-
47 MLVDS-18-RX+ inout Bus LVDS Port 18 RX+
48 PP power Payload Power 12V Current Capability 2.8A max (derated to 1.5A)
49 MLVDS-18-RX- inout Bus LVDS Port 18 RX-
50 MLVDS-20-TX+ inout Bus LVDS Port 20 TX+
51 PP power Payload Power 12V Current Capability 2.8A max (derated to 1.5A)
52 MLVDS-20-TX- inout Bus LVDS Port 20 TX-
53 MLVDS-18-TX+ inout Bus LVDS Port 18 TX+
54 GND Ground
55 MLVDS-18-TX- inout Bus LVDS Port 18 TX-
56 AMC3_TCLKA+ out TCLKA from eClock to AMC3 +
57 GND Ground
58 AMC3_TCLKA- out TCLKA from eClock to AMC3 -
59 AMC1_TCLKA+ out TCLKA from eClock to AMC1 +
60 GND Ground
61 AMC1_TCLKA- out TCLKA from eClock to AMC1 -
62 AMC4_TCLKA- out TCLKA from eClock to AMC4 -
63 GND Ground
64 AMC4_TCLKA+ out TCLKA from eClock to AMC4 +
65 AMC2_TCLKA- out TCLKA from eClock to AMC2 -
66 GND Ground
67 AMC2_TCLKA+ out TCLKA from eClock to AMC2 +
68 AMC4_TCLKB- in TCLKB from AMC4 to eClock -
69 GND Ground
70 AMC4_TCLKB+ in TCLKB from AMC4 to eClock +
71 AMC1_TCLKB- in TCLKB from AMC1 to eClock -
72 GND Ground
73 AMC1_TCLKB+ in TCLKB from AMC1 to eClock +
74 AMC3_TCLKB+ in TCLKB from AMC3 to eClock +
75 GND Ground
76 AMC3_TCLKB- in TCLKB from AMC3 to eClock -
77 AMC2_TCLKB+ in TCLKB from AMC2 to eClock +
78 GND Ground
79 AMC2_TCLKB- in TCLKB from AMC2 to eClock -
80 EN_eClock# in Enable signal from MCH, active low

11850-029
8Cooling R1.1, July 2021
4 Cooling
4.1 Air Filter

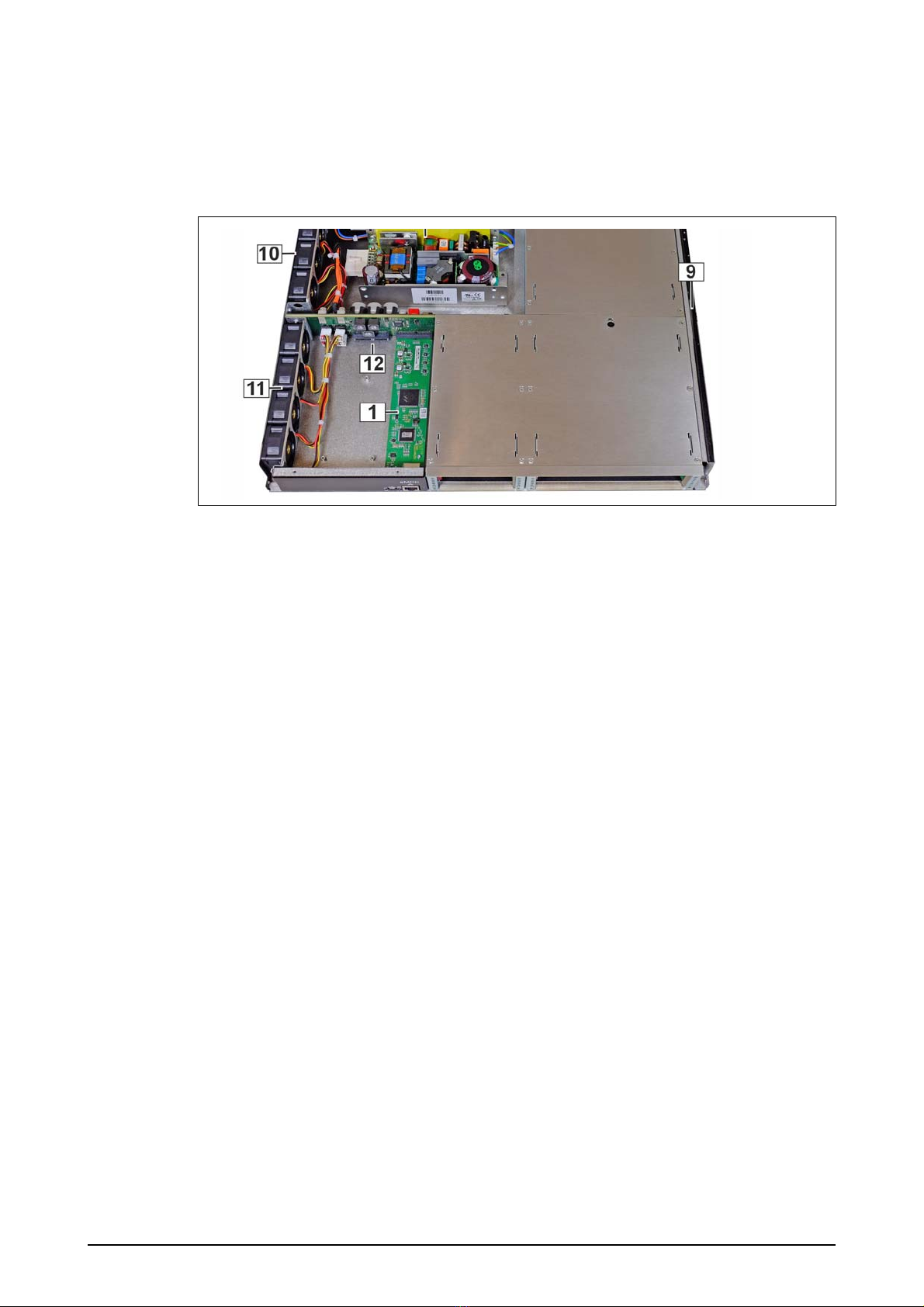

Figure 2: Air Filter
4.2 Air filter swap
The system provides a replaceable air filter. The air filter can be pulled out after removing the top
cover. The filter meets the requirements of the Telcordia Technologies Generic Requirements GR-78-
CORE specification.
4.3 Cooling
The MicroTCA Shelf is equipped with seven 12 VDC fans for cooling the AMC modules and the power
supply. The fans are controlled as a group by the EMCH.
The air flow is from the right side to the left side.
e
9Air Filter

11850-029
R1.1, July 2021 Cooling 9
4.4 Power Supply
The system has a 400 W open frame AC power supply with wide range AC input and 12 VDC output.
The DC output is connected directly to the power management circuitry on the backplane.
The power input is provided by an AC mains/line module with IEC 60320-C14 connector, integrated
mains/line fuses, line filter and a mains/line switch.
Fuse value is T6.3AH250V.

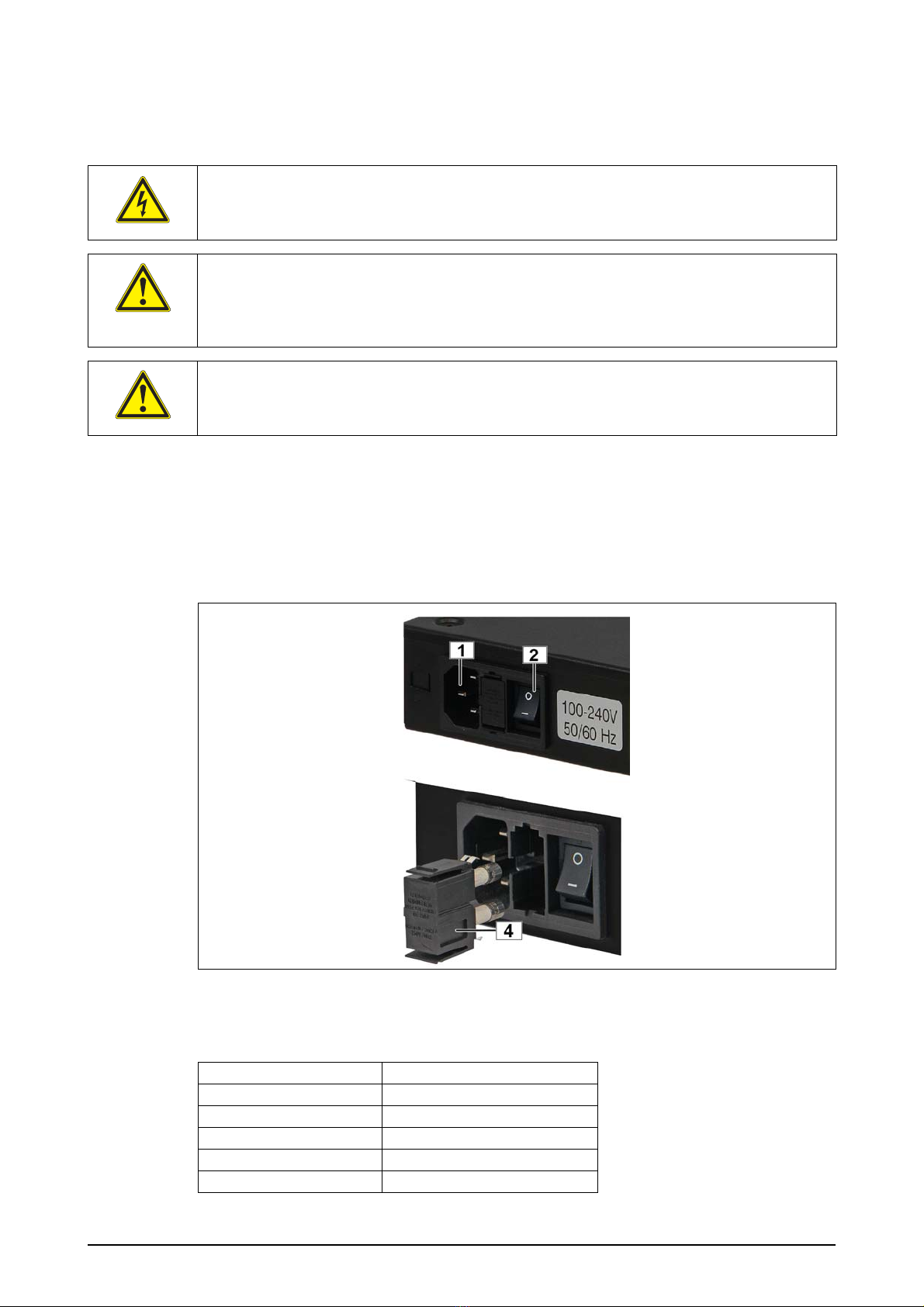

Figure 3: AC Input
Table 1: Data AC Power Supply
e
Hazardous voltage!
Parts of the power supply may be exposed with hazardous voltage. 
Always remove mains/line connector before carry out any assembly work.
Caution!
The unit is designed in accordance with protection class 1! It must therefore be operated with protec-
tive earth/GND connection. Use only a three conductor AC power cable with a protective earth 
conductor that meets the IEC safety standards!
Caution!
There is a ground terminal at the right side. This ground terminal is only for equipotential bonding.
Grounding is achieved through the protective earth conductor of the power cable!
1AC Input 4Fuse holder
2Mains switch
Input voltage 100 - 240 VAC
Mains Frequency 50 / 60 Hz
Output (max.) 400 W
Output voltage 12 V DC
Output voltage ripple and noise 120 mVpp
Operating Temperature -5° C - +55° C

11850-029
10 eMCH (embedded MicroTCA Carrier Hub) R1.1, July 2021
5 eMCH (embedded MicroTCA Carrier Hub)
The eMCH (embedded MicroTCA Carrier Hub) is intended to provide basic MicroTCA
functionality for switching and managing AMC (Advanced Mezzanine Card) modules.
It delivers switching and hub functionality for the system fabric gigabit ethernet (GbE) as
defined in the AMC.0 standard series.
Furthermore it supports the typical hot swap management and its transition state machine
(M0 to M6) for each AMC module. In addition to that, the embedded MCH monitors and
verifies local sensor data of the chassis and installed FRU devices and supplies MicroTCA
power and cooling concepts by accessing the chassis integrated power supply and fan
coolers.
Remote administration can be done locally over the CLI (Command Line Interface) served by
the front USB port.
Figure 4: eMCH Block Diagram
Microcontroller
1000Base-BX#2
MII
1000Base-BX#1
1000Base-T
(Uplink)
IPMB-L#2
IPMB-L#1
Gigabit-
Ethernet-
Switch
FAN Tacho/PWM
PS1#[0,1]
EN#[0,1]
Hot-Swap
Controller
Current
Sensor
I2C
I²C
Backplane
USB-Serial
Port
HSC_CTL
AMC #X
1000Base-BX
IPMB-L
EN# / PS#
AMC #1 ...........
1000Base-BX
IPMB-L
EN# / PS#
Power
Supply
FANs
FAN Tacho/PWM
12V
eMCH
FRU
EEPROM
1000Base-BX#2
1000Base-BX#1
1000Base-BX
1000Base-BX
MP
Gener on
Status-
LEDs
MP
PP
Frontpanel

11850-029
R1.1, July 2021 eMCH (embedded MicroTCA Carrier Hub) 11
5.1 Front Panel and LEDs
The eMCH front panel consists of 4 status LEDs for the AMCs, and 2 LEDs (OK, FAIL) for the
system’s operation status. In addition to the LEDs, you can find sockets for a RJ45 plug and a
micro USB cable.
Figure 5: EMMC Front Panel
Table 2: EMCH front panel
- Note: When executing the bootloader, all LEDs will be put on.
OK
FAIL
12
AMC
34
Type Function
LED AMC 1....AMC 4 Blink Short: Reading FRU information (M1)
Blink Slow: Waiting for HS-Handle being closed (M1)
ON: FRU operating state (M4)
OFF: No Module installed
LED OK Blink Slow: -
Blink Short: Test Mode
ON: Normal operating status. No error
OFF:-
LED FAIL Blink Slow: -
Blink Short: -
ON: Hard fault
OFF: -
Micro USB Type A Used for virtual COM-Port. Direct connection to PC
RJ45 Gigabit-Ethernet 1000Base-T Uplink for remote control

11850-029
12 eMCH (embedded MicroTCA Carrier Hub) R1.1, July 2021
5.2 Command Line Interface (CLI)
The EMCH is providing a low level command line interface (CLI) which allows to set certain
operational parameters and to display run time information from the MCH and the system.
5.2.1 COM-Settings
The CLI can be accessed over the front MicroUSB port. To establish a connection to a host PC,
use a serial terminal program e.g. Terra-Term, HTerm, Putty, e.g.
Configure the COM port settings as followed:
Table 3: COM port settings
If the terminal is opened, press enter to see if the connection is established successfully.
You can now type “help” to see the list of available commands. Press enter to call the
previous command again.
NOTE: Depending on your operating system, you need to download and install the FTDI-chip
driver manually. Drivers can be downloaded at http://www.ftdichip.com/FTDrivers.htm.
Installing the driver automatically by the windows update may take up to a few minutes.
Table 4: Basic CLI Commands
Baudrate 115200
Data 8 bit
Parity None
Stop 1 bit
Flow control None
COM The devices COM address defined by host
Command Parameter Description
bi Board Information
Prints the vital product information record (i.e. Serial num-
ber, Hardware revision and release codes).
ip <ip>
<netmask>
<gateway>
IP configuration
Configures IP addresses, net mask, broadcast address and
gateway. Parameters have to be in dotted representation
<x.x.x.x>
ni Print network configuration
ti Print task information
bl Starts the bootloader
show_localsensors Show local sensor information of the chassis
show_fru Show all FRU’s
show_fruinfo <fru_id> FRU contents
Shows the contents of a FRU device selected by <fru_id>.
For valid FRU numbers please refer to MTCA R1.0 table 3-3
show_sensorinfo <fru_id> Shows the sensor values of the selected FRU
show_pm Power Module Status
Shows the actual power allocation status for all AMC mod-
ules
reboot Reboot the eMCH
password <old_password>
<new_password>
Changes the web password for accessing the update ser-
vice

11850-029
R1.1, July 2021 eMCH (embedded MicroTCA Carrier Hub) 13
5.3 Setting the fat pipe / extended fatpipe configurations
The 2 different fat pipe / extended fat pipe configurations are set via a PCIe MUX. For the
setting you must open the configuration menue in eMCH.
• Connect your host PC to the USB port and start your terminal program
• Power-up the system (eMCH)
• During the booting process you can see the current configuration
eMCH on platform: NATIVE-R1-MINI
Set PCIexpress MUX: 0x00: OK! - Read back: 0x00
• To change the configuration enter:
cfg
• and go through the settings list by hitting the RETURN button until you reach the topic
“Use alternate PCIexpress configuration“
• Type “y“ and hit RETURN
• Go to the end of the list and save the changes to flash
•Reboot
-----------------------------------
CFG: configuration modes
[ 0] no action
[ 1] print complete configuration
[ 2] modify MCH global configuration
[ 3] modify ShM configuration
[ 4] modify CM configuration
[ 5] modify SEL configuration
[ 6] modify DHCP configuration
[128] reset to defaults
[ q] quit and save configuration
Enter configuration mode (RET=q): 2
CFG global parameter:
---------------------
Remote interfaces:
RMCP access: (BETA STATE) enabled
TELNET access: enabled
WEB access: enabled
RMCP session activity timeout minutes: 60 min
RMCP session activity timeout seconds: 0 sec
Note: The factory default is configuration 1 = 0x00
Configuration 2 = 0x24

11850-029
14 eMCH (embedded MicroTCA Carrier Hub) R1.1, July 2021
Cooling parameter:
Default fan level: 30 %
Enable alternative cooling scheme: no
FAN speed decrease time: 120
Ethernet interfaces:
Front Uplink (RJ45) enabled yes
AMC1 port 0 enabled yes
AMC2 port 0 enabled no
AMC3 port 0 enabled yes
AMC4 port 0 enabled no
PCIexpress configuration: 0 (Default)
MCH remote interfaces
Enable RMCP access (y/n) (RET=y):
Enable telnet access (y/n) (RET=y):
Enable WEB access (y/n) (RET=y):
RMCP session activity timeout minutes: 60 min
RMCP session activity timeout seconds: 0 sec
Enter session activity timeout (dec, minutes) (RET=60/
0x3c):
Enter session activity timeout (dec, seconds) (RET=0/
0x0):
Enable Telnet daemon inactivity timeout (y/n) (RET=y):
Enter telnet activity timeout (dec, minutes) (RET=120/
0x78):
Ethernet interfaces:
Enable Front Uplink (RJ45) (y/n) (RET=y):
Enable AMC1 port 0 (y/n) (RET=y):
Enable AMC2 port 0 (y/n) (RET=n):
Enable AMC3 port 0 (y/n) (RET=y):
Enable AMC4 port 0 (y/n) (RET=n):
PCIexpress configuration:
Use alternate PCIexpress configuration (y/n) (RET=n): y
MCH configuration flags:
Enable AMC1 unmanaged mode (y/n) (RET=n):
Cooling parameter:

11850-029
R1.1, July 2021 eMCH (embedded MicroTCA Carrier Hub) 15
Enable alternative cooling scheme (y/n) (RET=n):
FAN speed decrease time (min) (RET=120/0x78):
Enter default fan level (10-100%) (RET=30/0x1e):
-----------------------------------
CFG: configuration modes
[ 0] no action
[ 1] print complete configuration
[ 2] modify MCH global configuration
[ 3] modify ShM configuration
[ 4] modify CM configuration
[ 5] modify SEL configuration
[ 6] modify DHCP configuration
[128] reset to defaults
[ q] quit and save configuration
Enter configuration mode (RET=q): q
Save config to FLASH? (y/n) (RET=n): y
CFG: configuration saved to FLASH.
CFG: configuration updated
nat>reboot

11850-029
16 eMCH (embedded MicroTCA Carrier Hub) R1.1, July 2021
5.4 Firmware Update
The EMCH serves a web based front end to easily upgrade the devices firmware in field. To
use this utility, first establish an ethernet link over the EMCH uplink port. If not changed, the
standard interface config is as followed:
Table 5: Standard interface configuration
Type http://192.168.1.138/ in your web browser or type “bl” in the command line interface
to call the bootloader. Your browser should show the index page with a button “call
bootloader”. By clicking on this button, a software reset will be triggered and the system will
boot into the bootloader. Wait a few seconds and call http://192.168.1.138/ again. The page
should have changed slightly and will prompt you to enter a password. By default, the
password is “nat”. To leave the bootloader without touching anything, just click on “Leave
Bootloader”.
By clicking on “submint” the upload page should open.
Now select a proper firmware image with the file extension “.srec”. Click upload to flash the
image into the device memory.
NOTE: The upload process will take a few seconds, please don’t interrupt or close the browser
while upgrading.
If succeed, the Message “File Upload Done” is shown. Click on “Reset MCU” to trigger a
software reset. The device should now boot into the new firmware.
NOTE: If something went wrong during the firmware upgrade (e.g. lost of power or
communication during file transfer), the device will boot into the bootloader again instead of
loading the firmware. In this case you can easily repeat the firmware upgrade.
IP address: 192.168.1.138
Netmask: 255.255.255.0
Gateway: 0.0.0.0
