Schumacher Electric INSTANT POWER IP-1875C User manual

00-99-001088/00
Model / Modelo / Modèle: IP-1875C
READ THE ENTIRE MANUAL BEFORE USING THIS PRODUCT.•
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
LEA EL MANUAL COMPLETO ANTES DE UTILIZAR ESTE PRODUCTO. CUALQUIER•
FALLA PODRÍA RESULTAR EN SERIAS LESIONES O PODRÍA SER MORTAL.
LIRE ENTIÈREMENT LE GUIDE AVANTD’UTILISER CE PRODUIT. L’ÉCHEC DE FAIRE•
AINSI PEUT S’ENSUIVRE DANS LA BLESSURE SÉRIEUSE OU LA MORT.
OWNER’S MANUAL • MANUAL DEL USUARIO •GUIDED’UTILISATION
INSTANT POWER™Jump Starter and DC Power Source / Fuente de Poder
de CD y Arrancador / Aide de Démarrage et Source d’Énergie CC
ADVERTENCIA

DO NOT RETURN THIS PRODUCT
TO THE STORE!
Call Customer Service for Assistance:
800-621-5485
NE PAS RETOURNER LE PRODUIT
AU MAGASIN!
Appeler le service clientèle pour l’assistance:
800-621-5485
¡NO LO DEVUELVA ESTE PRODUCTO
A LA TIENDA!
Llame a Servicios al Cliente para Asistencia:
800-621-5485

TABLE OF CONTENTS
SECTION PAGE
IMPORTANT SAFETY INSTRUCTIONS 1
PERSONAL PRECAUTIONS 2
PREPARING TO USE THE INSTANT POWER™ 3
INSTANT POWER™ LOCATION 3
DC CONNECTION PRECAUTIONS 3
FOLLOW THESE STEPS WHEN CONNECTING TO A BATTERY 4
CHARGING AND AC POWER CORD CONNECTIONS 4
FEATURES 5
CHARGING THE INTERNAL BATTERY OF THE INSTANT POWER™ 5
OPERATING INSTRUCTIONS 6
MAINTENANCE INSTRUCTIONS 8
MOVING AND STORAGE INSTRUCTIONS 8
TROUBLESHOOTING 8
BEFORE RETURNING FOR REPAIRS 9
SPECIFICATIONS 9
REPLACEMENT PARTS/ACCESSORIES 9
LIMITED WARRANTY 10
ÍNDICE
SECCIÓN PÀGINA
INSTRUCCIONES IMPORTANTES DE SEGURIDAD 13
PRECAUCIONES PERSONALES 14
PREPARACIÓN PARA EL USO DEL INSTANT POWER™ 15
UBICACIÓN DEL INSTANT POWER™ 15
PRECAUCIONES DE CONEXIÓN EN CC 15
SIGA ESTOS PASOS CUANDO SE CONECTE A LA BATERÍA 16
CARGA Y CABLES DE CA PARA LA CONECCIÓN 16
CARACTERÍSTICAS 17
PARA CARGAR LA BATERIA INTERNA DE LA FUENTE DEL INSTANT POWER™ 17
INSTRUCCIONES DE OPERACIÓN 18
INSTRUCCIONES DE MANTENIMIENTO 20
INSTRUCCIONES PARA EL MANEJO Y ALMACENAMIENTO 20
LOCALIZACIÓN Y SOLUCIÓN DE PROBLEMAS 21
ANTES DE DEVOLVER A REPARACIONES 21

ESPECIFICACIONES 22
REPUESTOS/ACCESORIOS 22
GARANTÍA LIMITADA 22
TABLE DES MATIÈRES
PARTIE PAGE
CONSIGNES DE SÉCURITÉ IMPORTANTES 24
PRÉCAUTIONS PERSONNELLES 25
PRÉPARE POUR UTILISER LE INSTANT POWER™ 26
EMPLACEMENT DU INSTANT POWER™ 26
PRÉCAUTIONS SUR LA CONNEXION C.C. 27
SUIVI CES DÉMARCHES LORS DE LA CONNEXION À UNE BATTERIE 27
CHARGE L’ALIMENTATION CA ET LES CONNEXIONS DU CORDON 27
CARACTÉRISTIQUES 28
CHARGEMENT DE LA BATTERIE INTERNE DE L’ INSTANT POWER™ 28
CONSIGNES D’UTILISATION 29
CONSIGNES D’ENTRETIEN 31
INSTRUCTIONS DE TRANSPORT ET STOCKAGE 31
TABLEAU DE DÉPANNAGE 32
AVANT DE L’ENVOYER POUR RÉPARATION 32
CARACTÉRISTIQUES 33
PIÈCES DE RECHANGE/ACCESSOIRES 33
GARANTIE LIMITÉE 33
CONTAINS SEALED NON-SPILLABLE LEAD-ACID
BATTERY. MUST BE DISPOSED OF PROPERLY.
CONTIENE UNA BATERÍA SELLADA DE ÁCIDO-
PLOMO NO DERRAMABLE QUE DEBE DESECHARSE
APROPIADAMENTE.
CONTIENT UNE BATTERIE À L’ACIDE QUI DOIT ÊTRE
DISPOSÉ CORRECTEMENT.
WARNING: Possible explosion hazard. Contact with battery acid
may cause severe burns and blindness. Keep out of reach of
children.
ADVERTENCIA: Posible Riesgo de una explosión. El contacto
con una batería de ácido puede causar quemaduras y ceguera.
Manténgase alejado de los niños.
AVERTISSEMENT : hasard d’explosion possible. Contact avec
l’acide de batterie peut provoquer sévère brûle et la cécité. Ne le
laissez pas a la portée des enfants.

• 1 •
IMPORTANT: READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL.
SAVE THESE INSTRUCTIONS – Charge the Instant Power™ internal battery
immediately after purchase, after every use and every 30 days. This manual will show
you how to use your Instant Power™ safely and effectively. Please read, understand
and follow these instructions and precautions carefully, as this manual contains
important safety and operating instructions. The safety messages used throughout this
manual contain a signal word, a message and an icon.

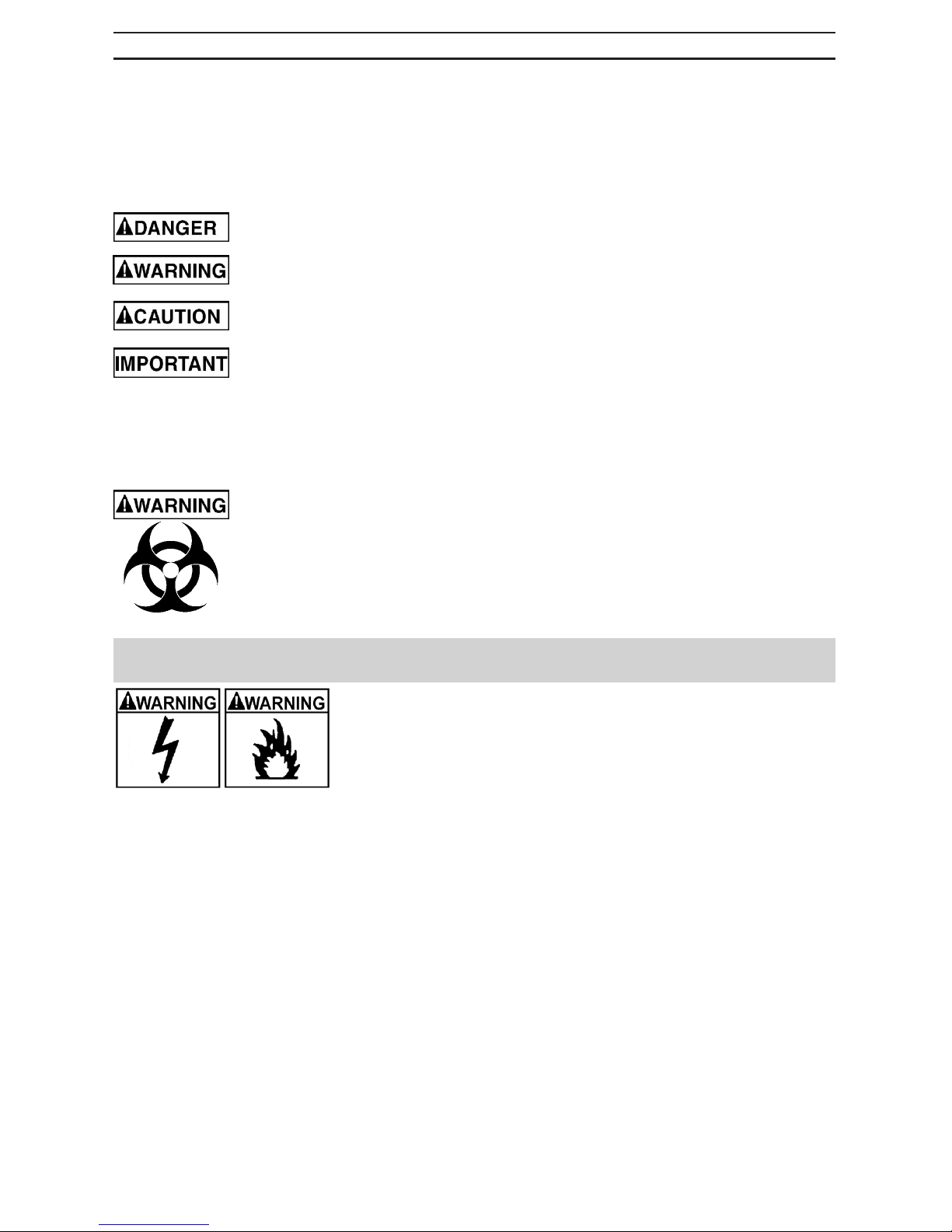

The signal word indicates the level of the hazard in a situation.
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
moderate or minor injury to the operator or bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in
damage to the equipment or vehicle or property damage.
Safety messages in this manual contain two different type styles.
Unnumbered type states the hazard.•
Numbered type states how to avoid the hazard.•
The icon gives a graphical description of the potential hazard.
Pursuant to California Proposition 65, this product contains chemicals known to
the State of California to cause cancer and birth defects or other reproductive
harm.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS -1. This
manual contains important safety and operating instructions
RISK OF ELECTRIC SHOCK OR FIRE.
Read the entire manual before using this product. Failure to do so could result in serious1.1 injury or death.
Keep out of reach of children.1.2
Do not put ngers or hands into any of the Instant Power’s™ outlets.1.3
Do not expose the Instant Power™ to rain or snow.1.4
Use only recommended attachments. Use of an attachment not recommended or sold1.5 by Schumacher® Electric Corporation may result in a risk of re, electric shock or injury
to persons or damage to property.
Use of an improper extension cord could result in a risk of re and electric shock. When 1.6 an extension cord is used, make sure:
That the pins on the plug of the extension cord are the same number, size and shape• as those of the plug on the Instant Power™ charger.
That the extension cord is properly wired and in good electrical condition.•
That the extension cord has a wire size of 18 gauge (AWG) [0.82 mm• 2] or larger and
is 50 feet (15.24 meters) long or less.
To reduce the risk of electric shock, unplug the Instant Power™ charger from the outlet1.7 before attempting any maintenance or cleaning. Simply turning off the controls will not
reduce this risk.

• 2 •
When charging the internal battery, work in a well ventilated area and do not restrict the1.8 ventilation in any way.
Do not operate the Instant Power™ with damaged cables or clips; have the cable or clip1.9 replaced immediately a qualied service person. (Call customer service at: 1-800-621-
5485.)
Do not operate the Instant Power™ if it has received a sharp blow, been dropped or1.10 otherwise damaged in any way; take it to a qualied service person. (Call customer
service at: 1-800-621-5485.)
Do not disassemble the Instant Power™; take it to a qualied service person when 1.11 service or repair is required. Incorrect reassembly may result in a risk of re or electric
shock. (Call customer service at: 1-800-621-5485.)
RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS.1.12 BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL BATTERY
OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT YOU
FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE INSTANT POWER™.
To reduce the risk of a battery explosion, follow these instructions and those published1.13 by the battery manufacturer and the manufacturer of any equipment you intend to use in
the vicinity of the battery. Review the cautionary markings on these products and on the
engine.
This Instant Power™ employs parts, such as switches and circuit breakers, that tend to1.14 produce arcs and sparks. If used in a garage, locate this Instant Power™ 18 inches (46
cm) or more above oor level.
PERSONAL PRECAUTIONS2.
RISK OF EXPLOSIVE GASES. A SPARK NEAR
THE BATTERY MAY CAUSE A BATTERY
EXPLOSION. TO REDUCE THE RISK OF A
SPARK NEAR THE BATTERY:
Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive2.1 gases during normal battery operation. For this reason, it is of utmost importance that
you follow the instructions each time you use the Instant Power™.
NEVER smoke or allow a spark or ame in the vicinity of a battery or engine.2.2
Remove personal metal items such as rings, bracelets, necklaces and watches when2.3 working with a lead-acid battery. A lead-acid battery can produce a short-circuit current
high enough to weld a ring or the like to metal, causing a severe burn.
Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might2.4 spark or short-circuit the battery or other electrical part that may cause an explosion.
Do not permit the internal battery of the Instant Power™ to freeze. Never charge a2.5 frozen battery.
To prevent sparking, NEVER allow clips to touch together or contact the same piece of2.6
metal.
Consider having someone close enough by to come to your aid when you work near a2.7 lead-acid battery.
Have plenty of fresh water and soap nearby in case battery acid contacts your skin,2.8 clothing or eyes.
Wear complete eye and body protection, including safety goggles and protective2.9 clothing. Avoid touching your eyes while working near the battery.

• 3 •
If battery acid contacts your skin or clothing, immediately wash the area with soap and2.10 water. If acid enters your eye, immediately ood the eye with cold running water for at
least 10 minutes and get medical attention right away.
If battery acid is accidentally swallowed, drink milk, the whites of eggs or water. DO NOT2.11 induce vomiting. Seek medical attention immediately.
PREPARING TO USE THE INSTANT POWER3. ™
RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS
A HIGHLY CORROSIVE SULFURIC ACID.
Be sure the area around the battery is well ventilated while the jump starter is being3.1 used.
Clean the battery terminals before using the jump starter. During cleaning, keep airborne3.2 corrosion from coming into contact with your eyes, nose and mouth. Use baking soda
and water to neutralize the battery acid and help eliminate airborne corrosion. Do not
touch your eyes, nose or mouth.
Add distilled water to each cell until the battery acid reaches the level specied by the 3.3 battery manufacturer. Do not overll. For a battery without removable cell caps, such
as valve regulated lead acid batteries (VRLA), carefully follow the manufacturer’s
instructions.
Read, understand and follow all instructions for the Instant Power™, battery, vehicle3.4 and any equipment used near the battery and Instant Power™. Study all of the battery
manufacturer’s specic precautions while charging and recommended rates of charge.
Determine the voltage of the battery by referring to the vehicle owner’s manual and3.5 make sure that the output voltage of the jump starter is correct.
Make sure that the Instant Power™ cable clips make tight connections.3.6
INSTANT POWER4. ™ LOCATION
RISK OF EXPLOSION AND CONTACT WITH
BATTERY ACID.
Locate the Instant Power™ as far away from the battery as the DC cables permit.4.1
Never place the Instant Power™ directly above the battery being jumped; gases from4.2 the battery will corrode and damage the Instant Power™.
Do not operate the Instant Power™ in a closed-in area or restrict the ventilation in any4.3 way.
DC CONNECTION PRECAUTIONS5.
Connect and disconnect the DC output clips only after setting all of the Instant Power™5.1 switches to the “off” position (if applicable) and removing the AC plug from the electrical
outlet. Never allow the clips to touch each other.
Attach the clips to the battery and chassis, as indicated in section 6.5.2

• 4 •
FOLLOW THESE STEPS WHEN CONNECTING TO A BATTERY6.
A SPARK NEAR THE BATTERY MAY CAUSE A
BATTERY EXPLOSION. TO REDUCE THE RISK
OF A SPARK NEAR THE BATTERY:
Attach the output cables to the battery and chassis as indicated below. Never allow the6.1 output clips to touch each other.
Position the DC cables to reduce the risk of damage by the hood, door and moving or6.2 hot engine parts. NOTE: If it is necessary to close the hood during the jump starting
process, ensure that the hood does not touch the metal part of the battery clips or cut
the insulation of the cables.
Stay clear of fan blades, belts, pulleys and other parts that can cause injury.6.3
Check the polarity of the battery posts. The POSITIVE (POS, P, +) battery post usually6.4 has a larger diameter then the NEGATIVE (NEG, N, -) post.
Determine which post of the battery is grounded (connected) to the chassis. If the6.5 negative post is grounded to the chassis (as in most vehicles), see step 6.5. If the
positive post is grounded to the chassis, see step 6.6.
For a negative-grounded vehicle, connect the POSITIVE (RED) clip from the battery6.6 Instant Power™ to the POSITIVE (POS, P, +) ungrounded post of the battery. Connect
the NEGATIVE (BLACK) clip to the vehicle chassis or engine block away from the
battery. Do not connect the clip to the carburetor, fuel lines or sheet-metal body parts.
Connect to a heavy gauge metal part of the frame or engine block.
For a positive-grounded vehicle, connect the NEGATIVE (BLACK) clip from the battery6.7 Instant Power™ to the NEGATIVE (NEG, N, -) ungrounded post of the battery. Connect
the POSITIVE (RED) clip to the vehicle chassis or engine block away from the battery.
Do not connect the clip to the carburetor, fuel lines or sheet-metal body parts. Connect
to a heavy gauge metal part of the frame or engine block.
When disconnecting the Instant Power™, turn all switches to off (if applicable), remove6.8 the clip from the vehicle chassis and then remove the clip from the battery terminal.
CHARGING AND AC POWER CORD CONNECTIONS7.
RISK OF ELECTRIC SHOCK OR FIRE.
The Instant Power™ charger is for use on a nominal 120-volt circuit. The plug must7.1 be plugged into an outlet that is properly installed and grounded in accordance with
all local codes and ordinances. The plug pins must t the receptacle (outlet). Do not
use with an ungrounded system. NOTE: Pursuant to Canadian Regulations, use of an
adapter plug is not allowed in Canada. Use of an adapter plug in the United States is not
recommended and should not be used.

• 5 •
FEATURES8.
On/Off Switch1.
On/Off Indicator Light2.
Battery Clips3.
Internal Battery Status Pushbutton4.
Internal Battery Status Lights5.
Charging Status Lights6.
Work Light On/Off Switch7.
Work Light8.
12V DC Outlet9.
Circuit Breaker Reset Switch10.
Internal Battery Charging Plug11.
Air Compressor On/Off Switch12.
Air Compressor Gauge13.
Air Compressor Hose Storage14.
Compartment
12
33
4
5
6
87
CHARGING THE INTERNAL BATTERY OF THE INSTANT POWER™9.
IMPORTANT: CHARGE IMMEDIATELY AFTER PURCHASE, AFTER EACH USE AND
EVERY 30 DAYS TO KEEP THE INSTANT POWER™ INTERNAL BATTERY FULLY
CHARGED.
LED Indicators:9.1
To check the internal battery’s charge status, press the Battery Status button on the front
of the Instant Power™.
The LED lights will indicate the charge level as follows:
A red LED indicates a 50% or less charge and you should immediately recharge the• Instant Power™.
A yellow LED indicates a 50 to 75% charge. The Instant Power™ may be used but• should be recharged as soon as possible.
A green LED indicates the internal battery is fully charged.•
The CHARGING (red) LED indicates the Instant Power™ is charging (connected to• an AC power source.) At full charge, the CHARGED (green) LED will light.
NOTE: The internal battery’s percent of charge is most accurate when the Instant
Power™ has been disconnected from all devices and charging sources for a few hours.
Charging the Internal Battery using the Built-In Charger:9.2
To charge, plug an 18 gauge (AWG) or larger extension cord into the charger plug on1. the back of the Instant Power™. (Extension cord not included; must be purchased
separately.)
Plug the extension cord into a 120V AC electrical wall outlet.2.
The CHARGING (red) LED will glow indicating charging.3.
The CHARGED (green) LED will light when the battery has reached full charge. This4. could take up to 72 hours due to the age and condition of the battery. The charger
will automatically go into maintain mode and maintain the battery at full charge
without damaging it.
Charge the Instant Power™ as soon as possible after use.5.
Do not use the Instant Power™ while charging the internal battery.

• 6 •
You may also charge the internal battery while driving, using the male-to-male charger
cable (p/n 94500109 – not included). Insert one end of the accessory cable into the 12V
DC power outlet and the other end into the vehicle’s accessory outlet (lighter socket).
Completely disconnect the charger cable when the engine is not running.
The CHARGING (red) LED and the CHARGED (green) LED do not
operate during this method of charging. Using this method to charge the battery
overrides the maintain mode and the battery can be overcharged. Monitor the progress
of the battery and when it reaches a full (100%) charge, disconnect the charger. Do not
leave the battery unattended or it could explode causing property damage or personal
injury.
OPERATING INSTRUCTIONS10.
Jump Starting a Vehicle Engine10.1
Do not use the Instant Power™ while charging the internal battery.
Turn the vehicle’s ignition OFF before making cable connections.1.
Connect the Instant Power™ to the battery following the precautions listed in2. section 3.
Risk of Explosion.
If you have connected the clips backwards, an audio alarm will sound. DO NOT
turn the On/Off switch to the ON position. This could cause serious damage to
the Instant Power™ or the vehicle. Reverse the connections and the audio alarm
will stop.
Crank the engine. If the engine does not start within 5-8 seconds, stop cranking and3. wait at least 1 minute before attempting to start the vehicle again. (This permits the
Instant Power™ to cool down.)
After the engine starts, disconnect the black clip (-) and then the red clip (+) in that4. order and clip them back onto the Instant Power™ storage holders.
Recharge the Instant Power™ as soon as possible after use.5.
Risk of Explosion.
To prevent sparking, NEVER allow the clips to touch together or to contact the
same piece of metal. Never attempt to jump start a frozen battery.
Powering a 12V DC Device:10.2
The Instant Power™ is a power source for all 12V DC accessories that are equipped
with a 12V accessory plug. Use it for power outages and shing or camping trips.
Estimated usage time is listed in the chart below.
Make sure the device to be powered is OFF before inserting the 12V DC accessory plug
into the 12V DC accessory outlet.
Ensure the battery clips are securely clipped on the storage holders.1.
Open the protective cover of the DC power outlet on the back of the Instant Power™.2.
Plug the 12V DC device into the DC power outlet, and turn the 12V DC device on (if3. required).
If the 12V DC device draws more than 15A or has a short circuit, the internal circuit4. breaker of the Instant Power™ will trip and disconnect the power to the device. If this
occurs, disconnect the 12V DC device in question and press the reset button located
on the back of the Instant Power™ to reset the circuit breaker.
The DC power outlet is wired directly to the internal battery. Extended operation of a 12V
DC device may result in excessive battery drain. Recharge immediately after unplugging
the 12V DC device.

• 7 •
Appliance Type Estimated Wattage Estimated Usage Time
Cell Phone 4 watts 54 hours
Fluorescent Light 4 watts 54 hours
Radios, Fan 9 watts 24 hours
Depth Finder 9 watts 24 hours
Camcorder, VCR 15 watts 14.4 hours
Electrical Tool 24 watts 9 hours
Electrical Cooler 48 watts 4.5 hours
Car Vacuum, Air Compressor 80 watts 2.7 hours
NOTE: Estimated run-times. Actual time may vary. Times are based on the internal
battery being fully charged
Using the Built-In Light10.3
Position the Instant Power™ on a at, stable surface near the intended work area.1.
Ensure the battery clips are securely clipped on the storage holders.2.
Press the Light Switch.3.
The Instant Power™ light will turn on and illuminate your work area.4.
Press the Light Switch again to turn off the light.5.
Charge the Instant Power™ as soon as possible after using the built-in light.6.
NOTE: With a fully charged internal battery, the built-in light should provide 55 to 65
hours of continuous, useful light.
Using the Air Compressor10.4
Risk of explosion.
Read the instructions of the product being inated before using the compressor.
Avoid over ination, do not exceed the manufacturer’s recommended pressures.
Do not leave the air compressor unattended during use.
Ensure the battery clips are securely on the storage holders.1.
Remove the air compressor hose from the storage compartment in the back of the2. Instant Power™. Install adapters as necessary.
Attach the air compressor hose to the product or accessory to be inated by ipping 3. down the lever.
Place the Compressor Switch in the ON position and inate the product.4.
When the product is inated to the proper air pressure (using the air compressor 5. gauge) place the Compressor Switch in the OFF position and remove the hose.
Do not run for more than 10 minutes maximum at a time. Allow the Instant Power™6. to cool down for 10 minutes before using again.
NOTE: To prevent overheating, the compressor has built-in thermal protection that
will turn the compressor off before it overheats. If the compressor shuts off, wait a few
minutes and it will automatically restart when the compressor cools.
NOTE: The air compressor is rated for 150 PSI.
EstimatedTimeforInating
Vehicle Tires 13” to 16” 6 to 24 minutes
Bike Tire 1 to 3 minutes
Sports Balls 30 seconds
NOTE: These times are approximate, use the air compressor gauge to ensure the
proper pressure has been reached. Do not over inate.

• 8 •
MAINTENANCE INSTRUCTIONS11.
After use and before performing maintenance, unplug and disconnect the Instant11.1 Power™ (see sections 3 and 4).
Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clips,11.2 cords, and the Instant Power™ case.
Ensure that all of the Instant Power™ components are in place and in good working11.3 condition, for example, the plastic boots on the battery clips.
Servicing does not require opening the unit, as there are no user-serviceable parts.11.4
All other servicing should be performed by qualied service personal.11.5
MOVING AND STORAGE INSTRUCTIONS12.
Store the Instant Power™ in an upright position.12.1
Store inside, in a cool, dry place.12.2
Do not store the clips on the handle, clipped together, on or around metal, or clipped12.3 to cables. The clips on the Instant Power™ are live and will produce arcing or sparking
if they come in contact with each other. To prevent accidental arcing, always keep the
clips on the storage holders when not using it to jump start a vehicle.
If the Instant Power™ is moved around the shop or transported to another location, take12.4 care to avoid/prevent damage to the cords, clips and Instant Power™. Failure to do so
could result in personal injury or property damage.
Do not use and/or store the Instant Power™ in or on any area or surface
where damage could occur if the internal battery should unexpectedly leak acid.
IMPORTANT:12.5
CHARGE IMMEDIATELY AFTER PURCHASE•
KEEP FULLY CHARGED•
Charge the Instant Power™ internal battery immediately after purchase, after every
use and every 30 days.
All batteries are affected by temperature. The ideal storage temperature is at 70 degrees
Fahrenheit. The internal battery will gradually self-discharge (lose power) over time,
especially in warm environments. Leaving the battery in a discharged state may result
in permanent battery damage. To ensure satisfactory performance and avoid permanent
damage, charge the internal battery every month.
TROUBLESHOOTING13.
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
The Instant Power™ won’t
jump start my car. Clips are not making a good connection to the battery.
The Instant Power™ battery
is not charged.
The vehicle’s battery is
defective.
Check for poor connection to
battery and frame. Make sure
connection points are clean.
Rock clips back and forth for
a better connection.
Check the battery charge
status by pressing the button
on the front of the Instant
Power™. See LED Indicators
section of this manual.
Have the battery checked.

• 9 •
PROBLEM POSSIBLE CAUSE REASON/SOLUTION
The Instant Power™ won’t
power my 12V device. The 12V device is not turned on.
The Instant Power™ battery
is not charged.
The 12V device draws more
than 15A or has a short
circuit
Turn on the 12V device.
Check the battery charge
status by pressing the button
on the front of the Instant
Power™. See LED Indicators
section of this manual.
Disconnect the 12V device
and press the reset button
located on the back of the
Instant Power™. Try the 12V
device again. If it happens
again, replace the 12V device.
The battery in the Instant
Power™ won’t hold a
charge.
The battery is bad (will not
accept a charge). Have the battery checked.
BEFORE RETURNING FOR REPAIRS14.
When a starting problem arises, make certain that the battery is capable of accepting a14.1 normal charge. Double check all connections, the Instant Power™ battery charge level,
the battery clips for correct polarity and the quality of the connections from the cables to
the clips and from the clips to the battery system. The clips must be clean.
When an UNKNOWN OPERATING PROBLEM arises, please read the complete manual14.2 and call the customer service number for information that will usually eliminate the need
for return.
If the above solutions do not eliminate the problem or for information about troubleshooting, call
toll-free from anywhere in the U.S.A.
1-800-621-5485
7:00 am to 5:00 pm Central Time Monday through Friday
SPECIFICATIONS15.
Internal Battery Type Maintenance-free AGM Lead-acid
Nominal Voltage 12V DC
Capacity 18 Ah
DC Power Outlet (Max. Continuous Load) 15A
Peak Amps 950
Jumper Cables 4-gauge awg (21.14 mm2), 28 Inches (71 cm)
Dimensions (H x W x D) 11 x 12.75 x 7 Inches (28 x 32.5 x 17.75 cm)
Product Weight 19 lbs (8.5 kgs)
REPLACEMENT PARTS/ACCESSORIES16.
Male-To-Male Accessory cable-------------------------------------------------------94500109
Air Compressor Accessory Kit (3 Adapters) ---------------------------------00-99-000599

• 10 •
LIMITED WARRANTY17.
SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE,
MOUNT PROSPECT, IL 60056-2179, MAKES THIS LIMITED WARRANTY TO THE
ORIGINAL RETAIL PURCHASER OF THIS PRODUCT. THIS LIMITED WARRANTY IS
NOT TRANSFERABLE OR ASSIGNABLE.
Schumacher Electric Corporation (the “Manufacturer”) warrants this Instant Power™
for one year and the internal battery for ninety days from the date of purchase at retail
against defective material or workmanship that may occur under normal use and
care. If your unit is not free from defective material or workmanship, Manufacturers
obligation under this warranty is solely to repair or replace your product, with a new or
reconditioned unit, at the option of the Manufacturer. It is the obligation of the purchaser
to forward the unit, along with mailing charges prepaid to the Manufacturer or its
authorized representatives in order for repair or replacement to occur.
Manufacturer does not provide any warranty for any accessories used with this product
that are not manufactured by Schumacher Electric Corporation and approved for use
with this product. This Limited Warranty is void if the product is misused, subjected to
careless handling, repaired, or modied by anyone other than Manufacturer or if this unit
is resold through an unauthorized retailer.
Manufacturer makes no other warranties, including, but not limited to, express,
implied or statutory warranties, including without limitation, any implied warranty
of merchantability or implied warranty of tness for a particular purpose. Further,
Manufacturer shall not be liable for any incidental, special or consequential damage
claims incurred by purchasers, users or others associated with this product, including,
but not limited to, lost prots, revenues, anticipated sales, business opportunities,
goodwill, business interruption and any other injury or damage. Any and all such
warranties, other than the limited warranty included herein, are hereby expressly
disclaimed and excluded. Some states do not allow the exclusion or limitation of
incidental or consequential damages or length of implied warranty, so the above
limitations or exclusions may not apply to you. This warranty gives you specic legal
rights and it is possible you may have other rights which vary from this warranty.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS LIMITED WARRANTY AND THE
MANUFACTURER NEITHER ASSUMES OR AUTHORIZES ANYONE TO ASSUME
OR MAKE ANY OTHER OBLIGATION TOWARDS THE PRODUCT OTHER THAN
THIS WARRANTY.
Schumacher Electric Corporation Customer Service
1-800-621-5485
Monday – Friday 7:00 a.m. to 5:00 p.m. CST
Schumacher and the Schumacher Logo are registered trademarks of
Schumacher Electric Corporation
To activate the warranty, please ll in the warranty registration card on page 11 and mail it in,
OR go to www.batterychargers.com to register your product online.
DO NOT RETURN THIS PRODUCT TO THE STORE!
Call Customer Service for Assistance:
800-621-5485

• 11 •
1 YEAR LIMITED
WARRANTY PROGRAM
REGISTRATION
MODEL:___________________ DESCRIPTION:___________________________
This is the only express limited warranty, and the manufacturer neither assumes nor authorizes
anyone to assume or make any other obligation. There is no other warranty, other than what is
described in the product owner’s manual.
The warranty card should be submitted within 30 days of purchase. The customer must
keep the ORIGINAL receipt because it will be required for any warranty claims.
This warranty is not transferable.
Mail To: Schumacher Electric Corporation
801 Business Center Drive
Mount Prospect, IL 60056-2179
Name_______________________________________________________________
Street Address________________________________________________________
City_________________________________State__________Zip Code__________
Phone______________________Email____________________________________
Store Name Where Purchased____________________Date of Purchase__________
Store Location_____________________UPC Number_________________________
Serial Number________________________(SEE PRODUCT)
PROGRAMA DE REGISTRO
DE 1-AÑOS DE GARANTÍA
LIMITADA
MODELO:___________________ DESCRIPCIÓN:___________________________
Esta es la única garantía limitada expresa, y el productor no autoriza ni otorga a alguien a realizar
alguna otra obligación. No existe ninguna otra garantía más que la descrita en el manual del dueño.
La tarjeta de garantía debe enviarse durante los primeros 30 días después de la compra.
El cliente debe mantener el recibo de compra ORIGINAL como comprobante,
el cual le otorga todo derecho a cualquier reclamo de garantía.
Esta garantía no es tranferible.
Mail To: Schumacher Electric Corporation
801 Business Center Drive
Mount Prospect, IL 60056-2179
Nombre______________________________________________________________
Dirección_____________________________________________________________
Ciudad_______________________________Estado_____________C.P.__________
Tel:_______________________Correo electrónico____________________________
Nombre de la Tienda donde se Compró_________________Fecha de compra _____
Localización de la Tienda___________________Numero de Serie _______________
Código de barras ________________________(CONSULTE EL PRODUCTO)

• 12 •
INSCRIPTION AU
PROGRAMME DE GARANTIE LIMI-
TÉE DE 1 AN
MODÈLE :___________________ DESCRIPTION:___________________________
Ceci représente la seule garantie limitée expresse, et le fabricant n’accepte ni autorise qui que
ce soit d’assumer ou de prendre toute autre obligation. Il n’existe aucune autre garantie que celle
décrite dans le manuel du propriétaire du produit.
La carte de garantie doit être soumise dans les 30 jours suivant l’achat. Le client doit retenir
le reçu de caisse ORIGINAL puisqu’il sera requis pour une éventuelle réclamation au titre
de la garantie. Cette garantie n’est pas transférable.
Courrier : Schumacher Electric Corporation
801 Business Center Drive
Mount Prospect, IL 60056-2179 (É.-U.)
Nom ________________________________________________________________
Adresse______________________________________________________________
Ville_______________________________Prov__________Code postal __________
Tél.________________________Courriel___________________________________
Nom du magasin où vous avez acheté le produit ___________Date de l’achat ______
Emplacement du magasin ____________________Numéro CUP ________________
Numéro de série ________________________(VOIR PRODUIT)

• 13 •

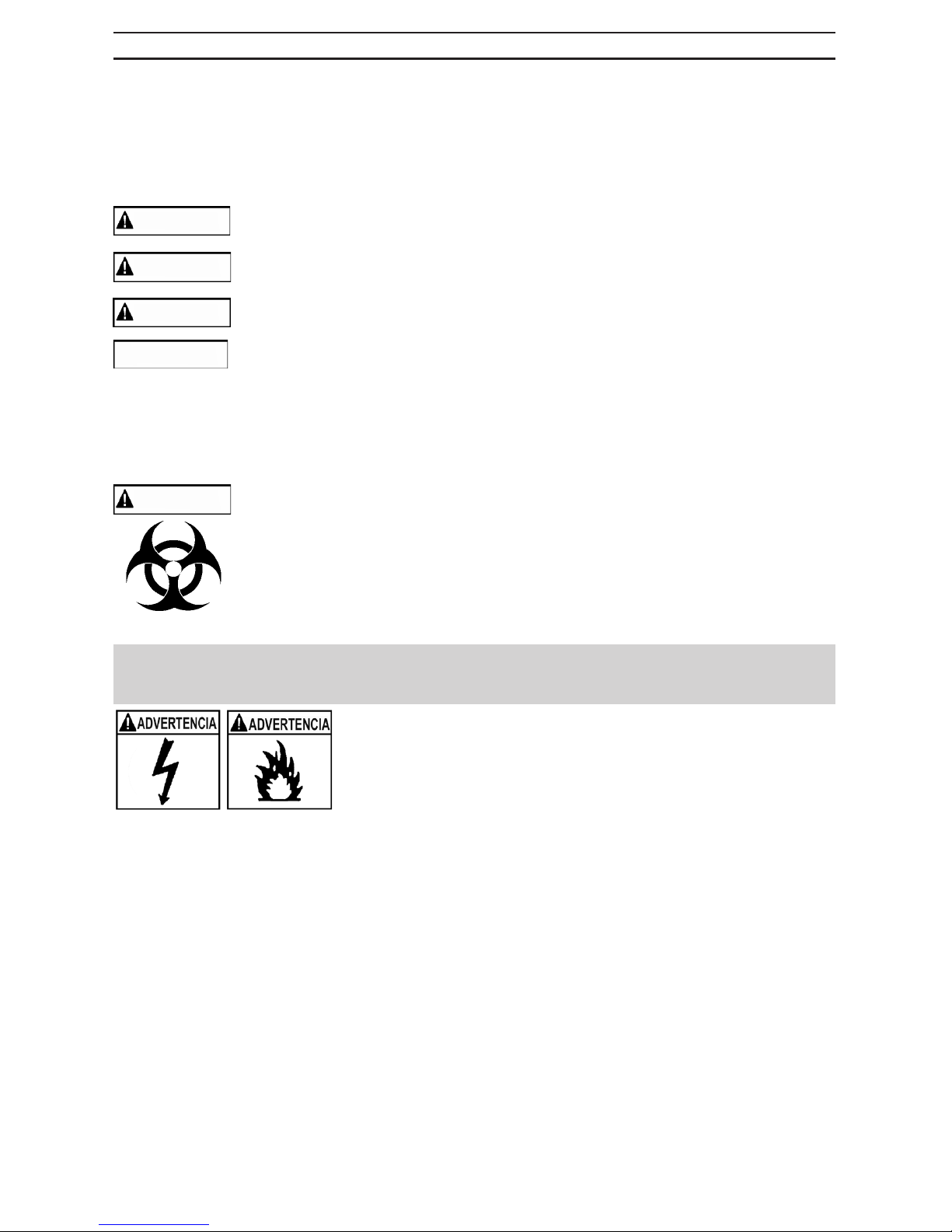

IMPORTANTE: LEA Y GUARDE ESTE MANUAL DE INSTRUCCIONES Y SEGURIDAD.
GUARDE ESTAS INSTRUCCIONES - Cargue el Instant Power™ inmediatamente
después de comprarla, después de cada uso y cada 30 días. Este manual le mostrará
cómo utilizar su Instant Power™ en forma segura y efectiva. Por favor, lea, comprenda y
siga estas instrucciones y precauciones cuidadosamente, ya que este manual contiene
instrucciones operativas y de seguridad de importancia. Los mensajes de seguridad
representados en este manual contienen palabras guía, un mensaje y una gura.
La palabra guía indica el nivel de peligro en determinada situación.
Indica una inminente situación de riesgo que, si no se evita, resultaría mortal o
de serios perjuicios al operador o personas alrededor.
Indica una situación potencialmente riesgoso que, si no se evita, podría
resultar o de serios perjuicios al operador o personas alrededor.
Indica una situación potencialmente riesgoso que, si no se evita, podría resultar
o de serios perjuicios al operador o personas alrededor.
Indica una situación potencialmente peligrosa que, de no evitarse, podría
causar daño al equipo, al vehículo y propiedades alrededor.
Los mensajes estipulados en este manual se describen dos tipos de estilo.
Los que aparecen sin número indican el riesgo.•
Aquellos que aparecen numerados, indican cómo evitar los riesgos.•
La gura muestra una descripción gráca del potencial de riesgo.
Conforme a la Propuesta 65 de California, este producto contiene químicos
de los cuales en el Estado de California se tiene conocimiento que provocan
cáncer y malformaciones congénitas u otras lesiones reproductivas.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD - GUARDE ESTAS1. INSTRUCCIONES - Este manual contiene instrucciones operativas y de seguridad de
importancia
EL RIESGO DE DESCARGA ELÉCTRICA O INCENDIO
Lea el manual completo antes de utilizar este producto. Cualquier falla podría resultar1.1 en serias lesiones o podría ser mortal.
Manténgase alejado de los niños.1.2
No coloque los dedos o las manos en cualquiera de los enchufes del Instant Power™.1.3
No exponga el Instant Power™ a la lluvia o la nieve.1.4
Utilice solamente accesorios recomendados. El uso de un accesorio no recomendado o1.5 suministrado por Schumacher® Electric Corporation puede provocar riesgo de incendio,
descarga eléctrica o lesiones a personas o daño a la propiedad.
El uso de un alargador inadecuado puede provocar riesgo de incendio o descarga1.6 eléctrica. Cuando se use una extensión, asegúrese de que:
Los pasadores en el enchufe del alargador posean el mismo número, tamaño y• forma que aquellos presentes en el enchufe del cargador del Instant Power™.
El alargador se encuentre correctamente conectado y en buenas condiciones• eléctricas.
Que el cable de la extensión sea de calibre 18 (AWG) [0.82 mm• 2] o más potente si es
de 50 pies (15.24 metres) de largo o menos.
PELIGRO
ADVERTENCIA
ATENCIÓN
IMPORTANTE
ADVERTENCIA

• 14 •

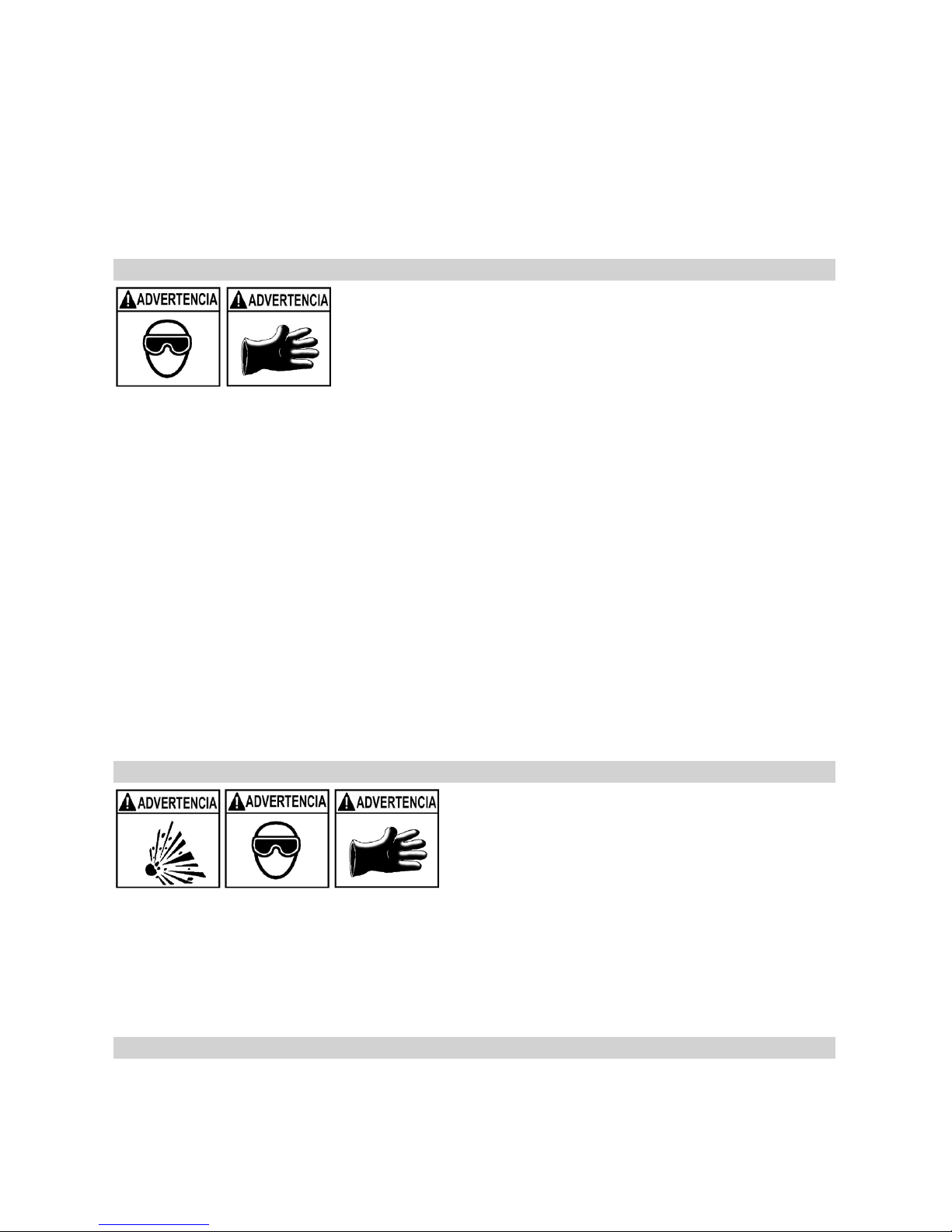

Para reducir el riesgo de descarga eléctrica, desenchufe el cargador del Instant1.7 Power™ del tomacorriente antes de intentar llevar a cabo cualquier actividad de
mantenimiento o limpieza. El simple apagado de los controles no reducirá este riesgo.
La carga de la batería interna, debe realizarse en áreas bien ventiladas, sin restricción1.8 alguna.
No utilice el Instant Power™ si el mismo posee los cables o las pinzas dañado;1.9 substituya el cable o la pinza inmediatamente por una persona calicada en el ramo.
(Comuníquese al: 1-800-621-5485 de Servicios al cliente.)
No utilice el Instant Power™ si el mismo recibió un golpe fuerte, si se cayó o si sufrió1.10 daños de cualquier otra forma; hágalo revisar por una persona capacitada que efectúe
reparaciones. (Comuníquese al: 1-800-621-5485 de Servicios al cliente.)
No desarme el Instant Power™; hágalo revisar por una persona capacitada que efectúe1.11 reparaciones cuando necesite servicio de mantenimiento o una reparación. Volver a
ensamblar el Instant Power™ en forma incorrecta puede provocar riesgo de incendio o
descarga eléctrica. (Comuníquese al: 1-800-621-5485 de Servicios al cliente.)
RIESGO DE GASES EXPLOSIVOS.
RESULTA PELIGROSO TRABAJAR EN FORMA CERCANA A UNA BATERÍA DE1.12 PLOMO. LAS BATERÍAS GENERAN GASES EXPLOSIVOS DURANTE SU NORMAL
FUNCIONAMIENTO. POR ESTE MOTIVO, RESULTA DE SUMA IMPORTANCIA QUE
SIGA LAS INSTRUCCIONES CADA VEZ QUE UTILIZA EL INSTANT POWER™.
Para reducir el riesgo de explosión de una batería, siga estas instrucciones y aquellas1.13 publicadas por el fabricante de la batería y por el fabricante de cualquier equipo que
intente utilizar en la proximidad de la batería. Revise las pautas de precaución en estos
productos y en el motor.
Este Instant Power™ está equipado con partes, tales como, interruptores y1.14 cortacircuitos, que tienden a originar chispas y cortos. Si se utiliza en la cochera, utilice
el Instant Power™ 18 pulgadas (46 cm) o más del nivel del suelo.
PRECAUCIONES PERSONALES2.
RIESGO DE GASES EXPLOSIVOS. UNA CHISPA CERCA DE LA BATERÍA
HACER QUE LA BATERÍA EXPLOTE. PARA REDUCIR EL RIESGO DE
CHISPAS CERCA DE LA BATERÍA:
Resulta peligroso trabajar en forma cercana a una batería de plomo. Las baterías2.1 generan gases explosivos durante su normal funcionamiento. Por este motivo, resulta
de suma importancia que siga las instrucciones cada vez que utiliza el Instant Power™.
NUNCA fume o permita la presencia de chispas o llamas en la proximidad de una2.2 batería o motor.
No utilice elementos personales de metal tales como anillos, pulseras, collares y relojes2.3 al trabajar con una batería de plomo-ácido. Una batería de plomo-ácido puede producir
una corriente de cortocircuito lo sucientemente elevada como para soldar un anillo o
provocar efectos similares sobre el metal, causando una quemadura de gravedad.
Tenga especial cuidado para reducir el riesgo de dejar caer una herramienta de metal2.4 sobre la batería. Esto podría provocar chispas o un cortocircuito en la batería o en
cualquier otra pieza eléctrica que podría provocar una explosión.
No deje que la batería interna se congele. Nunca cargue una batería congelada.2.5
Para prevenir cortos, NUNCA permita que las pinzas se junten o hagan contacto por2.6 medio de un mismo metal.
Considere la idea de que alguna persona se encuentre cerca suyo para poder ayudarlo2.7 cuando trabaje en forma cercana a una batería de plomo-ácido.

• 15 •
Cuente con una gran cantidad de agua potable y jabón a mano en caso de que el ácido2.8 de la batería tenga contacto con su piel, ropa u ojos.
Utilice protección visual y corporal completa, incluyendo gafas de seguridad y prendas2.9 de protección. Evite tocar sus ojos mientras trabaje en forma cercana a la batería.
Si el ácido de la batería tiene contacto con su piel o su ropa, lave de inmediato el área2.10 afectada con agua y jabón. En caso de que ingrese ácido en un ojo, sumerja el mismo
de inmediato bajo agua potable corriente por al menos 10 minutos y obtenga atención
médica en forma inmediata.
Si el ácido de la batería es accidentalmente ingerido, se recomienda beber leche, clara2.11 de huevo o agua. NO provoque vómito. Busque ayuda médica de inmediato.
PREPARACIÓN PARA EL USO DEL INSTANT POWER3. ™
RIESGO DE CONTACTO CON EL ÁCIDO DE LA BATERÍA.
EL ÁCIDO DE LA BATERÍA ES UN ÁCIDO SULFÚRICO
ALTAMENTE CORROSIVO.
La carga de la batería interna, debe realizarse en áreas bien ventiladas, sin restricción3.1 alguna.
Limpie los terminales de la batería antes de usar el Instant Power™. Durante la3.2 limpieza, evite que la corrosión producida por aire tenga contacto con sus ojos, nariz
y boca. Utilice bicarbonato de sodio y agua para neutralizar el ácido de la batería y
ayudar a eliminar la corrosión producida por aire. No toque ojos, nariz o boca.
Agregue agua destilada a cada pila hasta que el ácido de la batería alcance el3.3 nivel especicado por el fabricante de la batería. No provoque derrames. En lo que
concierne a baterías que no cuentan con tapas extraíbles para pilas, tales como
baterías de plomo-ácido reguladas por válvulas (VRLA, por sus siglas en inglés), siga
cuidadosamente las instrucciones del fabricante.
Lea, comprenda y siga todas las instrucciones para el Instant Power™, la batería, el3.4 vehículo y cualquier equipo que se utilice cerca de la batería y el Instant Power™.
Determine el voltaje de la batería consultando el manual del usuario del vehículo y3.5 asegúrese de que la tensión de salida del voltaje el aparato sea la correcta.
Asegúrese de que las pinzas del Instant Power™ se encuentren rmemente 3.6 conectadas.
UBICACIÓN DEL INSTANT POWER4. ™
RIESGO DE CONTACTO CON EL ÁCIDO DE LA
BATERÍA.
Ubique el Instant Power™ a la mayor distancia posible de la batería como lo permitan4.1 los cables de CC.
Nunca ubique el Instant Power™ directamente por encima de la batería que se arranca;4.2 los gases de la batería corroerán y dañarán el Instant Power™.
No utilice el Instant Power™ en un área cerrada o restrinja la ventilación en cualquier4.3 forma.
PRECAUCIONES DE CONEXIÓN EN CC5.
Conecte y desconecte los ganchos de salida C.C. sólo después de haber establecido5.1 todos los interruptores del Instant Power™ a la posición de “apagado” (si es aplicable)
y de haber desconectado el enchufe de C.A. del tomacorriente eléctrico. Nunca permita
que los ganchos tengan contacto entre sí.
Sujete los ganchos a la batería y al chasis, como se indica en la sección 6.5.2

• 16 •
SIGA ESTOS PASOS CUANDO SE CONECTE A LA BATERÍA6.
UNA CHISPA PROVOCADA CERCA DE LA
BATERÍA PUEDE CAUSAR LA EXPLOSIÓN DE
LA BATERÍA. PARA REDUCIR EL RIESGO DE
PROVOCAR CHISPAS CERCA DE LA BATERÍA:
Conecte los cables de salida a la batería y al chasis según lo indicado abajo. Nunca6.1 permita que las pinzas hagan contacto una con el otra.
Ubique los cables de C.C. para reducir el riesgo de daños a la cubierta, a la puerta y a6.2 las piezas móviles o calientes del motor. NOTA: Si es necesario cerrar el cofre durante
el proceso de arranca, asegúrese que el cofre no toque parte metálica de la batería o
pele los cables.
Manténgase alejado de las paletas del ventilador, correas, poleas y otras piezas que6.3 podrían provocar lesiones.
Verique la polaridad de los bornes de la batería. El borne POSITIVO (POS, P, +) de la 6.4 batería generalmente posee un diámetro mayor al borne NEGATIVO (NEG, N, -).
Determine qué borne de la batería hace descarga a tierra (se encuentra conectado) con6.5 el chasis. Si el borne negativo hace descarga a tierra con el chasis (como en la mayor
parte de los vehículos), ver el paso 6.5. Si el borne positivo hace descarga a tierra con
el chasis, ver el paso 6.6.
En un vehículo con descarga a tierra por borne negativo, conecte el gancho POSITIVO6.6 (ROJO) del Instant Power™ de batería al borne POSITIVO (POS, P, +) sin descarga
a tierra de la batería. Conecte el gancho NEGATIVO (NEGRO) al chasis del vehículo
o al bloque motor alejado de la batería. No conecte el gancho al carburador, líneas de
combustible o cuerpos metálicos. Conecte a una pieza metálica de calibre grueso del
marco o del bloque motor.
En un vehículo con descarga a tierra por borne positivo, conecte el gancho NEGATIVO6.7 (NEGRO) del Instant Power™ de batería al borne NEGATIVO (NEG, N, -) sin descarga
a tierra de la batería. Conecte el gancho POSITIVO (ROJO) al chasis del vehículo o
al bloque motor alejado de la batería. No conecte al carburador, líneas de combustible
o cuerpos metálicos. Conecte a una pieza metálica de calibre grueso del marco o del
bloque motor.
Al desconectar el Instant Power™, apague todos los interruptores (si es aplicable), retire6.8 el gancho del chasis del vehículo y luego retire el gancho del terminal perteneciente a la
batería.
CARGA Y CABLES DE CA PARA LA CONECCIÓN7.
EL RIESGO DE DESCARGA ELÉCTRICA O INCENDIO
Este Instant Power™ de batería está destinado a un uso en un circuito con tensión7.1 nominal de 120 V. El enchufe se debe conectar a un tomacorriente adecuadamente
instalado y que cuente con descarga a tierra de acuerdo con todas las ordenanzas y
códigos. Los pasadores del enchufe deben adaptarse al receptáculo (tomacorriente).
No utilizar con un sistema que no posea descarga a tierra. NOTA: De acuerdo a las
Leyes Canadienses, el uso de un enchufe adaptador no es permitido en el Canada. El
uso de un enchufe como adaptador no se recomienda y no debe ser utilizado Estados
Unidos.
