SCHWAN SC60 USER GUIDE
WARRANTY
PLEASE NOTE: As your Schwan appliance is always full of hot water,
we recommend a drained drip tray should be used in those applications
where any leakage could cause property damage. Schwan will not be
held responsible for consequential damage from units not installed on a
drained drip tray.
WARRANTY PERIOD: For residential installations, the Warranty period is for
two years. For commercial installations, (maximum 8 staff), the Warranty pe-
riod is for one year.
Please keep all Purchase and Plumber’s installation Invoices as verifi-
cation of Warranty commencement date. The Warranty will be for 24
months (residential) or 12 months (commercial) from date of installation. If
you are unable to provide proof of installation date, then the Warranty will be
for 25 months (residential) or 13 months (commercial) from date of purchase.
WARRANTY COVERAGE: Schwan provides a comprehensive parts and
labour Repair or Replacement Warranty. Repair or Replacement will be at
Schwan’s discretion, and must be carried out by an authorised Schwan Ser-
vice Agent. The Warranty covers defects in materials and manufacturing on-
ly, and repairs will normally be carried out in your home or commercial prem-
ise free of charge during the warranty period.
However, in areas more than 25 km from an authorised Schwan Service
Agent, you may be charged for some travel and associated costs.
Alternatively, Schwan may require you to return your unit to Schwan so that
Schwan can provide you with a replacement unit free of charge. In this case,
Schwan will pay the necessary freight charges, and you will need to take re-
sponsibility for the removal of the faulty unit, and installation of the replace-
ment unit.
Any product replaced or repaired under this Warranty will be covered by the
remaining portion of the original product’s Warranty period, or 6 months,
whichever is the greater.
WARRANTY EXCLUSIONS: This Warranty does not cover damage, deterio-
ration, or malfunction resulting from accident, misuse, neglect, abuse, unau-
thorised modification, fire, water, lightning or other acts of nature, incorrect
installation, poor water quality, repair or attempted repair by anyone other
than an authorised Schwan Service Agent, or external causes such as elec-
tric power fluctuation or failure.
Filter cartridges are not covered by this Warranty, as these are a consumable
item, and water conditions and usage vary, which can affect the effective life
of the filter.
LEGISLATION: Nothing in this Warranty overrides Schwan’s responsibilities
under the Consumer Guarantees Act.
IN THE EVENT OF A MALFUNCTION, PLEASE CONTACT MERQUIP ON
0800 636 0 636 OR EMAIL [e-mail]
MODEL: SC60
SERIAL NUMBER:
To register your Schwan SC60 on line please visit :
www.schwan.co.nz
TROUBLESHOOTING
Problem Possible Cause Solution
STATUS ICON
NOT LIT.
Power supply is not
connected or is
dead.
Check your Schwan
is plugged in and the
power supply is live.
WATER IS
NOT HOT
Power supply is not
connected or is
dead.
Check your Schwan
is plugged in and the
power supply is live.
Thermostat set in-
correctly
Turn thermostat
clockwise until sta-
tus icon glows red.
Retest in 5 minutes.
Element thermal
cut out has tripped
Unplug the boiler
tank, turn thermostat
to” MIN”. Run hot
tap for 5min. Allow
boiler to cool for 1/2
hr. before restarting
HOT WATER
OR STEAM IS
SPURTING
OUT OF THE
DISPENSER.
Thermostat set in-
correctly
Turn thermostat anti
clockwise slightly to
decrease water tem-
perature
Clear silicone tube
blockage or sag-
ging trapping
steam or hot water.
Make sure silicone
tube is not blocked,
kinked, or sagging.
WATER
FLOW DOES
NOT START
STRAIGHT
AWAY
An initial delay of 3-4 seconds is normal
due to the efficient “drip—free” feature of
your Schwan drinking water system.
Water supply off or
is blocked.
Check water supply
valve is fully open.
Filter cartridge is
not fully inserted
into filter head.
Remove and refit
filter, and tighten
completely.
Filter cartridge is
blocked.
Replace filter

SCHWAN USER GUIDE
Thank you for purchasing a SCHWAN SC60 filtered hot and cold drinking wa-
ter system. We are sure you will be thrilled with your new appliance, and will
enjoy the convenience it affords many times a day.
This user guide contains:
 Safety Precautions
 Instructions for use
 Filter change instructions
 A Trouble shooting Guide
 Warranty Conditions
 How to register your Schwan SC60 on-line.
A document containing installation instructions is included separately, and this
user guide assumes that your Schwan SC60 has been installed according to
these instructions.
Please read the Safety Precautions and the Instructions for use carefully be-
fore using your Schwan SC60.
In the event of a malfunction please phone the Merquip help desk on 0800
636 0 636, or email [e-mail].
SAFETY PRECAUTIONS
When installing and using all electrical appliances, basic safety precautions
should always be followed including the following:
ELECTRIC SHOCK HAZARD
 To prevent electric shock, do not place cord, plugs or appliance in water or
other liquid.
 Do not operate any appliance with a damaged cord, plug, or after the appli-
ance malfunctions.
 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
 Do not attempt to service this product. Repairs should be done by authorized
service personnel.
 Do not use outdoors or in damp areas.
FIRE HAZARD
 When installing the appliance, allow a minimum airspace of 100mm around
the front, sides, and top of the boiler tank for air circulation.
PERSONAL INJURY
 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concern-
ing use of the appliance by a person responsible for their safety.
 Children should be supervised to ensure that they do not play with the appli-
ance.
 This appliance is intended for use in household and similar applications, such
as light commercial (up to 8 staff), the hospitality industry, and related resi-
dential type environments.
TURN OFF POWER AND WATER SUPPLY WHEN
NOT IN USE FOR 24 HRS. OR MORE.
DANGER
WARNING
WARNING
WARNING
NOTE; You may need to repeat this temperature
adjustment procedure a couple of times to optimise
your settings
AMBIENT FILTERED WATER

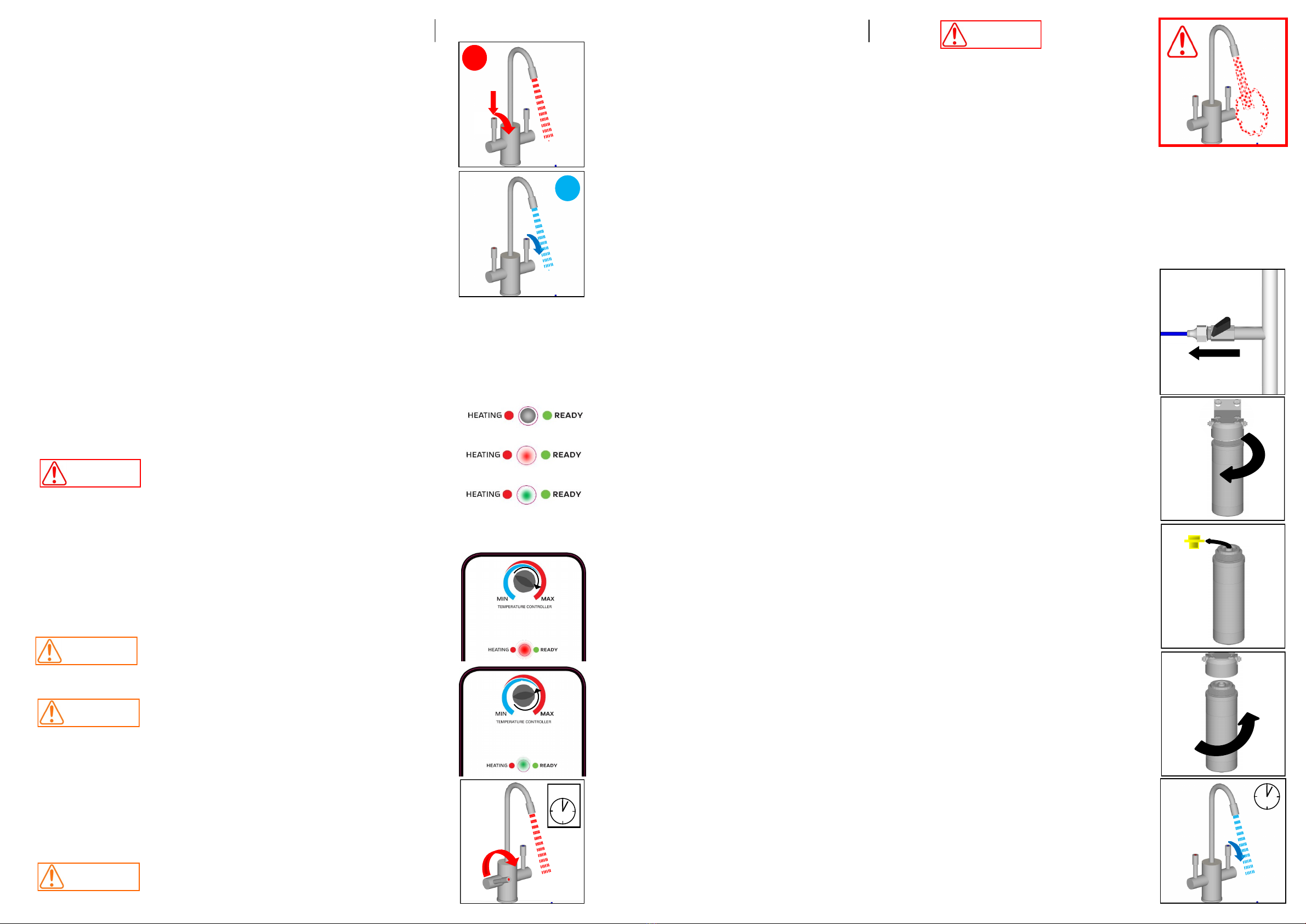

To dispense ambient filtered water, pull lever
marked with the Blue Icon forward.
BOILING FILTERED WATER
Your Schwan drinking water dispenser features a
Safety Catch to protect against accidental opera-
tion of the hot tap.
To dispense Boiling filtered water, Push down on
the lever marked with the Red Icon to release the
safety catch, and then pull lever forward.
SCHWAN INSTRUCTIONS FOR USE
TEMPERATURE ADJUSTMENT
1 min
To INCREASE temperature, turn thermostat dial
slowly clockwise until the STATUS light glows
RED indicating that your Schwan has started
heating.
To DECREASE temperature, turn thermostat dial
slowly anti clockwise until the STATUS light glows
GREEN indicating your Schwan has stopped
heating.
TEST NEW SETTING. Run hot tap for 1 minute
then allow boiler to re-heat to test the thermostat
setting.
From time to time, to ensure you are getting the
best out of your Schwan drinking water system,
OFF– power supply to your Schwan has been
turned off or is disconnected
RED– Your Schwan is heating the boiling water
up to the set temperature
GREEN– Your Schwan has stopped heating and
boiling water is at the set temperature.
STATUS INDICATOR LIGHT
The STATUS LIGHT situated on the front face of your Schwan Boiling Tank
indicates whether the unit is “Heating” or is “Ready” (at set temperature.)
To maintain a constant high temperature the boiling tank will cycle between
“Heating” and “Ready” even when no water is being drawn off.
SCHWAN FILTER CHANGE INSTRUCTIONS
5 Min
2. Twist old filter to the left to remove.
3. Remove and discard the yellow cap
from the new filter cartridge.
4. Insert new filter cartridge into the filter
head and twist to the right until the “stop”
is reached
5. Run the cold water for 5 minutes to
clear any air bubbles and to condition the
filter for use.
ON
1. Leave water supply “ON”
(Filter has “auto shutoff” valve)
To ensure your Schwan drinking water system continues to provide
you with fresh filtered boiling and ambient drinking water, your Schwan
filter cartridge needs to be replaced at least every 12 months.
In some situations where there is a lot of sedimentation or chemicals in
the water supply, it may be advisable for the filters to be replaced more
frequently to avoid annoying slow water flow or chemical taste issues.
DANGER
USE THIS APPLIANCE WITH CARE
DO NOT PLACE HANDS UNDER
BOILING WATER FLOW.
BOILING WATER
