Schweigen CL8812 User manual

RANGEHOOD & INSTALLATION GUIDE
CL8812
Revision V2
www.schweigen.com.au
(04.2017/v2.0)

Page 2
1. Welcome
Thank you for purchasing this Schweigen appliance.
To achieve the optimal performance from your appliance, and to avoid the risk of accident
or damage, it is essential to read this manual before installation and rst time use.
This guide contains important information on the use and maintenance of the appliance, as well
as important safety notes.
Your appliance has been thoroughly checked for safety and functionality before being packaged and leaving
the manufacturer.
Please keep this instruction manual in a safe place so you can refer to it at any time.
IMPORTANT!
The appliance should only be operated when you have read and understood this manual thoroughly.
The appliance can be only used for the purpose for which it was designed. Any other use is improper and
can be dangerous.
Installation and maintenance of gas and electrical appliances should only be carried out by qualied
and authorised professionals familiar with Australian Appliance Industry regulations.
Upon collection or delivery of your appliance, any damage or defects must be reported within 48
hours to your retailer or Schweigen Customer Service, in order to recognise any claim.
The manufacturer reserves the right to introduce product improvements, which do not aect the
operation of the appliance.

Page 3
1. Welcome ____________________________________________________________________ 2
2. Important safety information ___________________________________________________ 4
3. Description __________________________________________________________________ 7
4. Installation __________________________________________________________________ 8
5. Maintenance ________________________________________________________________ 13
6. Specications_______________________________________________________________ 18
7. Disclaimer __________________________________________________________________ 19
Table of Contents

Page 4
2. Important safety information
Please read the instructions carefully. Only then will you be able to operate your appliance safely and
correctly. Retain the instruction manual for future use or for subsequent owners.
Check the appliance for damage after unpacking it. Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48 hours.
There must be adequate ventilation in the room when the rangehood is used at the same time as appliances
burning gas or other fuels.
The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or
other fuels.
Air exhaust systems must be installed in accordance with local and federal laws.
There is a re risk if regular cleaning is not carried out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the rangehood. This will damage the rangehood and will
void warranty.
Do not ignite burners that give o intense uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all times and cannot exceed the width of the
pan in use.
Do not leave any packaging material (bags, corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless, the person is given supervision or
instruction concerning the safe usage of the appliance by person/s responsible for their safety. Children
must be supervised to ensure that they do not play with the appliance, it is not a toy.
Accessible parts may become hot when used with cooking appliances.
Before performing any cleaning or maintenance operation, disconnect the rangehood from the mains
power, using the respective mains or sector switch, or by unplugging it.
Do not use the rangehood without the grease lters.
Keep the grease lters clean and respect the recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.

Page 5
2. Important safety information
Before Installation
We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
Please see our website www.schweigen.com.au for a list of our recommended installers.
It is dangerous to modify any part of this appliance. Modication of any kind will immediately void the
warranty.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Please use an earthed electrical connector that coincides with relevant local laws and regulations.
Check that the power voltage in your area corresponds to the appliance voltage indicated on the rating
label.
This appliance must be connected to an electrical supply that has a grounded connection.
Check that the indicated instructions and local regulations are met and carried out by a qualied technician,
using materials that are complaint with the applicable legislation.
Schweigen will not be responsible for any installations executed by non-qualied technicians that fail to
heed the applicable legislation on electrical safety.
The electrical technical data can be found inside the rangehood, after removing the grease lters.
The exible power cables supplied are already connected internally and emerges from the rangehood near
the air outlet tube.
Before installing the electrical connections, you should:
• Verify that the indicated electrical data coincides with the voltage values and frequency of the electrical
circuit in the house where the rangehood is to be installed.
• Check that the premises has electrical protection against short circuits and electrocution.
• Before commencing maintenance the current must be turned o using the double-pole switch (mains power
switch). The power can only be turned on for normal use, once the operation has been completed.
• Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it
must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard.

Page 6
2. Important safety information
Product Use
The Rangehood has one mode of operation:
Air extraction: The air is drawn in by the rangehood, ltered through the grease lters, and then expelled
outside. Please check the cleaning and maintenance section for advice on the lter’s cleaning schedule.
This product is designed for household use and must not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
Never ambé any food beneath the rangehood.
Always switch o the power source and unplug the connection before conducting maintenance
or cleaning.
Respect the cleaning frequencies and intervals for changing the lters, otherwise, the accumulated grease
could cause a re or damage to the appliance.
Changes made to the steel surface will render the warranty invalid.
In addition to the size of the rangehood, the height of the rangehood above the cooktop is important to
obtain the best performance.
For recommended heights, please refer to Mounting Laws and Regulations.
Match the Rangehood Size to your Cooktop
Rangehood same size as
cooking zone
ADEQUATE
Rangehood smaller than
cooking zone
INADEQUATE
Rangehood larger than
cooking zone
OPTIMAL

Page 7
1
2
3
4
5
6
7
89
10
10
11
11
Main Rangehood
Outlet (150mm)
Motor
Body
Bae Filter
Lower Flue

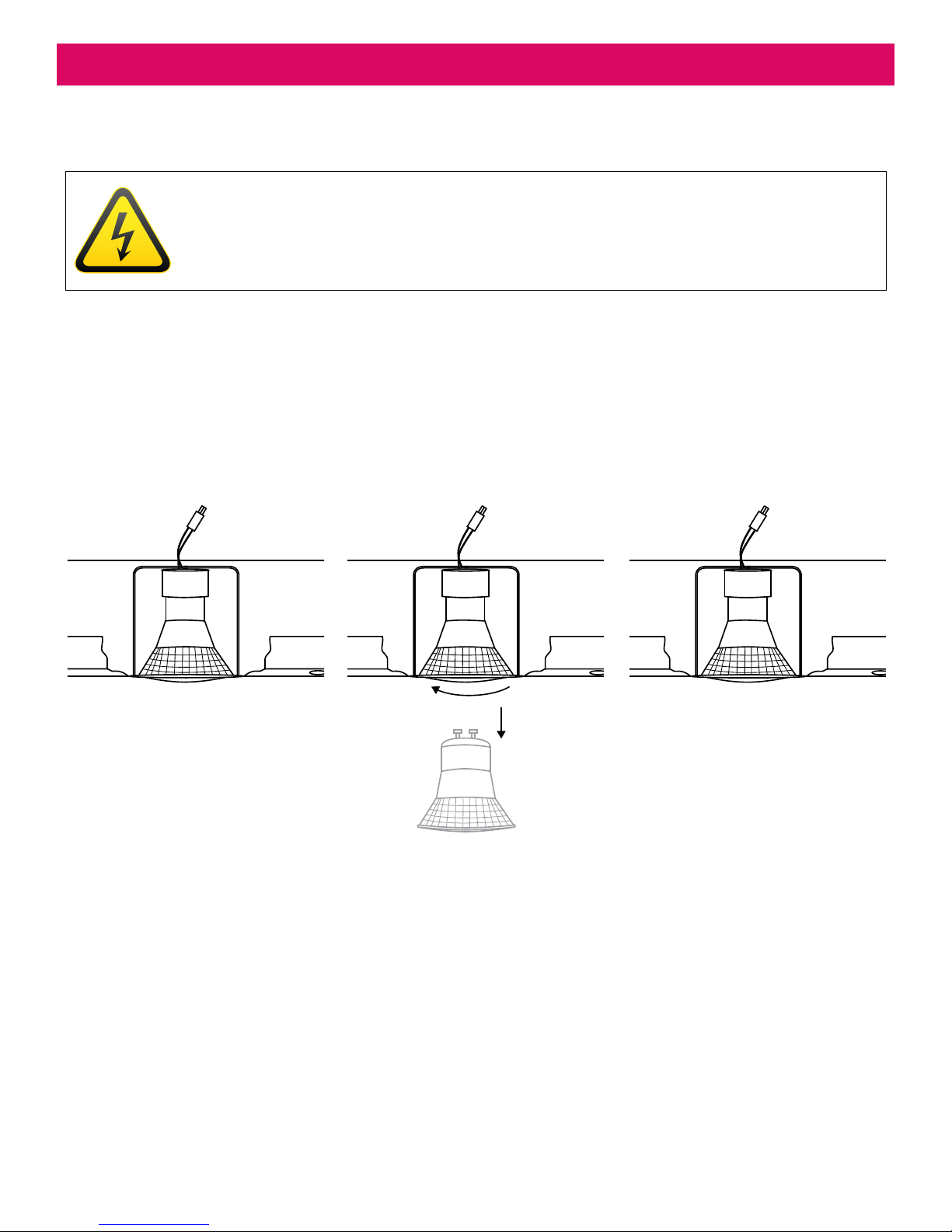

Lamp (GU 10 tting)
Pipe
Switch
Mounting Bracket
1
Power Cord
2
Upper Flue
3
4
8
5
9
7
6
NOTE: Filter and light quantity may vary from model to model.
Push Button Control Panel
Turn on/o the rangehood
Low speed setting
Medium speed setting
High speed setting
Turn on/o the lamp
1 2 3
1 2 3
1
2
3
3. Description

Page 8
IMPORTANT: Please check all State and Federal Laws in relation to the minimum - maximum
heights, regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.
Mounting Laws and Regulations
To be installed in an undercover alfresco area and/or indoor kitchen only. If the unit is
not adequately covered or sheltered from the outside elements the warranty will be
null and void.
• The location of the installation must have permanent openings for ventilation.
• Regulations concerning the expelling of air must be fullled.
• It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the
cooktop, this will greatly improve its performance.
Minimum and maximum heights (cooktop-to-canopy) are legally required, and
recommended for optimum rangehood performance in an indoor kitchen
Outdoor alfresco area — rangehood MUST NOT be installed where exposed directly to the elements:
• Minimum height 1200mm*
• Installation heights above 1200mm will compromise extraction.
4. Installation
For indoor kitchen area
Type of Cooktop Min. Height Max. Height
Electric 650mm 750 to 800mm
Gas 650mm 750 to 800mm
Installation height for Induction Cooktop
Type of Cooktop Min. Height* Max. Height Notes
Induction 700mm 800mm * Schweigen’s recommended height will help avoid condensation,
particular to cooking with an Induction Cooktop. Refer to additional
notes.

Page 9
Wall Mount Installation
Every wall mounted rangehood has two primary mounting points and several secondary mounting points to
rmly x the rangehood in its place.
Please ensure that the holes for the two primary mounting points are level before installation.
Danger
Always switch o and disconnect power before installing the rangehood. Failure to do so
may cause serious injury.
Step 1
Secure rangehood to the wall
using only primary mounting
points A & B. Check the level of the
rangehood and adjust accordingly
if necessary. Once level, continue
to secure the rangehood via
the secondary mounting points
C, D & E.
Step 2
Feed through aluminium exi duct
from the outlet block to the wall or
ceiling vent systems.
Step 3
Place ue covers on.
See next page for Step 4.
Mounting Points
A B
C D E
*Please refer to Specications for
mounting points measurements.
4. Installation

Page 10

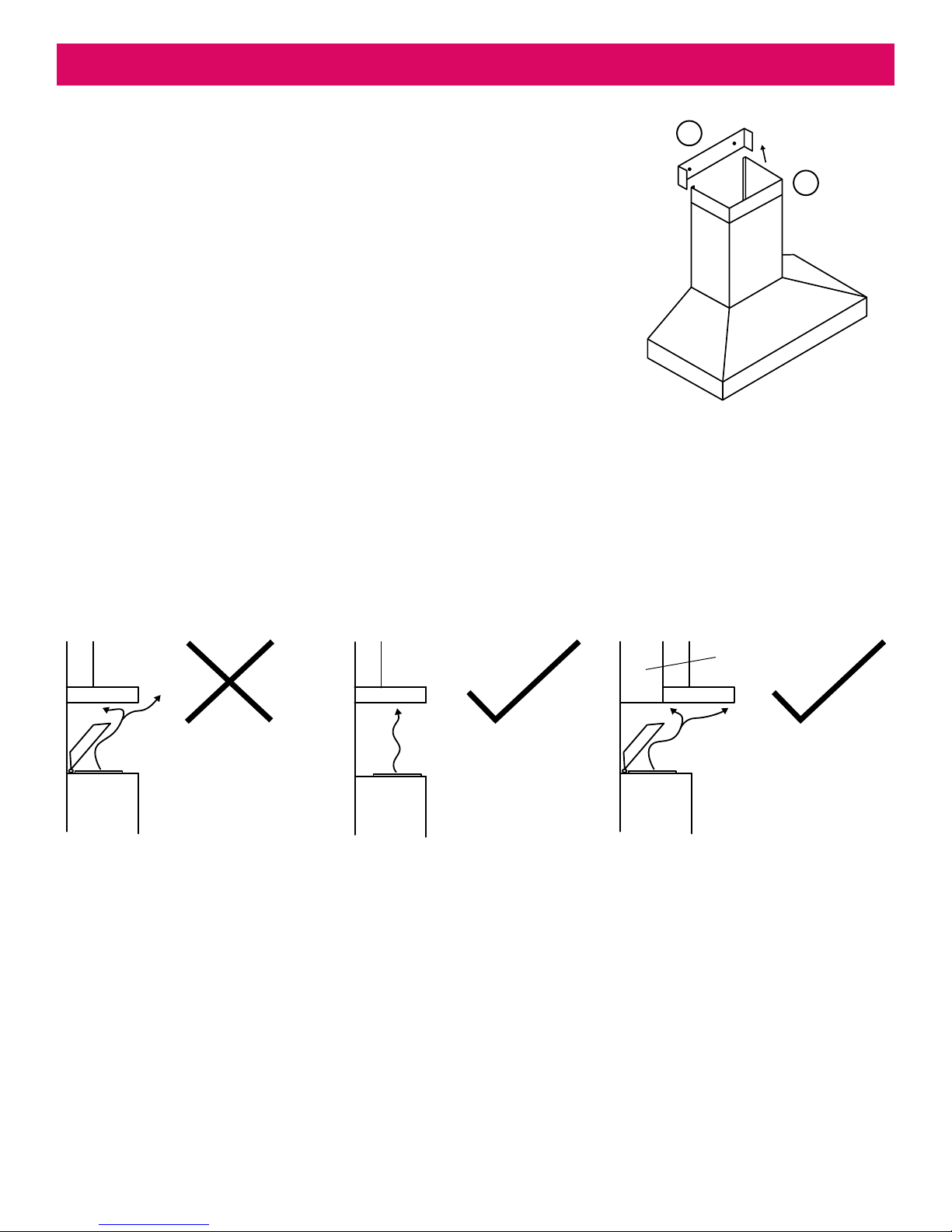

BBQ Installation
When installing the rangehood over a BBQ , please be aware that the lid will obstruct the rangehoods
eectiveness to extract smoke, steam and odours. Where possible, remove the lid of the BBQ unit when in use, so
as to allow for eective rangehood extraction. Alternatively, install the rangehood on an extension wall, refer
to the gure below.
Step 4
The outer and inner metal ue are encased one within the
other.
Attach the ue wall mounting bracket to the correct position on
the wall for the inner ue section to attach to at your desired
height.
Slide the inner ue cover (1), to the wall mounting bracket (2),
and attach.
NOTE: Please make sure that all plastic protection on the
rangehood and lters are removed before use.
Extension
Wall
4. Installation
1
2

Page 11
Figure 1
Figure 3 Figure 4
Figure 2
Figure 5
Example Installation
Figure 6
4. Installation

Page 12
4. Installation

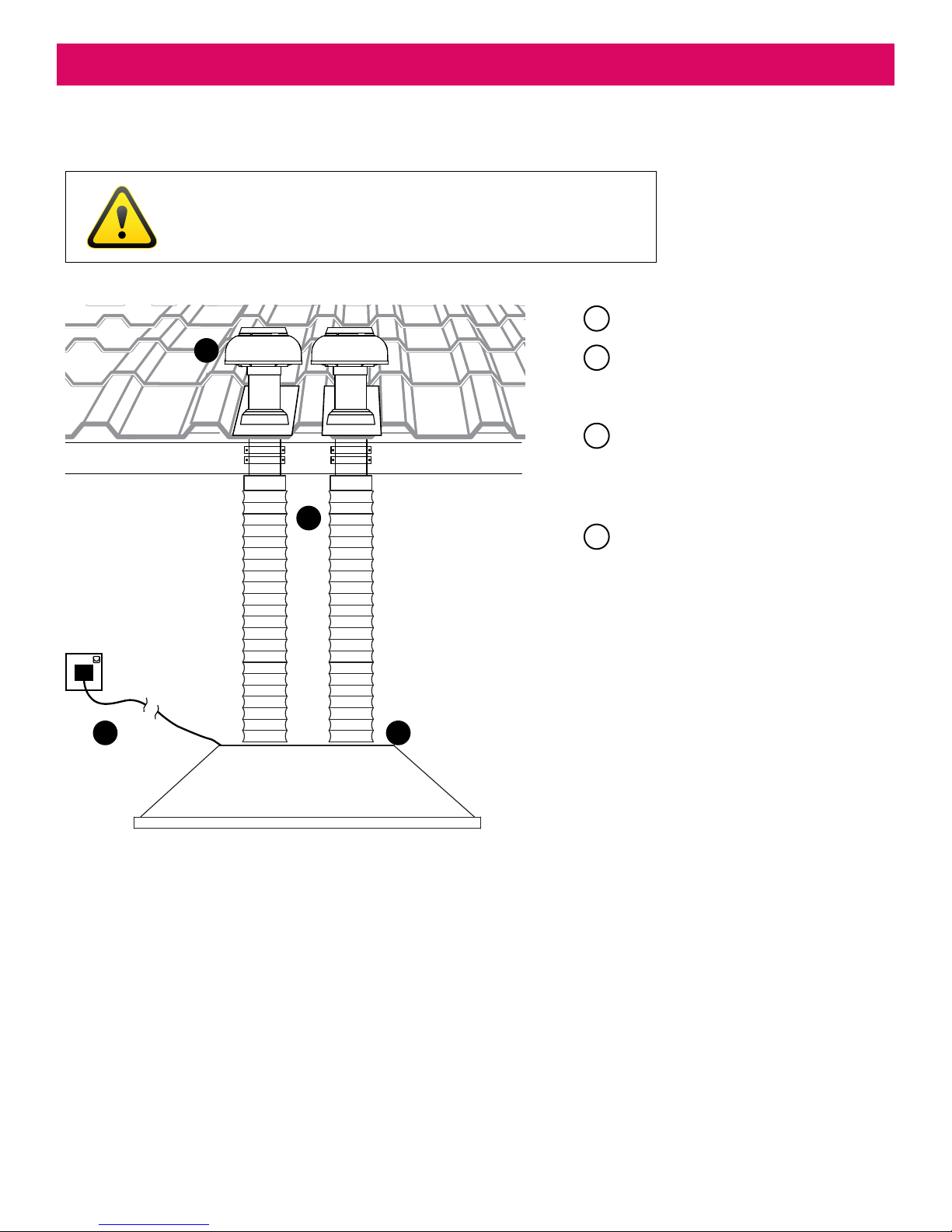

Roof Cowls / Roof Seal Kit
WARNING
All electrical wiring should be kept inside the roof space.
*NOTE: Motor system does not include the roof seal kit/roof cowls, cable tie, duct tape or the
support straps.
For best result, please install ducting in a straight line and duct length no longer than 4 metres.
Main Power Lead (Male Plug)
Roof Cowls*
Flexi Ducting must be pulled taut.
DO NOT crush or kink the ducting.
Connect exi ducting to the outlet
on rangehood using aluminium foil
tape and cable tie. Please DO NOT
rip the ducting.
4
1
2
3
1
2
34

Page 13
4. Installation
Back Draft Fins
Should your Back Draft Fins get stuck, this is not a warranty issue.
When installing Back Draft Fins, please ensure that you insert the Back
Draft Fins onto the back draft base, which are attached to the top of the
motor outlet before installation.
NOTE: Please make sure when ducting is installed, that it does
not impede the Back Draft Fins
from opening completely, otherwise poor extraction will occur.
5. Maintenance
Filters
• For this appliance to function eectively, regular maintenance is a must.
• The function of the lter is to absorb the grease particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict airow and may cause the motor to overheat and become a re
hazard.
• Filters should be cleaned every 3-6 weeks or after 40 hours of use.
• Disconnect the electrical connection before any maintenance or cleaning processes are carried out.
• To remove the lter, grab the handles pull forward the lter, lift it up slightly and push back. Then pull down
gently to release it. To replace, perform the same operation but in reverse.
• In ceiling-mounted rangehoods, the doors or glass must be opened before accessing the lters.
• For an induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The lters can be washed by hand or in the dishwasher
Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and it is not
necessary to change the lters. Please make sure the lters are dry before placing them back in position.
1
2
3
Back Draft Fins
Back Draft Fins in Operation

Page 14
Replacing the Light Bulb for CL8812
Step 2
Gently turn light bulb anti-
clockwise, pull the light bulb
down and remove it from the light
holder.
Step 3
Insert a new light bulb by lining up
the pins of the light bulb with the
larger holes inside the light holder.
Once the pins are in place, turn
clockwise to secure the light bulb.
Step 1
Remove the lters from the
rangehood.
DANGER
Always switch o and disconnect the power cord before replacing any light bulbs. Failure to
do so may cause serious injury. Please be aware that the light bulb will retain heat for a short
period of time after being switched o.
5. Maintenance

Page 15
5. Maintenance
Cooking with Induction Cooktops
Cooking with an induction or similar cooktop, may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn,
produces vapours rapidly. Because of the accelerated process, the rangehood lters do not have enough
time to warm up, which increases the chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
• Angle of ducting – an ‘S’ bend is preferred.
• Filter size – larger rangehood preferred, as it will have a larger lter extraction area.
• Quality of pots or cookware you are using – high quality is recommended.
How to reduce the possibility of condensation forming:
• Ensure the rangehood is installed by a qualied professional, carefully following the installation guide.
• Turn on the rangehood 5-10 minutes prior to cooking, and leave on for 5-10 minutes after cooking; this helps
clear remaining vapours from the ue.
• Start the cooking process at a low-to-medium setting and allow time for the rangehood to become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer’s advice.
• Install at recommended height above induction cooktop.
For further tips or information regarding cooking with induction, please contact the induction cooktop
manufacturer.

Page 16
5. Maintenance
Before you contact the technical service department, make sure that the product is plugged in
and power is supplied.
• Do not take any action that will damage the product.
Check electric connection. Voltage of the electric network should be between 220 - 240V, rangehood should be connected to grounded plug and turned on. Check motor switch. Please ensure that there is power to the rangehood and the rangehood is switched on. Check lamp switch. Lamp switch should be at on position. Check lters. The lters should be washed regularly, see lter cleaning. Light bulbs should be rmly in position. Check light bulbs. Make sure they are not broken or faulty. Please make sure there is no obstruction in ducting or with the back draft ns. Check the outlet, make sure it is not blocked and you have the correct diameter ducting installed. Check the ducting has not come o the rangehood outlet or has been eaten through by rodents.
Rangehood does
not work
X X
Light does
not work
X X X X
Rangehood air
exaction is weak
X X X X
Rangehood does
not direct air out
(through chimney)
X X
Loud noise from
the rangehood
X
IMPORTANT
Never attempt to repair this appliance by yourself. Always refer to a qualied Service Technician.

Page 17
5. Maintenance
Calling the Technical Assistance Service Hotline
In the event that the failure is not due to the faults mentioned in Trouble Shooting, contact
Customer Service.
In Australia, Customer Service 1300 829 066
In New Zealand, Customer Service 0800 200 510
Lodging an online Service Request
In the event that failure is not due the reason/s in the trouble shooting section, you can lodge
an online Service Request.
To lodge a Service Request, visit our website www.schweigen.com.au/pages/support/service-warranty and
click on the link to download the service request form.
A service request will require the following information:
• The purchase date
• The rangehood model and motor type
• The rangehood serial number or batch number (this number is on a sticker inside the rangehood)
• A copy of the purchase receipt (without a receipt your service request cannot be processed)
Faulty Installation
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call
out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the
fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such
a way that the service agent is unable to gain access to the appliance, the person/s who own the premises
where the appliance resides — will be responsible
to provide access to the appliance at their expense.

Page 18
6. Specications
435
335
338
400
320
750
1200
100
1220
400
438
435
438
350
1200
1220
403
420
450450
335
338
50
Technical Specications
Model CL8812
Feeding Voltage 220-240V 50Hz
Lamp Power 3 LED x 3.5W

Page 19
7. Disclaimer
Under our policy of continuous product development, product specications may change without notice.
Prospective purchasers should therefore check with the retailer to ensure this publication correctly
describes the products being oered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Schweigen Home Appliances will not be liable for any loss,
liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures
used in the guide are for illustrative purposes only.
Schweigen Home Appliances has presented this information in good faith to all their retailers and
distributors to convey before any/all purchase/s. Information is supplied upon the condition that the
person/s receiving the information will make their own determination as to its suitability for their purpose/s
prior to use. In no event will Schweigen Home Appliances be responsible for damages of any nature
whatsoever resulting from the use of, or reliance upon, information from their website or the products to
which the information refers.
The symbol on the product or its packaging indicates that it cannot be treated as normal
household waste. Take this product to your nearest electrical and electronic equipment
waste point for recycling. By correctly disposing of this product, you will be helping to prevent
potentially negative consequences for the environment and public health, which could arise if
this product is not handled in the appropriate way. For more details about the recycling of this
product please contact the authorities of your city or town, your local household waste service
or the store where you purchased the product.

Distributed by Axis Group International Pty Ltd.
ACN 124 141 322
Australia 8/3-4 Anzed Court, Mulgrave 3170 Victoria. Phone [phone]
Email [e-mail] Web www.schweigen.com.au
New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone [phone]
Email info.par[email protected] Web www.parex.co.nz
SCH00015
