INSTRUCTION MANUAL
GA600S
GA900S
GA1200S
UNDERMOUNTED RANGEHOODS
Installation / Operation / Maintenance
Apr2022/ V1
Code:
Drawn by:
Weight:
Observations: Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date: 20/03/2019Sheet: A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.
Under our policy of connuous product
development, product specicaons may
change without noce. Please refer to
the online version of the manual for the
latest updates and specicaons.

Page 2
Welcome 3
Important Safety Information 4
Description 7
Operation 8
Cleaning and Maintenance 9
Installation 12
Condensation Information 20
Troubleshooting 21
Technical Specications 23
Disclaimer 26
INDEX

Page 3
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
installation and rst time use.
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is deemed improper
and can be dangerous.
Installation and maintenance of
electrical appliances must only
be carried out by qualied and
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order
to recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
which do not aect the operation of
the appliance.
WELCOME

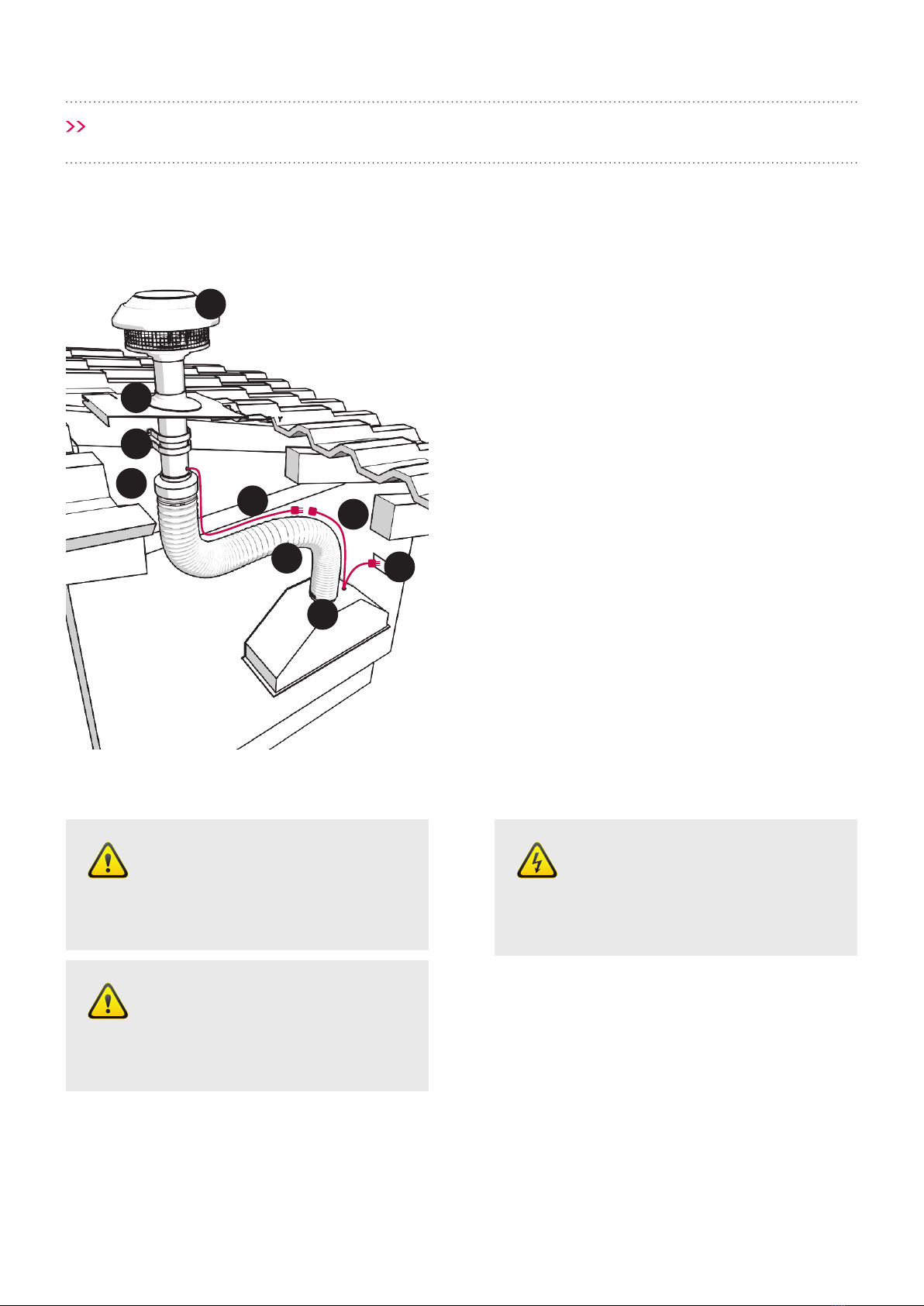

YOUR STATE REGULATORY AUTHORITY
Dierent Australian states have varying legislative requirements for the installation of
rangehood ducting. Some will insist on ducting being vented externally (i.e. not in to the
ceiling cavity); others will not. It is imperative that you check with your state building
authority and/or private certier to conrm their position.

Page 4
IMPORTANT SAFETY INFORMATION
Please read the instructions carefully. Only then
will you be able to operate your appliance safely
and correctly. Retain the instruction manual for
future use or for subsequent owners.
Check the appliance for damage after unpacking it.
Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48
hours.
There must be adequate ventilation in the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.
The air must not be discharged into a ue that
is used for exhausting fumes from appliances
burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
There is a re risk if regular cleaning is not carried
out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the
rangehood. This will damage the rangehood and
will void warranty.
Do not ignite burners that give o intense
uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all
times and cannot exceed the width of the pan in
use.
Do not leave any packaging material (bags,
corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or
knowledge. Unless, the person is given supervision
or instruction concerning the safe usage of the
appliance by person/s responsible for their safety.
Children must be supervised to ensure that they do
not play with the appliance, it is not a toy.
Accessible parts may become hot when used with
cooking appliances.
Before performing any cleaning or maintenance,
disconnect the rangehood from the mains power,
using the respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the grease
lters.
Keep the grease lters clean and respect the
recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.

IMPORTANT SAFETY INFORMATION
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed or
repaired by an experienced Home Appliances
technician.
Please see our website www.schweigen.com.au
for a list of experienced installers.
It is dangerous to modify any part of this appliance.
Modication of any kind will immediately void the
warranty.
The manufacturer declines all responsibility in case
of failure to adopt proper safety measures.
Ensure the location in which this appliance is
installed, has good and permanent ventilation.
Please consult local laws and regulations and install
in accordance.
Please use an earthed electrical connector that
coincides with relevant local laws and regulations.
Check that the power voltage in your area
corresponds to the appliance voltage indicated on
the rating label.
This appliance must be connected to an electrical
supply that has a grounded connection.
Check that the indicated instructions and local
regulations are met and carried out by a qualied
technician, using materials that are compliant with
the applicable legislation.
Schweigen will not be responsible for any
installations executed by non-qualied technicians
that fail to heed the applicable legislation on
electrical safety.
The electrical technical data can be found inside
the rangehood, after removing the grease lters.
The power cables supplied are already connected
internally and emerge from the rangehood near
the air outlet.
Before installing the electrical connections,
you should:
Verify that the indicated electrical data coincides
with the voltage values and frequency of the
electrical circuit in the house where the rangehood
is to be installed.
Check that the premises has electrical protection
against short circuits and electrocution.
Before commencing maintenance the current must
be turned o using the double-pole switch (mains
power switch). The power can only be turned
on for normal use, once the operation has been
completed.
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid a hazard.

IMPORTANT SAFETY INFORMATION
Page 6
PRODUCT USE
This product is designed for household use and
should not be used for commercial applications.
After use, always ensure that all controls are in
the “OFF” position.
When frying with a gas ame, take particular care
not to allow the oil or grease in the pan to catch
re. (Flambé)
MAINTENANCE AND SERVICE
The rangehood surface should be cleaned with soft
cloth and non-corrosive detergent. Do not leave
the rangehood wet after cleaning or use, please
keep rangehood dry.
Important: Never attempt to repair this appliance
by yourself. Always refer to a qualied
Service Technician.
Always switch o the electricity and unplug the
connection before conducting maintenance
or cleaning.
ELECTRICAL CORD
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid
a hazard.

Page 7

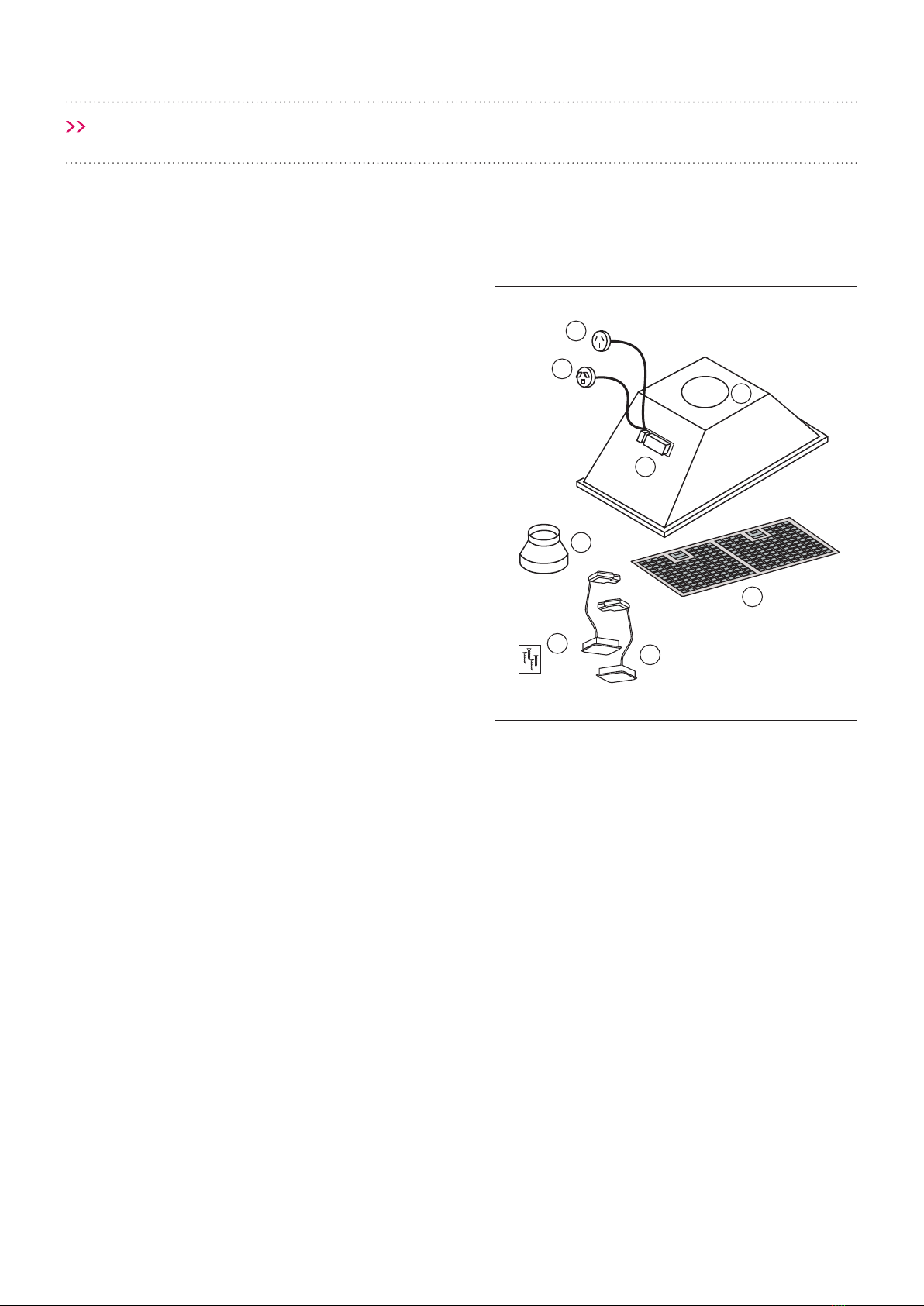

1. Socket lead to Isodrive®motor
2. Main power cord
3. Single 200mm Outlet
4. Computer board*
5. Reducer
6. Filters (depending on model lters vary in size)
7. Lights
8. Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
part (removal of cabinetry etc.) being forwarded to
the customer.
DESCRIPTION
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
1
1
22
3
4
4
6
7
8
9
10
5
6
7
8
5
3
For models GA-600S, GA-900S and GA-1200S

Page 8
OPERATION

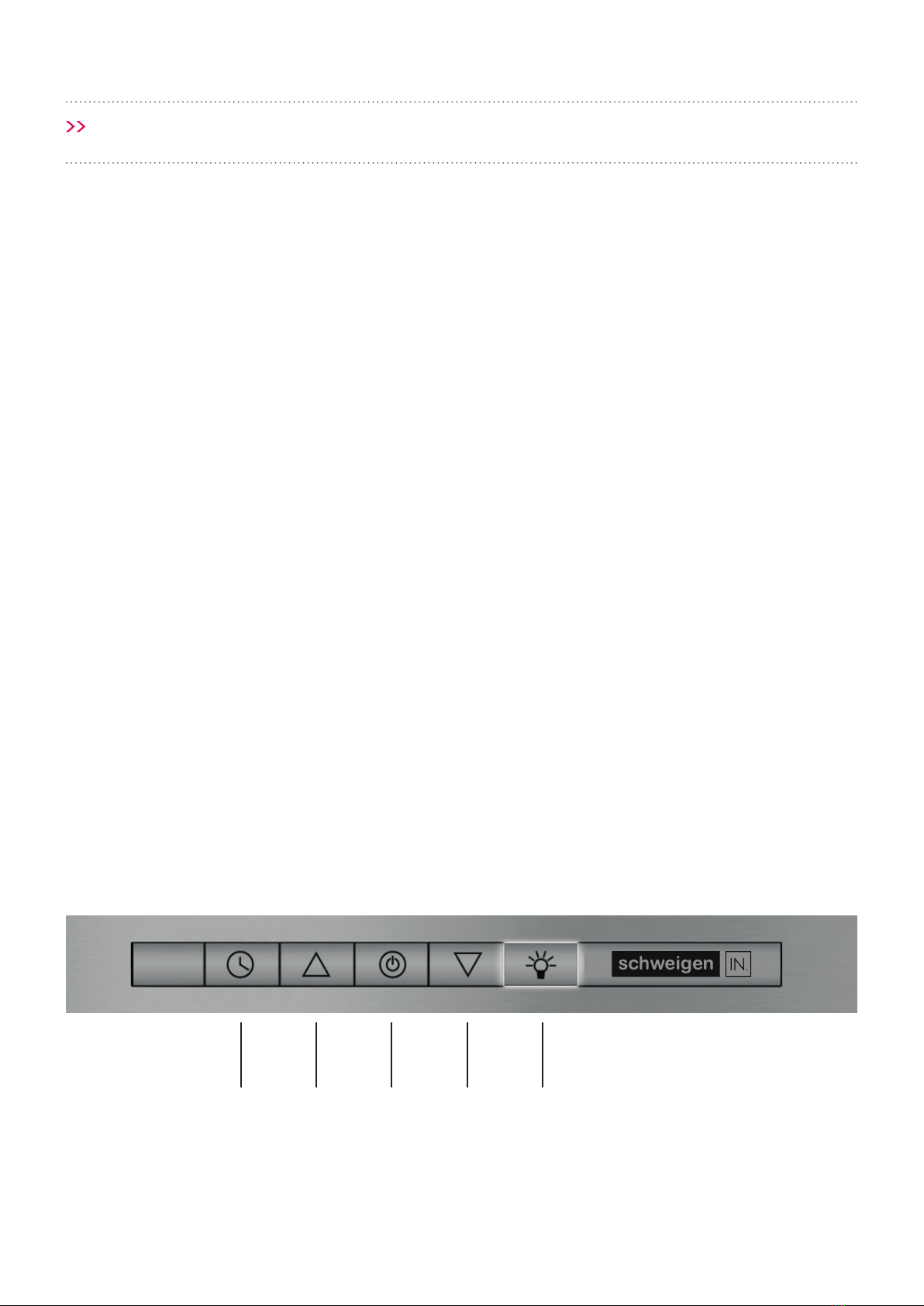

Electrical Tactile Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave running for at least 10 minutes after you
have nished cooking.
The buttons have the following functions:
A.- Timer: When this function is activated, the
blue light will ash on the timer button. The
rangehood continues to operate for 10-15 minutes
at the required speed and then automatically
switches the motor o.
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
blue light will ash.
C.- ON / OFF: This button turns the rangehood on
and o. The rangehood will always turn on at the
same speed at which is was turned o.
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low
speed button will be blue.
E.- Light: Press this button to turn the lights on
and o. When it is operating, the light is blue.
This rangehood has a device that lets you know
when the grease lters must be cleaned.
When the lamp on button “E” ashes, this means
the lters must be washed (usually after 40 hours
of operation).
When the lters have been washed and re-mounted,
hold the “E” button down for a few seconds to reset
it and return the counter down to zero.
A B C D E
For models GA-600S, GA-900S and GA-1200S
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds are for heavy frying or heavy cooking.

Page 9
CLEANING AND MAINTENANCE

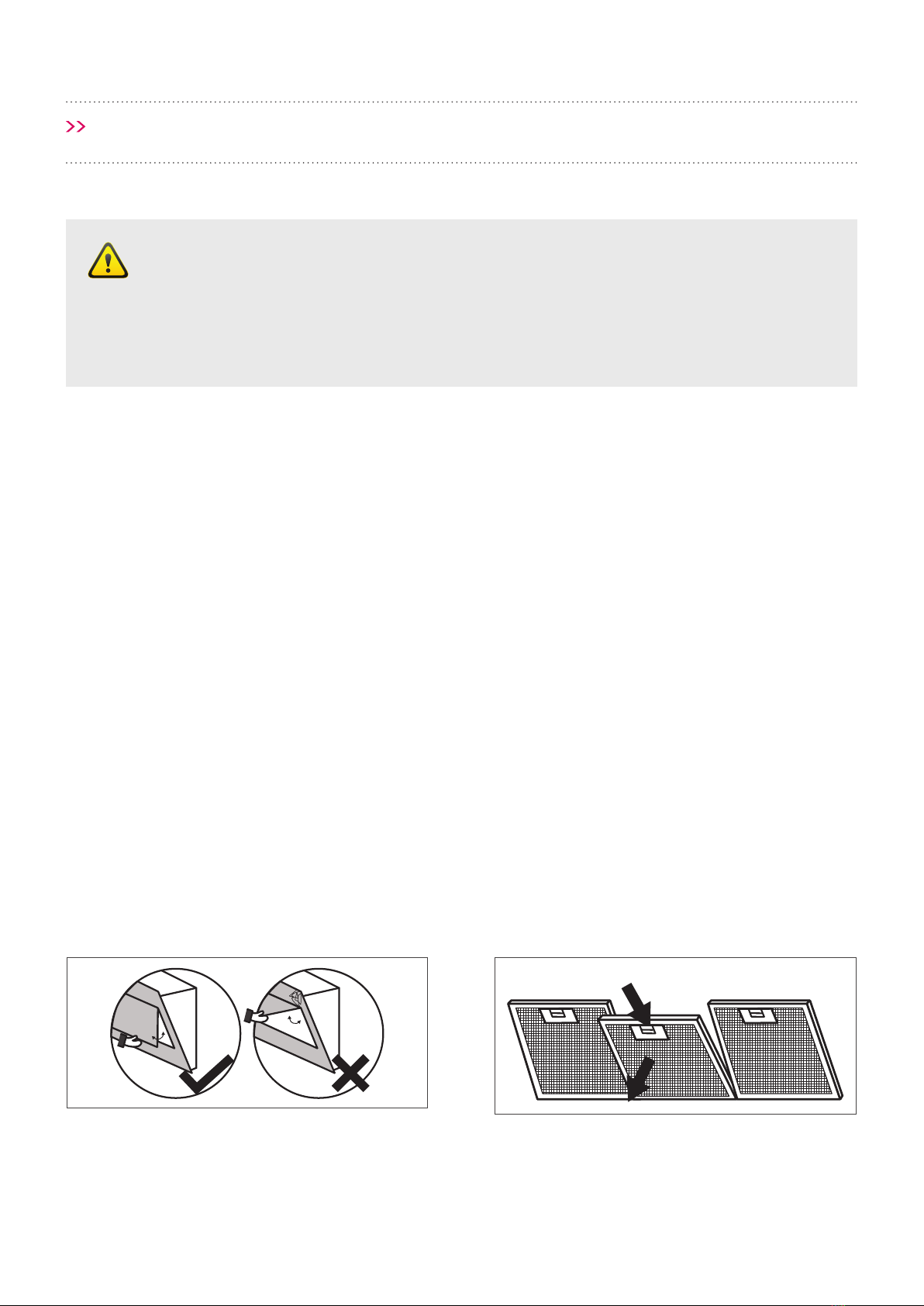

Latch A
Catch A
Figure 2Figure 1
FILTERS
• For your appliance to function eectively,
regular maintenance is a must.
• The function of the lter is to absorb the grease
particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict
airow and may cause the motor to overheat and
become a re hazard.
• Filters should be cleaned every 3-6 weeks or
after 40 hours of use.
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
lters.
• To remove the lter, (open the glass panel, gure 1,
if required) press ‘Catch A’ towards the rear of
the rangehood (removing the pins from the
front guide), ease down slightly and remove.
To replace, perform the same operation but
in reverse, see gure 2.
• For an induction cooktop, please aim to clean
the lters at least every 10 days, depending
on frequency of use.
• The lters can be washed by hand or in the
dishwasher
Washing by hand - Immerse the lters in hot
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher - Put the lter in the dishwasher
and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may
change after several washes. This is normal and
it is not necessary to replace the lters.
WARNING
Always switch o and disconnect power to the rangehood before cleaning. The
manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the lters and rangehood.
Cleaning and user maintenance shall not be made by children without supervision.

Page 10
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
• For better results, you can use high quality
cleaning and protection products (eg. Steel
Kleen) to clean your rangehood.
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.
It is important to follow the direction of the surface
grain with the cloth (refer to gure below).
Do not pour any liquid directly onto the rangehood,
apply to a soft cloth rst.
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
WARNING
Do not use denatured
alcohol on the exterior of the
rangehood. Do not clean the
electric parts or the motor with
liquids or solvents.
CLEANING AND MAINTENANCE

Page 11
GLED Square

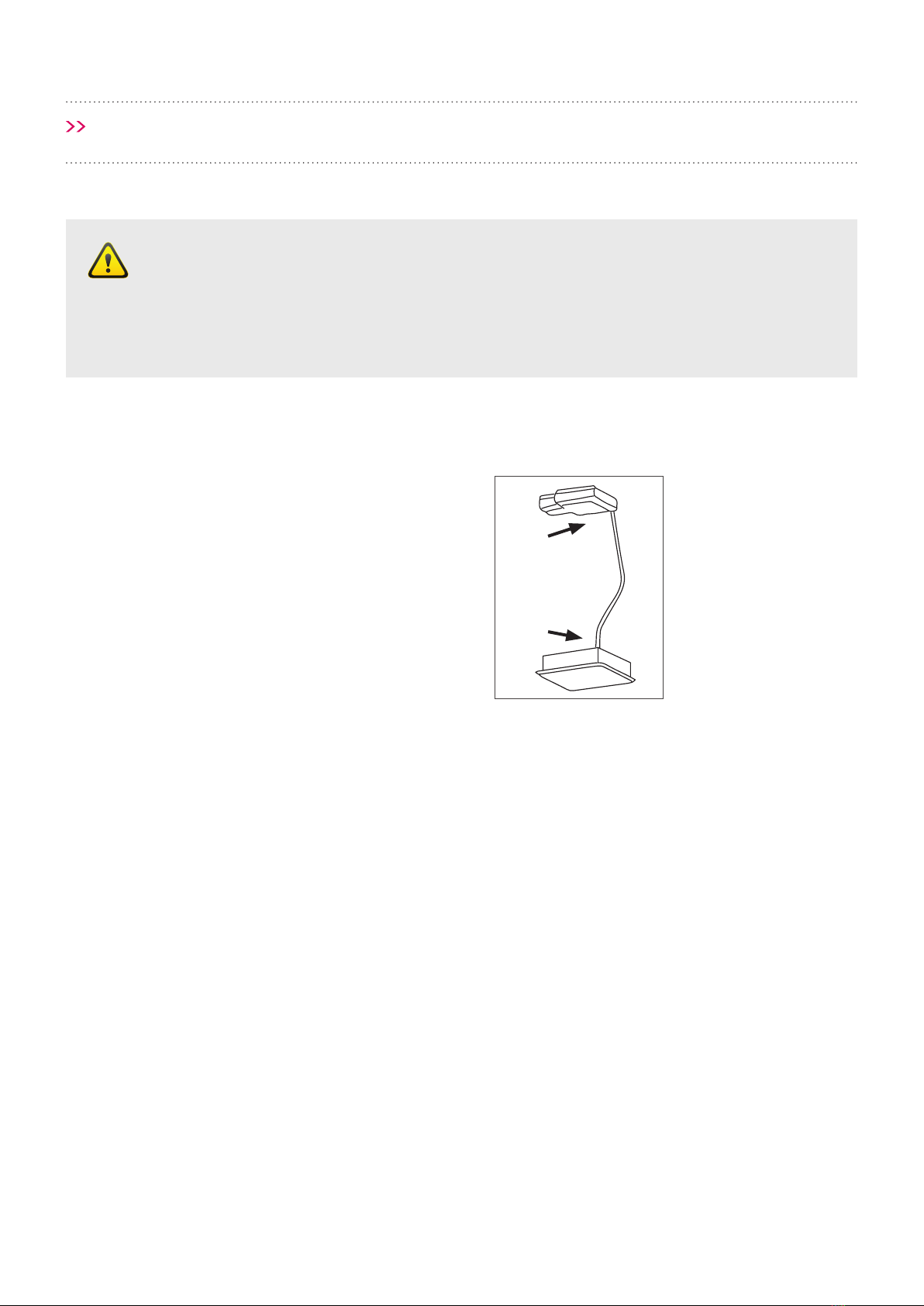

REPLACING THE LED BULB
The life span of an LED bulb is at least 10 times that
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:
1. Unplug the respective connector (A).
2. Press the tabs (B) inside the rangehood.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A
B
GLED Square
WARNING
Always switch o and disconnect the power cord before replacing any lights. Failure
to do so may cause serious injury. Please be aware that the LED light will retain heat
for a short period of time after being switched o. Never attempt to replace the LED by
yourself, always refer to a qualied Service Technician.
CLEANING AND MAINTENANCE

Page 12
INSTALLATION
RANGEHOOD SIZE VS COOKTOP SIZE
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone

INSTALLATION
Page 13
OVERHEAD CABINET RANGEHOOD INSTALLATION POSITION
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account
for all circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
GOOD
600mm 600mm 600mm
400mm
Side View Side View
BETTER
450mm
BEST
500mm
When the overhead cabinetry is
constructed and installed deeper than
standard, ensure the rangehood is
installed as close to the front as possible.
This will increase the rangehood
extraction results as there is a greater
coverage of the cooktop surface area.
Side View

INSTALLATION
Page 14

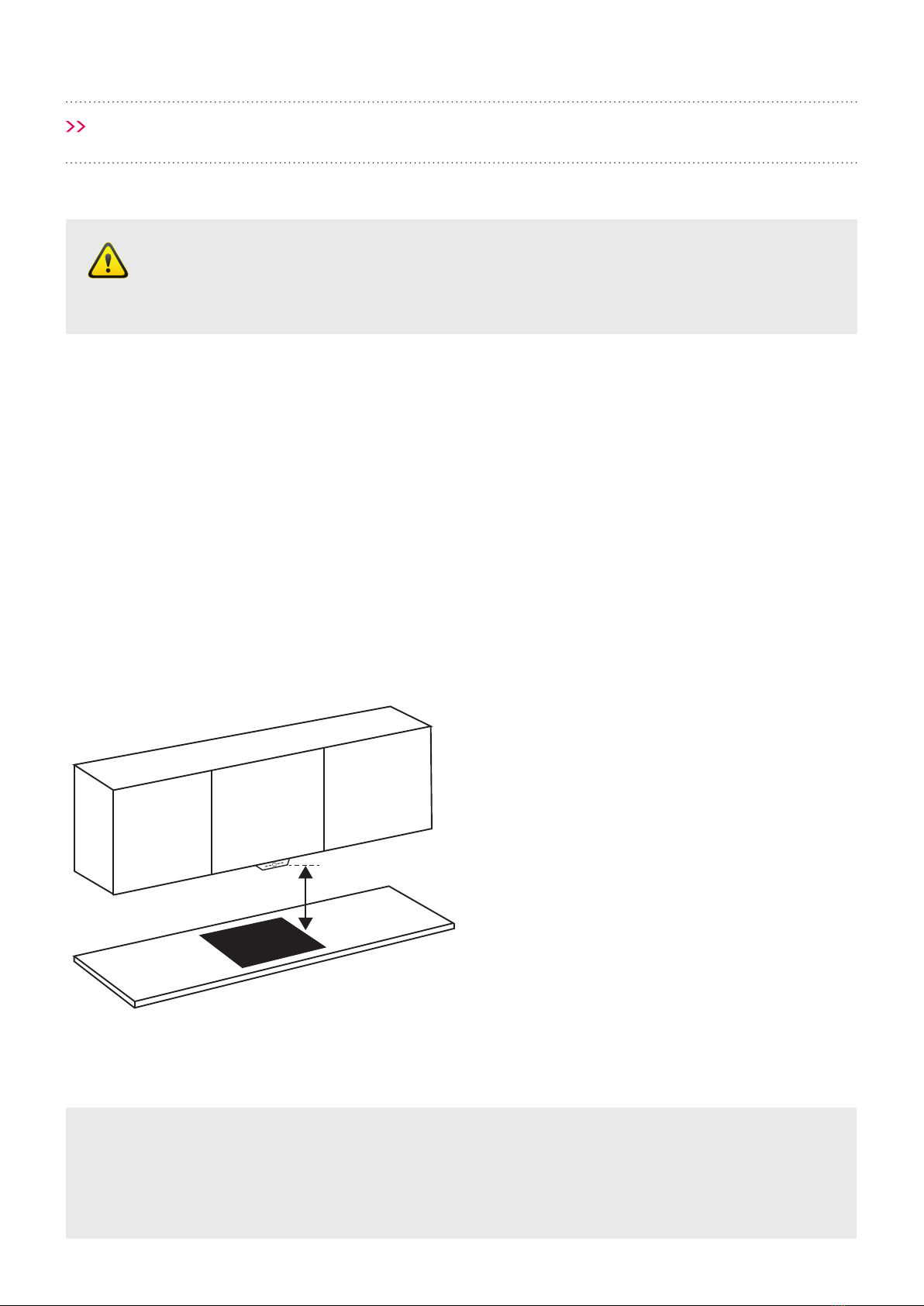

MOUNTING LAWS AND REGULATIONS
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop. This will greatly
improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
RECOMMENDED INSTALLATION HEIGHT FOR INDUCTION COOKTOP
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a minimum height of 700mm. Refer to page 20 for further information.
DANGER
Always switch o and disconnect mains power before installing the rangehood.
Failure to do so may cause serious injury.
*IMPORTANT: If the user decides to install the
rangehood at a distance of less than minimum
height above the cooking surface, Schweigen
declines responsibility for damages suered
by the rangehood due to excess heat or damage
to objects, people and others caused directly
or indirectly by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
IMPORTANT
Please check all State and Federal Laws in relation to the minimum–maximum heights,
regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.

Page 15
INSTALLATION

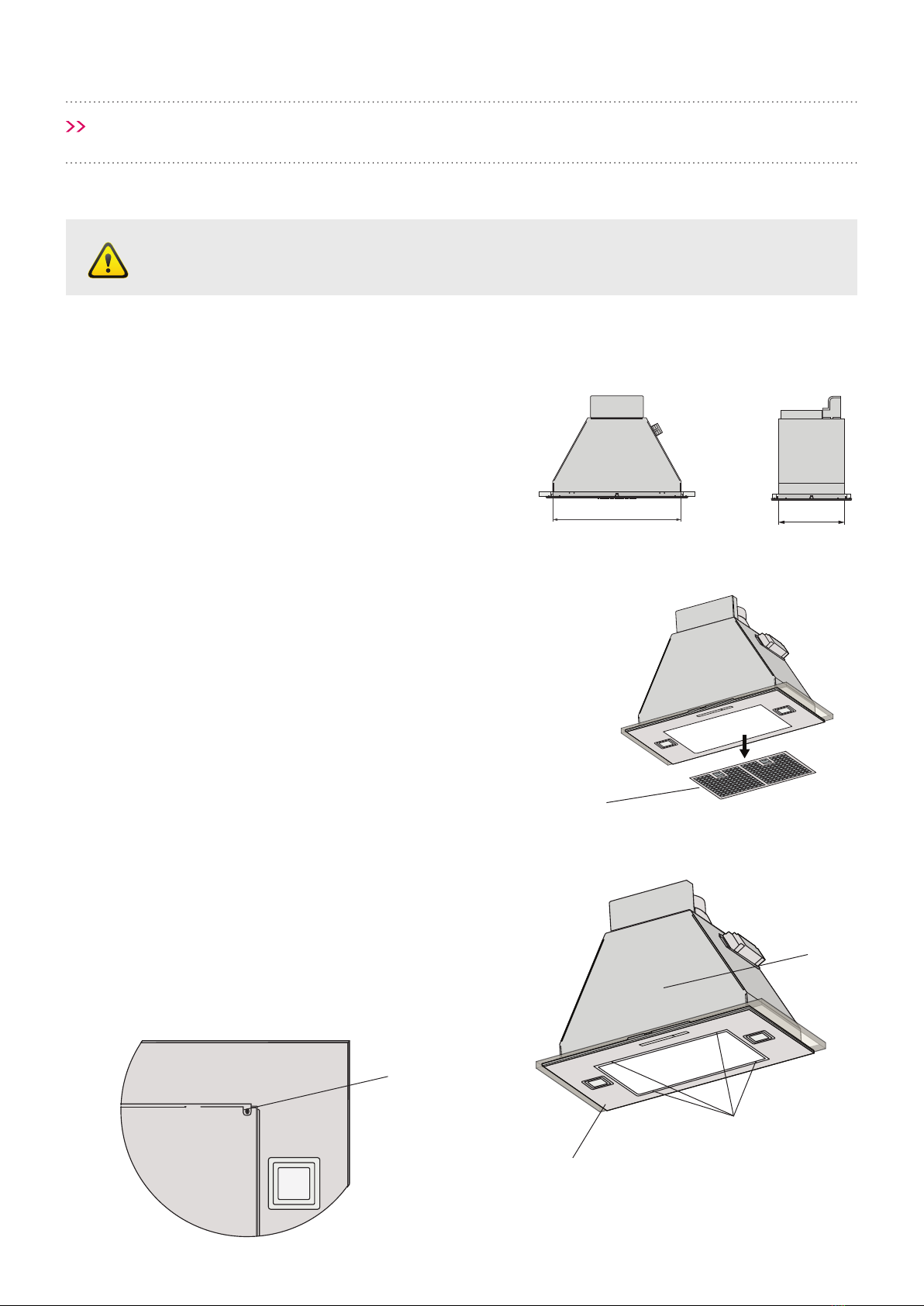

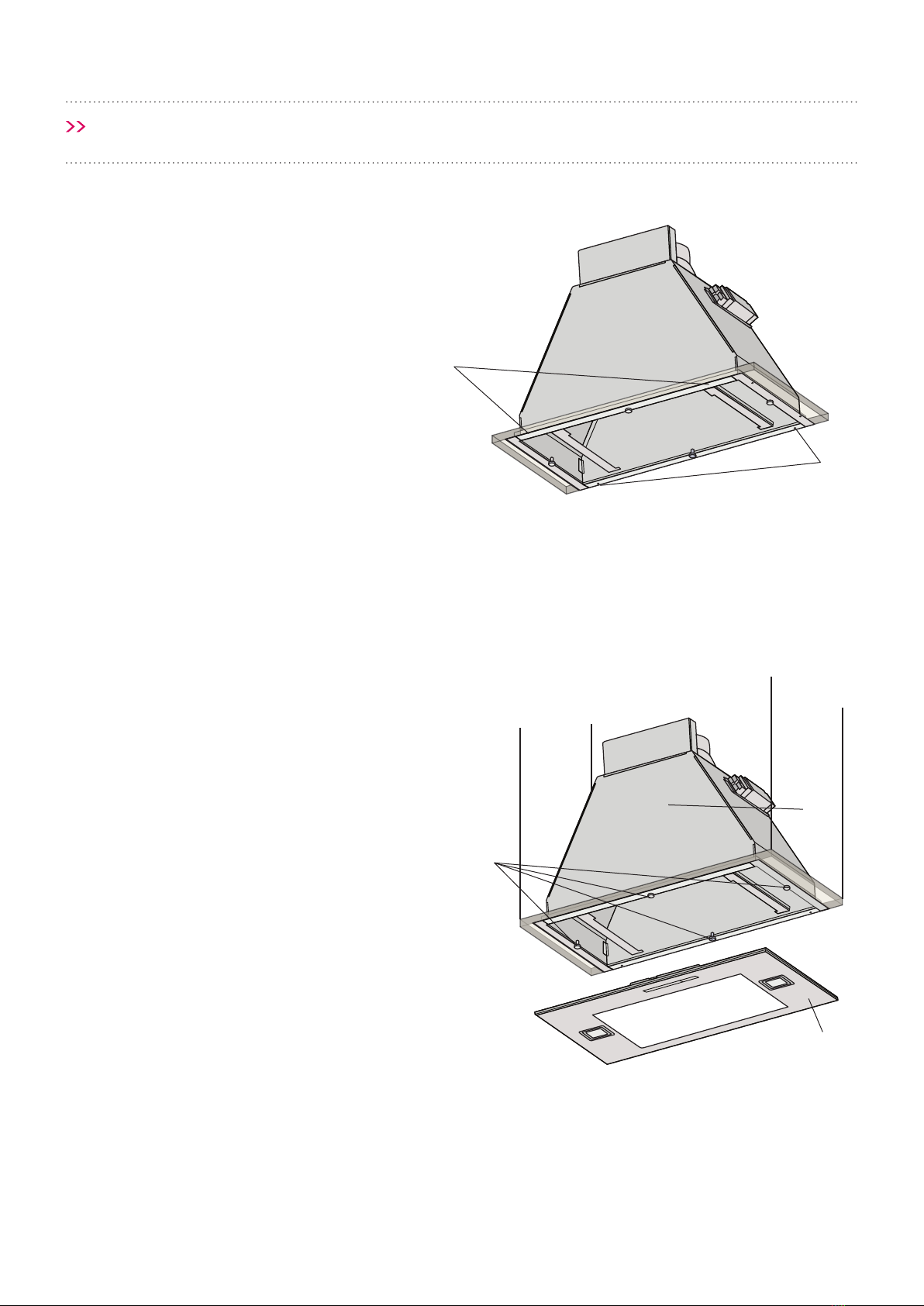

Installation for GA-600S
Y+20mm
X+20mm
Step 2
Remove the lters from the undermount.
Step 3
To separate the fascia (A) and release it from the
undermount (D), remove the 4 locking screws (E)
The fascia will remain xed due to the magnets.
E
D
A
E
Filters
Step 1
Cut the cabinetry to the correct size in order to t
the undermount, see gure on the right.
NOTE: It is always best to use the rangehood as a
cutting guide, not the cabinet cut out diagram as
this is only a guide.
NOTE
GA-900S and GA-1200S have the same installation steps as GA-600S

Page 16
INSTALLATION
Step 5
Once (D) has been rmly attached, x the fascia (A)
to the rangehood (D) the magnets (B) will hold the
fascia in place.
Step 4
Fix the undermount to the cabinetry with
appropriate screws, using the pre-drill holes in the
undermount body (C).
C
C
D
A
B

Page 17
INSTALLATION
Step 6
Re-attach the fascia by securing it with 4 x locking
screws (E).
Step 7
Re-install the lters.
E
IMPORTANT
Please ensure all plastic
protection on the rangehood and
lters are removed before use.

INSTALLATION
Page 18

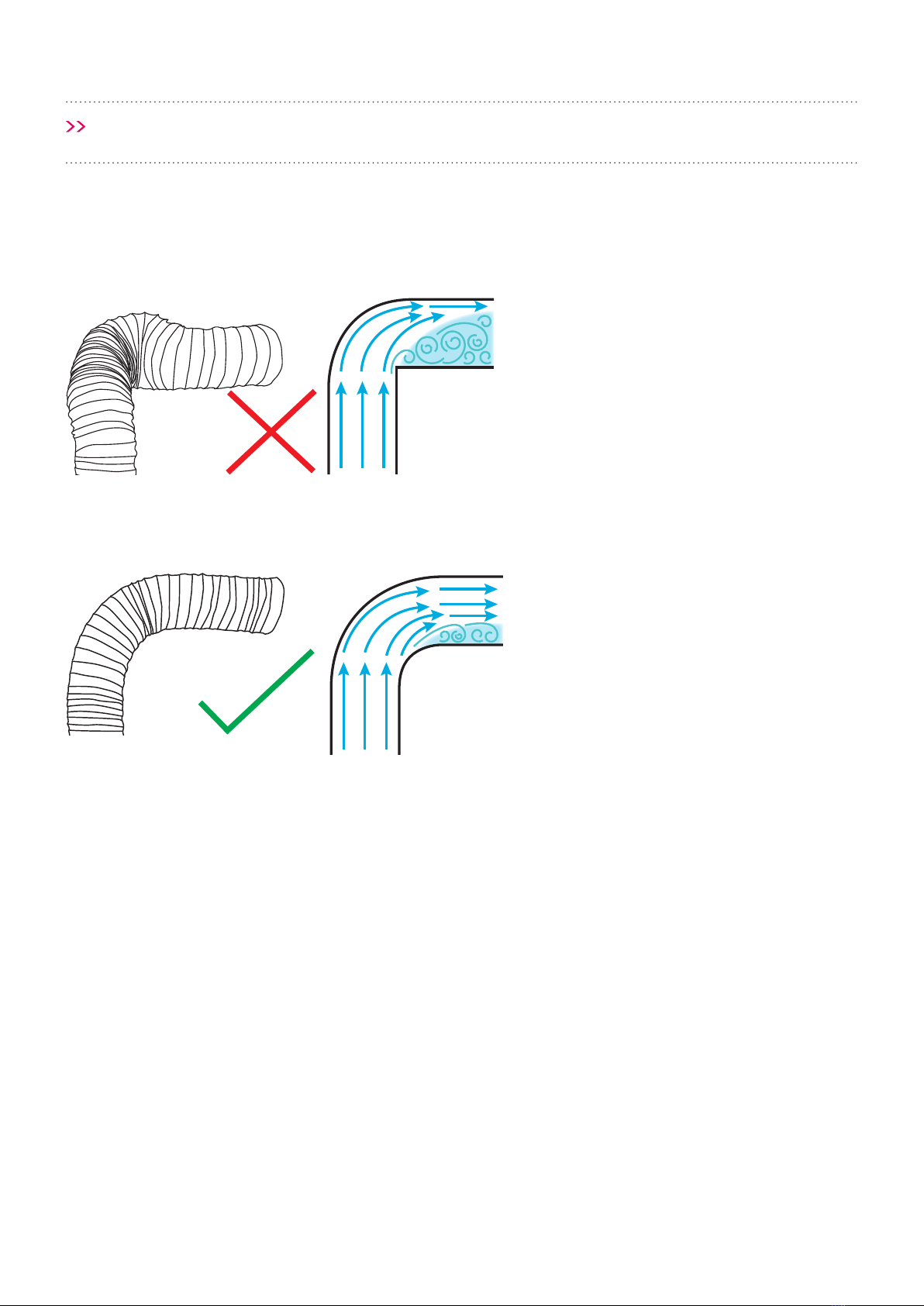

Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates sharp
corners that creates turbulence. This
reduces the size and eciency of the
ducting, lowers extraction and may
cause excessive noise.
2. Sweeping curves and taut ducting reduces
resistance and turbulence. The airow
and extraction will be more ecient
and stronger.

Page 19
INSTALLATION
SYSTEM OVERVIEW
1. Isodrive®Motor
2. Roof Seal Kit (Dektite) (Not Supplied)*
3. Support Straps (Not Supplied)*
4. Attach Duct to Bell-Mouth Adaptor using ring
clamp. Please DO NOT rip the ducting.
5. Isodrive®Motor Power Lead (Plug)
6. Rangehood to Isodrive®Motor Lead
(Socket)
7. Main Power Lead (Plug, 10 Amp)
8. Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect ducting to the outlet
on rangehood using ring clamp.
Please DO NOT rip the ducting.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
56
7
8
9
Danger
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.
Note
* The Isodrive®motor system does
not include the roof seal kit or the
support straps.
Note
Please see Isodrive®installation guide
for motor installation information.

Page 20
CONDENSATION INFORMATION
COOKING WITH INDUCTION
COOKTOPS
Cooking with an induction (or similar) cooktop,
may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction
cooktops heat food and liquid instantly, which in
turn, produces vapours rapidly. Because of the
accelerated process, the rangehood lters do not
have enough time to warm up, which increases the
chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include
but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/
afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
• Angle of ducting – an ‘S’ bend is preferred.
• Filter size – larger rangehood preferred,
as it will have a larger lter extraction area.
• Quality of pots or cookware you are using –
high quality is recommended.
How to reduce the possibility of condensation
forming:
• Ensure the rangehood is installed by a qualied
professional, carefully following the installation
guide.
• Turn on the rangehood 5-10 minutes prior to
cooking, and leave on for 5-10 minutes after
cooking; this helps clear remaining vapours
from the ue.
• Start the cooking process at a low-to-medium
setting and allow time for the rangehood to
become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this
helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer’s
advice.
• Install at recommended height above induction
cooktop.
For further tips or information regarding cooking
with induction, please contact the induction
cooktop manufacturer.
