Schwinn Crewmaster User manual
1
Schwinn™Crewmaster™/ Rower International
Service Manual 8016422.050118.B
Service Manual
Section Code Section Page Number
1 Important Safety Instructions 2
1 Safety Warning Labels and Serial Number 3
1 ReadingtheProductSpecicationLabel 3
1 Specications 3
1 Maintenance 4
1 Battery Replacement 5
1 Seat Roller Adjustment 5
1 Leveling the Machine 5
1 Moving and Storing the Machine 6
1 Maintenance Parts Exploded View 7
1 Troubleshooting 8
1 Replacement Procedure Skill Level 10
Part Replacement 11

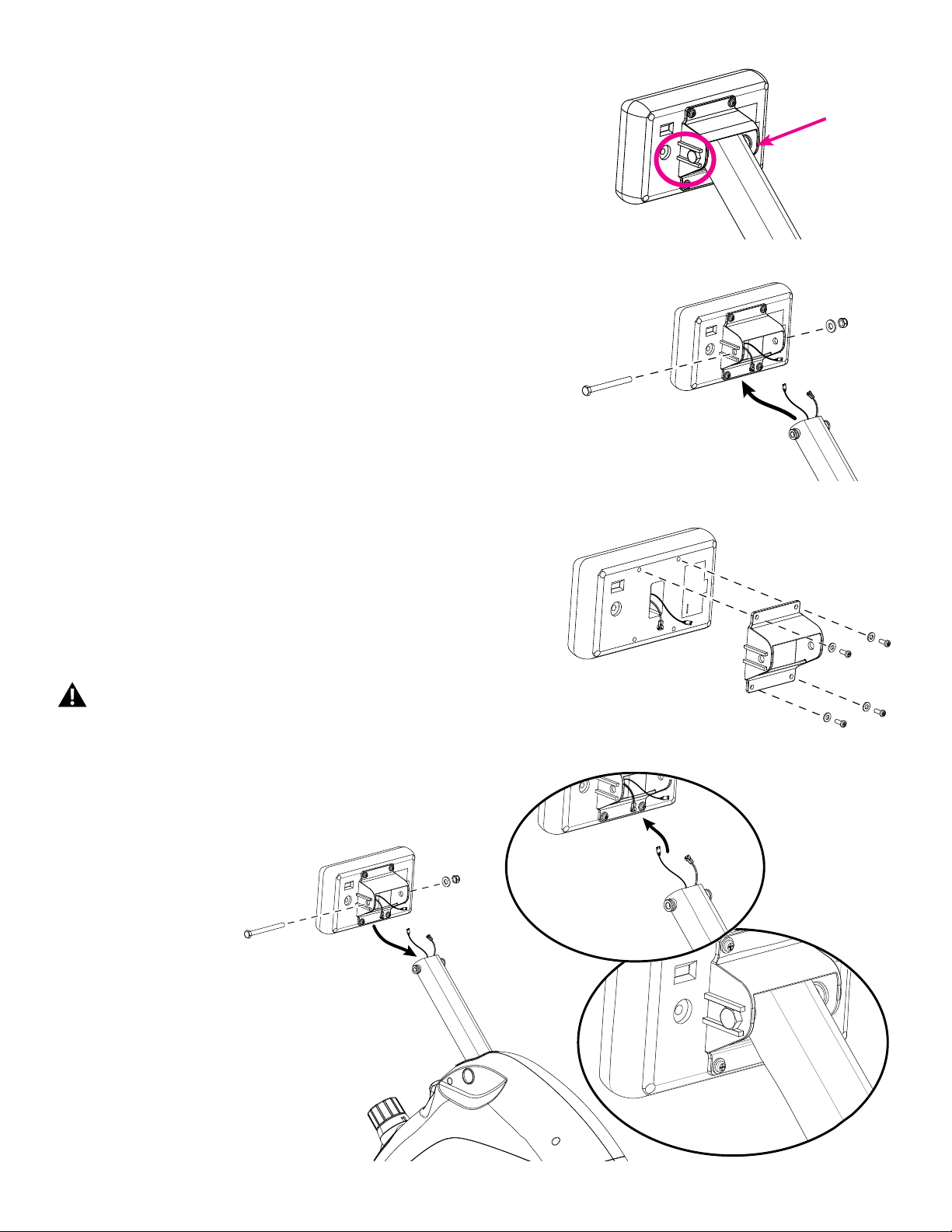

2 Console 11
3 Heart Rate (HR) Receiver 13
4 Pull Handle 16
5 Seat Rail Assembly 18
6 Rear Cover 21
7 RPM Sensor (Count Sensor) 24
8 Seat 26
9 Seat Rollers 29
10 Shrouds 32
11 Stabilizer End Cap 34
12 Stabilizer Foot 36
™
Table of Contents
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S.
www.nautilusinternational.com| © 2017 Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered
or otherwise protected by common law in the United States and other countries. Polar® and OwnCode® are trademarks of their owner. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
8016467.050118.B
2
Important Safety Instructions and General Troubleshooting
Information for the Schwinn™Crewmaster™/Rower International 8016424.050118.B
Service Procedures
Important Safety Instructions
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and
understand all Warnings on this machine.
Before servicing or using this equipment, obey the following warnings:
Read and understand the Service Manual before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
• Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Disconnect all power to the machine before you service it.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps involving
these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine replacement parts and hardware supplied by Nautilus. Failure to use genuine replacement
parts can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or
replacing components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada,
contact Customer Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety.
• Donotputthemachinebackinserviceuntilallshrouds,instructions,warninglabelsandcorrectfunctionalityhavebeenveriedandtestedfor
correct performance.
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S. www.nautilusinternational.com | © 2017
Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered or otherwise protected by common law in the United States and other
countries. Polar® and OwnCode® are trademarks of their owner. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
NOTICE: This document provides important safety instructions, adjustments, and general troubleshooting information for the maintenance of the Schwinn™Crewmaster™/
Rower International.
If you need assistance, please call Schwinn Customer Service (if purchased in US/Canada) or your local distributor (if purchased
outside US/Canada). To nd your local distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
TM
3
Safety Warning Labels and Serial Numbers
Specications
Reading the Product Specication Decal
TheManufactureDateontheProductSpecicationDecalisa
date code: YY/WW (year/week).
XXXX
Product specification
Serial number
8014731_01
• Injury or death is possible if caution is not used while
using this machine.
• Keep children and pets away.
• Read and follow all warnings on this machine.
• Refer to the Owner's Manual for additional warnings and
safety information.
• The heart rate displayed is an approximation and should
be used for reference only.
• Not intended for use by anyone under 14 years of age.
• The maximum user weight for this machine is 300 lbs
(136 kg.).
• This machine is for home use only.
• Une imprudence lors de l'utilisation de cet appareil
pourrait être dangereuse, voire mortelle.
• Éloignez les enfants et les animaux de compagnie de
l'appareil.
• Lisez et assimilez tous les avertissements apposés sur
cet appareil.
• Consultez le Guide du propriétaire pour prendre
connaissance des consignes de sécurité et
avertissements supplémentaires.
• La fréquence cardiaque affichée est approximative et
doit être utilisée uniquement à titre indicatif.
• Non destiné à des personnes âgées de moins de 14 ans.
• Le poids maximum de l'utilisateur pour cette machine est
136kg / (300 lbs).
• Cet appareil est à usage domestique uniquement.
ADVERTISSEMENT
Maximum User Weight: 136 kg (300 lbs.)
Machine Weight: 40.8 kg (90 lbs.)
Dimensions (at): 226.3cm x 53.5cm x 80.5cm (89.1” x 21.1” x 31.7”)
Total Surface Area (footprint) of equipment: 12,107 cm2
Dimensions (folded): 129.5cm x 53.5cm x 144.8cm (51” x 21.1” x 57”)
Power Requirements: 2 AA Alkaline Batteries (UN-3)
Operating Voltage: 3VDC
DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,
please follow the prescribed methods at an approved waste center.
(Label is available in English and French Canadian only.)
4
FCC Compliance
!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthorityto
operate the equipment.
This product complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to CFR47 Part 15 Subpart B of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. In the unlikely event that this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Maintenance
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do the necessary tasks.
Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that
regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.
Only manufacturer supplied components can be used to maintain and repair the equipment.
If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased
in US/Canada, contact Customer Service for replacement labels. If purchased outside US/Canada, contact
your local distributor for them.
Disconnect all power to the machine before you service it.
Daily: Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do not use if found in
thiscondition.Repairorreplaceallpartsattherstsignofwearordamage.Aftereachworkout,useadampclothto
wipe your machine and Console free of moisture.
Note: Avoid excessive moisture on the Console.
Weekly: Clean the machine to remove any dust, dirt, or grime from the surfaces.
Check for smooth seat operation. If needed, sparingly apply a thin coating of silicone lube to the Seat Rail to ease
operation.
Silicone lubricant is not intended for human consumption. Keep out of reach of
children. Store in a safe place.
Note: Do not use petroleum based products.
NOTICE: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not clean with a
petroleum based solvent, automotive cleaner, or any product that contains ammonia. Do not clean the
Console in direct sunlight or at high temperatures. Be sure to keep the Console free of moisture.
Monthly
or after 20
hours:
Check foot plate, seat and pull strap. Make sure all bolts and screws are tight. Tighten as necessary.
Check pull strap and seat rollers for signs of wear.
5
Replacing the Console Batteries
When the batteries are low on power, the console display contrast will dim.
When replacing the batteries, make sure the batteries point in the +/- direction shown in the battery bay.
Note: The console uses AA size alkaline batteries (UN-3)
!Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc) batteries.
Be sure to remove the batteries to prevent corrosion damage if you are not going to use the machine for an extended period of time.
+
-
X2
Adjusting the Seat Rollers
If the machine is level but the seat rolls unevenly, check the seat roller assembly under the seat. To adjust the seat rollers, turn the adjustment nuts
(O2).
!Do not adjust the nuts to such a height that they detach or the seat roller assembly becomes unstable.
O2 (X2)
JM
Leveling the Machine
The machine needs to be leveled if your workout area is uneven. The Level Adjustment Knob is below the junction of the Seat Rail Assembly and the
Main Unit. To adjust:
1. Place the machine in your workout area.
2. Turn the Level Adjustment Knob (J) to adjust until the Seat Rail Locking Pin (M)
engages securely.
Do not adjust the knob to such a height that it becomes unstable.
Injury to you or damage to the machine can occur.
Make sure the machine is level and stable before you exercise.
6
Moving and Storing the Machine
Whenthemachineisnotinuse,itshouldbestoredinanappropriatespaceawayfromfoottrafc.Toconservespace,youmayfoldtheSeat
Rail Assembly and secure it with the Seat Rail Locking Pin.
For safe storage of the machine, remove the batteries. Place the machine in a secure location away from
children and pets.
1. Move the Seat to the front of the Seat Rail.
2. Pull the Seat Rail Locking Pin (M)
to release and raise the Seat Rail
Assembly to the folded position. Make
sure that you have a secure grip when
raising the Seat Rail Assembly.
Stay clear of the movement
path of the Seat Rail
Assembly.
M
3. Release the Seat Rail Locking Pin to engage the support tube. You will hear an audible
clicking noise. Be sure that the Seat Rail Locking Pin is fully engaged. If it is not fully
engaged, injury to the user can occur.
The machine may be moved by one or more persons depending on
their physical abilities and capacities. Make sure that you and others
are all physically t and able to move the machine safely. Use proper
safety precautions and lifting techniques.
4. Grasp one of the curved Support Plates (V) and the Lift Handle (L). Carefully tilt the machine
onto the Transport Rollers (F).
5. Holding the Lift Handle (L), push the machine into position.
NOTICE: Be careful when you move the machine. Abrupt motions can affect the computer
operation.
6. Carefullylowerthemachinetotheooranddonotletitdropfromanyheight.
L
F
V
7

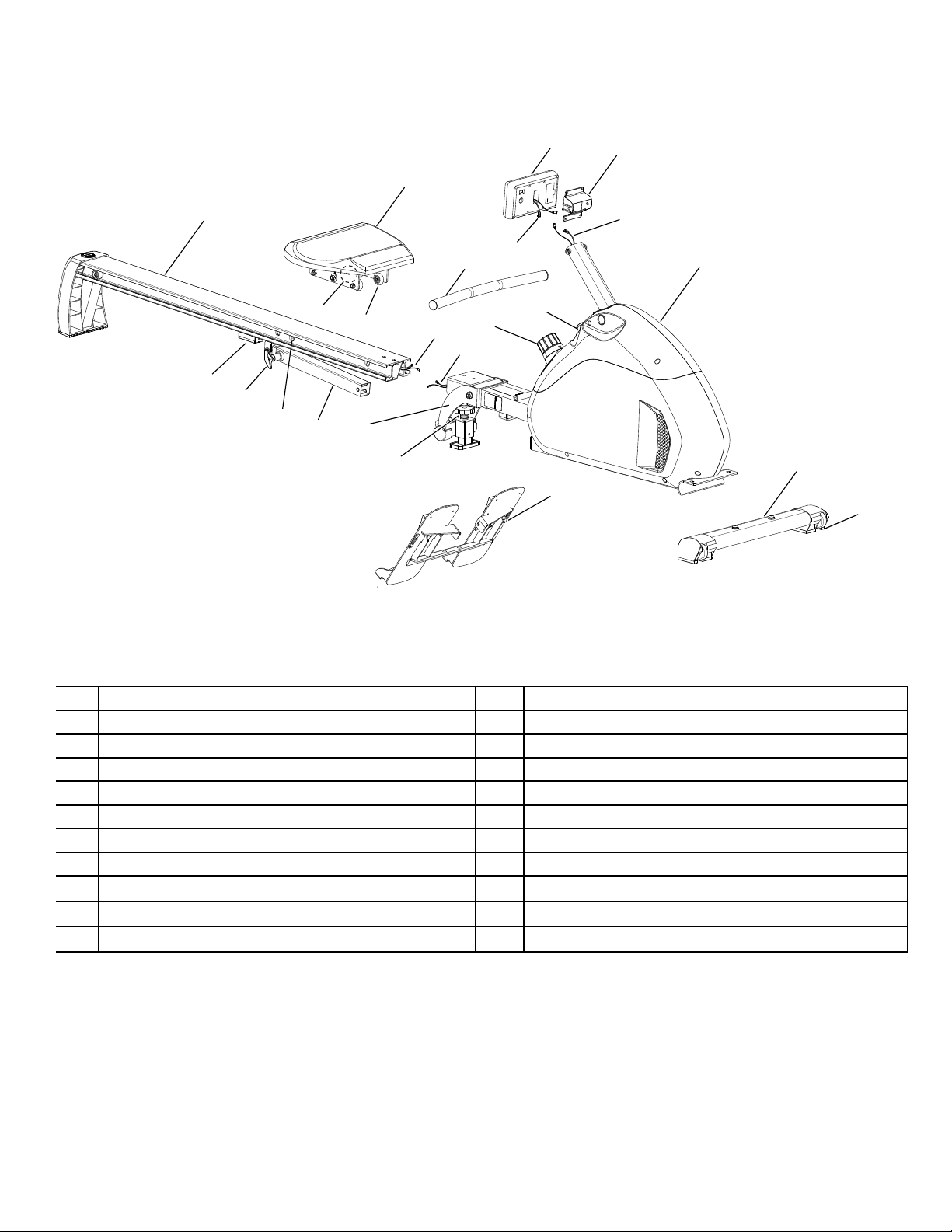

Maintenance Parts
A Console L Storage Support Tube (Lift Handle)
B Console cables M Seat Rail Locking Pin
C Data Cables, Main Unit N Foot Plate
D Rower engine O Seat Assembly
E Stabilizer, Front P Seat Rollers
F Transport Wheel Q RPM Sensor Magnet
G Pull Strap R RPM Sensor Assembly
H Handle S Data Cables, Seat Rail
IResistance Adjustment Knob T Console Bracket
JLevel Adjustment Knob U Telemetric Heart Rate (HR) Receiver
KSeat Rail Assembly V Support Plates
D
E
N
K
O
AT
H
M
RL
QP
V
C
F
G
I
S
C
B
U
J
8
Troubleshooting
Condition/Problem Things to Check Solution
Console will not power up/turn
on/start
Check batteries. Make sure batteries are installed correctly. If batteries are correctly installed,
replace with a set of new batteries.
Check data cable integrity All wires in cable should be intact. If any are visibly crimped or cut, replace
cable.
Check data cable connections/
orientation
Make sure cable is connected securely and oriented properly. Small latch on
connector should line up and snap into place.
Check console display for
damage
Check for visual sign that console display is cracked or otherwise damaged.
Replace Console if damaged.
If the above steps do not resolve the problem, contact Customer Service (if
inside US/Canada) or your local distributor (if outside US/Canada).
Speed displayed is not accurate Check RPM Sensor Magnet
position (requires seat removal)
RPM Sensor Magnet should be in place on Seat slider frame.
Speed displayed is always “0”/
stuck in Pause mode
Data cable Make sure the data cable is connected to the back of the Console and the
main frame assembly.

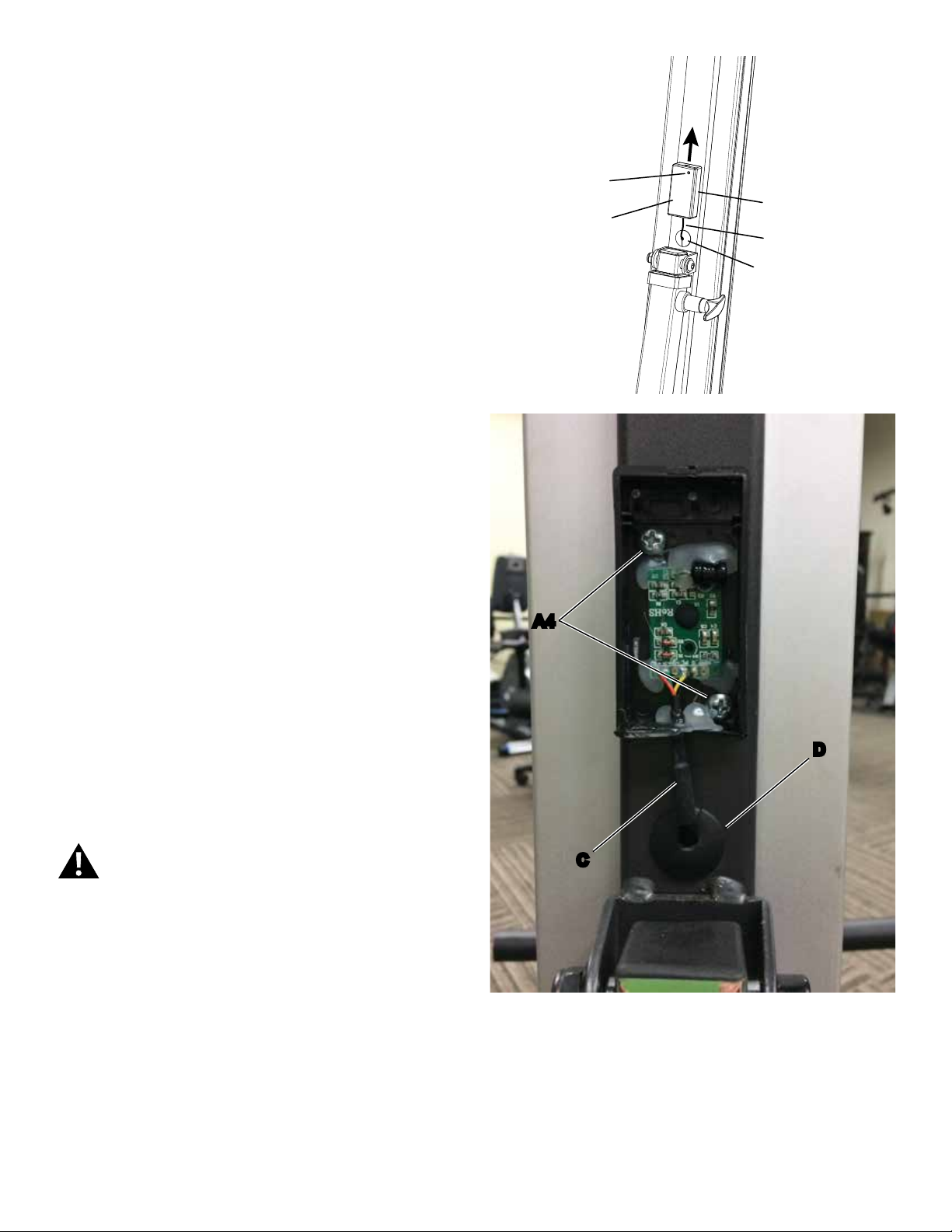

RPM Sensor Make sure the RPM Sensor Magnet and the RPM Sensor are in place.
No Count/RPM reading Check data cable integrity All wires in cable should be intact. If any are cut or crimped, replace cable.
Check data cable connections/
orientation
Be sure cable is connected securely and oriented properly. Small latch on
connector should line up and snap into place.
Check RPM Sensor Magnet
position (requires seat removal)
RPM Sensor Magnet should be in place on Seat slider frame.
Check seat position Be sure the seat is installed with the Schwinn™name pointing away from the
rower engine, so that the RPM Sensor Magnet is on the correct side.
Check RPM Sensor Assembly RPM Sensor Assembly should be aligned with magnets and connected to
data cable. Realign sensor if necessary. Replace if there is any damage to
the sensor or the connecting wire.
Console display is dim Batteries Replace batteries
Unit operates but Telemetric
Heart Rate not displayed
Chest Strap (optional) Strap should be “POLAR®” compatible and uncoded. Make sure strap is
directly against skin and contact area is wet.
Chest Strap Batteries If strap has replaceable batteries, install new batteries.
Interference Try moving unit away from sources of interference (TV, Microwave, etc).
Replace Chest Strap If interference is eliminated and HR does not function, replace strap.
Replace Console If HR still does not function, replace Console.
Console shuts off (enters sleep
mode) while in use
Check data cable integrity All wires in the cable should be intact. If any are cut or crimped, replace
cable.
Check data cable connections/
orientation
Be sure cable is connected securely and oriented properly. Small latch on
connector should line up and snap into place.
Check batteries. Make sure batteries are installed correctly. If batteries are correctly installed,
replace with a set of new batteries.
Check RPM Sensor Magnet
position (requires seat removal)
RPM Sensor Magnet should be in place on Seat slider frame.
Check RPM Sensor Assembly RPM Sensor Assembly should be aligned with magnet and connected to data
cable. Realign sensor if necessary. Replace if there is any damage to the
sensor or the connecting wire.
Contact Customer Service (if inside US/Canada) or your local distributor (if
outside US/Canada).
Unit rocks/does not sit level Check level adjustment Level adjustment knob may be turned to level machine.
Check surface under unit Adjustment may not be able to compensate for extremely uneven surfaces.
Move machine to level area.
9
Condition/Problem Things to Check Solution
Seat Rail locking pin does
not engage (rail in horizontal
position)
Level adjustment knob Turn the level adjustment knob until the Seat Rail locking pin engages the
support tube.
Seat rolls unevenly Seat roller adjustment hardware Turn the adjustment nuts under the seat to adjust the seat rollers.
10
REPLACEMENT PROCEDURE SKILL LEVEL
Level I : Low - very little mechanical knowledge or exposure.
Level II : Intermediate - some experience with mechanical procedures
Level III : Advanced - knowledgeable about mechanical procedures
!Disconnect all power to the machine before you service it.
The Rower Engine components are not serviceable by consumers.
When disposing of old parts, obey the applicable local and provincial requirements.
For instructions to replace the following parts, please refer to the Assembly Manual for your machine:
• Front Stabilizer
• Foot Plate
11
Replace the Console on the Schwinn™Crewmaster™/
Rower International Skill Level: II
8016456.050118.B
Replacement Procedure
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S. www.nautilusinternational.com | © 2017
Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered or otherwise protected by common law in the United States and other
countries. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
NOTICE: This document provides instructions for the replacement of the Console on the Schwinn™Crewmaster™/Rower International.
If you need assistance, please call Schwinn Customer Service (if purchased in US/Canada) or your local distributor (if purchased out-
side US/Canada). To nd your local distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
Disconnect all power to the machine before you service it.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
•Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps
involving these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts
can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or replacing
components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety.
• Do not use the machine until all shrouds, instructions, warning labels and correct functionality have been verified and tested for correct
performance.
Tools Required (not included)
#2 Phillips screwdriver
13mm open end wrench
TM
12
Note: Your machine may not match the image. For reference only.
1. Remove hardware (indicated) that attaches Console to the Mast.
Carefully lift the Console off the Mast. Set the hardware safely aside for
reassembly.
2. Disconnect the Data Cable and Heart Rate Cable from the back of the
Console.
Note: Do not let the cables fall down inside the Mast. This step may require
two people.
3. Remove screws that attach Console to the Console Bracket. Carefully
remove the Console Bracket and set it safely aside. Discard the Console
and screws.
NOTICE: Do not crimp the cables.
4. Installation is the reverse procedure.
Note: Be sure the 2 ribs on the Console Bracket are on the right side so
that the opening points downward. Insert the bolt through the hole
betweentheribssothattheatsidesoftheboltheadarealigned
with the ribst.
NOTICE: Do not crimp the cables.
5. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
13
Replace the Heart Rate (HR) Receiver
on the Schwinn™Crewmaster™/Rower International Skill Level: II
8016457.050118.B
Replacement Procedure
NOTICE: This document provides instructions for the replacement of the telemetric Heart Rate (HR) Receiver on the Schwinn™Crewmaster™/Rower International.
If you need assistance, please call Schwinn Customer Service (if purchased in US/Canada) or your local distributor (if purchased out-
side US/Canada). To nd your local distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
Tools Required (not included)
#0 Phillips screwdriver
String/cable,5’(152cm)orlonger
TM
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S. www.nautilusinternational.com | © 2017
Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered or otherwise protected by common law in the United States and other
countries. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
Disconnect all power to the machine before you service it.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
•Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps
involving these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts
can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or replacing
components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety.
• Do not use the machine until all shrouds, instructions, warning labels and correct functionality have been verified and tested for correct
performance.
14
Note: Your machine may not match the image. For reference only.
1. Move the Seat to the front of the Seat Rail.
2. Pull the Seat Rail Locking Pin (M) to release and raise the Seat Rail
Assembly to the folded position. Make sure that you have a secure
grip when raising the Seat Rail Assembly.
Stay clear of the movement path of the Seat Rail
Assembly.
3. Release the Seat Rail Locking Pin (M) to engage the support tube.
You will hear an audible clicking noise. Be sure that the Seat Rail
Locking Pin is fully engaged. If it is not fully engaged, injury to the
user can occur.
4. Observe the cable routing from the Heart Rate (HR) Receiver (A)
to the cables from the Rower Engine (B) on your machine. Carefully
disconnect the HR Receiver cables (C).
NOTICE: Do not crimp any cables.
Tie a string to the end of the cable from the HR Receiver.
M
A
B
C
C
15
5. Remove the screw (A1) that attaches the HR Receiver cover (A2) to
the HR Receiver case (A3). Slide the cover toward the back of the Seat
Rail Assembly, remove the cover, and discard it.
6. Remove the screws (A4) that attach the HR Receiver case (A3) to
the Seat Rail Assembly. Carefully remove the old HR Receiver and pull
the cable and string through the Seat Rail Assembly so that the string
extends through the Seat Rail Assembly and the Grommet (D). Untie the
string from the old cable and discard the old HR Receiver.
Note: It may be necessary to remove the Grommet from the opening
in the Seat Rail Assembly.
7. Remove the screw (A1) that attaches the HR Receiver cover (A2) to
the replacement HR Receiver case (A3). Slide the cover off. Attach the
HR Receiver case to the Seat Rail Assembly with screws (A4). Be sure
the cable (C) is pointed toward the front of the Seat Rail Assembly. Slide
the cover into position and attach.
8. Tie the end of the string at the Seat Rail Assembly opening to the end
of the new HR Receiver cable (C). Hold the other end of the string and
carefully pull the HR Receiver cable through the Seat Rail Assembly.
NOTICE: Do not crimp the cables.
9. Untie the string from the HR Receiver cable and connect the cable to
the HR Receiver cable from the Rower Engine.
NOTICE: Do not crimp any cables. Be sure the routing for the
new HR Receiver cable (C) and other wiring is correct to
prevent interference from moving parts.
10. Carefullylowerthemachinetotheooranddonotletitdropfrom
any height.
11. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
A1
A2
A3
D
C
C
A4
D
16
Replace the Pull Handle
on the Schwinn™Crewmaster™/Rower International Skill Level: II
8016458.050118.B
Replacement Procedure
NOTICE: This document provides instructions for the replacement of the Pull Handle on the Schwinn™Crewmaster™/Rower International.
If you need assistance, please call Schwinn Customer Service (if purchased in US/Canada) or your local distributor (if purchased out-
side US/Canada). To nd your local distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
Tools Required (not included)
Rod, approximately 6” (15cm) long
TM
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S. www.nautilusinternational.com | © 2017
Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered or otherwise protected by common law in the United States and other
countries. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
Disconnect all power to the machine before you service it.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
•Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps
involving these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts
can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or replacing
components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety.
• Do not use the machine until all shrouds, instructions, warning labels and correct functionality have been verified and tested for correct
performance.
17
Note: Your machine may not match the image. For reference only.
1. Pull the Handle to extend the Pull Strap for access to the space (securi-
ty loop) between the stitching on the strap.
2. Slide a small rod into the security loop to prevent the Pull Strap from
retracting into the Rower Engine.
Do not allow the pull strap to retract by itself. Allow-
ing the pull strap to snap back in an uncontrolled
manner could cause damage to the rower engine or
injury to the user or bystanders.
3. Remove the Handle from the Pull Strap. Set it safely aside.
4. Push the replacement Handle through the end loop in the Pull Strap,
and remove the rod from the security loop.
5. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
18
Replace the Seat Rail Assembly
on the Schwinn™Crewmaster™/Rower International Skill Level: II
8016459.050118.B
Replacement Procedure
NOTICE: This document provides instructions for the replacement of the Seat Rail Assembly on the Schwinn™Crewmaster™/Rower International.
If you need assistance, please call Schwinn Customer Service (if purchased in US/Canada) or your local distributor (if purchased out-
side US/Canada). To nd your local distributor, go to: www.nautilusinternational.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Read and understand
all Warnings on this machine.
Tools Required (not included)
#2 Phillips screwdriver
6mm hex key
5mm hex key
TM
Nautilus, Inc., www.NautilusInc.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, [email protected] | outside U.S. www.nautilusinternational.com | © 2017
Nautilus, Inc. | Schwinn, the Schwinn Quality logo, Crewmaster, and Nautilus are trademarks owned by or licensed to Nautilus,Inc., which are registered or otherwise protected by common law in the United States and other
countries. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
Disconnect all power to the machine before you service it.
• Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the instructions and safety warnings
could cause injury to the service technician or bystanders.
• Keep bystanders and children away from the product being serviced at all times.
•Makesurethattherepairisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.
• Some components of the equipment can be heavy or awkward. Enlist the service of a second person when you do maintenance steps
involving these components. Do not try to do heavy or awkward steps on your own.
• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use genuine replacement parts
can cause a risk to users, keep the machine from operating correctly and void the warranty.
• Be sure that all warning stickers and instructional placards applied to the product stay present and in good condition when doing maintenance or replacing
components. If at any time the Warning labels become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
• Do not try to change the design or functionality of the machine being serviced as this can adversely affect user safety.
• Do not use the machine until all shrouds, instructions, warning labels and correct functionality have been verified and tested for correct
performance.
19
Note: Your machine may not match the image. For reference only.
1. Remove hardware (indicated) that attaches the Seat Rail Assembly to
the Rower Engine. Set the hardware safely aside for reassembly.
2. Carefully separate the Seat Rail Assembly and the Rower Engine.
Disconnect the Data Cables and Heart Rate Cables
NOTICE: Do not crimp the cables. This step may require two people.
20
3. Remove the bushings and hardware from the Seat Rail Assembly. Set
them safely aside. Slide the Seat off the Seat Rail Assembly.
NOTICE: Do not crimp the cables.
4. Installation is the reverse procedure.
NOTICE: Do not crimp the cables. When you reinstall the seat, make
sure that the Schwinn™name on the seat points away from
the Rower Engine, so that the RPM Sensor Magnet is on the
correct side of the Seat Rail.
5. Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
6mm
5mm
Other manuals for Crewmaster
1
Table of contents
Other Schwinn Home Gym manuals
