SciCan HYDRIM L110wd User manual

www.scican.com
• Service Guide
• Manuel maintenance
• Wartungsanleitung
• Manuale di manutenzione
HYDRIM L110wd/HYDRIM L110w Service Guide 96-108019 Rev 3.0
Copyright 2005 SciCan. All rights reserved.
Rinse and hold
Regular wash
Heavydut y wash
Regular wash and dry
Heavydut y washan d dry
P2
P3
P4
P1
P0
&
®
®

1. Introduction . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.3 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . .9
1.4 Hardware Specifications . . . . . . . . . . . . . . . . . .11
1.5 Shipping Instructions . . . . . . . . . . . . . . . . . . . . . .11
1.6 Contact Information . . . . . . . . . . . . . . . . . . . . . . . .11
2. Installation . . . . . . . . . . . . . . . . . . . . . . 12
2.1 Suggested Installation Configurations . . . . . .12
2.2 Water Connections . . . . . . . . . . . . . . . . . . . . . . . . .12
2.3 Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.4 Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.5 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2.6 Set up and Installation Tips . . . . . . . . . . . . . . . . .15
2.7 Optional Installation Configurations . . . . . . . . .16
2.8 Controller Software Functions . . . . . . . . . . .17
3. Routine Maintenance . . . . . . . . . . . . . .19
3.1 Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3.2 Leveling the unit . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3.3 WashArms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
3.4 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
4. Schematics . . . . . . . . . . . . . . . . . . . . . .21
4.1 Hydraulic Schematic . . . . . . . . . . . . . . . . . . . . . . .21
4.2 Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
5. Troubleshooting . . . . . . . . . . . . . . . . . .24
5.1 PrimaryAssessment . . . . . . . . . . . . . . . . . . . . . . .24
5.2 Power On Problems . . . . . . . . . . . . . . . . . . . . . . .24
5.3 Controller Problems . . . . . . . . . . . . . . . . . . . . . . .24
5.4 Fault Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.5 Hydraulic Overview . . . . . . . . . . . . . . . . . . . . . . . .26
6. Taking Apart and
Reassembling the Unit . . . . . . . . . . . . .27
6.1 Removing the Cleaning Solution . . . . . . . . . . . .27
6.2 Removing the Back Cover . . . . . . . . . . . . . . . . . .27
6.3 Removing the Top Cover . . . . . . . . . . . . . . . . . . .27
6.4 Removing the Kick Plate . . . . . . . . . . . . . . . . . . .28
6.5 Removing the Left Side Panel . . . . . . . . . . . . . .28
6.6 Removing the Right Side Panel . . . . . . . . . . . . .28
6.7 Removing Door Panel . . . . . . . . . . . . . . . . . . . . .28
6.8 Removing the Dosing Pump . . . . . . . . . . . . . . . .28
6.9 Removing the Dryer . . . . . . . . . . . . . . . . . . . . . . .29
6.9.1 Removing Air Filter . . . . . . . . . . . . . . . . . . .29
6.9.2 Removing Dryer Blower Brushes . . . . . .29
6.10 Removing the Control Panel Fascia . . . . . . . .29
6.10.1 Removing the On / Off Switch . . . . . . . .30
6.10.2 Removing the Door Lock . . . . . . . . . . . .30
6.10.3 Removing the Master Controller . . . . .30
6.11 Removing the Slave Controller . . . . . . . . . . . . .30
6.12 Removing Wash Tank . . . . . . . . . . . . . . . . . . . . . .31
6.13 Removing Drain Pump . . . . . . . . . . . . . . . . . . . . .33
6.14 Removing Circulation Pump . . . . . . . . . . . . . . . .33
6.15 Removing the Heater . . . . . . . . . . . . . . . . . .33
6.16 Removing the Hot and Cold Inlet Valve . . . . . .34
6.17 Removing the Temperature Sensor . . . . . . .34
6.18 Removing the Condenser . . . . . . . . . . . . . .34
7. Parts . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Page 1
HYDRIM L110w/wd Service Guide
Copyright 2005 SciCan. All rights reserved.
HYDRIM is a registered trademark of SciCan, Division of Lux and
Zwingenberger.
Contents
Manufactured by / EU Representative
BHT Hygienetechnik GmbH
Messerschmittstr. 11,
D-86368 Gersthofen
GERMANY
Phone: [phone]
Fax: [phone]
Hydrim L110wd
Distributed by:
SciCan, Division of Lux and Zwingenberger
Toronto, Ontario, Canada
Phone: [phone]
Fax : [phone]
SciCan Medtech
Alpenstrasse 16, 2300 Zug, Switzerland
Phone: [phone]
Fax: [phone]
Hydrim L110w
Manufactured by:
SciCan
1440 Don Mills Road,Toronto,
ON M3B 3P9 CANADA
Phone: [phone]
Fax: [phone]
Toll free: 1-800-667-7733
SciCan Inc.
500 Business Center Drive,Pittsburgh, PA15205 USA
Phone: [phone]
Fax: [phone]
Toll free: 1-800-572-1211
Email (Service and Repair): [email protected]
Email: [email protected]
For all service and repair inquiries:
In Canada: 1-800-870-7777
In The United States: 1-800-572-1211

Page 2 HYDRIM L110w/wd Service Guide
Sommaire
1. Introduction . . . . . . . . . . . . . . . . . . . . . 38
1.1 Généralités . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
1.2 Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
1.3 Informations de sécurité . . . . . . . . . . . . . . . . . . .42
1.4 Eléments de fixation . . . . . . . . . . . . . . . . . . . . . .44
1.5 Instructions d’expédition . . . . . . . . . . . . . . . . . . .44
1.6 Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
2. Installation . . . . . . . . . . . . . . . . . . . . . . 45
2.1 Suggestions de configurations
d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
2.2 Prise d’eau . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
2.3 Adoucisseur d’eau . . . . . . . . . . . . . . . . . . . . . . . . .46
2.4 Vidange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
2.5 Imprimante . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
2.6 Conseils pour le montage et l’installation . . . .48
2.7 Autres configurations d’installation . . . . . . . . .49
2.8 Fonctions du logiciel de commande . . . . . . .50
3. Entretien de routine . . . . . . . . . . . . . . .53
3.1 Filtres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.2 Mise de niveau de l’appareil . . . . . . . . . . . . . . . .53
3.3 Bras de lavage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.4 Flexibles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
4. Schémas . . . . . . . . . . . . . . . . . . . . . . . .55
4.1 Système hydraulique . . . . . . . . . . . . . . . . . . . . . .55
4.2 Système électrique . . . . . . . . . . . . . . . . . . . . . . . .57
5. Dépannage . . . . . . . . . . . . . . . . . . . . . .58
5.1 Premières mesures . . . . . . . . . . . . . . . . . . . . . . . .58
5.2 Problèmes de mise en marche . . . . . . . . . . . . .58
5.3 Problèmes de commande . . . . . . . . . . . . . . . . . .58
5.4 Codes de défaut . . . . . . . . . . . . . . . . . . . . . . . . . . .59
5.5 Système hydraulique . . . . . . . . . . . . . . . . . . . . . .60
6. Démontage et remontage
de l’appareil . . . . . . . . . . . . . . . . . . . . .61
6.1 Démonter le réservoir de
solution de lavage . . . . . . . . . . . . . . . . . . . . . . . . .61
6.2 Démonter le panneau arrière . . . . . . . . . . . . . . .61
6.3 Démonter le panneau supérieur . . . . . . . . . . . .61
6.4 Démonter la plinthe . . . . . . . . . . . . . . . . . . . . . . . .62
6.5 Démonter le panneau latéral gauche . . . . . . .62
6.6 Démonter le panneau latéral droite . . . . . . . . .62
6.7 Démonter le panneau de la porte . . . . . . . . . . .62
6.8 Démonter la pompe de dosage . . . . . . . . . . . . .62
6.9 Démonter le sécheur . . . . . . . . . . . . . . . . . . . . . . .63
6.9.1 Démonter le filtre à air . . . . . . . . . . . . . . . . .63
6.9.2 Démonter les brosses de
la soufflante du sécheur . . . . . . . . . . . . . . .63
6.10 Démonter le revêtement du panneau
de commande . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
6.10.1 Démonter l’interrupteur principal . . . . .63
6.10.2 Démonter le verrouillage de
la porte . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
6.10.3 Démonter la commande principale . . .64
6.11 Démonter la commande secondaire . . . . . . . .64
6.12 Démonter la chambre de lavage . . . . . . . . . . . .65
6.13 Démonter la pompe de vidange . . . . . . . . . . . .67
6.14 Démonter la pompe de circulation . . . . . . . . . .67
6.15 Démonter le chauffage . . . . . . . . . . . . . . . .67
6.16 Démonter les valves d’entrée d’eau
froide et d’eau chaude . . . . . . . . . . . . . . . . .68
6.17 Démonter le capteur de température . . . . . .68
6.18 Démonter le condenseur . . . . . . . . . . . . . . .68
7. Pièces . . . . . . . . . . . . . . . . . . . . . . . . . .69
Copyright 2005 SciCan. Tous droits réservés.
HYDRIM est une marque déposée de SciCan, Division of Lux and
Zwingenberger.
Manufactured by / EU Representative
BHT Hygienetechnik GmbH
Messerschmittstr. 11,
D-86368 Gersthofen
GERMANY
Phone: [phone]
Fax: [phone]
Hydrim L110wd
Distributed by:
SciCan, Division of Lux and Zwingenberger
Toronto, Ontario, M3B 3P9 Canada
Phone: [phone]
Fax : [phone]
SciCan Medtech
Alpenstrasse 16, 2300 Zug, Switzerland
Phone: [phone]
Fax: [phone]
Hydrim L110w
Manufactured by:
SciCan
1440 Don Mills Road,Toronto,
ON M3B 3P9 CANADA
Phone: [phone]
Fax: [phone]
Toll free: 1-800-667-7733
SciCan Inc.
500 Business Center Drive,Pittsburgh, PA15205 USA
Phone: [phone]
Fax: [phone]
Toll free: 1-800-572-1211
Email (Service and Repair): [email protected]
Email: [email protected]
For all service and repair inquiries:
In Canada: 1-800-870-7777
In The United States: 1-800-572-1211

Copyright 2005 SciCan. Alle Rechte vorbehalten.
HYDRIM ist ein eingetragenes Warenzeichen von SciCan, Division of
Lux and Zwingenberger.
Page 3
HYDRIM L110w/wd Service Guide
Inhaltsverzeichnis
1. Einleitung . . . . . . . . . . . . . . . . . . . . . . . . .72
1.1 Überblick . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
1.2 Technische Daten . . . . . . . . . . . . . . . . . . . . .75
1.3 Sicherheitsmaßnahmen . . . . . . . . . . . . . . . . .76
1.4Angaben zu Verbindungselementen . . . . . . .78
1.5 Transporthinweise . . . . . . . . . . . . . . . . . . . . .78
1.6Ansprechpartner . . . . . . . . . . . . . . . . . . . . . .78
2. Installation . . . . . . . . . . . . . . . . . . . . . . . .79
2.1 Vorschläge für die Einbaukonfiguration . . . . .79
2.2 Wasseranschluss . . . . . . . . . . . . . . . . . . . . . .79
2.3 Wasserenthärter . . . . . . . . . . . . . . . . . . . . . .80
2.4 Wasserablauf . . . . . . . . . . . . . . . . . . . . . . . . .81
2.5 Drucker . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
2.6Aufstell- und Installationshinweise . . . . . . . . .82
2.7Aufstellungsmöglichkeiten . . . . . . . . . . . . . . .83
2.8 Funktionen der Steuerungs-Software . . . . . .84
3. Routinewartung . . . . . . . . . . . . . . . . . . .87
3.1 Siebe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
3.2 Justieren des Geräts . . . . . . . . . . . . . . . . . . .87
3.3 Sprüharme . . . . . . . . . . . . . . . . . . . . . . . . . . .87
3.4 Schläuche . . . . . . . . . . . . . . . . . . . . . . . . . . .88
4. Schematische Darstellungen . . . . . . . . .89
4.1 Schematische Darstellung Wasserkreislauf . .89
4.2 Schaltbild . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
5. Fehlersuche . . . . . . . . . . . . . . . . . . . . . . .92
5.1Als Erstes durchzuführende Prüfungen . . . . .92
5.2 Probleme beim Einschalten . . . . . . . . . . . . . .92
5.3 Probleme mit der Steuerung . . . . . . . . . . . . .92
5.4 Fehlercodes . . . . . . . . . . . . . . . . . . . . . . . . . .93
5.5 Übersicht Wasserkreislauf . . . . . . . . . . . . . . .94
6. Demontage und Wiederzusammenbau
des Geräts . . . . . . . . . . . . . . . . . . . . . . . .95
6.1 Reinigungslösung herausnehmen . . . . . . . . .95
6.2 Rückwand abnehmen . . . . . . . . . . . . . . . . . .95
6.3 Obere Abdeckung abnehmen . . . . . . . . . . . .95
6.4 Fußleiste abnehmen . . . . . . . . . . . . . . . . . . .96
6.5 Linke Seitenwand abnehmen . . . . . . . . . . . . .96
6.6 Rechte Seitenwand abnehmen . . . . . . . . . . .96
6.7 Türverkleidung abnehmen . . . . . . . . . . . . . . .96
6.8 Dosierpumpe ausbauen . . . . . . . . . . . . . . . . .96
6.9 Trockner ausbauen . . . . . . . . . . . . . . . . . . . .97
6.9.1 Luftfilter ausbauen . . . . . . . . . . . . . . .97
6.9.2 Bürsten des Trocknergebläses
herausnehmen . . . . . . . . . . . . . . . . . .97
6.10 Verkleidung des Bedienfeldes entfernen . . .97
6.10.1 Ein- /Aus-Schalter ausbauen . . . . . .98
6.10.2 Türverriegelung ausbauen . . . . . . . .98
6.10.3 Hauptsteuergerät ausbauen . . . . . . .98
6.11 Nebensteuergerät ausbauen . . . . . . . . . . . .98
6.12 Spülkammer ausbauen . . . . . . . . . . . . . . . .99
6.13 Entwässerungspumpe ausbauen . . . . . . .101
6.14 Umwälzpumpe ausbauen . . . . . . . . . . . . .101
6.15 Heizung ausbauen . . . . . . . . . . . . . . . . . . .101
6.16 Einlassventile für Kaltwasser
und Warmwasser ausbauen . . . . . . . . . . .102
6.17 Temperaturfühler ausbauen . . . . . . . . . . . .102
6.18 Kondensator ausbauen (Hydrim L110wd) .102
7. Teile . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Manufactured by / EU Representative
BHT Hygienetechnik GmbH
Messerschmittstr. 11,
D-86368 Gersthofen
GERMANY
Phone: [phone]
Fax: [phone]
Hydrim L110wd
Distributed by:
SciCan, Division of Lux and Zwingenberger
Toronto, Ontario, Canada
Phone: [phone]
Fax : [phone]
SciCan Medtech
Alpenstrasse 16, 2300 Zug, Switzerland
Phone: [phone]
Fax: [phone]

Page 4 HYDRIM L110w/wd Service Guide
Indice
1. Introduzione . . . . . . . . . . . . . . . . . . . . .106
1.1 Sommario . . . . . . . . . . . . . . . . . . . . . . . . . .106
1.2 Caratteristiche tecniche . . . . . . . . . . . . . . . .109
1.3 Misure di sicurezza . . . . . . . . . . . . . . . . . . . .110
1.4 Specifica degli elementi di collegamento . . .112
1.5 Istruzioni sulla spedizione . . . . . . . . . . . . . .112
1.6 Interlocutori . . . . . . . . . . . . . . . . . . . . . . . . .112
2. Installazione . . . . . . . . . . . . . . . . . . . . .113
2.1 Configurazioni d’installazione consigliate . . .113
2.2Allacciamento dell’acqua . . . . . . . . . . . . . . .113
2.3Addolcitore d’acqua . . . . . . . . . . . . . . . . . . .114
2.4 Scarico dell’acqua . . . . . . . . . . . . . . . . . . . .115
2.5 Stampante . . . . . . . . . . . . . . . . . . . . . . . . . .115
2.6 Indicazioni per l’installazione . . . . . . . . . . . .116
2.7 Possibilità di installazione . . . . . . . . . . . . . . .117
2.8 Funzioni del software di controllo . . . . . . . . .118
3. Manutenzione ordinaria . . . . . . . . . . . .121
3.1 Filtri . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
3.2 Livellamento della lavastrumenti . . . . . . . . .121
3.3 Bracci di lavaggio . . . . . . . . . . . . . . . . . . . . .121
3.4 Tubi flessibili . . . . . . . . . . . . . . . . . . . . . . . .122
4. Schemi . . . . . . . . . . . . . . . . . . . . . . . . . .123
4.1 Schema della circolazione d’acqua –
Hydrim L110wd . . . . . . . . . . . . . . . . . . . . . .124
4.2 Schema elettrico . . . . . . . . . . . . . . . . . . . . .125
5. Eliminazione dei guasti . . . . . . . . . . . . .126
5.1 Primi controlli da eseguire . . . . . . . . . . . . . .126
5.2 Problemi all’accensione . . . . . . . . . . . . . . . .126
5.3 Problemi del dispositivo di controllo . . . . . . .126
5.4 Codici di guasto . . . . . . . . . . . . . . . . . . . . . .127
5.5 Panoramica della circolazione d’acqua . . . .128
6. Smontaggio e riassemblaggio
della lavastrumenti . . . . . . . . . . . . . . . .129
6.1 Estrarre la soluzione detergente . . . . . . . . .129
6.2 Rimuovere la copertura posteriore . . . . . . . .129
6.3 Rimuovere la copertura superiore . . . . . . . .129
6.4 Rimuovere lo zoccolo . . . . . . . . . . . . . . . . . .130
6.5 Rimuovere il pannello laterale sinistro . . . . .130
6.6 Rimuovere il pannello laterale destro . . . . . .130
6.7 Rimuovere il pannello dello sportello . . . . . .130
6.8 Smontare la pompa di dosaggio . . . . . . . . . .130
6.9 Smontare l’asciugatrice . . . . . . . . . . . . . . . .131
6.9.1 Smontare il filtro dell’aria . . . . . . . . . .131
6.9.2 Rimuovere le spazzole del soffiante
dell’asciugatrice . . . . . . . . . . . . . . . .131
6.10 Rimuovere la copertura del pannello
di comando . . . . . . . . . . . . . . . . . . . . . . . .131
6.10.1 Smontare l’interruttore On / Off . . . .132
6.10.2 Smontare il dispositivo di chiusura
dello sportello . . . . . . . . . . . . . . . . .132
6.10.3 Smontare il dispositivo di controllo
principale (Master) . . . . . . . . . . . . .132
6.11 Smontare il dispositivo di controllo
ausiliario (Slave) . . . . . . . . . . . . . . . . . . . .132
6.12 Smontare la camera di lavaggio . . . . . . . . .133
6.13 Smontare la pompa di scarico . . . . . . . . . . .133
6.14 Smontare la pompa di circolazione . . . . . . .133
6.15 Smontare il riscaldamento . . . . . . . . . . . . .133
6.16 Smontare le valvole di aspirazione
per l’acqua fredda e calda . . . . . . . . . . . . .136
6.17 Smontare la sonda termica . . . . . . . . . . . .136
6.18 Smontare il condensatore
(Hydrim L110wd) . . . . . . . . . . . . . . . . . . . .136
7. Componenti . . . . . . . . . . . . . . . . . . . . . .137
Manufactured by / EU Representative
BHT Hygienetechnik GmbH
Messerschmittstr. 11,
D-86368 Gersthofen
GERMANY
Phone: [phone]
Fax: [phone]
Hydrim L110wd
Distributed by:
SciCan, Division of Lux and Zwingenberger
Toronto, Ontario, Canada
Phone: [phone]
Fax : [phone]
SciCan Medtech
Alpenstrasse 16, 2300 Zug, Switzerland
Phone: [phone]
Fax: [phone]

Page 5
HYDRIM L110w/wd Service Guide
Rinseand hold
Regularwash
Heavyduty wash
Regularwash and dr y
Heavyduty wash and dr y
P2
P3
P4
P1
P0
1.1 Overview
This guide provides instructions for the servicing and repair of the HYDRIM®L110wd
washer disinfector and the HYDRIM®L110w instrument washer. Every attempt has been
made to provide accurate, detailed instructions.
All servicing of the Hydrim L110wd and Hydrim L110w should be done by certified
personnel only. All local, provincial, state, and national regulations regarding the servicing
of the class of device and safety requirements must be observed.
Do not permit any person other than certified personnel to supply parts for, service,
or maintain a Hydrim L110wd or Hydrim L110w. SciCan shall not be liable for incidental,
special, or consequential damages caused by any maintenance or services performed on
the Hydrim L110wd or Hydrim L110w by a third party, including lost profits, any
commercial loss, economic loss, or loss arising from personal injury.
Pay close attention to the symbols that appear in the margins.
The following symbols indicate:
a potential hazard to the operator.
a situation or circumstance which may lead to a mechanical failure.
important information.

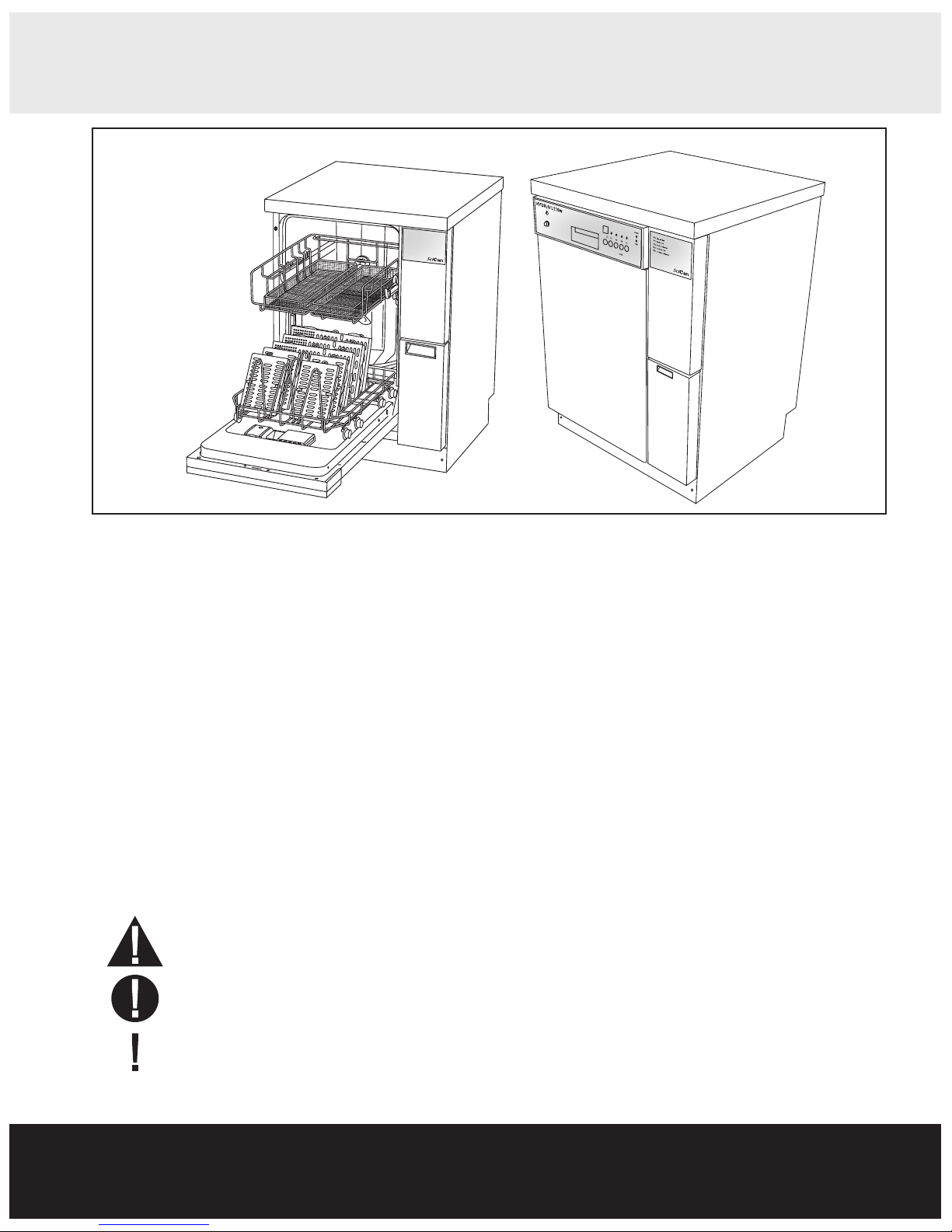

Figure 1
1. Introduction

Page 6 HYDRIM L110w/wd Service Guide
The Hydrim L110wd and Hydrim L110w are designed to complement the STATIM family of
autoclaves by quickly and hygienically preparing soiled instruments for sterilization.
The Hydrim L110wd and Hydrim L110w work like most domestic dishwashers. The
operator loads the instruments, closes the door, and selects the wash cycle. Both the
Hydrim L110wd and Hydrim L110w automatically dispense cleaning solution via a dosing
mechanism. The operator is responsible for adding water softening salt, adding rinse aid
(if necessary), cleaning the filters, and replacing the cleaning solution container
when necessary.
Hydrim L110wd washer disinfector:
The program duration and consumption details are shown in the chart below:
NOTE: For ophthalmology use, an additional rinse is required which lengthens P2, P3,
and P4 by 11 minutes, and increases water consumption by 8 litres. See section 2.8 for
instructions how to program the additional rinse.
Program Wash Rinse / Disinfection Total Time* Water Usage
Temperature Temperature
P1 Pre-wash 30˚C / 5 min. – 8 minutes 4 L
P2 Wash with 65˚C
rinse 50˚C / 5 min. 65˚C / 3 min 38 minutes 19 L
P3 Wash with 80˚C
rinse 50˚C / 5 min. 80˚C / 10 min. 64 minutes 19 L
P4 Wash with 93˚C
disinfection 50˚C / 5 min. 93˚C / 10 min 69 minutes 19 L
Air Drying – – 10 minutes –
*Actual cycle time will vary depending on incoming water temperature and pressure
1. Introduction

Page 7
HYDRIM L110w/wd Service Guide
The Hydrim L110w instrument washer:
The program duration and consumption details are shown in the chart below:
*Actual cycle time will vary depending on incoming water temperature and pressure
Program Wash Time* Water Usage
Temperature
P0 - Rinse and 30˚C / 86˚F 8 minutes 4 L / 1 gallon
Hold
P1 - Regular wash 50˚C / 122˚F 20 minutes 16L / 4 gallons
P2 - Regular wash 50˚C / 122˚F 30 minutes 16L / 4 gallons
with dry
P3 - Heavy duty 50˚C / 122˚F 30 minutes 19L / 5 gallons
wash
P4 - Heavy duty 50˚C / 122˚F 40 minutes 19L/ 5 gallons
wash with dry
1. Introduction

Page 8 HYDRIM L110w/wd Service Guide
1. Introduction
1.2 Specifications
Hydrim L110wd washer disinfector:
Dimensions:
Height (free-standing) 850 mm
Height (built-in) 810 mm
Width 600 mm
Depth 600 mm
Depth with Door Open 1143 mm
Weight 85 kg
Running Noise 58 dB wash 78 dB dry
Cold Water Connection 3
/4" - 14 NPSM
Pressure 0.3 - 10 bar (gauge)
Waste Water connection direct connection to drain according
to local code requirements
Wash Temperature 50 - 60˚C
Cold Rinse < 30˚C
Thermal Disinfection 93˚C
Electrical Consumption:
Europe 220 - 240 V 50 Hz 10-16 A
NorthAmerica 220 - 240 V 60 Hz 15A
Rated Load 2.5 kW
Other:
Equipment Pollution Degree 2
Equipment Installation Category II
Maximum relative humidity 20 - 80 %
Maximum altitude 1600 m
Maximum ambient temperature 30˚C
IP XO

Page 9
HYDRIM L110w/wd Service Guide
Dimensions:
Height (free-standing) 850 mm / 33.5"
Height (built-in) 810 mm / 32"
Width 600 mm / 23.75"
Depth 600 mm / 23.75"
Depth with Door Open 1143 mm / 45"
Weight 85 kg / 187 lbs
Running Noise 58 dB wash
78 dB dry
Hot Water Connection 60˚C max / 158˚F
Rinse aid dispenser 120 ml / 4.3 U.S. fl. oz. capacity
Water softener 1.0 kg / 2.2 lbs salt capacity
Filling system 4.5 L / 135 U.S. fl. oz. capacity
Wash Temperature 50˚C / 122˚F
Rinse and hold 30˚C / 86˚F
Electrical Consumption:
NorthAmerica 208 - 240 V 60 Hz 15A
Rated Load 2.5 kW
Other:
Equipment Pollution Degree 2
Equipment Installation Category II
Maximum relative humidity 80 % for temp. up to 31˚C / 88˚F
50 % for temp. up to 40˚C / 104˚F
Mains supply + / - 10 % of nominal
Operating mode Free-standing or Built in
1.3 Safety Information
Safe operation
The following applies to both operators and service technicians:
• If you open the door prior to completion of a cycle, hot steam may be released.
• Exercise caution and seek assistance when lifting or carrying the unit.
• Cleaning solutions may irritate. Avoid contact with eyes and mouth.
• Never lean on the open door. The unit may tip forward causing injury.
1.2 Specifications
Hydrim L110w instrument washer:
1. Introduction

Page 10 HYDRIM L110w/wd Service Guide
• Always turn the unit OFF before adding softener salt or solutions. Before
performing routine maintenance or servicing the unit, turn the unit OFF, and unplug
the power cord from the power source.
• The operator should never remove the cover of the unit, or insert objects through
holes or openings in the cabinetry. Doing so may damage the unit and/or create a
hazard for the operator.
Safe servicing
• The Hydrim L110wd and Hydrim L110w units should only be installed and serviced
by a qualified contractor, as these are Installation Category II devices. SciCan will
not be liable for incidental, special, or consequential damages including lost profits,
any commercial loss, economic loss, or loss arising from personal injury caused by
any maintenance or services performed on the Hydrim L110wd or Hydrim L110w
by a third party, nor will it be liable for damage arising from the use of equipment or
parts manufactured by a third party.
• All local, regional, state and national regulations regarding the servicing of this
class of device and safety requirements must be observed.
Exercise caution when the cover is removed:
• Hazardous voltages are accessible. Disconnect the power cord before removing
the cover.
• Sharp metal edges are exposed. Be careful, and wear long sleeves and gloves.
Power main
Adielectric strength test (hi-pot) must be performed on the unit if parts associated with the
power main are serviced or replaced.
Ground
Aprotective bonding impedance test (ground continuity) must be performed on the unit if
components of the protective earthing system are changed or if connections are broken
and remade.
Reporting
It is vital for SciCan to learn of any problem in the field. This information will help SciCan
solve the problem quickly and improve product reliability in new units. Section 9 of this
service manual contains a service report form that should be completed and returned to
SciCan’s Toronto office.
Biological waste
Waste water in the unit may contain biological contaminants. Use a mechanical means to
siphon the contents. Wear disposable rubber gloves. Dispose of absorbent material
according to biological waste disposal regulations.
1. Introduction

Page 11
HYDRIM L110w/wd Service Guide
1.4 Hardware Specifications
This unit contains the following types of hardware:
• Phillips pan head self-tapping metal screws
• Phillips flat head stainless steel machine screws
• Torx pan head machine screws
• Torx pan head plastite screws
As you remove a screw or nut, be sure to remember where it goes. When you reinsert a
plastite screw, tighten the screw until it is snug.
1.5 Shipping Instructions
The unit should be serviced on site. If it is necessary to send the unit back to SciCan,
follow these instructions. Before shipping the unit, run the Rinse and Hold cycle to remove
most of the water from the system. If there is standing water in the chamber, siphon or
ladle as much water as possible and use an absorbent cloth to remove the rest.
Disconnect and remove the cleaning solution container and then drain the
dosing reservoir. Screw in completely the leveling legs found underneath the unit.
Specify upright, heated, and insured shipping.
1.6 Contact Information
For further information or questions about the Hydrim L110wd and Hydrim L110w, contact
your authorized dealer or:
www.scican.com
SciCan
1440 Don Mills Road
Toronto ON M3B 3P9
CANADA
Phone: [phone]
Fax: [phone]
Toll free: 1-800-667-7733
SciCan Medtech
Alpenstrasse 16, 6300 Zug
SWITZERLAND
SciCan Inc.
500 Business Center Drive
Pittsburgh PA 15205
Phone: [phone]
Fax: [phone]
Toll Free: 1-800-572-1211
EU Representative:
BHT Hygienetechnik GmbH
Messerschmittstr. 11
D-86368 Gersthofen
GERMANY
For all Service and Repair inquiries:
Canada: 1-800-870-7777
United States: 1-800-572-1211
International: [phone]
Email: [email protected]
1. Introduction

Page 12 HYDRIM L110w/wd Service Guide
2. Installation

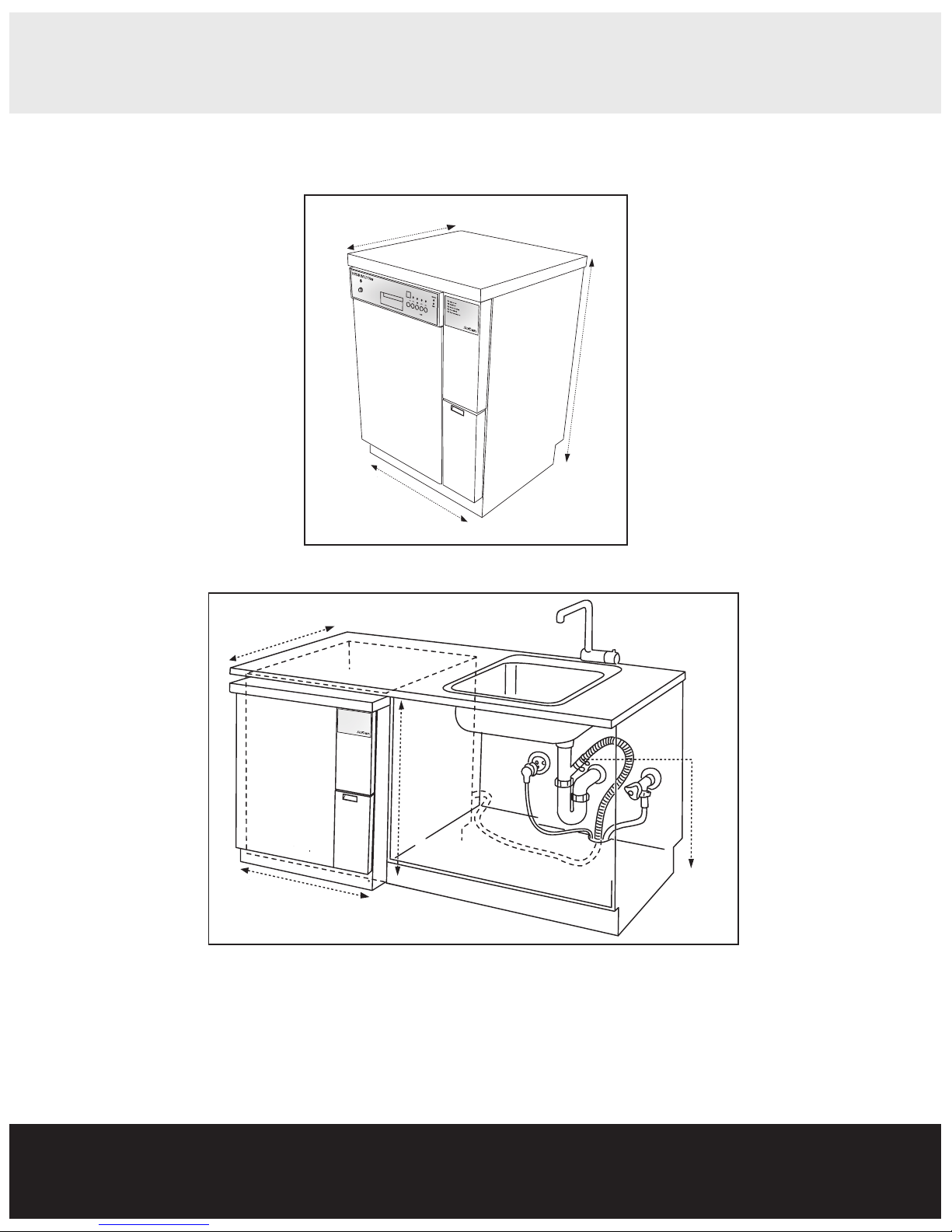

2.1 Suggested Installation Configurations
Both the Hydrim L110wd and Hydrim L110w units should only be installed and
serviced by a SciCan qualified contractor as these are Installation Category II devices.
The contractor should be experienced in installing equipment that requires electrical
hook-up as well as plumbing.
These machines must be installed correctly for the units to function as described.
All electrical work must be carried out by a qualified electrician and in compliance with
all local and national electrical codes.
Before making any connections, check that the voltage shown on the serial number label
corresponds to your power supply. Both models require only a single-phase power supply
and are fitted with power supply cords 1.8 m / 6 ft long with a cross section ofAWG 16 - 3.
The cord should be connected to the main power supply according to the information
below.
This appliance must be correctly grounded! The manufacturer cannot be held responsible
for damage or injury caused by incorrect or missing grounding.
2.2 Water Connections
The unit must be connected to the water supply in accordance with local and national
plumbing codes. SciCan recommends a hard plumbing installation within 1.5 m / 5 ft. of
the unit. If additional distance is necessary, commercial grade plumbing hose, similar to
washing machine installation, must be used to minimize possible leaks.
Connect the inlet hose to a water tap using the enclosed parts and in accordance with the
installation instructions.
Electrical Connection
North America Europe
Voltage: 208 - 240 V 220 - 240 V
Frequency: 60 Hz 50 Hz
Rated load: 2.5 kW 2.5 kW
Circuit breaker: 15Aper phase 10-16A per phase
Water Connection
Water Pressure: • 7 - 145 psi / 0.5 - 10 bar
Water Temperature: • Cold Water < 86˚F / 30˚C
• Hot Water up to 140˚F / 60˚C

Page 13
HYDRIM L110w/wd Service Guide
2. Installation
2.3 Water Softener
The Hydrim has an integrated water softening system and is shipped with the softening
salt setting at 0. If you are in an area where the water hardness is higher than normal,
the use of water softening salts may improve the cleaning results.
To use the water softening system, you will first need to determine the hardness
of your local tap water. Please use the enclosed water test strips or contact your local
water utility. Once you are aware of the hardness, you can identify the setting from
the following table:
To change the water softener setting, follow these steps:
1. Press and hold the second and third buttons simultaneously.
2. Turn the power button ON, before releasing the second and third buttons.
The display will show the actual water softener setting value.
3. Adjust by pressing the first button for down and the second button for up.
Default value is 0.
4. Set the power button to OFF. The new setting is stored in the unit memory.
In areas with hardness greater than 890 ppm, additional water treatment may be required.
Contact a local water treatment company to advise on how to install an external water
softening system.
NOTE: Do not pour cleaning solution into the container for salt. This will destroy
the water softener.
ppm qpq ˚dH ˚fH ˚Clarke mmol / l Hydrim setting
0 - 110 0 - 6.5 0 - 6 0 - 11 0 - 8 0 - 1.1 0
120 - 140 7 - 8 7 - 8 12 - 15 9 - 10 1.2 - 1.4 1
150 - 180 8.5 - 10.5 9 - 10 16 - 17 11 - 12 1.5 - 1.8 2
190 - 210 11 - 12 11 - 12 18 - 21 13 - 15 1.9 - 2.1 3
220 - 290 12.5 - 17 13 - 16 22 - 29 16 - 20 2.2 - 2.9 4
300 - 370 17.5 - 21.5 17 - 21 30 - 37 21 - 26 3.0 - 3.7 5
380 - 540 22 - 31.5 22 - 30 38 - 54 27 - 38 3.8 - 5.4 6
550 - 890 32 - 52 31 - 50 55 - 89 39 - 62 5.5 - 8.9 7

Page 14 HYDRIM L110w/wd Service Guide
2. Installation
If you have set the water softener to any setting above 0, the SALT indicator flashes when
you need to refill the salt container.
To add water softening salts, follow these steps:
1. Unscrew the salt container lid.
2. If empty pour approximately 1 litre (1 quart) of water
into the salt container.
3. Fill the salt container to the top
(maximum of 1kg / 2.2 lbs.)
4. Close the salt container lid.
After the salt has been added to the unit, the softening salt indicator will initially remain lit.
The indicator will turn off when the salt solution has become sufficiently concentrated.
2.4 Drainage
The unit is supplied with a 1.5 m / 5 ft. flexible drain hose with an inner diameter of 2 cm /
3
/4". The hose should not be shortened or attached to any fittings that would cause a
reduction in water flow. The drain system is equipped with a non-return valve that
prevents dirty water from flowing back into the unit.
The drain hose should not be further than 1.5 m / 5 ft. from a hard plumbing drain.
If this is not possible, then commercial grade plumbing hose must be used to minimize
possible leaks.
The hose can be attached to an existing drain line with a 3.5 cm / 11/2" or larger stand
pipe / P-trap combination. Alternatively, the hose can be connected directly to the existing
drain lines, provided any fittings or adapters used do not reduce the water flow. The drain
hose should not exceed 3.3 m / 13 ft. in length, or be attached to the main drain at a point
higher than 35 cm / 14" above the floor.
2.5 Printer
Printer model number STAR SP200-2 is optional. Note that the printer should be powered
on prior to powering on the Hydrim. Please refer to the printer manual for instructions for
use.

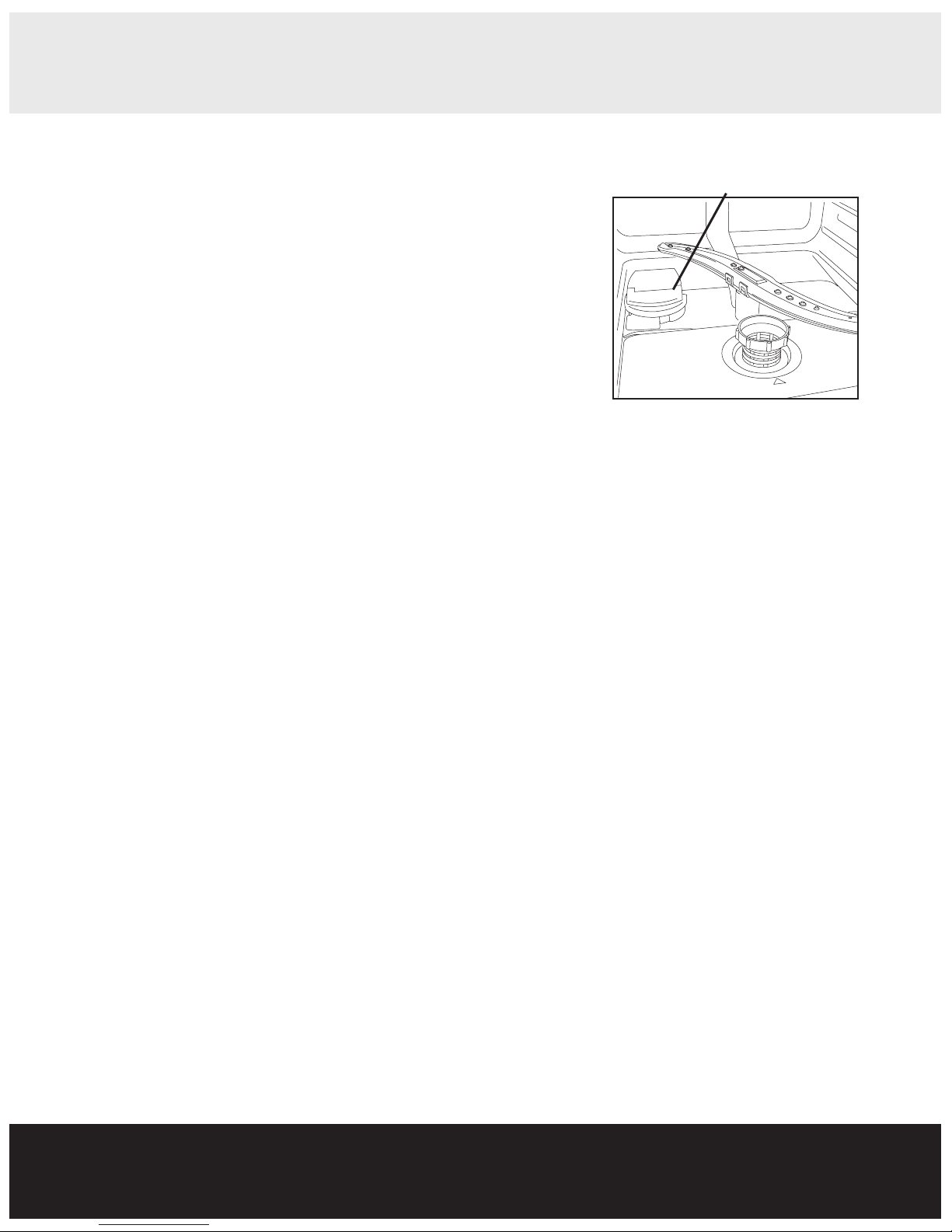

salt container lid

Page 15
HYDRIM L110w/wd Service Guide
2. Installation
2.6 Setup and Installation Tips
1The Hydrim L110wd instrument washer-disinfector functions properly to a maximum altitude of 1600 m
(5249 ft) above sea level. The Hydrim L110w does not have altitude restrictions.
2Obtain the hardness of water from the local water utility or by checking it with the enclosed water
test strips. You need this information to adjust the water softener dial in the unit according to the
operator’s manual, maintenance section.
3The installation site needs to be inspected and prepared in advance. An electrician and / or a plumber
may be required for this.
a) A level, water resistant floor or undercounter location, preferably close to the sink for easy access
to the hot and cold water and the drain, is recommended for installation site.
b) Holes may need to be drilled into the cabinetry to route the hot and cold water hoses, drain tube
and power cord to the supplies.
c) The water hoses provided with the unit are 2 m / 6.5 ft long with 3
/4" NPT female fittings (Hydrim
L110WD) or 3 /4" garden hose female fittings (Hydrim L110W). The hot and cold water lines must
have taps with corresponding male fittings. A water pressure of 7 - 145 psi / 0.5 - 10 bar (gauge) is
required. Make sure that the hot and cold water hoses are connected to their respective inlet
connectors (not reversed) at the back of the unit. Note: The Hydrim L110wd has only a cold water
inlet.
d) The drain tube provided with the unit is 1.5 m / 5 ft long with an inner diameter of 2 cm / 3 /4".
It should be connected to a drain point no more than 35 cm / 14" above the floor.
e) If the unit cannot be installed close to the sink, the water hoses and the drain may need to be
extended. Any additional tube, connector and fitting should be procured prior to installation.
Please note that the drain tube should not exceed 3.3 m / 13 ft. Make sure that the extension hoses
for cold and hot water can withstand the water line pressure.
f) The Hydrim is constructed with air gap / anti-siphoning device on cold and hot water inlet hoses as
well as the drain hose. No additional air gap/anti-siphoning device is necessary.
g) A power outlet of 208 - 240 V, 60 Hz, 15A single phase for NorthAmerica and 220 - 240 V, 50 Hz,
10-16A single phase for Europe with proper grounding is required for the unit. A power cord of the
unit is 1.8 m / 6 ft long.
4The Hydrim is very heavy. Seek assistance if moving it.
5When connecting the water hoses, the connector with the elbow connects to the back of the unit.
The washer with the screen goes into the connector in the other end of the hose.
6Make sure that the voltage and frequency of the power outlet are the same as indicated on
the label of the unit.
7Make sure that Hydrim cleaning solution is used with Hydrim L110w in NorthAmerica.
The Hydrim L110wd uses Neodisher cleaner and neutraliser. For both models, see operator’s manual
for more information on water softening and rinse aid.
8Once installed, turn the water taps to the open position, ensure the unit is plugged in to the power
supply, and run a program. Check the water and drain connections at both ends for leaks.1

Page 16 HYDRIM L110w/wd Service Guide
2. Installation
2.7 Optional Installation Configurations
Option 1. Free Standing
600 mm / 23.75"
850 mm / 33.5"
600 mm / 23.75"
Option 2. Under Counter
Rinseand hold
Regularwash
Heavyduty wash
Regularwash and dry
Heavyduty wash and dry
P2
P3
P4
P1
P0
600 mm + 30 mm /
23.75" + 1.25"
600 mm + 50 mm /
23.75" + 2"
850 mm / 33.5"
(810 mm / 23.75" without top)
max. 35 cm / 14" above the floor

Page 17
HYDRIM L110w/wd Service Guide
2. Installation
2.8 Controller Software Functions
NOTE: When making modifications to the factory settings there can be variations in wash
and disinfection results. The default settings are included in the information listed below
wherever applicable.
If in doubt about any of the settings, please contact the SciCan Technical Service
department.
By pressing various combinations of buttons, it is possible to enter special cycles.
To use these cycles, hold the two buttons indicated and power the machine ON.
1. Buttons 1 and 2 - “verify mode”. This mode is used in conjunction with the verification
fixture to test the controller.
2. Buttons 2 and 3 - “regeneration level set”. The display shows “L” on the first digit and
the actual value of the regeneration level (“regeneration level”). Adjustment from 0 to 7
can be made with button 1 (down) and button 2 (up).
3. Buttons 1 and 3 - “reset drying cycle counter”. The display shows “c” on the first digit
and the actual drying cycles counter. Pressing button 4 will reset the counter to “0”.
Reset after 600 cycle filter check.
4. Buttons 3 and 4 - “device test cycle”. The unit starts filling the chamber then dosing
pumps (M4 for 20sec. and after that M5 for 20sec.) and rinse aid valve. During this
time whenever button 4 is pressed regeneration valve and salt indicator LED will be
‘ON’ for 10 seconds. See Electrical schematic (4.2) for M4 and M5.
5. Buttons 1 and 4 - “unit set”. The display shows “tI”, by pressing button 4 the user can
select between setting the wash time or setting the wash temperature:
a) “set wash time”. The display shows “tI” followed by the actual value of the wash
time. Adjustment from 5 to 99 minutes can be made with button 1 (down) and
button 2 (up).
*Factory preset time to 5 minutes.
b) “set wash temperature”. The display shows “tE” followed by the actual value of the
wash temperature. Adjustment from 15 to 99˚C can be made with button 1 (down)
and button 2 (up).
*Factory preset temperature to 50˚C
c) “set drying time.” The display shows “dt” followed by the actual value of the drying
time. Adjustment from 10-20 minutes can be made with PO (down) and P1 (up).
Exit this mode by powering off the unit after making all necessary changes.
6. Buttons 1 and 5 – “set number of rinses”. The display shows “nr” followed
by the actual number of rinses. Adjustment from 1 to 99 can be made with button 1
(down) and button 2 (up).
*Factory preset to 0 for Hydrim L110wd-D02 and L110w-M01 and to 2 for L110wd-M02

Page 18 HYDRIM L110w/wd Service Guide
2. Installation
7. Buttons 2 and 4 – “set dosing time”. The display shows “ch”, by pressing button 4 the
user can select between setting the detergent(chemical) dosing time or setting
neutralizer dosing time:
a) “set chemical dosing time”. The display shows “ch” followed by the actual value
of the dosing time. Adjustment from 1 to 99 seconds can be made with button 1
(down) and button 2 (up).
*Factory preset time is 21 seconds for L110w and 5 seconds for L110wd
b) “set neutralizer dosing time” (Hydrim L110wd only). The display shows “nE”
followed by the actual value of the neutralizer dosing time. Adjustment from 1 to 99
seconds can be made with button 1 (down) and button 2 (up).
* Factory preset time is 3 seconds.
Exit this mode by powering off the unit after making all necessary changes.
8. Buttons 2 and 5 – “printer set-up”. The display shows “Ln”, by pressing button 4 the
user can select between the following printer settings:
a) “set language”. The display shows “Ln” followed by the actual value of the
language. Adjustment from 0 to 2 can be made with button 1 (down) and button 2
(up). 0 stands for English, 1 for German, 2 for French.
b) “set baud rate”. The display shows “br” followed by the actual value of the baud
rate. Adjustment can be made with button 1 (down) and button 2 (up) as follows:
12 – 1200 bps 48 – 4800 bps
24 – 2400 bps 96 – 9600 bps
c) “set unit number”. The display shows “un” followed by the actual value of the unit
number. Adjustment from 1 to 99 can be made with button 1 (down) and button
2 (up). This number will identify the unit in a set up with more than one Hydrim
L110 unit.
Exit this mode by powering off the unit after making all necessary changes.
9. Buttons 4 and 5 - “software revision”. The display shows “r” in the first digit followed by
the first digit of the revision number and then the last two digits. (For example, if the
revision is 1.02 then will display r1 followed by 02).
10.Pressing a combination of button 3 and button 5 together is used if an error occurs
during a cycle as an error reset. The first digit of the display shows “E” while the
second digit shows the error number. The user will have to reset the unit in order to run
another cycle.
11. For Hydrim L110wd a combination of buttons 3 and button 5 pressed together is also
used after a power down occurrence, as a reset. The unit will indicate error 7 “E7” and
the previous selected program LED will be flashing after powering the unit up, as an
indication of cycle interrupted. The user will have to reset the unit in order to run
another cycle.

Page 19
HYDRIM L110w/wd Service Guide

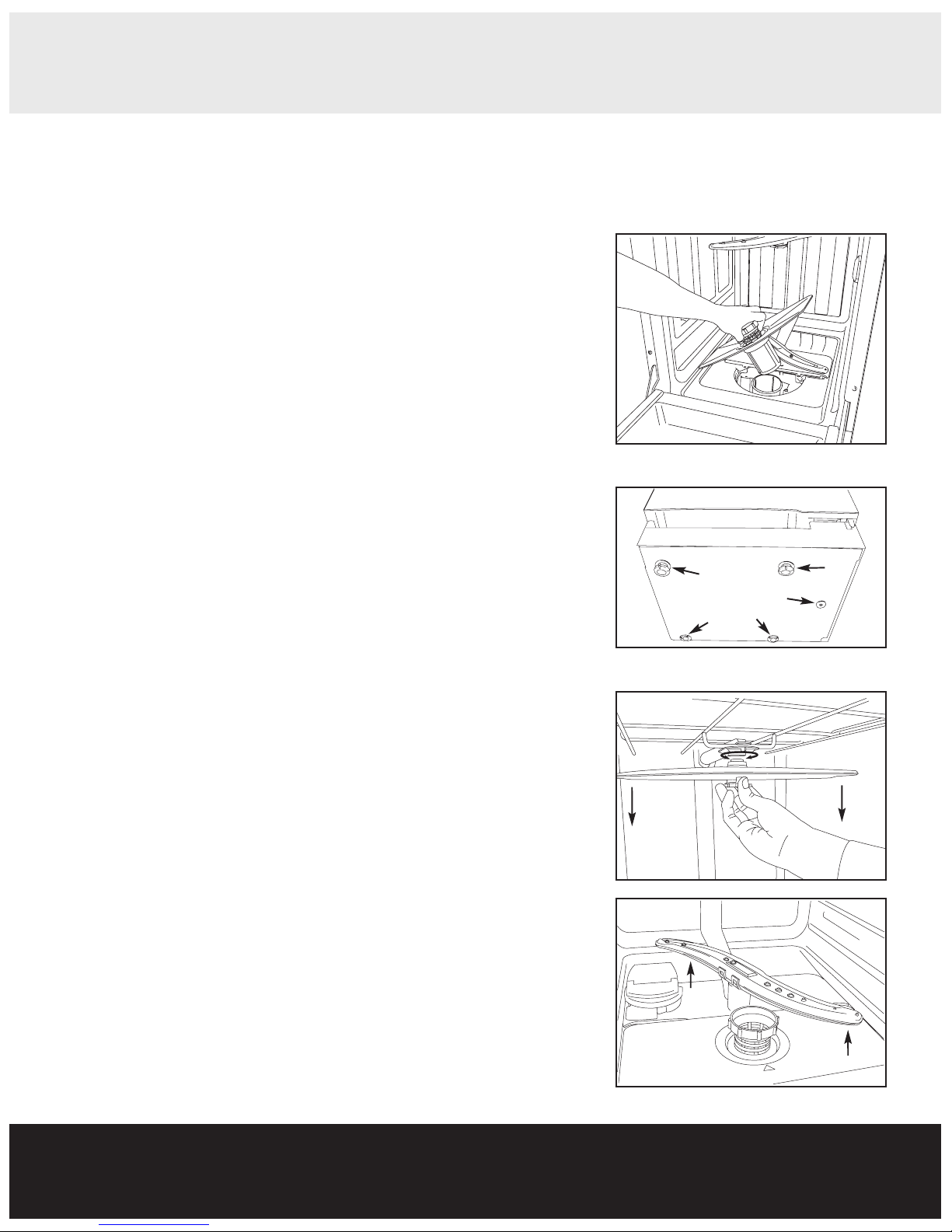

3. Routine Maintenance
These steps should be performed prior to inspecting the unit.
3.1 Filters
Inspect the coarse and fine filters as follows:
1. Open the unit’s door and remove the wash trolleys.
2. Grasp the handle in the center of the coarse filter
and turn it 90˚counter-clockwise. (To reinsert the
coarse filter, turn the handle clockwise.)
3. Remove the coarse filter.
4. Remove the fine filter.
5. Clean both filters by rinsing them with water.
6. Return both filters to the unit.
3.2 Leveling Unit
To keep the unit from moving while in use, it will need to
be correctly leveled. To level the unit, adjust the legs
underneath the unit.
3.3 Wash Arms
Inspect the upper and lower wash arms as follows:
1. Open the door.
2. Turn the upper washer arm collar 90˚and pull down.
3. Remove the upper wash arm.
4. Using two hands, grasp both ends of the lower
wash arm on the underside.
5. Pull the lower wash arm upwards.
6. Inspect both sides of the wash arms for debris in
the nozzles. Remove any debris, if discovered.
7. Rinse both wash arms with water.
8. Reassemble the wash arms.
