Preface
Welcome to the“Orbital and Linear Digital Shaker User
Manual”.Users should read this manual carefully, follow
the instructions and procedures, and beware of all the
cautions when using this instrument.
Service
When help needed, you can always contact manufacturer for
technical support in the following ways:
SCILOGEX, LLC
1275 Cromwell Ave
Suite C6
Rocky Hill, CT 06067
USA
Tel：1- [phone]
Fax：1- [phone]
[email protected]
www.scilogex.com
Please provide the customer care representative with the
following information:
•Serial Number（on the rear panel）
•Description of problem (i.e., hardware or software)
•Methods and procedures adopted to resolve the problems
•Your contact information
Warranty
You have purchased a Scilogex instrument. This instrument
is warranted to be free from defects in materials and
workmanship under normal use and service, for a period
of 24 months from the date of invoice. The warranty is
extended only to the original purchaser. It shall not apply to
any product or parts which have been damaged on account
of improper installation, improper connections, misuse,
accident or abnormal conditions of operation.
For claims under the warranty please contact your local
dealer. You may also send the instrument direct to our works,
enclosing the invoice copy and by giving reasons for the
claim. You would be solely liable for freight costs.

2
1.Safety Instructions
Warning!
•Read the operating instructions completely
before use and follow the safety instructions.
•Ensure that only trained staff work with the
instrument.
Protective ground contact！
•Make sure the socket must be earthed
(protective ground contact) before use.
•Wear the personal protective equipment in accordance
with the hazard category of the media to be processed.
- Splashing of liquids.
- vibration force led to broken glass container.
- The body，hair，clothes，jewelry are inhaled.
•Use the instrument following the safety instructions and
profession safety rules to avoid any accident.
•Users are not allowed to touch moving parts of the
instrument to avoid any accidents. Pay attention to protect
hands or fingers from rolling when moving the instrument.
•Set up the instrument in a spacious area on an stable,
clean, non-slip, dry and fireproof surface. Do not operate
the instrument in explosive atmospheres, with hazardous
substances or under water.
•Observe the vessel on the shaking table for medium
splashing out of liquid when setting the motor speed. Reduce
the motor speed if the instrument is not running smoothly.
•Accessories must be securely attached to the instrument
so that it cannot come off by itselves, and vessels must be
firmly placed on the shaking table to avoid any injury.
•Working with combustible media or flammable materials
may result in additional hazards. Only process media that
will not react dangerously to the extra energy produced
through processing should be used on the instrument.
•Safe operation is only guaranteed with the accessories
described in the “Accessories”chapter and by following
the operating instructions in full. Always disconnect the
plug before fitting accessories. Check the instrument and
accessories beforehand for damage each time you use them.
Do not use damaged components.
•The instrument may only be opened by trained technicians.
And always disconnect the plug beforehand.
•The operating voltage required as stated on the instrument
and voltage in the supply network must match.
•Do not cover the instrument. Protect the instrument and
accessories from bumps and impacts.
•Keep away from high magnetic field.

3
SK-O（L）330- Pro Orbital and Linear Digital Shaker SK-O（L）180- Pro Orbital and Linear Digital Shaker
2.Proper use
The instrument is designed for mixing or shaking liquids in
schools, laboratories or factories. SK-330/180-Pro is suitable
for usage in various attachments for mixing liquids in
bottles, flasks, test tubes for a maximum supported weight of
7.5 kg(330)and 2.5Kg(180). This instrument is not suitable
for use in residential areas or other areas that may cause
danger to the user or instrument as mentioned in chapter 1.
3.Inspection
3.1 Receiving Inspection
Unpack the instrument carefully and check for any damages
which may have arisen during transport. If it happens, please
contact manufacturer for technical support.
Note:
If there is any apparent damage to the system,
please do not plug it into the power line.
3.2 Listing of Items
The packing includes the following items:
Items Qty
Main unit 1
Power cable 1
User manual 1
Table 1
4. Trial run
Do trial operation as follows:
•Make sure the required operating voltage and power
supply voltage match.
•Ensure the socket is securely earthed.
•Plug in the power cable，Power ON the instrument.
•LCD displays the safe rotary speed limit.
•LCD displays operating mode.
•Turn the speed knob to set the rated rotary speed
•Press the speed knob. And the shaking function is switched
ON.
•Press the motor regulation knob again. and the shaking
function is switched OFF.
If these operations above are normal, the instrument is ready
to operate following the “operation”chapter. If these
operations are not normal, the instrument may be in security
protection state or be damaged.

4
SK-O（L）330- Pro Orbital and Linear Digital Shaker SK-O（L）180- Pro Orbital and Linear Digital Shaker
If the mounting surface is not even, you can improve the
stability of the instrument with the adjustable feet. To do
this, turn the appropriate foot downward with the wrench
until the instrument is standing securely on the surface.
Figure 1
5.Control and Set
5.1 Control
Shaking table
Time knob
LCD time
LCD speed
Figure 2
Items Descriptions
Speed knob
Set the rated rotary speed. “rotation”
is switched ON or OFF via pressing the
knob.
Time knob
Set working time . “rotation”is
switched ON or OFF via pressing the
knob
LCD Display the status of instrument and any
set
Mains switch Switch ON or OFF.
Table 2

5
SK-O（L）330- Pro Orbital and Linear Digital Shaker SK-O（L）180- Pro Orbital and Linear Digital Shaker
•Put the instrument on stable and safe place and plug in the
mains power.
•Turn ON the mains switch on the left panel.
•The instrument starts self-test.
•The instrument shows rated speed and time after
initialization.
•Turn the speed knob on the left side to set the rated speed.
•Press the speed knob and characters on the left LCD do
not flash any more, and the shaking function is switched ON.
•Press the speed knob again and characters on the left LCD
begin to flash, and the shaking function is switched OFF.
•Turn the time knob on the left side to set the rated time
•Press the time knob and characters on the LCD do not
flash any more, and the timing function is switched ON.
•Press the time knob again and characters on the right LCD
begin to flash, and the timing function is switched OFF.
5.2 Set
5.2.1 Set time
The rated shaking time can be set by turning the time knob
on the right. A distinction is made for the shaking time
setting between timed mode and continuous operation. If
continuous mode is selected, the shake can continue its
shaking function for any amount of time with the previously
set speed. If timed mode is selected, the shaker can run in the
set time. After the instrument is powered OFF and restarted,
the set time is erased to zero blanking and it switches into
offline operating mode.
If a target time (max. 19h 59min) and speed are set, users
can activate the instrument with pressing the time knob，
and the time begin to read,If:
A，pressing the time knob，the speed and the time
will stop. Pressing the time knob again,restart the shake
function,the time will use the pre-set time
B，pressing the speed knob，the speed and the time
will stop; Pressing the time knob again,restart the shake
function,the time not(There are flashing on the righe of
the LCD )，pressing the time knob again restart the time
function. The time will use the pre-set time.
Note:
The current set time can be varied at any time.
5.2.2 Setting Speed
The rated speed and upper speed limit can be set by turning
the speed knob (As the Figure 6) . The continuous mode can
be switched ON with pressing the left knob without the time
setting and switched OFF with pressing the knob again..
Adjust the motor speed knob slowly in order to keep the
instrument running smoothly.

6
Note:
The current set speed can be varied at any time.
6.Operating modes
6.1 Mode A
Operating mode A is the default mode set in factory. After
turning ON the instrument with the mains switch, the
shaking and timing functions are turned OFF. The LCD
displays the set time and speed values. They are adopted or
varied when the corresponding functions are turned ON.
After turning ON the instrument, the following process will
be shown on the display.

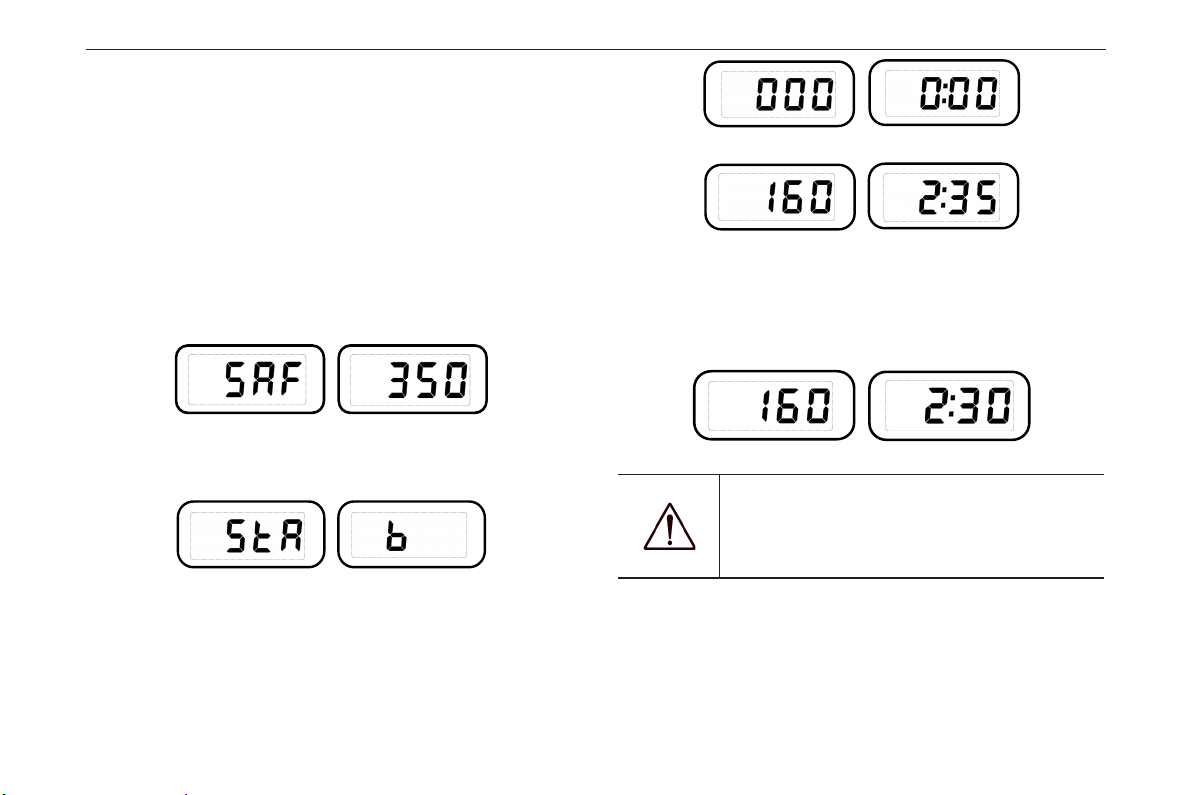

•The left LCD displays “SAF”and the right displays the
upper speed limit( rpm）which can be set by pressing the
speed knob and turning at the same time.
Figure 3
•The LCD displays run modes “StA”、“A”or “B”
for about 2 seconds.
Figure 4
•The set or stored speed value is shown in the left display, and
the set or stored time value is shown in the right display. Turn
the speed knob and time knob can set the speed and time.
Figure 5
•After pressing the speed knob or time knob, the instrument
begins to run at the set speed. The actual speed and time
remaining are shown in the LCD. If the remaining has
reached zero, the shaker stops its motion. Pressing the
speed knob alone,the instrument will work at continuous
mode(The time function is OFF)
Figure 6
Note:
The set values can be varied during shaking.
Shaking can be stopped by pressing the left or
right knob.

7
6.2 Mode B
When the instrument is turned ON and values for speed
and time are erased to zero, users can set. The upper speed
limit that has been set is taken over from operating mode
A and cannot be modified. After the power has been turned
OFF, the instrument will no longer automatically start up in
operating Mode B by itself.
After turning ON the instrument and selected run mode, the
following process will be shown on the display.
•The left LCD displays “SAF”and the right displays the
upper speed limit( rpm）which cannot be changed.
Figure 7
•The LCD displays run modes “StA”for about 2
seconds.
Figure 8
•The set speed value is shown in the left display, and the set
time value is shown in the right display. Then set the motor
rotary speed and time.
Figure 9
Figure 10
•After pressing the speed knob or time knob, the instrument
begins to run at the set speed. The actual speed and time
remaining are shown in the LCD. If the remaining has
reached zero, the shaker stops its motion.
Figure 11
Note:
The set values can be varied during shaking.
Shaking can be stopped by pressing the left or
right knob.
6.3 Switching the mode
Switch the operating mode as follows:
•Turn OFF the instrument with the mains switch.
•Hold down both knobs and turn ON the instrument with

8
the mains switch. After about 5 second, you can let go of the
knobs.
•Switch between operating Modes A and B in order.
6.4 Switch the shaking direction
Change the shaking direction according to the steps as
follows:
•Turn OFF the instrument;
•Press and hold time knob, at the same time turn on the
instrument, release the time knob after 10 seconds;
•Switch the operation direction in turn.
7.Supported load
In order to ensure safe, the shaker must only be operated
within the supported weight (7.5kg for 330 and 2.5Kg for
180).
Make sure the holding surface of the shaker is always clean
and level. Ensure the individual shaking vessels must be
placed evenly and fastened securely in the middle of the
shaking table no matter one or multiple shaking vessels are
placed.
8.Faults
•When switched ON, the instrument doesn’t work
■Check whether the power cable fitted well
■Check whether the fuse is broken
•The speed cannot reach set value
■Check whether it is overloaded
•The motor does not start via pressing the speed knob and
time knob
■Check whether the time is set to zero
9.Interface
SK-O330(180)-Pro/ SK-L330(180)-Pro Orbital and Linear
Digital Shaker, special adapter and cable are used to link to
external device.and the Standard 9-pin interface to connect
with the PC.
•The cable between the shaker and the computer used EIA
Standard RS232C communication line，corresponding to
the DIN 66020 interface.
•Transmission method: Asynchronous signal transmission.
•Mode of transmission: Fully Duplex.
•1 start bit; 8 character bits; 1 stop bit.
•Transmission speed: 9600 bit/s
Note：
Forbid to plug in and plug off the power cable
when the instrument working

9
10.Maintenance and cleaning
Use and maintain the instrument in right way to keep it in
good operating state in order to lengthen its life time and
avoid the damage to the instrument. Only use the cleaning
agents which have been approved by manufacturer to clean
the instrument.
Only use cleanser that we advised as below
Dyes Isopropyl alcohol
Construction materials Water containing tenside /
isopropyl alcohol
Cosmetics Water containing tenside /
isopropyl alcohol
Foodstuffs Water containing tenside
Fuels Water containing tenside
For materials which are not listed, please request
information from manufacturer or your supplier. Before
using another than the recommended method for cleaning
or decontamination, the user must ascertain that this method
does not destroy the instrument. Wear the proper protective
gloves during cleaning of the instrument.
Note:
•Electrical instrument may not be placed in the
cleansing agent for the purpose of cleaning.
•The instrument must be cleaned and put it into
the initial packaging carton before sending to
service for repair, avoiding the contamination of
hazardous.
•Switch OFF the instrument and put it in the
dry, clean, stable place at room temperature in
long-term disuse.
11.Associated standards and regulations
Construction in accordance with the following safety
standards
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards
EN 61326-1

10
12.Technical data
Items Parameters
Voltage [VAC] 100~240
Frequency [Hz] 50/60
Power [W] 30
Shaking movement Orbital/ linear
Orbital diameter [mm] 10（SK-O(L)330-Pro）/
4.5（SK-O(L)180-Pro）
Max. shaking weight (with
attachment) [kg]
7.5（SK-O(L)330-Pro）/
2.5（SK-O(L)180-Pro）
Motor type External rotor
brushless motor
Motor rating input [W] 28
Motor rating output [W] 15
Permissible ON time [%] 100
Speed range [rpm]
100-350(SK-L330-Pro)
100-500(SK-O330-Pro)
100-350(SK-L180-Pro)
100-800(SK-O180-Pro)
Speed display LCD
Timer Yes
Timer display LCD
Time setting range [min] 1 – 1199
Items Parameters
Run type Time / Continuous operation
Dimensions [D×W×H
mm]
420×370×100(SK-O(L)330-
P ro ) / 3 4 0 ×300×100(SK-
O(L)180-Pro)
Weight [kg] 13.5( SK-O(L)330-Pro)/
8.1(SK-O(L)180-Pro)
Permissible ambient
temperature [°C] 5－40
Permissible relative
humidity 80%
Protection class acc. To DIN
EN60529 IP21
RS232 interface Yes
Table 3

11

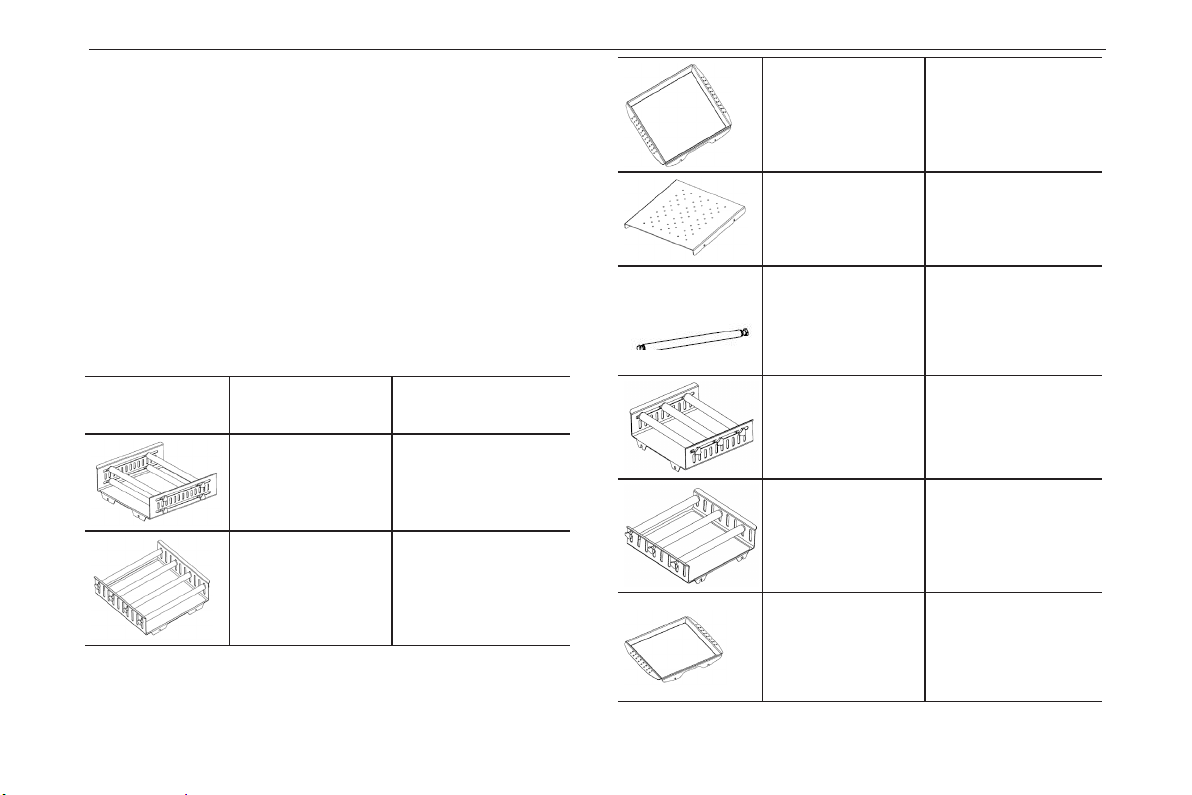

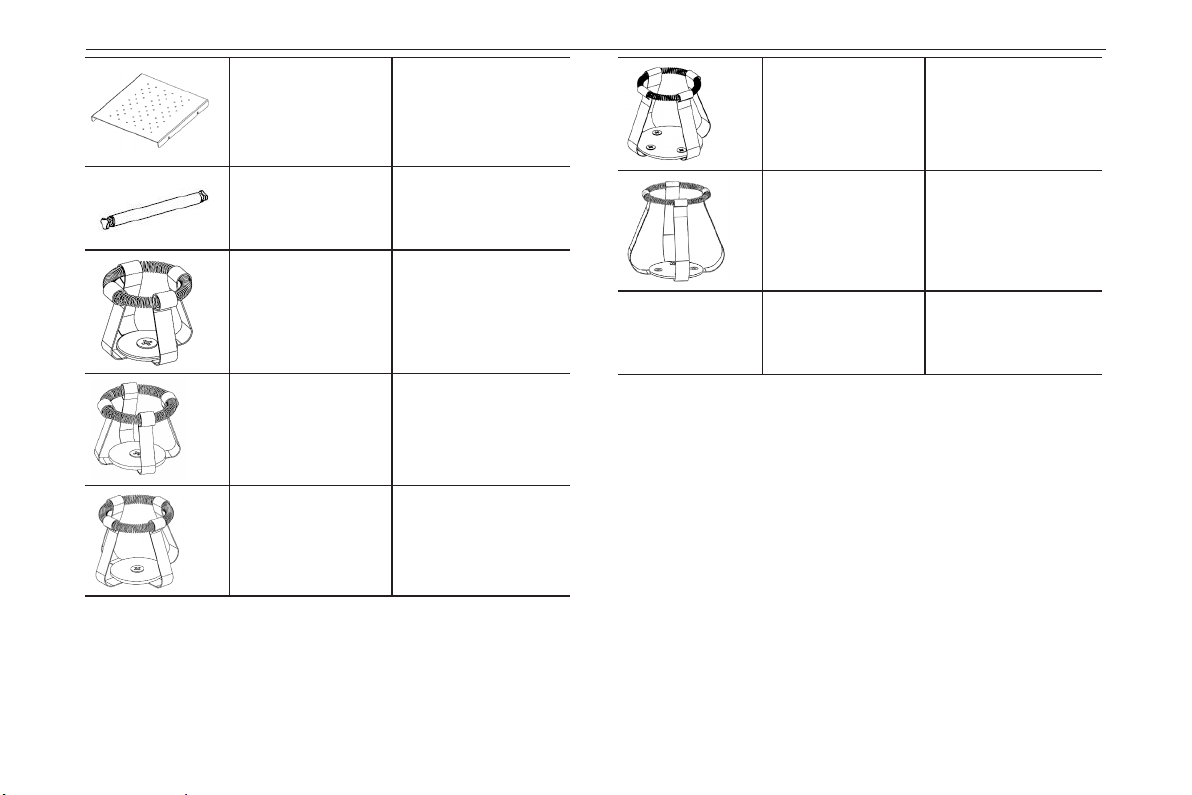

Accessories
Accessories
Figure
Cat.No and
Designation Operation mode
18900027
SK330.1
SK 330.1
Universal
Attachment
18900040
SK330.3
SK330.3
Lengthways Roller
Attachment
18900041
SK330.4
SK330.4 Dish
Attachment (with
slip-resistant foil)
18900028
SK 330.2
SK 330.2 Fixing
Clip Attachment
18900036
Bars for SK330.1
Universal
Attachment，
black
18900025
SK 180.1
SK 180.1
Universal
Attachment
18900038
SK180.3
SK180.3
Lengthways Roller
Attachment
18900039
SK180.4
SK180.4 Dish
Attachment (with
slip-resistant foil)

SK-O（L）330- Pro Orbital and Linear Digital Shaker SK-O（L）180- Pro Orbital and Linear Digital Shaker
18900026
SK 180.2
SK 180.2 Fixing
Clip Attachment
18900037
Bars for SK180.1
Universal
Attachment，black
18900029
SK330.2.1
Fixing Clips for
Flask Volume 25 ml
18900030
SK330.2.2
Fixing Clips for
Flask Volume 50 ml
18900031
SK330.2.3
Fixing Clips for
Flask Volume 100
ml
18900032
SK330.2.4
Fixing Clips for
Flask Volume
200/250 ml
18900033
SK330.2.5
Fixing Clips for
Flask Volume 500
ml
18100319
RS232
9-Pin interface line
Suitable to
shakerPC Software
used
Table 4
Note:
The software ShakerPC can be download free on our website
www.scilogex.com.
SCILOGEX, LLC
1275 Cromwell Ave.
Suite C6
Rocky Hill, CT 06067 USA
Tel: [phone]
Fax: [phone]
[email protected] | www.scilogex.com
