Scooterpac Canopy User manual

User Manual
scooterpac
canopy
EN

warm
and dry...
Your ticket to staying
all year round!

Warning Notices
Safety Notices
Box Contents
Introduction to the Canopy
Quick Start Guide
Kymco Strengthening Kit
Installation Guide
Folding the Canopy away
Caring for your Scooterpac Canopy
FAQ
Notes
Contents
Brighten
your day
4
5
6
7
9
12
14
28
36
37
38

Warning Notices
All images in this manual are representative and your Canopy may differ from that shown.
The Canopy is to only be fitted by an able bodied person, using the tools specified.
It is important that the Canopy is fitted to suitable securing points.
Scooterpac cannot accept liability for any injury which is caused by the misuse or failure to follow this
manual.
Scooterpac cannot accept liability for any loss, damage or personal injury to yourself or others which
occurs due to using unsuitable securing points on the scooter or due to the Canopy not being securely
and safely secured to the scooter.
It is strongly recommended that you read this section carefully before using the
Scooterpac Canopy.
4

Warning Notices Safety Notices
Warning - contains small parts. Not suitable for children under 3 years.
• Ensure the Canopy is correctly fixed to the scooter and that all the installation steps have been
completed.
• Keep fingers away from moving parts and only operate from the points listed in this manual.
• Only use the Canopy on scooters which have all the necessary fixing points.
• When making use of the side doors please ensure that the zips are completely closed.
• The Canopy should only be used in the fully unfolded or fully closed position with the protective
bag covering it.
• Do not try to fold or unfold the Canopy while sitting on the scooter.
• It is advisable not to use the Canopy in winds above 40mph.
• The Canopy is designed for pavement and road use only.
• Check all fixings are secure and do not use with damaged or faulty parts.
• To order spare parts for the Canopy please contact your local Scooterpac dealer.
5

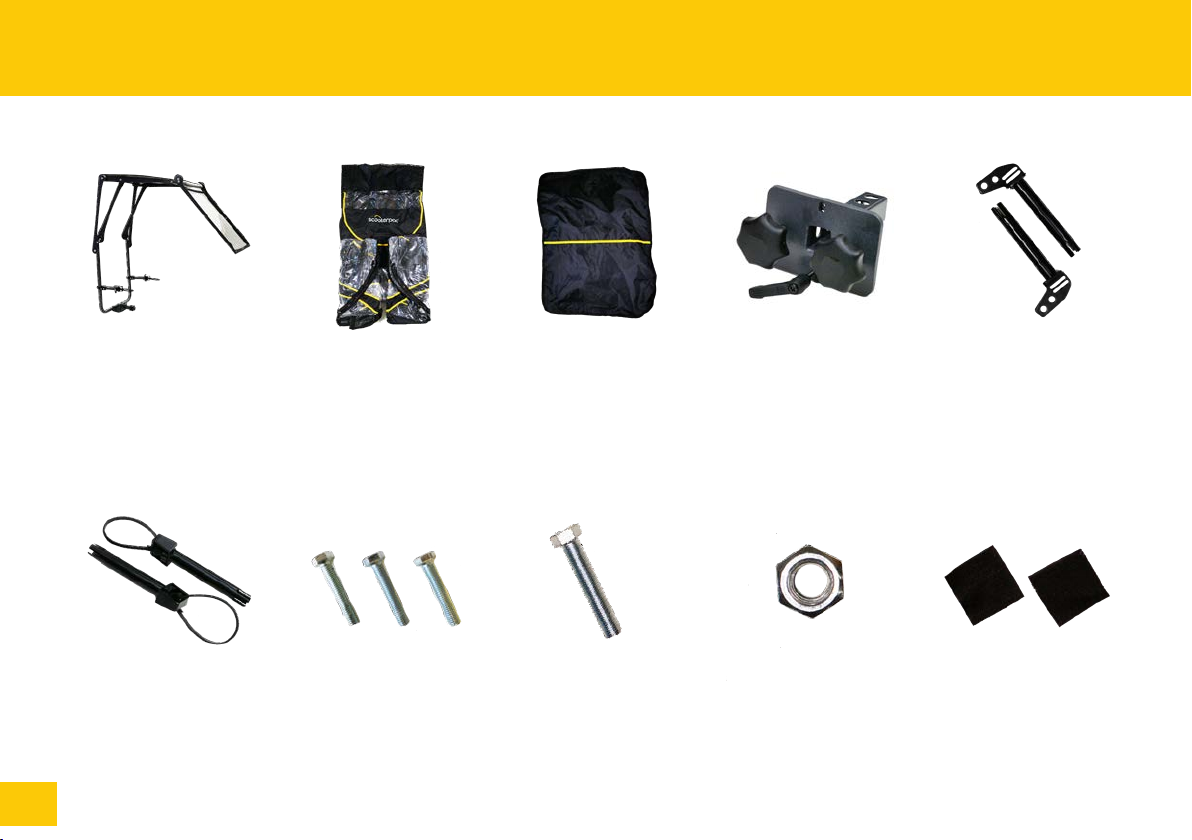

Box Contents
Frame Cover / Doors Bag
Spigot x1
M8 handwheel x2
M6 rachet handle x1
Bolted arm brackets x2
Located on the frame
Toolless arm Brackets x2 M8 x 45mm bolts x3 M10 x 45mm bolt x1 M8 nyloc nut x1 Velcro square pads x2
6

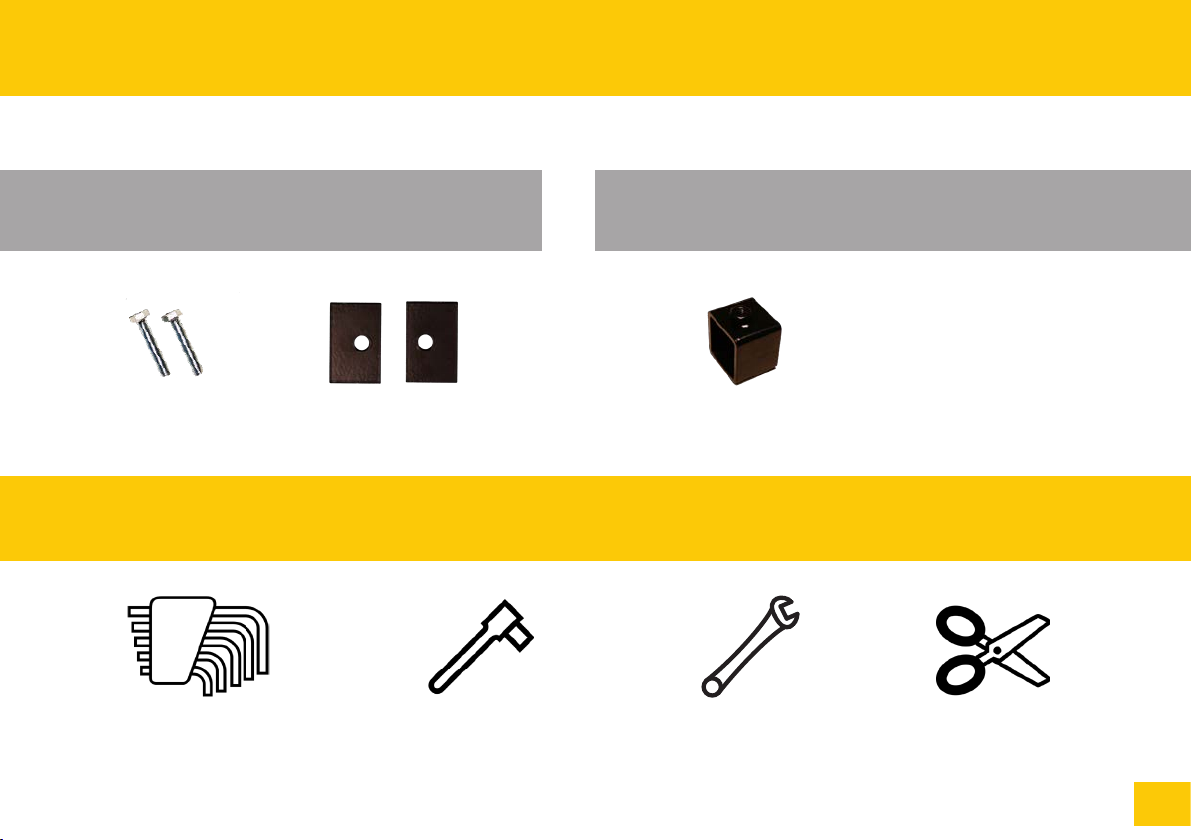

M8 x 45mm bolts x2 Strengthening plates x2
Allen key(s) - 4mm Socket spanner - 13mm Spanner - 13mm Scissors
Included and to be used depending on the scooter manufacturer.
Manufacturer Tool Kits
Tools required
Kymco Strengthening Kit Pride Mounting Kit
Spigot securing bracket
7

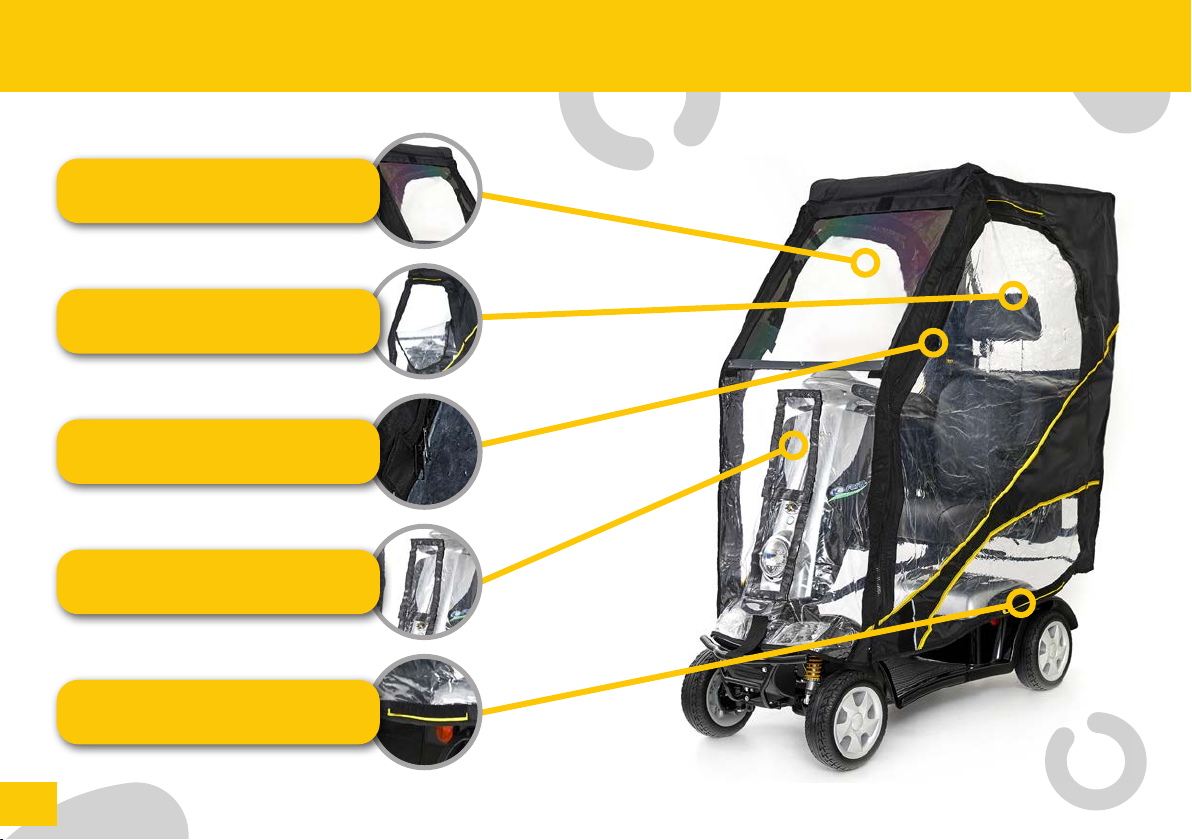

Introduction to the Canopy
Luxury windscreen
Easy access window
Basket fixing access
Colour coded Velcro
Large access zips
8

Introduction to the Canopy
Locking mechanism
Universal arm brackets
Mounting spigot
Installation - 20 minutes // Unfolding 30 seconds
9

Quick Start Guide

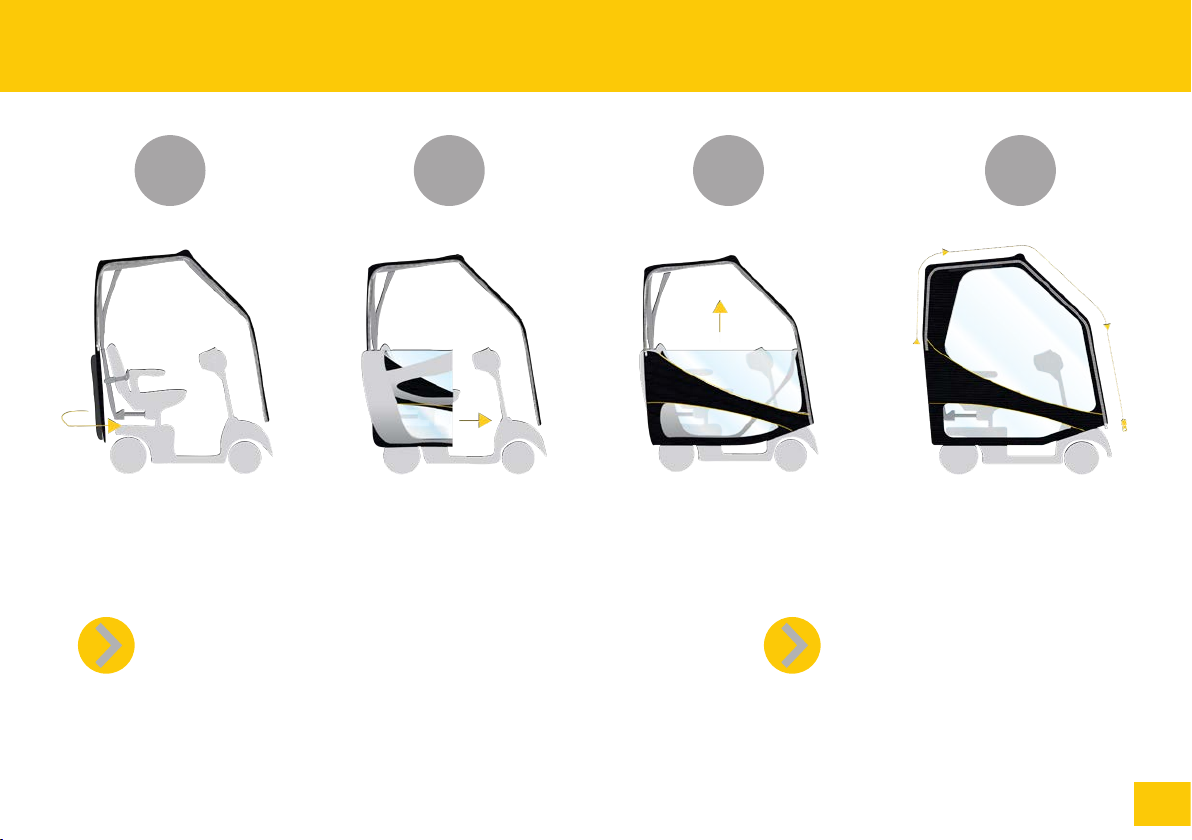

Remove the
protective cover.
Unfold the
frame.
Once unfolded
into this position
ensure the
safety clip clicks
and is secure.
Continue
unfolding the
Canopy.
1 2 3 4
Click!
10

Quick Start Guide
Zip the door
from the back
towards the
front. Repeat on
the other side.
Unfold the side doors and move into position.
5 6 7 8
8 simple steps to mobility freedom
11

If the scooter is manufactured by Kymco, the Strengthening Kit included with
the Canopy must be used otherwise proceed to page 14.

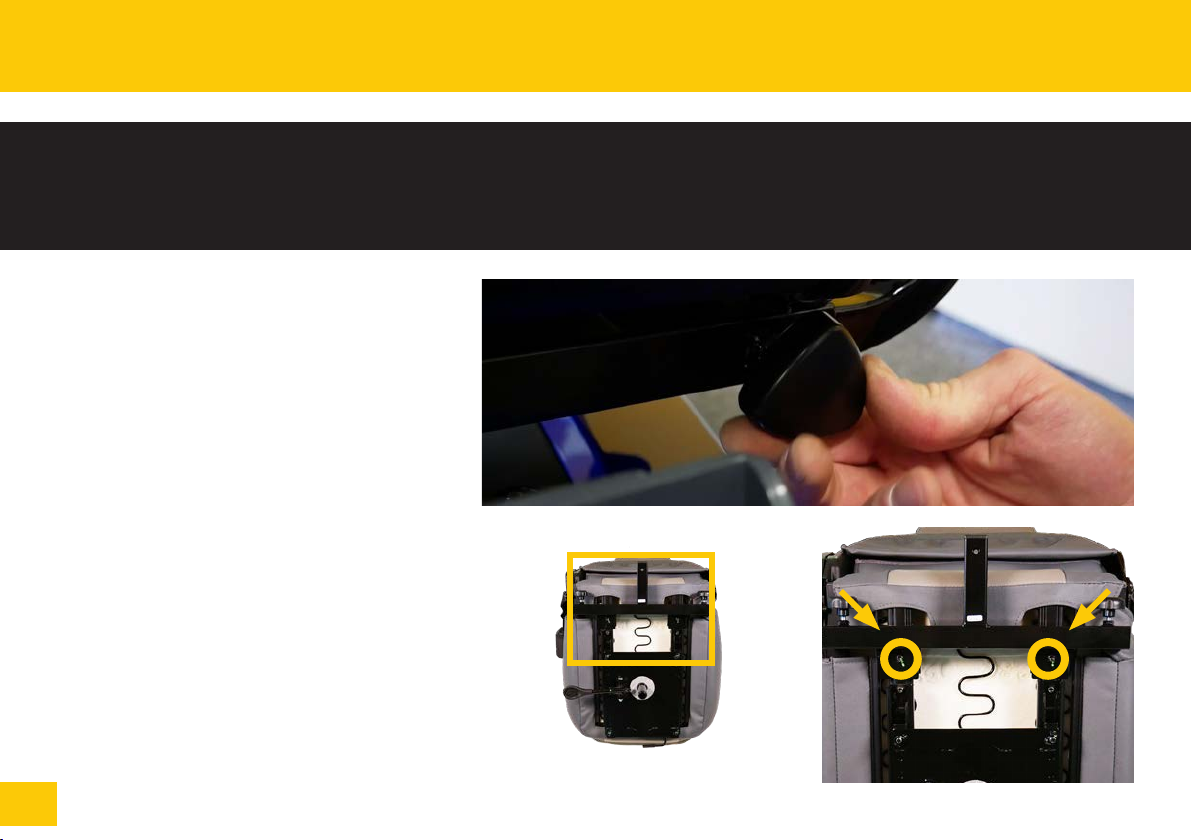

Kymco Strengthening Kit
3. Locate the bolts which secure the
armrest mounting the seat base.
2. Take the seat off the scooter.
1. Remove the scooter armrests by
loosening the two hand knobs
underneath the seat.
12

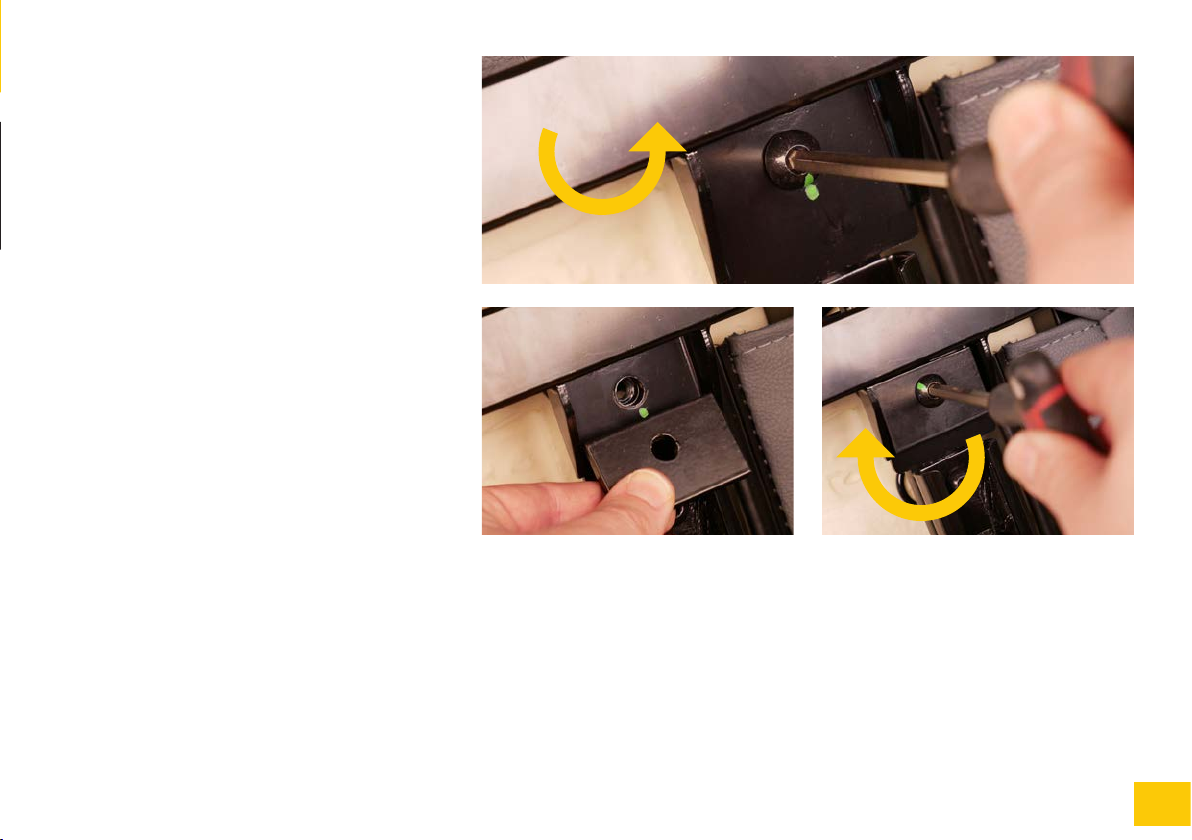

Kymco Strengthening Kit
4. Loosen and remove one of these
bolts.
5. Insert the strengthening plate and
Replace the bolts and retighten.
Repeat the process on the other
side of the seat.
6. Replace the seat and armrests.
The Kymco scooter is now ready for your Scooterpac Canopy.
13

Installation Guide

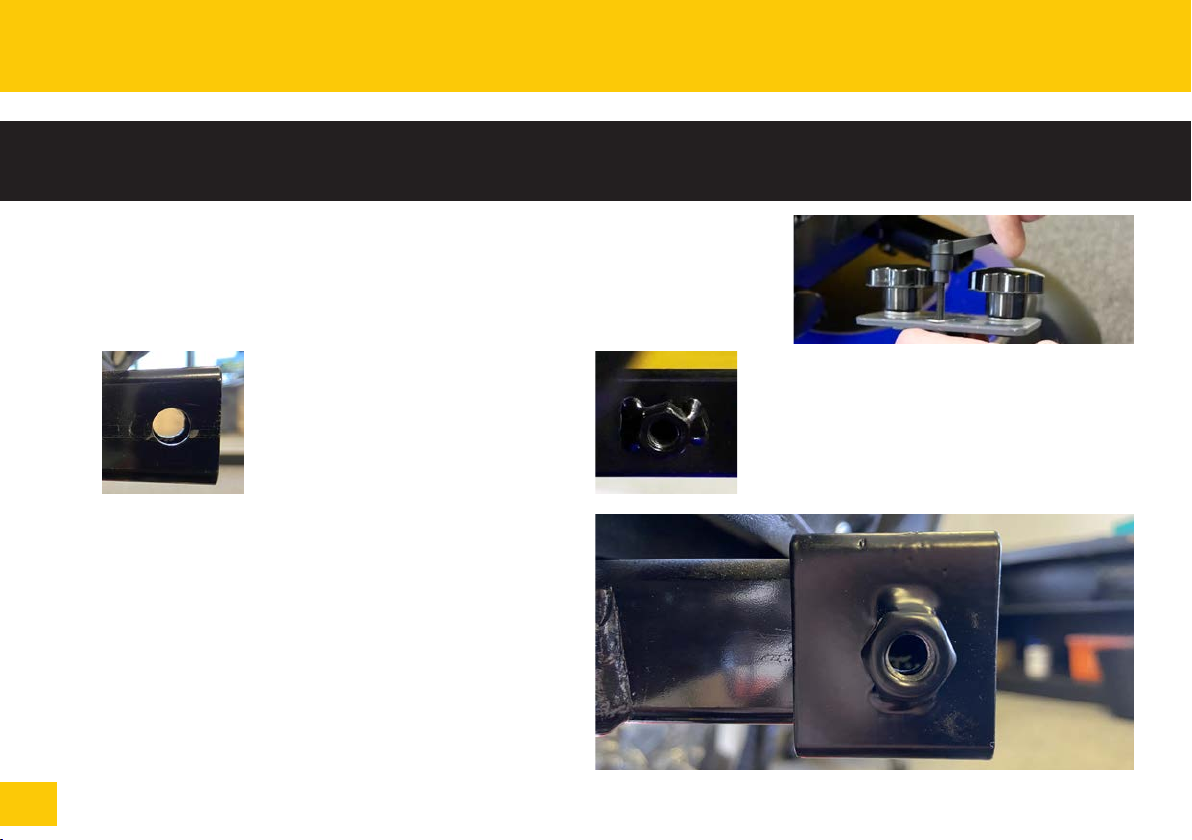

Mounting the spigot
1. Remove the M6 rachet handle from spigot.
2. Slide the spigot securing bracket (located in
the Pride Mounting Kit) over the accessory port –
ensuring the threaded nut lines up with the fixing
hole.
If there is not a nut located
on the accessory port, please
proceed to step 2.
If there is a nut located on the
accessory port, please proceed to step
3.
14

Installation Guide

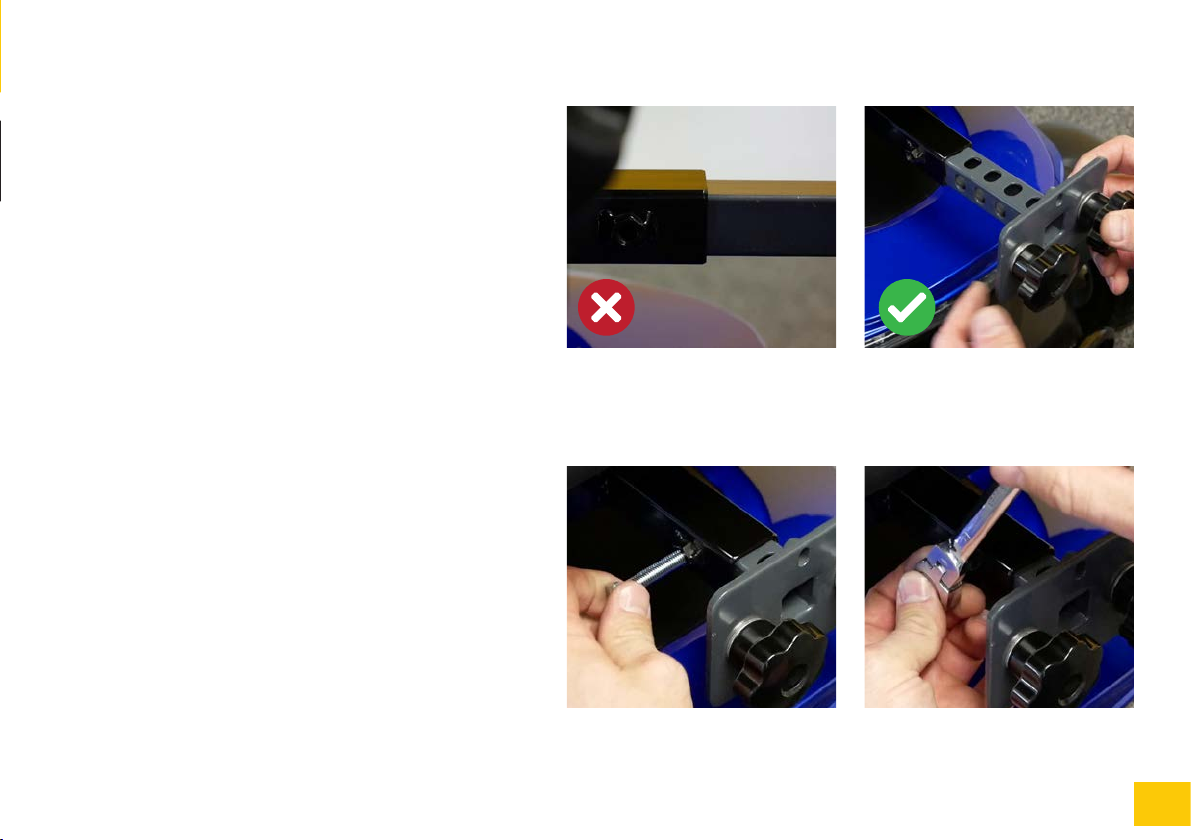

4. Choose to insert either an M8 or M10
bolt through the accessory port and into
the spigot. This will be dependent on the
scooter. Secure with the matching socket
spanner.
You may have to adjust the alignment of the
spigot to ensure the M8/M10 bolt passes
through the nearest hole located nearest the
face of the spigot.
3. Insert the spigot into the accessory port
underneath the back of the scooter, as far as
it will go in.
Before inserting the spigot, ensure the
holes on the spigot match up to the hole
on the accessory port.
15

Fitting the Canopy frame
5. Ensure both M8 handwheels on the spigot
are fully tighten. Also check to ensure both arm
rests are fully secure and fully tightened by using
the M8 handwheels located underneath the
scooter’s seat.
1. On the face of the spigot,
equally loosen off the two
M8 handwheels with six
full turns.
2. Ensure that both washes
are spaced away from the
face of the spigot and are
positioned against the M8
handwheels.
3. On the Canopy frame turn
the arm supports so that
they are pointing away to
the sides in relation to the
frame.
4. Slide the main Canopy
frame on to the spigot in
between the washers and
the face of the spigot’s
plate.
16

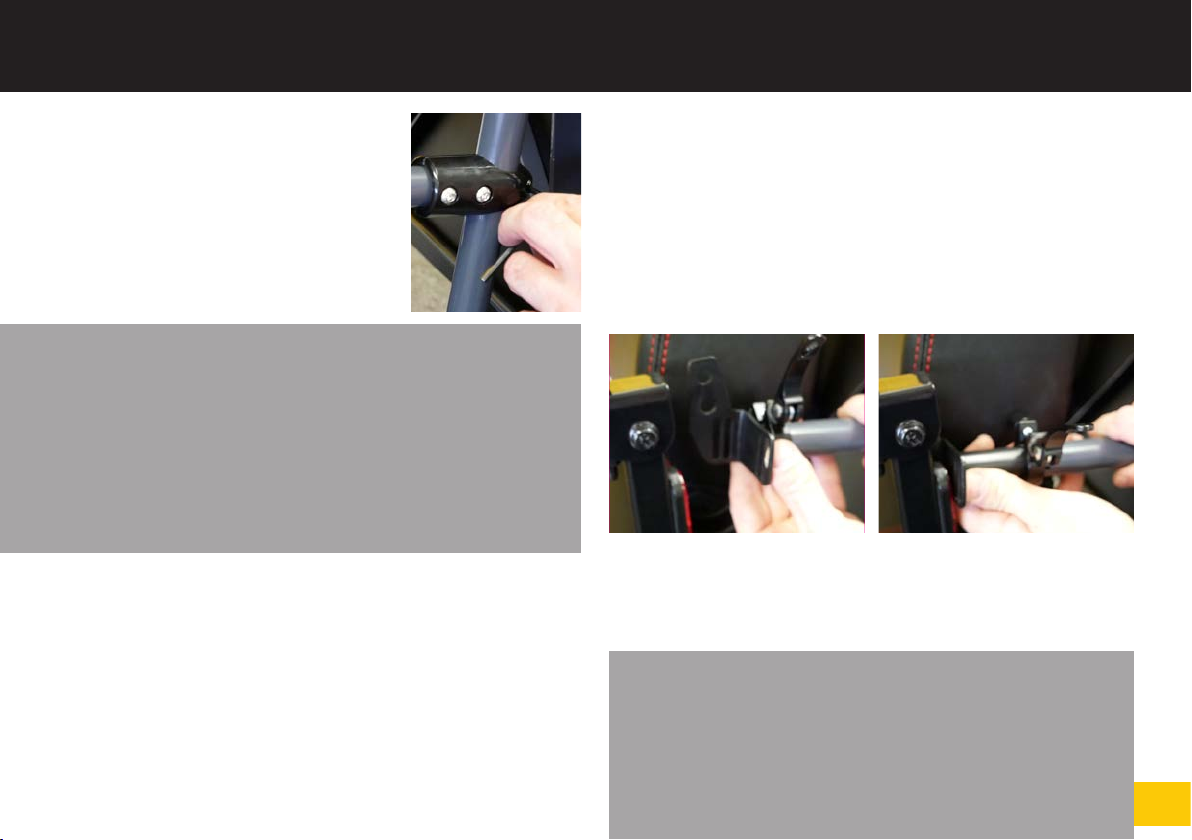

Fitting & securing the arm brackets
Bolted arm brackets
1. Using a 4mm allen key, on
both sides of the Canopy
frame, slightly loosen the
brackets that hold the arm
supports in place.
2. Line up the Canopy’s arm supports with the
arms on the seat, ensuring the arm bracket is
aligned with bolt securing the arm rest on the
seat.
3. Remove the nuts and bolts on the scooter
armrests.
To install the bolted arm brackets proceed to step 2.
To install the toolless arm brackets proceed step 6.
TOP TIP
If the bolted arm brackets do not fit securely around the
scooter’s arm rests e.g. there are plastic shrouds surrounding
seat arms or there are not the necessary fixing points to
secure the bolted bracket, please use the toolless arm
brackets.
TOP TIP
If the armrests are attached directly to the seat secure
with the top bolt.
17

Repeat steps 2 - 5 on the other armrest and then go to page 22.
4. Replace these with M8 bolts supplied ensuring that they pass through the hole on the bolted arm bracket.
5. Secure the nuts on the M8 bolts with a socket wrench and spanner.
TOP TIP
Please do not overtighten the nuts to ensure the armrests can still be raised and lowered.
Toolless arm brackets
6. Remove the bolted arm
bracket from arm supports
located on the side of the
Canopy.
7. On the toolless arm
bracket, unwind the
adjustable strap so that it
can easily pass over the arm.
18

8. Slide the toolless arm bracket over
the arm so that it aligns with the arm
support on the Canopy.
9. Slide the toolless arm bracket into
the arm support on Canopy.
10. Tighten the adjustable strap so that
it is secure on the armrest.
This should be mounted as near
to the top of the arm as possible.
19

TOP TIP
Please position so that the armrests can still be raised and lowered.
Repeat steps 6 - 10 on the other armrest.
More than halfway
there to mobility
freedom...
20
