MG984G Series
Table of Contents
1. Getting Started.......................................................................................................... 1
2. Camera Operations.................................................................................................. 3
2.1 Batteries / Power Supply.................................................................................... 3
2.2 SD Card Information............................................................................................3
2.3 SIM Card Information.......................................................................................... 4
2.4 Camera Modes.....................................................................................................5
2.5 Manual Image / Video Capturing.......................................................................6
2.6 Manage Images and/or Videos..........................................................................6
2.7 Sending via MMS/GPRS/Molnus...................................................................... 7
2.8 Trigger Modes...................................................................................................... 8
2.9 Password Set..................................................................................................... 10
3. Camera Setup Settings & Display......................................................................11
3.1 Settings Interface & Display.............................................................................11
3.2 Mobile Communication..................................................................................... 12
3.3 Camera Setup Software................................................................................... 13
3.4 Setting up your camera for Molnus.................................................................15
3.5 Mobile Applications........................................................................................... 17
3.5.1 User Level....................................................................................................... 18
3.5.2 BG Tools Usage Instructions for Android App...........................................19
3.6 Camera Setup Options..................................................................................... 24
4. Detection Ranges – PIR Detection Zones........................................................30
5. Technical Specifications...................................................................................... 31
Appendix : Parts List................................................................................................32

MG984G Series
1

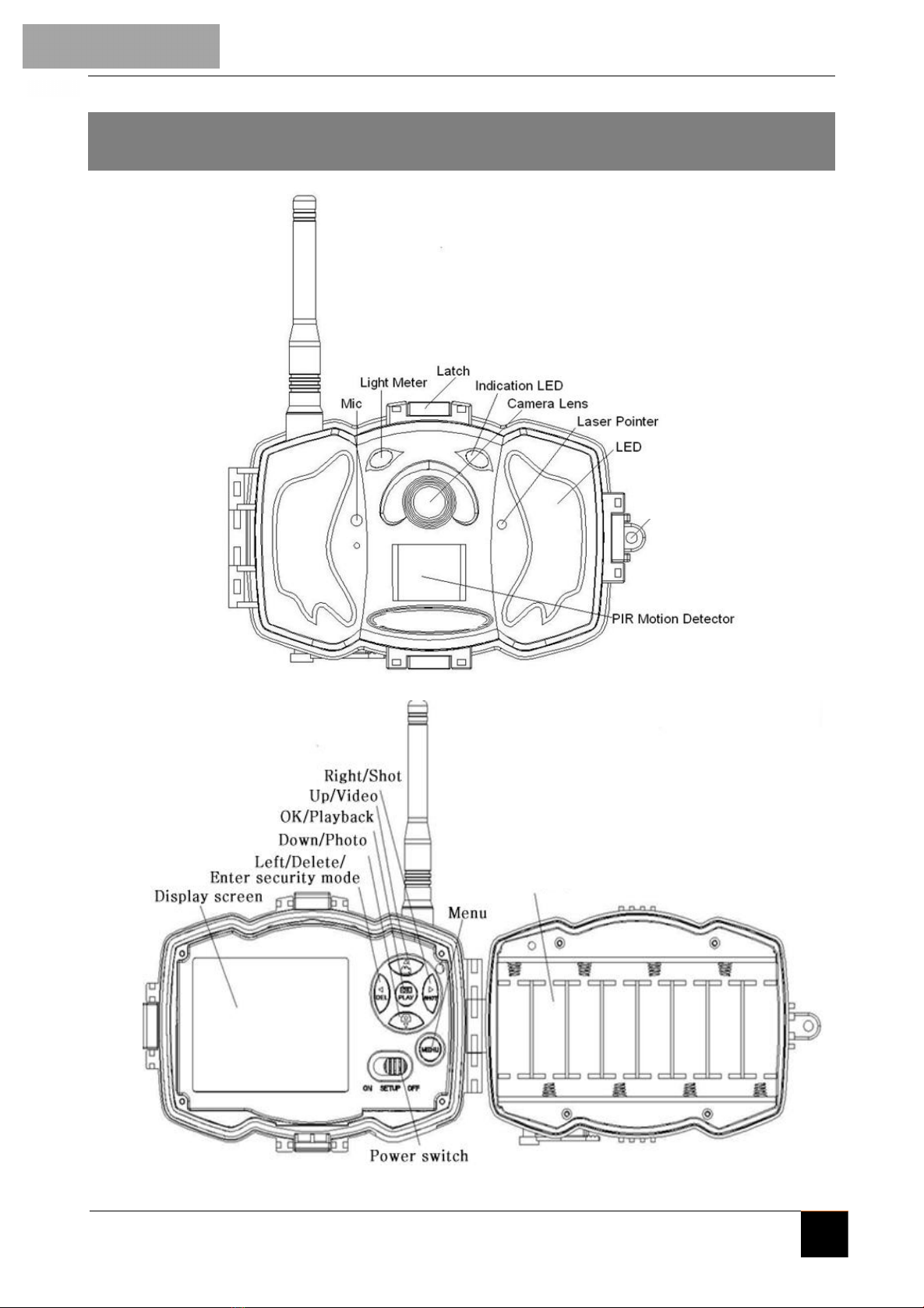

1. Getting Started
Battery Tray
Lock Loop

MG984G Series
2
This camera, a digital scouting camera with communication function, is a
digital, black flash (no red glow from the flash emitters when
activated at night) surveillance camera that can be triggered by any
human or animal movement and is monitored by a highly
sensitive Passive Infrared (PIR) motion sensor. After being
triggered, the camera then automatically captures high quality
pictures (up to 36M pixels) or records video clips (1080 FHD).
MG984G-36M: This model instantly sends pictures or videos (less than 10M)
to your mobile device / to your e-mail via your chosen GPRS network.
You will only be alerted when the camera is triggered - unless
otherwise set per custom settings. It takes color pictures or videos
during the day with sufficient daylight. While at night, the built-in black
flash LEDs can take clear night pictures or videos (these will be in black
& white).
DC Port

MG984G Series
3
2. Camera Operations
2.1 Batteries / Power Supply
This camera is powered by eight AA batteries. High-density, high-
performance Alkaline or Lithium batteries are recommended. You
can also use high capacity (min 2600 mAh) rechargeable Nickel
Metal Hydride (NiMH) batteries. When the camera’s battery levels
are low, the indication LED light will blink twice then the camera
will automatically shut down (Each battery should be above 1.5V).
A DC 6-Volt, 2 A external power supply adapter can also be used to
power the camera (not included).
2.2 SD Card Information
To take full advantage of the latest technologies, we
recommend Class 10 SD cards or better, which have fast
transfer speeds and long durability for extensive shooting
in the most extreme outdoor conditions. Some SD
cards are deemed Secure Digital High Capacity
(SDHC) PRO cards which only work with SDHC
compatible devices only. Please check that your
product is compatible with SDHC cards.
•Insert the SD card into the camera before turning
on the camera
This camera supports up to a 32GB capacity SD card and
has no built-in internal memory. The camera will not
function without the SD card properly inserted into the
camera.

MG984G Series
4
•Make sure the SD card is unlocked before inserting
it into the camera
The camera will power off with a code locked when the
SD card is inserted.
•If you experience any problems with an inserted
SD card
Try reformatting the SD card, utilizing the camera’s
main settings option.
2.3 SIM Card Information
•Insert the SIM card into the camera before turning
on the camera
The camera SIM card slot is sized for a standard SIM
card. If you have a nano or micro size SIM card,
utilizing a SIM card adapter will be required to connect
your camera to the cellular network via SIM card.
Note: The camera will still function without a SIM
card. The SIM card is needed only for the
wireless/cellular messaging capabilities.

MG984G Series
5
2.4 Camera Modes
The different modes are accessed by sliding the power
switch to the different positions marked on the
camera. The power switch is located inside the camera on
the bottom right of the LCD screen.
The different camera modes are as follows:
•OFF Mode
Turns the camera off. The camera will still
consume a small amount of power while in OFF
mode. It is recommended to remove the batteries if the
camera will not be used for a long period of time.
•TEST/SETUP Mode
In this mode, the camera allows you to customize the
camera settings or play back pictures and videos the
camera has taken on the LCD display.
•ON Mode [ "Live" Mode ]
Camera will take pictures or video when motion is
detected and/or at specific time intervals,
according to your pre-programmed settings.
After switching the camera to the ON position,
the red LED motion indicator will blink for
about 10 seconds and then turn off. This preset
time allows you to adjust the cameras position if
needed, before the camera becomes active.

MG984G Series
6
2.5 Manual Image / Video Capturing
Place the camera in TEST/SETUP mode and press the
“►/SHOT” button on the right of the control pad to manually
capture photos or record video. Press “►/SHOT” again to stop
capturing video.
2.6 Manage Images and/or Videos
Place the camera in TEST/SETUP mode and press the
“OK/Play” button to view images or videos. The latest
image or video will be shown on the LCD screen.
•To view:
Press ▲or ▼to view the next or previous image or
video.Press OK to start a video.
•To delete:
Press OK in Test/Setup Mode to enter into Playback
mode and access the pictures and videos. Press the ▲
or ▼ to toggle between photos to find the photo or
photos to delete. Once selected, press the “/DEL”
button and the options Del One and Del All appear.
Press OK when the Del One option is selected. Press OK
again to confirm you want to delete the picture or video
selected.

MG984G Series
7
2.7 Sending via MMS/GPRS/Molnus
Images can be sent directly to your wireless
device/email/Molnus, based on the Send Mode settings. First,
insert the SD & SIM card into the camera before turning on
the camera.
Second, turn on the camera in TEST/SETUP Mode, make sure
the SIM card is recognized and signal strength is adequate.
Third, Select the send mode settings and fill in the correct
parameters.
You have the options of Molnus (default setting), Phone
MMS, Email MMS, Email GPRS. Videos will be sent in less than
10MP.
To manually send a photo:
•Put the camera in TEST/SETUP mode
•Wait for the camera to acquire a network signal
and the SIM card to be recognized
indicates the SIM card is recognized by the camera.
indicates the SIM card is not recognized by the camera
or the SIM card is not working due to connection/
activation issues.
•Take a manual photo by pressing the “SHOT/►”
button or press OK to view the photos stored on the
camera
•Find the picture you want to manually send

MG984G Series
8
•Press the MENU button to pull up the Send To:
option that is currently set in the camera settings
•Press OK again to send the picture via the
messaging option chosen in your camera settings
2.8 Trigger Modes
There are 3 different trigger modes for the camera: PIR
Trigger/Sensitivity, Time Lapse, and a combined PIR/
Time Lapse mode. These modes are activated by three
different menu options (PIR Trigger/Sensitivity, PIR Interval,
and Time Lapse).
•PIR Trigger/Sensitivity
In this trigger mode, the camera will activate when
motion is detected. If the PIR Trigger/Sensitivity
option is set to OFF, the camera will not respond to any
motion within the camera’s trigger detection range.
•Time Lapse
In this camera mode, the camera will activate at the set
time interval regardless of motion detection. If the
Time Lapse option is set to OFF, this trigger function
will be disabled.
•Combined PIR/Time Lapse
For the combination of both PIR and Time Lapse
triggering, the following settings must be set correctly:

MG984G Series
9
•PIR Trigger/Sensitivity must NOT be set to OFF
•The Time Lapse interval must be set to a
non-zero value.
The camera will capture pictures or video when motion is
detected and at the preset time(s), regardless of
motion detection.
●If PIR Trigger/Sensitivity and Time Lapse options are
BOTH OFF, the camera will not capture any photos or
videos.
Additional PIR settings to note:
•PIR Interval
This setting indicates how long the PIR sensor will be
disabled after each camera triggering. During this
interval time, the camera will not react to any
detected motion or activate at the scheduled Time
Lapse interval.
Further detailed information about the trigger modes can
be found in Camera Setup Options section of the manual.

10
2.9 Password Set
Encryption settings, you need to enter your pre-set
password to enter the camera, can play a role in
protecting privacy，composed of four digits.
This function is off by default, if you want to use the option to
open it.
2.9.1 Press ▲/▼to adjust the number from 0~9,/► to change
the password
2.9.2 Password settings need to enter the same password two
times to take effect.
2.9.3 After the password is set up, the next boot will need to
enter the correct password to enter the camera.
If you forgot this password, please contact us for help
Password settings interface,need to enter the same password two
times
After the password is set successfully, the next boot will need to
enter the correct password to enter the camera.
MG984G Series

11
3. Camera Setup Settings & Display
3.1 Settings Interface & Display
To update the camera settings, place the power switch to
the TEST/SETUP position.
To navigate the menus, utilize the following built-in
buttons:
MENU: Enter the program menu in Preview Mode
▼► : Move between menu options (OK to select)
OK / PLAY: Save parameter settings and play videos
DEL / : Delete an image/video when viewing them
SHOT / ►: Capture a photo or record a video manually
When the camera is in TEST/SETUP Mode, the screen will
be activate and display the following:
indicates the SIM card is recognized by the camera.
indicates the SIM card is not recognized by the camera or
the SIM card is not working due to connection/activation
issues.
Vodacom
SD card icon
Available space
Battery level
Number of image
MG984G Series

12
3.2 Mobile Communication
The camera can receive and respond remotely to commands sent
via SMS, MMS, GRPS, Molnus and the Molnus Apple or Android
application, as long as the camera is correctly connected to a
wireless carrier.
To enable the SMS functionality using the mobile application, you
must complete the following steps:
•Place the camera in Test/Setup Mode and go into the menu
Setup options
•Set SMS control to ON in the second tab from the right in the
camera menu.
For MMS/GPRS/Molnus functionality, the following menu
Setup options will need to be set:
•MMS network settings (varies depending on carrier)
•GPRS network settings (varies depending on carrier)
•Molnus (varies depending on carrier)
•Send to Phone option: MG984G-36M:MMS/GPRS/Molnus
The settings for the network options vary between service
providers. You will need to contact your SIM service provider
for specifics on these settings.
MG984G Series

13
PICS BELOW
STEP 1: Choose the Country and SIM card Network. Check
WAP/Internet Parameters:
Fill out the required fields (marked with an asterisk).
Input Email server e.g. “smtp.gmail.com”
NOTE: If your email uses encryption techniques, please select
the corresponding protocol. If using Gmail as the sending email,
you should select SSL to ensure the success of sending mail.
MG984G Series
•Download the relevant BMC CONFIG_CAMERA_TRAPScc.exe program directly to your PC
•Open the BMC CONFIG_CAMERA_TRAPScc.exe Application Program and Select MG984G-36M camera model
3.3 SETUP using the Camera Setup Software
You can either input your relevant Cellular Network Providers Parameters
manually into the camera or you can download the setup application
program BMC CONFIG_CAMERA_TRAPScc.exe and save it to your PC /
laptop which has all these parameters pre-installed and you can also change
the camera settings. BMC CONFIG_CAMERA_TRAPScc.exe can be securely
downloaded from the CAMERA TRAPS cc
website under Firmware Updates (MG984G 36M)
or contact [email protected]
This BMC CONFIG_CAMERA_TRAPScc.exe setup program creates a
folder (called 'GSM') which will need to be copied to your SD card and
put back into the camera to update it.

14
Step 1
Step 1
Step 3
Step 4
Step 5
MG984G Series
Step 1

15
STEP 3: Choose between default or manual settings. For first
time use, we suggest using the default settings.
STEP 4: Input the phone number of the phone to
receive/send the remote commands and images in the
“administrator number” field and email address in
“Receive Email 1” field (This is NOT the phone number of the
inserted SIM card that resides in the camera).
STEP 5: Select the location to save the relevant settings then
click 'Save' and a 'GSM' folder will be created in the selected
location.
If your country or SIM card provider is not listed, select
“Others”. You will need to ask the SIM card provider for their specific
MMS URL, MMS APN, Port, MMS IP, Account, Password, GPRS
APN, GPRS account, GPRS password (or contact CAMERA TRAPS cc for
relevant parameters - [email protected]). For email sending, your
email service provider will be able to provide the send email
server and port settings.
STEP 6: Copy this 'GSM' folder to the SD card and after it is
inserted into the camera and the camera is turned on,
these settings will automatically be updated to the camera.
3.4 Setting up your camera for Molnus
To get started, you need to supply the camera with batteries and a
SIM-card that has internet access.
You also need to have the SIM phone number and the cell network's APN
setting of the SIM-card to use for the camera.
The APN name is provided by the operator of the SIM card. Each operator has
their own APN name. If not present in any documents that were sent along
with the SIM-card, then please check the operators homepage for APN settings.
MG984G Series

16
•Register your Molnus account with a valid e-mail address and activate it with the
relevant Activation Code that will be automatically e-mailed to you.
https://molnus-asia.azurewebsites.net/#/register
Start the camera in SETUP mode, and wait for the unit to pick up cell signal in the
camera display - now go to the next step.
Now go back to Molnus.
MG984G Series
•Login to your Molnus account and go to the 'My Cameras page' (in Molnus).
•Press the blue 'Register camera' button (in Molnus)
•Give your camera a unique name of your selection in 'Camera name' (in Molnus)
•Press the Menu button and press (Arrow-right) button two times
•Press the (Arrow-down) button once, so that the blue marker is placed on 'Send to'
•Press the (Arrow-right) button until 'Molnus' appears and press 'OK'. It will take you to
the relevant APN settings page and the relevant SIM card's operator APN settings should
appear here. If not, please fill in as per below (for South Africa) or ask your cell providor
for these parametars
•Now again press the Menu button twice and press (Arrow-right) button once
•Press the (Arrow-down) button seven times, so that the blue marker is placed on
'Version' - and press 'OK'
•You will see information about your camera on the display (on camera)
•On the IMEI row you fill in the IMEI number that you will see on the cameras display
(in Molnus)
•Choose the region for where the camera is planned to be used (in Molnus)
•Type in the Control code that you will find in camera display (in Molnus)
•Type in the cell phone number of the SIM card for the camera. Please note: you must
use a plus-sign (+) and country prefix!
(Example +27 for SOUTH AFRICA)
•Type in the APN name (and username and password if your operator demands this) (in
Molnus) - see below for South African Network Parameters
Go to the camera.

17
1. Slide the functions switch to ON position on your camera, and quickly place the device
with the camera facing an area with no movement, for example against an wall (on
camera)
2. Press the blue 'Register' button in Molnus, and wait for about 5 minutes (in Molnus)
The registration should now be done and camera should now be able to upload
images / videos to Molnus.
Test the function by making some moment in front of camera. Within some short
time, the images will show up in Gallery in Molnus.
If you would like to use Molnus on your smartphone, then please download the Molnus
app on Google Play or Apple's App Store.
3.5 Mobile Applications
When the camera is switched to the ON mode, you can
change some of the basic camera settings through the
mobile application. There are currently apps supported by
Android and Apple devices. Charges or fees may apply
when sending text messages to the camera depending on
your cellular provider.
•For Android, you can search BGTools from
Google store or download the application directly
from our website, under the Downloads section:
http://www.bolymedia.com/index/Support
MG984G Series
Vodacom
APN = internet
Username = (leave blank)
Password = (leave blank)
MTN
APN = internet
Username = (leave blank)
Password = (leave blank)
Cell C
APN = internet
Username = (leave blank)
Password = (leave blank)
Telkom
APN = internet
Username = (leave blank)
Password = (leave blank)
Virgin Mobile
APN = vdata
Username = (leave blank)
Password = (leave blank)
afrihost
APN = afrihost
Username = (leave blank)
Password = (leave blank)

18
•For Apple, search BGTools in the official
Apple Apps store.
3.5.1 User Level
There are two user authorization levels for this feature:
administrator and normal users.
Functions User Level
Set administrator phone
number Only administrator’s password
Set administrator’s
password administrator
Set camera parameters administrator
Set normal user administrator
Receive emergency calling administrator, normal user
Send SMS for on spot
picture administrator
Receive MMS when
triggered administrator, normal user
MG984G Series
BGTools
