SCS TB-9075 Installation and operating instructions

TB-9075 Page 1 of 3 © 2017 DESCO INDUSTRIES, INC.
Employee Owned
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: [phone] | West: [phone] • Website: StaticControl.com
497AJL HEPA Vacuum
Installation, Operation and Maintenance
January 2017
USER GUIDE TB-9075

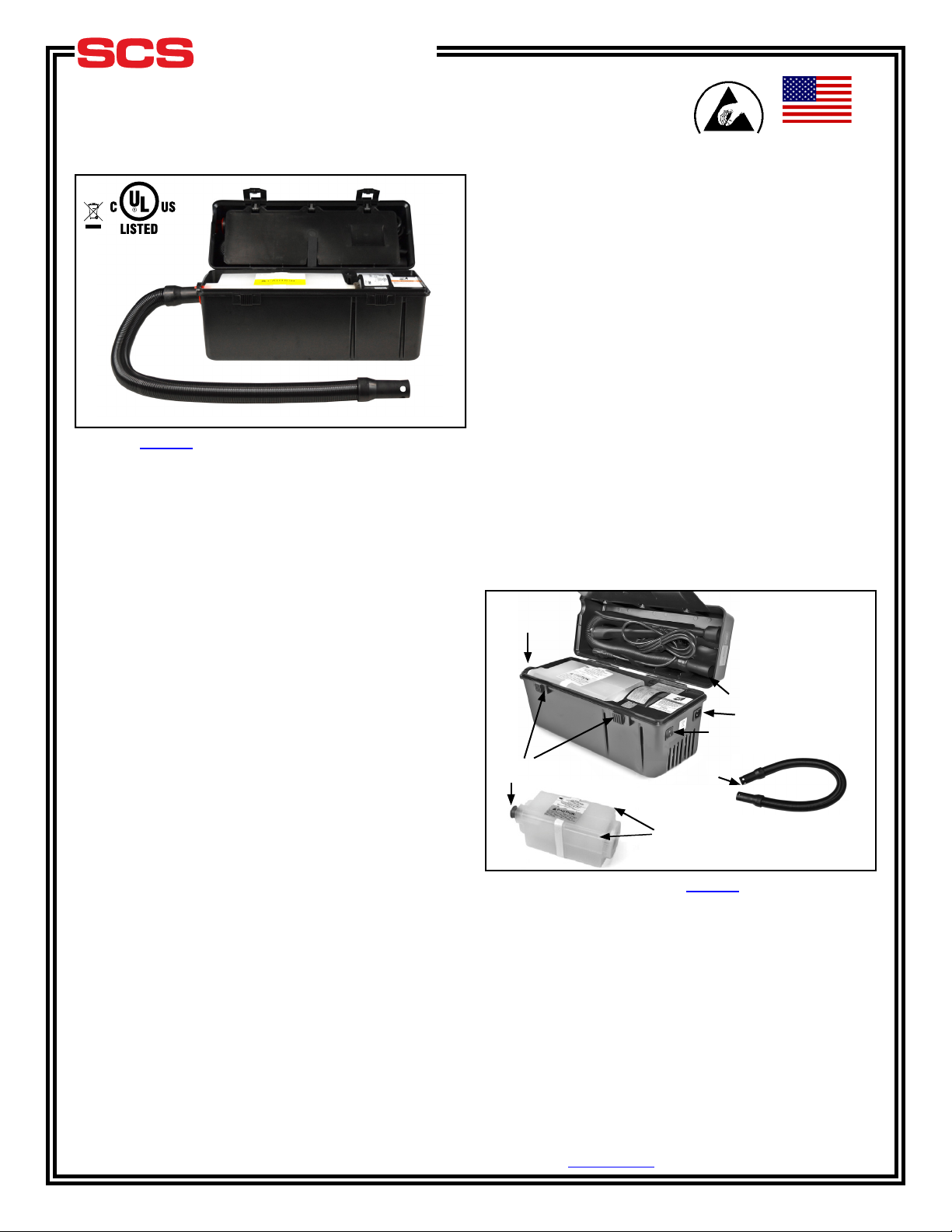

Figure 1. 497AJL HEPA Vacuum.
Grounding Instructions
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to reduce
the risk of electric shock. This appliance is equipped
with a cord having an equipment-grounding conductor
and grounding plug. The plug must be used with an
appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt circuit.
(Check inside each vacuum model motor lid for specic
information.) Make sure the appliance is connected to
an outlet having the same conguration as the plug. No
adapter should be used with this appliance.
Any service on this vacuum cleaner should be performed
by an authorized service representative.
This product meets ANSI/ESD S20.20 and is designed
to be used in an ESD protected area; The hose and
accessories are conductive/dissipative so electrostatic
charges will be removed when properly grounded
throught the power cord to electrical outlet ground prong.
Warning: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or service person if
you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the
appliance. If the plug does not t the outlet, have a
proper outlet installed by a qualied electrician.
Made in the
United States of America
Specications
Electrical 120VAC, 50/60Hz, 6.0amps
Motor 1 Horsepower
Dimensions 17.8" L x 7.8" W x 9.3" H
(45.2 cm L x 19.7 cm W x 23.5 cm H)
Weight 11 lbs.
Certication cULus
To Operate
1. Release latches and open lid.
2. Unfasten accessory door and remove vacuum hose,
electrical cord and hose attachments.
3. Remove lter plug from vacuum inlet (always
replace when repacking for transport).
4. Attach selected accessory to hose. Insert other end
of hose into inlet.
5. Latch lid securely.
6. Insert hooded end of power cord in power cord
receptacle on vacuum.
7. Plug cord into power outlet.
8. Turn on power switch.
Figure 2. How to operate the 497AJL HEPA Vacuum.





5
6


TB-9075 Page 2 of 3 © 2017 DESCO INDUSTRIES, INC.
Employee Owned
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: [phone] | West: [phone] • Website: StaticControl.com
To Replace Filter
The SCS 497AJL HEPA Vacuum is designed for use with
disposable SCS Filters. The lters must be replaced on
a regular basis. Frequency of lter replacement depends
on the type and frequency of use of the 497AJL HEPA
Vacuum.
1. Release the latches and open the lid.
2. Remove red lter plug or hose. Save the plug for use
later (see WEEE Statement).
3. Grasp the lter on each side by using the circular
indentations. Pull lter straight up by both ends.
4. Insert the red lter plug in the lter.
5. Dispose of the lter in a suitable manner.
6. Remove the red plug from the new lter and position
lter in the vacuum with the lter hole to your left.
Save the red plug for use in disposing of the lter
(see WEEE Statement).
7. Verify that the gasket between the lter and the
motor ts tightly.
8. Insert the red lter plug or hose.
9. Close and latch the lid.
To Store Attachments for Transport
1. Unplug the power cord from the outlet and vacuum.
2. Open the lid and retrieve the lter plug.
3. Remove the hose from the inlet and insert the lter
plug.
4. Detach the hose nozzle from the base.
5. Place the hose, power cord and attachments into the
lid and close the accessory door.
6. Close the lid and securely fasten the latches.
Parts List
Item Description
1. SV-PC8 8 Foot Power Cord
2. HEPA VACUUM HOSE-33 7 Foot Hose
3. SV-CN1 Crevice Nozzle
4. SV-WA2 Bent Wand Assembly
5. SV-SPF1 Type 1 Fine Particle Filter
6. SV-CB1 Crevice Brush
7. SV-CS1 Carrying Strap
8. SV-SRP Short Red Plug
9. SV-LRP Long Red Plug
10. Vacuum Hose Cover

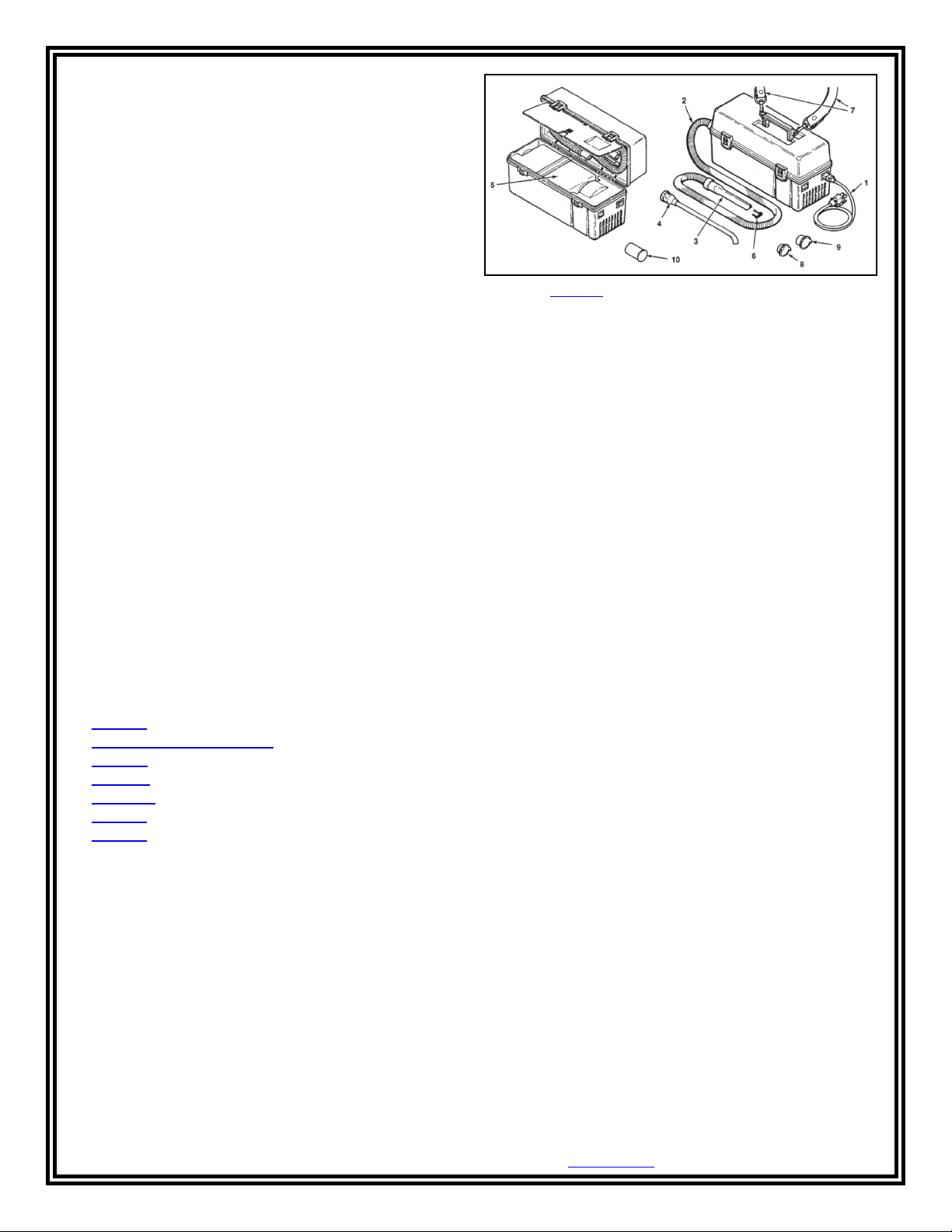

Figure 3. 497AJL HEPA Vacuum parts.
Safety Information
Warning: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY, FOLLOW THESE SAFETY
RULES:
1. Use only as described in this manual. Use only
manufacturer’s recommended attachments.
2. Do not use this machine to vacuum hazardous dust,
ammable or combustible liquids, such as gasoline.
3. Do not use without lter in place.
4. Do not leave appliance plugged in when not in use.
Unplug from outlet when not in use and before
servicing.
5. Do not handle plug or appliance with wet hands.
6. Do not use appliance outdoors or on wet surfaces.
Electric shock could occur.
7. Do not use with damaged cord or plug. If appliance
is not working as it should, has been dropped
or damaged, left outdoors, or dropped in water,
discontinue use.
8. Keep cord away from heated surfaces.
9. Do not put any object into openings. Do not use with
any opening blocked.
10. Connect to a properly grounded outlet only. See
Grounding Instructions.
11. Use extra care when cleaning on stairs.
12. Turn o󰀨 all controls before unplugging.
13. Do not pull or carry by cord, use cord as a handle,
close door on cord or pull cord around sharp edges
and corners. Keep cord away from heated surfaces.
14. Do not allow to be used as a toy. Close attention is
necessary when used near children.
15. Keep hair, loose clothing, ngers and all body parts
away from openings and moving parts.
16. Do not pick up anything that is burning or smoking,
such as cigarettes, matches or hot ashes.
17. Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
Note: Do not operate when lter is full. A lack of
suction or exhaust is an indication of a full lter.
18. The appliance is not to be used by children or
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
19. Do not allow children to use as a toy. Close attention
is necessary when used near children.

TB-9075 Page 3 of 3 © 2017 DESCO INDUSTRIES, INC.
Employee Owned
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: [phone] | West: [phone] • Website: StaticControl.com
Limited Warranty, Warranty Exclusions, Limit of
Liability and RMA Request Instructions
See the SCS Warranty -
http://staticcontrol.descoindustries.com/warranty.aspx
20. If accidental damage occurs discontinue use of this
product.
21. Frequent inspection is recommended for physical
damage or cracking. Clean regularly with a dry cloth.
22. Never operate this product if the unit has a damaged
power cord, power supply or plug. Should the power
cord, power supply, or plug found to be worn or
damaged replace with SCS recommended power
cord SV-PC8.
23. Hearing protection is recommended when operating
this unit.
Electric shock could occur if used outdoors or on wet
surfaces.
Caution: To avoid risk of re, lter must be installed
properly and replaced regularly. Do not open lter, reuse
lter or attempt to replace components within lter.
Regulatory Information
cULus Statement
Meets cULus requirements.
WEEE Statement
The following information is only for EU-member
States: The mark shown to the right is in compliance
with Waste Electrical and Electronic Equipment
Directive 2002/96/EC (WEEE). The mark indicates the
requirement NOT to dispose the equipment as unsorted
municipal waste, but use the return and collection
systems according to local law.
Dispose of lter and vacuum components properly
according to applicable local, state and federal laws.
