Comfort Harness
Assembly
Version 1.1, February 1, 2014

Disclaimer
This document is proprietary to Scubatech Sp. z o. o. ("Scubatech") and no ownership rights
are hereby transferred. No part of this document shall be used, reproduced, translated,
converted, adapted, stored in a retrieval system, communicated or transmitted by any
means, for any commercial purpose, including without limitation, sale, resale, licence, rental
or lease, without the prior express written consent of Scubatech.
Scubatech does not make any representations, warranties or guarantees, express or implied,
as to the accuracy or completeness of the manual. Users must be aware that updates and
amendments will be made from time to time to the manual. It is the user's responsibility to
determine whether there have been any such updates or amendments. Neither Scubatech
nor any of its directors, officers, employees or agents shall be liable in contract, tort or in any
other manner whatsoever to any person for any loss, damage, injury, liability, cost or
expense of any nature, including without limitation incidental, special, direct or consequential
damages arising out of or in connection with the use of the manual.
Should you have any questions or comments regarding this manual, please contact:
Scubatech Sp. z O.O.
Ul. Lubieszyńska 2
72-006 Mierzyn
Poland
Tel/Fax: [phone]
Mobile: [phone]
Email: [email protected]
Web: www.scubatech.pl

Comfort Harness - Assembly
Page 3
Table of Contents
Disclaimer ...............................................................................................................................2
Scope of Delivery ...................................................................................................................4
Assembly ................................................................................................................................4
Step 1 - Installing the Shoulder Belt .....................................................................................4
Step 2 - Installing the Right Shoulder Pad............................................................................4
Step 3 - Installing the Right Pull Ring ...................................................................................5
Step 4 - Installing the Pull Belt..............................................................................................6
Step 5 - Installing the Left Shoulder Pad ..............................................................................8
Step 6 - Installing the Crotch Strap.......................................................................................9

Comfort Harness - Assembly
Page 4
Scope of Delivery
The Tecline comfort harness is delivered as a complete set, ready for assembly:
Parts of the comfort
harness
Unlike a standard harness, the comfort harness consists of 3 main belts + crotch strap.
These parts are assembled as follows.
Assembly
Step 1 - Installing the Shoulder Belt
•First, insert the belt part with the
grommet from the back side of the
plate through the left and right
angular slots.
•The grommet must remain
centered over the backplate hole.
Step 2 - Installing the Right Shoulder Pad
•Hold the right shoulder pad in front
of the backplate, so the Tecline
logo faces away from it.
•Lead the right part of the shoulder
belt through the top flap in the
shoulder pad and then back
through the upper horizontal slot in
the backplate.

Comfort Harness - Assembly
Page 5
•Flip the right part of the shoulder
belt forward, and lead it through the
second flap in the shoulder pad.
•Below the Tecline logo, there are 3
more flaps in the shoulder pad.
Lead the right part of the shoulder
belt through the first flap.
•Install a bent D-ring above the
middle flap.
•Lead the shoulder belt through the
third flap.
Step 3 - Installing the Right Pull Ring
•Lead the belt up through the
moving part of the pull ring and
then through the pull ring itself.
•Lead the belt back through the
shoulder pad, the way it came
down (through the third flap,
through the D-ring and through the
first flap).
•You might need to use a pair of
pliers to pull the belt through the D-
ring again.

Comfort Harness - Assembly
Page 6

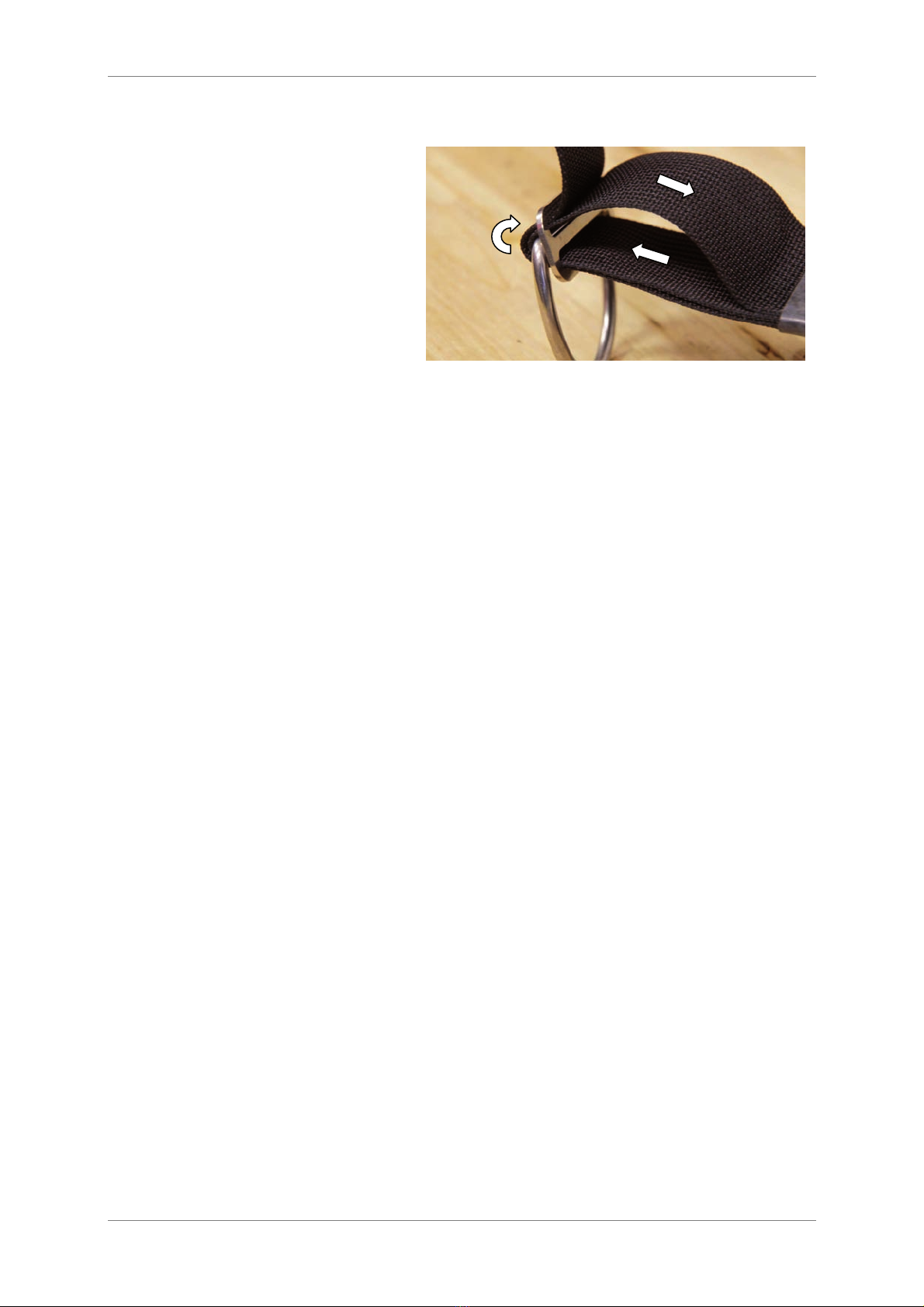

•Finally, hide the belt end under the
flap with the Tecline logo.
Step 4 - Installing the Pull Belt
•Turn the belt, so the seam faces
downwards.
•Lead the end of the pull belt
upwards through the pull ring, over
the cross strut.

Comfort Harness - Assembly
Page 7
•Then, lead the belt end downwards
through the moving part of the pull
ring.
•Install the two rubber pieces to
support a backup lamp.
•Lead the belt end through the inner
backplate slot at the bottom.
•On the back side, fix the belt with a
tri-glide and lead it through the
outer slot.

Comfort Harness - Assembly
Page 8

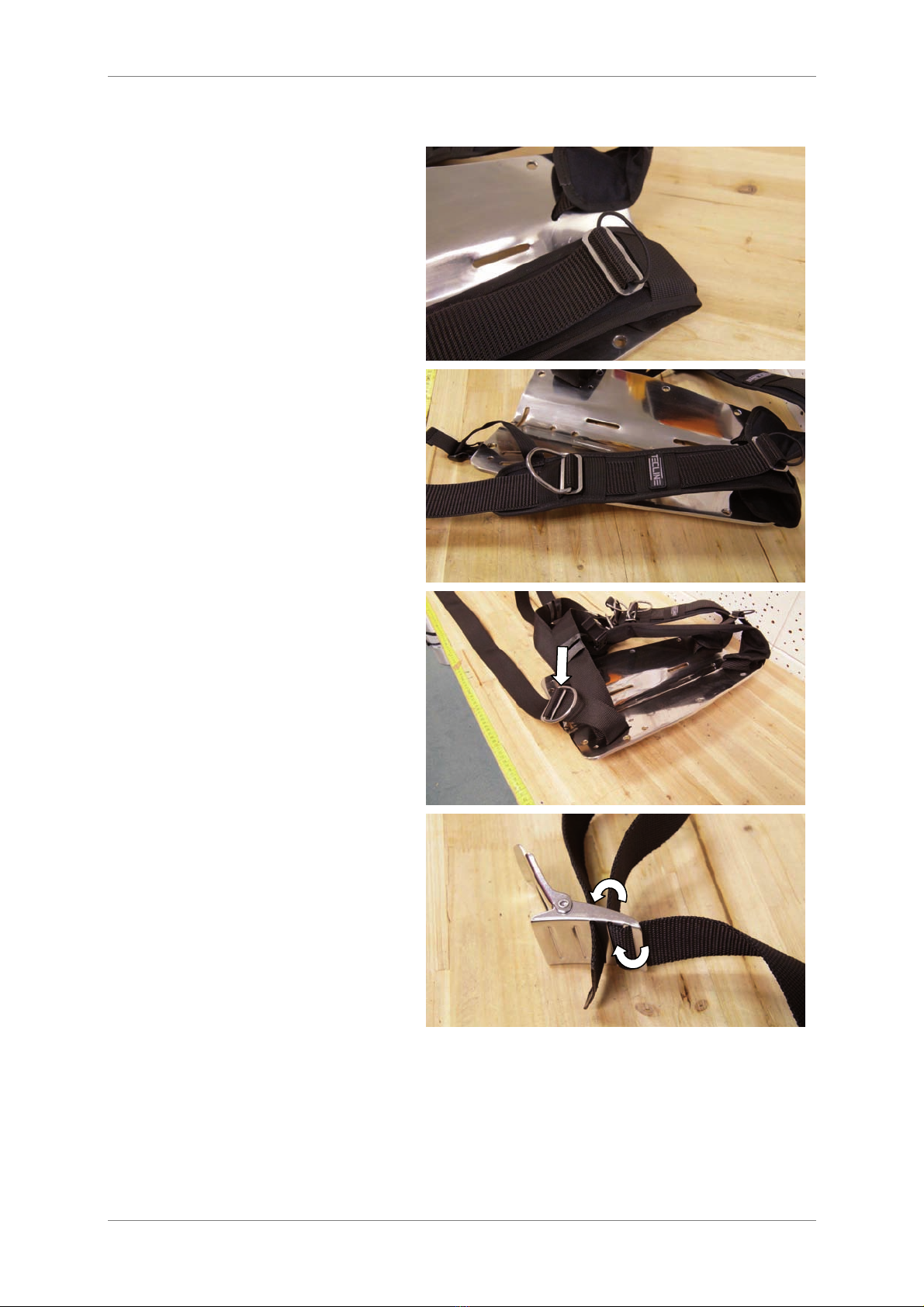

Step 5 - Installing the Left Shoulder Pad
•Mount the shoulder pad on the left
shoulder belt, as described in
step 2.
•Lead the belt through the second
flap, and install the inflator bungee.
•Install the angular D-ring, the pull
ring and the pull belt like on the
right side.
•Install two rubber pieces on the pull
belt.
•Lead the pull belt through the slots
at the bottom (with fixation).
Install the movable D-
ring.
•Install the buckle.

Comfort Harness - Assembly
Page 9
Step 6 - Installing the Crotch Strap
•Install the remaining rubber piece
on the belt.
•Lead the belt end upwards through
the horizontal slot at the bottom of
the backplate (from back to front).
•Lead the belt end through the
rubber piece, through the backside
D-ring and back through the rubber
piece.
Adjust the harness to the diver, by pulling the left and right belt through the tri-glides on the
back.
Should the belt be too long, you may cut it to length. In this case, be sure to melt the cutted
belt edge with a lighter, in order to avoid fraying.
You may also fold back the overlapping belt end to the left and secure this end to the belt
with duct tape.
