SCUDO BELINI-LED-600 User manual

Please Note: This specification applies to Ｔouch sensor switch LED smart mirrors
BELINI-LED-600
LED SMART MIRROR
Mirror Ф600mm
INSTRUCTION MANUAL

LED SMART MIRROR
Mirror 700x500mm
Touch Sensor Switch

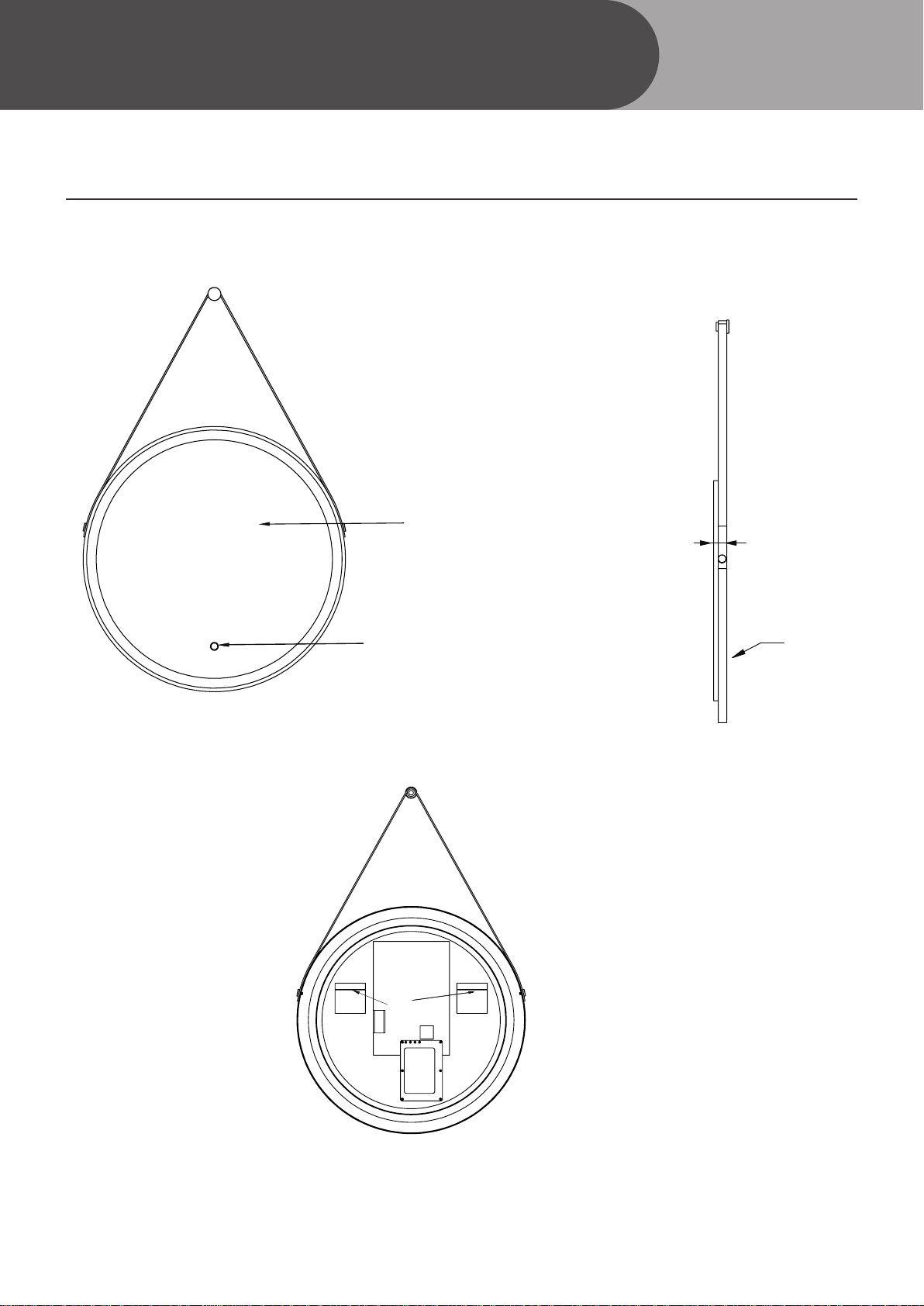

Front view
Back view
Side view
4mm copper free mirror
30.8mm
Aluminum
frame
BELINI-LED-600
a

LED SMART MIRROR
Technical Details
Heated De-mister Pad
This mirror comes with a demister pad,which heats the surface of the mirror
above room temperature removing the mist on surface .
Touch Sensor On/Off Switch
The touch sensor switch can be used to Turn Led Lights and Demister On/
Off. Touch the sensor switch located on the mirror face
Change the Colour of Led Light
This mirror comes with colour changing led strips (2700k to 6500k). Touch and
then hold hand in front of the sensor switch until desired colour isobtained.The
colour temperature is then set until changed again.
Portrait Mounting
You can hang this mirror in Portrait position using the hangerprovided on
the back of mirror.
Electrical Safety Information
We recommend that all electrical bathroom products should only be fitted by a
qualified -Part P registered electrician in accordance with the current IEE
Regulations.
Please ensure the Mains supply is switched off before attempting installation.
Before drilling ensure there are no hidden cables or pipes in the wall.
Installation Information
We recommend that you receive the product before commencing with
installation as all sizes and measurements are approximate.
We try to ensure all measurements are as accurate as possible.
In the interest of continued product development, we reserve the right to alter
specifications as necessary.E & OE.
BELINI-LED-600

LED SMART MIRROR
Safety & Installation Notes
Installation
1. Position the Mirror in a suitable location according
to the Zonal diagram above ensuring that the
the electrical entry point of the product.
2. Carefully mark the position of the mirror using a soft
pencil ensuring its level. Remove the mirror and
mark the mounting points, Please ensure that all the
mounting points accurately match up with the fixing
points on the mirror .
3. Using a suitable drill bit, drill holes in the marked
positions to suitable depth.If drilling through tile,
use a ceramic drill bit.
4. Insert wall plugs level with the surface of the wall, If
fitting to a tiled surface. wall plugs should be
inserted below the tiled surface to avoid cracking.
For plasterboard walls, special fixings should be
purchased, available from any DIY or hardware store.
5. Ensure the domestic electrical mains supply to
which the mirrors being connected is turned off.
Connect the domestic mains supply to terminal box
according to the wiring diagram.
6. Hang the mirror in portrait position .
7. Switch on the domestic electrical mains supply for the mirror
Operating Instructions
1.To turn on the light, touch the sensor switch located on
the mirror face, The Heated Pad is Only ON when the
mirror is illuminated.
2.Touch and then hold hand in front of the sensor switch
until desired colour is obtained. The colour temperature is
then set until changed again.
Care Instructions
Do not use
abrasives or
solvents when
cleaning this
product.Wipe off
all water spillages
as soon as possible
using a soft, damp
cloth.
Aftercare Service
In the unlikely
event that this
product should fail
,please contact our
customer service
Thankyou for purchasing this Product
refer back to them during installation to
ensure product safety.
Retain this leaflet for future reference
Before installation ,ensure the domestic
electrical mains supply is switched off.Before
drilling ,ensure there are no hidden cables or
pipes in the wall.

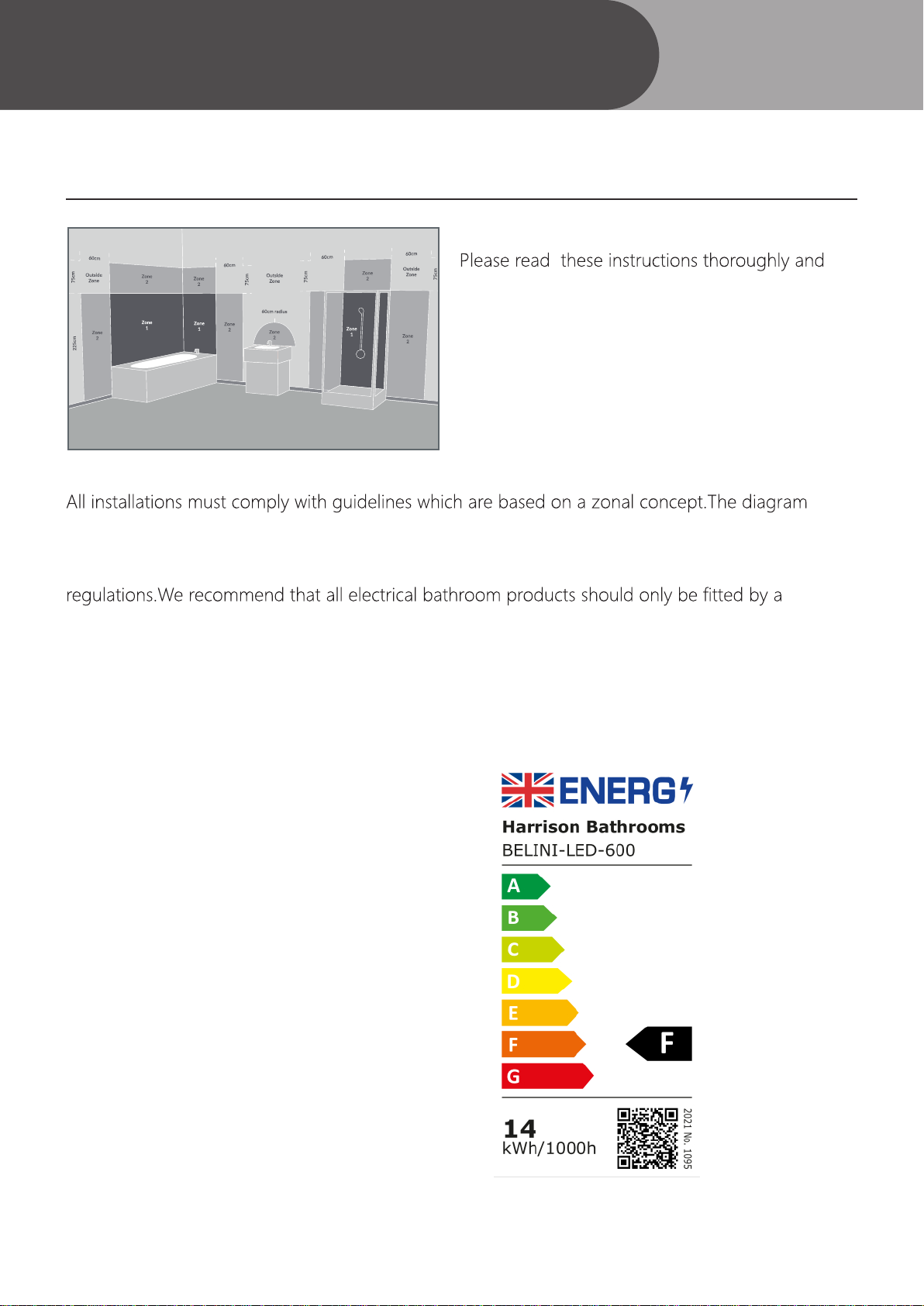

These products are suitable for installation in zones: 2 & Outside Zone
above illustrates this concept and must be followed to ensure the safe installation of Electrical
appliances in the bathroom .These regulations apply to domestic installations only. Installations
must be made in accordance with the current IEE wiring regulations and relevant building
suitably qualified, Part P registered electrician.
BELINI-LED-600

LED SMART MIRROR
Installation Instructions
General Information
This product conforms to U.K. safety standards and must be installed in accordance with the current
IEE Wiring and Building regulations(Part P).
Ensure that connections are turned off at the consumer unit or fuse board before installing or
carrying out any maintenance.
This product is for indoor use only.
This product is IP44 rated and can be installed in bathroom zone 2(Defined by the IEE wiring
regulations) and beyond.
Important
When working at heights, please use a suitable platform to work from.
Please Note:
For the new installations, check for any electrical cables or pipe work(gas/water) in the vicinity of the
intended mounting point before proceeding with the installation.
Ensure that the fixing location is able to take the weight of the complete fitting.
Wear suitable eye protection when drilling.
Be careful when using power tools near water.
Do not strike the mirror glass with hard or pointed items.It is recommended that the product is
cleaned with a soft and non abrasive cleaning cloth.
Do not use abrasive materials on any type of finished surface .
Do not allow moisture to come in contact with the working electrical components.
Compliance
This product complies to CE & UKCA standards.
BELINI-LED-600

LED SMART MIRROR
Installation Procedure
Installation Tools
Spirit level Drill Hammer
Notes: To ensure the normal use of products, it is required you set out wires as per the regulations
of IEE at the installation places. The Products are only applicable to being installed on the indoor
solid wall.The installation must be carried out by a professional electrician and wrong installation
may lead to product damage and personal injury.
Pencil
Fig. 1 Fig. 2 Fig. 3
It is recommended that this product is installed by two people.
1.
2.
3.
4.
5.
6.
7.
a
*2 *2
Tape measure
Make certain the wall is solid, and use the Tape measure to measure the distance between
two hangers on the back of the mirror ("a” in Fig. 1).
Use the Tape measure to measure the distance ‘a’ on the wall and mark them out with a pencil
Choose a drill with an appropriate drill bit to make four holes at the marked places, and use
an appropriate drill bit for the wall surface.
Use the hammer to strike an expansion rubber plug into the holes on the wall, and then
screw the bracket into the hole (Fig. 2).
Switch off the power, and then use a terminal block to connect the two-core exposed wires
with those reserved on the wall (see details in Fig. 4).
Hang the product on the wall brackets (Fig. 3).
Finally switch on the power, and then wave your hand in front of the switch to test the products.
BELINI-LED-600
a

LED SMART MIRROR

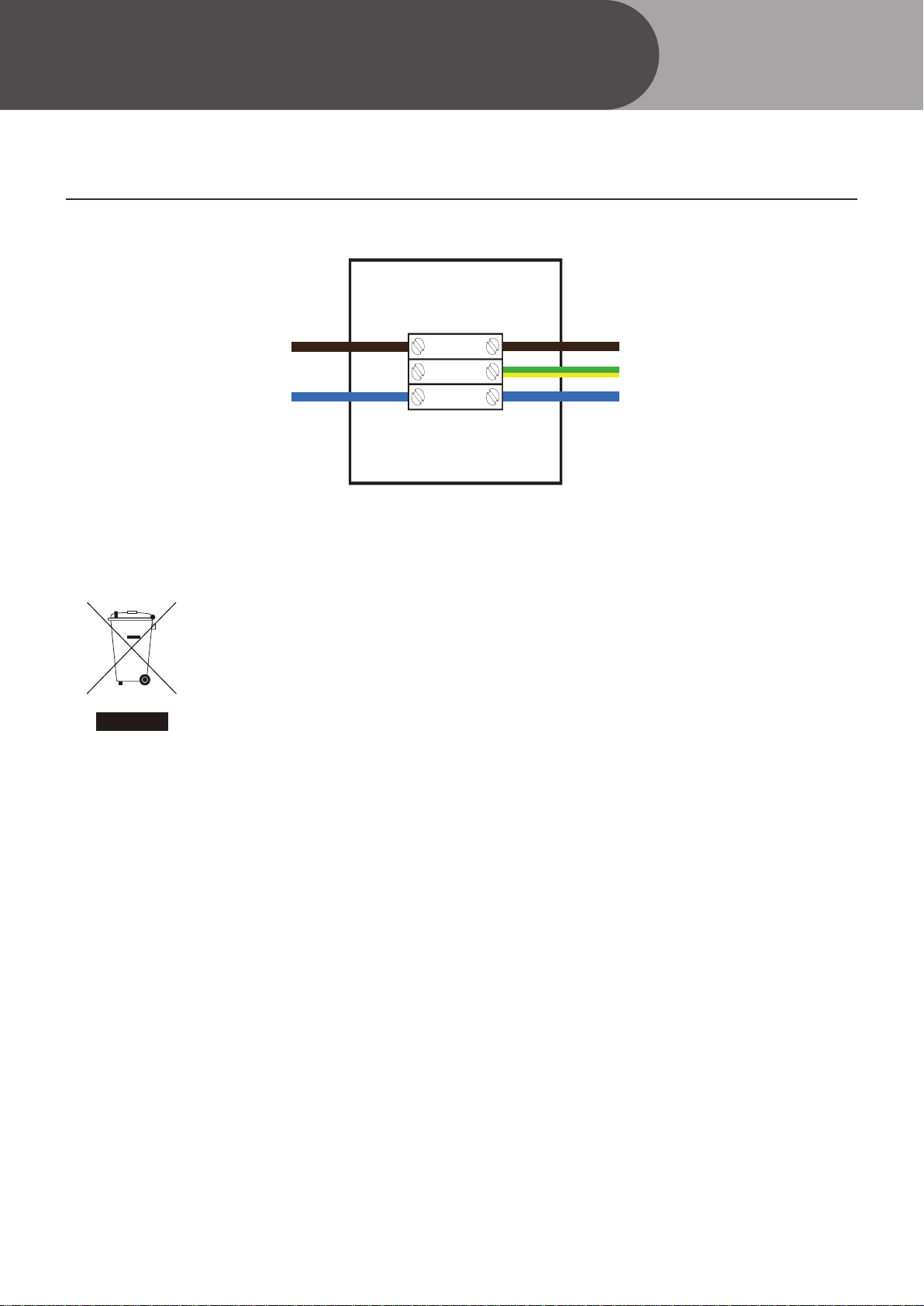

Wiring Diagram for Input
Brown
Yellow green
Blue
Brown
Yellow green
Blue
LUMINAIREMAINS SUPPLY
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing
this mark (left) must not be disposed off with other household or commercial waste. We do not levy any
WEEE disposal charges to its customers for affected WEEE related products. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate any such product
from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority,
Recycling Center or retailer for recycling advice.
Live
Earth
Neutral
Fig. 4
BELINI-LED-600

0kg
kg
LED
5K HOURS
.16w
5000
A
YES
YES
NO
COOL WHITE
LED SMART MIRROR
Electrical Safety Information
LED Mirror FAQ's
We recommend that all electrical bathroom products should only be fitted by a
suitably qualified, Part P registered electrician in accordance with the current IEE
regulations. Ensure mains power supply is turned off before starting
installations.Before drilling ensure their are no hidden pipes or cables in the wall.
We recommend you receive the product before commencing installation as all
the measurements and sizes are approximate.We try to ensure that all
measurements are as accurate as possible.In the interest of continuous product
development,we reserve the right to alter specification as necessary.E & OE.
Mirror Weight (kg)
Mirror+Box Weight (kg)
Light Source
Light source average span
Total Rated Wattage (W)
Lumens(Lm)
Kelvins(K)
Is the mirror Dimmable?
Energy Rating
What orientation can the mirror be hung in ?
Is the heated pad on when the mirror is illuminated ?
Does the mirror require an earth connection?
Can i bypass the sensor so the mirror comes on with the main room light?
Is it cool white or warm Illumination ?
4.0kg
6.2kg
LED
50K HOURS
28W
2700-6500K
F
PORTRAIT
YES
NO
NO
WARM TO COOL WHITE
BELINI-LED-600
1680
NO
