SE FA902400TX-Espresso User manual

FA902400TX-Espresso
Bexley Media Fireplace
Assembly Instructions
For assistance with assembly, contact:
Southern Enterprises Inc.
Customer Service 1-800-633-5096
[email protected]om
www.seidal.com

Bexley Media Fireplace

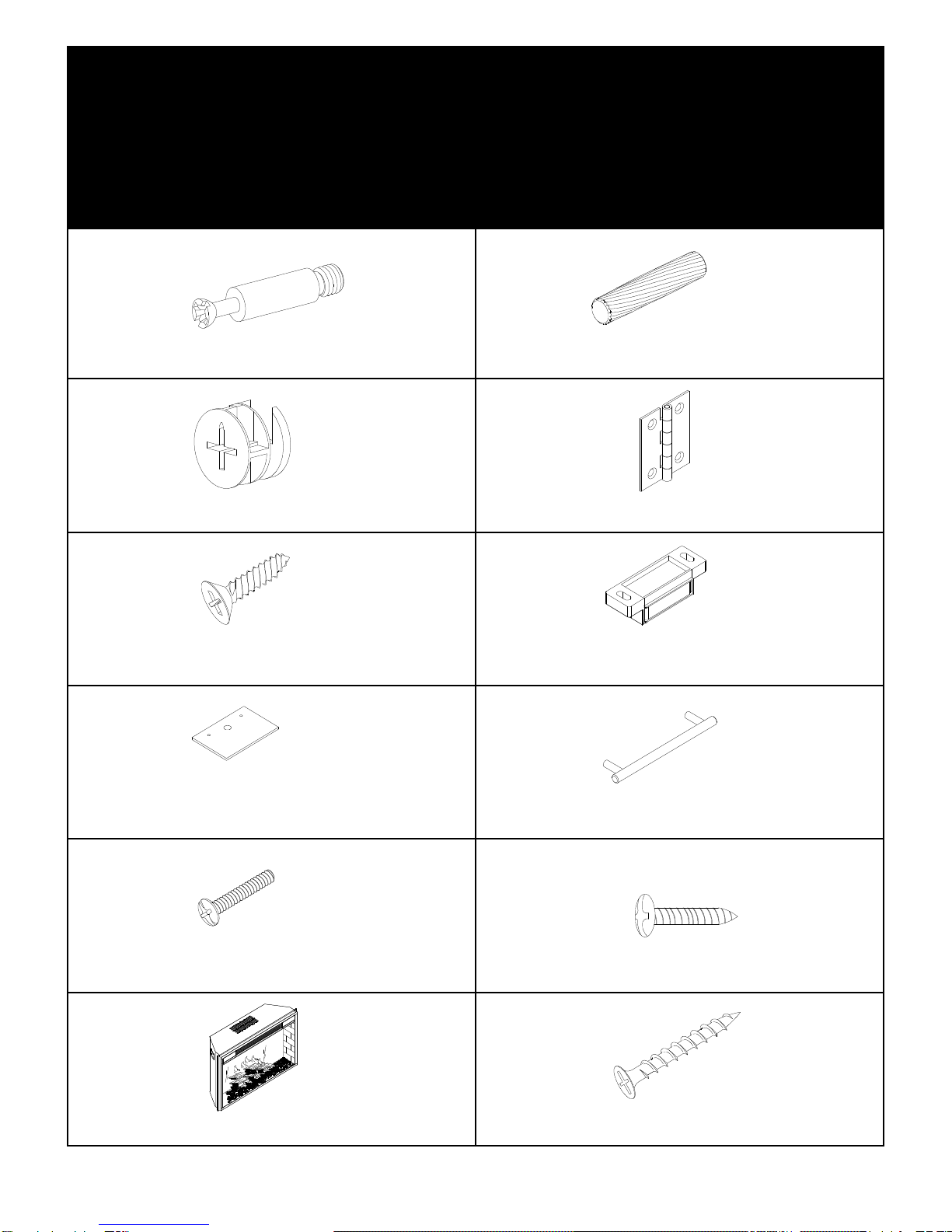

Parts List
Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded
surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is
missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to
the pictures. Using the incorrect hardware will cause damage.
A Quantity
of 45
Cam Bolt
B Quantity
of 42
Wood Dowel (Ø8 x 30mmL)
C Quantity
of 45
Cam Lock
D Quantity
of 4
Hinge
E Quantity
of 18
Screw (Ø3 x 14mmL)
F Quantity
of 2
Magnet
G Quantity
of 2
Magnet Plate
H Quantity
of 2
Handle
I Quantity
of 4
Bolt (Ø5/32” x 3/4”L)
J Quantity
of 48
Screw (Ø3 x 1/2”L)
K Quantity
of 1
Firebox （In Separate Carton）
L Quantity
of 4
Screw (Ø8 x 1”L)

M Quantity
of 1
Anti-Tipping Hardware
(1) Quantity
of 1
Top Panel
(2) Quantity
of 1
Left Side Panel
(3) Quantity
of 1
Right Side Panel
(4) Quantity
of 2
Middle Side Panel
(5) Quantity
of 1
Middle Divided Panel
(6) Quantity
of 1
Lower Left Divided Panel
(7) Quantity
of 1
Lower Right Divided Panel
(8) Quantity
of 2
Side Shelf Panel

(9) Quantity
of 1
Middle Shelf Panel
(10) Quantity
of 1
Bottom Panel
(11) Quantity
of 1
Top Rail
(12) Quantity
of 1
Left Door Panel
(13) Quantity
of 1
Right Door Panel
(14) Quantity
of 2
Upper Back Panel
(15) Quantity
of 2
Lower Back Panel
(15) Quantity
of 2
Wood Holder
Care and Cleaning Instructions:
Before using, wipe with a clean, dry cloth.
Periodically apply furniture wax to renew
the finish.Avoid rubbing or scratching the
surface with rough or abrasive objects.
Call customer service at 1-800-633-5096 for assistance,
questions, or parts.
Assembly Tool Required
No.2 Phillips Screwdriver (Not Included)

Bexley Media Fireplace
Assembly Instructions
Figure 1
Insert 2pcs cam locks (C) into holes
on top rail (11).
Screw 2pcs cam bolts (A) into holes
on side divided panels (6) and (7).
Attach lower left divided panel (6) and
lower right divided panel (7) to top rail
(11) by inserting cam bolt (A) into
corresponding holes until lower left
divided panel (6, lower right divided
panel (7) , and top rail (11) meet.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
Figure 2
Insert 7pcs cam locks (C) into holes
on assembled unit.
Screw 7pcs cam bolts (A) into holes
on middle shelf panel (9).
Attach assembled unit to middle shelf
panel (9) by inserting wood dowels
(B) and cam bolts (A) into
corresponding holes until middle
shelf panel (9) and assembled unit
meet.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
6
7
11
6
7
11
9
A
A
A
A
A
A
A

Bexley Media Fireplace
Assembly Instructions
Figure 3
Insert 2pcs cam locks (C) into holes
on side shelf panel (8).
Screw 2pcs cam bolts (A) into holes
on left side panel (2).
Attach side shelf panel (8) to left side
panel (2) by inserting wood dowels
(B) and cam bolts (A) into
corresponding holes until left side
panel (2) and side shelf panel (8)
meet.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
Repeat steps to attach right side
panel (3) to side shelf panel (8).
Figure 4
Insert cam locks (C) into holes on left
side assembled unit from figure 3 and
middle shelf panel (9).
Screw cam bolts (A) into holes on
assembled unit from figure 2 and
assembled unit from figure 3.
Attach assembled unitd from figure 3
to assembled unit from figure 2 by
inserting wood dowels (B) and cam
bolts (A) into corresponding holes
until assembled unit from figure 3 and
assembled unit from figure 2 meet.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
2
3
8
86
7
9
A
B
A
B
B
A
A
A
B
A
B
A
2
3
8
8

Bexley Media Fireplace
Assembly Instructions

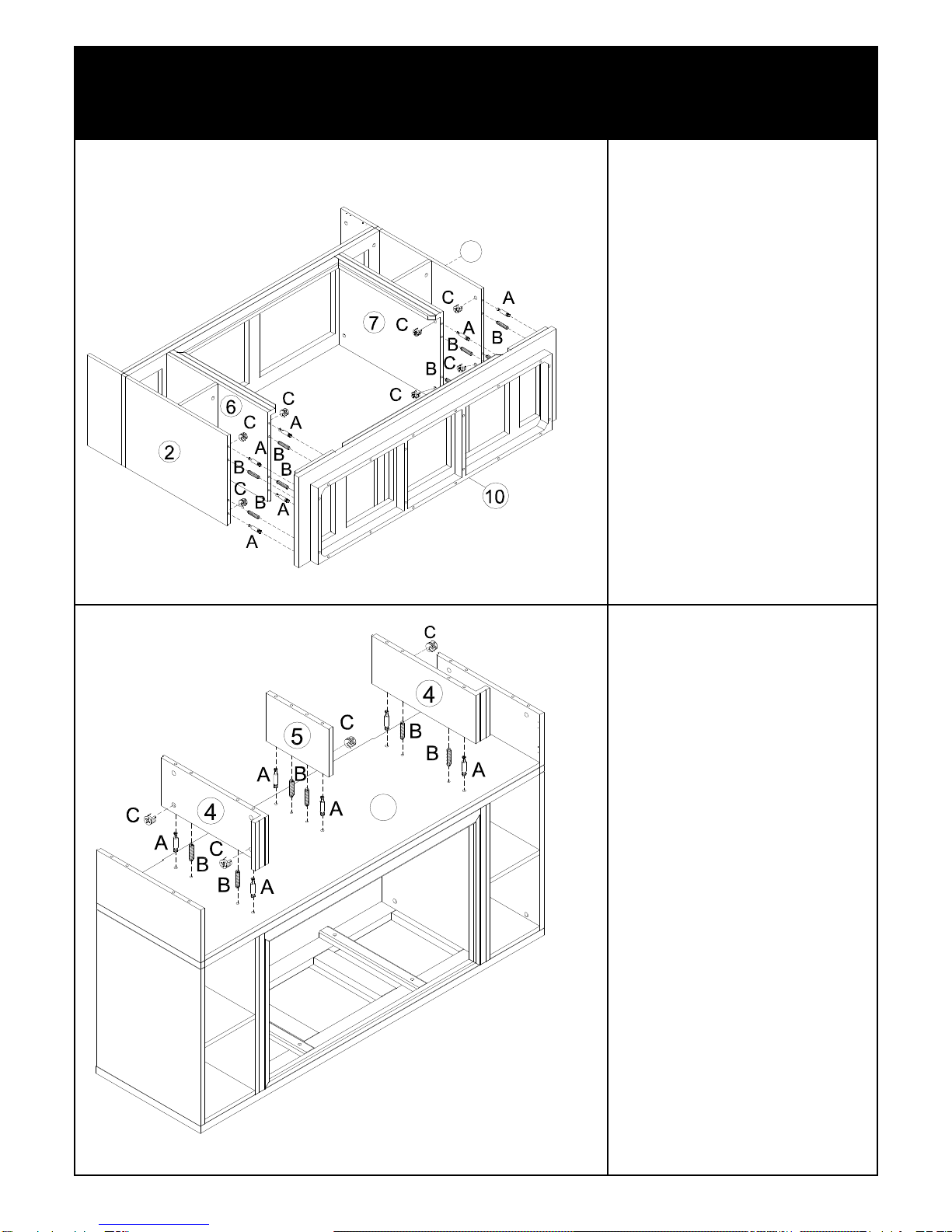

Figure 5
Insert 8pcs cam locks (C) into holes
on assembled unit.
Screw 8pcs cam bolts (A) into holes
on bottom panel (10).
Attach bottom panel (10) to
assembled unit by inserting wood
dowels (B) and cam bolts (A) into
corresponding holes until bottom
panel (10) and assembled unit meet
.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
Figure 6
Insert 6pcs cam locks (C) into holes
on middle divided panel (5) and
middle side panel (4).
Screw 6pcs cam bolts (A) into holes
on assembled unit.
Attach middle side panels (4) and
middle divided panel (5) to
assembled unit by inserting wood
dowels (B) and cam bolts (A) into
corresponding holes until middle
divided panel (5), middle side panels
(4), and assembled unit meet.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
3
A
9

Bexley Media Fireplace
Assembly Instructions

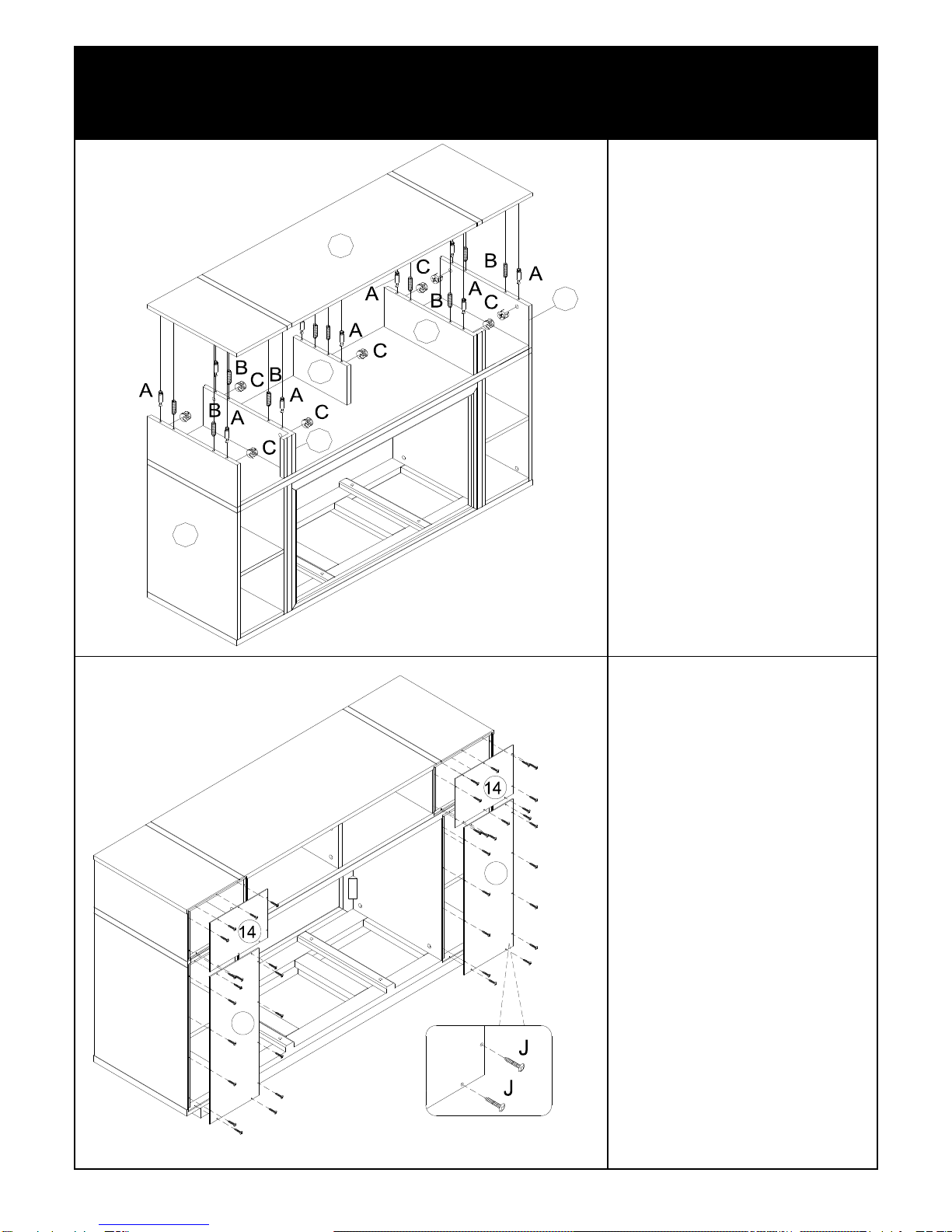

Figure 7
Insert 10pcs cam locks (C) into holes
on assembled unit.
Screw 10pcs cam bolts (A) into holes
on top panel (1).
Attach top panel (1) to assembled
unit by inserting wood dowels (B) and
cam bolts (A) into corresponding
holes until top panel (1) and
assembled unit meet
.
Tighten by rotating cam locks (C)
clockwise with Phillips screwdriver.
Figure 8
Use screws (J) to connect upper
back panels (14) and lower back
panels (15) to the back of the unit
as shown.
Tighten by rotating screws (J)
clockwise with Phillips screwdriver.
15
15
1
A
BC
B
2
3
5
4
4

Bexley Media Fireplace
Assembly Instructions
Figure 9
Use screws (E) and hinges (D) to
connect door panels (12) and (13)
to assembled unit as shown.
Tighten by rotating screws (E)
clockwise with Phillips screwdriver.
Assemble magnet (F) under the
top panel by using screws (J).
Then, attach magnet plate (G) to
the inside of door panels (12) and
(13) by using screws (E).
Use bolts (I) to connect handles
(H) to door panels (12) and (13).
Tighten by rotating bolts (I) with
Phillips screwdriver.
Figure 10
Place firebox (K) into the back of
the unit as shown.
E
H
I
I
HI
I
J
F
E

Bexley Media Fireplace
Assembly Instructions
Figure 11
Attach wood holders (16) on the
sides of firebox (K). Insert 4pcs
screws (L) though pre-drilled holes
on wood holders (16) and tighten into
corresponding holes on the back of
side divided panels (6) and (7).
Figure 12
Use short screws to connect
brackets to the underside of the
top panel (1) as shown. Tighten
screw with Phillips screwdriver.
Drill 1/4 inch pilot holes in near
proximity of the brackets
attached to the top panel, then,
tap the plastic anchors into wall.
Use long screws to connect
brackets to plastic anchors on wall.
Tighten screws with phillips
screwdriver.
Move this item close to the
fastened wall brackets and tie in
both bracket with plastic straps
as shown in diagram.
Now your Bexley media
fireplace is ready to use.
Warning: Anti-tipping
hardware must be used or
this product to avoid tipping
and injury.
L
11

Please immediately examine this product carefully. Any request for missing parts or damage replacement must be
received within 90 days of your receipt of the product. Replacement, if available, will be honored within this time
frame.Parts will not be available for items arriving fully assembled. We do not recommend modifying product(s)
and we are not responsible for any damages due to product modification(s). If damages or missing parts are not
reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise.
Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central
time if you have product issues or email us at se[email protected]. Please ask for customer service
representative for issues involving damages or replacement parts. Please ask for technical assistance
representative for any issues with product and assembly/construction.
Please contact the retailer that you purchased from for returns.
Customer Information
Name
Address
City/State/Zip Code
Phone Number
Please indicate where you purchased this item: Store/Website/Catalog
Please indicate color/size/style number:
Style No Parts Letter Parts Description Quantity Needed
Parts Replacement Form
Customer Service 1-800-633-5096
[email protected]om
Southern Enterprises, Inc.
600 Freeport Parkway, Suite 200
Coppell, Texas 75019

CAUTION
The top shelf is intended for a flat screen television with a maximum overall width of 50” and supports up to 85
lb.
The top shelf is NOT INTENDED for tube televisions.
Open center shelf should not be loaded with more than 20 lb. each of open side shelf should not be loaded
with more than 8 lbs.
DO NOT EXCEED RECOMMENDED LOAD. Use with products heavier than the
maximum sizes and weights indicated may result in instability causing possible injury.
This unit contains a permanent warning sticker located on under side of top shelf or inside drawer.
Model: FA902400TX
BEXLEY MEDIA FIREPLACE
Southern Enterprises, Inc
600 Freeport Parkway,
Suite 200 Coppell, Texas, 75019
