Valor Ultimate Assembly instructions

5108620/02
INSTALLER GUIDE
We trust that these instructions give sufficient details to enable this appliance to be
installed and maintained satisfactorily. However, if further information is required, our
Valor Technical Helpline will be pleased to help.
Telephone [phone] (National call rates apply in the United Kingdom)
In the Republic of Ireland call 0044 08706 061 065
INSTALLER: Please leave this guide with the
owner
© Valor Heating
Ultimate
Model 717
(GC No. 32-032-52)
INSET LIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and
Safety Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires are manufactured to the highest standards of quality and excellence and
are manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to ensure high
standards of safety, quality and performance.
Careful Installation
Valor is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
www.valor.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER GUIDE

CONTENTS
Section Heading
Page
1. SAFETY 4
2. APPLIANCE DATA 5
3. GENERAL INSTALLATION REQUIREMENTS 6
4. PACK CONTENTS
12
5. FIREPLACE CHECK
14
5.1 Fireplace check
14
5.2 Fireplace Flue Pull
14
6. IGNITION CHECK
15
7. GAS SUPPLY CONNECTION
16
8. PREPARING APPLIANCE FOR INSTALLATION
17
8.1 Appliance Preparation
17
8.2 The Flue Restrictor
18
9. CONVECTION BOX INSTALLATION
19
9.1 Method 1- Front Fixing to Fireplace Surround
19
9.2 Method 2 - Cable Retention
19
9.3 Floor Sealing
21
10. BURNER & SUPPLY PIPE INSTALLATION
22
10.1 Burner & Supply Pipe Installation
22
10.2 Preliminary Burner Checks
22
10.2.1 Lighting the burner
22
10.2.2 Operating the burner.
22
10.3 Reference Pressure Check
23
11. FITTING THE FRONT SURROUND
23
12. CERAMIC COALS INSTALLATION
24
13. FIREFRONT CASTING8INSTALLATION
26
14. FULL OPERATING CHECKS
26
15. SPILLAGE & FLAME SUPERVISION CHECKS
28
15.1 Check for Spillage
28
15.2 Flame Supervision & Spillage Monitoring System
29
16. FINAL REVIEW
29
17. SERVICING & PARTS REPLACEMENT
30
17.1 Checking the aeration setting of the burner.
31
17.2 To Remove the Fire Front Surround
31
17.3 To Remove the Burner Unit
32
17.4 To Remove the Pilot Unit
32
17.5 To Remove the gas valve
32
17.6 To Replace the Burner
33
17.7 To Remove the Main Burner Injector
34
17.8 To Remove the Appliance from the Fireplace
34
18. SHORT LIST OF SPARES
34
Page 3
INSTALLER GUIDE

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling
!The lifting weight of this appliance is 12.95 kg
!One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Page 4
INSTALLER GUIDE

2. APPLIANCE DATA
This product uses fuel effect pieces and a burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to these materials may cause irritation to eyes,
skin and respiratory tract. Consequently, it is important to take care when
handling these articles to ensure that the release of dust is kept to a minimum. To
ensure that the release of fibres from these RCF articles is kept to a minimum,
during installation and servicing we recommend that you use a HEPA filtered
vacuum to remove any dust and soot accumulated in and around the fire before
and after working on the fire. When replacing these articles we recommend that
the replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and
may be disposed of at a tipping site licensed for the disposal of industrial waste.
Protective clothing is not required when handling these articles, but we recommend
you follow the normal hygiene rules of not smoking, eating or drinking in the work
area and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products.
* When converted using Kit 0595221
The appliance data label is located on a plate at the base of the fire. This can be seen by
removing the lower hanging trim.
Page 5
INSTALLER GUIDE
Gas Natural (G20) Propane (G31) *
Inlet Pressure 20mbar 37mbar
Input - Max. (Gross) 6.0kW (20,500Btu/h) 6.1kW (20,800Btu/h)
Input - Min. (Gross) 2.3kW (7,850Btu/h) 3.8kW (12,965Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in
w.g.)
37.0 ± 1.0 mbar (14.85 ±
0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Stereomatic Cat 82 - 069 Stereomatic Size 128
Pilot & Atmosphere Sensing
Device Copreci Ref. O.D.S
21500/166
Copreci Ref. O.D.S
21500/166 Fitted with RBM
180 - 02 injector
Ignition Piezo Electric. Integral with
Gas Tap
Piezo Electric. Integral with
Gas Tap
Aeration See section 17.1 Non-adjustable

3. GENERAL INSTALLATION REQUIREMENTS
3.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead
to prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards: -
BS 715 BS 1251 BS 1289 Part 1 BS EN 1806
BS 4543 Part 2 BS 5440 Part 1 BS 5440 Part 2 BS 5871 Part 1
BS 6461 Part 1 BS 6891
In England and Wales, the current edition of the Building Regulations issued by the
Department of the
Environment and the
Welsh Office
In Scotland, the current
edition of the Building
Standards (Scotland)
Regulations issued by
the Scottish Executive.
In Northern Ireland, the
current edition of the
Building regulations
(Northern Ireland) issued
by the Department of the
Environment for
Northern Ireland.
In the republic of Ireland
the installation must be
carried out by a
competent person and
installed in accordance with:
a) The current edition of IS 813 “Domestic gas installations”
b) All relevant national and local rules in force.
c) The current building regulations
Page 6
INSTALLER GUIDE
Figure 1. Hearth and Fireplace Opening Dimensions

Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
3.2 In the United Kingdom, as supplied, this appliance can be installed in the
following situations: -
3.2.1 A masonry chimney with a minimum diameter of 175mm (7”) free from any
obstruction, and with any damper or restrictor plate in the chimney removed or secured,
and having a minimum effective flue height of 3m (10ft). A masonry chimney having a
correctly installed flue liner to BS715 and with a minimum flue diameter of 125mm is
also acceptable. Chair brick removal may not be required providing at least 50mm
clearance is available from the flue outlet to any fireplace component.
3.2.1.1 ‘Hole-in-the-wall’ Installations
! It is recommended that a hearth should be installed as in figure 1.
!
If a hearth is not fitted, the fire must be installed so that the distance from the
base of the fireplace opening in the wall to the finished floor level is at least 72mm.
3.2.2 To a fireplace incorporating a metal flue box conforming to BS715 with a
minimum internal depth of 195mm. Incombustible mineral wool insulation of not less
than 100mm thickness must be applied to the top surface of the firebox (See figure 2)
and it must stand on a non-combustible hearth. See figure 1.
3.2.3 To a fireplace that has a precast
concrete or clay flue block system
conforming to BS1289 or BS EN
1806. The appliance is suitable for
installations conforming to older
versions of BS1289 as well as the
current edition. The flue blocks must
have a minimum width not less than
63mm and a cross-sectional area not
less than 13,000mm2.Older editions
of BS1289 required a cross-sectional
area of 13,000mm2. The current
revision of the standard requires
16,500mm2. This appliance is
suitable in both cases. The total depth
of the opening measured from the
finished front of the fireplace
(Including plaster, surround etc.)
Page 7
INSTALLER GUIDE
Figure 2. Metal Flue Box

must be not less than the dimension shown in figure 3.
The current versions of BS1289 and BS EN 1806 recommend that there should be an air
space or insulation between the flue blocks and the plaster because heat transfer may
cause cracking on directly plastered flues. However, generally this appliance is suitable
for installations under all circumstances unless there is a history of cracking problems.
Remember that faults such as cracking may be caused by poorly built and restrictive
flues, e.g. mortar extrusions, too
many bends, flue heights below
three metres, restrictive
terminations, etc.
3.2.4 If the fireplace opening is
greater than the acceptable
dimensions given in this guide, do
not use the back of a fire surround
or marble to reduce the opening.
This may cause cracking of the
surround back or marble.
3.3 The following flues are
suitable:
! 225mm x 225mm
conventional brick flue.
If a flue liner is used, it must be a
minimum of 125mm diameter.
The liner must be sealed to the
surrounding area above the
fireplace opening and to the top of
the chimney. An approved
terminal must be fitted.
! 200mm diameter factory made
insulated flue manufactured to BS
4543.
! A properly constructed precast flue conforming to B.S 1289 or BS EN 1806.
!
A flue pipe with a minimum diameter of 175mm. See B.S 6461 Part 1 for suitable
materials. Metal flue pipes must comply with B.S 715.
! Single wall, twin wall or flexible flue liner of minimum diameter 125mm. The
materials used are stainless steel or aluminium as specified in B.S. 715.
3.3.1 The minimum effective height of the flue must be 3m.
3.3.2 The flue must be clear of any obstruction and its base must be clear of debris.
Page 8
INSTALLER GUIDE
Figure 3. Pre-cast Fireplace

3.3.3
The flue must be completely sealed so that combustion products do not come into
contact with combustible materials outside the chimney.
3.3.4 The flue must serve only one fireplace.
3.4 The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent
height of the flue
shall be 2.0m of 125mm dia. flue pipe.
3.5 The flue must not be used for any other appliance or application.
3.6 Any chimney dampers or restrictors should be removed. If removal is not
possible they must be fixed in the open position.
3.7 If the appliance is intended to be installed to a chimney, which was previously
used for solid fuel, the flue must be swept clean prior to installation. All flues should be
inspected for soundness and freedom from blockages.
3.8 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
3.9 The appliance must be mounted behind a non-combustible hearth (N.B.
conglomerate marble hearths are considered as non-combustible). The appliance can be
fitted to a purpose made proprietary class “O”-150°C surround. The hearth material
must be at least 12mm thick. The periphery of the hearth (or fender) should be at least
50mm above floor level to discourage the placing of carpets or rugs over it.
The appliance must not stand on combustible materials or carpets (See figure 1).
3.10
The front face of the fireplace should be reasonably flat over the area covered by
the convector box top and side flange seals to ensure good sealing. These faces should
be made good if necessary. The fireplace floor should be reasonably flat to ensure that a
good seal with the convector box can be made.
Page 9
INSTALLER GUIDE

3.11 The minimum height from the top surface of the hearth to the underside of any
shelf made from wood or other combustible materials is detailed below.
• For a shelf up to 150mm deep: Minimum height = 750mm.
• For a shelf deeper than 150mm: 150mm + 12.5mm for every 25mm depth over
150mm. (See Graph 1)
3.12 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance. Please
bear this in mind when installing.
3.13
The appliance must not be installed in any room, which contains a bath, or shower
or where steam is regularly present.
3.14
An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on in
this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
3.15 Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2 and
in IE reference should be made to the current edition of IS 813 “Domestic gas
Page 10
INSTALLER GUIDE
Graph 1. Combustible shelf clearances

Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available
3.16 Propane gas appliances must not be installed in a room, which is built entirely
below ground level (See BS 5871 Pt2).
3.17 If the appliance is to be fitted against a wall with combustible cladding, the
cladding must be removed from the area covered by the outer surround. The cladding
must also not touch the surround. (See figure 4).
We suggest that the actual surround is used as a
template to mark the area for combustible
cladding removal and that this area is increased
by at least 2mm all round.
3.18 The minimum allowable distance from the
outside of the appliance case to a corner wall
having combustible material or any other
combustible surface which projects beyond the
front of the appliance is shown in figure 5.
A 50mm access clearance from a non-
combustible surface is necessary at the left side.
See figure 5.
Page 11
INSTALLER GUIDE
Figure 5. Appliance dimensions
Figure 4. Removal of
Combustible cladding

3.19 Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the
products of combustion can be safely dispersed into the outside atmosphere. Where the
appliance is connected to an unlined brick chimney it is generally unnecessary for the
chimney pot to be replaced or for a terminal to be fitted unless the flue has a diameter
smaller than 170mm.
3.20 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the
appliance closes down after a period of operation for no apparent reason, the consumer
should be informed to stop using the appliance until the installation and appliance have
been thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances should
the A.S.D be altered or bypassed in any way. Only a genuine manufacturers replacement
part should be fitted. The individual A.S.D components are not replaceable.
3.21
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, or the infirm.
4. PACK CONTENTS
The items required for this appliance are packed in two sections.
Section 1 - Fire unit contains:
1 Convection box and burner unit
1Loose parts pack including: -
1Nut and Olive for 8mm Inlet Pipe
1Ceramic back wall
1Front base coal
1 Rear base coal
1Pack of loose ceramics
2Small ‘U’ seals for convection box side flanges
1 Strip of Floor Sealing Tape
1 Flue restrictor with 2 securing screws
6Fibre Plugs
4Woodscrews
2 Tension Cables
2 Cable Adjusters
4 Eyescrews
1Installation template
Page 12
INSTALLER GUIDE

1Smoke match tube
1 Length of Self-Adhesive Foam seal
1“T” connector including pressure test point
1Literature Pack
Section 2 - Fire front contains
1Firefront surround
1Firefront casting
1Front cover casting.
Remove all the items carefully to prevent damage. Take special care when handling the
ceramic components. Some items may be contained in the packaging fitments -
Examine the packaging carefully before discarding. Check that all the items are present
and undamaged.
Page 13
INSTALLER GUIDE
Figure 6. Pack Contents

5. FIREPLACE CHECK
5.1 Fireplace check
5.1.1 Fireplace size
The fireplace must comply with the requirements described in section 3.2. This may
entail removing the fireback and infill material behind the fireback.
5.1.2 Fireplace general condition
The fireplace floor should be reasonably flat to ensure that the convector box can be
installed without it rocking and so that a good seal can be made at the bottom front of
the box. The front face of the fireplace should be reasonably flat over the area covered
by the convector box top and side flange seals to ensure good sealing. These faces
should be made good if necessary. If the appliance is to be fitted against a wall with
combustible cladding, the cladding must be removed from the area covered by the outer
surround. The cladding must also not touch the surround. (See figure 4). We suggest that
the actual surround is used as a template to mark the area for combustible cladding
removal and that this area is increased by at least 2mm all round.
5.1.3 Soundness for appliance attachment
Two primary methods of retaining the appliance are provided: -
1) By fixing to the fireplace front surround.
2)
Using concealed tension cables fixed to the rear of the fireplace opening together
with secondary fixing to the fireplace floor.
The methods are detailed in section 9 of this manual. Before selecting the retention
method, consult with the customer. Method 2 is provided for instances where drilling
holes in the front surface of the fireplace surround is unacceptable to the customer or
otherwise impractical. N.B. It is unwise to attempt to drill into marble without the
proper tools and equipment.
If method 1 is chosen, make sure that the front surround area is sound enough to take
the rawlplugs and woodscrews. If necessary, make sound with a suitable cement.
If method 2 is chosen, make sure that the areas at the back and towards the centre of the
fireplace floor are sound enough to take the eyebolts and screws. If these areas have
deteriorated due to prolonged use, they should be made sound with a suitable cement.
5.1.4 Installations using a metal flue box
The whole of the top surface of the metal flue box must be covered with a minimum
50mm layer of mineral wool or equivalent insulation. (See figure 2).
5.2 Fireplace Flue Pull
Close all doors and windows in the room in which the appliance is to be installed. After
confirming with a match that smoke is drawn into the flue, light a 13 gram smoke pellet
and check that there is a definite flow through the flue. Verify outside that the smoke
exits from one terminal only and that the termination is suitable. Observe where
Page 14
INSTALLER GUIDE

possible, upstairs rooms and loft spaces for signs of escaping smoke indicating a
defective flue. If there is not a definite flow warm the flue for a few minutes and repeat
the smoke pellet test. If there is still no definite flow the flue may need remedial work –
Do not fit the appliance until there is a definite flow through the flue.
6. IGNITION CHECK
Before attempting to install, it is worth checking that the ignition system performs
satisfactorily.
Set the control knob to the off position.
Depress the control knob and rotate it anticlockwise to the pilot ignition position. A
'click' will be heard as the integral piezo operates. A spark should be seen between the
electrode and pilot tip. If there is no spark check the following: -
! Ensure that the electrode lead is connected to the terminal at the base of the
electrode.
! If the above is correct, check for damage to the
electrode lead.
Page 15
INSTALLER GUIDE
Figure 7. Ignition operation

7. GAS SUPPLY CONNECTION
A nut and olive are provided for an 8mm pipe inlet connection to the ‘T’ connector at
the bottom front of the appliance. The ‘T’ connector can be rotated to allow a
connection from any direction. The ‘T’ connector includes a valve for isolating the gas
supply and a pressure test point.The ‘T’ connector should be fitted to the supply pipe at
this stage. The supply pipe must be rigid material. Flexible pipe must not be used.
7.1 Concealed Supply Pipe Connection
If a concealed connection from inside the fireplace is required then, before the
appliance is fitted into the fireplace
it will be necessary to extend the supply line so
that it will project through the sealed opening at the back of the convection box (near
the left side) and run to the ‘T’ Connector at the front
The pipe run from the supply line up to the rear opening in the convection box must be
kept clear of the area which will be taken by the convection box when it is installed. A
template is supplied to aid the installation of the pipe run.
We recommend the following method for installing with a concealed supply pipe:
1. Cut the template to the shape shown by the "Debris catchment area". Note that the
areas are different for fireplaces with conventional brick flues and precast flues.
2. Place the template on the fireplace floor (printed side upward) with the front line
level with the front surface of the fireplace. The centre line of the template should line
up with the centre of the fireplace. Tape the template securely in this position.
3.
Make sure that the fireplace is clear of all material over the full area covered by the
template including that marked "Debris catchment area".
4.
Install the supply pipe to run through the thick line marked "Supply pipe entry" and
up to the inlet elbow position. Note that the centre of the appliance inlet elbow is 30mm
above the fireplace floor. The inlet elbow should be removed from the appliance and
fitted to the supply pipe at this stage. Remove the template. Note: If the supply pipe
connection is to be from the right side, keep the template, It will be useful for
bending the pipe later on (See section 9.1).
7.2 Side Supply Pipe Connection
The appliance is designed to allow a side supply pipe to run in front of the front
surround and through a cut- out at either rear bottom corner of the fire front casting. For
side connection, final installation of the supply pipe should be left until the appliance is
installed in the fireplace.
Page 16
INSTALLER GUIDE

8. PREPARING APPLIANCE FOR INSTALLATION
8.1 Appliance Preparation
1. Remove any transit tape and
packing and inspect for any evidence
of mishandling which might affect the
performance. Each unit is flame
tested before it leaves the factory and
as a result there may be slight
discolouration around the burner
ports.
2. Detach the burner unit from the
convector box by removing two
screws - See figure 8. Lift the burner
unit clear.
3. Fit the two small ‘U’ section seals to the
bottom edges of the convection box side flanges
(See figure 9).
IMPORTANT
Before continuing with the installation of
this gas fire the aeration setting on the
burner must be checked. The aeration is
factory set. See section 17.1
(Servicing and parts
replacement).
4. For concealed connection only:
Pierce a hole in the seal at the back
of the convection box. See figure
10. The seal must envelop the pipe.
If the hole is larger than the pipe,
seal it with tape. Do not pierce the
seal unless the supply pipe is to
pass through it.
Page 17
INSTALLER GUIDE
Figure 9. Fixing restrictor
Figure 8. Burner attachment points
Figure 10. Concealed connection seal

Page 18
INSTALLER GUIDE

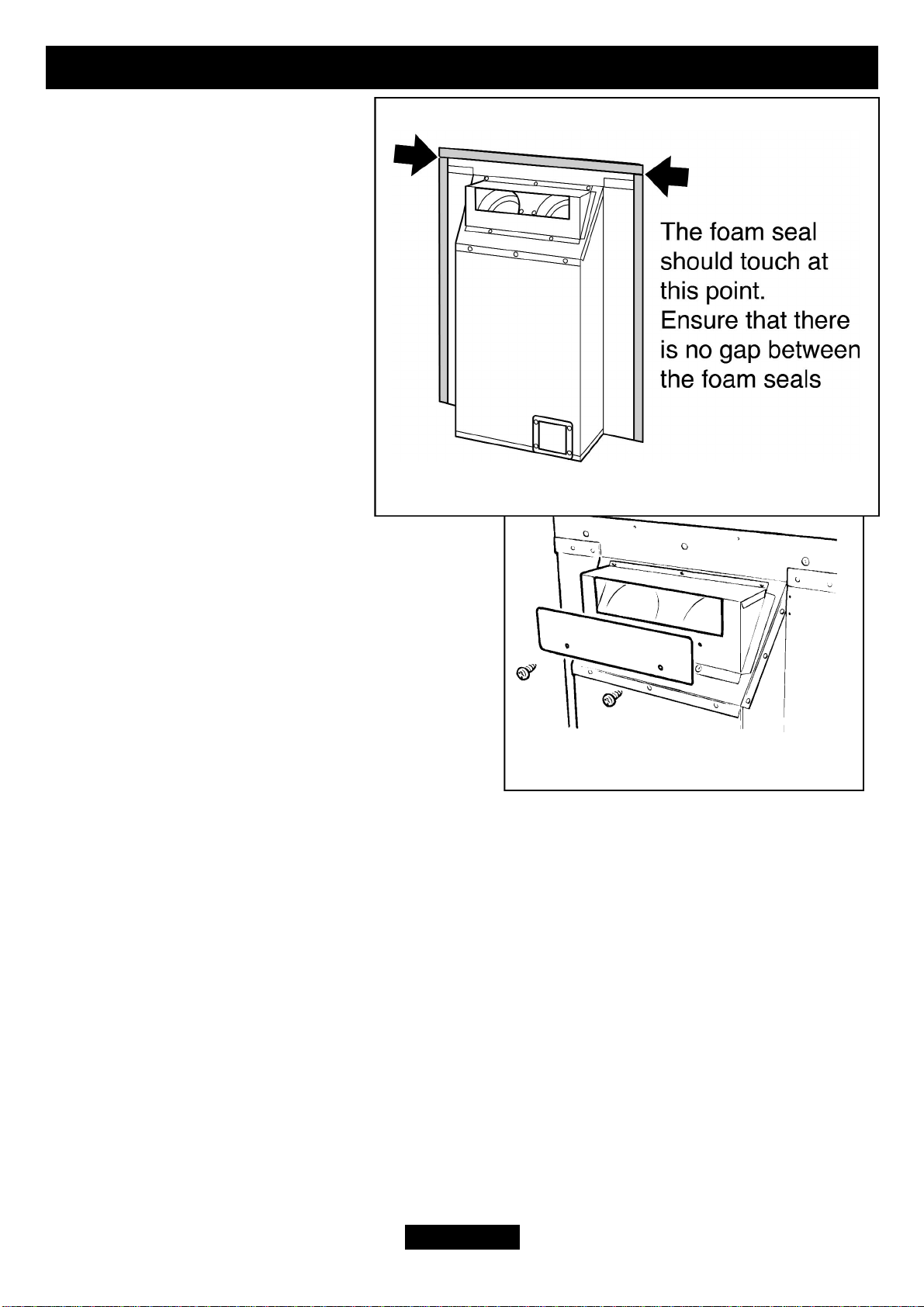

5. There is a length of self
adhesive foam seal supplied with
the fire. This will need to be fitted
to the outer rear edges of the side
and top flanges of the convector
box. Cut the foam seal to the
required length. Be careful not to
stretch the seal when measuring.
Remove the protective backing
from the foam seal and fit this to
the rear of the top flange (See
figure 11).
8.2 The Flue Restrictor
This appliance is supplied with a
flue restrictor for use where the
flue draught is excessive. The restrictor must
not be fitted where a precast flue or a 125mm
flue liner is used. For flue liners greater than
125mm and all other installations the restrictor
should be fitted. There may however, be certain
exceptional circumstances where fitting the
restrictor causes the fire to fail the spillage test.
In such cases the restrictor will have to be
removed. After removal conduct the spillage
check again.
Fit the restrictor as shown in figure 12 using the two screws provided.
Figure 12. Fixing restrictor
Figure 11. Fitting the foam seal

9. CONVECTION BOX INSTALLATION
9.1 Method 1- Front Fixing to Fireplace Surround
1. Make sure that the fireplace front surround
area is sound enough to take the rawlplugs and
woodscrews. If necessary, make sound with a
suitable cement.
2. Place the convector box centrally in the
fireplace in the position in which it is to be
permanently installed. If a concealed connection
is being used, insert the convector box into the
fireplace feeding the supply pipe through the
pierced hole in the rear seal.
3. Mark the fireplace front surround through the
four fixing holes in the side
flanges of the convector box.
See figure 13.
4. Remove the convector
box. Drill four holes in the
fireplace front surround at
the marked positions using a
no.12 masonry drill.
5. Insert a rawlplug into each
hole.
6. Place the convector box
back in position in the
fireplace.
7.
Fit a woodscrew through each hole in the convector box flanges and tighten to seal
the box to the fireplace surround.
9.2 Method 2 - Cable Retention
1.
Make sure that the relevant areas at the fireplace back are sound enough to take the
eyebolts. If these areas have deteriorated due to prolonged use they should be made
sound with a suitable cement.
2. Drill four holes in the rear wall of the fireplace for the eyebolt plugs. The holes
should be drilled within the range of positions shown in figure 14 using a no.12
masonry drill. The holes should be equidistant each side of the centre line of the
fireplace to ensure that the appliance finishes centrally in the opening when tension is
applied to the cables.
3.
Insert a fibre plug into each hole. Use the fibre plugs supplied with this appliance -
Page 19
INSTALLER GUIDE
Figure 13. Front Fixing
Figure 14. Eyebolt Positions

Never use plastic plugs instead of the fibre
plugs supplied. Screw the eyebolts into the
plugs. Make sure that the bolts are secure.
4. Place the convector box unit close to the
fireplace but allow sufficient access into the
fireplace opening so that the cables can be
threaded through the eyebolts and returned
through the back of the convector box. If a
concealed connection is being used, insert the
convector box into the fireplace feeding the
supply pipe through the pierced hole in the rear
grommet.
5. The convection box has two holes at each side of the
convected air opening. Insert one end of each cable (one
cable each side) from the back through the lower of the
two holes and return the end through the upper of the
holes. See figure 15. Give the cables a pull so that they
grip against the convection box flanges.
6. Thread the cables through the upper eyebolts in the
rear wall and then through the lower eyebolts. Return
the cables through the holes near the bottom of the
convection box back panel and through the "V" shaped
brackets near the bottom front sides of the convection
box. See figure 16.
7. Place the convection box fully back
into the fireplace opening so that it is
sealed against the fireplace front
surround.
8. Fit a cable retainer over the bottom
end of each cable.
9. Pull each cable taut. Push the cable
retainers hard up against the "V"
brackets. Tighten the screws in the
retainers so that they clamp the cables
in position. Apply tension to the cables
by turning the hexagonal adjusters by hand. See figure 17.
Page 20
INSTALLER GUIDE
Figure 17. Lower Cable Retention
Figure 16. Cable Route
Figure 15. Upper cable retention
