Rinnai Compact 2 RIBF2L User manual

Compact 2
Installation guide
Models: RIBF2N/RIBF2L
Standard frame Traditional frame
Installer, please note:
The gas and electrical plate of the unit is not required when attaching the traditional
frame, refer p. 18 for further information.

For more information about buying, using, and servicing of Rinnai
appliances call: 0800 RINNAI (0800 746 624).
Rinnai New Zealand Limited
105 Pavilion Drive, Mangere, Auckland
PO Box 53177, Auckland Airport, Auckland 2150
Phone: [phone], Fax: [phone]
Email: [email protected].nz
Web: www.rinnai.co.nz
www.youtube.com/rinnainz
www.facebook.com/rinnainz
Important:
For installations into a combustible opening, a Rinnai zero
clearance box and flue kit are mandatory. Appliance must be
installed with a Rinnai approved flue system.
This appliance shall be installed in accordance with:
- Manufacturer’s installation instructions
- AS/NZS 5601.1 Gas Installations
- Local regulations and municipal building codes
Installation, servicing and repair shall be carried out only by
authorised personnel.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury or loss of
life.

cnt:
Specification.................................................... 4
Enclosure dimensions ..................................... 5
Clearances....................................................... 6
Gas connection ............................................... 8
Electrical connection ...................................... 9
Flueing options................................................ 10
Flueing guidelines ........................................... 11
Masonry flue installations................................ 12
Masonry installation ....................................... 14

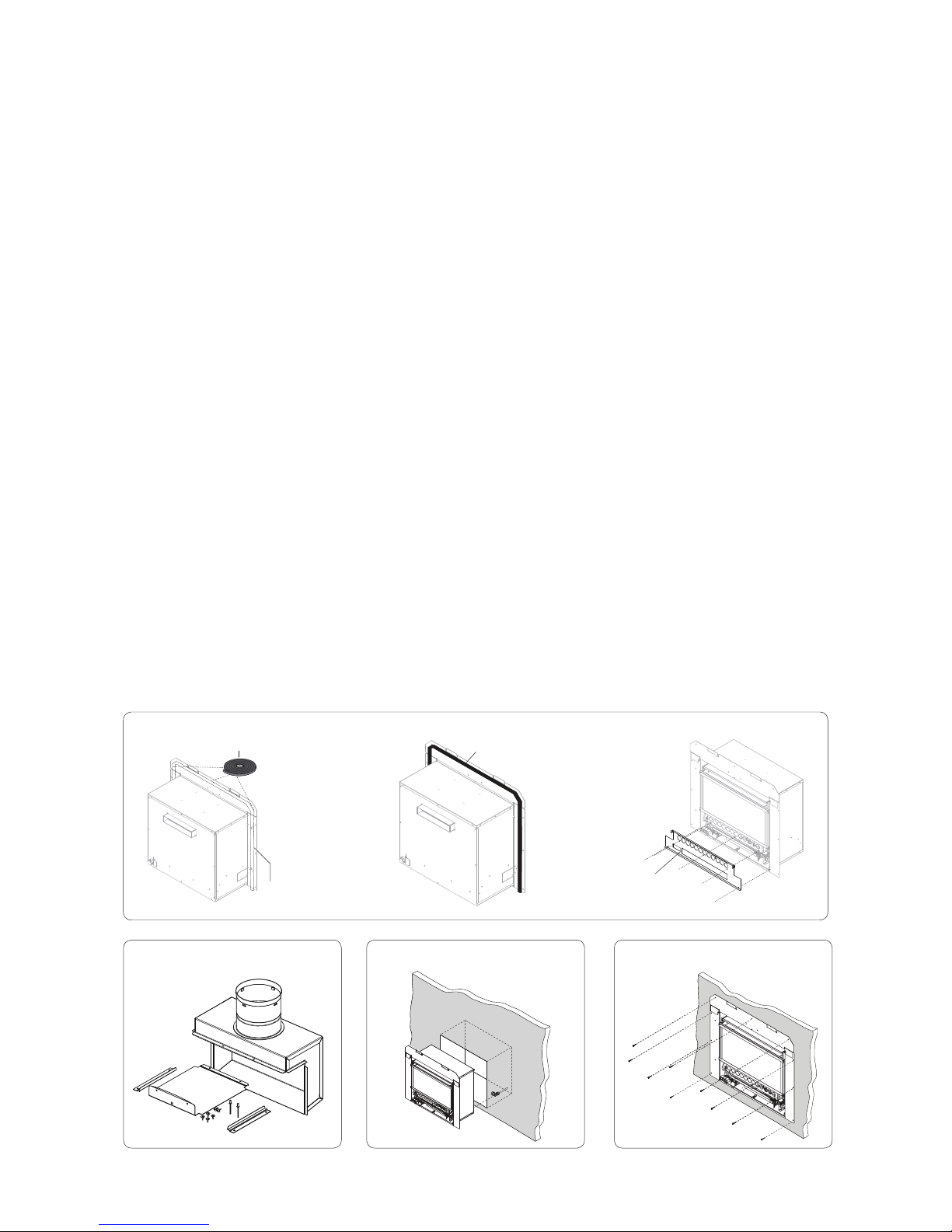

Inbuilt mock chimney...................................... 16
Completing the heater installation ................. 18

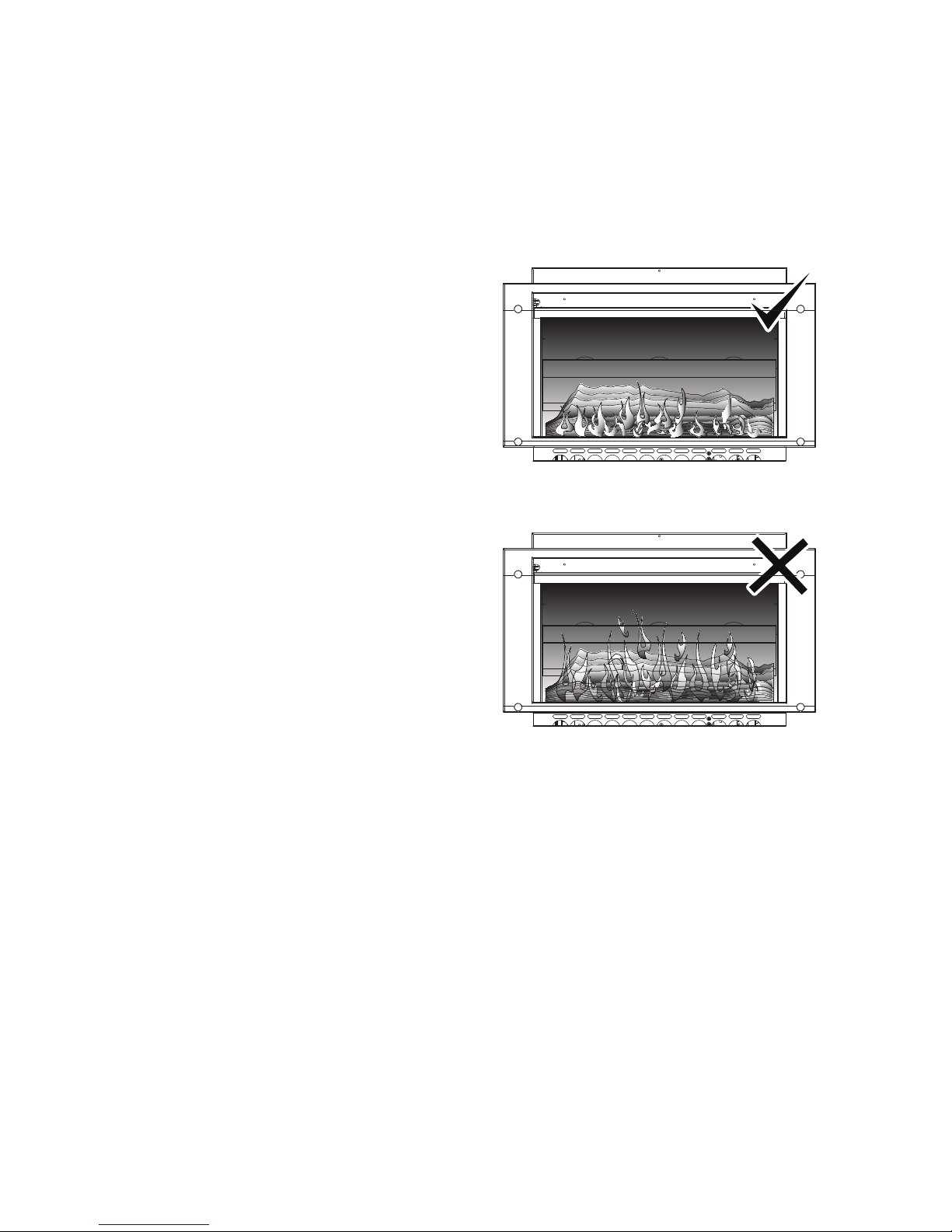

Flame pattern .................................................. 20
Wiring diagram................................................ 21
Appendix 1

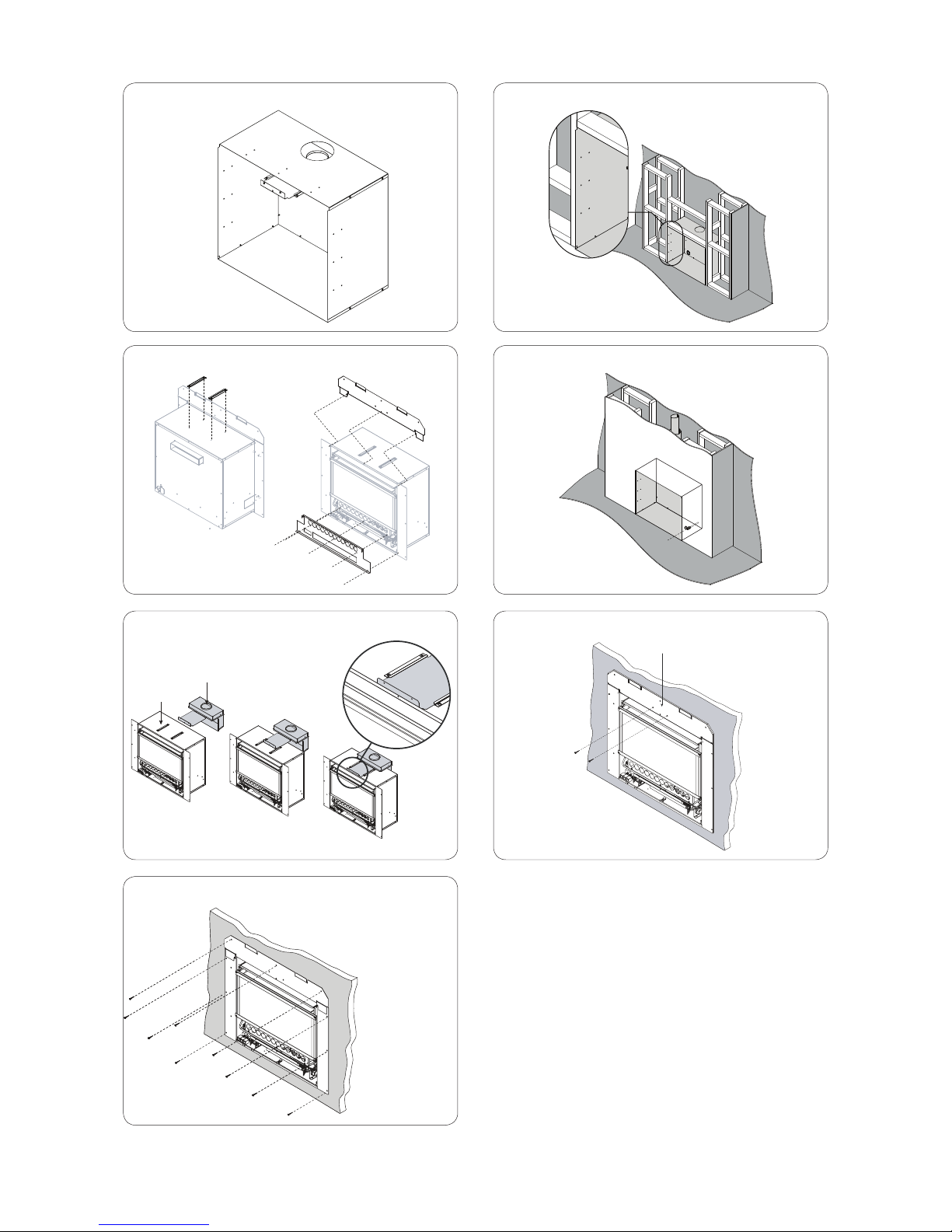

Zero clearance installation overview............... 22

4 | Compact 2 Installation Guide: 11817-D 04-15
Specication
Specification summary
Input = 9-25 MJ/h
Output = 1.6-5 kW*
Efficiency = 73%
Energy star = 2.8 stars*
Heating area = 50-77 m2**
Gas type = NG or ULPG
* Will vary according to gas type and flue
configuration
** Will vary depending on geographical
location in NZ
Suitability
Suitable for masonry installations
and installations into a mock
(false) chimney. Ideally suited to
living rooms and open plan areas.
Installation considerations
The Compact 2 draws air for
combustion from the room.
Adequate ventilation must be
calculated and provided by the
gasfitter as per AS/NZS 5601.1.
Burn media
Ceramic log set comes as
standard.
Convection fan
Convection fan tangential
2-speed. Heat is distributed from
the top of the appliance.
Data plate
Inside appliance on the front right
hand side panel.
Gas connection
½ “ BSPF male flare, enters from
the rear of the appliance.
Ignition
Continuous spark electronic
ignition.
Noise level: 49 dB(A)
Operation
Push button to light pilot and
burners.
Flue - masonry
Rinnai recommends the use of a
Rinnai flexiliner flue (flexi Ø
100 mm).
Flue - mock chimney
Natural draft flue. Inner 100 mm,
outer 150 mm. Appliance must be
installed with a Rinnai flue system.
Power consumption and
electrical supply
High = 20 W
Standby = 0 W
Comes with a 1.5 m power cord
and 3-pin plug. The electrical
connection can exit the appliance
from the lower left or right hand
side, or from the rear of the
heater.
Safety devices
Flame failure thermocouple,
overheat switch (bi-metal strip),
fan delay, and power failure
protection.
Weight: 39 kg
25
All dimensions are in mm.
277
79
750
645
582
45
310
528
280
43
500

Compact 2 Installation Guide: 11817-D 04-15 | 5
Enclosure dimensions
The main points governing location are flueing and warm air distribution. The
enclosure dimensions provided are critical to the installation of this appliance and
must be adhered to.
The heater must be positioned on a flat level surface that allows free movement of
the appliance.
Inbuilt masonry installations Inbuilt mock chimney installations
Inbuilt masonry
W-width 595-700 mm
H-height 550-630 mm
D-depth 360 mm*
Use a slurry of sand and cement to level the
base as required.
* Minimum clearance required from the spigot to the back
of the fireplace is 50 mm (p. 12).
Inbuilt mock chimney
W-width 685 mm
H-height 615 mm
D-depth 380 mm
The zero clearance box needs to be supported
within the enclosure. Either construct a base
using board with supporting joists or support
with the frame itselfmust be capable of
supporting a minimum of 1.5 times the weight
of the appliance.
When preparing a cavity/frame for a zero
clearance installation, the total cavity depth
MUST include the thickness of the external
cladding as the zero clearance box MUST BE
installed flush with the cladding surface, to
ensure alignment of the flue.

6 | Compact 2 Installation Guide: 11817-D 04-15

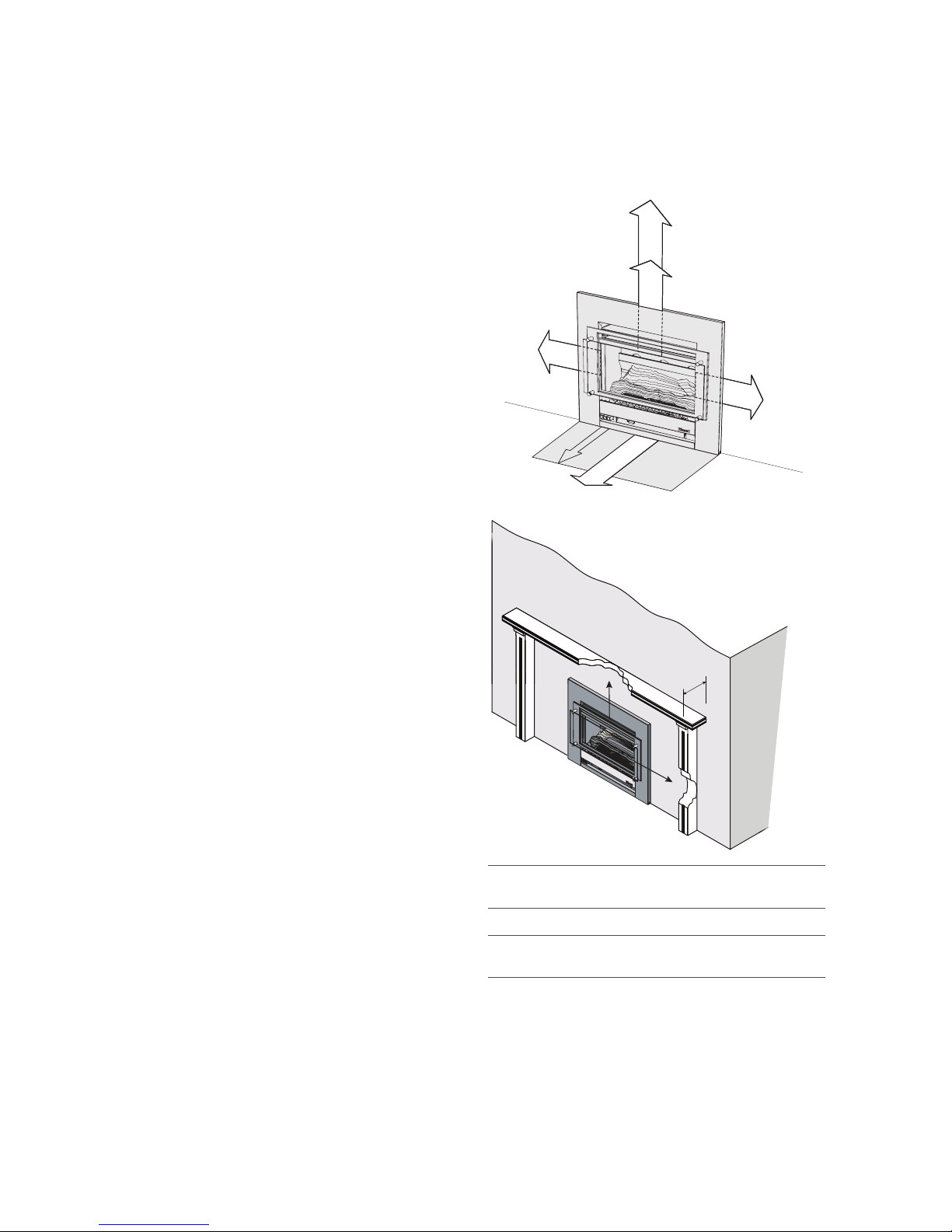

Clearances
The clearances listed below, measured from the edge of the inner glass, are
minimum clearances unless otherwise stated.
While the heater is operating
The appliance must not be installed where
curtains or other combustible materials could
come into contact with the heater. The 1000 mm
clearance above is the clearance to the ceiling.
The 300 mm side clearance includes side walls.
Wall surface above the heater
The temperature of the wall surface directly
above the appliance may get warm and
discolour paint finishes or distort vinyl
wall coverings. For durability of surfaces,
please contact the manufacturer for their
specification.
Floor protection
Heat emanating from this fire may over time
affect the appearance of some materials
used for flooring, such as, carpet, vinyl, cork
or timber. This may be amplified if the air
contains cooking vapours or cigarette smoke.
To avoid this occurring, it is recommended
that a mat be placed in front of this appliance.
Mantels and surrounds
Combustible mantels and surrounds require
clearance from the unit to minimise the
risk of fire. Mantels and surrounds, made
of combustible materials such as wood,
are allowed providing they are outside the
minimum clearances shown.
Hearths
A hearth is not necessary but can be used
for decorative purposes or protection of
sensitive flooring if required. A hearth must
not obscure the front of the fire.
TV installation above the fireplace
Installing a TV directly above the Compact 2
is not recommended due to the heat being
emitted directly above the fire and also heat
being generated from the flue components.
300 mm
750 mm
300 mm 1000 mm
300 mm
1000 mm
AB
C
AMantel needs to be a min. of 300 mm away from the
edge of the glass.
B Maximum mantel depth at 300 mm (A) is 150 mm.
CSurround needs to be a minimum of 300 mm away
from the edge of the glass.
For every 50 mm of added mantel depth there must be
an additional 100 mm of clearance from the edge of the
glass.
For example:
Mantel depth
A
: clearance required
200 mm 400 mm
250 mm 500 mm
300 mm 600 mm

Compact 2 Installation Guide: 11817-D 04-15 | 7
The below diagrams are to assist people who are determining the clearance area around the
Compact 2 without having the unit on site.
Glass width
500300 300
420 300
Clearance Clearance
Minimum above fire
Minimum to ceiling
1100
1000
Compact 2 standard frame
Glass width
500300 300
420 300
Clearance Clearance
Minimum above fire
Minimum to ceiling
1100
1000
Compact 2 traditional frame

8 | Compact 2 Installation Guide: 11817-D 04-15

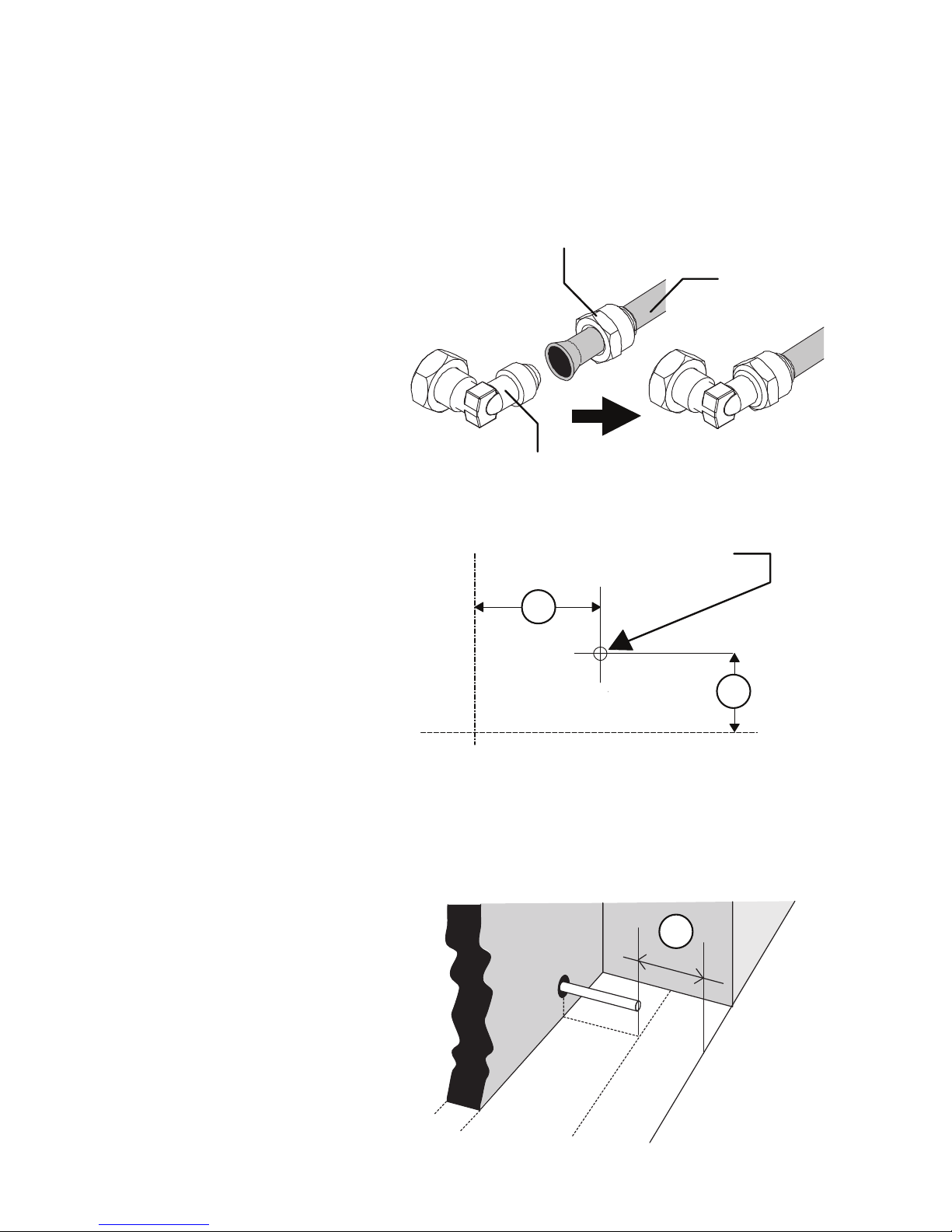

Gas connection
Gas pipe sizing must consider the gas input to this appliance, as well as other gas
appliances in the building. The gas supply termination is inside the heater, and
enters from the rear of the appliance.
The length of the gas supply
termination is measured from
the front of the enclosure,
including the thickness of any
cladding material.
A ½ “ BSP nut and a ½ “ BSP
male flare x ½ barrel union
- elbow are provided for
connection to the gas supply.
They are shipped inside
the engine attached on the
gas inlet connection of the
heater.
Gas supply location
1. Mark off the location for
the vertical centre line of
the heater enclosure.
2. To the right of the vertical
centre line, mark off both
the vertical and horizontal
location for the gas supply
penetration.
Purging gas supply
Foreign materials and debris
such as swarf, filings etc
must be purged from the
gas supply. Failure to do so
may cause damage to the
control valve causing it to
malfunction.
FRONTOFENCLOSURE
(IncludingCladding)
REAROF
ENCLOSURE
4
2
3
½ ˝ BSP flared nut
Gas supply
½ ˝ BSP male flare x ½ ˝ barrel union - elbow
Gas supply location
2= 280 mm to right of appliance centre line
3= 43 mm from base of enclosure
4= Gas supply to be terminated 79 mm from the
front of the enclosure
Vertical
centre line

Compact 2 Installation Guide: 11817-D 04-15 | 9
Electrical connection
The Compact 2 is fitted with a 1.5 m power
cord. The electrical connection can exit the
appliance from the lower left or right hand
side, or from the rear.
Direct wired installations
A qualified electrician will need to
be consulted where a direct wired
installation is required.
Installation must comply with the
requirements of AS/NZS 5601.1, AS/NZS 3000
and any other relevant local regulations.
Using existing externally mounted power
points on inbuilt installations
If there is an existing wall plug located outside
of the intended fireplace or enclosure you can
redirect the power cord and plug assembly
through the front panel. With the frame
assembly removed, redirect the cord and plug
assembly (with grommet) underneath the
heater to the front of the unit—either left or
right hand side.
Carefully remove the pre-punched metal
knock-out section on either the left or right
hand side of the frame assembly. Refit the
cord and plug assembly to the frame assembly
ensuring the grommet is fitted to the sheet
metal. Excess cord may be left in the cavity
BELOW the unit. DO NOT coil the excess cord.
IMPORTANT

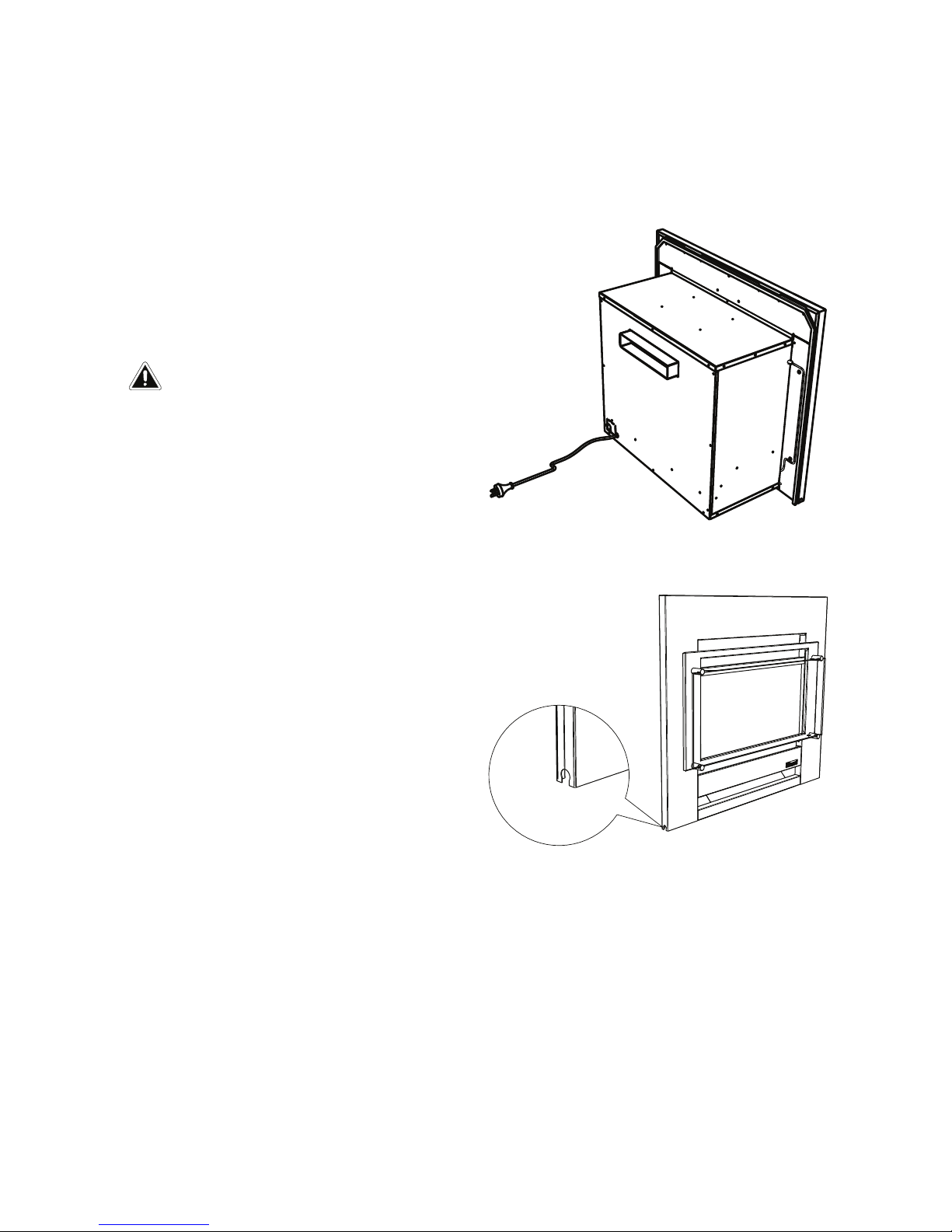

Compact 2 power cord position - exiting rear of the
appliance
Compact 2 frame assembly - highlighting position of
metal knock-out tab
If a power point is used it must be 230 V, rated 10 A, and must be earthed. The
power point MUST NOT be located above the heater. Alternatively the appliance
can be direct wired if the power supply is to be concealed.

10 | Compact 2 Installation Guide: 11817-D 04-15

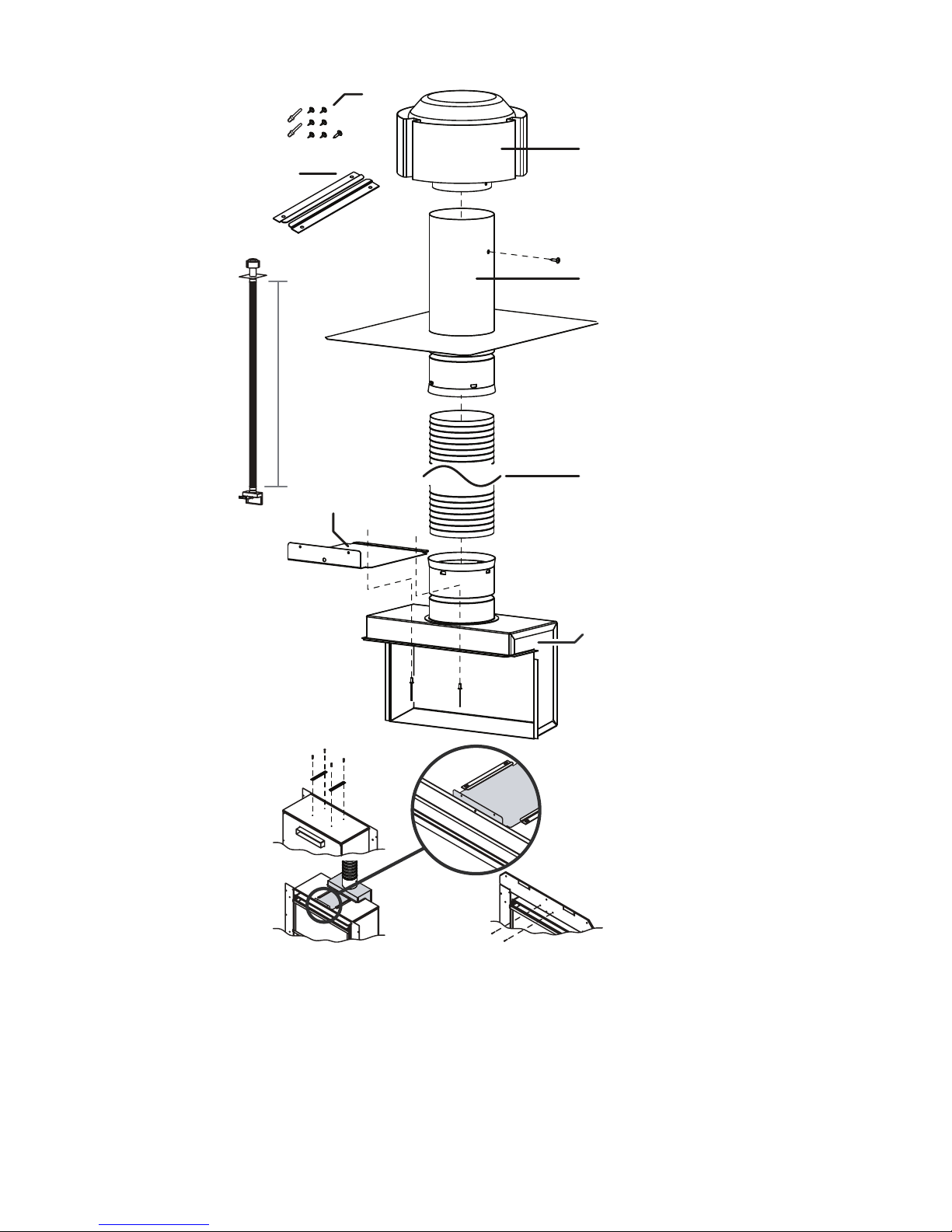

Flueing options
The below options detail the most common types of flue installations. If you have an
installation that varies from those below, please contact Rinnai.
Flue component
- Flue cowl (R1760-2)
Masonry without a flexiliner flue
For installations into a masonry cavity where
the chimney has been swept, checked for
soundness and ability to achieve a good draw.
Masonry with flexiliner flue
For installations into a masonry cavity where
a Rinnai aluminium flue is required to ensure
optimum performance of the appliance.
Flue components
- Flexiliner flue kit (R1758) 3.6 m
If flueing exceeds 3.6 m add:
- Flexiliner flue extension (R1761)
Inbuilt mock chimney direct and offset
For installations into a combustible opening
with a zero clearance box, where the flue runs
vertically in-wall.
A: Flue component
- Zero clearance flue kit (R1762Z)
B: Flue components
- Zero clearance flue kit (R1762Z)
- 45 ° bend kit x 2 (R1764)
If flueing exceeds 3.6 m add the
galvanised or stainless steel flue
extension (R1763Z, R1763SS).
Inbuilt mock chimney offset wall penetration
For installations into a combustible opening
with a zero clearance box. Flue runs in-wall,
then penetrates the building before terminating
vertically.
Typically used in multi-storey dwellings where
the fire is installed on the ground floor.
Flue components
- Zero clearance flue kit (R1762Z)
- Wall penetration kit (R1766)
If flueing exceeds 3.6 m add the
galvanised or stainless steel flue
extension (R1763Z, R1763SS).
Masonry installations
Rinnai recommends the use of a flexiliner flue (Ø 100 mm) as it ensures optimum performance of the
appliance. Installation without a flexiliner flue is permitted as long as the chimney has been swept,
checked for soundness and ability to achieve a good draw.
Mock chimney flueing
A Rinnai zero clearance box and flue kit are mandatory for installations into a combustible opening.
Minimum flue length - 3.6 m
This is required to ensure adequate draw and to prevent spill-back of combustion products, which can
cause the safety sensors to shut down the fire. The minimum flue length before any bends or offsets is
1.2 m (or one length of flue). The minimum vertical flue length is 3.6 m or three lengths of flue.
Maximum flue length - 8 m
Rinnai recommends a maximum flue length of 8m with a maximum of two 45 ° bends.

Compact 2 Installation Guide: 11817-D 04-15 | 11
Flueing guidelines
Inner flue: Clearance to combustibles
Clearance from the inner flue to a combustible material must be greater than 25 mm.
Flue cowl clearance
To ensure products of combustion are cleared, adequate clearance for the building is required.
The flue cowl should have a 500 mm clearance from any part of the building. This also applies to
steeped and pitched roofs which should be clear of the ridge line as shown. Lesser clearances
may provide perfectly adequate flue systems depending on the installation. Minimum
clearances are shown in AS/NZS 5601.1.
Flue terminal locations
Must be compliant with ‘Clearances Required for Flue Terminals’ from AS/NZS 5601.1. The flue is
not to terminate under floors or in a roof space.
Self-supporting flue
The weight of the flue system should not be supported by the appliance—it should be self-
supporting. Supporting the flue is usually completed during the framing stage with flue supports
or straps within the cavity.
Shared flues
Gas appliances must not be connected to a chimney or flue serving a separate fuel burning
appliance.
Flashings to to the top of the chimney structure do not form part of the flue kit and
must be specified.

12 | Compact 2 Installation Guide: 11817-D 04-15
Masonry ue installations
There are two types of masonry flue installations; open chimney and lined chimney. An open
chimney uses the natural draft properties of a sound chimney, an approved chimney plate and
cowl to provide flueing for the heater. A lined chimney installation is used when the existing
chimney condition is inadequate for an open chimney installation and uses a Rinnai flexiliner flue
to provide flueing for the heater.
Check dimensions of opening
Ensure opening is within the range provided (p. 5), and if necessary bring them to the required
dimensions. Also check chimney height as inadequate height can affect product performance.
Some installations may require the chimney height to be extended to reduce down drafts. Also
check there are no obstructions.
Provide a solid, flat, and sealed base, otherwise noise and vibration may result. Sealed means no
holes or openings in the fireplace.
Some criteria for checking chimney soundness
Rinnai strongly recommends the use of a Rinnai flexiliner flue system. Failure to meet this criteria
may result in an unsafe situation. Installation without a flexiliner flue is permissible as long as the
chimney is swept, checked for soundness and ability to achieve a good draw. Some criteria for
checking soundness:
- All loose/broken bricks must be replaced or repaired ensuring the chimney is of sound
construction and does not leak.
- Chimney must be swept clean and be free from soot and creosote that may have built up if
previously used for a solid fuel fire.
- Any damper plate must be fixed in an open position or removed.
- Any underfloor air supply to the fireplace must be completely sealed to prevent secondary
air draw.
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Minimum
50 mm
Mortar
Chimney plate
Approved chimney
cowl
Minimum
200 mm
Minimum
3.6 m
Appliance
adaptor
Flexible
chimney liner
Adaptor
Mortar
Chimney plate
Open chimney installation Lined chimney installation

Installation
Installation, servicing and repair
shall be carried out only by
authorised personnel.

14 | Compact 2 Installation Guide: 11817-D 04-15
4. Preparing the engine
Masonry installation
Foam sealing strip
Front assy.
mounting panel
20 mm from
top edge
Gas/electrical
access plate
1. Prepare site: Ensure the
enclosure meets the dimension
requirements and check the
gas and electrical supplies have
been prepared according to the
information in this guide.
2. Unpack engine: The Compact
2 engine is supplied in one
carton. Check for damage and
ensure you have the correct
gas type before starting. Do not
install if any damage is evident.
3. Install flue: Install flexiliner
flue if applicable, refer next page
for an overview of how the flue is
assembled and connected to the
unit.
4. Prepare engine: Attach the
adhesive backed foam sealing
strip (supplied) to the rear face
of the front assembly mounting
panel at approximately 20 mm
from the top edge.
The foam strip forms a seal
between the heater and the
fireplace brickwork. If an
adequate seal cannot be formed
then another means of sealing
must be used (non-combustible
insulation or heat resistance
silicon).
Unscrew the five screws securing
the gas/electrical plate and put
aside.
5. Connect flue adaptor:
Connect the flue adaptor to the
flexiliner flue.
6. Position engine: Place the
Compact 2 engine in front of the
fireplace enclosure. Use a panel
of the cardboard packaging
underneath the engine to
minimise damage to the floor.
7. Connect electrical supply:
Plug in the 3-pin connector of
electrical connection inside the
fireplace.
8. Insert unit into fireplace:
Carefully move the heater into
the fireplace ensuring the gas
supply pipe and fittings feed into
the rear access hole. Connect the
flue (refer next page).
9. Connect gas supply: Connect
gas supply pipe and fittings to
the gas control valve inlet and
tighten.
10. Leak test: Leak test all
appliance connections. When
finished remove any residue with
a rag. Prevent any soapy solution
coming into contact with the
electrical components.
11. Secure: Fasten the heater to
the masonry using appropriate
fasteners (not supplied). There
are three holes across the top of
the front assembly mounting and
side panels.
12. Complete installation: Refer
to instructions on p. 18.
5. Connecting the flue adaptor 6. Positioning the engine 11. Securing the heater
Adapt instructions as necessary for masonry installations without a flexiliner flue.

Compact 2 Installation Guide: 11817-D 04-15 | 15
Fixings
R1760-2
Chimney cowl
100 mm stainless steel
Guide rails
R1760-3
Flexi flue chimney
flashing plate
(400 x 300 mm)
3.6 m
R1760-4
Aluminium flexi flue
3.6 m
Guide plate
Flexi flue spigot adaptor
Attaching the flexiliner flue to the unit
1. Attach the guide rails to the heater using the predrilled holes and four screws.
2. Align the guide plate with the guide rails and slide the flue assembly forward until the front tab of the
guide plate is fully forward and against the rear of the flange at the top of the heater.
3. Ensure the guide plate is securely fastened with two screws to the flue access plate.

16 | Compact 2 Installation Guide: 11817-D 04-15
1. Prepare site: Ensure the
enclosure meets the dimension
requirements and check the
gas and electrical supplies have
been prepared according to the
information in this guide.
Ensure there are no walls, studs,
noggins, ceiling joints, wiring,
or other obstructions within the
wall or ceiling cavity where the
flue is to be located.
2. Assemble zero clearance
box: Refer separate assembly
instructions included with the
zero clearance box.
3. Fit zero clearance box: Slide
assembled box into the cavity,
ensuring the gas and electrical
supplies are accessible.
4. Install flue: Install flue kit
and/or components, refer p. 22
for an overview of how all the
components fit together.
5. Unpack engine: The
Compact 2 engine is supplied in
one carton. Check for damage
and ensure you have the correct
gas type before starting. Do not
install if any damage is evident.
6. Prepare engine: Attach the
flue guide rails, supplied with
the zero clearance box, to the
top of the heater engine using
the four predrilled holes and
screws supplied.
Remove and put aside the flue
access plate and gas/electrical
plate.
7. Fit cladding: Before installing
the heater ensure the cladding
for the front of the enclosure
has been fitted. The cladding
MUST BE installed flush with
the zero clearance box. Failure
to do this will cause alignment
problems with the flue.
8. Connect flue adaptor:
Connect the flue adaptor* to
the engine by aligning the guide
rails with the guide plate* of
the flue adaptor. Slide the flue
adaptor in until the guide plate
is fully home against the rear of
the flange of the heater at the
top of the heater.
* Supplied with the zero clearance box
9. Position engine: Place the
Compact 2 engine in front
of the fireplace enclosure.
Use a panel of the cardboard
packaging underneath the
engine to minimise damage to
the floor.
10. Connect electrical supply:
Plug in the 3-pin connector of
electrical connection inside the
fireplace.
11. Insert unit into fireplace:
Carefully move the heater into
the fireplace ensuring the gas
supply pipe and fittings feed
into the rear access hole.
12. Connect flue: The weight
of the flue should not be
supported by the appliance,
it should be self-supporting.
Supporting the flue is usually
completed during the framing
stage with flue supports or
straps within the cavity.
13. Secure flue: Replace the
flue access plate and secure the
guide plate of the flue adaptor
to the flue access plate with the
two screws supplied.
Secure access plate to the
heater.
14. Connect gas supply:
Connect gas supply pipe and
fittings to the gas control valve
inlet and tighten.
15. Secure heater: Fasten the
heater to the cladding using
appropriate fasteners (not
supplied). There are three holes
across the top of the front
assembly mounting panel, and
side panels.
16. Leak test: Leak test all
appliance connections. When
finished remove any residue
with a rag. Prevent any soapy
solution coming into contact
with the electrical components.
12. Complete installation:
Refer to instructions on p. 18.
Inbuilt mock chimney (zero clearance installation)

Compact 2 Installation Guide: 11817-D 04-15 | 17
2. Assemble the zero clearance box 3. Fit zero clearance box
6. Prepare heater engine 7. Fit cladding
8. Connect flue adaptor 13. Secure flue
15. Secure the heater
Guide rails Flue access plate
Gas/electrical access plate
K
Guide rails
Flue adaptor
Flue acccess plate

18 | Compact 2 Installation Guide: 11817-D 04-15
Completing the heater installation
1. Remove combustion
chamber glass
Loosen, but do not remove the
bottom two retaining screws.
While supporting the
combustion chamber glass
panel, completely unscrew
and remove the two remaining
screws and clamp. Lift the
combustion chamber glass
panel and place aside.
2. Unpack log set and granules
Carefully unpack the log set
and inspect for damage. If
any damage is evident, do not
continue with the installation.
The satchel containing the
burner granules is taped to the
outside of the foam packing
that contains the log set.
3. Install log set and granules
Use extreme care when
handling the log set as it is
fragile and will damage easily.
To position correctly, hold
the log set at approximately
45 ° directly in front of the
combustion chamber. Maintain
this angle and place the front
feet of the log set behind the
unpainted inner horizontal steel
lip of the combustion chamber.
To set the log set into the final
position, rotate the back of the
log set down, using the location
of the front feet as pivot points,
until it is sitting flat on the rear
burner.
Check the correct position of
the log set before installing the
granules. Ensure the log set is
firmly seated in the centre of
the combustion chamber and
not touching the side walls, and
that the ports are clear of any
debris that may have occurred
during installation.
Carefully place (do not pour)
the granules over and around
the front burner ports. It is
beneficial that the gas jet is
diffused by the granules. This
will reduce any candling effect
of the flame and enhance the
realistic log-burning look of the
heater.
Do not force, or block
the burner ports with the
granules and do not place
any granules on the rear
burner.
4. Replace combustion
chamber glass and turn on
electrical supply
6. Check burner pressures
Turn gas supply on, and refer to
the data plate on the appliance
for the correct gas pressure
settings.
Remove the pressure test point
screw and attach a manometer
to the test point situated on the
front of the injector block.
Light the heater, select the
high heat setting, and check
the pressure. If adjustments
are necessary, the regulator is
situated on the front of the gas
control.
After checking pressures,
turn the unit off, remove
manometer, and replace test
point screw.
Turn the heater on and off a few
times to check ignition. When
you are satisfied that the heater
is working check the flame
pattern, refer p. 20.
7. Attach frame assembly
Re-attach the gas/electrical
plate. DO NOT do this if you are
installing the traditional frame
as this already has the plate
included.

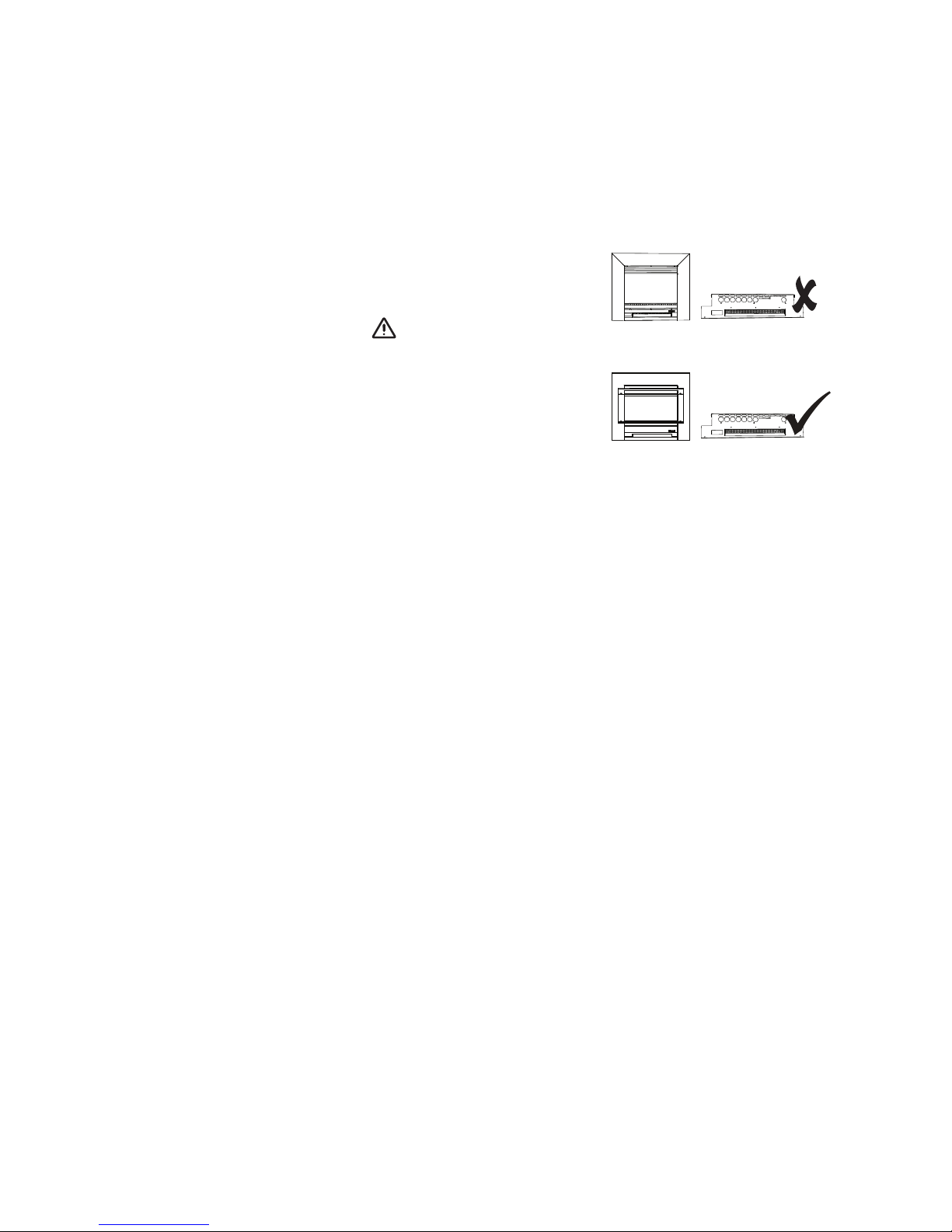

Traditional frame - gas/electrical
plate not required
Standard frame - gas/electrical plate
required
Carefully pick up the frame
assembly* and position the top
fold over the mounting tabs and
gently push the lower edge of
the frame down over the unit.
Fit and tighten the frame to the
unit using two screws for the
standard frame or three screws
for the traditional frame.
* Standard frame: Do not tilt on its
edge as the glass may slide out off the
standoff posts.
8. Complete the installation
checklist
Complete the installation and
commissioning checklist in the
customer operation guide, and
make sure you leave the guide
with the customer.
Explain to the customer about
the use and care of the heater,
and ensure they understand the
instructions and operation of
the appliance.
CAUTION

Compact 2 Installation Guide: 11817-D 04-15 | 19
7. Attach frame assembly: Standard frame
7. Attach frame assembly
6. Check burner pressures
1. Install log set and granules1. Removing the combustion chamber glass panel
Glass clamp
Retaining screw
Retaining screw Front feet as
pivot points
Test point screw
Regulator
Rear view of
installed frame
Top fold
Frame assy
mounting tabs
Screws through
the frame
Frame assy
mounting tabs
7. Attach frame assembly: Traditional frame
Traditional frame secured to unit with three screws

20 | Compact 2 Installation Guide: 11817-D 04-15
Flame pattern
It may take approximately two hours of operation for the logs to achieve their
full flame pattern and glow. During the initial burning in period, some smoke and
smell may be experienced. The appliance should run on the high setting in a well
ventilated room until these dissipate. It is important to check the flame pattern
during this time.
Abnormal flame pattern
Abnormal flame performance
and/or pattern can indicate a
problem with the fire, such as
blocked gas injectors, or log set
(burn media) has shifted from
when the fire was first installed.
There are some warning signs
that could indicate a problem.
- Unusual smell from the
appliance
- Continued difficulty or delay
in establishing a flame
- Flame appears very short or
very long
- Flame only burns part way
across the burner
- Severe soot building up on
the inside of the glass
Important
It is the responsibility of the
installer to check that under
normal conditions of the
appliance, all flue gases are
exhausted to the outside
atmosphere, and that there is
no spillage of combustion gases
into the room.
If the appliance cannot be made
to perform correctly please
contact Rinnai.
Normal flame pattern
Abnormal flame pattern
