Features ....................................................................................................................................5
Optional Items........................................................................................................................... 6
Product Family...........................................................................................................................8
Electrical Specifications ..............................................................................................................11
Connector Pin Out ...................................................................................................................11
Technical Specifications ............................................................................................................. 12
Environmental Specifications ................................................................................................... 12
Power Requirements................................................................................................................ 12
Manufacturing .........................................................................................................................12
Hardware Configuration .............................................................................................................13

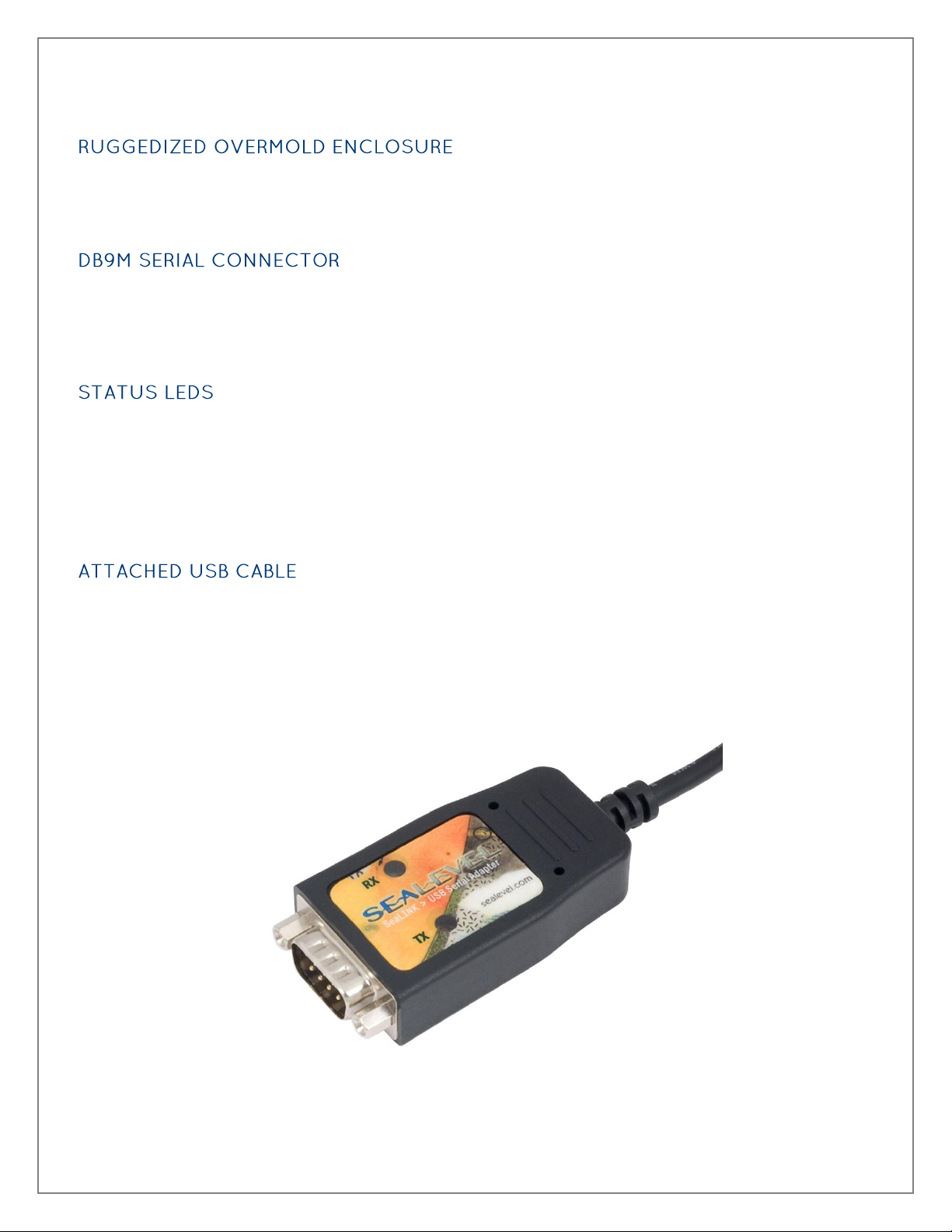

Ruggedized Overmold Enclosure .............................................................................................13
DB9M Serial Connector ............................................................................................................ 13
Status LEDs .............................................................................................................................13
Attached USB Cable ................................................................................................................. 13
Installation ................................................................................................................................. 14
SeaCOM Software Installation ..................................................................................................14
Direct Driver installation from the Sealevel disk .......................................................................17
Instructions for downloaded Software Installation....................................................................17
Upgrading to the current SeaCOM driver.................................................................................. 17
Hardware Installation............................................................................................................... 18
Verifying Installation ............................................................................................................... 23
Uninstall & Upgrade Instructions ............................................................................................. 24
Appendix A - Handling Instructions ............................................................................................27
ESD Warnings ..........................................................................................................................27
Appendix B –Troubleshooting.................................................................................................... 28
Appendix C –Electrical Interface ................................................................................................29
RS-485 .................................................................................................................................... 29
Appendix D –Asynchronous Communications............................................................................ 30
Appendix E –Cable Drawing.......................................................................................................31
Appendix F - How to Get Assistance ...........................................................................................32
Technical Support.................................................................................................................... 32

©Sealevel Systems, Inc. 2107 Manual 3
SL9218 05/2011
Warranty .................................................................................................................................... 33
Warranty Policy........................................................................................................................ 33
Non-Warranty Repair/Retest..................................................................................................... 33
How to Obtain an RMA (Return Merchandise Authorization) .....................................................33

©Sealevel Systems, Inc. 2107 Manual 4
SL9218 05/2011
Before You Get Started
The 2107 is shipped with the following items. If any of these items are missing or damaged, please contact
Sealevel for replacement.
2107–USB to RS-485 Single Port Serial Interface Adapter
Sealevel Software CD –SeaCOM Software and User Manual
TB34 –DB9 Female to 5 Screw Terminals
Warning - The highest level of importance used to stress a condition where damage could result to
the product or the user could suffer serious injury.
Important–The middle level of importance used to highlight information that might not seem
obvious or a situation that could cause the product to fail.
Note –The lowest level of importance used to provide background information, additional tips, or
other non-critical facts that will not affect the use of the product.

©Sealevel Systems, Inc. 2107 Manual 5
SL9218 05/2011
Product Description
The Sealevel Systems SeaLINK+485-DB9 serial interface adapter provides the PC with a single USB to RS-485
asynchronous serial port providing a versatile interface for common RS-485 needs. The SeaLINK+485
connects to a PC’s external USB port, so it does not require opening the computer case. Resources such as
IRQs and I/O addresses are also not utilized.
The SeaLINK® USB to RS-485 serial adapter utilizes Sealevel’s expertise in military-grade designs by
incorporating a ruggedized, overmolded enclosure design. This improves the reliability and durability in
industrial and mobile applications such as GPS navigation systems, barcode readers, signature input
devices, serial printers, scales, and similar applications.
The 2107 features programmable baud rate and data formats with 128-byte transmit and 256-byte receive
buffers. The USB serial adapter is compatible with all standard PC baud rates and supports high-speed
communication to 921.6K bps. The 2107 is powered by the USB port and status LEDs molded into the
enclosure indicate serial data activity and connection to the host.
Sealevel SeaCOM USB software drivers and utilities make installation and operation easy using Windows and
Linux operating systems. After installing the software, simply plug the 2107 into an available USB port and
the serial port is recognized as a standard COM port by the host system enabling compatibility with legacy
software.
The attached cable is 44 inches long and fully shielded to protect the 2107 from RF and EMI interference
that is common in mobile and industrial environments. Standard operating temperature range is -40° -
+75°C.
Compliant with RoHS and WEEE directives
High-speed UART with 128-byte Tx FIFO and
384-byte Rx FIFO
Data rates to 921.6K bps
All modem control signals implemented
Powered by USB connection
DB9M connector

©Sealevel Systems, Inc. 2107 Manual 6
SL9218 05/2011
Depending upon your application, you are likely to find one or more of the following items useful with the
2107. All items can be purchased from our website (www.sealevel.com) by calling our sales team at (864)
843-4343.

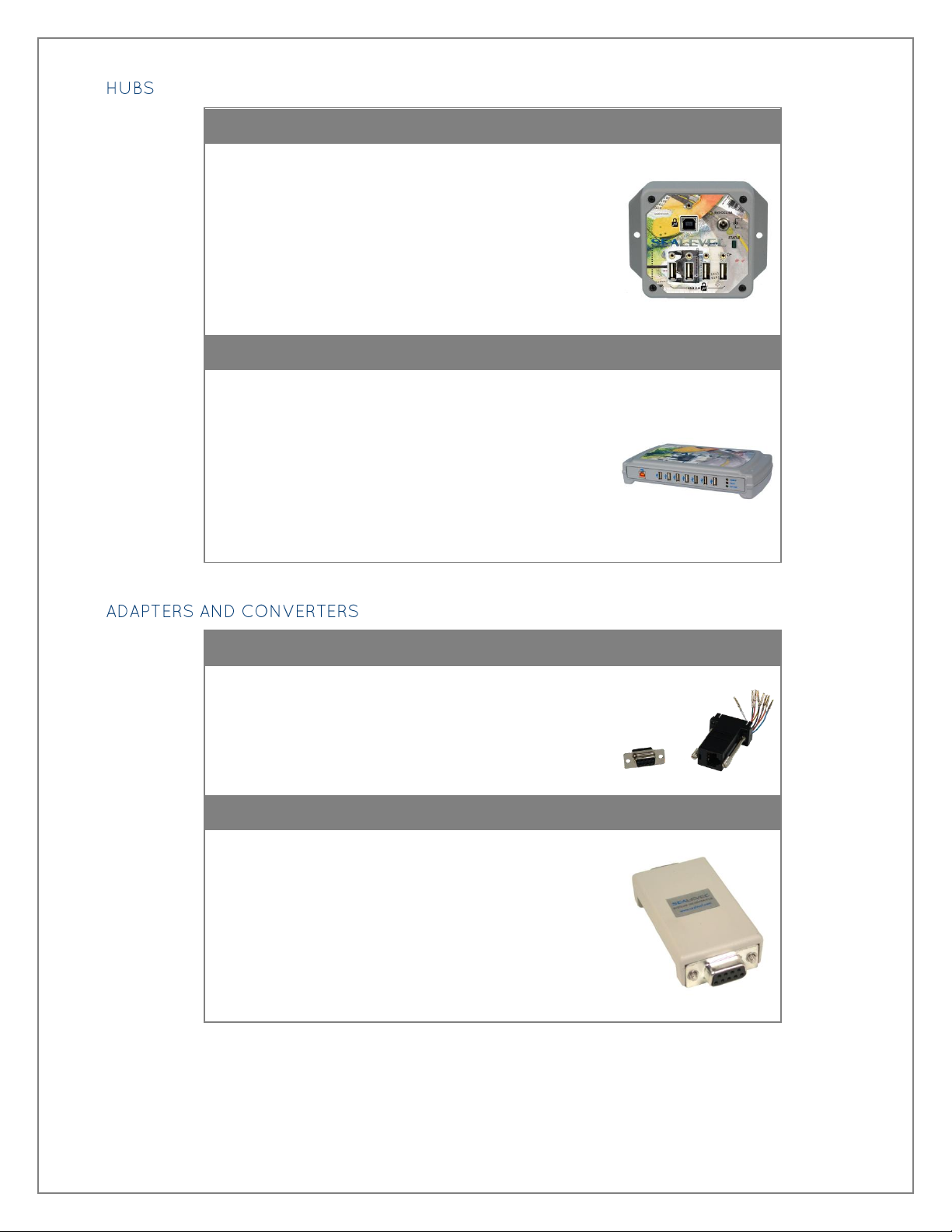

Terminal Block - DB9 Female to 5 Screw Terminals (RS-422/485) (Part# TB34)
The TB34 terminal block adapter offers a simple solution
for connecting RS-422 and RS-485 field wiring to a serial
port. The terminal block is compatible with 2-wire and 4-
wire RS-485 networks and matches the RS-422/485 pin-
out on Sealevel serial devices with DB9 male connectors.
A pair of thumbscrews secures the adapter to the serial
port and prevents accidental disconnection. The TB34 is
compact and allows multiple adapters to be used on
multi-port serial devices, such as Sealevel USB serial
adapters, Ethernet serial servers and other Sealevel serial
devices with two or more ports.
DB9F to DB25M (RS-485) Extension Cable (Part# CA177)
The CA177 is a standard AT-style RS-485 modem cable
with a DB9F connector on one end and a DB25M
connector on the other. This cable is 72 inches in length.
DB9F to DB9M Extension Cable (Part# CA127)
The CA127 allows users to extend a DB9 cable up to six
feet. The connectors are pinned one-to-one so the cable
is compatible with any device or cable that has DB9
connectors.
DB9 Female to 9 Screw Terminal (Part# TB05)
The TB05 terminal block breaks out a DB9 connector to
9 screw terminals to simplify field wiring of serial
connections. It is ideal for RS-422 and RS-485 networks,
yet it will work with any DB9 serial connection, including
RS-232. The TB05 includes holes for board or panel
mounting. The TB05 is designed to connect directly to
Sealevel DB9 serial cards or any cable with a DB9M
connector.

©Sealevel Systems, Inc. 2107 Manual 7
SL9218 05/2011
High Speed 4-Port USB 2.0 Hub with SeaLATCH USB Ports (Part# HUB4P)
The hub is USB 2.0 compliant, providing a full 480M bps
data rate to the host, and is backwards compatible with
USB 1.1 and 1.0 devices. The HUB4P includes a wall-
mount AC adapter that supplies a full 500mA to each
attached USB peripheral. The power supply outputs
5VDC @ 2.4A and has a locking DC connector to prevent
accidental removal of the power cable.
High Speed 7-Port USB 2.0 Hub (Part# Hub 7P)
The HUB7P is USB 2.0 compliant, providing a full 480M
bps data rate to the host, and is backwards compatible
with USB 1.1 and 1.0 devices. The powered hub includes
a wall-mount AC adapter that supplies a full 500mA to
each attached USB peripheral. The power supply outputs
5VDC @ 4A and has a locking DC connector to prevent
accidental removal of the power cable. The hub is
housed in a rugged plastic enclosure and status LEDs
indicate external power, connection to the host, and
fault conditions.
DB9F to RJ45 Modular Adapter (Item# RJ9S8)
The RJ9S8 is a DB9 female to RJ45 adapter. It can be
configured without tools and is an excellent choice for
using available infrastructure wiring.
DB9 Female to DB9 Male - Serial Surge Suppressor (Part# SS-DB9)
User configurable for use with male or female DB9 ports,
the SS-DB9 protects all 9 lines, plus D shell chassis.
Convenient DB9 input and output connects directly to
the protected port, obtaining a ground outlet from the
computer chassis. Surge suppression is handled with
balanced arrays of high-speed avalanche diodes that
divert excess energies created by electrostatic
discharges, faulty wiring or lightning away from network
interface connections.

©Sealevel Systems, Inc. 2107 Manual 8
SL9218 05/2011
Whether you require one serial port or 16, SeaLINK USB serial adapters will have you quickly communicating
with RS-232, RS-422, and RS-485 peripherals. Unlike traditional UART-based devices, SeaLINK USB products
use a state-machine architecture that reduces host processor overhead for faster, more reliable
communications. Sealevel's SeaCOM software drivers and utilities make installation and operation easy
using Windows and Linux operating systems.
Part #
Description
2105R
USB to 1-Port RS-232 DB9 Serial Interface Adapter
2106
USB to 1-Port RS-422 DB9 Serial Interface Adapter
2107
USB to 1-Port RS-485 DB9 Serial Interface Adapter
2113
USB to 1-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2123
USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2101
USB to 1-Port RS-232 DB25 Serial Interface Adapter
2102
USB to 1-Port RS 422, RS-485, RS-530 DB25 Serial Interface Adapter
2103
USB to 1-Port Isolated RS-232 DB25 Serial Interface Adapter
2104
USB to 1-Port RS 422, RS-485, RS-530 DB25 Serial Interface Adapter
2108
Embedded USB to 1-Port RS-232 DB9 Serial Interface Adapter with Low Profile PC
Bracket
2128
Embedded USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9
Serial Interface Adapter with PC Bracket
2213
USB to 2-Port Isolated RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2223
USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2201
USB to 2-Port RS-232 DB9 Serial Interface Adapter
2202
USB to 2-Port RS-422, RS-485 DB9 Serial Interface Adapter
2203
USB to 2-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2208
Embedded USB to 2-Port RS-232 DB9 Serial Interface Adapter with Standard Size PC
Bracket
2228
Embedded USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9
Serial Interface Adapter with PC Bracket
2401
USB to 4-Port RS-232 DB9 Serial Interface Adapter
2402
USB to 4-Port RS-422, RS-485 DB9 Serial Interface Adapter

©Sealevel Systems, Inc. 2107 Manual 9
SL9218 05/2011
2403
USB to 4-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2404
USB to 4-Port RS-232 RJ45 Serial Interface Adapter
2407
USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
2423
USB to 4-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2433
USB to 4-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
641U
USB to RS-232 RJ45 Serial Interface Adapter
647U
USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
2801
USB to 8-Port RS-232 DB9 Serial Interface Adapter
2802
USB to 8-Port RS-422, RS-485 DB9 Serial Interface Adapter
2803
USB to 8-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2804
USB to 8-Port RS-232 RJ45 Serial Interface Adapter
2807
USB to 8-Port RS-232, RS-485, RJ45 VersaCom Serial Interface Adapter
2823
USB to 8-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2833
USB to 8-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
681U
USB to RS-232 RJ45 Serial Interface Adapter
687U
USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
2161
USB to 16-Port RS-232 RJ45 Serial Interface Adapter
2167
USB to 16-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
2108S
Embedded USB to 1-Port RS-232 DB9 Serial Interface Adapter with Standard Size PC
Bracket
2123-OEM
USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2223-KT
USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
2223-OEM
USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface
Adapter
641U-OEM
USB to RS-232 RJ4 Serial Interface Adapter
647U-OEM
USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
681U-OEM
USB to RS-232 RJ45 Serial Interface Adapter

©Sealevel Systems, Inc. 2107 Manual 10
SL9218 05/2011
687U-OEM
USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter
2106-RoHS
RoHS Compliant USB to 1-Port RS-422 DB9 Serial Interface Adapter
2102-RoHS
RoHS Compliant USB to 1-Port RS-422, RS-485, RS-530 DB25 Serial Interface
Adapter
2201-RoHS
RoHS Compliant USB to 2-Port RS-232 DB9 Serial Interface Adapter
2203-RoHS
RoHS Compliant USB to 2-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2401-RoHS
RoHS Compliant USB to 4-Port RS-232 DB9 Serial Interface Adapter
2403-RoHS
RoHS Compliant USB to 4-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter
2801-RoHS
RoHS Compliant USB to 8-Port RS-232 DB9 Serial Interface Adapter
2404-RoHS
RoHS Compliant USB to RS-232 RJ45 Serial Interface Adapter for Powering 5VDC
Serial Peripherals
2402-DC12
RoHS Compliant USB to RS-232 RJ45 Serial Interface Adapter for Powering 12VDC
Serial Peripherals
2404-DC24
USB to RS-232 RJ45 Serial Interface Adapter for Powering 24VDC Serial Peripherals
2407-DC05
USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
5VDC Serial Peripherals
2407-DC12
USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
12VDC Serial Peripherals
2407-DC24
USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
24VDC Serial Peripherals
2804-DC05
USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 5VDC Serial
Peripherals
2804-DC12
USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 12VDC Serial
Peripherals
2804-DC24
USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 24VDC Serial
Peripherals
2807-DC05
USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
5VDC Serial Peripherals
2807-DC12
USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
12VDC Serial Peripherals
2807-DC24
USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering
24VDC Serial Peripherals

©Sealevel Systems, Inc. 2107 Manual 11
SL9218 05/2011
Electrical Specifications
The SeaLINK+485-DB9 utilizes a USB UART. This chip features programmable baud rate, data format, 128-
byte TX buffer, and 256-byte RX buffer. The RS-485 transceiver supports data rates up to 921.6K baud.
Refer to Appendix C for cable length limitations.
Pin #
Signal
Name
Mode
1
DATA+
Data Positive
I/O
2
DATA-
Data Negative
I/O
3
DATA-
Data Negative
I/O
4
DATA+
Data Positive
I/O
5
GND
Ground
6
N/C
Not Connected
N/A
7
N/C
Not Connected
N/A
8
N/C
Not Connected
N/A
9
N/C
Not Connected
N/A

©Sealevel Systems, Inc. 2107 Manual 12
SL9218 05/2011
Technical Specifications
Specification
Operating
Storage
Temperature Range
-40º to 75º C (-40º to 185º F)
-50º to 105º C (-58º to 221º F)
Humidity Range
10 to 90% R.H. Non-Condensing
10 to 90% R.H. Non-Condensing
Supply line
+5 VDC
Rating
100 mA
All Sealevel Systems, Inc. printed circuit boards are built to UL 94V0 rating and are 100% electrically tested.
These printed circuit boards are solder mask over bare copper or solder mask over tin nickel.

©Sealevel Systems, Inc. 2107 Manual 13
SL9218 05/2011
Hardware Configuration
The 2107 is built for harsh conditions and features a military-grade, ruggedized, overmolded enclosure.
This improves the reliability and durability in industrial and mobile applications.
The 2107 includes a DB9 male serial connector on one end of the device. The pin assignments for this
connector are detailed in the previous Electrical Specifications section.
A pair of status LEDs indicate:
Tx (Red) –Light when data is being transmitted
Rx (Green) –Light when data is being received
The attached cable has a clear jacket over a braided shield. The cable is approximately 44” overall with a
USB Type A connector, which is compatible with any available USB port on a host computer or USB hub. Self-
powered hubs can be used as long as they provide a minimum of 100mA to each USB port. The 2107 is
compatible with USB 2.0 ports and is USB 1.1 compliant.

©Sealevel Systems, Inc. 2107 Manual 14
SL9218 05/2011
Installation
Do not connect the device to a USB port until the software has been successfully installed.
To install Sealevel Systems software, you must log in as an administrator or have administrator
privileges in Windows.
1. Insert the Sealevel Software disk in to your optical drive.
2. If ‘Auto-Run’ is enabled, the installation window will automatically launch.
3. Otherwise, navigate to the root directory of your optical drive and double-click the ‘autorun.exe’
application to launch the installation window.
4. Select ‘Install’.

©Sealevel Systems, Inc. 2107 Manual 15
SL9218 05/2011
5. Type in the part number for your device or select it from the list in the drop-down list.
If you installed your hardware prior to loading/installing the drivers, please click on the ‘Click here if
you installed hardware before software’ and follow the listed instructions.
6. Click the ‘Install Drivers’ button to launch the Installation Wizard.
7. When the ‘SeaCOM - InstallShield Wizard’ window appears, click the ‘Next’ button to initiate the
software installation.
8. When the ‘License Agreement’ window appears, accept the terms and click ‘Next’ to continue. You
can click the ‘Print’ button to print out a copy of the agreement for your records. If you do not
accept the terms of the agreement, the installation will stop.
9. When the ‘Ready to Install the Program’ window appears, click the ‘Install’ button to install the
software. The files will be automatically installed into the ‘C:\Program Files’ folder on your
computer.

©Sealevel Systems, Inc. 2107 Manual 16
SL9218 05/2011

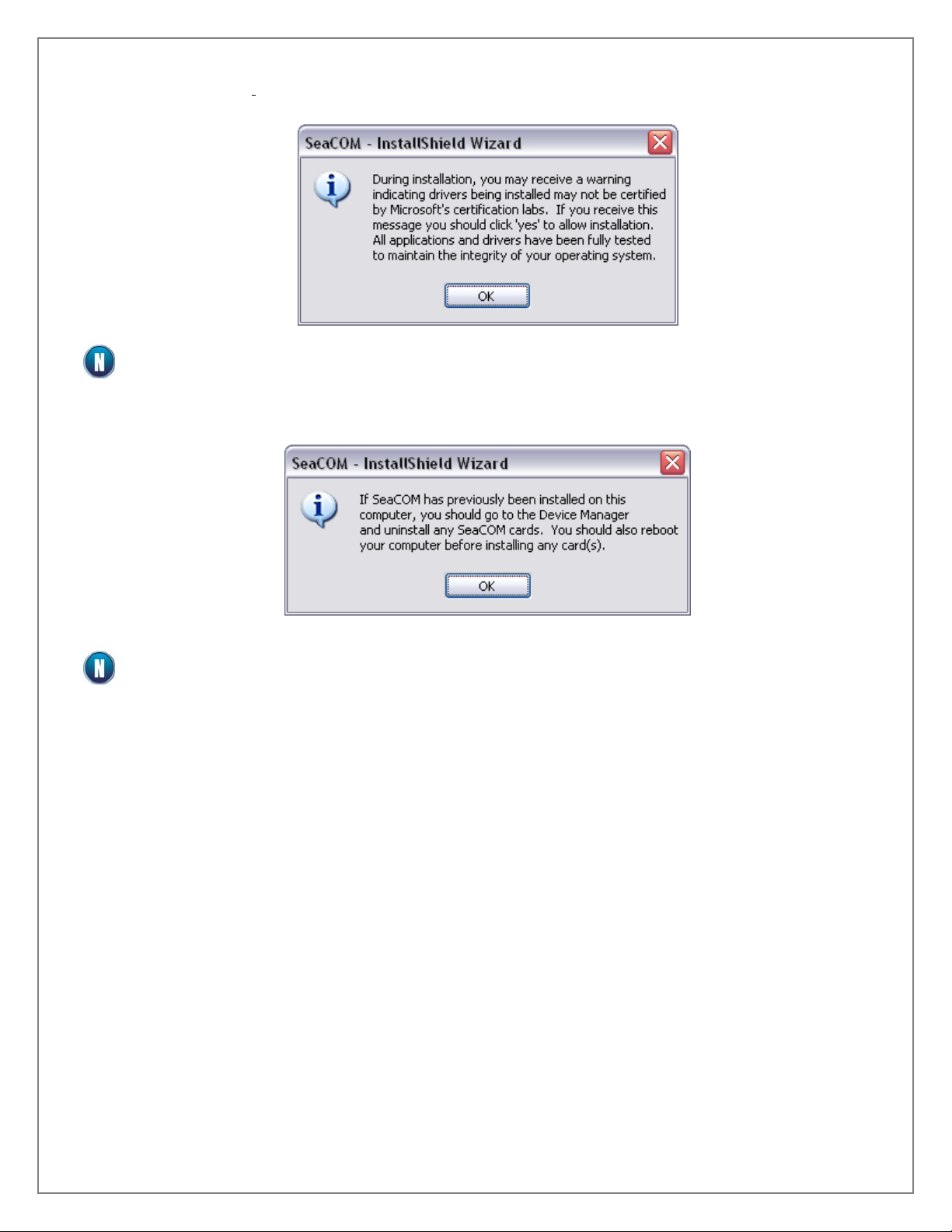

10. The following dialog box may appear, as shown below. Click the ‘OK’ button to continue.
All SeaCOM software and drivers have been fully tested by Sealevel. Clicking ‘Yes’ will not harm your
system.
11. The following dialog box may appear, as shown below. Click the ‘OK’ button to continue.
This is a notification that if you are upgrading from a previous driver version, you should remove
the associated Device Manager hardware entries and reinstall the adapter after the installing the
SeaCOM software.
12. The setup file will automatically detect the operating environment and install the proper
components. Once the installation is complete, close the disk installation window.
13. You have completed the software driver installation process.
14. Refer to the Physical Installation section to connect and install your adapter.

©Sealevel Systems, Inc. 2107 Manual 17
SL9218 05/2011
1. To install the driver executable from the Sealevel disk, browse the Sealevel Systems disk for:
Software\SeaCOM\Windows\SeaCOM Installer.exe
2. If you are using Windows Vista or newer operating systems, right click on the installer
executable and choose ‘Run as Administrator’. If you are using an operating system prior to
Windows Vista, double click on the executable to launch the InstallShield and initiate the
driver installation.
3. Please refer to step six above in the Disk Installation section and follow the remaining
installation steps.
1. To obtain the most current software driver package from Sealevel’s website, download from
here:
SeaCOM for Windows
SeaCOM for Linux
2. Choose the link for the target operating system and click on the ‘Download File’ link to
download the current driver.
3. Once downloaded, if you are using Windows Vista or newer operating systems, right click on
the installer executable and choose ’Run as Administrator’. If you are using an Operating
system prior to XP, double click on the executable to launch the InstallShield and initiate the
driver installation.
4. Please refer to step six above in the ‘Disk Installation’section and follow the remaining
installation steps.
1. Download the current driver using the Instructions from the ‘Downloaded Software
Installation’section above. Please take note of the destination directory it will save to.
2. Uninstall the currently loaded driver SeaCOM driver found in the Control Panel. Prior to
Windows Vista SeaCOM will be populated in ‘Add/Remove Programs’ list. In Vista and newer
OSs it will be found in the ‘Programs and Features’ list.
3. Navigate to the Device Manager and remove the Sealevel adapter by right clicking on the line
item choosing ‘Uninstall’. Depending on your product, it can be found under either
‘Multiport Serial adapters’ or ‘Universal Serial Bus controllers’.
4. Single port ISA cards and PCMCIA cards will need to be uninstalled under ‘Ports (COM &
LPT)’.
5. In the Device Manager under ‘Action’, choose ‘Scan for Hardware changes’. This will prompt
the installation of the adapter and associate it with the newly installed SeaCOM driver.

©Sealevel Systems, Inc. 2107 Manual 18
SL9218 05/2011
6. Proceed with the hardware installation of your SeaLINK USB serial adapter.
Windows NT is not USB aware, and thus, it cannot support this device.
The SeaLINK+485 can be connected to any Upstream Type A USB port at the PC host or an Upstream Hub.
Since it is hot pluggable, there is no need to power down your computer prior to installation. The
SeaLINK+485 requires no user hardware configuration. Once you have installed the software simply plug
the USB connector into an available USB port. The drivers that were installed during setup will automatically
be used to configure the adapter. In Windows XP and previous OS versions, you should see one or more
‘Found New Hardware’windows, indicating the actual device being created and enumerated. See below. In
Vista and newer operating systems, the enumeration occurs automatically without user interaction.
Windows XP
Once the device has been connected, the Found New Hardware wizard will appear twice –first for
the USB part, and then for the serial port that you are installing.
The following instructions are applicable to the Windows XP operating system and may vary depending on
your version of Windows.
1. After the software installation is complete, plug the 2107 into an available USB port on the
computer or USB hub.
2. A ‘Found New Hardware’ alert will appear above the system tray.
3. The ‘Found New Hardware Wizard’ will appear.

©Sealevel Systems, Inc. 2107 Manual 19
SL9218 05/2011

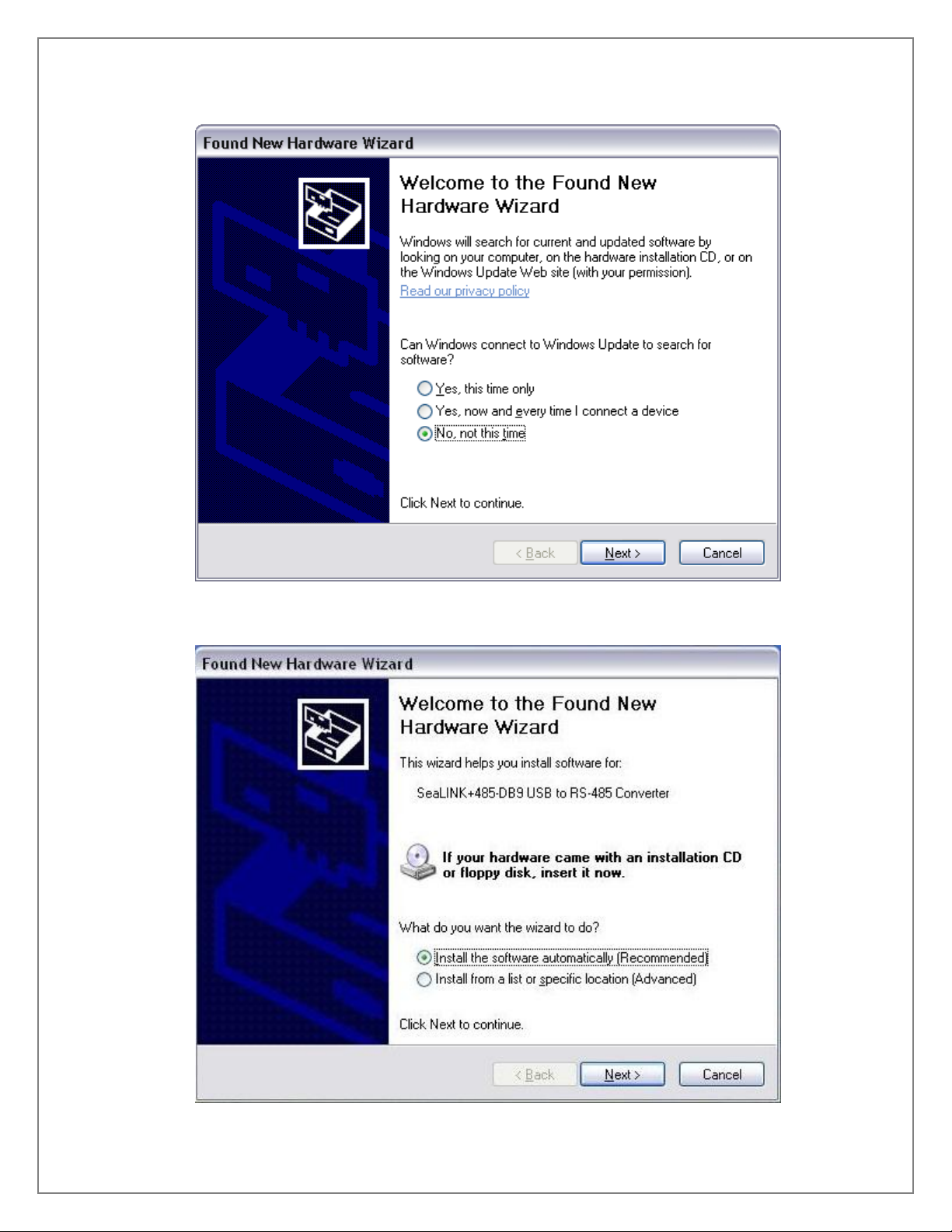

4. Choose ‘No, not this time’ and click ‘Next’ to proceed.
5. Choose ‘Install the software automatically’ and click ‘Next’.

©Sealevel Systems, Inc. 2107 Manual 20
SL9218 05/2011

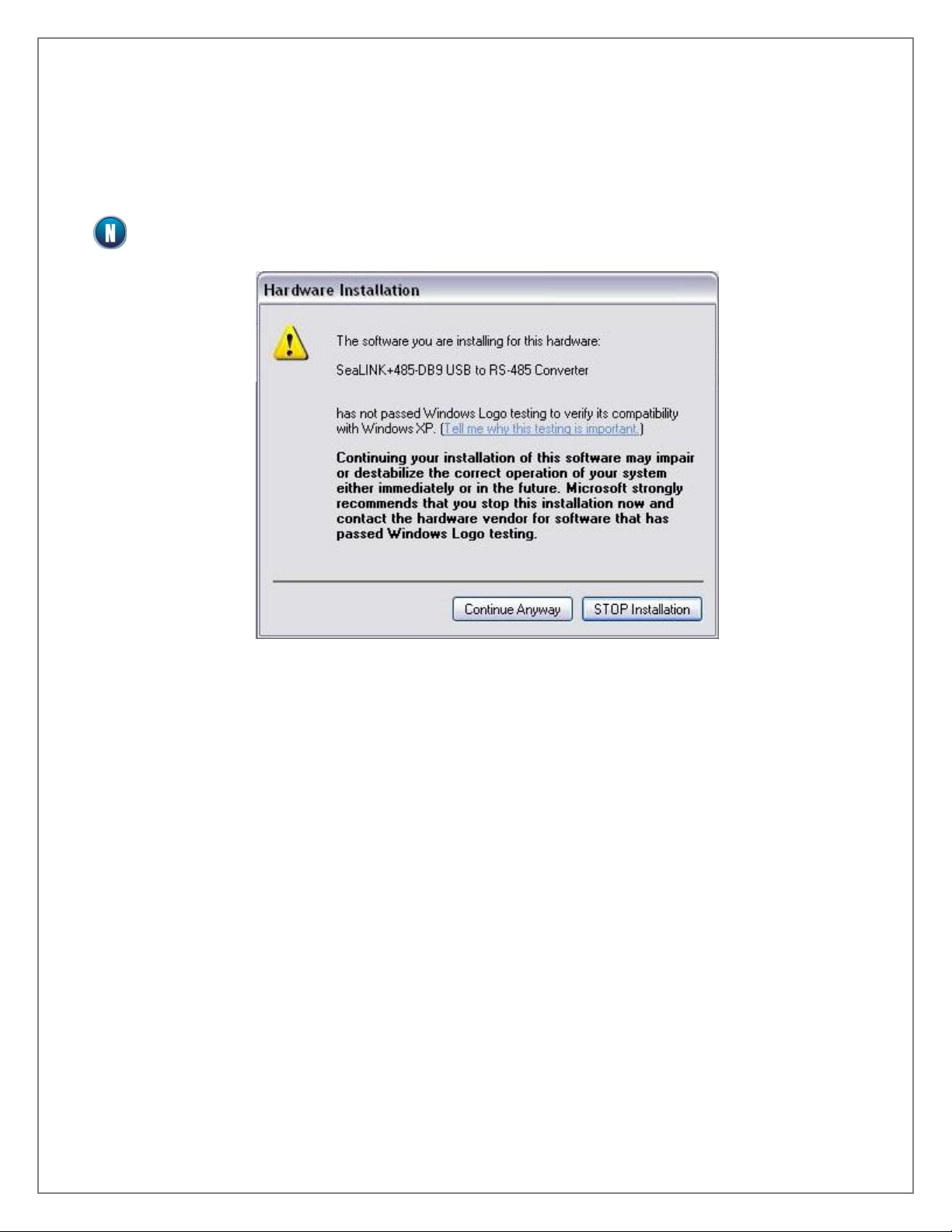

6. The ‘Hardware Wizard’ will search for the proper drivers; however, it may be interrupted by a
message stating that the hardware has not passed Windows certification. Click ‘Continue
Anyway’.
All SeaCOM software and drivers have been fully tested by Sealevel. Clicking ‘Continue anyway’ will
not harm your system.
