INSTRUCTIONS FOR:

CARBURETTOR SYNCHRONIZER

Model No: VS209.V2

1. SAFETY INSTRUCTIONS

One of the most comprehensive balancer sets available on the market. Features a bank of four mini-gauges with

lockable valves enabling user to hold vacuum values in use. Supplied with set of long and short carburettor

adaptors for easy access amongst the tubes and wires around the carburettor. Includes four 900mm delivery

tubes. Supplied in carry-case.

2. INTRODUCTION

 Ensure that Health & Safety, local authority and general workshop practice regulations are strictly adhered to

when using tools.

 Maintain the equipment in good and clean condition for best and safest performance. DO NOT use if

damaged.

 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey

dealer.

8 DO NOT use the equipment for purposes other than for which it is designed.

8 DO NOT use the equipment when you are tired or under the influence of alcohol, drugs or intoxicating

medicine.

 Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair.

 Account for all tools and parts being used and do not leave them in, on or near the engine.

 Ensure that work area has adequate lighting.

 Keep children and unauthorised persons away from work area.

 When not in use, store the equipment in a safe, dry childproof area.

 IMPORTANT: Refer to the vehicle manufacturer’s service instructions, or a proprietory manual, to establish

the correct procedure and data. These instructions are provided as a guide only.

 IMPORTANT: Ensure the vehicle has been serviced and that the air screw and pilot screw have been

correctly adjusted.

 WARNING! Exhaust fumes are dangerous, ensure steps are taken to remove fumes from work area.

 WARNING! It is assumed that anybody using the VS209 will have some knowledge of the mechanics of the

vehicle, particularly in regard to safe handling of fuel systems and removal of the fuel tank. If there is any

doubt refer the job to a professional mechanic.

3. INSTRUCTIONS FOR USE

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly

maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND

CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY

CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

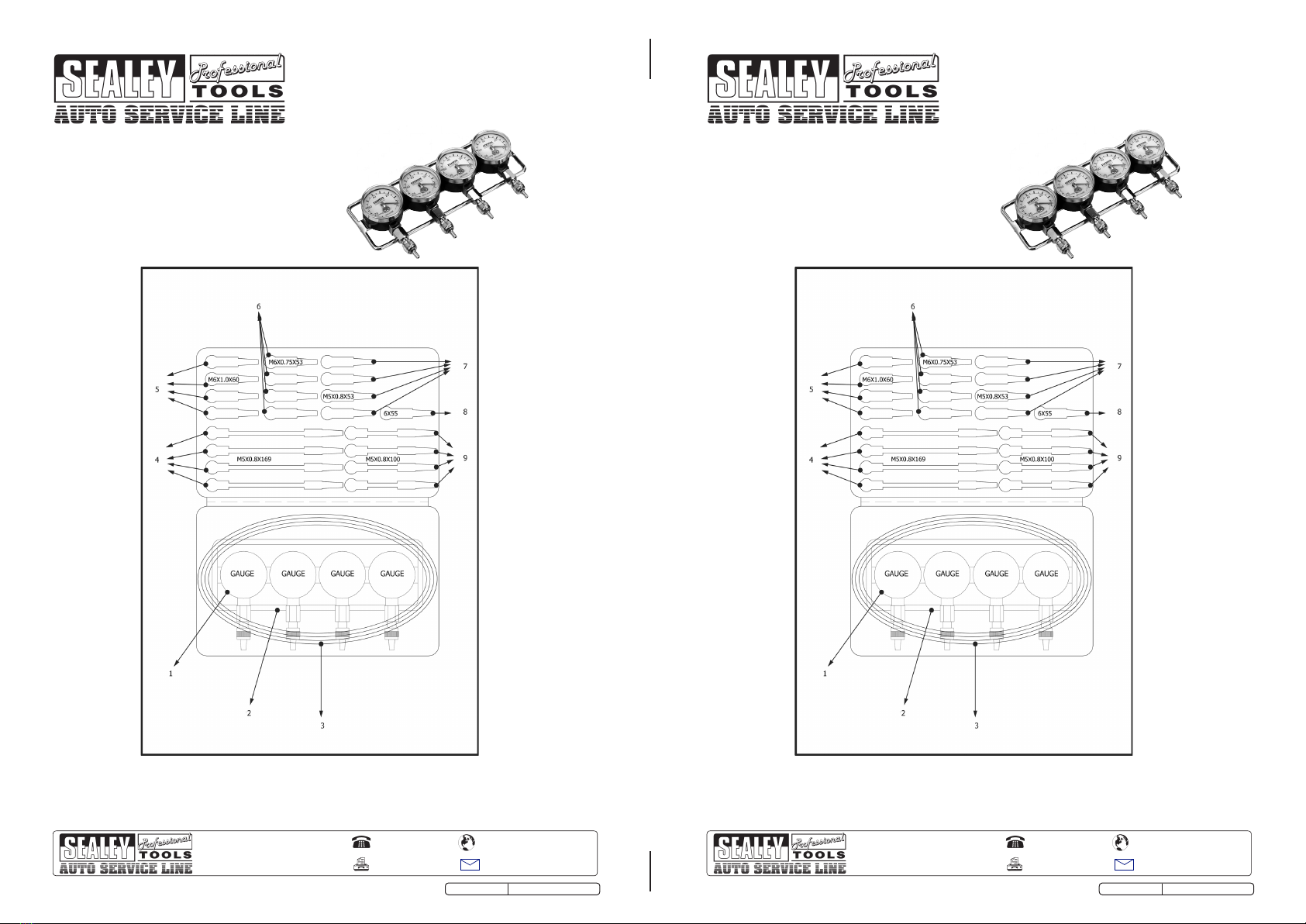

fig.1

Release valve

Original Language Version VS209.V2 Issue: 1 - 15/04/11

3.1 SET-UP

3.1.1 Start the vehicle and run until it will operate without choke. When this has been

achieved, turn off the engine and fit the vacuum gauges as follows:

3.1.2 Remove the inlet manifold vacuum screw(s). Select the appropriate extension

connector and screw into the inlet manifold of vehicle, do not overtighten,

finger pressure is adequate.

3.1.3 Repeat for the remaining carburettors (up to four).

3.1.4 Push fit the rubber hose to each extension connector ensuring a good fit so no air

will leak.

3.1.5 Push fit the other end of the hose to the gauges ensuring a good fit so no air will leak.

3.2 OPERATION

3.2.1 Close the lockable valves (fig.1) and start the engine.

3.2.2 Open each regulator gradually by turning the lockable valves (fig.1) until the display needle stabilises.

3.2.3 Refer to the vehicle handbook for slide adjustments to the carburettors. Following the vehicle

handbook, make the adjustments to each carburettor until all the display readings are the same.

3.2.4 Advance the throttle a few times and allow the engine to settle back to tickover. You can close the

lockable valves to hold vacuum values in use. Re-check the display readings and confirm they are still

reading the same values. If not re-adjust the carburettors as necessary.

3.2.5 When synchronization is complete, switch off engine and remove extension connectors from the

manifold. Replace the vacuum screw(s) back into the inlet manifold.
