Sealey CP20VSDS User manual

20V SDS PLUS ROTARY HAMMER DRILL -
BODY ONLY
MODEL NO: CP20VSDS
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL SAFETY
9Disconnect the drill from the battery unit before changing accessories, servicing or performing any maintenance.
9Maintain the drill and battery in good condition. Check moving parts alignment on a regular basis.
9Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
9Ensure the drill is switched off before installing the battery pack.
9Keep the drill and charger clean for best and safest performance.
9 Removeillttingclothing.Removeties,watches,ringsandotherloosejewelleryandcontainlonghair.
9 Evaluateyourworkingareabeforeusingthedrille.g.ceilings,oorsandenclosuresmaycontainelectricalitemsorwaterpiping.
9Ensure battery pack is correctly inserted into the drill handle and latched in place before attempting to switch on drill.
9Secure loose work pieces with a clamp, vice or other adequate holding device.
9Avoid unintentional starting.
9Wear approved safety eye protection (standard spectacles are not adequate).
9 Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnon-skidshoes.
9Keep chuck direction switch in the locked position until the drill is required for use.
9Keep children and unauthorised persons away from the working area.
9Keep drill and charger in the case and store in a safe, dry, childproof area where the temperature will not exceed 104°F (40°C).
8DO NOTusethedrillwherethereareammableliquids,solidsorgases,suchaspaintsolvents,etc.
8DO NOT allow children to operate the drill.
8DO NOToperatethedrillifanypartsaremissingasthismaycausefailureand/orpersonalinjury.
8DO NOT hold unsecured work piece in your hand.
8DO NOT leave the drill operating unattended.
8DO NOTcarrythedrillwithyourngeronthepowerswitch.Keepchuckdirectionswitchinthelockedposition.
8DO NOT use the drill for a task it is not designed to perform.
8DO NOToperatethedrillwhenyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.
8DO NOT get the drill or battery charger wet or use in damp or wet locations.
2. i INTRODUCTION
Powerful, lightweight cordless rotary hammer drill. Durable composite housing with soft grip for added comfort. SDS Plus chuck. Two drilling
functions,rotaryandrotarywithhammer.Built-inLEDworklight.Forward,reverseandtriggerlock.Variablespeedtriggerforgreatercontrol.
RequiresModelNo’sCP20VBP,CP20VBP2orCP20VBP420VBatteryandModelNo.CP20VMCMainsCharger.
3. i SPECIFICATION
Model No: ............................................................CP20VSDS
No Load Speed: ...................................................... 900 RPM
Impact Rate:......................................................... 0-5000bpm
Chuck size: .............................................................SDS Plus
Noise Power..................................................................96 dB
Noise Pressure .............................................................85dB
Vibration................................................................. 8.64 m/s2
Uncertainty................................................................ 1.5m/s2
Consumables:
Battery: .............................20V2Ah-4AhLi-ion(notincluded)
2Ah Battery .......................................................... CP20VBP2
3Ah Battery ............................................................ CP20VBP
4Ah Battery .......................................................... CP20VBP4
Mains charger ....................................................... CP20VMC
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear eye
protection
Wear a
mask
Wear ear
protection
Wear protective
gloves

4. OPERATION
WARNING:Removebatterybeforettingtoolormaintenanceiscarriedout.
4.1. To remove the battery from the equipment, depress the spring loaded button on the battery pack. Remove the battery pack by sliding
out. DO NOT touch the metal battery terminals.
4.2. USING THE DRILL
9Ensure that you have read, understood and comply with all the safety instructions in Section 1.

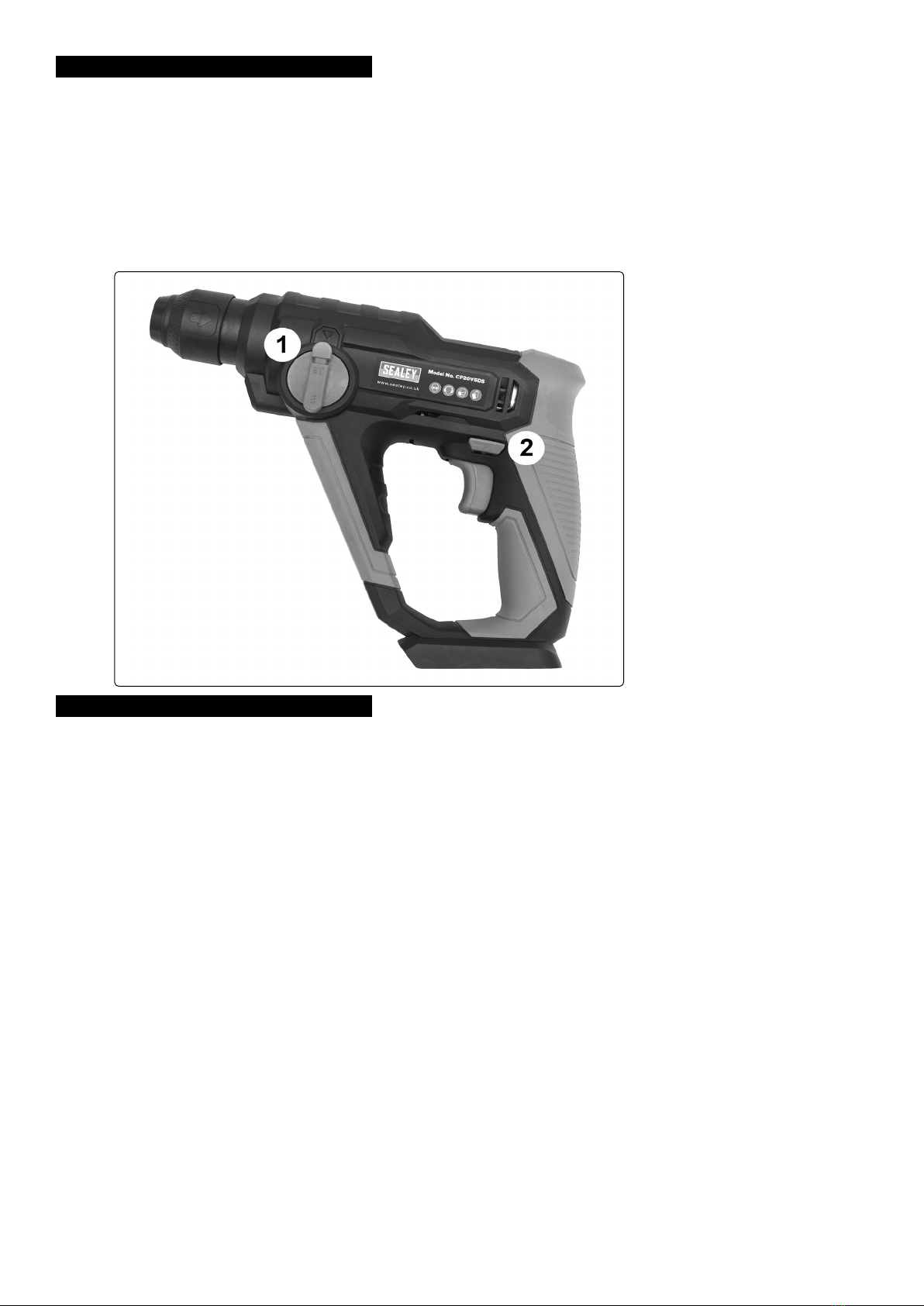

4.2.1. Ensure the direction switch (2) is in the mid (lock) position. Pull the chuck collar back and insert the required bit.
4.2.2. Select hammer or drill using rotary switch (1).
4.2.3. Select the direction of rotation by means of the direction switch (2).
4.2.6. The LED worklight is lit whenever the trigger is depressed.
4.2.8. When finished, remove the bit, clean the drill and bit and replace the drill in its case.
4.2.9. Store in a cool, dry place out of the reach of children.
5. MAINTENANCE
WARNING: Always disconnect from power source before carrying out any inspection, maintenance or cleaning.
5.1. GENERAL INSPECTION
5.1.1. Regularlycheckthatallthexingscrewsaretight. 
5.1.2. Repairs should be carried out by an authorised service centre.
5.2. CLEANING
WARNING: Always wear protective equipment including eye protection and gloves when cleaning this tool.
5.2.1. Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device’s service life.
5.2.2. Clean the body of your machine with a soft brush, or dry cloth.
5.2.3. Neverusecausticagentstocleanplasticparts.Ifdrycleaningisnotsufcient,amilddetergentonadampclothisrecommended.
5.2.4. Water must never come into contact with the tool. Ensure the tool is thoroughly dry before using it.
5.2.5. If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable).
5.3. LUBRICATION
5.3.1. Lightly lubricate all moving parts at regular intervals with a suitable spray lubricant.
5.4. BRUSHES
5.4.1. Over time the carbon brushes inside the motor may become worn.
5.4.2. Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking.
5.4.3. If you suspect that the brushes may be worn, have them replaced at an authorised service centre.
5.5. STORAGE
5.5.1. Store this tool carefully in a secure, dry place out of the reach of children.
Original Language Version
© Jack Sealey Limited

WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
ThistoolissubjecttothevibrationtestingsectionoftheMachineryDirective2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): ..........8.64 m/s²
Uncertainty value (k):...........................1.5 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: StatedVibrationEmissionvaluesaretype-testvaluesandareintendedtobetypical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
Werecommendaprogrammeofhealthsurveillancetodetectearlysymptomsofvibrationinjurysothatmanagementprocedurescanbemodified
accordingly.
Personal protective equipment.
Wearenotawareofanypersonalprotectiveequipment(PPE)thatprovidesprotectionagainstvibrationinjurythatmayresultfromthe
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSC website
www.hse.gov.uk-Hand-ArmVibrationatWork.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Original Language Version
© Jack Sealey Limited
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
CP20VSDSIssue:112/09/19
