Owner's
Manual
MODEL NO.
875.501152
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
IB-501152
3 TON CAPACITY
SERVICE JACK
• Operation
°Maintenance
• Repair Parts
° Warranty
JSold by SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

OPERATION
, This Jack Is a Lifting Device Only •
Designed only for lifting part of the total
vehicle (ie. one wheel). Do not move or dolly
thevehicle while it ison the jack.
•Position the Jack •
Position this jack to only lift on the areas of
the vehicle specified by the vehicle
manufacturer.
• Use Support Stands •
After lifting the vehicle always support the
load with appropriately rated vehiclesupport
stands before workingon the vehicle.
• Do Not Overload Jack •
Do not overload this jack beyond its rated
capacity. Overloading can cause damage
toor failure of thejack.
• Use on Hard Level Surfaces •
This jack is designed only for use on hard
level surfaces capable of sustaining the
load. Use on other than hard level surfaces
can result in jack instability and possible
loss of load.
• Center Load on Jack Saddle •
Center load on jack saddle before lifting
vehicle. Off-center loads and loads lifted
when the jack is not level can cause loss of
load or damage to the jack.
Read Operating Instructions •
Study, understand and follow all
ins_'uctions in this manual before operating
the jack. Failure to heed these warnings
may result in loss of load, damage to the
jack and/or jack failure resulting in _ersonal
injury or property damage.
During shipment and handling, air may get
trapped in the hydraulic system, which can
interfere with the jack's lifting performance.
Follow these steps to release air from the
hydraulic system:
• Open the release valve by turning the jack
handle counter clockwise (Fig. 1).
• Loosen oil filler plug (Fig. 1).
• Rapidly pump jack handle with several full
strokes.
Keep Hands and Feet Clear of the Jack
Hinge Mechanism and Ground Contact
Area When Lowering the Load!
OIL FILLER PLUG
.J
RELEASE VALVE GEAR
Fig. 1
Operation
Raising the Jack
.Close the release valve by turning the handle
clockwise.
•Block the vehicles wheels for lifting stability.
•Refer to the vehicle manufacturer owners
manual to locate approved lifting points on the
vehicle. Position the jack so that the saddle is
centered under the load at an appropriate lift
point.
•Pump jack handle until saddle nears contact
with the vehicle. Check to see that the saddle
is centered and will contact the load lifting point
firmly.
• Continue to pump the jack handle to lift the
vehicle to the desired height. After lifting,
support the load with appropriately rated
vehicle support stands before working on the
vehicle.
Lowering the Jack
• Open the release valve very slowlyby turning
the handle counter-clockwise.
With Release Valve Closed
• An upward stroke of the jack handle draws
oil from the reservoir tank into the plunger
cavity. Hydraulic pressure holds the valve
closed, which keeps the oil in the plunger
cavity.
• A downward stroke of the jack handle
releases oil into the cylinder, which forces the
ram out.'This raises the saddle.
• When the ram reaches maximum extension,
oil is bypassed back into the reservoir to
prevent an over extended ram stroke and
possible damage to the jack.
• Opening the release valve allows oil to flow
back into the reservoir. This releases hydraulic
pressure on the ram, which results in lowering
the saddle.

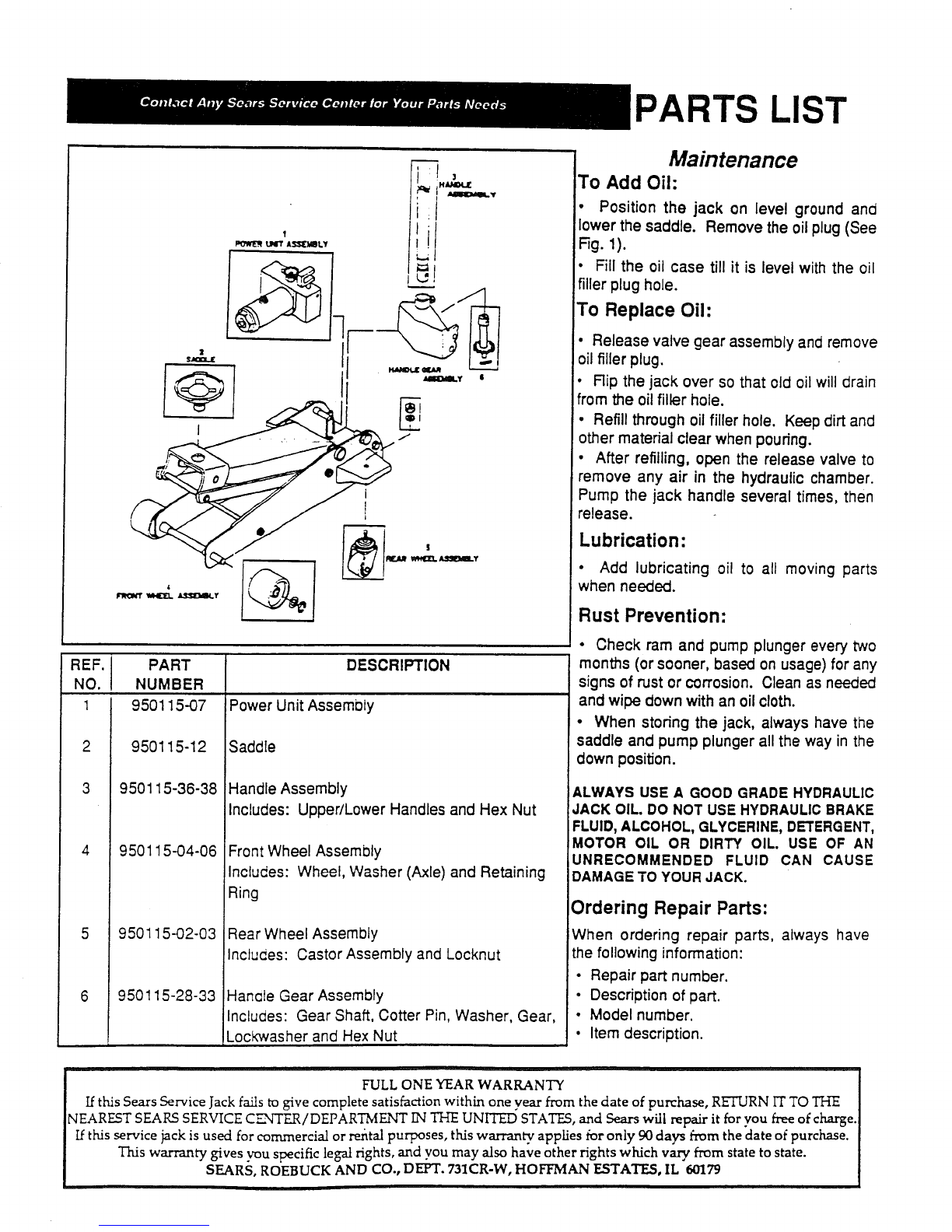

PARTS LIST
REF.
NO.
1
2
3
PART
NUMBER
950115-07
950115-12
950115-36-38
950115-04-06
95O115-02-03
950115-28-33
DESCRIPTION
Power Unit Assembly
Saddle
Handle Assembly
Includes: Upper/Lower Handles and Hex Nut
Front Wheel Assembly
Includes: Wheel, Washer (Axle) and Retaining
Ring
Rear Wheel Assembly
!lncluces: Castor Assembly and Locknut
Handle Gear Assembly
Includes: Gear Shaft, Cotter Pin, Washer, Gear,
Lockwasher and Hex Nut
Maintenance
To Add Oil:
• Position the jack on level ground and
lower the saddle. Remove the oil plug (See
Fig.1).
• Fill the oil case till it is level with the oil
filler plug hole.
To Replace Oil:
• Release valve gear assembly and remove
!oil filler plug.
•Rip the jack over so that old oil will drain
from the oil filler hole.
• Refill through oil filler hole. Keep dirt and
other material clear when pouring.
•After refilling, open the release valve to
remove any air in the hydraulic chamber.
Pump the jack handle several times, then
release.
Lubrication:
• Add lubricating oil to all moving parts
when needed.
Rust Prevention:
• Check ram and pump plunger every two
months (or sooner, based on usage) for any
signs of rust or corrosion. Clean as needed
and wipe clownwith an oil cloth.
•Wllen storing the jack, always have the
saddle and pump plunger all the way in the
down position.
ALWAYS USE A GOOD GRADE HYDRAULIC
JACK OIL. DO NOT USE HYDRAULIC BRAKE
FLUID, ALCOHOL, GLYCERINE, DETERGENT,
MOTOR OIL OR DIRTY OIL. USE OF AN
UNRECOMMENDED FLUID CAN CAUSE
DAMAGE TO YOUR JACK.
Ordering Repair Parts:
When ordering repair parts, always have
the following information:
• Repair part number.
• Descdption of part.
• Model number.
• Item description.
FULL ONE YEAR WARRANTY
If this Sears Service Jack fails to give complete satisfaction within one year from the date of purchase, RETURN IT TO THE
qEAREST SEARS SERVICE C=---NTER/DEPARTMENT IN THE UNITED STATES, and Sears will repair it for you free of charge.
If this service jack is used for commercial or refital purposes, this warranty applies for only 90 days from the date of purchase.
This warranty gives you specific legal rights, and vou may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO., DEFT. 731CR-W, HOFFMAN ESTATES, IL 60179

Owner's
Manual
MODEL NO.
875.501152
SERVICE
is at
YOUR
SERVICE
IB-501152
Service Jack
Trouble Shooting Assistance
Problems
Jack will not Jack will not Jack will not Poor jack Causesand
lift load hold load lower lifting Solutions
Releasevalveis not
•completelyclosed.
Turnclockwise.
Air is in hydraulics.
Release from system.
Low oil level.
Add oil as required.
Oil reservoir is
overfilled.
=Drain excess oil.
• Lubricate moving
parts.
Power unit
malfunctioning.
Replace the power
unit.
Your Sears merchandise has added value when you
consider that Sears has service units nationwide
staffed with Sears trained technicians...
professional technicians specifically trained on
Sears products, having the parts, tools, and
equipment to insure that we meet our pledge to
you...
we service what we sell.
Sold by SEARS, ROEBUCK AND CO., Hoffman Estates, IL "60179 U.S.A.
