Sears 790.42003604 Manual

79042003.tif C79042003600.eps BU79042003601.eps BL79042003602.eps
D79042003601.eps 318271935-1.eps 318271935-2.eps
REPAIR
PARTS
LIST
790.42003604
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
DOUBLE ELECTRIC WALL OVEN
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
Publication number 5995496204

790.42003604
08/07 2

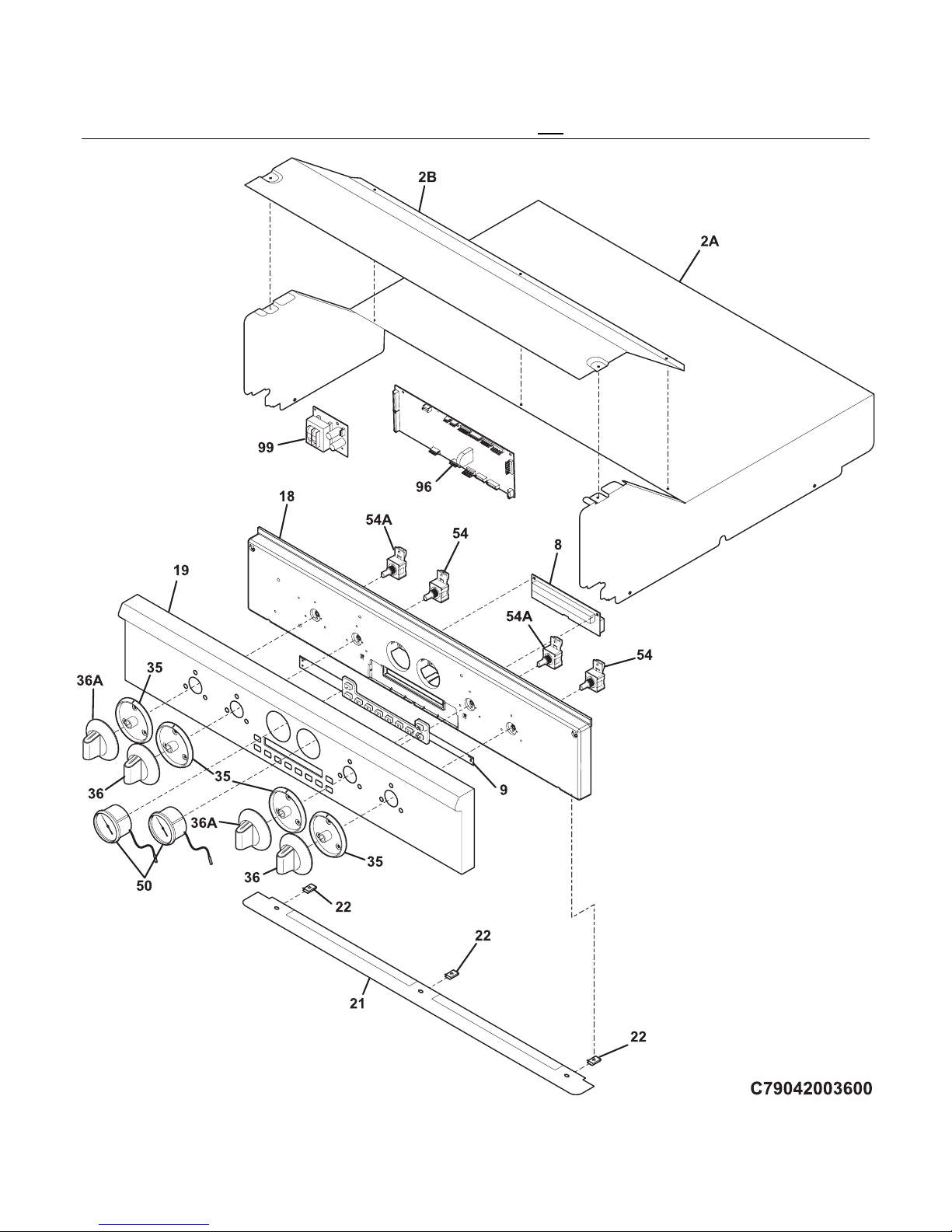

CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.42003604
# Functional Parts 3 08/07
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
2A 318257300 Shield, oven top
2B 318260100 Cover, box
8 316460300 Board, display
8* 5304453707 Screw, control mtg.
9 # 318600800 Keypad, switch
18 318603702 Panel, control assy, black
19 318600300 Panel, control, stainless, outer
21 318603100 Trim, control panel, bottom
22 318601100 Clip, tinnerman
35 318600604 Bezel, knob, (2)
36 318602403 Knob, temperature, control
36A 318602607 Knob, selector
50 # 318602800 Gauge, analog display
54 # 318601500 Control, temperature, potentiometer
54A# 318601700 Switch, selector, potentiometer
* 316247800 Washer, lock, control mtg
96 # 316460201 Board, control, analog
99 # 316435701 Board, power supply
* # 318231769 Wiring Harness, timer, to relay board
* # 318370306 Wriring Harness, potentiometer
* 5995496204 Repair Parts List
* 318205106 Owners Manual
* 318204800 Service Data Sheet

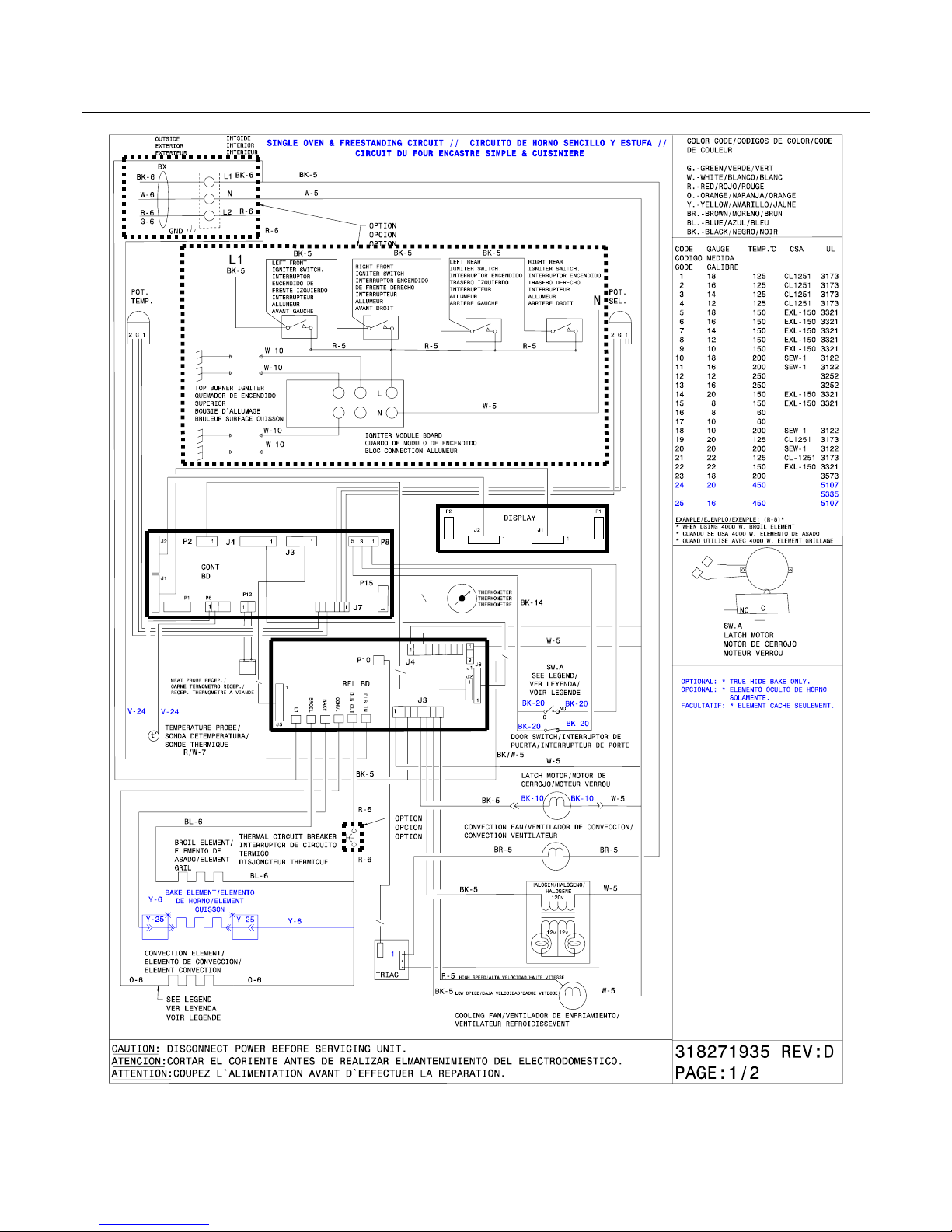

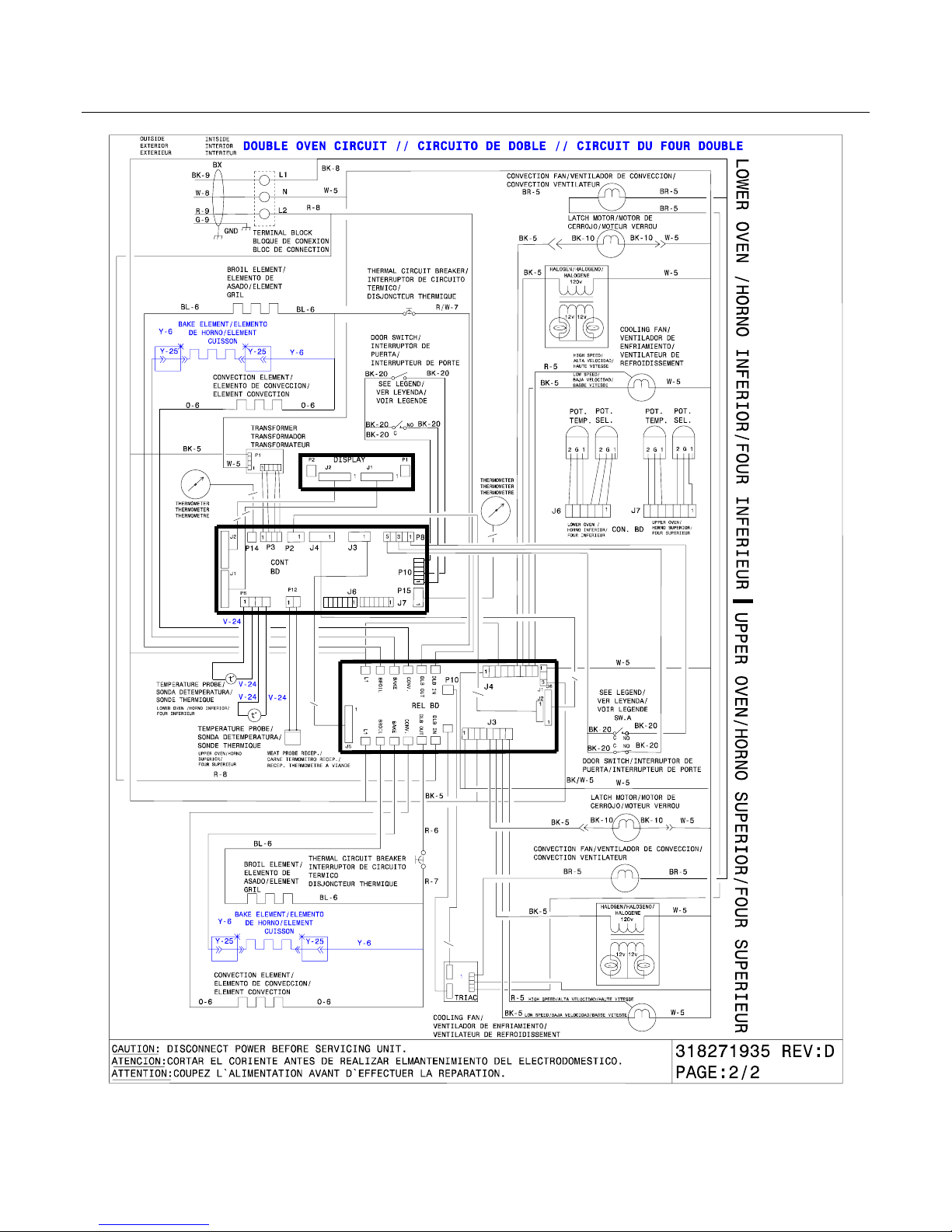

* 318271935 Wiring Diagram
* 318201522 Instruction sheet
* 318203402 Quick Start Sheet
* 316136900 Cleaner, stainless steel
* 5303211311 Screw, 8 x 0.500

790.42003604
08/07 4

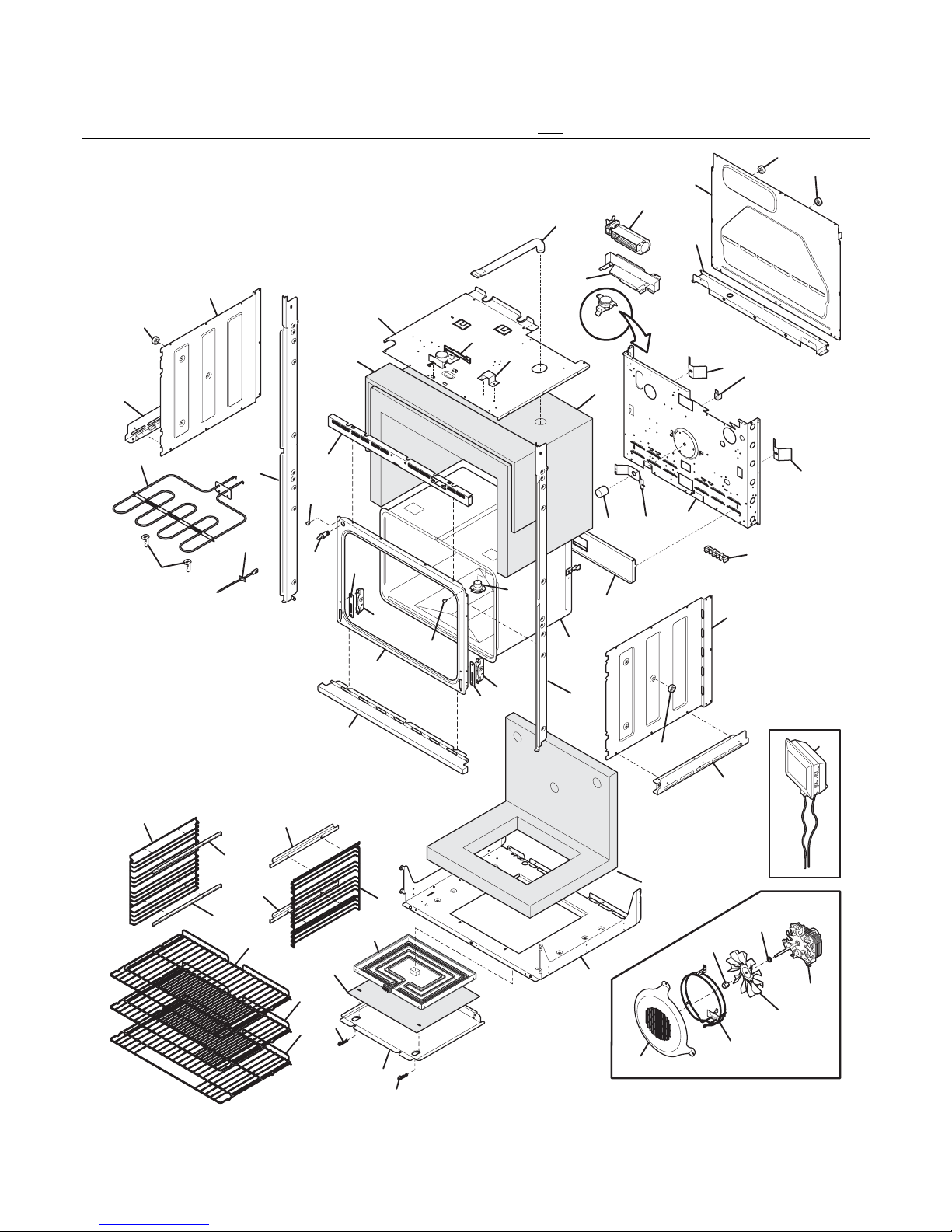

UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
67
57
58
7
7
8
8
82
119
108
108A
70
185
71
81
163
163
81
53
54
55
1
80
58A
264
99
37
76
29
29 127
86
86
41
41
58B
BU79042003601
99
185
70
2
12
83
59
59A
131
132
89
58D
143
142
310
311
312
15
107
161
111
109
263
125
272
66
68
10
9
6
11
11
13
13
13
13
6
6
6A
192
97
97A

790.42003604
# Functional Parts 5 08/07
* Non-Illustrated Parts
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 318259205 Back, main
2 318258902 Shield, insulation, upper
6 318601900 Rack, oven, (3)
6A 318365800 Rack, broiler pan
7 318368300 Pin, locking, (2)
8 318361801 Bracket, element, (2)
9 318138803 Pan, broiler
10 318126403 Insert, broiler pan
11 318603801 Ladder, oven rack, (2)
12 316445501 Switch, oven light, door frame
13 318603901 Bracket, ladder mtg., (4)
13* 5304456367 Rivet, ladder bracket, (8)
15 318241001 Lamp, oven, (2), halogen
15* 318268099 Insulation, oven light
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
37* 318373001 Bracket, receptacle, temp probe
41 318366601 Spacer, front frame
53 # 318601300 Probe, meat temp
54 # 318601201 Receptacle, probe
55 316247700 Nut, mounting, (2)
57 318361602 Panel, service
58 318330501 Insulation, service panel, 12.47 x 14.77
58A 318285055 Insulation, oven wrapper
58B 318362100 Insulation, rear & bottom, oven wrapper
58D 318285058 Insulation, 1/2" thick, 43 x 9.5
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
66 # 318255800 Element, broil, 4000W
67 # 318601601 Element, hidden bake
* # 318231838 Wiring Harness, bake element
68 5304403015 Support, hanger, (2), broil element
70 318259100 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
71* 318340201 Bracket, insul. panel
76 318056231 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
* 5303323129 Screw, 8 X 0.750
82 318258714 Shield, insulation, lower
83 318261418 Liner, ovenassy
86 318241406 Receptacle, hinge, (2)
86* 5304463119 Washer, (4)
89 # 318261211 Motor, latch assy
* # 318231750 Harness, wiring, main, latch
* # 318199744 Wiring Harness, latch, BAS
97 # 316443910 Board, relay, dual oven
97A# 316460901 Board, relay, convection
99 318252800 Support, side
107 318219403 Cover, fan
108# 318073018 Motor, blower

790.42003604
08/07 6
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
67
57
58
7
7
8
8
82
119
108
108A
70
185
71
81
163
163
81
53
54
55
1
80
58A
264
99
37
76
29
29 127
86
86
41
41
58B
BU79042003601
99
185
70
2
12
83
59
59A
131
132
89
58D
143
142
310
311
312
15
107
161
111
109
263
125
272
66
68
10
9
6
11
11
13
13
13
13
6
6
6A
192
97
97A

790.42003604
# Functional Parts 7 08/07
* Non-Illustrated Parts
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support
109 316136400 Blade, fan
111 316136600 Nut, fan retainer
119# 318004900 Switch, thermal
125* 5303316994 Insulation, 3.81 x 3.13
125# 316415800 Motor, fan
127 318317100 Adapter Assembly, vent tube, w/converter
131 318272901 Box, vent
132 318003000 Plate, shield
142 318123910 Deflector
143 318172904 Support, wire
161# 318255505 Element, convection, 2500 W
163 318014111 Spacer
185 318014700 Spacer, oven shield, (4)
192 316117100 Grill, searing
263 316136500 Washer, flat
264 318257704 Trim, oven, black, front
272 318249401 Tube, protector
310 5304440067 Cabinet Mounting Kit
311* 5304438005 Screw, 6 x 1, black
312 318246702 Tool, cabinet bracket, RH
312 318246703 Tool, cabinet bracket, LH
* 318165800 Spacer
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, (2)
* 5303323139 Screw, 10-24 x 0.906
* 5303323277 Screw, 8-18 X 13/32
* 5304436875 Screw, 8-18 X 1/2, black

790.42003604
08/07 8
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
67
57
58
7
7
82
58B
6
11
11
13
13
13
13
6
6
41
41
143
119
108
108A
89
70
185
71
81
163
163
81
87
1
62
80
272
142
58A
58D
99
37
66
68
76
29
29
127
86
86
90 15
107
161
111
109
BL79042003602
263
125
99
185
70
2
12
83
59
59A
264
56A
56

790.42003604
# Functional Parts 9 08/07
* Non-Illustrated Parts
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 318259205 Back, main
2 318258902 Shield, insulation, upper
6 318601900 Rack, oven, (3)
7 318368300 Pin, locking, (2)
11 318603801 Ladder, oven rack, (2)
12 316445501 Switch, oven light, door frame
13 318603901 Bracket, ladder mtg., (4)
13* 5304456367 Rivet, ladder bracket, (8)
15 318241001 Lamp, oven, (2), halogen
15* 318268099 Insulation, oven light
29 318147411 Bumper, (2)
37 # 316217002 Probe, oven temp
37* 318373001 Bracket, receptacle, temp probe
41 318366601 Spacer, front frame
56 318903604 Trim, side filler, black, RH
56A 318903605 Trim, side filler, black, LH
57 318361602 Panel, service
58 318330501 Insulation, service panel, 12.47 x 14.77
58A 318285055 Insulation, oven wrapper
58B 318362100 Insulation, rear & bottom, oven wrapper
58D 318285058 Insulation, 1/2" thick, 43 x 9.5
59 318072560 Duct, oven vent
59A 318261600 Bracket, vent tube
62 316056000 Terminal Block
62* 5303323139 Screw, 10-24 x 0.906
62* 5303323144 Nut, 10-32
66 # 318255800 Element, broil, 4000W
67 # 318601601 Element, hidden bake
* # 318231838 Wiring Harness, bake element
68 5304403015 Support, hanger, (2), broil element
70 318259100 Shield, insulation, sides, (2)
71 318260007 Panel, rear box
71* 318340201 Bracket, insul. panel
76 318056231 Front, oven
80 5303320846 Plate, oven mtg
81 318192400 Spring, oven
* 5303323129 Screw, 8 X 0.750
82 318258714 Shield, insulation, lower
83 318261418 Liner, ovenassy
86 318241406 Receptacle, hinge, (2)
86* 5304463119 Washer, (4)
87 318260600 Bracket, cable mtg.
89 # 318261211 Motor, latch assy
* # 318231750 Harness, wiring, main, latch
* # 318199746 Wiring Harness, latch, NO BAS
90 318601400 Trim, bottom, stainless
99 318256200 Bracket, side, bottom, (2)
107 318219403 Cover, fan
108# 318073018 Motor, blower
* 08016432 Screw, truss head, 8-18 x 0.375
108A 318251300 Bracket, fan support

790.42003604
08/07 10
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
67
57
58
7
7
82
58B
6
11
11
13
13
13
13
6
6
41
41
143
119
108
108A
89
70
185
71
81
163
163
81
87
1
62
80
272
142
58A
58D
99
37
66
68
76
29
29
127
86
86
90 15
107
161
111
109
BL79042003602
263
125
99
185
70
2
12
83
59
59A
264
56A
56

790.42003604
# Functional Parts 11 08/07
* Non-Illustrated Parts
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
109 316136400 Blade, fan
111 316136600 Nut, fan retainer
119# 318004900 Switch, thermal
125* 5303316994 Insulation, 3.81 x 3.13
125# 316415800 Motor, fan
127 318317100 Adapter Assembly, vent tube, w/converter
142 318123910 Deflector
143 318172904 Support, wire
161# 318255505 Element, convection, 2500 W
163 318014111 Spacer
185 318014700 Spacer, oven shield, (4)
263 316136500 Washer, flat
264 318257801 Trim, oven, black, front
272 318249401 Tube, protector
* # 318078546 Box & wires assy
* 5303323136 Screw ground
* 5303211311 Screw, 8 x 0.500
* 5303300265 Screw, 8-18 X 1/2, (2)
* 5303323277 Screw, 8-18 X 13/32
* 5304436875 Screw, 8-18 X 1/2, black

790.42003604
08/07 12

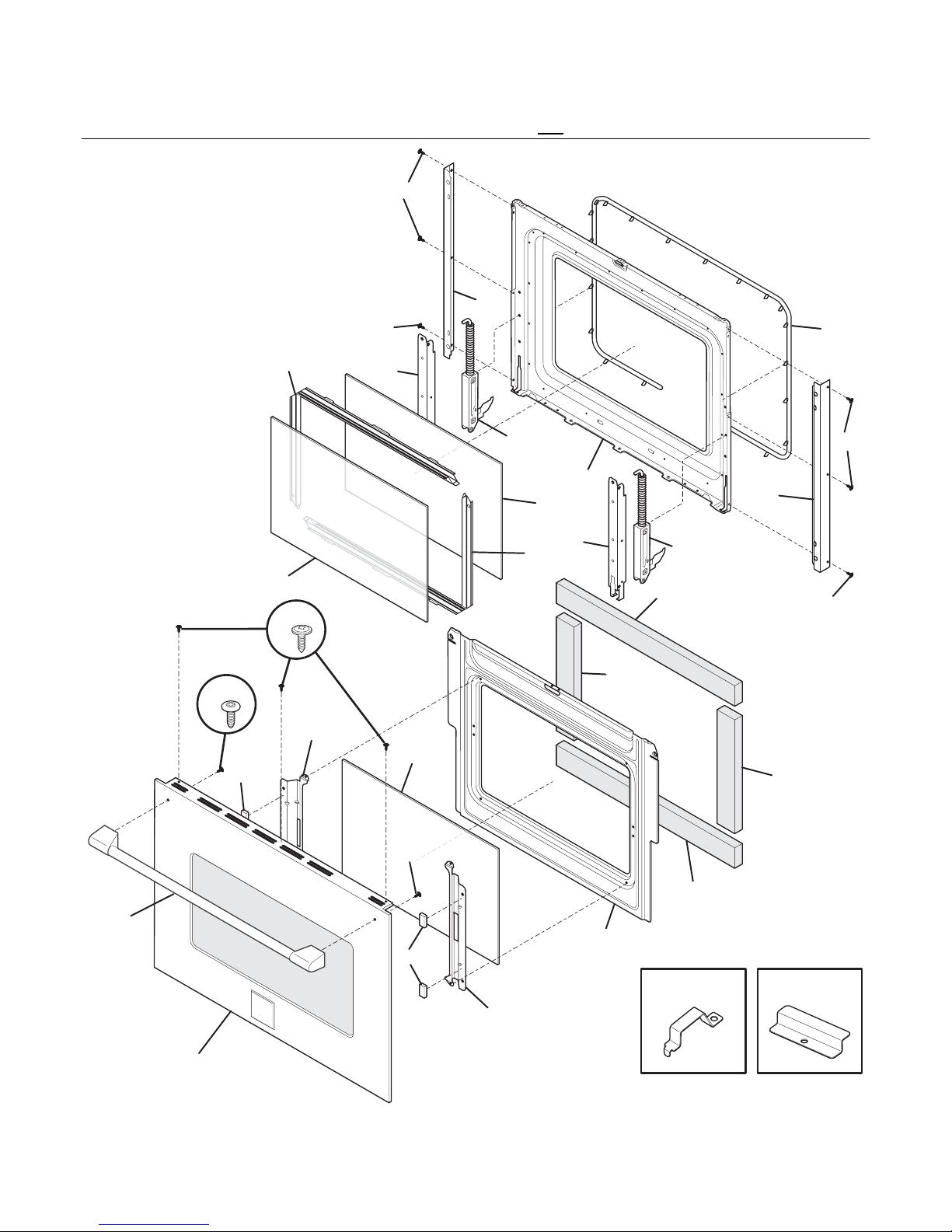

DOORS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
56
56
56
56
3A
3A
13
6
7
7
7A
7A
9
64
12
17
17
23
23
22
22
39
40
40
64
8
8
16
D79042003601
56
10
10
4142

790.42003604
# Functional Parts 13 08/07
* Non-Illustrated Parts
DOORS
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
3A 318260401 Trim, oven door, side, (2)
6 318260520 Baffle, door
7 318372000 Insulation, door, (2)
7A 318372002 Insulation, door, (2)
8 316117500 Glass, oven door, heat barrier
9 318259631 Liner, oven door
10 5303310510 Screw, 10-24 x 0.625
12 318053130 Seal, oven door, upper
13 318344003 Door Assy, w/glass, stainless, upper oven, w/nameplate
13 318344004 Door Assy, w/glass, stainless, lower oven
16 318212210 Glass, oven door, heat barrier
17 318264710 Spacer, glass, (2)
22 318353803 Retainer, hinge
22* 5304415832 Screw, 8-18 x 0.406
23 318244306 Hinge Assy, (2)
23* 5304437044 Screw, 10-32 x 1/4, black, (4)
39 318382200 Handle, door
40 318242700 Bracket, glass holder, lower door, (2)
40 318242702 Bracket, glass holder, upper door, (2)
41 318370600 Bracket, glass retainer, (2)
42 318382301 Bracket, glass retainer, (4)
56 5304436875 Screw, 8-18 X 1/2, black
64 318165800 Spacer
* 316136900 Cleaner, stainless steel

790.42003604
08/07 14
WIRING DIAGRAM

790.42003604
# Functional Parts 15 08/07
* Non-Illustrated Parts
WIRING DIAGRAM
