Sears 790.49062401 Owner's manual

79049062400.eps C79049062400.eps BU79049062401.eps BL79049062401.eps
D79049072400.eps 318046119.eps
REPAIR
PARTS
LIST
790.49062401
790.49064401
790.49069401
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
DOUBLE ELECTRIC WALL OVEN
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 318203143 Publication number 5995430328

790.4906
02/05 2
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4906
# Functional Parts 3 02/05
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
2A 318257300 A B C Shield, oven top
2B 318260100 A B C Cover, box
18 318273201 A - - Cover, control panel, white, RH
18 318273202 - B - Cover, control panel, bisque, RH
18 318273200 - - C Cover, control panel, black, RH
18A 318273301 A - - Cover, control panel, white, LH, w/nameplate
18A 318273302 - B - Cover, control panel, bisque, LH, w/nameplate
18A 318273300 - - C Cover, control panel, black, LH, w/nameplate
19 318280405 A - - Control Panel Assy., glass, white, w/membrane
19 318280406 - B - Control Panel Assy., glass, bisque, w/membrane
19 318280404 - - C Control Panel Assy., glass, black, w/membrane
20 # 316429711 A B C Control, electronic, dual oven
* 316021107 A B C Screw, hex head, 8-32, silver
23 318262900 A B C Bracket, control mtg., (2)
97 316429800 A B C Board, relay, dual oven
* 318231704 A B C Harness, wiring, control-relay
* 5995430328 A B C Repair Parts List
* 318200927 A B C Use & Care Guide
* 318047305 A B C Service Data Sheet
* 318046119 A B C Wiring label
* 318201512 A B C Instruction sheet
* 5303211311 A B C Screw, 8 x 0.500

790.4906
02/05 4

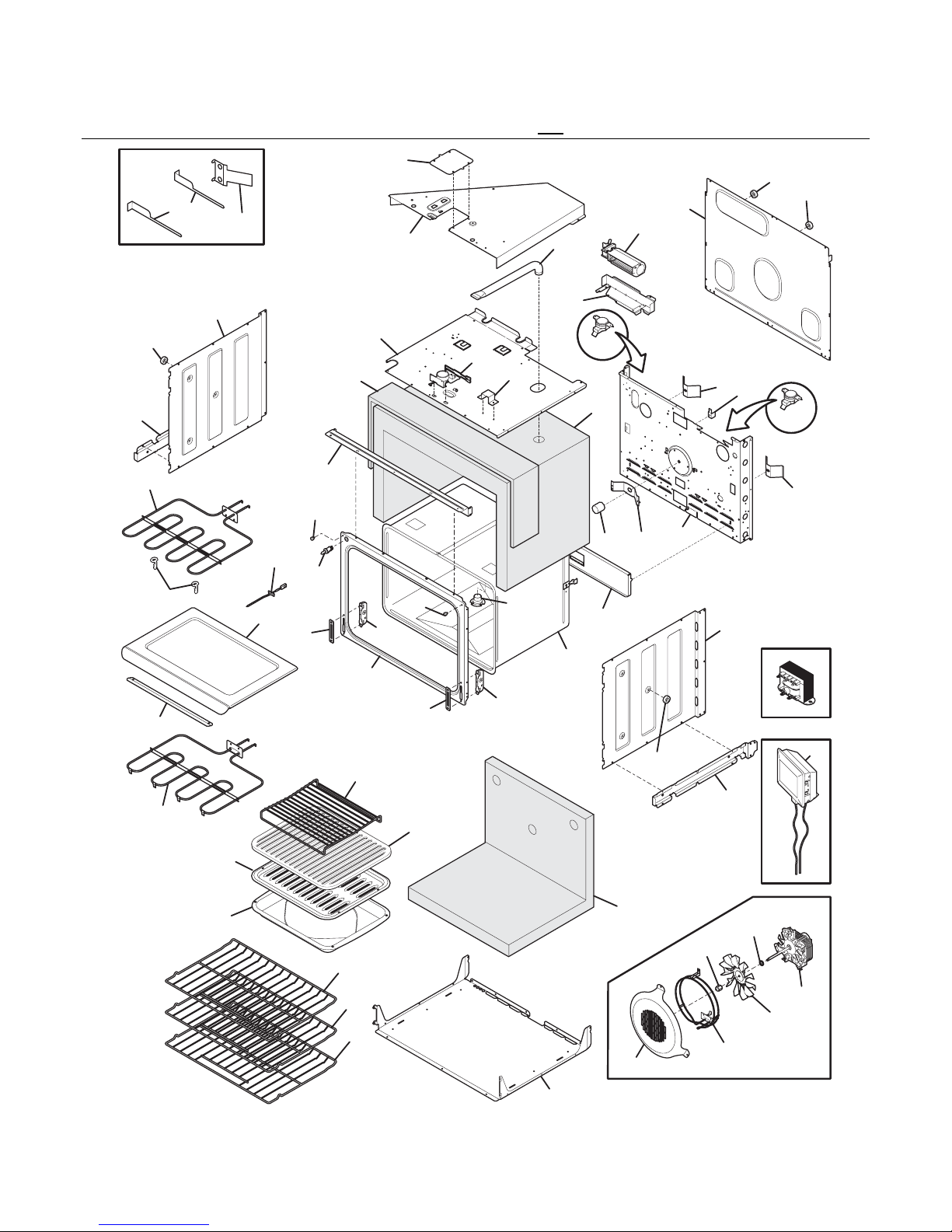

UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
119
108
108A
70
185
71
81
163
163
81
1
80
58B
264
99
37
76
29
29 127
86
86
41
41
58A
82 BU79049062401
99
185
70
2
12
83
59
59A
131
132
89
58D
143
219
142
310
311
312
15
107
161
111
109
263
125
272
66
68
67
10
9
6
6
6
6A
192
8
8A
284

790.4906
# Functional Parts 5 02/05
* Non-Illustrated Parts
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
1 318259200 A B C Back, main
2 318258900 A B C Shield, insulation, upper
6 318262500 A B C Rack, oven
6A 318219500 A B C Rack, broiler pan
8 318262001 A B C Cover, element
8* 318133789 A B C Insulation, 1/2" thick, 26.75 x 19
8A 318285300 A B C Bracket, element cover
9 5303317977 A B C Pan, broiler
10 5303317976 A B C Insert, broiler pan
12 # 318089917 A B C Switch,light
15 318241000 A B C Lamp, oven, (2), halogen
15* 318052197 A B C Harness, wiring, halogen lamp
29 318147411 A B C Bumper, door, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
* 5303325980 A B C Screw, 10-32 x 0.437
58A 318133791 A B C Insulation, oven wrapper, back/bottom
58B 318133790 A B C Insulation, oven wrapper, top/sides
58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
66 # 318255800 A B C Element, broil, 4000W
67 318254901 A B C Element, bake, 3400W, 8 pass
68 5304403015 A B C Support, element hanger
70 318259100 A B C Shield, insulation, sides, (2)
71 318260004 A B C Panel, rear box
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258700 A B C Shield, insulation, lower
83 318261401 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
89# 318261202 A B C Motor, latch assy
* 318231705 A B C Harness, latch
99 318252800 A B C Support, side
107 318219401 A B C Cover, fan
108# 318073018 A B C Motor, blower
108A 318251300 A B C Bracket, fan support
109 316136400 A B C Blade, fan
111 316136600 A B C Nut, fan retainer
119# 318004900 A B C Switch, thermal
125# 316415800 A B C Motor, fan
127 5303310542 A B C Adapter, vent tube, with converter
131 318272900 A B C Box, vent
132 318003000 A B C Plate, shield
142 318123910 A B C Deflector
143 318172904 A B C Support, wire/glass
161# 318255500 A B C Element, convection, 2500 W

790.4906
02/05 6
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
119
108
108A
70
185
71
81
163
163
81
1
80
58B
264
99
37
76
29
29 127
86
86
41
41
58A
82 BU79049062401
99
185
70
2
12
83
59
59A
131
132
89
58D
143
219
142
310
311
312
15
107
161
111
109
263
125
272
66
68
67
10
9
6
6
6
6A
192
8
8A
284

790.4906
# Functional Parts 7 02/05
* Non-Illustrated Parts
UPPER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
163 318014111 A B C Spacer
185 318014700 A B C Spacer, oven shield, (4)
* 5303323139 A B C Screw, 10-24 x 0.906
192 316117101 A B C Grill, searing
219# 318003614 A B C Thermostat, safety
263 316136500 A B C Washer, fan motor
264 318257701 A B C Trim, oven, black, front
272 318249401 A B C Tube, protector
284 318244500 A B C Transformer
310 5304440067 A B C Cabinet Mounting Kit
311 318246010 A B C Bracket, cabinet mtg, (2)
311* 5304438005 A B C Screw, 6 x 1, black
312 318246702 A B C Tool, cabinet bracket, RH
312 318246703 A B C Tool, cabinet bracket, LH
* 5303211311 A B C Screw, 8 x 0.500
* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black

790.4906
02/05 8
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
143
219
119
108
108A
89
70
185
71
81
163
163
81
87
1
62
80
272
142
58B
58D
99
37
66
68
76
29
29
127
86
86
41
41
90
67
58A
15
6
6
6
82
107
161
111
109
BL79049062401
263
125
99
185
70
2
12
83
59
59A
90A
(Used for larger cut out)
264
56A
56
8
8A
284

790.4906
# Functional Parts 9 02/05
* Non-Illustrated Parts
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
1 318259200 A B C Back, main
2 318258900 A B C Shield, insulation, upper
6 318262500 A B C Rack, oven
8 318262001 A B C Cover, element
8A 318285300 A B C Bracket, element cover
12 # 318089917 A B C Switch,light
15 318241000 A B C Lamp, oven, (2), halogen
15* 318052197 A B C Harness, wiring, halogen lamp
29 318147411 A B C Bumper, door, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
* 5303325980 A B C Screw, 10-32 x 0.437
56 318259912 A - - Trim, side filler, white, RH
56 318259916 - B - Trim, side filler, bisque, RH
56 318259914 - - C Trim, side filler, black, RH
56A 318259913 A - - Trim, side filler, white, LH
56A 318259917 - B - Trim, side filler, bisque, LH
56A 318259915 - - C Trim, side filler, black, LH
58A 318133791 A B C Insulation, oven wrapper, back/bottom
58B 318133790 A B C Insulation, oven wrapper, top/sides
58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
62 316056000 A B C Terminal Block
62* 5303323139 A B C Screw, 10-24 x 0.906
62* 5303323144 A B C Nut, 10-32
66 # 318255800 A B C Element, broil, 4000W
67 318254901 A B C Element, bake, 3400W, 8 pass
68 5304403015 A B C Support, element hanger
70 318259100 A B C Shield, insulation, sides, (2)
71 318260004 A B C Panel, rear box
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258700 A B C Shield, insulation, lower
83 318261401 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
87 318260602 A B C Bracket, cable mtg.
89# 318261202 A B C Motor, latch assy
* 318231705 A B C Harness, latch
90 318259700 A - - Trim, oven front, white, bottom
90 318259702 - B - Trim, oven front, bisque, bottom
90 318259701 - - C Trim, oven front, black, bottom
90A 318259703 A - - Trim, oven front, white, bottom
90A 318259705 - B - Trim, oven front, bisque, bottom
90A 318259704 - - C Trim, oven front, black, bottom
99 318256200 A B C Bracket, side, bottom, (2)
107 318219401 A B C Cover, fan

790.4906
02/05 10
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
143
219
119
108
108A
89
70
185
71
81
163
163
81
87
1
62
80
272
142
58B
58D
99
37
66
68
76
29
29
127
86
86
41
41
90
67
58A
15
6
6
6
82
107
161
111
109
BL79049062401
263
125
99
185
70
2
12
83
59
59A
90A
(Used for larger cut out)
264
56A
56
8
8A
284

790.4906
# Functional Parts 11 02/05
* Non-Illustrated Parts
LOWER OVEN
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
108# 318073018 A B C Motor, blower
108A 318251300 A B C Bracket, fan support
109 316136400 A B C Blade, fan
111 316136600 A B C Nut, fan retainer
119# 318004900 A B C Switch, thermal
125# 316415800 A B C Motor, fan
127 5303310542 A B C Adapter, vent tube, with converter
142 318123910 A B C Deflector
143 318172904 A B C Support, wire/glass
161# 318255500 A B C Element, convection, 2500 W
163 318014111 A B C Spacer
185 318014700 A B C Spacer, oven shield, (4)
219# 318003614 A B C Thermostat, safety
263 316136500 A B C Washer, fan motor
264 318257801 A B C Trim, oven, black, front
272 318249401 A B C Tube, protector
284 318244500 A B C Transformer
* # 318078546 A B C Box & wires assy
* 318231743 A B C Harness, wiring, main
* 5303323136 A B C Screw ground
* 3201861 A B C Screw, 6 x 0.375, (4)
* 5303211311 A B C Screw, 8 x 0.500
* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black

790.4906
02/05 12
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.

790.4906
# Functional Parts 13 02/05
* Non-Illustrated Parts
DOOR
CAUTION: Use the Kenmore part number to order part, not the illustration number.
Model Index: A790.4906 (790.49062401)
B790.4906 (790.49064401)
C790.4906 (790.49069401)
POS. NO PART NO. DESCRIPTION
3 318260201 A B C Trim, oven door, black, upper
3A 318260401 A B C Trim, oven door, side, (2)
4 318261305 A - - Glass Assy., oven door, white, outer, w/ trim
4 318261306 - B - Glass Assy., oven door, bisque, outer, w/ trim
4 318261304 - - C Glass Assy., oven door, black, outer, w/ trim
6 318260500 A B C Baffle, door
7 318133792 A B C Insulation, oven door
7A 318133797 A B C Insulation, oven door, cavity
8 316117500 A B C Glass, oven door, heat barrier
9 318259601 A B C Liner, oven door
10 5304416408 A B C Screw, 10-24 x 1.750, handle mtg
12 318053120 A B C Seal, oven door
17 316402403 A B C Spacer, door glass, (2)
23 5303310828 A B C Hinge, oven door, (2)
29 318014402 A B C Spacer, door
39 316268301 A - - Handle, door, white
39 316268302 - B - Handle, door, bisque
39 316268300 - - C Handle, door, black
40 318242700 A B C Bracket, glass holder, (2)
56 5304436875 A B C Screw, 8-18 X 1/2, black
64 318165800 A B C Spacer, (4)

790.4906
02/05 14
WIRING DIAGRAM

® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears, Roebuck and Co.
® Marca Registrada /
TM
MarcadeFábrica/
SM
Marca de Servicio de Sears, Roebuck and Co.
MC
Marque de commerce /
MD
Marque déposée de Sears, Roebuck and Co. © Sears, Roebuck and Co.
Get it fixed, at your home or ours!
Your Home
For repair – in your home –of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
SM
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca
