Sears LXI 934.44709990 User manual

Owner's Manual
13" COLOR
TV/VCR COMBINATION
Model No: 934.44709990
CAUTION:
Beforeusingthisproduct,
readthismanual and follow
allits SafetyRules and
Operating Instructions.
•Safety
•Operation
• Maintenance
• Troubleshooting
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

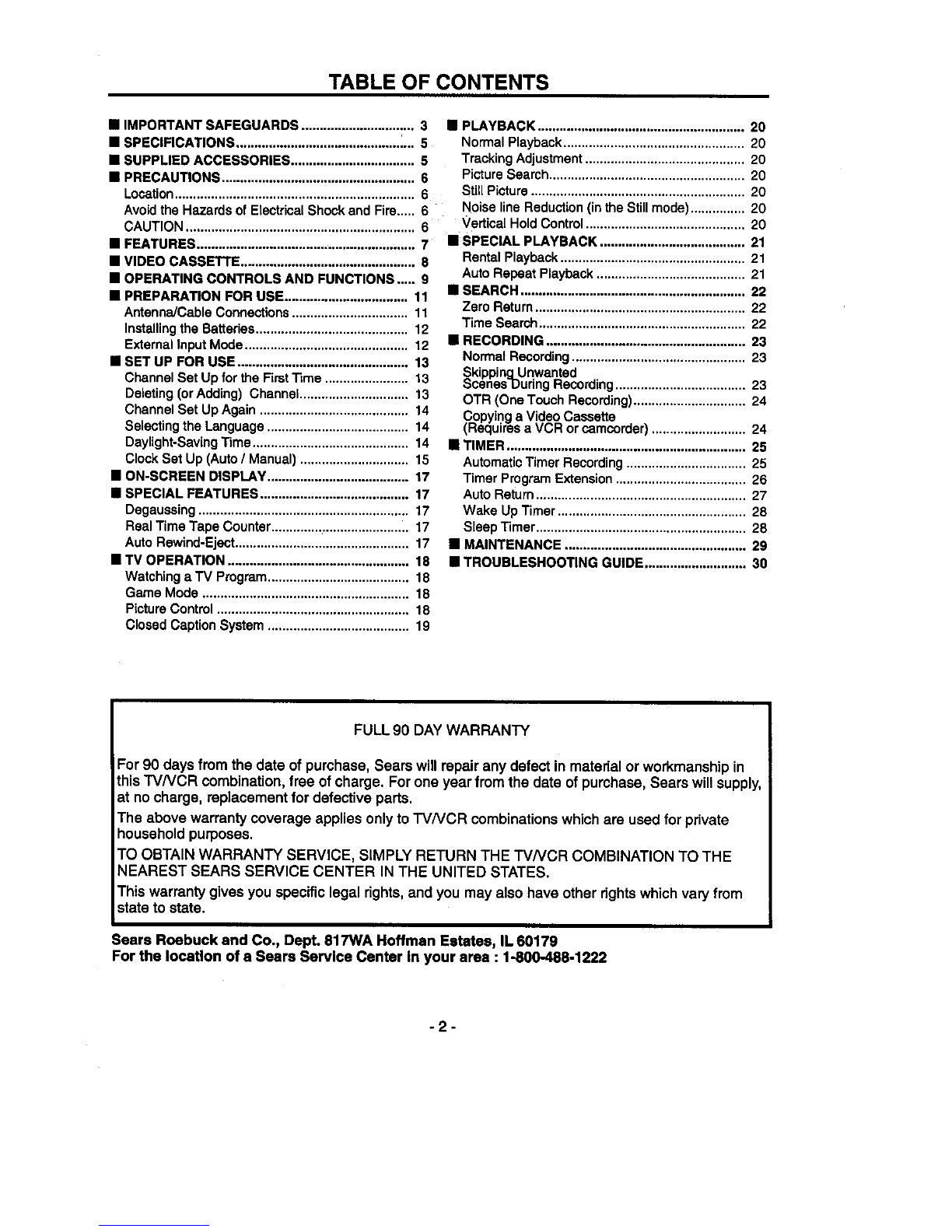

TABLE OF CONTENTS
•IMPORTANT SAFEGUARDS ............................... 3
•SPECIFICATIONS ............................................. _... 5
•SUPPLIED ACCESSORIES .................................. 5
•PRECAUTIONS ..................................................... 6
Location .................................................................. 6
Avoid the Hazards of Electrical Shock and Fire..... 6
CAUTION ............................................................... 6
•FEATURES ............................................................ 7
•VIDEO CASSETTE ................................................ 8
•OPERATING CONTROLS AND FUNCTIONS ..... 9
•PREPARATION FOR USE .................................. 11
Antenna/Cable Connections ................................ 11
Installing the Batteries .......................................... 12
External Input Mode ............................................. 12
•SET UP FOR USE ............................................... 13
Channel Set Up for the First Time ....................... 13
Deleting (orAdding) Channel .............................. 13
Channel Set Up Again ......................................... 14
Selecting the Language ....................................... 14
Daylight-Saving Time ........................................... 14
Clock Set Up (Auto /Manual) .............................. 15
•ON-SCREEN DISPLAY ....................................... 17
•SPECIAL FEATURES ......................................... 17
Degaussing .......................................................... 17
Real Time Tape Counter ...................................... 17
Auto Rewind-Eject ................................................ 17
•TV OPERATION .................................................. 18
Watching a TV Program ....................................... 18
Game Mode ......................................................... 18
Picture Control ..................................................... 18
Closed Caption System ....................................... 19
•PLAYBACK ......................................................... 20
Normal Playback .................................................. 20
Tracking Adjustment ............................................ 20
Picture Search...................................................... 20
Still Picture ........................................................... 20
Noise line Reduction (in the Still mode) ............... 20
Vertical Hold Control ............................................ 20
mSPECIAL PLAYBACK ........................................ 21
Rental Playback ................................................... 21
Auto Repeat Playback ......................................... 21
•SEARCH .............................................................. 22
Zero Return .......................................................... 22
Time Seamh ......................................................... 22
•RECORDING ....................................................... 23
Normal Recording ................................................ 23
Skippinq Unwanted
Scenes-During Recording .................................... 23
OTR (One Touch Recording) ............................... 24
Copying a Video Cassette
(Requires a VCR or camcorder) .......................... 24
•TIMER .................................................................. 25
Automatic Timer Recording ................................. 25
Timer Program Extension .................................... 26
Auto Return .......................................................... 27
Wake Up Timer .................................................... 28
Sleop Timer .......................................................... 28
•MAINTENANCE .................................................. 29
•TROUBLESHOOTING GUIDE ............................ 30
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, Sears will repair any defect in material or workmanship in
this TV/VCR combination, free of charge. For one year from the date of purchase, Sears will supply,
at no charge, replacement for defective parts.
The above warranty coverage applies only to "I'VNCR combinations which are used for private
household purposes.
TO OBTAIN WARRANTY SERVICE, SIMPLY RETURN THE TVNCR COMBINATION TO THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.
This warranty gives you specific legal rights,and you may also have other rights which vary from
state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
For the location of a Sears Service Center in your area : 1-800-488-1222
-2-

WARNING: To reducethe risk offire or electricshock,donot exposethis appliance torain or moisture. ]
-n_ aboveCAUTIONislocated_nthe backofthe"FVNCRcabinet.
I CAUTION: To reduce the risk of electric shock, do
not remove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service
personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are im-
porfantoperating and maintenance in-
structions in the literature
accompanying the appliance.

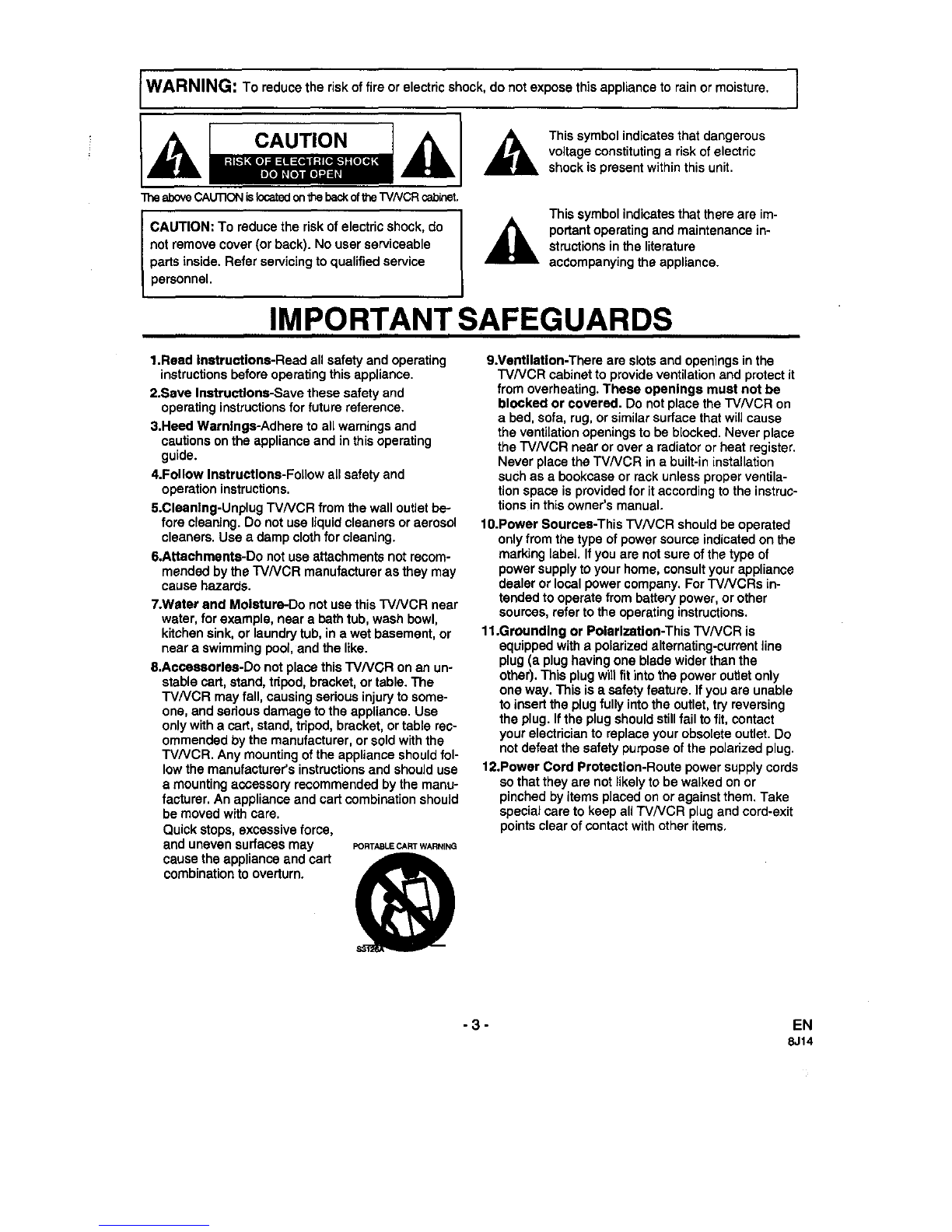

IMPORTANT SAFEGUARDS
1,Read Instructions-Read all safety and operating
instructions before operating this appliance.
2,Save Instructions-Save these safety and
operating instructionsfor future reference.
3.Heed Warnlngs-Adhera to all warnings and
cautions on the appliance and in this operating
guide.
4.Follow Instructions-Follow all safety and
operation instructions.
5.Cleanlng-Unplug TVNCR from the wall outlet be-
fore cleaning. Do not use liquid cleaners or aerosol
cleaners. Use adamp cloth for cleaning.
6.Attachments-Do not use attachments not recom-
mended by the "rVNCR manufacturer as they may
cause hazards.
7.Water and Moisture-Do not use this TV/VCR near
water, for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or
near a swimming pool, and the like.
8.Accessories-Do not place this "rVNGR on an un-
stable cart, stand, tripod, bracket, or table. The
TVNCR may fall, causing serious injury to some-
one, and serious damage to the appliance. Use
onlywith a cart, stand, tripod, bracket, or table rec-
ommended by the manufacturer, or sold with the
TV/VCR. Any mounting ofthe appliance should fol-
low the manufacturer's instructionsand should use
amounting accessory recommended by the manu-
facturer. An appliance and cart combination should
be moved with care.
Quick stops, excessive force,
and uneven surfaces may PORTABUECAFffWARNING
cause the appliance and cart
combination to overturn.
9.VentllaUon-There are slotsand openings in the
TVNCR cabinet to provide ventilation and protect it
from overheating. These openings must not be
blocked or covered. Do not place the TVNCR on
a bed, sofa, rug, or similar surface that will cause
the ventilation openings to be blocked. Never place
the TV/VCR near or over a radiator or heat register.
Never place the TVNCR in a built-in installation
such as abookcase or rack unless proper ventila-
tion space is provided for itaccording to the instruc-
tions in this owner's manual.
1O.Power Sources-This TVNCR should be operated
onlyfrom the type of power source indicated on the
marking label. Ifyou are not sure of the type of
power supply to your home, consult your appliance
dealer or local power company. For TVNCRs in-
tended to operate from battery power, or other
sources, refer to the operating instructions.
11.Grounding or Polarization-This TV/VCR is
equipped with a polarized alternating-current line
plug (a plug having one blade wider than the
other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing
the plug. Ifthe plug should stillfail to fit, contact
your electrician to replace your obsolete outlet. Do
notdefeat the safety purpose ofthe polarized plug.
12.Power Cord Protection-Route power supply cords
so that they are not likely to be walked on or
pinched by items placed on or against them. Take
special care to keep all TV/VCR plug and cord-exit
points clear of contact with other items.
-3-EN
8J14

FIGUREA
EXAMPLEOFANTENNAGROUNDINGASPER I_
NATIONALELECTRICALCODE ANTENNA
I----"-"LEAO'N
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 910-20)
SERVICE
EQUIPMENT
ROUNDING CONDUCTORS
_(NEC SECTION E,O-21)
NEC--CN,LELEDTO NO
ELECTRODE SYSTEM
$2898A (NSC ART 250, PART H)
13.OutdoorAntennagrounding-Ifanoutsideantenna
orcablesystemisconnectodtothe"FV/VCR,besure
theantennaorcablesystemisgroundedsoastopro-
videsome pretectionagainstvoltagesurgesandbuilt-
upstaticcharges.Article810 oftheNationalElectrical
Code,ANSI/NFPANo.70,providesinformationwith
respecttopropergroundingofthemastandsupport-
ingstructure,groundingofthelead-inwiretoan an-
tennadischargeunit,sizeofgroundingconductors,
locationofantenna-dischargeunit,connectionto
groundingelectrodes,and requirementsforthe
groundingelectrode.(Fig.A)
14.Lightning-Duringa lightningstorm,or beforeleav-
ingitunattendedand unusedfor a longperiodof
time,unplugtheTV/VCR from thewalloutJet,and
disconnecttheantennaor cablesystem.Thiswill
preventdamagetothe TV/VCR from lightningand
power-surges.
15.PowerLines-Anoutsideantennasystemshouldnot
belocatedinthevicinityofoverheadpowerlinesor
otherelectriclightorpowercircuits,orwhereitcan
fallintopowerlinesorcimuits.Wheninstallingan out-
sideantennasystem,extremecareshouldbetaken
tokeepfromtouching powerlinesorcircuits,ascon-
tactwiththem mightbe fatal.
16.Overloading-Donotoverloadwalloufietsandex-
tensioncordsas thiscanresultina riskoffire or
electricshock.
17.Objectand Liquid Entry-Neverpushobjectsof
anykindintothisTV/VCR throughopeningsas
theymaytouchdangerousvoltagepointsorshort
outpartsthatcouldresultina fireor electricshock.
Neverspillliquidofany kindon theTV/VCR.
18,Servicing-Donotattempttoservicethis"I'V/VCR
yourselfas openingorremovingcovers mayex-
poseyoutodangerousvoltageorotherhazards.
Referallservicingto qualifiedservicepersonnel.
19.Damage Requiring Service-Unplug this "I'V/VCR
from.the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power-supply cord or plug is dam-
aged or frayed.
b. If liquid has been spilled, or objects have fallen
intothe TV/VCR.
c. Ifthe TV/VCR has been exposed to rainor
water.
d. Ifthe TV/VCR does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as improper adjustment of other
controls may result in damage and will often
require extensive work by aqualified technician
to restore the TV/VCR to its normal operation.
e. Ifthe TV/VCR has been dropped or damaged in
any way.
f. When the "FV/VCR exhibits a distinct change in
performance it needs to be serviced.
20.Replasement Parts-Whan replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer
that have the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock, injuej to persons or other hazards.
21 .Safety Check-Upon completion ofany service or
repairs to this TV/VCR, ask the service technician
to perform routine safety checks to determine that
the TV/VCR is in proper operating condition.
22.Heat-This TV/VCR product should be situated
away from heat sources such as radiators, heat reg-
isters, stoves, or other products (including amplifi-
ers) that produce heat,
-4- EN
8J14

The serial number of this product is found on the back of the unit. Record the serial number and other
vital information here and retain this book as a permanent record of your purchase to aid
identification in case of theft.
Date of Purchase
Store Address
Store Phone Number
Model Number
Serial Number

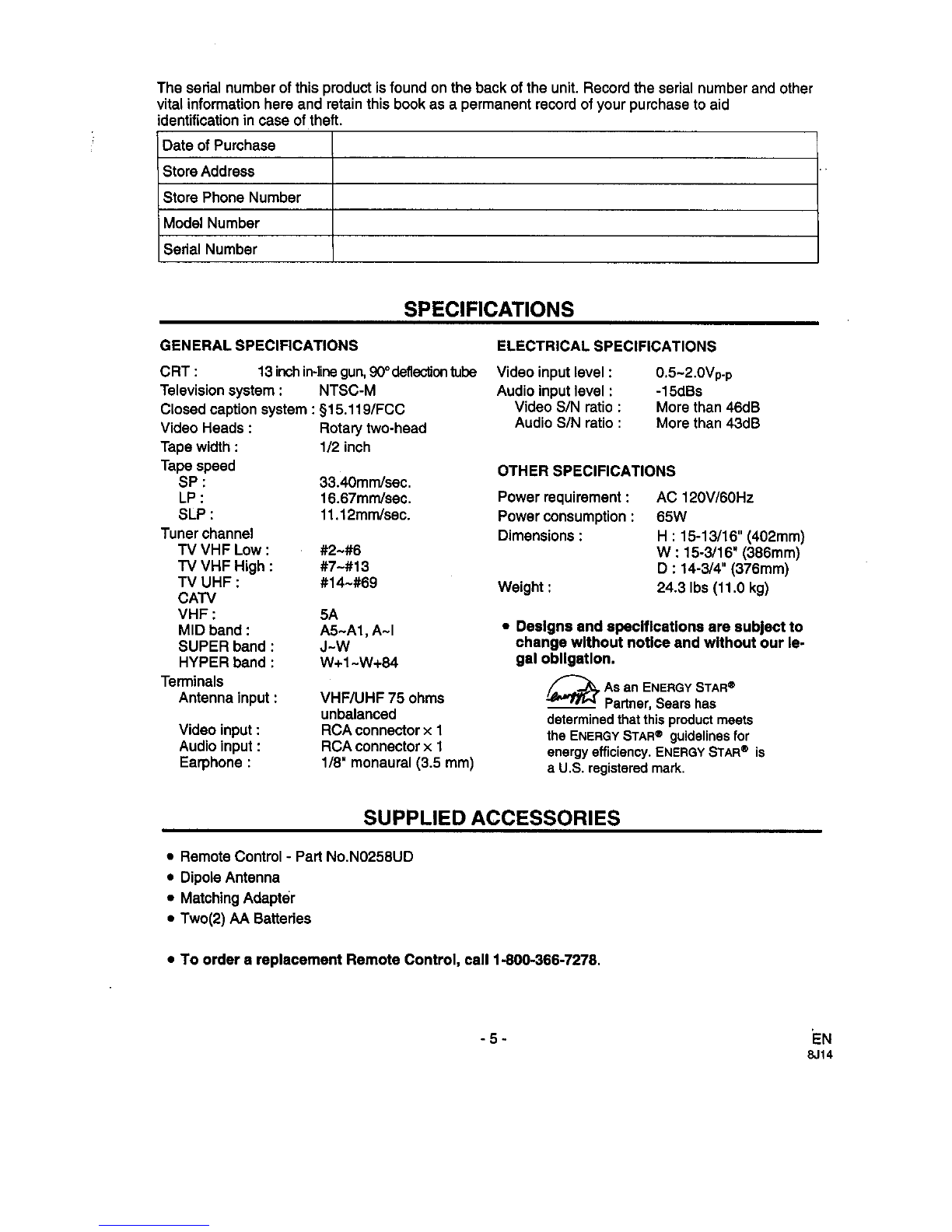

SPECIFICATIONS
GENERAL SPECIFICATIONS
CRT : 13 inchin-linegun,90°deflectiontube
Television system : NTSC-M
Closed caption system : §15.119/FCC
Video Heads : Rotary two-head
Tape width : 1/2 inch
Tape speed
SP : 33.40mm/sec.
LP : 16.67ram/sac.
SLP : 11.12mm/sec.
Tuner channel
"rv VHF Low : #2-#6
TV VHF High : #7-#13
TV UHF : #14-#69
CATV
VHF : 5A
MID band : A5-A1, A-I
SUPER band :J-W
HYPER band : W+1-W+84
Terminals
Antenna input : VHF/UHF 75 ohms
unbalanced
Video input : RCA connector x 1
Audio input : RCA connector x 1
Earphone : 1/8" monaural (3.5 ram)
ELECTRICAL SPECIFICATIONS
Video input level :
Audio input level :
Video S/N ratio :
Audio S/N ratio :
0.5-2.0Vp.p
-15dBs
More than 46dB
More than 43dB
OTHER SPECIFICATIONS
Power requirement :
Power consumption :
Dimensions :
Weight
AC 120V/60Hz
65W
H : 15-13/16" (402mm)
W : 15-3/16" (386mm)
D : 14-3/4" (376mm)
24.3 Ibs (11.0 kg)
• Designs and specifications are subject to
change without notice and without our le-
gal obligation.
_, As an ENERGYSTARe
Partner,Searshas
determinedthatthisproductmeets
theENERGYSTAReguidelinesfor
energyefficiency. ENERGY STAR e is
aU.S. registeredmark.
SUPPLIED ACCESSORIES
•Remote Control - Part No.N0258UD
=Dipole Antenna
•Matching Adapter
• Two(2) AA Batteries
• TO order areplacement Remote Control, call 1-800-366-7278.
-5- 'EN
8,.114

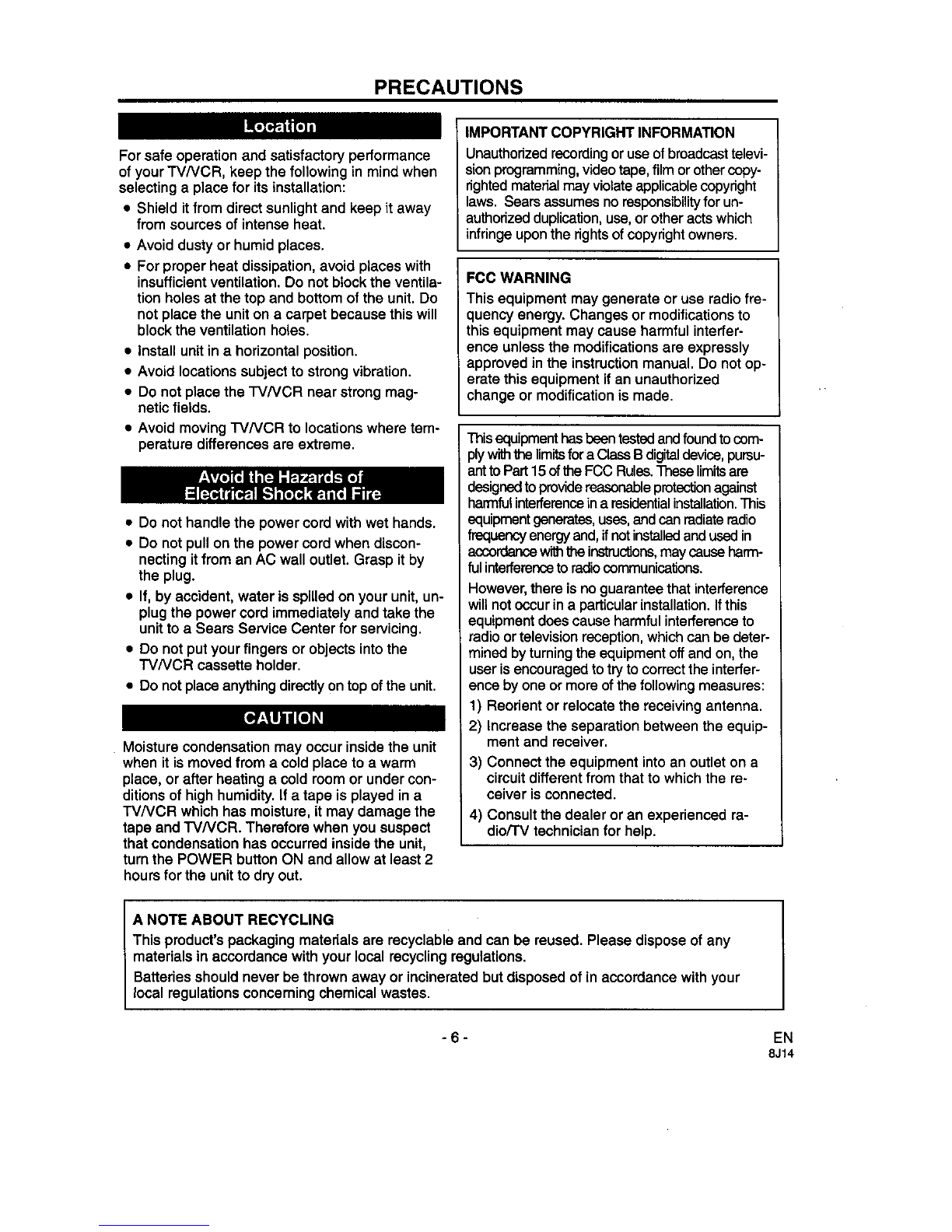

PRECAUTIONS
For safe operation and satisfactory performance
of your TVNCR, keep the following in mind when
selecting a place for its installation:
•Shield it from direct sunlight and keep it away
from sources of intense heat.
•Avoid dusty or humid places.
• For proper heat dissipation, avoid places with
insufficient ventilation. Do not block the ventila-
tion holes at the top and bottom of the unit. Do
not place the unit on a carpet because this will
block the ventilation holes.
•Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the TVNCR near strong mag-
netic fields.
• Avoid moving TV/VCR to locations where tem-
perature differences are extreme.
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when discon-
necting it from an AC wall outlet. Grasp it by
the plug.
• If, by accident, water is spilled on your unit, un-
plug the power cord immediately and take the
unit to a Sears Service Center for servicing.
• Do not put your fingers or objects into the
TVNCR cassette holder.
• Do not place anythingdirectly on top ofthe unit.
Moisture condensation may occur inside the unit
when itis moved from acold place to a warm
place, or after heating a cold room or under con-
ditionsof high humidity. If a tape is played in a
TVNCR which has moisture, it may damage the
tape and TV/VCR. Therefore when you suspect
that condensation has occurred inside the unit,
turn the POWER button ON and allow at least 2
hours for the unitto dry out.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast televi-
sionprogramming, videotape, film or other copy-
righted material may violate applicable copyright
laws. Sears assumes no responslbUityfor un-
authorized duplication, use, or other acts which
infringe upon the rights of copyright owners.
FCC WARNING
This equipment may generate or use radio fre-
quency energy. Changes or modifications to
this equipment may cause harmful interfer-
ence unless the modificationsare expressly
approved in the instruction manual. Do not op-
erate this equipment if an unauthorized
change or modificationis made.
This equipment has been tested and found tocom-
plywith the limitsfor a Class B digitaldevice,pursu-
antto Part 15 ofthe FCC Rules.Theselimitsare
designedto provide reasonableprotectionagainst
harmful interferencein a residential installation.This
equipment generates, uses,and can radiateradio
frequency energyand, ifnot installedand used in
accordance withthe instructions,may cause harm-
ful interferenceto radio communications.
However, there is no guarantee that interference
willnot occurin a particular installation. Ifthis
equipment does cause harmful interferenceto
radioor televisionreception,whichcan be deter-
mined by turningthe equipment offand on,the
user isencouraged to trytocorrectthe interfer-
ence by one or more ofthe following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equip-
ment and receiver.
3) Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver isconnected.
4) Consult the dealer or an experienced re-
dio/TV technician for help.
A NOTE ABOUT RECYCLING
This product's packaging materials are recyclable and can be reused. Please dispose of any
materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your
local regulations concerning chemical wastes.
-6 - EN
8J14

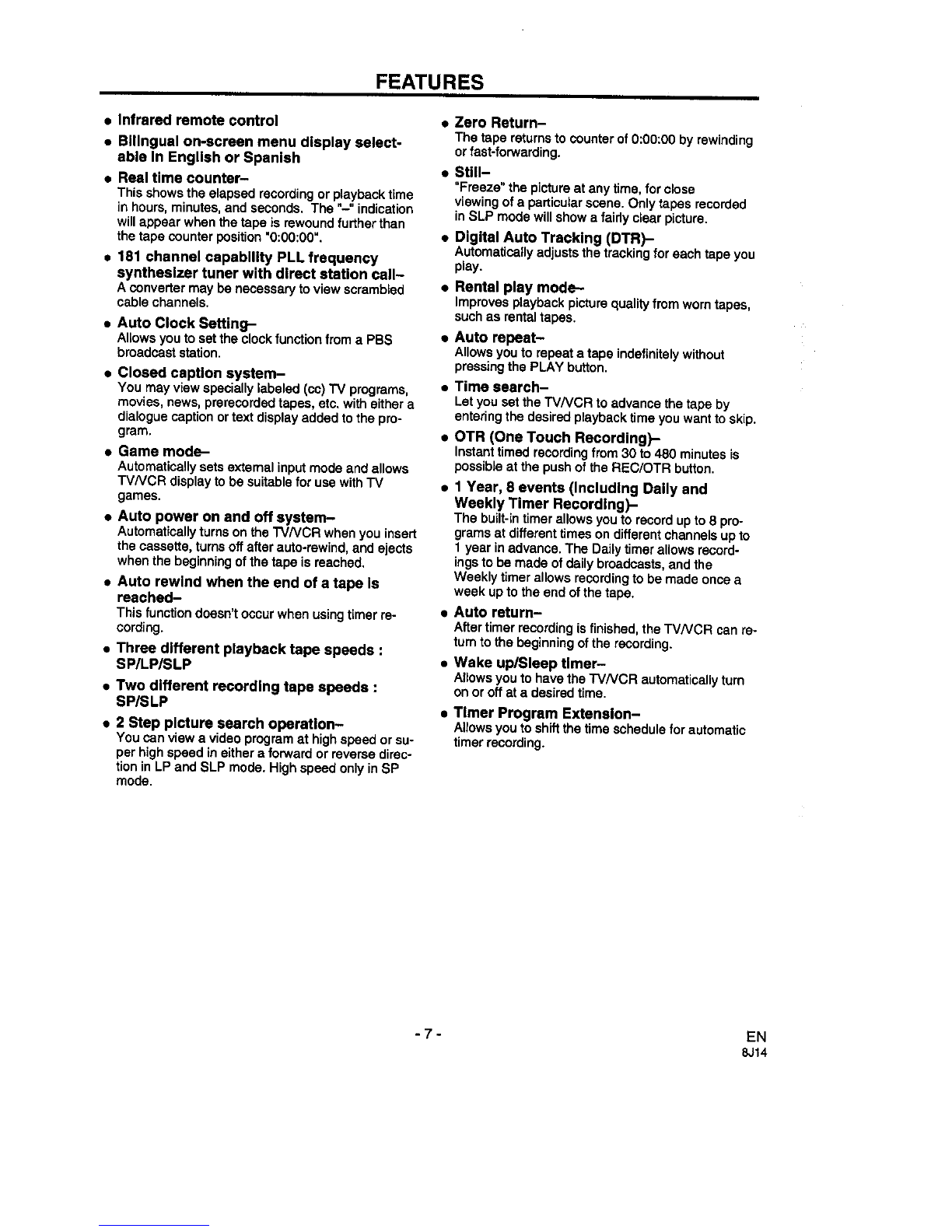

FEATURES
• Infrared remote control
•Bilingual on-screen menu display select-
able In English or Spanish
•Real time counter-
Thisshowstheelapsedrecordingor playbacktime
in hours,minutes,and seconds.The "-" indication
willappearwhenthetapeisrewoundfurther than
thetapecounterposition"0:00:00".
•181 channel capability PLL frequency
synthesizer tuner with direct station call-
Aconverter may benecessary toviewscrambled
cablechannels.
•Auto Clock Setting-
Allowsyoutosetthe clockfunctionfroma PBS
broadcaststation.
• Closed capUon system-
You.mayviewspeciallylabeled (cc)TV programs,
movies, news,prerecordedtapes, etc.witheithera
dialoguecaptionortextdisplayaddedtothepro-
gram.
•Game mode-
Automaticallysetsexternalinputmodeand allows
TVNCR displaytobesuitablefor usewithTV
games.
•Auto power on and off system-
Automaticallyturnson theTV/VCR whenyouinsert
thecassette,turnsoffafterauto-rewind,and ejects
whenthebeginningofthetapeis reached,
•Auto rewind when the end of a tape is
reached-
Thisfunctiondoesn'toccurwhenusingtimerre-
cording.
•Three different playback tape speeds :
SP/LP/SLP
•Two different recording tape speeds :
SP/SLP
•2 Step picture search operation-
You can view a video program at high speed or su-
per high speed in either a forward or reverse direc-
tion in LP and SLP mode. High speed only in SP
mode.
•Zero Return-
The tape returns to counter of 0:00:00 by rewinding
or fast-forwarding.
•Still-
"Freeze" the picture at any time, for close
viewing of a particular scene. Only tapes recorded
in SLP mode will show a faidy clear picture.
•Digital Auto Tracking (DTR)-
Automatically adjusts the tracking for each tape you
play.
•Rental play mode-
Improves playback picture quality from wom tapes,
such as rental tapes.
•Auto repeat-
Allows you to repeat a tape indefinitely without
pressing the PLAY button.
•Time search-
Let you set the TV/VCR to advance the tape by
entedng the desired playback time you want to skip.
•OTR (One Touch Recording)-
Instant timed recording from 30 to 480 minutes is
possible at the push of the REC/OTR button.
•1 Year, 8 events (Including Daily and
Weekly Timer Recording)-
The built-intimer allows you to record up to 8 pro-
grams at different times on different channels up to
1year in advance. The Daily timer allows record-
ings to be made of daily broadcasts, and the
Weekly timer allows recording to be made once a
week up to the end of the tape.
•Auto return-
After timer recording is finished, the TVNCR can re-
turn to the beginning of the recording.
•Wake up/Sleep timer-
Allows you to have the TVNCR automatically turn
on or off at a desired time.
•Timer Program Extension-
Allowsyoutoshiftthetime schedulefor automatic
timerrecording.
- 7 - EN
8J14

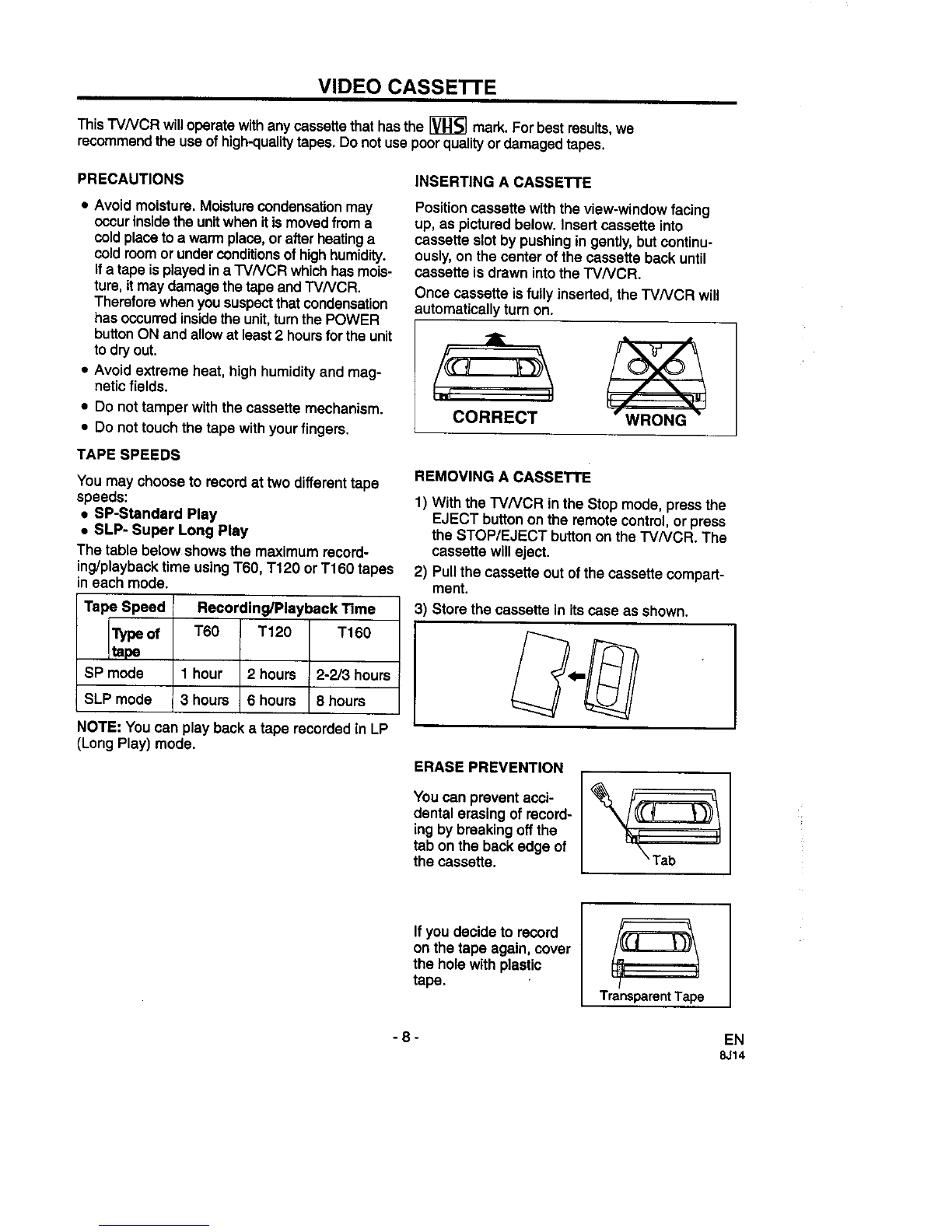

VIDEO CASSE'I-FE
This TVNCR willoperate with any cassette that has the _ mark. For best results,we
recommend the use of high-qualitytapes. Do not use poorqualityor damaged tapes.
PRECAUTIONS INSERTING A CASSETTE
•Avoid moisture. Moisturecondensationmay
occurinsidethe unitwhen itismoved from a
coldplace to a warm place, or after heatinga
coldroomor under conditions of high humidity.
Ifa tape isplayed in a TVNCR whichhas mois-
ture, it may damage the tape and "rVNCR.
Therefore when you suspect that condensation
has occurredinsidethe unit,turnthe POWER
buttonON and allowat least2 hoursfor the unit
to dry out.
• Avoid extreme heat, high humidity and mag-
netic fields.
•Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.
Position cassette with the view-window facing
up, as pictured below. Insert cassette into
cassette slot by pushing in gently, but continu-
ously, on the center of the cassette back until
cassette is drawn intothe I'VNCR.
Once cassette is fully inserted, the TVNCR will
automatically turn on.
CORRECT
TAPE SPEEDS
You may choose to record at two different tape
speeds:
•SP-Standard Play
•SLP- Super Long Play
The table below shows the maximum record-
ing/playback time using T60, T120 or T160 tapes
in each mode.
Tape Speed
"lype of
tape
SP mode
SLP mode
Recording/Playback Time
3"60 T120 T160
1hour 2 hours 2-2/3 hours
3 hours 6 hours 8hours
NOTE: You can play back a tape recorded in LP
(Long Play) mode.
REMOVING A CASSETTE
1) With the FVNCR in the Stop mode, press the
EJECT button on the remote control, or press
the STOP/EJECT button on the TVNCR. The
cassette will eject.
2) Pull the cassette out of the cassette compart-
ment.
3) Store the cassette in its case as shown.
ERASE PREVENTION
You can prevent acci-
dental erasing of record-
ing by breaking off the
tab on the back edge of
the cassette.
Ifyou decide to record
on the tape again, cover
the hole with plastic
tape. TransparentTape
- 8 - EN
8J14

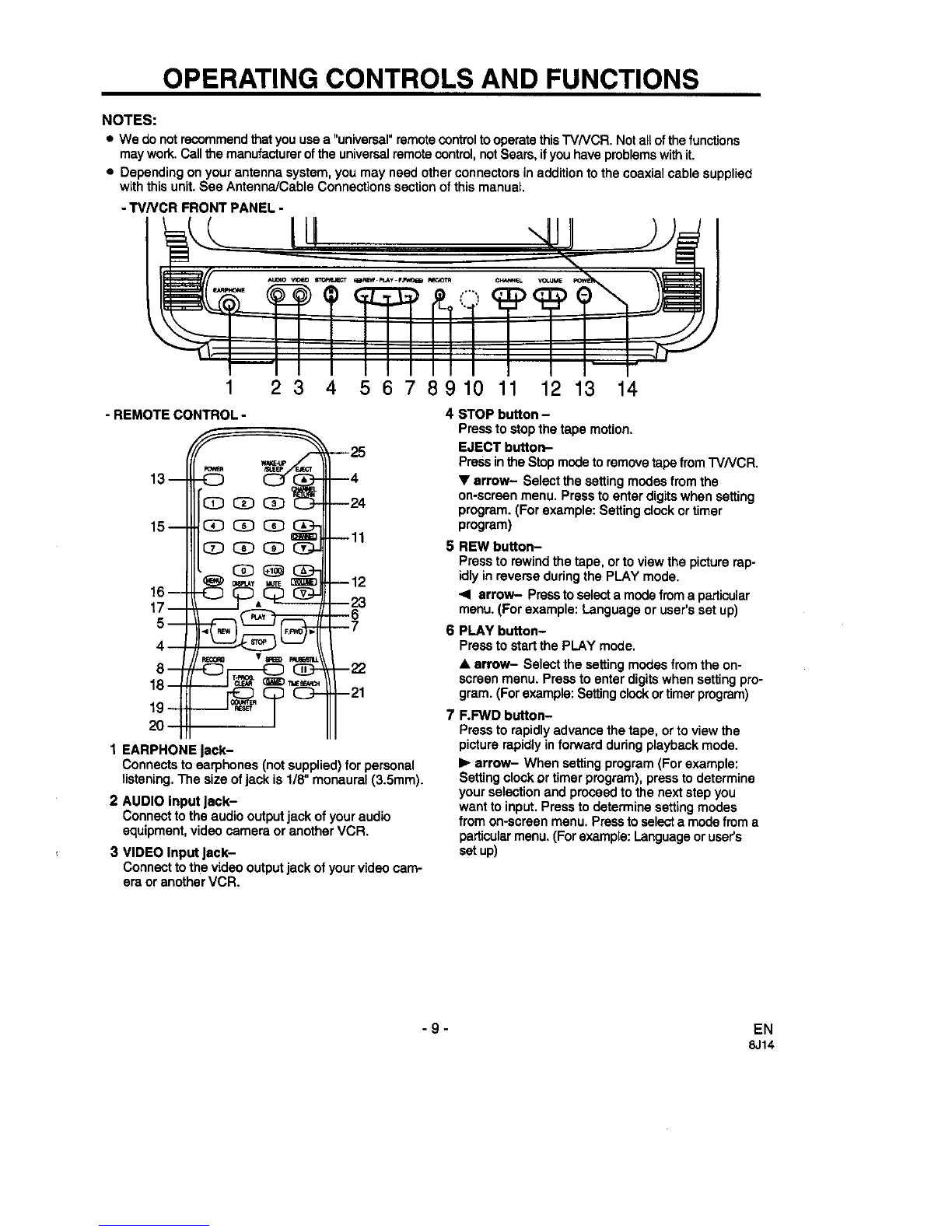

OPERATING CONTROLS AND FUNCTIONS
NOTES:
•We do notrecommend thatyou use a "universal" remotecontroltooperate this TVNCR. Not all of the functions
may work. Call the manufacturer ofthe universalremote control,not Sears, ifyou have problemswith it.
• Depending on your antenna system, you may need other connectors in addition tothe coaxial cable supplied
with this unit. See AntennaJCable Connections section of this manual.
- TV/VCR FRONT PANEL -
1 2 3 4 5 6 7 8910 11 12 13 14
--25
--4
--24
--11
--12
--23
--6
--7
--22
-21
1 EARPHONE ack-
Connects to earphones (not supplied) for personal
listening. The size of jack is 1/8" monaural (3.5mm).
2 AUDIO input Jack-
Connect to the audio output jack of your audio
equipment, video camera or another VCR.
3 VIDEO input Jeok-
Connect to the video output jack of your video cam-
era or another VCR.
4 STOP button -
Presstostopthetapemotion.
EJECT button-
PressintheStopmodetoremovetapefrom"r'VNCR.
•arrow- Selectthesettingmodesfrom the
on-screenmenu.Presstoenterdigitswhensetting
program.(Forexample:Settingclockor timer
program)
5REW button-
Press to rewind the tape, or to view the picture rap-
idly in reverse dudng the PLAY mode.
"4 arrow- Pressto select a mode from a particular
menu. (For example: Language or user's set up)
PLAY button-
Press to start the PLAY mode.
• arrow- Select the setting modes from the on-
screen menu. Press to enter digits when setting pro-
gram. (For example: Setting clock or timerprogram)
F.FWD button-
Presstorapidlyadvancethe tape, ortoview the
picture rapidlyinforward dudngplaybackmode.
•arrow- Whensettingprogram(Forexample:
Settingclockortimerprogram),presstodetermine
yourselectionandproceedtothe nextstepyou
wanttoinput.Presstodeterminesettingmodes
from on-screenmenu.Presstoselectamodefroma
particularmenu.(Forexample:Languageoruser's
setup)
-9- EN
8J14

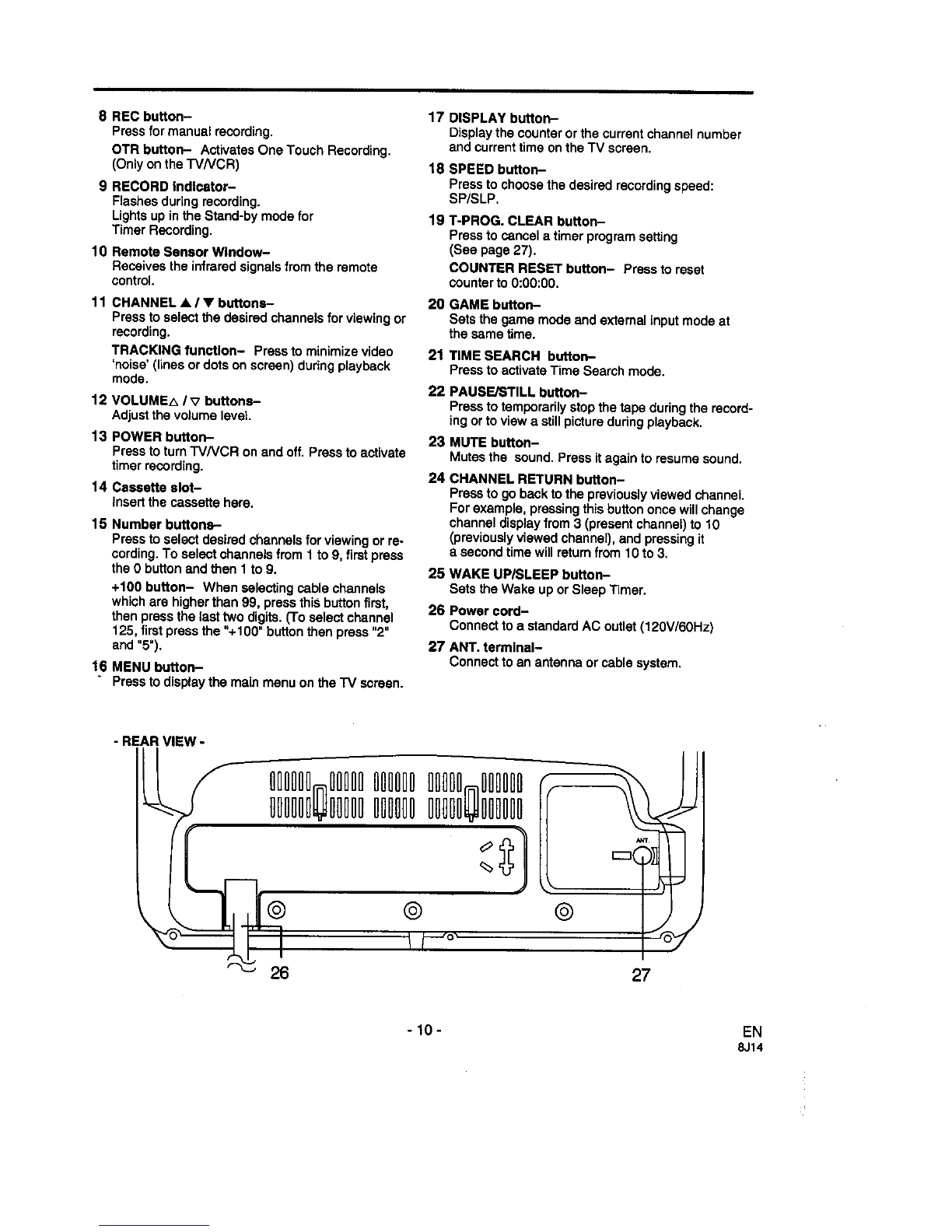

8RECbutton-
Pressfor manual recording.
OTR button- Activates One Touch Recording.
(Only on the TV/VCR)
9 RECORD Indicator-
Flashes during recording.
Lights up in the Stand-by mode for
Timer Recording.
10 Remote Sensor Window-
Receives the infrared signals from the remote
control.
11 CHANNEL •I•buttons-
Press to select the desired channels for viewing or
recording.
TRACKING function- Press to minimize video
'noise' (lines or dots on screen) dudng playback
mode.
12 VOLUME,', IV buttons-
Adjustthevolumelevel.
13 POWER button-
Press to turn"I'V/VCR on and off. Press to activate
timer recording.
14 Cassette slot-
Insert the cassette here.
15 Number buttons.--
Presstoselectdesiredchannelsforviewingor re-
cording.Toselectchannelsfrom 1 to9,first press
the0 buttonand then 1 to9.
+100 button- When selectingcable channels
whichare higherthan 99, pressthisbuttonfirst,
thenpressthelasttwodigits.(To selectchannel
125,first pressthe "+100"buttonthen press"2"
and"5').
16 MENUbutton-
" Presstodisplaythemainmenuon the TV screen.
17 DISPLAY button-
Display the counter or the current channel number
and current time on the TV screen.
18 SPEED button-
Press to choose the desired recording speed:
SP/SLP.
19 T-PROG. CLEAR button-
Press to cancel a timer program setting
(See page 27),
COUNTER RESET button- Press to reset
counter to 0:00:00.
20 GAME button-
Sets the game mode and extemal input mode at
the same time.
21 TIME SEARCH button-
Press to activate Time Search mode.
22 PAUSE/STILL button-
Press to temporerily stop the tape during the record-
ing or to view a stillpicture dudng playback.
23 MUTE button-
Mutes the sound. Press itagain to resume sound.
24 CHANNEL RETURN button-
Press to go back to the previously viewed channel
For example, pressing this button once willchange
channel display from 3 (present channel) to 10
(previously viewed channel), and pressing it
a second time will return from 10 to 3.
25 WAKE UP/SLEEPbutton-
Setsthe Wakeupor SleepTimer.
26 Power cord-
Connecttoa standardAC outlet(120V/60Hz)
27 ANT. terminal-
Connecttoanantennaor cablesystem.
-REAR VIEW -
llIIIl lllIl IllIII llllI IllIll
llllIll llIll lllllI llllll IIIIll
i---_o,
26
k©
27
- 10 - EN
8J14
