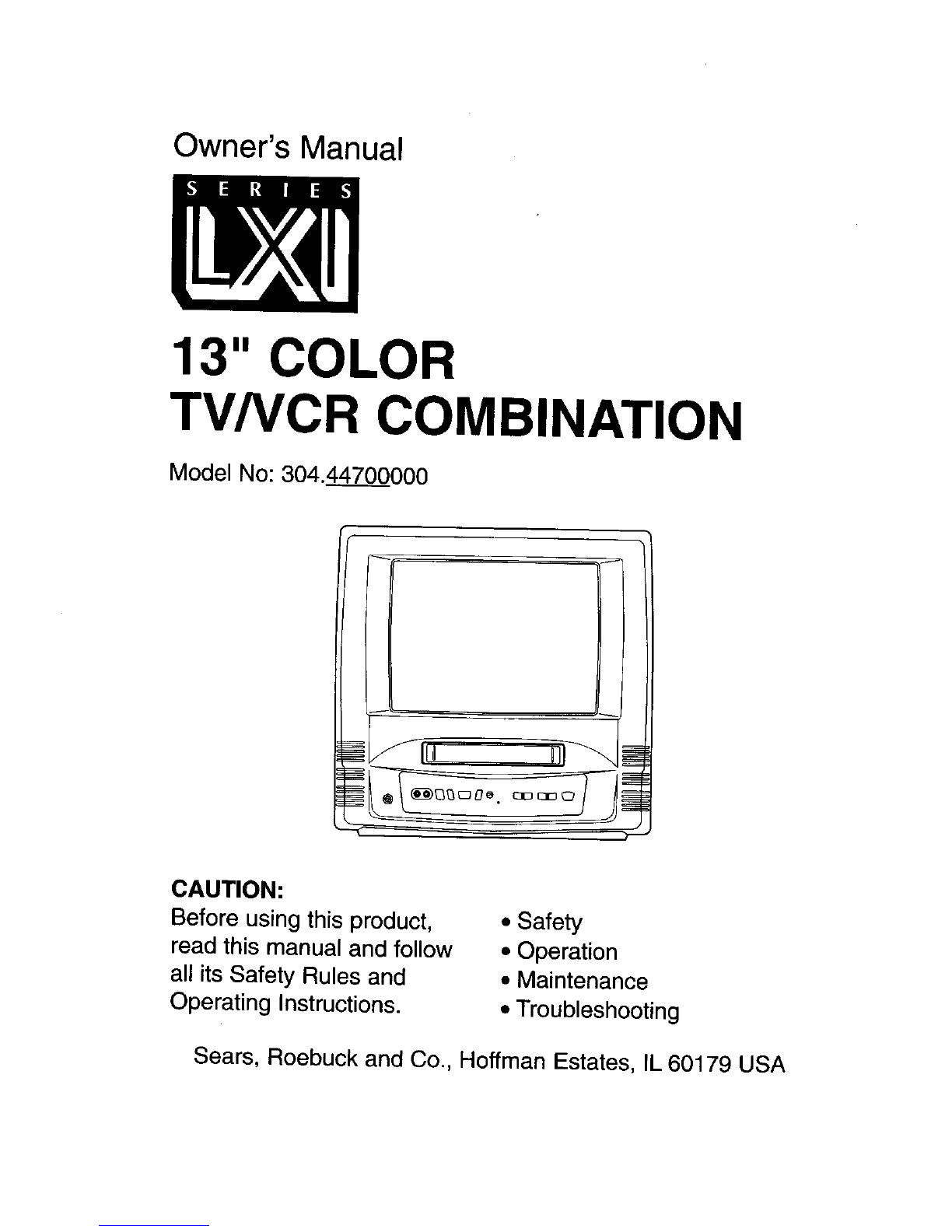

Sears LXU 304.44700000 User manual

Owner's Manual
13" COLOR
TV/VCR COMBINATION
Model No: 304.44700000
CAUTION:
Before using this product,
read this manual and follow
all its Safety Rules and
Operating Instructions.
• Safety
• Operation
• Maintenance
• Troubleshooting
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

TABLE OF CONTENTS
• IMPORTANT SAFEGUARDS ................ 3
•SPECIFICATIONS ......................... 5
•SUPPLIED ACCESSORIES ................. 5
•PRECAUTIONS ........................... 6
Location ................................. 6
Avoid the Hazards of Electricat Shock and Fire ...6
CAUTION ................................ 6
• FEATURES .............................. 7
•VIDEO CASSE'R'E ........................ 8
• OPERATING CONTROLS AND FUNCTIONS .... 9
• PREPARATION FOR USE .................. 11
Antenna/Cable Connections ................. 11
Installing the Batteries ..................... 12
External Input Mode ....................... 12
•SET UP FOR USE ........................ 13
Channel Set Up for the First Time ............ 13
Deleting (or Adding) Channel ............... 13
Channel Set Up Again ..................... 14
Selecting the Language .................... 14
Daylight-Saving Time ...................... 14
Clock Set Up (Auto /Manual) ................ 15
•ON-SCREEN DISPLAY .................... 17
•SPECIAL FEATURES ..................... 17
Degaussing ............................. 17
Real Time Tape Counter .................... 17
Auto Rewind-Eject ........................ 17
•TV OPERATION ......................... 18
Watching aTV Program .................... 18
Game Mode ............................. 18
Picture Control ........................... 18
Closed Caption System .................... 19
V-CHIP Set Up. L......................... 20
•PLAYBACK ............................. 22
Normal Playback ......................... 22
Tracking Adjustment ....................... 22
Picture Search ........................... 22
Stil( Picture .............................. 22
Noise line Reduction (in the Still mode) ........ 22
Vertical Hold Control ....................... 22
•SPECIAL PLAYBACK ..................... 23
Rental Playback .......................... 23
Auto Repeat Playback ..................... 23
•SEARCH ............................... 24
Zero Return ............................. 24
Time Search ............................. 24
•RECORDING ............................ 25
Normal Recording ........................ 25
Skipping Unwanted
Scenes During Recording ................... 25
OTR (One Touch Recording) ................ 26
Copying a Video Cassette
(Requires a VCR or camcerder) .............. 26
•TIMER ................................. 27
Automatic ]3mer Recording ................. 27
Timer Program Extension ................... 2B
Auto Return ............................. 29
Wake Up Timer .......................... 30
Sleep "timer ............................. 30
•MAINTENANCE .......................... 31
•TROUBLESHOOTING GUIDE ............... 32
FULL 90 DAYWARRANTY
For 90 days from the date of purchase, Sears will repair any defect in material or workmanship in
this TVNCR combination, free of charge. For one year from the date of purchase, Sears will supply,
at no charge, replacement for defective parts.
The above warranty coverage applies only to TV/VCR combinations which are used for private
household purposes.
TO OBTAIN WARRANTY SERVICE, SIMPLY RETURN THE TVNCR COMBINATION TO THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
For the location of aSears Service Center in your area : 1-800-488-1222
-2-EN
9K16

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. ]
The above CAUTION is located on the back of the TVNCR cabinet
CAUTION: To reducethe riskof electricshock, do
notremove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service
perSOnneL
I
This symbol indicates that dangerous
voltage constituting arisk of electric
shock is present within this unit.
This symbol indicates that there are
importantoperatingand maintenance
instructions in the literature
accompanying the appliance.
IMPORTANT SAFEGUARDS
1.Read instructions-Read all safety and operating
instructionsbefore operatingthisappliance.
2.Save Instructions-Save these sa{etyand
operatinginstructionsfor future reference.
3. Heed Warnings-Adhere to allwarningsand
cautions onthe applianceand inthisoperating
guide.
4. Follow Instructions-Follow allsafety and
operationinstructions.
5.Cleaning*Unplug "I'VNCR from the walloutlet
beforecleaning.Do notuse liquidcleanersor
aerosol cleaners.Use a damp clothfor cleaning.
6.Attachments-Do not use attachmentsnot
recommendedby theTV/VCR manufactureras
they maycause hazards.
7. Water and Moisture-Do not use thisTVNCR near
water,for example, near a bathtub,wash bowl,
kitchensink,or laundry tub,in a wet basement, or
near a swimmingpool,and the like.
8.Accessories-Do not place thisTVNCR on an
unstable cart, stand,tripod,bracket,or table. The
TVNCR may tall, causing seriousinjury to
someone, and seriousdamage to the appliance.
Use onlywith acart,stand,tripod,bracket, ortable
recommended by the manufacturer, or sold with
the TVNCR. Any mounting of the appliance should
follow the manufacturer's instructions and should
use a mounting accessory recommended by the
manufacturer. An appliance and cart combination
shouldbe moved with care.
Quick stops, excessive force, and uneven surfaces
may cause the appliance and PORTABLECARTWARNING
cartcombination to overturn.
9.Ventilation-There are slots and openings in the
TVNCR cabinet to provide ventilation and protect it
from overheating These openings must not be
blocked or covered. Do not place the TVNCR on
a bed, sofa, rug, or similar surface that will cause
the ventilation openings to be blocked. Never place
the TV/VCR nearor over a radiator or heat register.
Never place the TVNCR in abuilt-in installation
such as a bookcase or rack unless prober
ventilation space is provided for it according to the
instructions in this owner's manual.
10, Power Sources-This TVNCR should be _erated
onlyfromthe type ofpowersourceindicatedon the
marking tabet.If you are not sure of the type of
power supplyto your home, consult your appliance
dealer or local power company. For TVNCRs
intended to operate from battery power, or other
sources, referto the operating instructions.
11. Grounding or Polarization-This TVNCR is
equippedwitha poladzed alternating-currentline
plug(a plughaving one blade widerthan the
other).Thisplugwillfit intothe poweroutletonly
one way. This is a safety feature. Ifyou are unable
to insertthe plug fully intotheoutlet,try reversing
the plug. It the plug should stillfail tofit, contact
your electrician to replace your obsolete outlet. Do
notdefeat the safety purpose ofthe polarized plug.
12. Power-Cord Protection-Route power supply cords
so thatthey are not likely tobe waSkedon or
pinched by items placed on or against them. Take
spedtal care to keep artTVNCR plug and cord-exit
points clear of contact with other items.
-3- EN
9K16

FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
GROUND
CLAMp
WIRE
NEC-NAT]ONALELECTRIGALCODE
$2898A
13,Outdoor Antenna grounding-If an outside
antennaor cable systemisconnectedto the
TVNCR, be surethe antennaor cablesystemis
groundedso as to providesomeprotectionagainst
v_tage surges and built-up static charges.Arflcle
810 of the National Electrical Code, ANSI/NFPA No,
70, provides information with respect to proper
grounding of the mast and supportingstructure,
grounding of the lead-in wire to an antenna
discharge unit, size ofgrounding conductors,
location of antenna-discharge unit, connection to
groundingetectredes,and requirementsfor the
groundingelectrode.(Fig.A)
14.Lightning-Dudng alightningstorm,or before
leaving it unattendedand unused for a lang pedod
of time, unplug the TVNCR from the wall outlet,
and disconnect the antenna or cable system. This
will prevent damage to the TVNCR from lightning
and power-surges.
15.Power Lines-An outside antenna systemshould
notbe locatedinthe vicinityofoverheadpower
lines or other electric light or power circuits,or
where it can fall into power lines or circuits.When
installing an outside antenna system, extreme care
should be taken to keep from touching power lines
or circuits, as contact with them might be fatal
16.Overloading-Do notoverload walt,outiets and
extensioncordsas thiscan resultina riskoffire or
electricshock.
17.Object and Uquid Entry-Never push objects of
any kind into this TV/VCR through openings as they
may touch dangerous voltage points or short out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the TVNCR.
IB.Servtc|nglDO not attempt to service this TVNCR
yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel
-4-
ELECTRODE SYSTEM
[N_C ART 250, PART H)
19.Damage Requiring Service-Unplugthis TVNCR
fromthe wall outletand referservicingto qualified
servicepersonnelunder the following conditions:
a.When the power-supplycord orplugis damaged
orfrayed.
b. Ifliquidhas beenspilled, orobjectshave fallen
into the"r'v'NCR.
c. If theTVNCR has been exposedtorainor water.
d.lf the TVNCR does notoperatenormallyby
following the operatinginstructions.Adjustonly
those controlsthatare coveredbythe operating
instructions,asimproper adjustment ofother
controls may result in damage and will often
require extensive work by a qualified technician to
restore the TV/VCR to its normal operation.
eJf the TV/VCR has been dropped or damaged in
any way.
f. When the TVNCR exhibits a distinct change in
performanceit needs to be sewicad.
20.Replacement Parts-Whenreplacementpartsare
required,be surethe servicetechnicianhas used
replacement partsspecifiedbythe manufacturer
thathave the same characteristicsas the odginal
part. Unauthorizedsubstitutionsmay result in fire,
electric shock, injury to persons or other hazards.
21.Safety Check-Upon completion of any serviceor
repairsto this TVNCR, ask the service technician
to perform routine safety checksto determine that
the "_/NCR is in proper operating condition.
22.Heat- This TVNCR product should be situated
away from heat sources suchas radiators, heat
re_isters, stoves,or other products (including
amplifiers) that produce heat.
EN
9K16

The serial number of this product is found on the back of the unit, Record the serial number and other
vital information here and retain this book as a permanent record of your purchase to aid identification
in case of theft,
Date of Purchase
Store Address
Store Phone Number
Model Number
Serial Number

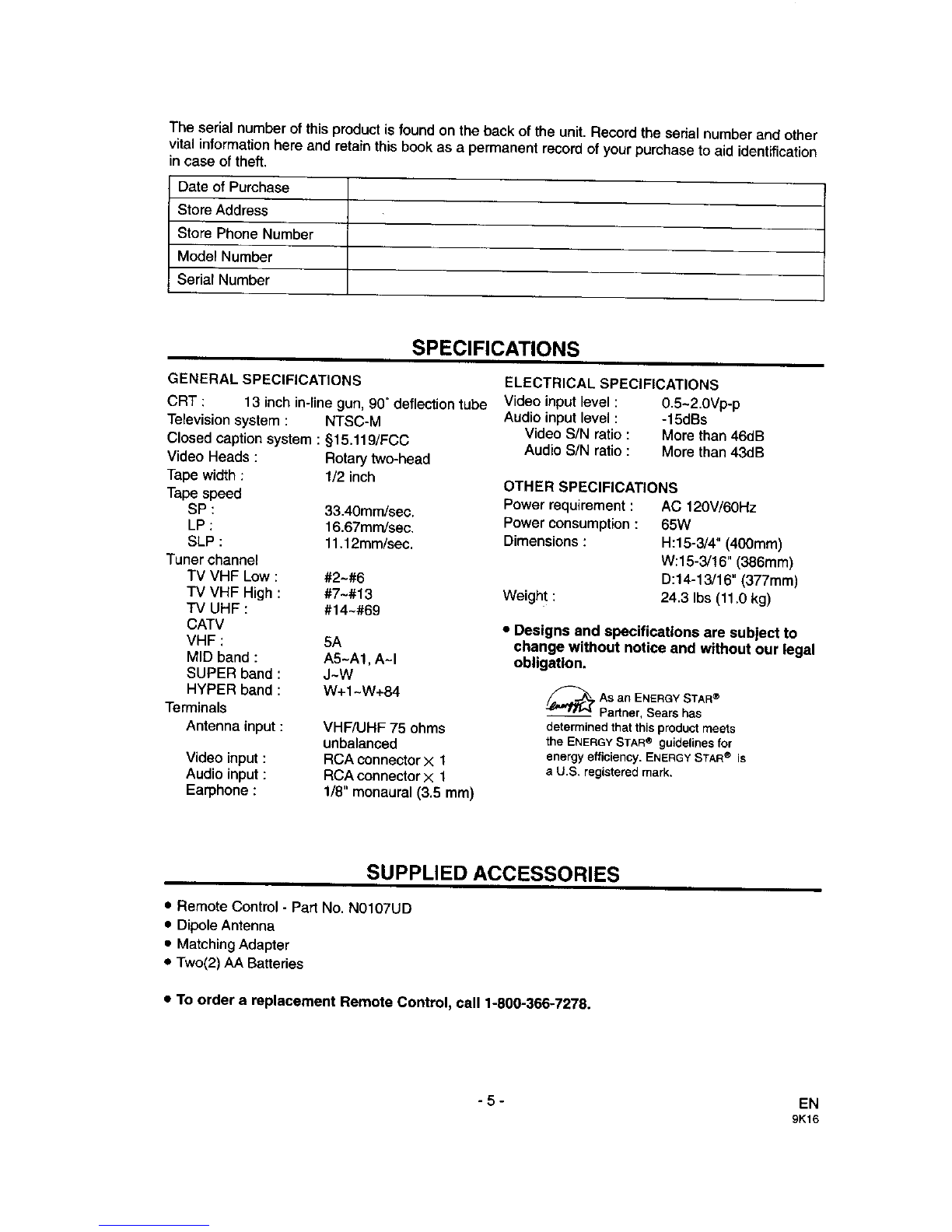

SPECIFICATIONS
GENERAL SPECIFICATIONS
CRT : 13 inch in-line gun, 90" deflection tube
Television system : NTSC-M
Closed caption system : §15.119/FCC
Video Heads : Rotarytwo-head
Tape width: 1/2 inch
Tape speed
SP : 33.40mm/sec.
LP : 16.67mm/sec.
SLP : 11.12mm/sec.
Tuner channel
TV VHF Low : #2~#6
TV VHF High : #7-#13
TV UHF : #14-#69
CATV
VHF : 5A
MID band : A5-A1, A~I
SUPER band :J~W
HYPER band : W+1~W+84
Terminals
Antenna input : VHF/UHF 75 ohms
unbalanced
Video input : RCA connector × 1
Audio input : RCA connector × 1
Earphone : 1/8" monaural (3.5 ram)
ELECTRICAL SPECIFICATIONS
Video input level : 0.5-2.0Vp-p
Audio input level : -15dBs
Video SIN ratio: More than46dB
Audio S/N ratio : More than 43dB
OTHER SPECIFICATIONS
Power requirement:
Power consumption:
Dimensions :
Weigh! :
AC 120V/6OHz
65W
H:15-3/4" (400ram)
W:15-3/16" (386mm)
D:14-13/16" (377mm)
24.3 Ibs (11.0kg)
•Designs end specifications are subject to
change without notice and without our legal
obligation.
_As an ENERGYSTAR®
Partner, Sears has
_teTmined that this product meets
the ENERGYSTAR@guidelines for
energy efficiency. ENERGY STARe is
a U.S. registered mark.
SUPPLIED ACCESSORIES
•RemoteControl -Part No. NO107UD
• Dipole Antenna
• Matching Adapter
• Two(2) AA Battedes
• To order a replacement Remote Control, call 1-800-366-7278.
-5- EN
9K16

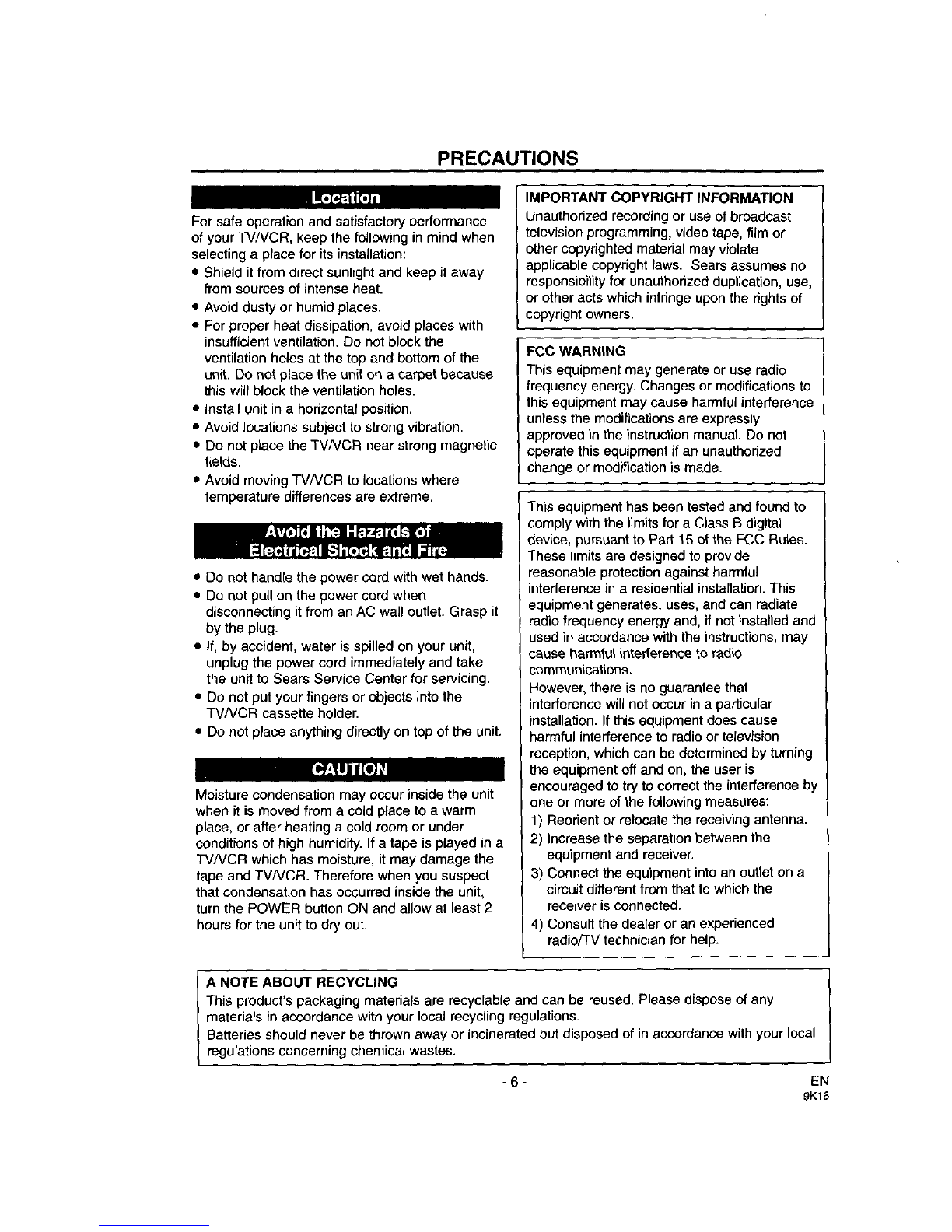

PRECAUTIONS
For safe operation and satisfactory performance
of your TV/VCR, keep the following in mind when
selecting a place for its installation:
• Shield it from direct sunlight and keep it away
from sources of intense heat.
• Avoid dusty or humid places.
• For proper heat dissipation, avoid places with
insufficient ventilation. Do not block the
ventilation holes at the top and bottom of the
unit. Do not place the unit on a carpet because
this will block the ventilation holes.
•install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the TVNCR near strong magnetic
fields.
•Avoid moving TV/VCR to locations where
temperature differences are extreme.
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when
disconnecting it from an AC wall outlet. Grasp it
by the plug.
• If, by accident, water is spilled on your unit,
unplug the power cord immediately and take
the unit to Sears Service Center for servicing.
• Do not put your fingers or objects into the
TVNCR cassette holder.
• Do not place anything directly on top of the unit.
Moisture condensation may occur inside the unit
when it is moved from a cold place to awarm
place, or after heating a cold room or under
conditions of high humidity. If a tape is played in a
TV/VCR which has moisture, it may damage the
tape and TV/VCR. Therefore when you suspect
that condensation has occurred inside the unit,
turn the POWER button ON and allow at least 2
hours for the unit to dry out.
IMPORTANT COPYRIGHT INFORMATION
Unauthorizedrecordingor useof broadcast
televisionprogramming,videotape,film or
othercopyrightedmaterial may violate
applicablecopyrightlaws. Sears assumesno
responsibilityfor unauthorizedduplication, use,
orotheracts whichinfringeuponthe rightsof
copyrightowners.
FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to
this equipment may cause harmful interference
unless the modifications are expressly
approved in the instruction manual, Do not
operate this equipment if an unauthorized
change or modification is made.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not instaned and
used in accordance with the instructions, may
cause harmful interference to radio
communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the
equipment and receiver.
3) Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
4) Consult the dealer or an experienced
radio/TV technician for help.
A NOTE ABOUT RECYCLING
This product's packaging materials are recyclable and can be reused. Please dispose of any
materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local
regulations concerning chemical wastes.
- 6 - EN
9K16

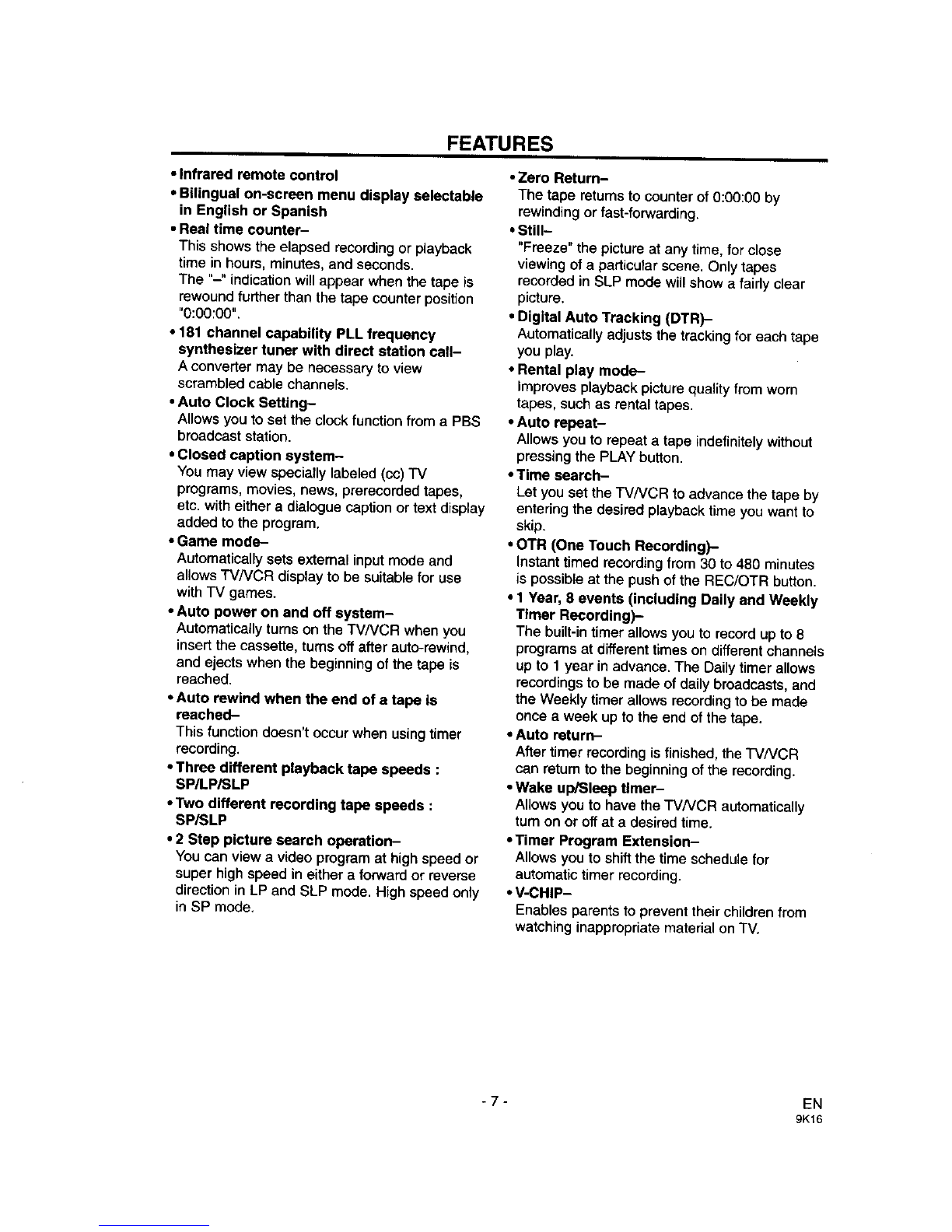

FEATURES
• Infrared remote control
•Bilingual on-screen menu display selectable
in English or Spanish
• Real time counter-
This shows the elapsed recording or playback
time in hours, minutes, and seconds.
The "-" indication will appear when the tape is
rewound further than the tape counter position
"0:00:00".
•181 channel capability PLL frequency
synthesizer tuner with direct station call-
A converter may be necessary to view
scrambled cable channels.
•Auto Clock Setting-
Allows you to set the clock function from aPBS
broadcast station.
•Closed caption system-
You may view specially labeled (¢c) "IV
programs, movies, news, prerecorded tapes,
etc. with either a dialogue caption or text display
added to the program.
•Game mode-
Automatically sets external input mode and
altows TVNCR display to be suitable for use
with TV games.
•Auto power on and off system-
Automatically turns on the TVNCR when you
insert the cassette, turns off after auto-rewind,
and ejects when the beginning of the tape is
reached.
•Auto rewind when the end of a tape Is
reached-
This function doesn't occur when using timer
recording.
•Three different playback tape speeds :
SP/LP/SLP
•Two different recording tape speeds :
SP/SLP
•2 Step picture search operation-
You can view a video program at high speed or
super high speed in either aforward or reverse
direction in LP and SLP mode. High speed onty
in SP mode.
•Zero Return-
The tape returnsto counterof0:00:00 by
rewindingor fast-forwarding.
•Still-
"Freeze" thepictureat anytime,for close
viewingof aparticularscene.Only tapes
recorded in SLP mode will show a fairly clear
picture.
•Digital Auto Tracking (DTR)-.-
Automaticallyadjuststhetrackingforeach tape
you play,
•Rental play mode-
Improves playbackpicture quality fromworn
tapes, suchas rental tapes.
•Auto repeat-
Allows you to repeat a tape indefinitely without
pressing the PLAY button.
•Time eearch-
Let you set theTV/VCR to advance thetape by
entering the desired playback time you want to
skip.
•OTR (One Touch Recording)-
Instanttimed recordingfrom 30 to480 minutes
is possibleat the pushof the REC/OTR button.
• 1 Year, 8 events (including Daily and Weekly
Timer Recording)-
The built-in timer allows you to recordup to 8
programs at different times on different channels
up to 1 year in advance. The Daily timer allows
recordings to be made of daily broadcasts, and
the Weekly timer allows recording to be made
once a week up to the end of the tape.
•Auto return-
After timer recording is finished, the TV/VCR
can return to the beginning of the recording.
•Wake up/Sleap timer-
Allows youto havetheTV/VCR automatically
turnon or offat a desiredtime.
•Timer Program Extension-
Allows youto shiftthetimeschedulefor
automatic timer recording.
•V-CHIP-
Enables parentstopreventtheirchildren from
watchinginappropriatematerial onTV.
-7- EN
9K16

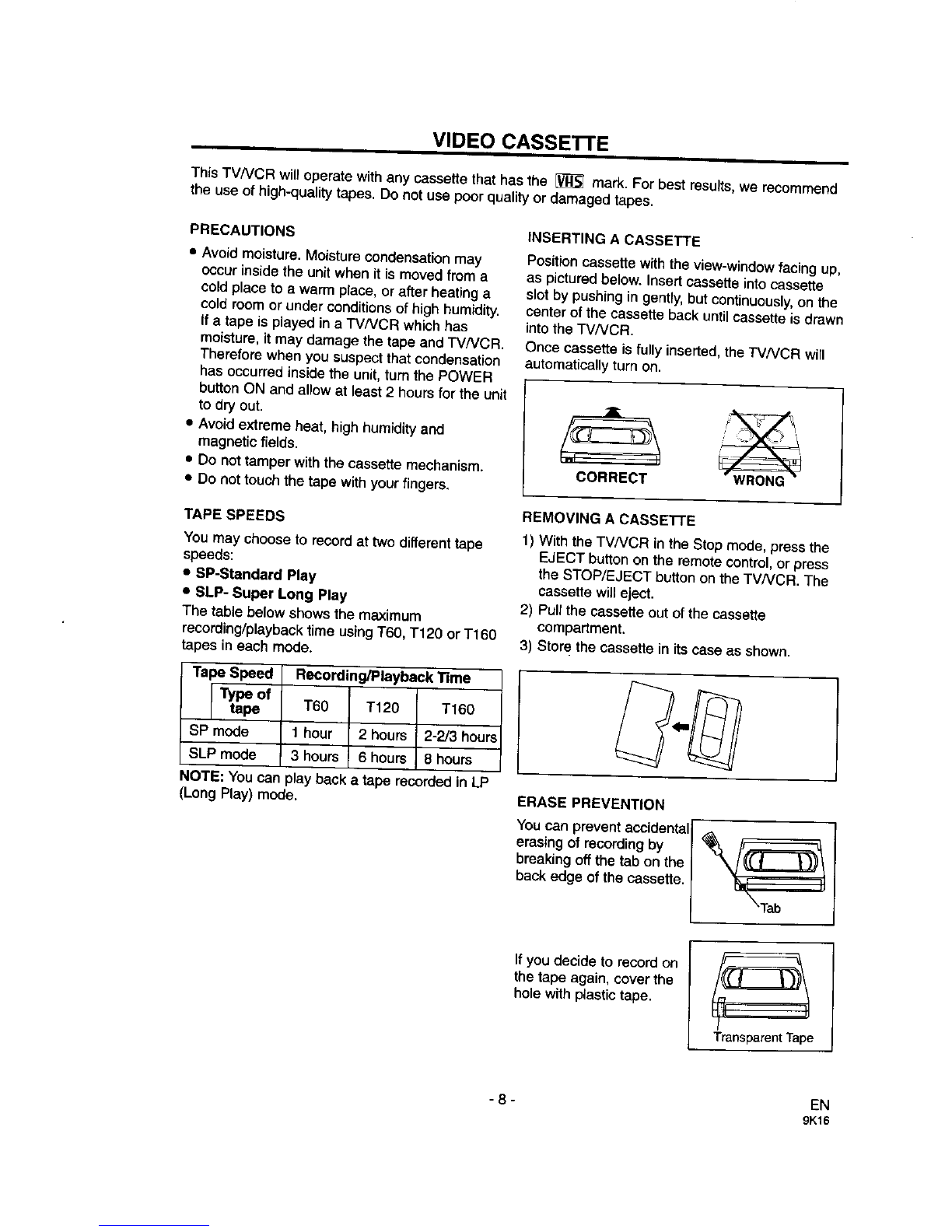

VIDEO CASSE'I-rE
This TV/VCR will operate with any cassette that has the _ mark. For best resu}ts,we recommend
the use of high-quality tapes. Do not use poor quality or damaged tapes.
PRECAUTIONS
•Avoidmoisture.Moisture condensation may
occur insidethe unitwhen itis moved from a
coldplaceto awarmplace,or after heatinga
cold roomor under conditionsofhigh humidity.
Ifa tape isplayedin a TVNCR whichhas
moisture,it may damage the tapeand TVNCR.
Thereforewhen you suspect that condensation
has occurred inside the unit, turn the POWER
button ON and allow at _east2hours for the unit
to dry out.
•Avoid extreme heat, high humidity and
magnetic fields.
• Do not tamperwith the cassettemechanism.
• Do not touch the tape with your fingers.
TAPE SPEEDS
You may chooseto recordat twodifferenttape
speeds:
• SP-Standard Play
•SLP- Super Long Play
The table belowshowsthe maximum
recording/playbacktimeusing T60, T120 orT160
tapes in each mode.
Tape Speed Recording/Playback Time
_pe of
tape T60 T120 T160
SP mode 1 hour 2 hours 2-2/3 hours
SLP mode 3 hours 6hours 8 hours
NOTE: You canplay back a tape recordedin LP
(Long Play) mode.
INSERTING ACASSETTE
Position cassette with the view-window facing up,
as pictured below. Insert cassette into cassette
slot by pushing in gently, but continuously, on the
center of the cassette back until cassette is drawn
into the TV/VCR.
Once cassette is fully inserted, the TV/VCR will
automatically turn on.
CORRECT
REMOVING A CASSETTE
1) WiththeTVNCR in the Stopmode, pressthe
EJECT buttonon the remotecontrol,or press
the STOP/EJECT button onthe TVNCR. The
cassettewilt eject.
2) Pullthe cassette out ofthe cassette
compartment.
3) Storethe cassetteinitscase as shown.
ERASE PREVENTION
You can preventaccidentalI
erasingofrecordingby I"_ _
breakingoffthetab on the
back edge of thecassette,
If you decide to record on
the tape again, cover the
hole with plastic tape.
Transparent Tape
-8- EN
9K16

OPERATING CONTROLS AND FUNCTIONS
NOTES:
•We do not recommend that you use a "universal" remote control to operate this TVNCR. Not all of
the functions may work. Call the manufacturer of the universal remote control, not Sears, if you have
problems with it.
•Depending on your antenna system, you may need other connectors in addition to the coaxial cable
supplied with this unit. See Antenna/Cable Connections section of this manual.
-TVNCR FRONT PANEL-
_ LI I t I t f I _ ' i I I " I J, li_
, i !i lt!liit i i i ,
1 23 4 5 6 7 891011 12 13 14
-REMOTE CONTROL-
7
1 EARPHONE jack-
Connects to earphones (not supptied) for
personal listening. The size of jack is 1/8"
monaural (3.5ram).
2AUDIO input jack-
Connect to the audio output jack of your audio
equipment, video camera or another VCR.
3 VIDEO input iack-
Connect to the video output jack of your video
camera or another VCR.
-9-
4 STOP button-
Press to stop the tape motion.
EJECT button-
Press in the Stop mode to remove tape from
TVNCR.
•arrow- Select the setting modes from the on-
screen menu. Press to enter digits when setting
program. (For example: Setting clock or timer
program)
5 REW button-
Press to rewind the tape, or to view the picture
rapidly in reverse during the PLAY mode,
"el arrow- Press to select a mode from a
particular menu, (For example: Language or
user's set up)
6 PLAY button-
Press to start the PLAY mode.
•arrow- Select the setting modes from the on-
screen menu. Press to enter digits when setting
program. (For example: Setting clock or timer
program)
7 F.FWD button-
Press to rapidly advance the tape, or to view
the picture rapidly in forward during playback
mode.
I_ arrow- When setting program (For example:
Setting clock or timer program), press to
determine your selection and proceed to the
next step you want to input. Press to determine
setting modes from on-screen menu. Press to
select a mode from a particular menu. (For
example: Language or user's set up) EN
9K16

8 REC button-
Press for manual recording.
OTR button- Activates One Touch Recording.
(Only on the TVNCR)
9 RECORD Indicator-
Flashes during recording.
Lights up in the Stand-by mode for Timer
Recording.
10 Remote Sensor Window-
Receives the infrared signals from the remote
control.
11 CHANNEL •/• buttons-
Press to select the desired channels for
viewing or recording.
TRACKING function- Press to minimize video
'noise' (lines or dots on screen) dudng
playback mode.
12 VOLUME A/_buttons-
Adjust the volume level.
13 POWER button-
Press to turn TVNCR on and off. Press to
activate timer recording.
14 Cassette slot-
Insert the cassette here.
15 Number buttons-
Press to select desired channels for viewing or
recording. To select channels from 1 to 9, first
press the 0 button and then 1 to 9.
+100 button- When selecting cable channels
which are higher than 99, press this _tton
first, then press the last two digits. (To select
channel 125, first press the "+100" button then
press "2" and "5").
16 MENU button-
Press to display the main menu on the "iV
screen.
17 DISPLAY button-
Display the counter or the current channel
number and current time on the TV screen.
18 SPEED button-
Press to choose the desired recording speed:
SP/SLP.
19 T-PROG. CLEAR button-
Press to cancel a timer program setting.
(See page 29,)
COUNTER RESET button- Press to reset
counter to 0:00;00.
20 GAME button-
Sets the game mode and external input mode
at the same time.
21 TIME SEARCH button-
Press to activate Time Search mode.
22 PAUSE/STILL button-
Press to temporarily stop the tape during the
recording or to view a stillpicture dudng
playback.
23 MUTE button-
Mutes the sound. Press it again to resume
sound.
24 CHANNEL RETURN button-
Press tO go back to the previously viewed
channel. For example, pressing this button
once will change channel display from 3
(present channel) to 10 (previously viewed
channel), and pressing it a second time will
return from 10 to 3.
25 WAKE UP/SLEEP button-
Sets the Wake up or Sleep Timer.
26 Power cord--
Connect to astandard AC outlet (120V/60Hz).
27 ANT. terminal-
Connect to an antenna or cable system.
- REAR VIEW -
26 27
- 10- EN
9K16

PREPARATION FOR USE
VHF/UHF COMBINED ANTENNA
The VHF/UHF Dipole Antenna (supplied) is
detachable. Insert the stem of the antenna into
the hole on the upper-back portion of the
TVNCR.
Connect the VHF/UHF Dipole Antenna or
VHF/UHF Combination Antenna to the Antenna
terminal of the TV/VCR as shown in the diagram
below.
For the best reception, fully extend the VHF/UHF
Dipole Antenna and make the necessary
adjustments. (Avoid touching the top section
when adjusting.)
VHF/UHF OUTDOOR ANTENNAS
In some areas it will be necessary to use an
outdoor antenna. 11you have separate UHF and
VHF antennas, you will need a VHF/UHF
combiner (not supplied) to make the connection
to the Antenna terminal of the TV/VCR. If you
have a VHF/UHF 75 ohm combination antenna,
you can make the connection to the Antenna
terminal of the TV/VCR without needing a
VHF/UHF combiner.
VHF Antenna (Not supplied) UHF
Antenna
supplied)
VHF/UHF Antenna (Not supplied)
ipole Antenna
upplied) _t
_, _ Matching I
_l Adapter I
t
4T.
NOTE:
The connection of an indoor antenna may not
always give acceptable "IV reception.
FLattw{n-leadcable
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
if your cable systemdoes not requirea converter
box, simplyconnectthe75 ohmcoaxialcable (not
supplied)from the cablesystemwall outlettothe
Antenna terminalof yourTV/VCR.
From Cable System
ANT
©
75-ohm Coaxial
Cab{e (Not
supplied)
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC
that provides guiderines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building as ctose to the point of cable entry as
practical.
- 11 - EN
9K16

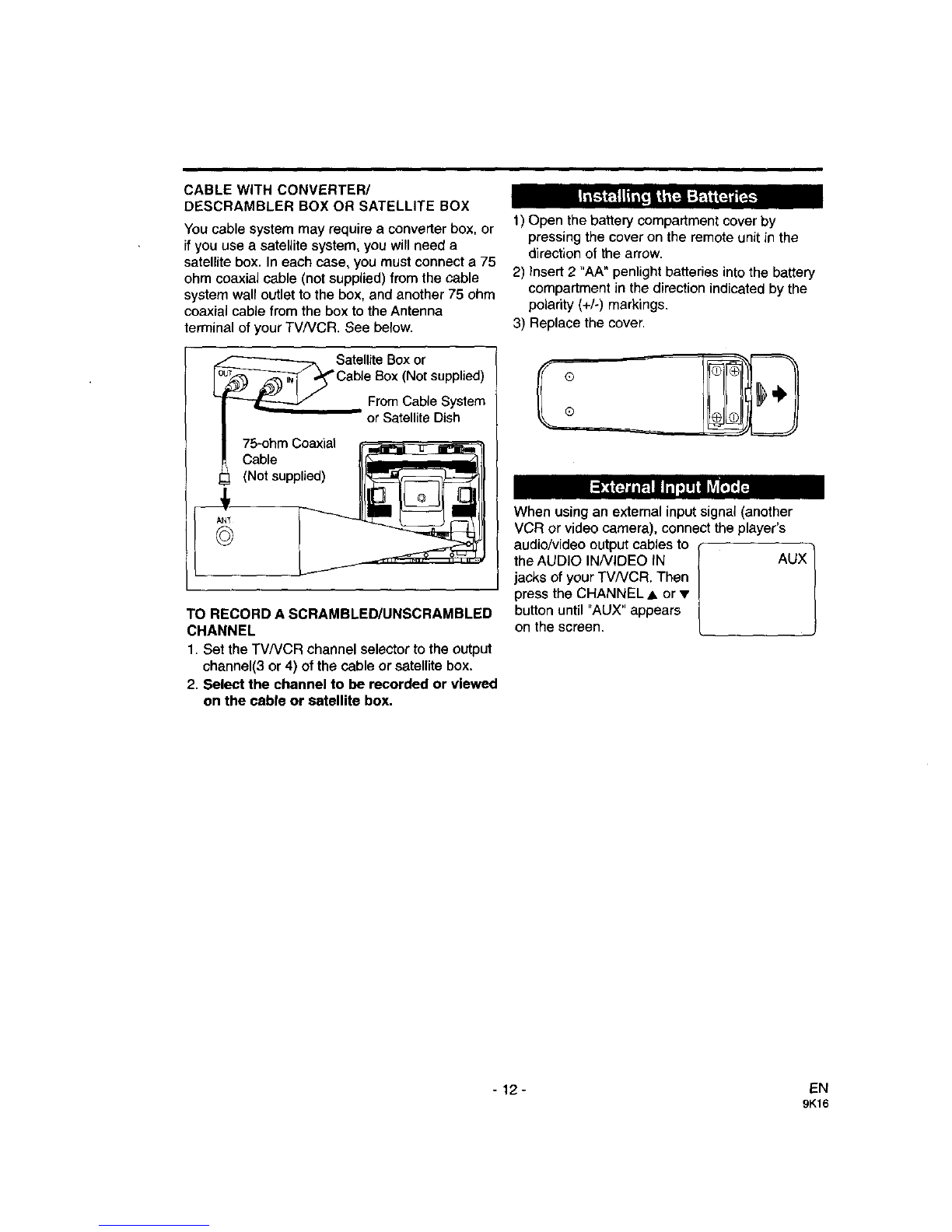

CABLE WITH CONVERTER/
DESCRAMBLER BOX OR SATELLITE BOX
You cable system may require aconverter box, or
if you use a satellite system, you will need a
satellite box. In each case, you must connect a 75
ohm coaxial cable (not supplied) from the cable
system wall outlet to the box, and another 75 ohm
coaxial cable from the box to the Antenna
terminal of your TV/VCR. See berow.
Satellite Box or
Cable Box (Not supplied)
From Cable System
or Satellite Dish
75-ohm Coaxial II_ _r _ II
? 'eup
TO RECORD A SCRAMBLED/UNSCRAMBLED
CHANNEL
1. Set the TVNCR channel selector tothe output
channel(3or 4) ofthe cableor satellitebox.
2. Select the channel to be recorded or viewed
on the cable or satellite box.
1) Open the battery compartment cover by
pressing the cover on the remote unit in the
direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery
compartment in the direction indicated by the
polarity (+/o) markings.
3) Replace the cover.
audio/video output cables to
the AUDIO IN/VIDEO IN L
jacks of your TV/VCR. Then
press the CHANNEL • or •
button until "AUX" appears
on the screen.
When usingan external input signal (another
VCR or video camera), connect the player's
AUX/
- 12- EN
9K16

SET UP FOR USE
CHANNEL MEMORY PROGRAMMING
Use this feature to program the TVNCR tuner to scanand memorize all the channels you receive in
your area.
You can use this feature to memorize cable channels only if your cable system connects directly from
its wall outlet to the Antenna terminal of your TVNCR. You cannot use this feature when the TV/VCR
isconnected to a cable or satellite box.
1Plug in the TV/VCR power cord i':,il _!
Plug the "I'VNCR power cord into a _,
standard AC outlet. _ "-J
NOTE:
• If some digits appear in the corner of the
screen, press the POWER button to turn off the
set, and then press the POWER button again to
turn the set back on. This will reset the TV back
to customer mode. Do not unplug the power
cord during this reset,
2Turn on the TV/VCR
Press the POWER button to turn on the TVNCR.
I -- io = Q I i
The channels you no longer receive or seldom
watch can be deleted from the memory. (Of
course, you can add the deleted channel into the
memory again.)
1Select "CHANNEL SET UP"
Press the MENU button on
the remote control.
Press the PLAY/• or
STOP/• button to pointto
"CHANNEL SET UP".
Then, press the EFWD/I_
button.
MENU
TIMER FRC_RAMMiNG
PICTURE CONTROL
SI_TTING CLOCK
_. CHANNEL SET UP
U_R'S SET UP
VoW;HIPSET Up
_.RO RETURN
T_ME SEARCH
m
3Select "ENGLISH" or (-SETUP
"ESPAI_IOL" ,b LANGUAG_
Select "ENGLISH" or IE.GL,S.IESP,,_-
"ESPAI_IOL"=Spanishusing AUTOP,ES_
the F.IFWD/l_or REW/_I
button. "[ ]" indicates the
selected language.
4Begin autopreset _" SETUP-
Pressthe PLAY/• or l _UAG_
STOP/_ button to pointto IENGL'S"}ESpA,C_
"AUTO PRESET". .-AuTop,E_ET
Then press the F.FWDiI_
button, The tuner scans and
memonzes all active channels in your area.
NOTES:
•The TV/VCR distinguishes between standard
TV channels and cable channels,
•If you want to play or record a video tape
BEFORE presetting the tuner, you must press
the MENU button on the remote control To
preset the tuner again, see "CHANNEL SET UP
AGAIN" on page 14.
• If reception conditions are poor, the TV/VCR
may recognize TV channels as CATV channels
or wceversa. If this occurs, try running the
AUTO PRESET again when reception
conditions are better.
5 After scanning
The tuner stops on the lowest memorized channel
If you want to recall the selected channels, you can
select the desired channel directly with the remote
cor_tro_number buttons or CHANNEL • or •.
2 Select "ADD/DELETE CH" [" C.*NNELS4_ruP-
Press the PLAY/&. or _ _.ADD_OELETEC._'1
STOP/v button to point to |_UTO"ESET
"ADD/DELETE CH". |
Press the F.FWD/_,- button. [
3Enterthe desiredchannelnumber
Pressthe PLAY/• or
STOP/v buttonuntilyour
desiredchannelnumber
appears. (Youcanalso use
the numberbuttonsor the
CHANNEL • /•buttonto
enter it.)
O8
ADD IDELETE
4 Delete(oradd) itfrom(or into)memory
Press the F.FVVDA_or REW/<I button. The
channel numberchangesto light red.
The channelisdeletedfrom memory.
If you pressthe F.FWD/I_ or REW/<I button
again, thechannelnumberchangestolight blue.
The channelis added tomemoryagain.
To delete anotherchannel,repeatsteps3 and 4.
5Exit the channel setup mode
Press the MENU button on the remote control to
return to TV mode.
NOTE: Press the CHANNEL • or •button to
confirm that channel(s) have been deleted or added.
- 13- EN
9K16

Make sure:
•Pressthe POWER buttontotumon theTV/VCR,
1Select "CHANNEL SET UP"
Press the MENU button on
the remote control
Press the PLAY/A or
STOP/, button to point to
"CHANNEL SET UP".
Then, press the FFWD/I_
button.
-MENU-
TIME_ PRCGRAMMPNG
PICTLIRE CONTROL
SETTING CLOCK
I_ CHANNEL gET UP
USER'S SET UP
V-CHIP SET UP
LANGUAGE ENGLISHJ
CAPTION _F I
ZERO RETURN
2Begin auto preset
Press the PLAY/A or
STOP/, button to point to
"AUTO PRESET".
Then, press the F.FWDA_
button. The tuner scans and
I _ CHANNELSET UpI
AOO/DELETECH(1V)
AUTO PRESET
memorizes all the active channels in your area.
3After scanning
The tuner stops on the lowest memorized channel.
Make sure:
•Press the POWER button to turn on the TVNCR.
NOTE: This feature only changes the on-screen
menu language. It does not change the language
you hear spoken on the TV.
1Select"LANGUAGE" ( _,u-
Press the MENU button on l T,_ERpROGRAMM,_
PICTUR_ CONTROL
the remote contref. SE_,N_CLOCK
CHANNEL SET UP
Press the PLAY/A or V-C.,,USE'S_SE_UPU"
LANGUAGE f_NGLISH I-
STOP/, button to point to ZERoCAPT'O"R_.T_R,O_J
"LANGUAGE". T,_ESEARC.
2Select "ENGLISH" or "ESPAI_IOL"
Select "ENGLISH" or "ESPAI_OL"= Spanish using
the F.FWD/b_ or REW/<I button.
3Exit the Language mode
Press the MENU button on the remote control to
return to TV mode.
NOTE: If for some reason the menu is in
Spanish, press the MENU button on the remote
control, press the PLAY/,, button to point to
"IDIOMA [ESPAI_OL]", then press the F.FWD41_
button, then press the MENU button on the
remote control.
If you select thisfeature, the TV/VCR's clock
immediately advancesone hour in April and
reverses one hour in October.
•First Sunday of April : At 2 AM the clock
immediately changes to 3 AM. Any timer
programming you have set to occur between 2
AM and 3 AM will not record.
•Last Sunday of October :At 2 AM the clock
immediatelychangesto 1AM,
Make sure:
•PressthePOWER buttontotumonthe"rv/vcR.
1Select "SETTING CLOCK"
Press the MENU button on
the remote control.
Press the PLAY/&. or
STOP/, button to point to
"SETI-ING CLOCK".
Then. press the F.FWD/I_
button.
MENU-
T_MER pROGRAMMING
p',CTUR_ CONTRC_
b. sE=rTING CLOCK
CHANNEL SET Up
U_ER'S SET Up
V CHIP S_T UP
LANGUAGE ENGLISHI
CAPTION [O_F I
ZERO RETURN
TtME _ARCH
2Set "D.S.T." (Daylight-Saving Time) to [ON]
Press the PLAY/&.or I -S_,N_LOC_=1
STOP/T button to pointto _ io.i
"D.S.T.". ._OCLOC_C.I_ro]
Then, pressthe F.FWD/I_ or M_U_LCLOC_T
REW/<I button until[ON] .-_T ._"i:
appears.
3Exit the Daylight-Saving Time mode
Press the MENU button on the remote control to
return to TV mode.
TO CANCEL THE DAYLIGHT-SAVING TIME
MODE
Repeat steps [1] to [2], select [OFF] using the
/_FWD_I_ or REW/.<I button.
- 14- EN
9K16

Set the clock accurately for properautomatic
timer recording. If a Public Broadcasting Station
(PBS) is available in your area, follow "AUTO
CLOCK SE3-1-ING".tt there isn't one, then follow
"MANUAL CLOCK SE'I-FING".
AUTO CLOCK SETTING
Youcan have the TVNCR setthe clocktimeand
dateautomaticanyviathe ExtendedData Service
(XDS) of yourlocalPublicBroadcastingStation
(PBS) channel.
Make sure:
•TVNCR powermustbe turnedon.
•Antennaconnectionsare correct.
•Cableconverterbox isturnedon ifyour
TVNCR is connected to one.
• The channel is properly set in advance. (See
page 14.)
NOTES:
• Auto clock setting only needs to be set once.
But it can be done again if the clock's time has
become incorrect for some reason.
• If the TVNCR is connected directly toa cable
converter box or satellite box, the local PBS
station must be selected on the cable box itself.
The TVNCR must be set to the output channel
of the cable or satellite box (usually channel 3
or 4), to be able to set up or correct the clock
automatically.
• The TVNCR cannot control the channels of the
cable or satellite box.
1 Select"SETTINGCLOCK"
Pressthe MENU buttonon
the remotecontrol.
Pressthe PLAY/A or
STOP/v' buttonto pointto
"SETTING CLOCK".
Then, pressthe F.FWD/I_-
button.
.MENU-
TIMER PROGRAMMING
PICTURE CONTROL
USER'6 SET UP
V-C_IIp SET UP
I_I_IGUAG[ NGLISH]
CAPTION [OiF_)
ZERO RETURN
2 Set "AUTO CLOCK" to
[ON]
Press the F.FWD/II_ or
REW/_I button repeatedly
until [ON] appears. I_ SETTING CLOCK
,.AutoCLOC_P_t
AUTO CLOCK CH [AUTO I
MANUAL CLOCK SET
(_$T [OFF]
3 Enterthechannelnumberfor the PBSstation
Pressthe PLAY/& or
STOP/v button topointto
"AUTO CLOCK CH".
Then press the EFWDAI_ or
REW/I button until the
channel number for your
local PBS station appears.
Leave menu set to[AUTO] ff you do notknow the
local PBS channel number. The TV/VCR will
automatically search all available channels and
select it.
-SETTING CLOCK -
i_OTO CLOCK IOn]
_- AUTO CLOCK CH [AUTO}
MANUAL CLOCK SET
D 8T (OFF I
4Exit the Auto Clock Setting
Press the MENU button on the remote control to
return to TV mode.
5 Turn off the TV/VCR
Turn the TVNCR off. The Auto Clock functions
automatically when the TVNCR is off.
If you choose [AUTO]:
•The TV/VCR mustscaneach channelfor a
couple of secondsto determineif it is
transmittingan XDS signal.
•If thetimeautomatically set by[AUTO]is
incorrect,it may haveaccessedthe XDS signal
froma PBSchanneloutsideyourtimezone. In
thiscase,you mustmanually enterthecorrect
PBS channel.
• If [AUTO]cannot locatea XDS signal,you must
setthe clockmanually.
- 15- EN
9K16

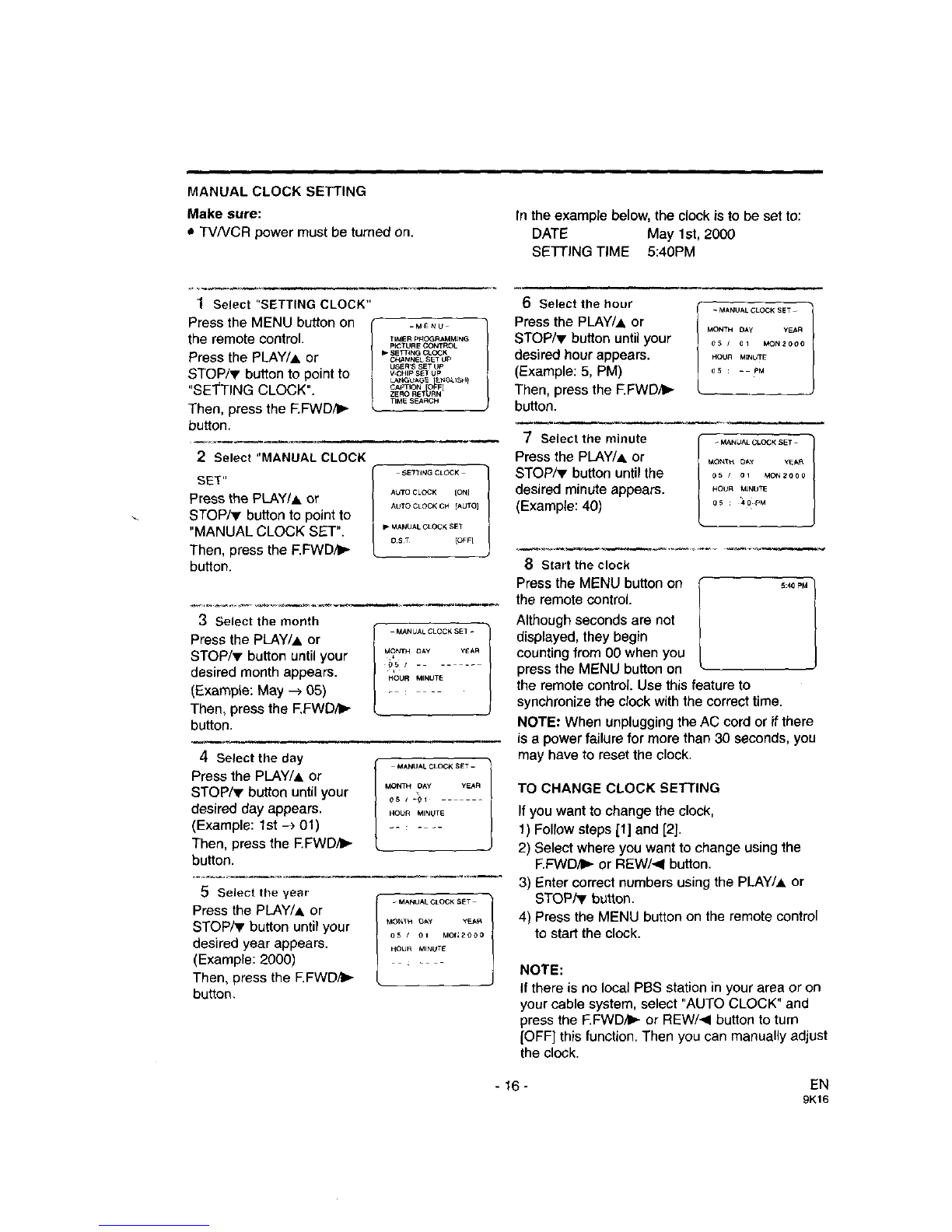

MANUALCLOCKSETTING
Makesure:
•TVNCR power must be turned on. In the example below, the clock is to be set to:
DATE May 1st, 2000
SETTING TIME 5:40PM
1Select "SETTING CLOCK*'
Press the MENU button on
the remote control.
Press the PLAY/A or
STOP/_' button to point to
"SE'I'TING CLOCK".
Then, press the F,FWD/I=.-
button.
I _MEN U
TIMER pROGRAMMING
p_CTURE CONTROL
_- SETTSNG CL_K
CHANNEL SET UP
USERS SET UP
V-CHIP SET Up
LAI_GUA_E EI_GLIS_ /
CAPTION [O_F]
ZERO RETURN
TIME SEARCH
2Select "MANUAL CLOCK
Press the PLAY/A or AUTOCLOCK[O.J
STOP/_' button to point to AUTOCLOCKC.IAUTOI
"MANUAL CLOCK SET". ,_MA,UALCLOCKSET
OST IOFFI
Then, press the F.FWD/I_
button.
3Select the month MANUAL CLOCK SET
Press the PLAY/A or
STOP/v button until your
desired month appears.
(Example: May --_05)
Then, press the F.FWD/I_
button.
MCt_TH DAy YEAR
t#5 t
HOUR MINUTE
4Select the day
Press the PLAY/A or
STOP/_" button until your
desired day appears.
(Example: 1st -_ 01)
Then, press the FFWDAI_
button.
MANUALCLOCKSET-
MON_ OAY YEAR
HOUR MINUTE
Select the year
Press the PLAY/A or
STOP/v button until your
desired year appears.
(Example: 2000)
Then, press the F.FWD/I_
button.
MANUAL CLOCK SET
05 / 01 MOfJ2000
HOUR MINUTE
6Select the hour
Press the PLAY/A or
STOP/v button until your
desired hour appears.
(Example: 5, PM)
Then, press the F.FWD/ll,-
button.
MONTH DAy YEAR
05 /01 MON2000
HOUR M{NUTE
g5 : - p
"7 Select the minute
Press the PLAY/& or
STOP/v button until the
desired minute appears.
(Example: 40)
-MANUALCLOCKSET-
05 /01 MON2000
NOUR MINUTE
O5 _0pM
8Start the clock
Press the MENU button on
the remote control.
Although seconds are not
displayed, they begin
counting from 00 when you
press the MENU button on
the remote control Use this feature to
synchronize the clock with the correct time.
NOTE: When unplugging the AC cord or ifthere
is a power failure for more than 30 seconds, you
may have to reset the clock.
TO CHANGE CLOCK SETTING
If you want to change the clock,
1) Follow steps [1] and [2].
2) Select where you want to change using the
F.FWD/I_ or REW/_I button.
3) Enter correct numbers using the PLAY/_. or
STOP/T button.
4) Press the MENU button on the remote control
to start the clock.
NOTE:
if there is no local PBS station in your area or on
your cable system, select "AUTO CLOCK" and
press the F.FWDAI_ or REW/_I button to turn
[OFF] this function. Then you can manually adjust
the clock.
- 16- EN
9K16

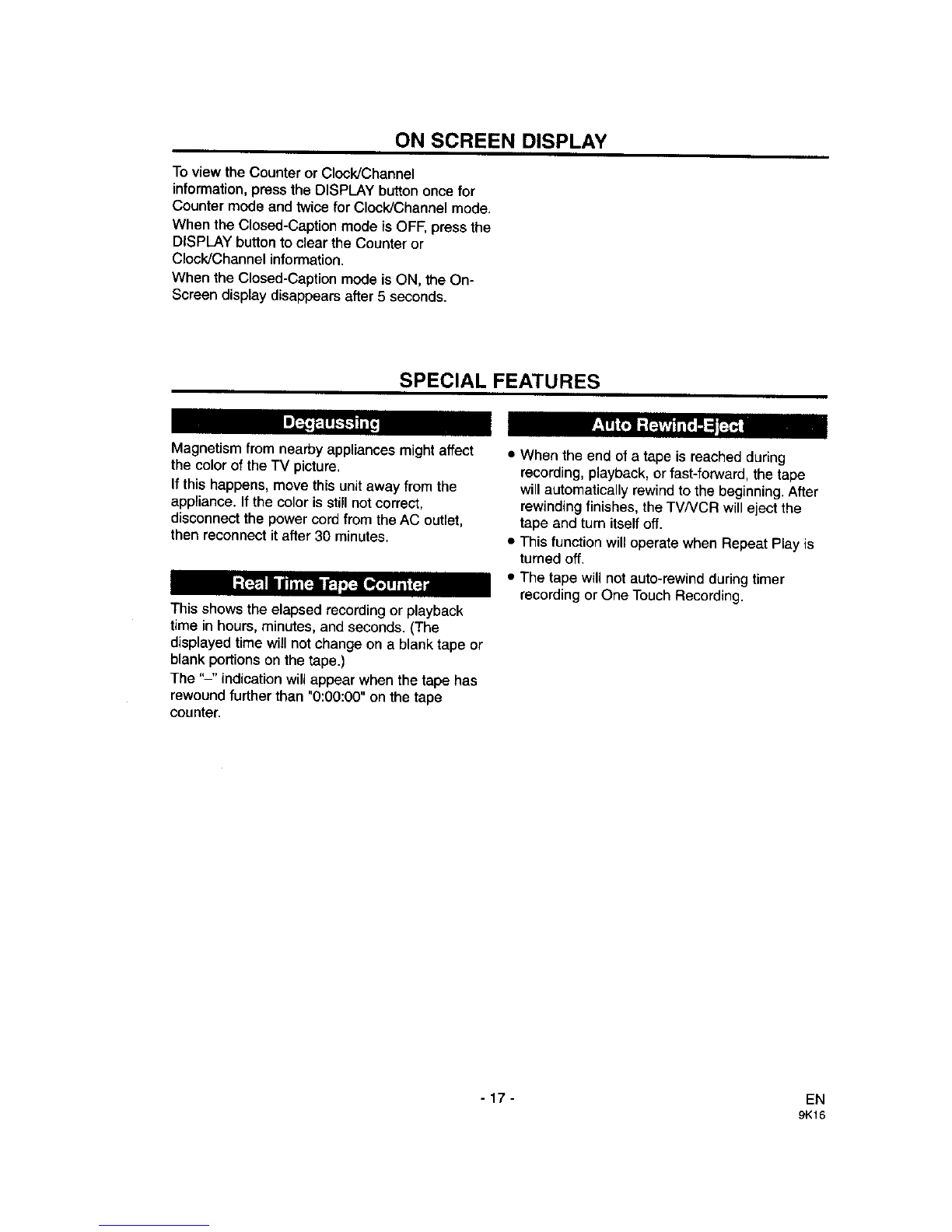

ON SCREEN DISPLAY
Toview the Counter or Clock/Channel
information, press the DISPLAY button once for
Counter mode and twice for Clock/Channel mode.
When the Closed-Caption mode isOFF, press the
DISPLAY button to clear the Counter or
Clock/Channel information.
When the Closed-Caption mode is ON, the On-
Screen display disappears after 5 seconds.
SPECIAL FEATURES
Magnetism from nearby appliances mightaffect
the color of the TV picture.
If thishappens,movethisunitaway fromthe
appliance. Ifthecolorisstill notcorrect,
disconnect the powercordfrom theAC outlet,
then reconnectitafter30 minutes.
• When the end of a tape isreached during
recording, playback,or fast-forward, the tape
will automatically rewind to the beginning. After
rewinding finishes, the TVNCR will eject the
tape and turn itself off.
• This function will operate when Repeat Play is
turned off.
•-, - . o- o -• The tapewiUnot auto-rewind duringtimer
recordingorOne TouchRecording.
Thisshowstheelapsedrecordingorplayback
time inhours,minutes, and seconds.(The
displayed timewillnot changeon a blank tape or
blankportionson the tape.)
The "-" indicationwillappear whenthe tapehas
rewoundfurtherthan "0:00:00" onthe tape
counter.
- 17- EN
9K16

TV OPERATION
1Turn on the TVA/CR
Press the POWER button to turn on the TVNCR.
2 Select the channel number
Press the CHANNEL • or • button to select your
desired channel number or press the number
buttons on the remote control.
Remember: If the TVNCR is connected to a
cable box or satellite box, the TV/VCR must be on
CH3 or CH4, then the channel to be viewed must
be selected on the cable box or satellite box.
3Adjust sound
Press the VOLUME/_ or V
button to adjust the volume.
VOLUME20
ililllllillll
This function enables you to decrease the "IV
screen contrast, making it better for Video games.
NOTE: This function cannot be set during recording.
Press the GAME button on
the remote control. "GAME"
appears on the screen.
GAME
When you press the GAME
button;
• The TVNCR comeson automaticaUyif it is off.
• The TV/VCR will be in external input mode
automatically.
TO CANCEL THE GAME MODE
Press the GAME button or CHANNEL • or •
button on the remote control.
The TV/VCR's picture controls -BRIGHT,
CONTRAST, COLOR, TINT and SHARPNESS -
are preset at the factory. Although they are
usually the best, you may need to make some
further adjustments for a natural looking image.
NOTE:
•Procedures must be performed within 5
seconds or the Picture Control mode will be
cancelled.
• When setting the Picture Contror, the Game
mode witl be cancelled.
Make sure:
• rv/vcR powermustbe turnedon,
1Select "PICTURE
CONTROL"
Press the MENU button on
the remote control.
Press the PLAY/A or
STOP/• button to point to
"PICTURE CONTROL".
-MENU- 1
T(M_R pROGRAMMtNG
I_ PICTURE CONIROL
SETT_IG CLOCK
CHANNEL SET UP
USER'S SET UP
V-CHIp SET Up
LANGUAGE [ENGLISH I
CAPTION OFF[
ZERO RET_AN
TIME SEARGH
Then, press the F.FWD/I_ button.
2 Select item you want to adjust
Press the PLAY/• or
contror is displayed.
BRIGHT
CONTRAST ...... _,G_ ......
COLOR
TINT
SHARPNESS
3Adjust the picture control
Press the IEF-WD_P-or REW/_I button to adjust to
your desired level.
nEW/4 RF-WD/_-
BRIGHT to decrease to increase
brightness brightness
CONTRAST to decrease to increase
contrast contrast
COLOR to pale to brilliant
TINT to purple to green
SHARPNESS to soft to clear
•If there is a power failure of any kind, the unit
will retain its memory for this feature.
- 18 - EN
9K16

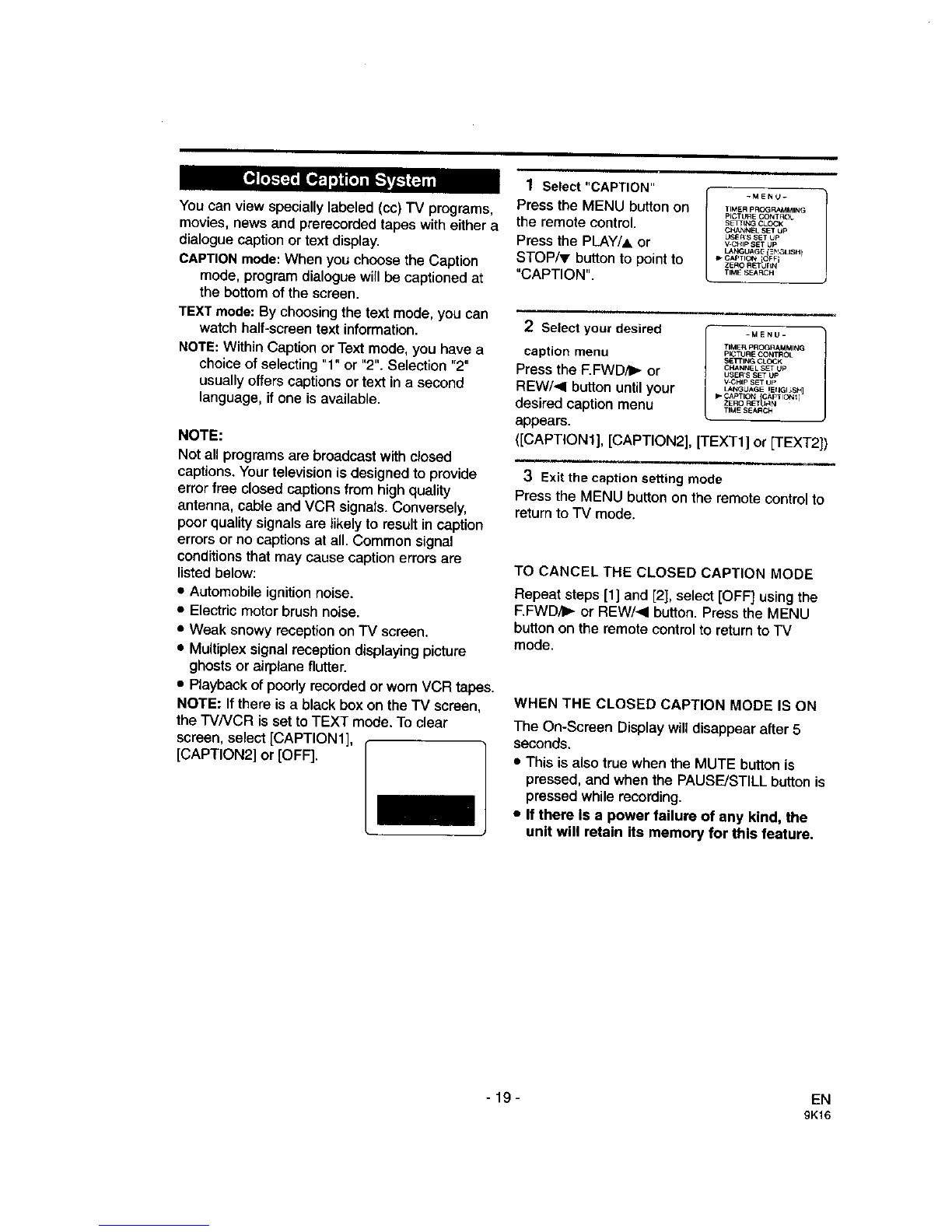

You can view specially labeled (c¢)TV programs,
movies, news and prerecorded tapes with either a
dialogue caption ortext display.
CAPTIONmode: When you choose the Caption
mode, program dialogue will be captioned at
the bottom of the screen.
TEXTmode: By choosing the text mode, you can
watch half-screen text information.
NOTE:Within Caption or Text mode, you have a
choice of selecting "1" or "2". Selection "2"
usually offers captions or text in a second
language, if one is available.
NOTE:
Not all programs are broadcast with closed
captions. Your television is designed to provide
error free closedcaptions from high quality
antenna, cable and VCR signals. Conversely,
poor quality signals are likely to result in caption
errors or no captions at all. Common signal
conditions that may cause caption errors are
listed below:
• Automobile ignition noise.
• Electric motor brush noise.
• Weak snowy reception on "IV screen.
• Multiplex signal reception displaying picture
ghosts or airplane flutter.
• Playbackof poorly recorded or worn VCR tapes.
NOTE: If there is a black box on the TV screen,
the TVNCR is set to TEXT mode. Toclear
screen, select [CAPTION1],
[CAPTION2] or [OFF].
1Select "CAPTION"
Press the MENU button on
the remote control.
Press the PLAY/&. or
STOP/T button to point to
"CAPTION".
-MENU-
TIMER pINNI _MING
piCTURE C_T0,OC
SETTING _IX_K
CI4_EL SET UP
_£RS SET tJp
V CHIP SET UP
I_NGUAG_ {_3LISH I
I_ CAPTION OFF)
Z_RO REr_ IN
TIME SEARCH
2Select your desired
caption menu
Press the F,FWD/t_ or
REW/_I button until your
desired caption menu
appears.
-MENU-
TIMER PROGRAMMING
pI_TUR_ _IT_OL
S_'TrI_ CLOCK
CHANNEL SET IJP
USERS SET UP
V-CHIP SET UP
t/*t,iG UAGE IEetGI IS_
Z_RO RET_I N
T_ME SEARCH
([CAPTION11, [CAPTION2], [TEXT1] or [TEXT2])
3Exit the caption setting mode
Press the MENU button on the remote control to
return to TV mode.
TO CANCEL THE CLOSED CAPTION MODE
Repeat steps [1] and [2], select [OFF] using the
F.FWD/I_ or REW/_I button. Press the MENU
button on the remote control to return to TV
mode.
WHEN THE CLOSED CAPTION MODE IS ON
The On-Screen Display willdisappear after 5
seconds.
• This is also true when the MUTE button is
pressed, and when the PAUSE/STILL button is
pressed while recording.
•If there Is a power failure of any kind, the
unit will retain its memory for this feature.
- 19- EN
9KlS

V-CHIP enables parents to prevent their chBdren
from watching inappropriate material on TV,
V-CHIP reads the ratings for programming
(except for news and sports programs, unedited
movies on premium cable channels, and
Emergency Broadcast System signals), then
denies access to programming if the program's
rating meets the limRations you select. In this
case, "PROTECTED PROGRAM by 9 message
appears on the TV screen.
To block ratings, follow the steps below.
• Programming may be rated by the Motion
Picture Association of America (MPAA) or
according to the Television Parental Guidelines.
In order to block any inappropriate
programming, set your limits in both places
(MPAA RATING and TV RATING).
TV RATING SET UP
Make sure:
•TVNCR power must be turned on.
1Select "V-CHIP SET UP"
Press the MENU button on
the remote control.
Press the PLAY/& or
STOP/_" button to point to
"V-CHIP SET UP".
Then, press the EFWDT_
button.
MENU-
T_MER pR_I_MMING
pICTURE CONTROL
SETtiNG CLOCK
GH_NEL SEt Up
i_- VCHPP _UP
1_4GUAGE ENGLPSH]
CA_r_N lOaF]
2_ RETIJRN
TIME SEAI_H
2Select "TV RATING"
Press the PLAY/& or
STOP/T button to point to
"IV RATING".
Then, press the F.FWD4I_
button. IV.CHIP SET UP
p* TV R&TING
MpAA PATING
3Select your desired item
Press the PLAY/A °r I i_
STOP/_' button to point to J- TV-Y VIEW
your desired item. _v_Tv'_{ ,vli
O/-FGI I
Then. press the F.FWD/I_ _v_.c v,Ew
button to select [BLOCK] or TV_A_ J 'E
[VIEW].
• When you select the rating category and turn it
to [BLOCK], all the higher ratings will turn to
[BLOCK] automatically, and all the lower ratings
will turn to [VIEW] automatically.
Selection Rating Category Explanations
TV-Y Appropriate for all children
TV-Y7 Appropriate for children seven and
older
TV-G General Audience
TV-PG Parental Guidance suggested.
TV-14 Unsuitable for children under 14
TV-MA Mature audience only
When you select TV-Y7, "TV-PG, "FV-14, or TV-MA
and you press the F,FWD/_- button, the sub-
ratings will appear on the TV screen,
If you select the rating category (example: TV-PG)
and turn it [BLOCK] or [VIEW], the sub-ratings
(example: V for Violence) will turn [BLOCK] or
[VIEW] automatically.
You can set the sub-ratings to [BLOCK] or [VIEW]
individually when the rating category is set to
[BLOCK]. To set the sub-ratings individually,
follow the steps below.
•When you select [TV-YT]:
Press'heSTOP"°rI 1
PLAY/& button tOselect _,-Y7 {__oc,l
"FV" (Fantasy Violence). ,.Fv IBLOC_J
Then, press the EFWD/II*
button to select [BLOCK]
or [VIEW].
•When you select [TV-PG], [TV-14] or
[TV-MA]:
PLAY/& button to select _-P_ l_-_l
"D"(Suggestive Dialog), "_ _
"L"(Coarse Language), vs oc
"S"(Sexual Situation), or
"V"(Violenca). Then,
press the EFWD,'_- button to select [BLOCK]
or [VIEW].
NOTE: When you select [TV-MA], "D" does not
appear on the TV screen.
• The sub-ratings which are Iw-TV ¥ VIE
TV Y7 ( ) VIE
set to [BLOCK] appear _v_ _,_w_
TV PG OL_V LC_K
next to the rating category Tv,, oLs_l [_
TV_A L _ V {BLOGK
in the TV RATING menu.
4 Exit the V-Chip setting mode
Press the MENU button on the remote control to
return to original mode.
-20- EN
9K16
