OWNERS
MANUAL
MODEL NO.
934.44817390
TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ............ 2
PRECAUTIONS ...................... 4
SUPPLIED ACCESSORIES ............. 4
FEATURES .......................... 5

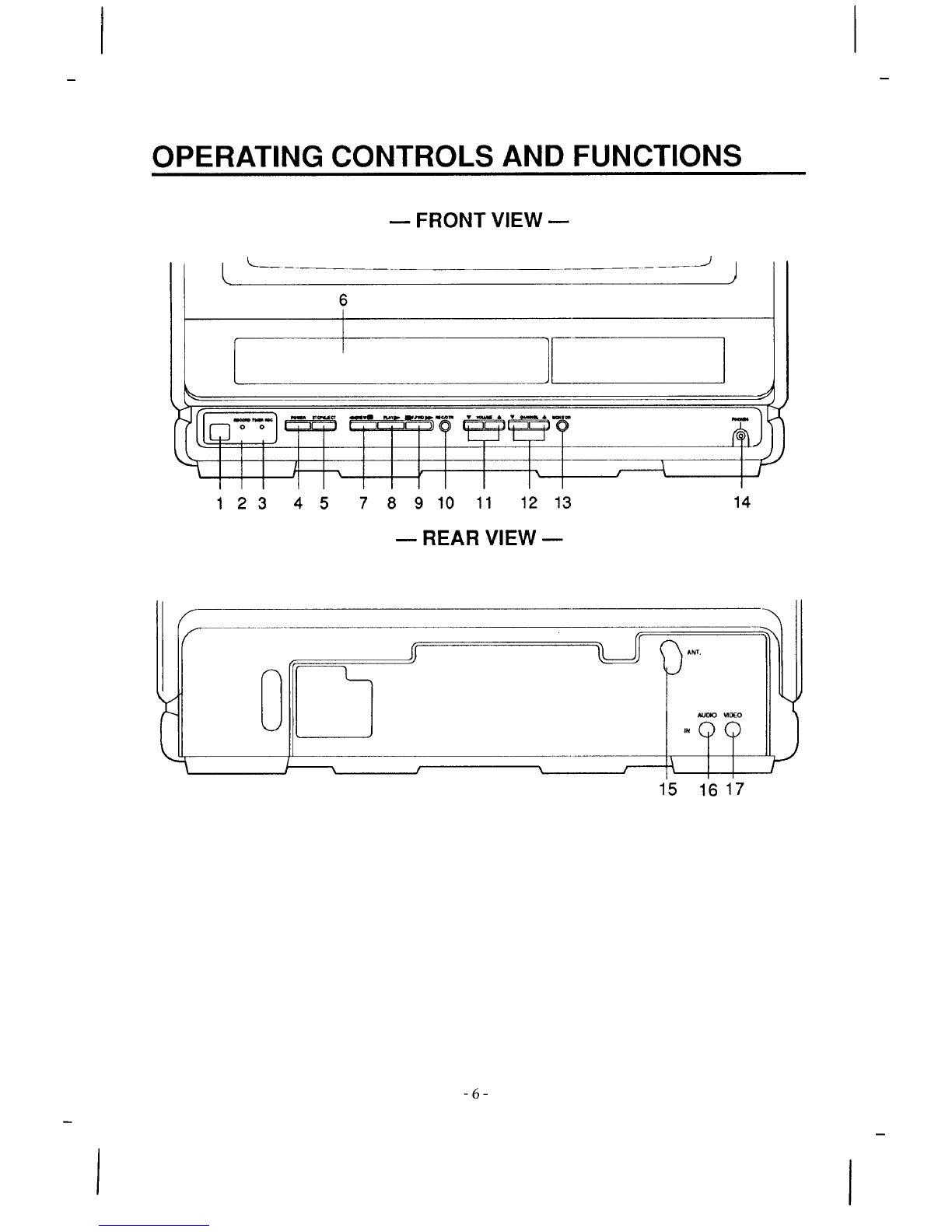

OPERATING CONTROLS AND FUNCTIONS 6

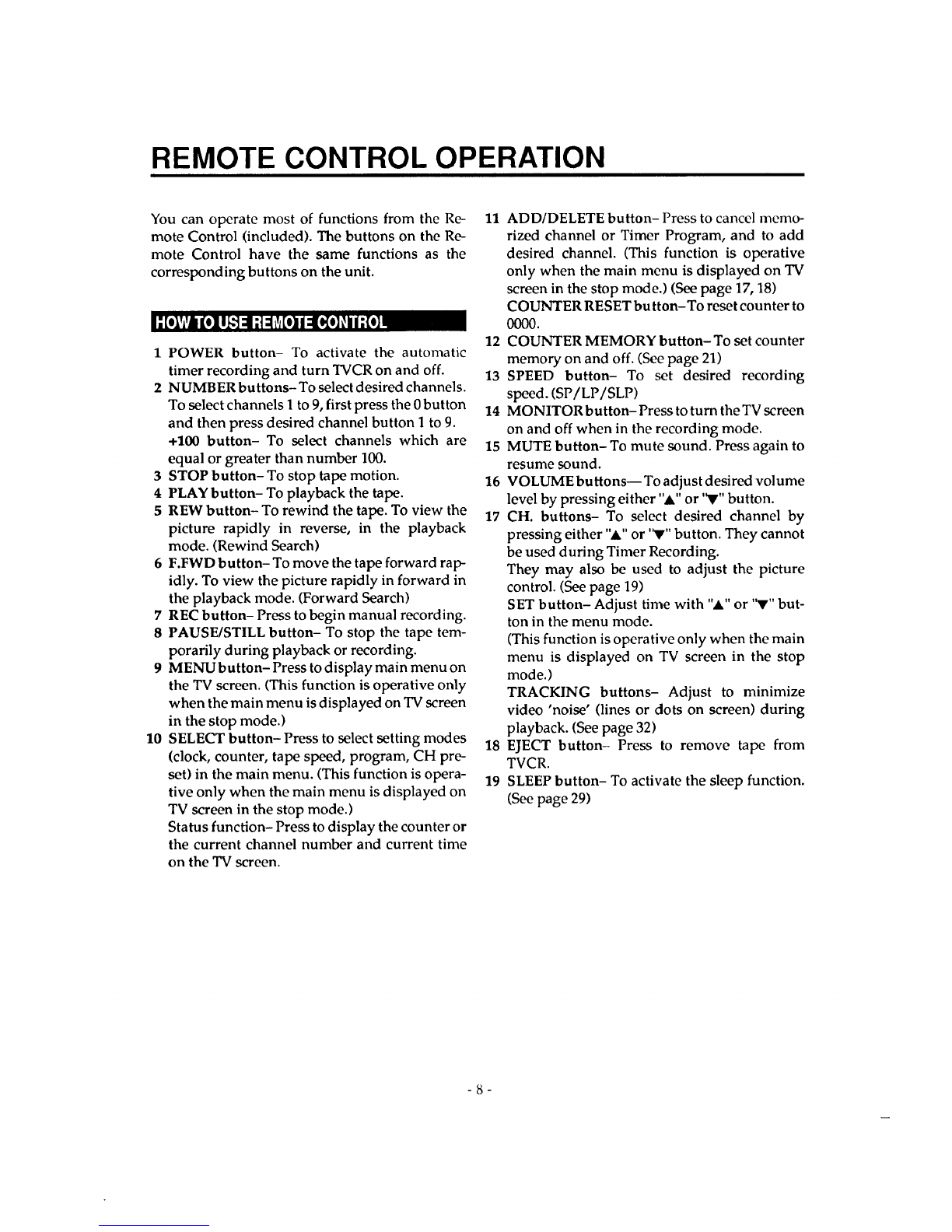

REMOTE CONTROL OPERATION ....... 8

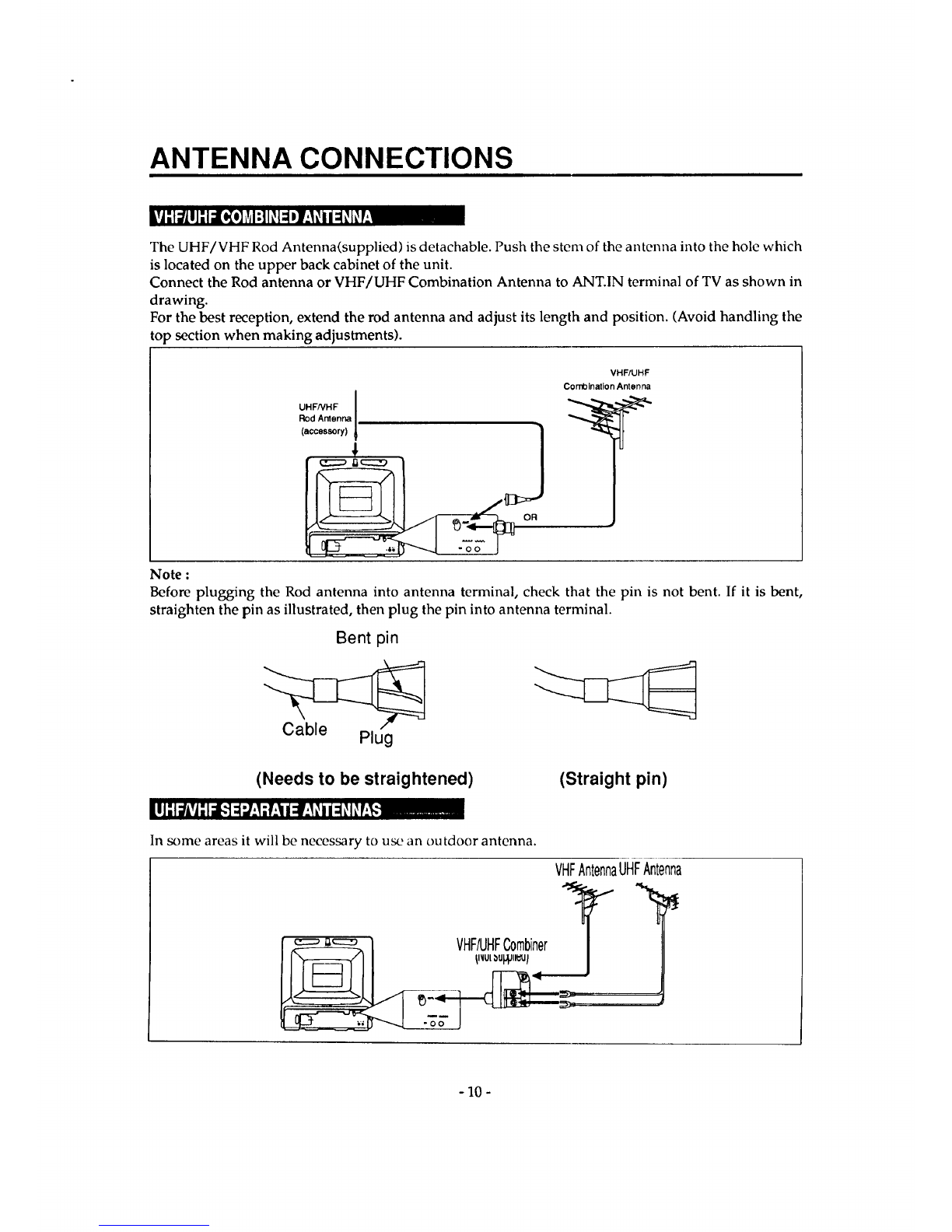

ANTENNA CONNECTIONS ............ 10
PREPARATION FOR USE ............. 12
OPERATION ........................ 18

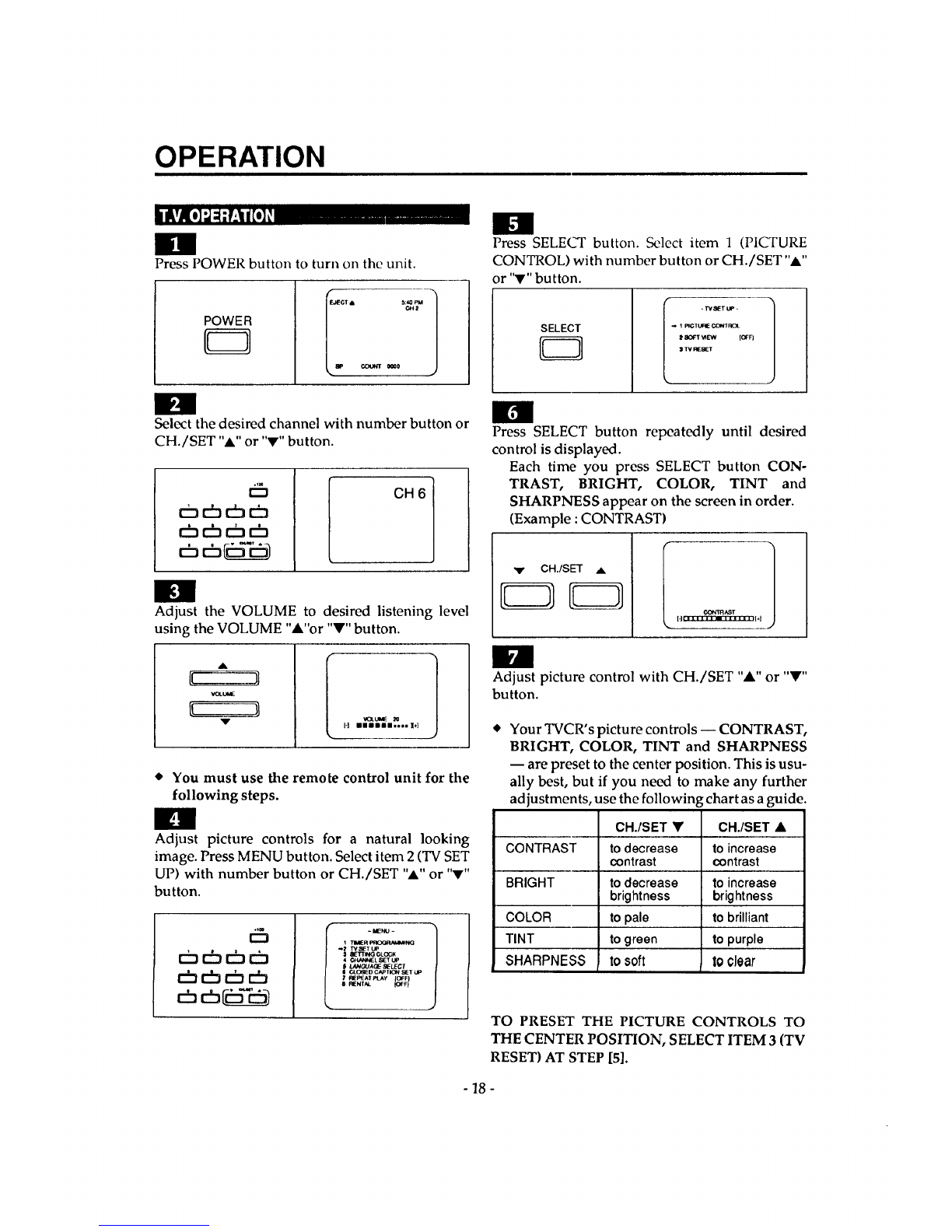

T.V. OPERATION ................. 18
VIEWING AND RECORDING THE SAME
PROGRAM ...................... 19
AUTOMATIC TIMER RECORDING .... 21
QUICK SET PROGRAM ............ 24
CHECKING THE COUNTER, CLOCK AND
CHANNEL NUMBER ............... 26
OTR (ONE TOUCH RECORDING) .... 27
SETTING THE SLEEP TIMER ........ 28
PLAYBACK ...................... 28
RENTAL PLAY .................... 28
AUTO REPEAT PLAYBACK ......... 29
CLOSED CAPTION SYSTEM ........ 29
TROUBLESHOOTING GUIDE .......... 32
MAINTENANCE ..................... 33
SPECIFICATIONS ................... 34
13"COLOR
TVCR
COMBINATION
Record the Model Number and Serial Num-
ber of your TVCR combination.
The Model Number and the Serial number
are on the rear panel.
Model No.
Serial No.
Keep these numbers for future use.

IWARNING:
TOREDUCETHERISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
The Important note Is located on the rear of the cabinet.
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRES-
ENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
IMPORTANT SAFEGUARDS
1. Read instructions-All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions
should be retained for future reference.
3. Heed Warnings-AU warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TV from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
EXCEPTION : A product that is meant for uninterrupted
service and that for some specific reason, such as the
possibility of the loss of an authorization code for a CATV
converter, is not intended to be unplugged by the user for
cleaning or any other purpose, may exclude the reference
to unplugging the appliance in the cleaning description
otherwise required in item 5.
6. Attachments-Do not use attachments notrecommended by
the TV manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TV near water-for
example, near a bath tub, wash bowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool,
and the like.
8. Accessories-Do not place this TV on an unstable cart,
stand, tripod, bracket, or table. The TV may fall, causing
serious injury to someone, and serious damage to the
appliance. Use only with a cart,
stand, tripod, bracket, or table
recommended by the manufac-
turer, or sold with the TV. Any
mounting of the appliance should
follow the manufacturer's instruc-
tions and should use a mounting
accessory recommended by the
manufacturer. An appliance and
cart combination should be
PORTABLE CART WARNING
S3126A
moved with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combination to
overturn.
9. Ventilation-Slots and openings in the cabinet and the back
or bottom are provided for ventilation and to ensure reliable
operation of the TV and to protect it from overheating,
these openings must not be blocked or covered. The
openings should never be blocked by placing the TV on a
bed, sofa, rug, or other similar surface. This TV should
never be placed near or over a radiator or heat register.
This TV should not be placed in a built-in installation such
as a bookcase or rack unless proper ventilation is provided
or the manufacturer's instructions have been adhered to.
10. Power Sources-This TV should be operated only from the
type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home,
consult your appliance dealer or local power company. For
TVs intended to operate from battery power, or other
sources, refer to the operating instructions.
11. Grounding or Polarization-This TV is equipped with a po-
larized alternating-current line plug(a plug having one blade
wider than the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If
the plug should still fail to fit, contact you electrician to
replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and
the point where they exit from the appliance.
13. Outdoor Antenna grounding-If an outside antenna or cable
system is connected to the TV, be sure the antenna or cable
system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section
810 ot theNationalElectricalCode,ANSI/NFPANo.70-
- 2 - EN

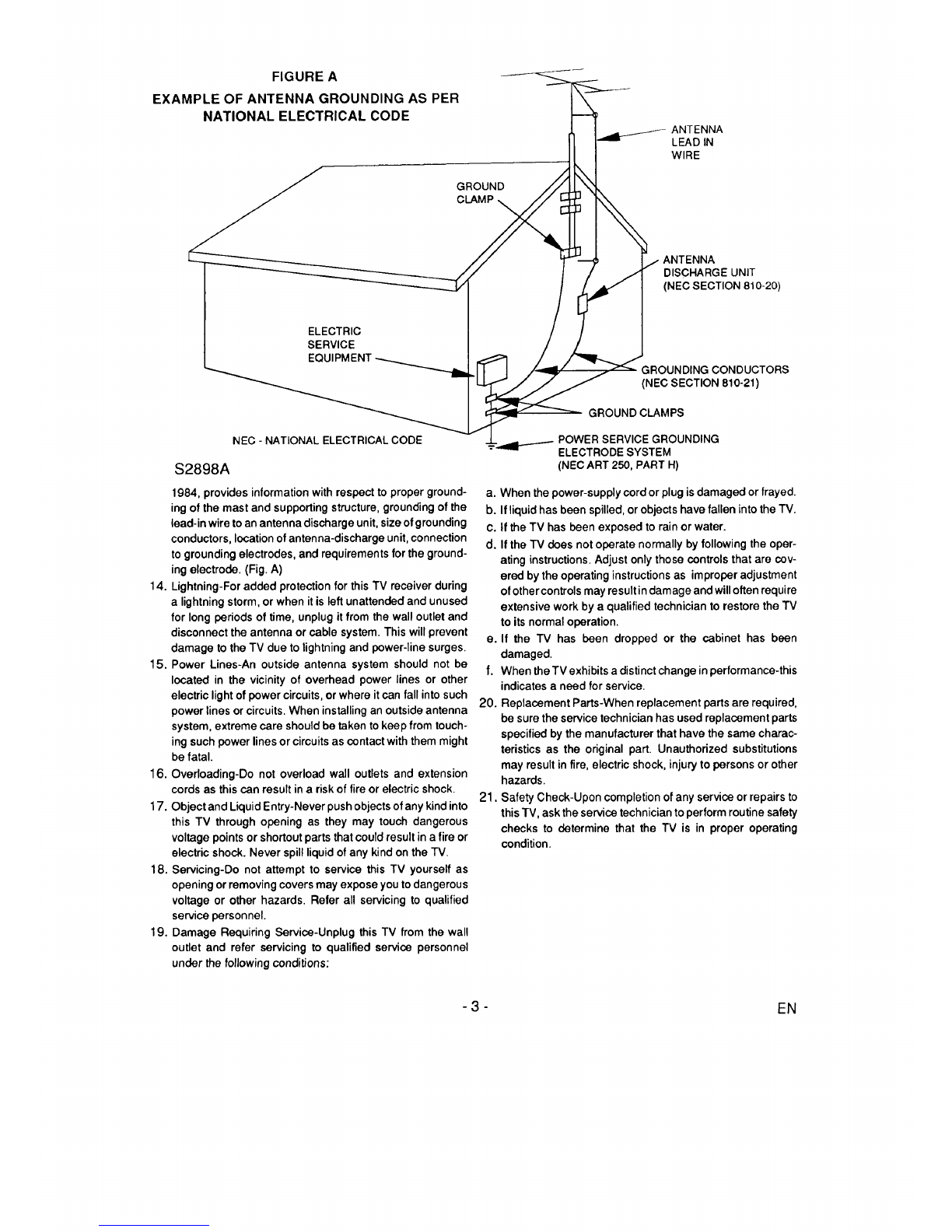

FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
NEC -NATIONAL ELECTRICAL CODE
$2898A
1984, provides information with respect to proper ground-
ing of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection
to grounding electrodes, and requirements for the ground-
ing electrode. (Fig. A)
14. Lightning-For added protection for this TV receiver during
a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the TV due to lightning and power-line surges.
15. Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light of power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touch-
ing such power lines or circuits as contact with them might
be fatal.
16. Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17. Object and Liquid Entry-Never push objects of any kind into
this TV through opening as they may touch dangerous
voltage points or shortout parts that could result in a fire or
electric shock. Never spill liquid of any kind on the TV.
18. Servicing-Do not attempt to service this TV yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified
service personnel.
19. Damage Requiring Service-Unplug this TV from the wall
outlet and refer servicing to qualified service personnel
under the following conditions:
ANTENNA
LEAD IN
WIRE
•ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
a. When the power-supply cord or plug is damaged or frayed.
b. If liquid has been spilled, or objects have fallen into the TV.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the oper-
ating instructions. Adjust only those controls that are cov-
ered by the operating instructions as improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the TV
to its normal operation.
e. If the TV has been dropped or the cabinet has been
damaged.
f. When the TV exhibits adistinct change inperformance-this
indicates a need for service.
20. Replacement Parts-When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer that have the same charac-
teristics as the original part. Unauthorized substitutions
may result in fire, electric shock, injury to persons or other
hazards.
21. Safety Check-Upon completion of any service or repairs to
this TV, ask the service technician to perform routine safety
checks to determine that the TV is in proper operating
condition.
-3- EN

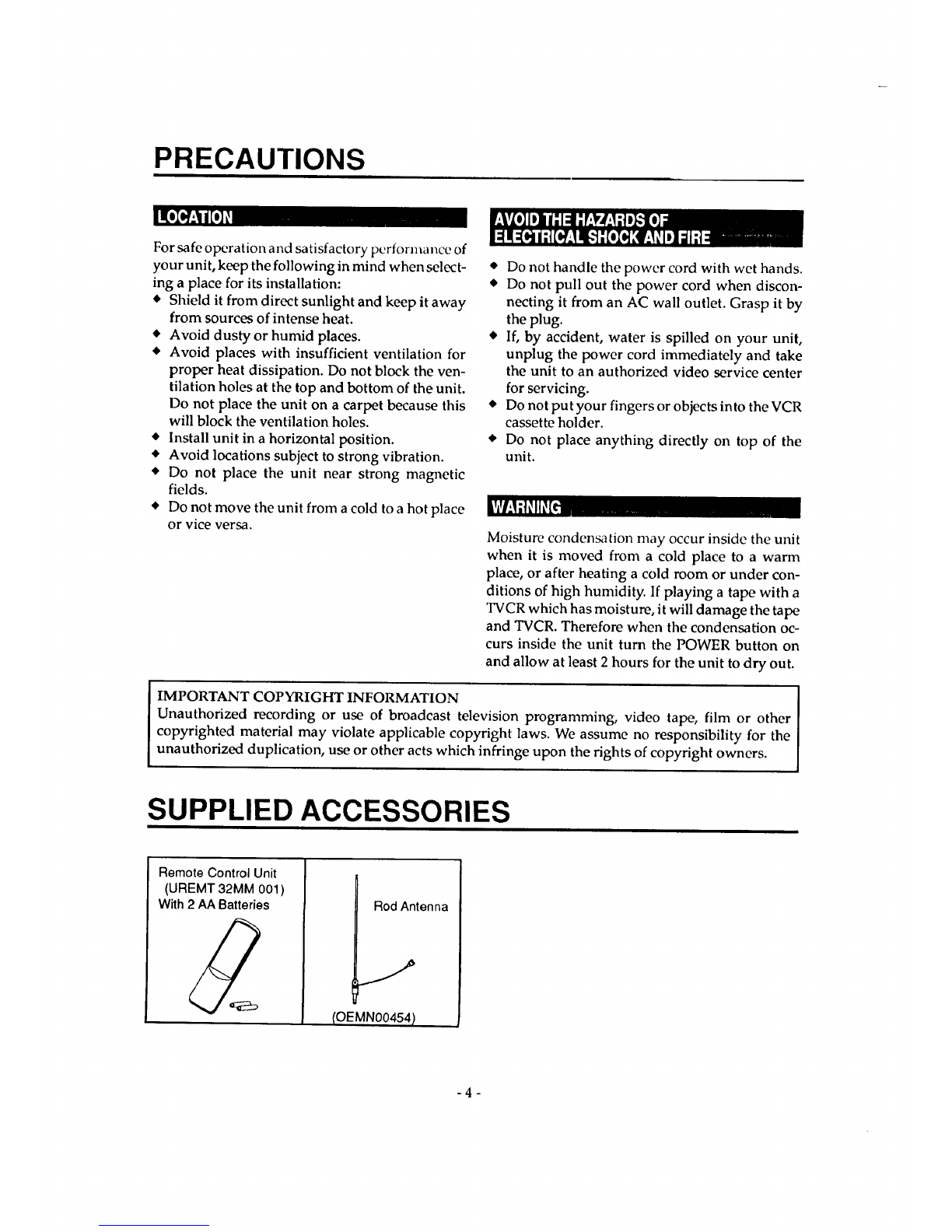

PRECAUTIONS
For safe operation and satisfactory performance of
your unit, keep the following in mind when select-
ing a place for its installation:
• Shield it from direct sunlight and keep it away
from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for
proper heat dissipation. Do not block the ven-
tilation holes at the top and bottom of the unit.
Do not place the unit on a carpet because this
will block the ventilation holes.
• Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the unit near strong magnetic
fields.
• Do not move the unit from a cold to a hot place
or vice versa.
•Do not handle the power cord with wet hands.
• Do not pull out the power cord when discon-
necting it from an AC wall outlet. Grasp it by
the plug.
• If, by accident, water is spilled on your unit,
unplug the power cord immediately and take
the unit to an authorized video service center
for servicing.
• Do not put your fingers or objects into the VCR
cassette holder.
• Do not place anything directly on top of the
unit.
Moisture condensation may occur inside the unit
when it is moved from a cold place to a warm
place, or after heating a cold room or under con-
ditions of high humidity. If playing a tape with a
TVCR which has moisture, it will damage the tape
and TVCR. Therefore when the condensation oc-
curs inside the unit turn the POWER button on
and allow at least 2 hours for the unit to dry out.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television programming, video tape, film or other
copyrighted material may violate applicable copyright laws. We assume no responsibility for the
unauthorized duplication, use or other acts which infringe upon the rights of copyright owners.
SUPPLIED ACCESSORIES
RemoteControl Unit
(UREMT 32MM 001)
With 2 AA Batteries Rod Antenna
(OEMN00454)
-4-

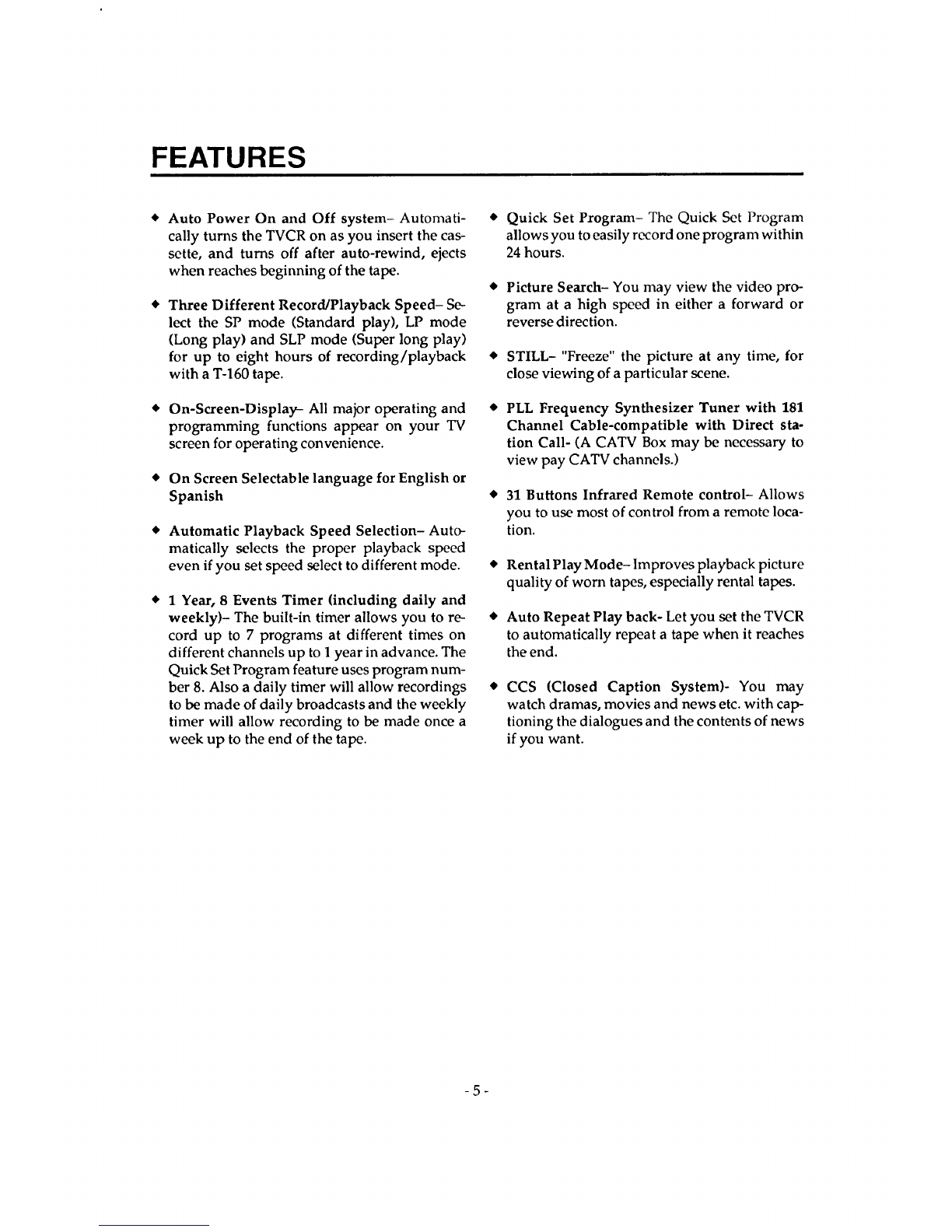

FEATURES
Auto Power On and Off system- Automati-
cally turns the TVCR on as you insert the cas-
sette, and turns off after auto-rewind, ejects
when reaches beginning of the tape.
Three Different Record/Playback Speed- Se-
lect the SP mode (Standard play), LP mode
(Long play) and SLP mode (Super long play)
for up to eight hours of recording/playback
with a T-160 tape.
On-Screen-Display- All major operating and
programming functions appear on your TV
screen for operating convenience.
On Screen Selectable language for English or
Spanish
Automatic Playback Speed Selection- Auto-
matically selects the proper playback speed
even if you set speed select to different mode.
1 Year, 8 Events Timer (including daily and
weekly)- The built-in timer allows you to re-
cord up to 7programs at different times on
different channels up to 1year in advance. The
Quick Set Program feature uses program num-
ber 8. Also a daily timer will allow recordings
to be made of daily broadcasts and the weekly
timer will allow recording to be made once a
week up to the end of the tape.
•Quick Set Program- The Quick Set Program
allows you to easily record one program within
24 hours.
•Picture Search- You may view the video pro-
gram at a high speed in either a forward or
reverse direction.
•STILL- "Freeze" the picture at any time, for
close viewing of a particular scene.
PLL Frequency Synthesizer Tuner with 181
Channel Cable-compatible with Direct sta-
tion Call- (A CATV Box may be necessary to
view pay CATV channels.)
t31 Buttons Infrared Remote control- Allows
you to use most of control from a remote loca-
tion.
•Rental Play Mode- Improves playback picture
quality of worn tapes, especially rental tapes.
•Auto Repeat Play back- Let you set the TVCR
to automatically repeat a tape when it reaches
the end.
CCS (Closed Caption System)- You may
watch dramas, movies and news etc. with cap-
tioning the dialogues and the contents of news
if you want.
-5-

OPERATING CONTROLS AND FUNCTIONS
-- FRONT VIEW --
6
U, ,J
I 2 3 4 B 7 8 B 10 11 12 13
,--q
-J j
I
14
-- REAR VIEW --
/------ 5 16 17
I
-6-

1 Remote Sensor- Receives the infrared control
signals from the handheld remote control unit.
2 RECORD indicator- Lights when in the Re-
cording mode.
3 TIMER REC. indicator- Lights when in the
Timer Recording mode.
4 POWER button- To turn TVCR on and off.
Press to activate the automatic recording timer.
5 STOP/EJECT button- Press to stop tape mo-
tion. Press to remove tape from TVCR.
6 CASSETTE COMPARTMENT
7 REW button- Press to rewind tape, or to view
video in reverse during play mode at a faster
than normal speed. Press PLAY button to re-
turn TVCR to normal playback speed.
8 PLAY button- Press to begin playback of a
tape.
9 F.FWD button- Press to advance tape, or to
view video in forward direction during play
mode at a faster than normal speed. Press
PLAY button to return TVCR to normal play-
back speed.
10 REC/OTR button- Press to begin manual re-
cording. Press to activa te One Touch Recording
mode.
11 VOLUME buttons- To adjust the volume level.
12 CHANNEL buttons- Press to select the chan-
nel for viewing or recording.
TRACKING buttons- Adjust to minimize
video 'noise' (lines or dots on screen) during
playback.
13 MONITOR button- Press to turn the TV screen
on and off when in the recording mode.
TODAY TIMER REC button- Press to set
Today Timer Recording.
14 PHONES jack- To connect earphones (not
supplied) for personal listening.
15 ANT. terminal- Connect an antenna or CATV.
16 AUDIO IN jack- Connect to audio output jack
of your audio equipment or another VCR.
17 VIDEO IN jack- Connect to video output jack
of your video camera or another VCR.
-7-

REMOTE CONTROL OPERATION
You can operate most of functions from the Re-
mote Control (included). The buttons on the Re-
mote Control have the same functions as the
corresponding buttons on the unit.
IIoI? Ih[o]tlI,.'t I ] IoIiI [o,IolIl[i Io]H
1 POWER button- To activate the automatic
timer recording and turn TVCR on and off.
2NUMBER buttons- To select desired channels.
To select channels 1to 9, first press the 0 button
and then press desired channel button 1 to 9.
+100 button- To select channels which are
equal or greater than number 100.
3STOP button- To stop tape motion.
4 PLAY button- To playback the tape.
5REW button- To rewind the tape. To view the
picture rapidly in reverse, in the playback
mode. (Rewind Search)
6F.FWD button- To move the tape forward rap-
idly. To view the picture rapidly in forward in
the playback mode. (Forward Search)
7 REC button- Press to begin manual recording.
8 PAUSE/STILL button- To stop the tape tem-
porarily during playback or recording.
9 MENUbutton- Press to display main menu on
the TV screen. (This function is operative only
when the main menu is displayed on TV screen
in the stop mode.)
10 SELECT button- Press to select setting modes
(clock, counter, tape speed, program, CH pre-
set) in the main menu. (This function is opera-
tive only when the main menu is displayed on
TV screen in the stop mode.)
Status function- Press to display the counter or
the current channel number and current time
on the TV screen.

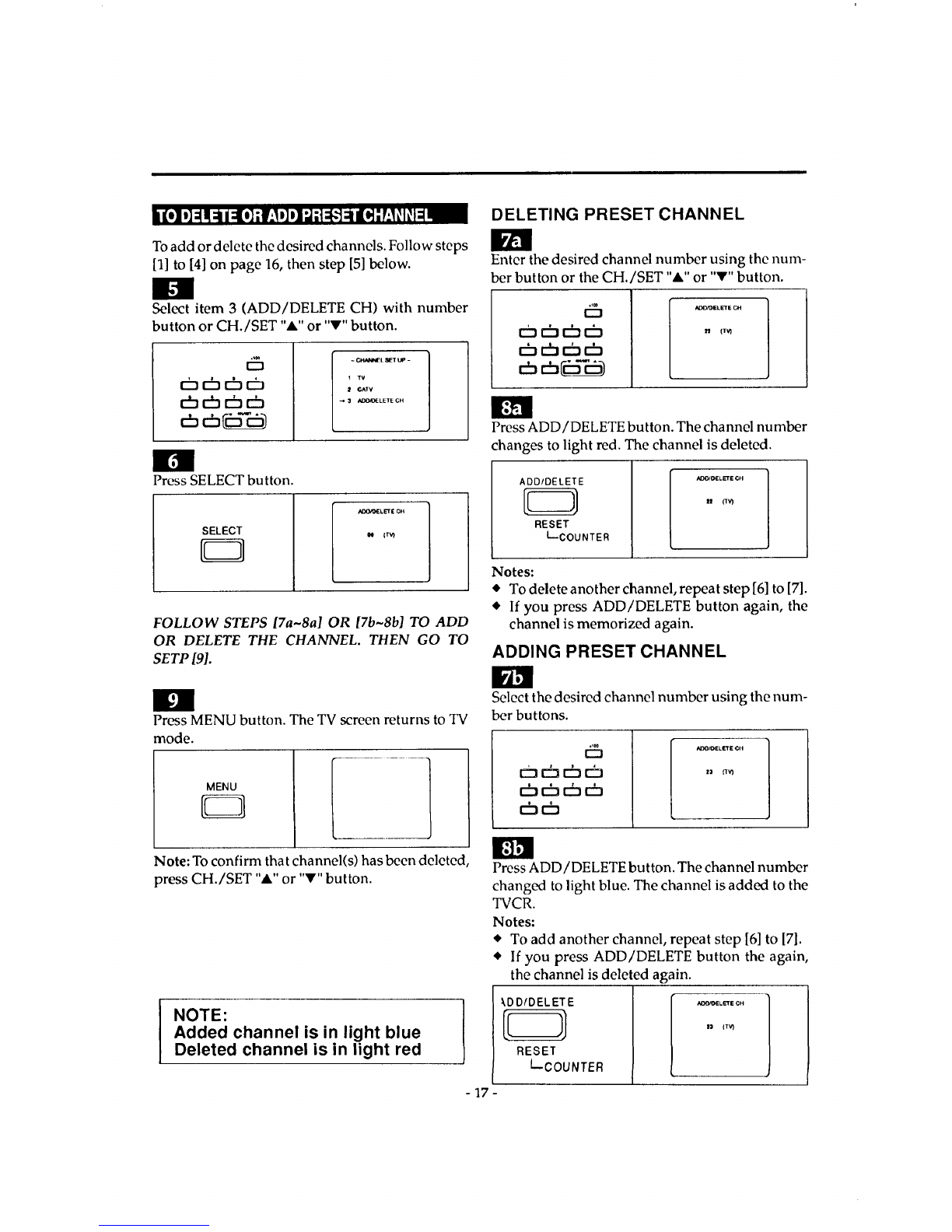

11 ADD/DELETE button- Press to cancel memo-
rized channel or Timer Program, and to add
desired channel. (This function is operative
only when the main menu is displayed on TV
screen in the stop mode.) (See page 17, 18)
COUNTER RESET button-To reset counter to
0000.

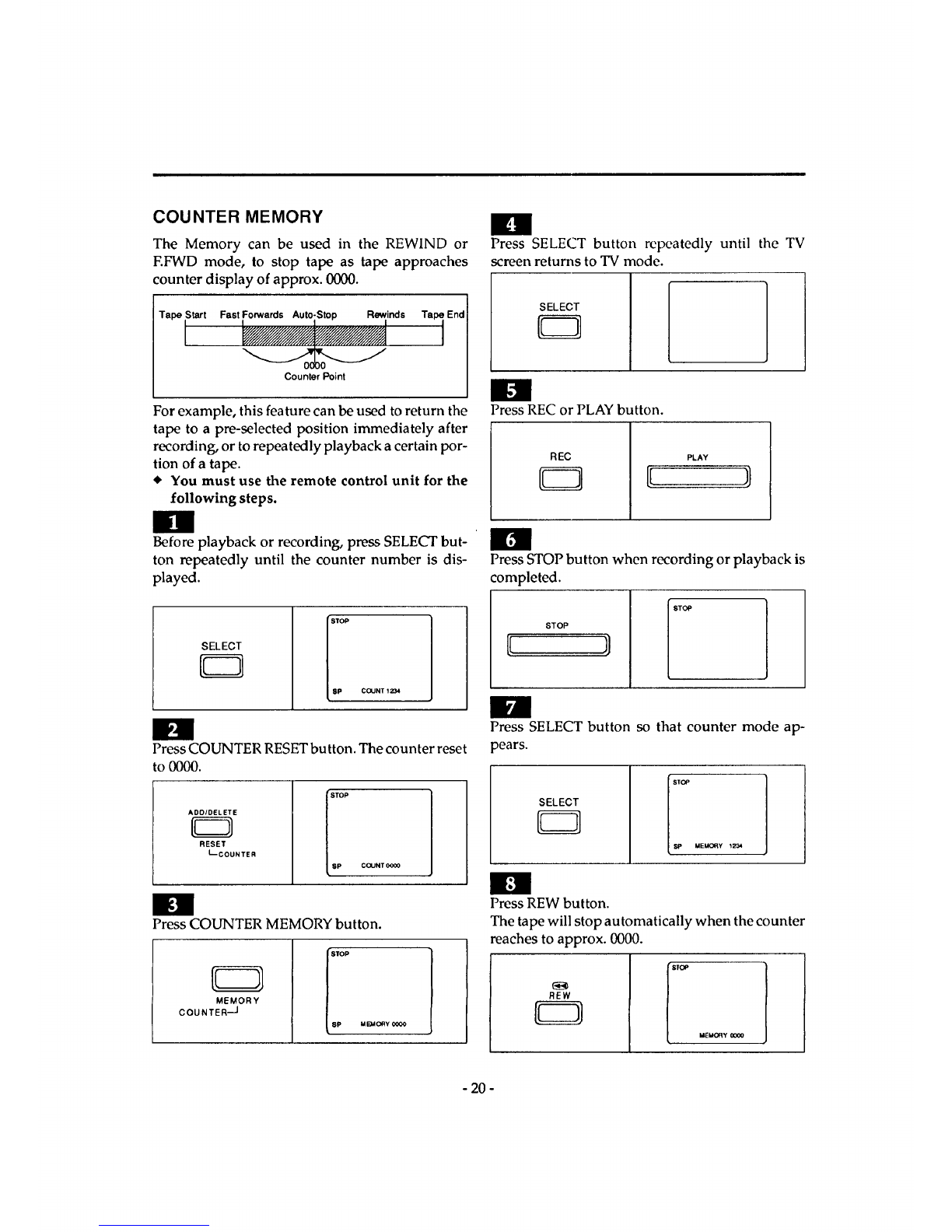

12 COUNTER MEMORY button- To set counter
memory on and off. (See page 21)
13 SPEED button- To set desired recording
speed. (SP/LP/SLP)
14 MONITOR button- Press to turn the TV screen
on and off when in the recording mode.
15 MUTE button- To mute sound. Press again to
resume sound.
16 VOLUME buttons-- To adjust desired volume
level by pressing either "A" or '_" button.
17 CH. buttons- To select desired channel by
pressing either "A" or "V" button. They cannot
be used during Timer Recording.
They may also be used to adjust the picture
control. (See page 19)
SET button- Adjust time with "A" or "V" but-
ton in the menu mode.
(This function is operative only when the main
menu is displayed on TV screen in the stop
mode.)
TRACKING buttons- Adjust to minimize
video 'noise' (lines or dots on screen) during
playback. (See page 32)
18 EJECT button- Press to remove tape from
TVCR.
19 SLEEP button- To activate the sleep function.
(See page 29)
-8-

5678
MENU SELECT AOOPOELETE
19
--2 18
17
--15
14
13
12
11
Slide the battery compartment cover by pressing
the cover on the remote unit in the direction of the
arrow.
H
Insert 2 "AA" penlight batteries into the battery
compartment in the direction as indicated by the
polarity (+/-) markings.
Replace the cover.
I
-9-

ANTENNA CONNECTIONS
The UHF/VHF Rod Antenna(supplied) is detachable. Push the stem of the antenna into the hole which
is located on the upper back cabinet of the unit.
Connect the Rod antenna or VHF/UHF Combination Antenna to ANT.IN terminal of TV as shown in
drawing.
For the best reception, extend the rod antenna and adjust its length and position. (Avoid handling the
top section when making adjustments).
UHFNHF
Rod Antenna
(accessory)
VHF/UHF
Combination Antenna
OR
Note :
Before plugging the Rod antenna into antenna terminal, check that the pin is not bent. If it is bent,
straighten the pin as illustrated, then plug the pin into antenna terminal.
Bent pin
(Needs to be straightened) (Straight pin)
__ %_'.' := ==_'_mmlmllllmmm
In some areas it will be necessary to use an outdoor antenna.
_VHF/UHF Combiner_
U_ut_upplrdul<I
VHFAntennaUHFAntenna
-10-

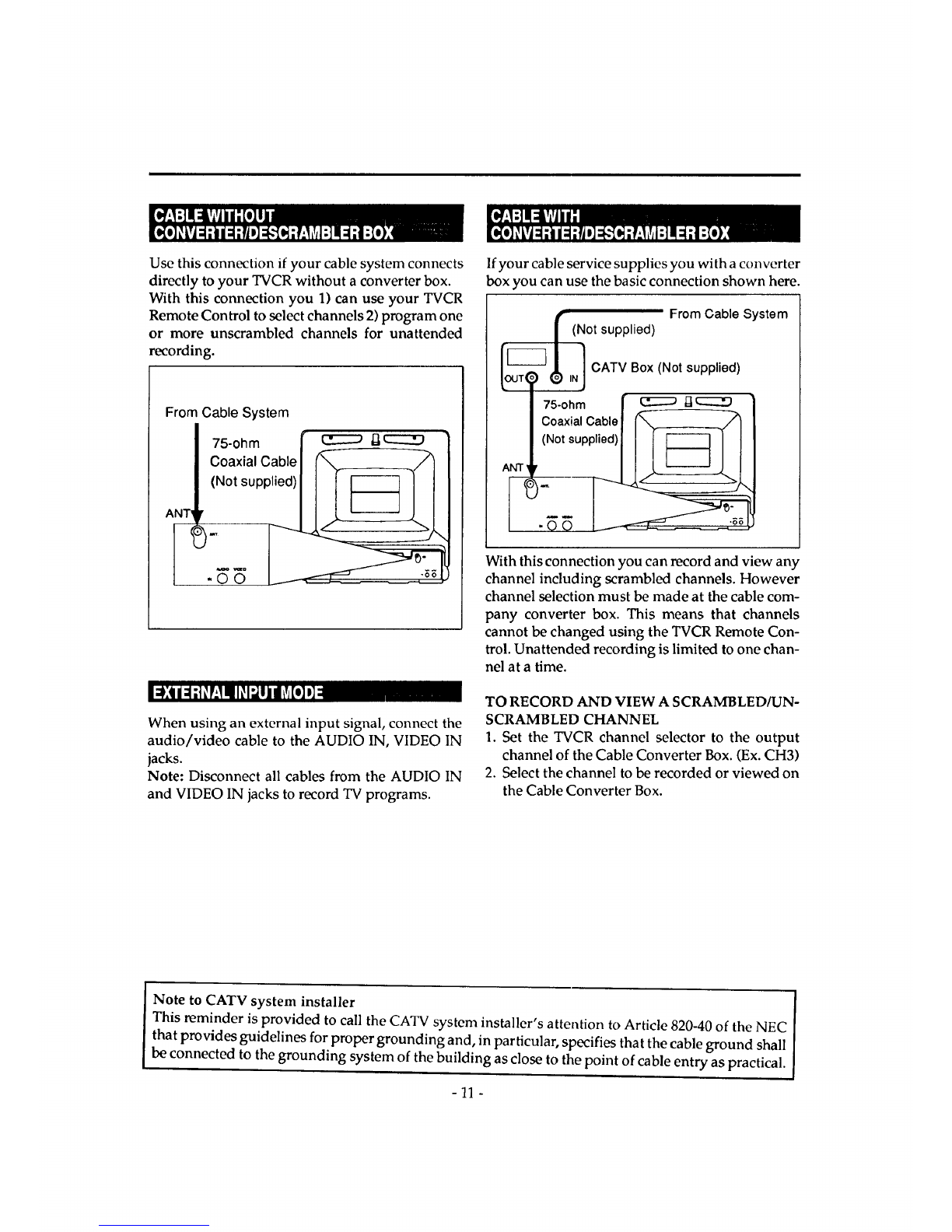

Use this connection if your cable system connects
directly to your TVCR without a converter box.
With this connection you 1) can use your TVCR
Remote Control to select channels 2) program one
or more unscrambled channels for unattended
recording.
From Cable System
75-ohm
Coaxial Cable
(Not supplied)
ANT_ r
I:flqi:l1|_El Ill_Ujl [_o] p]_
When using an external input signal, connect the
audio/video cable to the AUDIO IN, VIDEO IN
jacks.
Note: Disconnect all cables from the AUDIO IN
and VIDEO IN jacks to record TV programs.
If your cable service supplies you with a converter
box you can use the basic connection shown here.
f (Not supplied) From Cable System
--_T__._?6IN)/ CATVBox (Notsgpplied,
I
I,.°,.u°.,°°,/ I
With this connection you can record and view any
channel including scrambled channels. However
channel selection must be made at the cable com-
pany converter box. This means that channels
cannot be changed using the TVCR Remote Con-
trol. Unattended recording is limited to one chan-
nel at a time.
TO RECORD AND VIEW A SCRAMBLED/UN-
SCRAMBLED CHANNEL
1. Set the TVCR channel selector to the output
channel of the Cable Converter Box. (Ex. CH3)
2. Select the channel to be recorded or viewed on
the Cable Converter Box.
Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building as close to the point of cable entry as practical.
-11 -

PREPARATION FOR USE
You may select the display on the TV screen to be
either English or Spanish.
Plug the VCR power co;d into a standard AC
outlet. The .....-.-- flashes. Turn on the VCR and the
TV.
POWER
Press MENU button on the remote control.
- LANOUAG_ E_LE CT -
_ENGLIS_I
Eg,PAf,IOL
g
Select 1(ENGLISH) or 2(ESPAlqIOL=SPANISH)
with number button or CH./SET "A "or "v" but-
ton.
r_
r'_ r-hc_ r-h
r-h r-h r-h r-h
1ENOI_
2E_PAI_'OL
Press MENU button t
MENU
)return to normal mode.
TO CHANGE THE LANGUAGE
If you want change the language of the display,
follow steps below.
Press MENU button on the remote control.
-_NU-
_I TIMERPRO(_t_M_ING
MENU *_SETu_
3_TF_G GLCGK
4 CHhNN_L _T U_
sL_NGUAGE SELECT
ICLOE_D CAPTION_k_TUP
7REPEAT PLAY IOFF]
8RENTAL IOFr_
Select item 5(LANGUAGE SELECT) with number
button or CH./SET "A" or "v" button.
r-1
Ocbcbcb
d:3cb 0 cb
I TIMER PROGRAM_ NG
2 TVSET UP
:_ETTING GL@GK
4 GH/LM_L _T UP
_5 LANGUAGE ELECT
$GLO_-O CAPTK_ S_T UP
7REPEAT PLAY
m
Press SELECT button.
MENU
-LANOUAO_E_LECT -
1ENGLISH
2E_P.'_OL
n
Select I(ENGLISH) or 2(ESPAIKIOL=SPANISH)
with number button or CH./SET "A "or "v" but-
ton.
- L_I_UAO_ 8ELEGT-
1ENGLISH
ESPAf_OL
im
Press MENU button to return to normal mode.
MENU
- 12 -

I,,'tilil +Jill i I1:114IoI4 _,li[el ;lole] ;t1t:[11/II hV+I:ll

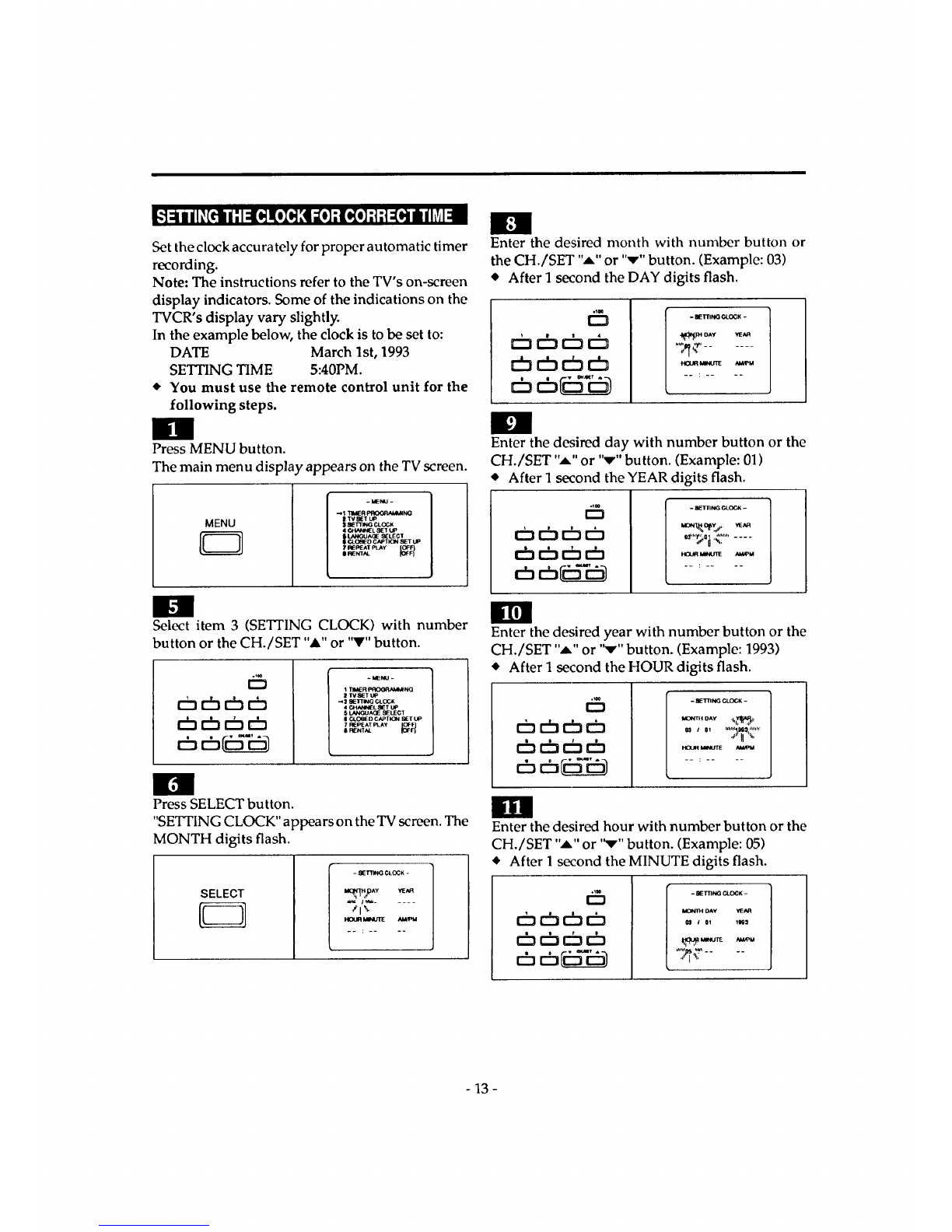

Set the clock accurately for proper automatic timer
recording.
Note: The instructions refer to the TV's on-screen
display indicators. Some of the indications on the
TVCR's display vary slightly.
In the example below, the clock is to be set to:
DATE March 1st, 1993
SETTING TIME 5:40PM.
#You must use the remote control unit for the
following steps.
Press MENU button.
The main menu display appears on the TV screen.
MENU
-IdENU -
_111MER PflOORAIIING
TVSET UP
_IETIiIG CLOCK
4CHAIIIEL IiET IJP
LANGUAGE!_I_CT
_ C,I_O_O C _qPTI_N .S_'TUP
Select item 3 (SETTING CLOCK) with number
button or the CH./SET "A" or "V" button.
r%
c_ r-h cb r_
r-_ r-h r-%r_
- kEt#J -
1TIMERPROORAkI,,_NO
ITVS[T UP
| ElrTliG CROCK
iCHN/N_L _IET UP
s LA_^QE _LEC_
ICLO_I: I) C_P TION _T LiP
$RENTAL
Press SELECT button.
"SETTING CLOCK" appears on the TV screen. The
MONTH digits flash.
SELECT
Enter the desired month with number button or
the CH./SET "A" or "v" button. (Example: 03)
•After I second the DAY digits flash.
cbr'
-filING fLOCK -
_tlt DAY '_E _t
"Tqq'.......
n
Enter the desired day with number button or the
CH./SET ,,A- or "v" button. (Example: 01 )
•After I second the YEAR digits flash.
o,,',_::,°_"_',i.......
Enter the desired year with number button or the
CH./SET "_" or '_" button. (Example: 1993)
• After 1 second the HOUR digits flash.
r_
r_r-_r:br_
cbo
-I_TI'ING CL(_IK -
Enter the desired hour with number button or the
CH./SET "_" or '_" button. (Example: 05)
• After 1 second the MINUTE digits flash.
r"n -BETnNG GLO_K -
MONI_rl DAY !#1EAR
o_ iol le93
+_;'14!.....
-13-

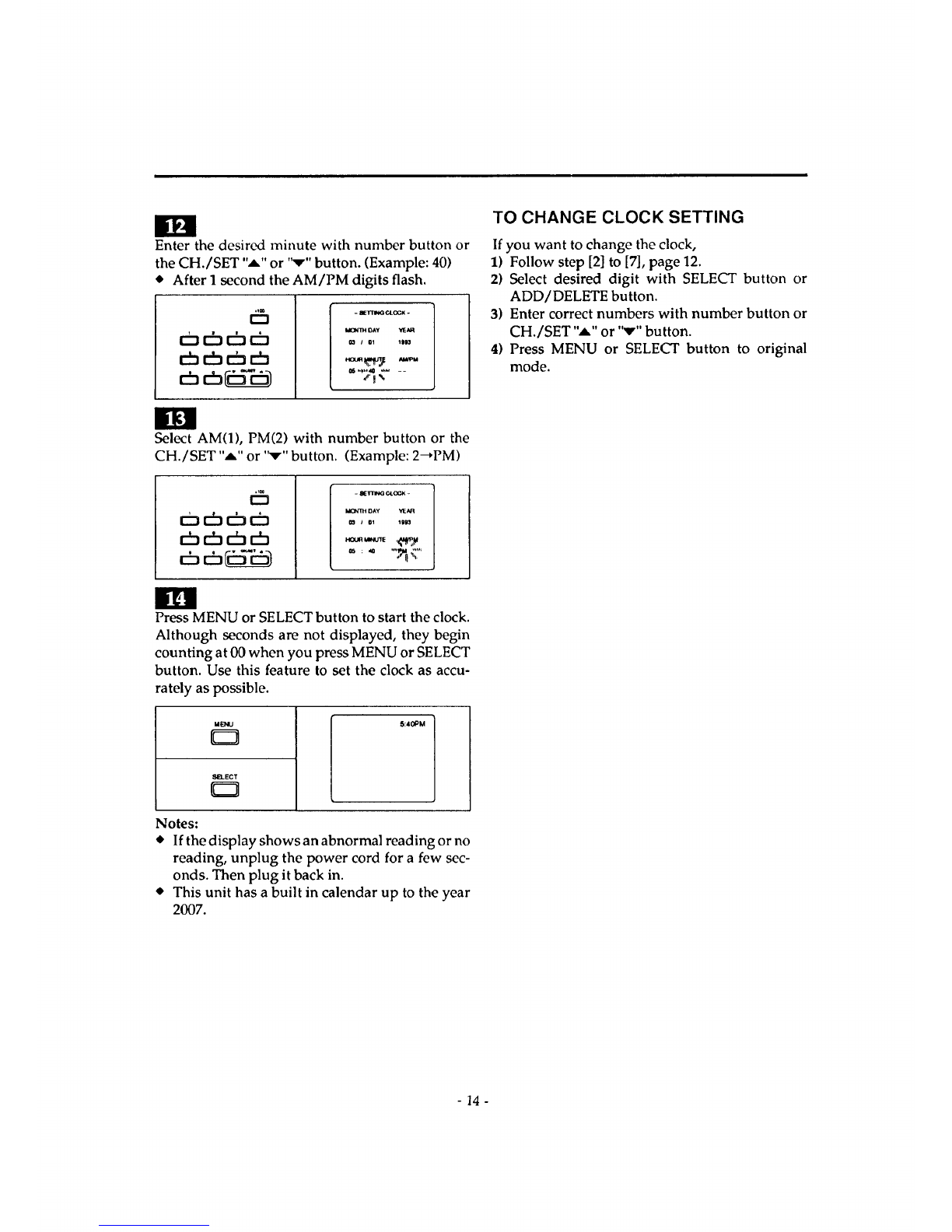

Enter the desired minute with number button or
it_tt
the CH./SET or "v" button. (Example: 40)
•After I second the AM/PM digits flash.
r_
r_r_r-h_
r-h t-h r'h r'h
-_I"TI_ CLOCK-
MONTH GAY YEk'R
O3 I01 1|J3
Select AM(l), PM(2) with number button or the
CH./SET "A" or "v" button. (Example: 2_PM)
TO CHANGE CLOCK SETTING
If you want to change the clock,
1) Follow step [2] to [7], page 12.
2) Select desired digit with SELECT button or
ADD/DELETE button.
3) Enter correct numbers with number button or
CH./SET ",a," or '"v" button.
4) Press MENU or SELECT button to original
mode.
,-_ r-h ¢b r-h
c:br'h cb r'h
-aE_ C4.OCK-
MONTHDAY _R
JO1 lgJ3
iml
Press MENU or SELECT button to start the clock.
Although seconds are not displayed, they begin
counting at 00 when you press MENU or SELECT
button. Use this feature to set the clock as accu-
rately as possible.
MENU
C3
SELECT
S:40PM
Notes:
•If the display shows an abnormal reading or no
reading, unplug the power cord for a few sec-
onds. Then plug it back in.
•This unit has abuilt in calendar up to the year
2007.
-14-

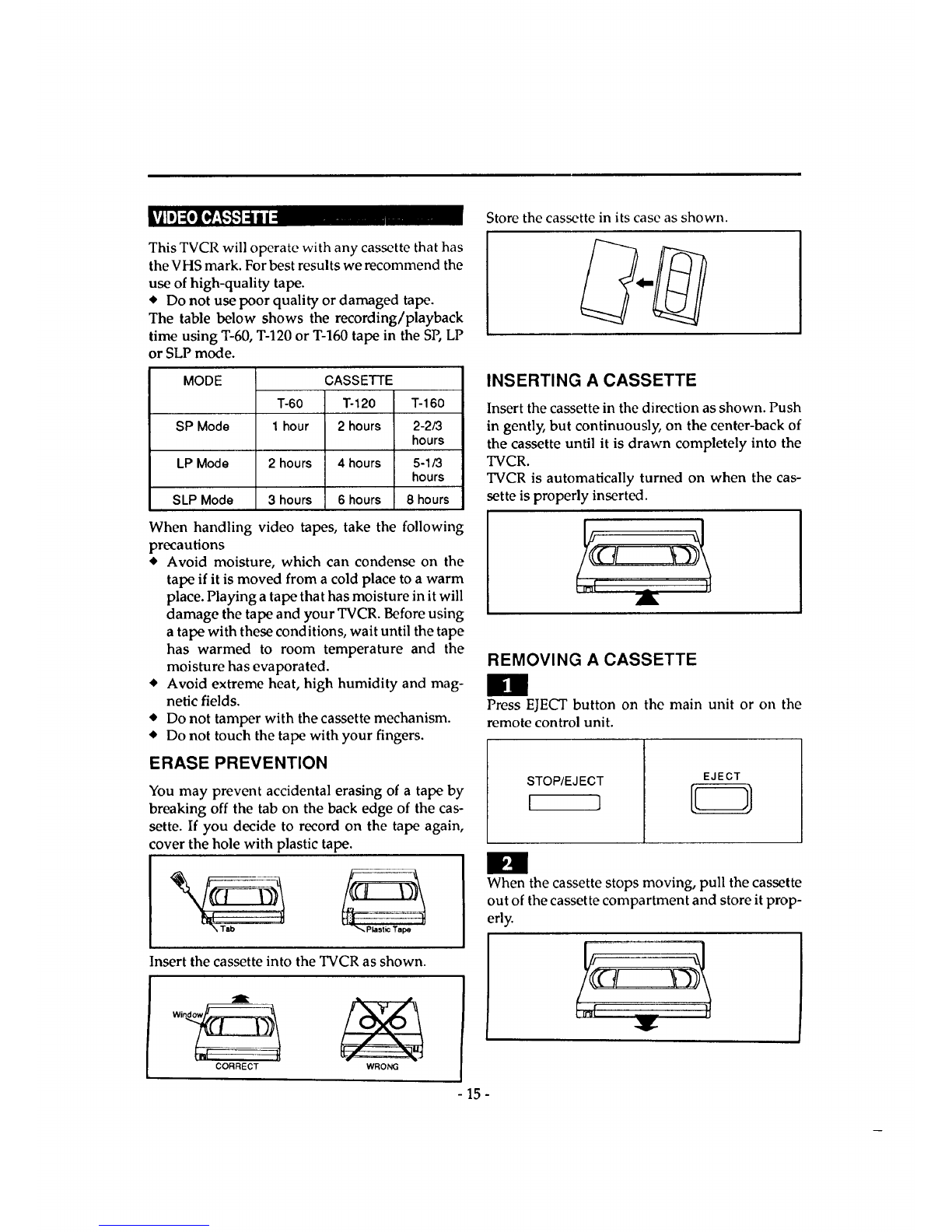

This TVCR will operate with any cassette that has
the VHS mark. For best results we recommend the
use of high-quality tape.
• Do not use poor quality or damaged tape.
The table below shows the recording/playback
time using T-60, T-120 or T-160 tape in the SP, LP
or SLP mode.
MODE CASSETTE
T-120
2 hours
1--60 T-160
SP Mode 1 hour 2-2/3
hours
LP Mode 2 hours 4 hours 5-1/3
hours
SLP Mode 3 hours 6 hours 8 hours
When handling video tapes, take the following
precautions
•Avoid moisture, which can condense on the
tape if it is moved from a cold place to a warm
place. Playing atape that has moisture in it will
damage the tape and your TVCR. Before using
a tape with these conditions, wait until the tape
has warmed to room temperature and the
moisture has evaporated.
•Avoid extreme heat, high humidity and mag-
netic fields.
•Do not tamper with the cassette mechanism.
•Do not touch the tape with your fingers.
ERASE PREVENTION
You may prevent accidental erasing of a tape by
breaking off the tab on the back edge of the cas-
sette. If you decide to record on the tape again,
cover the hole with plastic tape.
Insert the cassette into the TVCR as shown.
tE
CORRECT WRONG
Store the cassette in its case as shown.
INSERTING A CASSETTE
Insert the cassette in the direction as shown. Push
in gently, but continuously, on the center-back of
the cassette until it is drawn completely into the
TVCR.
TVCR is automatically turned on when the cas-
sette is properly inserted.
REMOVING A CASSETTE
Press EJECT button on the main unit or on the
remote control unit.
STOP/EJECT
I ]
EJECT
When the cassette stops moving, pull the cassette
out of the cassette compartment and store it prop-
erly.
- 15-

[__4iillIt] , -

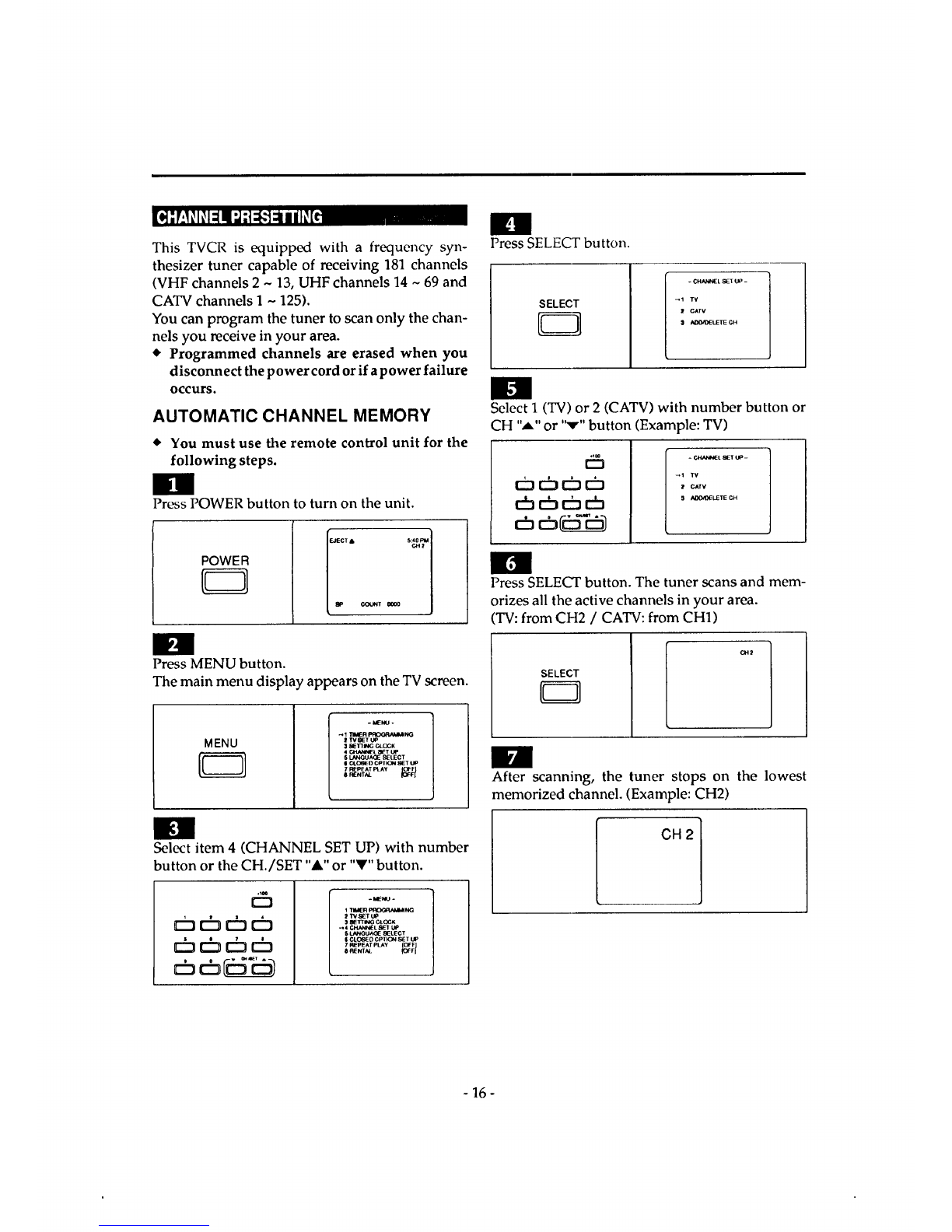

This TVCR is equipped with a frequency syn-
thesizer tuner capable of receiving 181 channels
(VHF channels 2 ~ 13, UHF channels 14 ~69 and
CATV channels 1-125).
You can program the tuner to scan only the chan-
nels you receive in your area.
•Programmed channels are erased when you
disconnect the p ower cord or if apower failure
occurs.
AUTOMATIC CHANNEL MEMORY
•You must use the remote control unit for the
following steps.
Press POWER button to turn on the unit.
El
Press MENU button.
The main menu display appears on the TV screen.
MENU
-MEMJ -
_I TIMER_NG
TVIgETLm
3 8_I'fe,K3 CLOCK
4 C_ANNi'L _T UP
S LANC_A(]E _[-LECT
li CL/.36[ O CPTION _T UP
Select item 4 (CHANNEL SET UP) with number
button or the CH./SET "A" or "Y" button.
r-hr
r'hc
- MENU -
TIMER PRO(_/_e,M NG
2TV._ETUP
3_TrlNG CLO_3K
_4 CHJq._ L_1 UP
SLANGU,_3E8ELEC;T
| CLOSED CPTION SET UP
Press SELECT button.
- CH/_NIE L SIT UP -
_1 TV
2CATV
3_DD/OELIETE GH
I:-!
Select I (TV) or 2 (CATV) with number button or
CH "A" or "v" button (Example: TV)
r-hcb r-_ r-_
c_cb_
- CHANNEL_.T U_ -
_1 TV
CATV
3/VDO/I)ELETECH
Ill
Press SELECT button. The tuner scans and mem-
)rizes all the active channels in your area.
TV: from CH2 /CATV: from CH1)
SELECT
After scanning, the tuner stops on the lowest
memorized channel. (Example: CH2)
CH2
- 16-

To add or delete the desired channels. Follow steps
[1] to [4] on page 16, then step [5] below.
Select item 3 (ADD/DELETE CH) with number
button or CH./SET "A" or "V" button.
€5
c_ r'h cb c_
c_c_ r-h rh
1TV
2 CATV
3/,DD_)ELI.TEGH
Press SELECT button.
SELECT
FOLLOW STEPS [7a~8a] OR [7b~8b] TO ADD
OR DELETE THE CHANNEL. THEN GO TO
SETP [9].
I
Press MENU button. The TV screen returns to TV
mode.
MENU
DELETING PRESET CHANNEL
Enter the desired channel number using the num-
ber button or the CH./SET "A" or "Y" button.
÷1®
o
Press ADD/DELETE button. The channel number
changes to light red. The channel is deleted.
ADD/DELETE
RESET
L--COUNTER
ADO/OELETE GH
II (l_
Notes:
•To delete another channel, repeat step [6] to [7].
•If you press ADD/DELETE button again, the
channel is memorized again.
ADDING PRESET CHANNEL
Select the desired channel number using the num-
ber buttons.
d5
c_ r:_ cb r%
Note: To confirm that channel(s) has been deleted,
press CH./SET ",A"or "V" button. Press ADD/DELETE button. The channel number
changed to light blue. The channel is added to the
TVCR.
Notes:
• To add another channel, repeat step [6] to [71.
• If you press ADD/DELETE button the again,
the channel is deleted again.
NOTE"
Added channel is in light blue
Deleted channel is in light red
-17
\DD/DELETE
RESET
L-COUNTER

OPERATION
ij_Ko]_ _Y,._lti[o]_
Press POWER button to turn on the unit.
POWER
CT•5:40PM
CH_
C,O4.1NT 0O00
Iell
Select the desired channel with number button or
CH./SET "A" or "y" button.
r--1
Ocbcbct_
cbc_oo
CH 6
Adjust the VOLUME to desired listening level
using the VOLUME "k"or "V" button.
A
v
)}
)J V(_UOAE
I-] Illlnl,,,, Id
•You must use the remote control unit for the
following steps.
Adjust picture controls for a natural looking
image. Press MENU button. Select item 2 (TV SET
UP) with number button or CH./SET "A" or "V"
button.
.iw
I---'1
ocbcbcb
000c_:3 I-14_I_K.I-
_11MERPtqOGR,_4k_NQ
I"V_T UP
41SETTING (;L(X;K
CH,ANNELS_T UP
tlANOUA(TE9ELECT
CLOeeD C.,_PTION SETUP
7REFEAT PLAY
8RENTAL _
Press SELECT button. Select item 1 (PICTURE
CONTROL) with number button or CH./SET "&"
or "V" button.
SELECT
I -'rVSETUP •
-- 1PICTURE GONTRO[
E'EOFT MEW [OFF)
3TV REE_T
Press SELECT button repeatedly until desired
control is displayed.
Each time you press SELECT button CON-
TRAST, BRIGHT, COLOR, TINT and
SHARPNESS appear on the screen in order.
(Example : CONTRAST)
{-)_l*l
Adjust picture control with CH./SET "•" or "V"
button.
•Your TVCR's picture controls -- CONTRAST,
BRIGHT, COLOR, TINT and SHARPNESS
-- are preset to the center position. This is usu-
ally best, but if you need to make any further
adjustments, use the following chart as a guide.
CH.ISET •CH./SET •
CONTRAST todecrease to increase
contrast contrast
BRIGHT todecrease to increase
brightness brightness
COLOR topale to brilliant
TINT togreen to purple
SHARPNESS to soft tOclear
TO PRESET THE PICTURE CONTROLS TO
THE CENTER POSITION, SELECT ITEM 3 (TV
RESET) AT STEP [5].
- 18 -

YoucanonlywatchthesameTVprogramthat
isbeingrecorded.
Insertacassette with erase-prevention tab intact.
The unit turns on automatically.
STOP
Im
Ensure TIMER REC indicator is off. When TIMER
REC indicator lights on, press POWER button to
turn on.
POWER TIMER REC
©
Press SPEED button on the remote control repeat-
edly until the desired recording speed is dis-
played. (Example :SP)
SPEED
$P
n
Select the program to be recording with pressing
the number button or the CH./SET "," or "T"
button.
ICH32l
Press REC button.
REC
REC
sp
To skip some material while you are recording;
Press PAUSE/STILL button on the remote control.
PAUSE/
STILL
C27 PAUSE
liBEl
[ sP
Note: If the TVCR is left in the Pause/Still mode
more than 5 minutes during REC mode, It will
automatically switch to the recording mode.
When in the Pause/Still mode, a display showing
5I" marks will appear on the screen. Each I"
mark represents one minute of Pause time. You
may refer to this display for remaining pause time
available.
Press PAUSE/STILL button on the remote control
again to resume recording.
PAUSE/
STILL
'REC
SP
a
Press STOP button when recording is completed.
STOP
ISTOP 1
-19-

COUNTER MEMORY
The Memory can be used in the REWIND or
F.FWD mode, to stop tape as tape approaches
counter display of approx. 0000.
Fast Forwards Auto-Stop Rewinds Tape End
Counter Point
For example, this feature can be used to return the
tape to a pre-selected position immediately after
recording, or to repeatedly playback a certain por-
tion of a tape.
•You must use the remote control unit for the
following steps.
Before playback or recording, press SELECT but-
ton repeatedly until the counter number is dis-
played.
SELECT
8TOP
SP COUNT 1234
IBI
Press COUNTER RESET button. The counter reset
to 0000.
ADO/DELETE
RESET
L-COUNTER STOP
SP COUNT 0000
Press COUNTER MEMORY button.
MEMORY
COUNTER --j STOP
8P MEMORy 0000
Press SELECT button repeatedly until the TV
screen returns to 'IV mode.
SELECT
H
Press REC or PLAY button.
REC PLAY
Press STOP button when recording or playback is
completed.
STOP
STOP
m
Press SELECT button so that counter mode ap-
pears.
SELECT
ISTOP
MEMOAY 1234
n
Press REW button.
The tape will stop automatically when the counter
reaches to approx. 0000.
REW
STOP MEM_ Y 0000
- 20 -
