Sears LXI 934.44725590 User manual

OWNER'S
MANUAL
MODEL NO,
934,44725590
9"COLOR
TV/VCR
COMBINATION
Record the Model Number and Serial Num-
ber of your TV/VCR combination.
The Model Number and the Serial Number
are on the rear panel.
ModelNo.
SerialNo.
Keepthesenumbers forfutureuse.

WARNING: ]
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE• REFER
SERVICING TO QUALIFIED SERVICE PERSON-
NEL.
THIS SYMBOL INDICATES THAT DAN-
GEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.
The important note is located on the rear of the cabinet.
IMPORTANT SAFEGUARDS
I. Read instructions-All the safety and operating instruc-
tions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions
should be followed.
5. Cleaning-Unplug TVNCR from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninter-
rupted service and, that for some specific reason, such as
the possibility of the loss of an authorization code for a
CATV converter, is not intended to be unplugged by the
user for cleaning or any other purpose, may exclude the
reference to unplugging the appliance in the cleaning
description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended
by the TV/VCR manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this TV/VCR near
water-for example, near a bath tub, wash bowl, kitchen
sink, or laundry tub, in a wet basement, or near a swim-
ming pool, and the like.
8. Accessories-Do not place this TV/VCR on an unstable
cart, stand, tripod, bracket, or table. The TV/VCR may
fall, causing serious injury to someone, and serious dam-
age to the appliance. Use only with a cart, stand, tripod,
bracket, or table recommended
by the manufacturer, or sold with PORTABLE CART WARNING
the TV/VCR. Any mounting of
the appliance should follow the
manufacturer's instructions and
should use a mounting accessory
recommended by the manufac-
turer. An appliance and cart com-
bination should be moved with
care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
9. Ventilation-Slots and openings in the cabinet and the
back or bottom are provided for ventilation and to ensure
reliable operation of the TV/VCR and to protect it from
overheating, these openings must not be blocked or cov-
ered. The openings should never be blocked by placing
the TV/VCR on a bed, sofa, rug, or other similar surface.
This TV/VCR should never be placed near or over a
radiator or heat register. This TV/VCR should not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufac-
turer's instructions have been adhered to.
10. Power Sources-This TV/VCR should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local power
company. For TV/VCRs intended to operate from battery
power, orother sources, refer tothe operating instructions.
II. Grounding or Polarization-This TV/VCR is equipped
with a polarized alternating-current line plug(a plug hav-
ing one blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try
reversing the plug. Ifthe plug should still fail to fit, contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
12. Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particularattention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
- 2 - EN
•" ,k_r_r_.k 5B13

FIGURE A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
NEC - NATIONAL ELECTRICAL CODE
$2898A
13. Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV/VCR, be sure the
antenna orcable systemisgrounded soasto providesome
protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No.70, provides informationwith respectto
proper grounding of the mast and supporting structure,
groundingofthe lead-inwireto anantenna dischargeunit,
size of grounding conductors, location of antenna-dis-
charge unit, connectionto grounding electrodes, and re-
quirements for the grounding electrode. (Fig. A)
14. Lightning-For added protection for this TV/VCR re-
ceiverduring a lightning storm, or when it is left unat-
tendedand unused for longperiodsof time, unplugitfrom
the walloutletanddisconnectthe antennaorcable system.
This willprevent damageto the TV/VCRdue to lightning
and power-line surges.
15. Power Lines-An outside antennasystem should not be
locatedin the vicinity of overhead power linesor other
electric light or power circuits, or where it can fall into
such power lines or circuits.When installing an outside
antenna system, extreme careshould be taken to keep
fromtouching suchpowerlinesorcircuitsascontactwith
them mightbe fatal.
16. Overloading-Do not overloadwalloutlets and extension
cordsas this canresultin ariskof fireor electric shock.
17. Object and Liquid Entry-Never push objects of any kind
into this TV/VCR through openings as they may touch
dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the TV/VCR.
18. Servicing-Do not attempt to service this TV/VCR your-
self as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
"-'_'"_1_"-"-- ELECTRODE SYSTEM
(NEC ART 250, PART H)
19. Damage Requiring Service-Unplug this TV/VCR from
the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged or
frayed.
b. If liquid has been spilled, or objects have fallen into the
TV/VCR.
c. If the TV/VCR has been exposed to rainor water.
d. If the TV/VCR does not operate normally by following
the operating instructions, Adjust only those controls that
are covered by the operating instructions, as improper
adjustmentof othercontrols may result indamage andwill
often require extensive work by a qualified technician to
restore the TV/VCR to its normal operation.
e. If the TV/VCR has been dropped ordamaged in any way.
f. When the TV/VCR exhibits a distinct change in perform-
ance-this indicates a need for service.
20. Replacement Parts-When replacement parts are re-
quired, be sure the service technician has used replace-
ment parts specified by the manufacturer that have the
same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, injury to
persons or other hazards.
21. Safety Check-Upon completion of any service or repairs
to this TV/VCR, ask the service technician to perform
routine safety checks to determine that the TV/VCR is in
proper operating condition.
22. Heat-Thi sTV/VCR product should be situated away from
heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
- 3 - EN
_r" 5C22

TABLE OF CONTENTS
IMPORTANT SAFEGUARDS ................................ 2
PRECAUTIONS ........................................................ 5
LOCATION .......................................................... 5
AVOID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE .................... 5
WARNING ........................................................... 5
SUPPLIED ACCESSORIES ..................................... 5

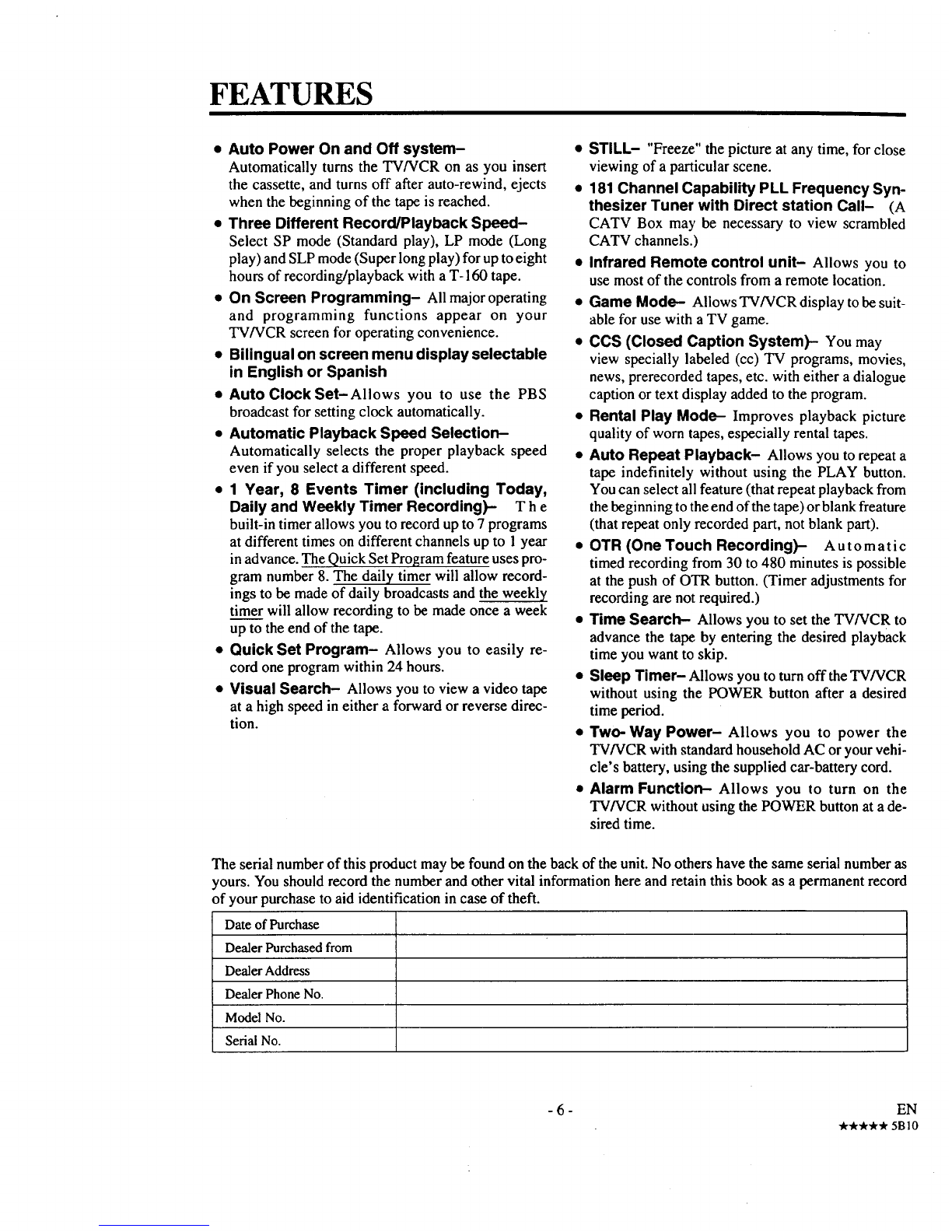

FEATURES ............................................................... 6

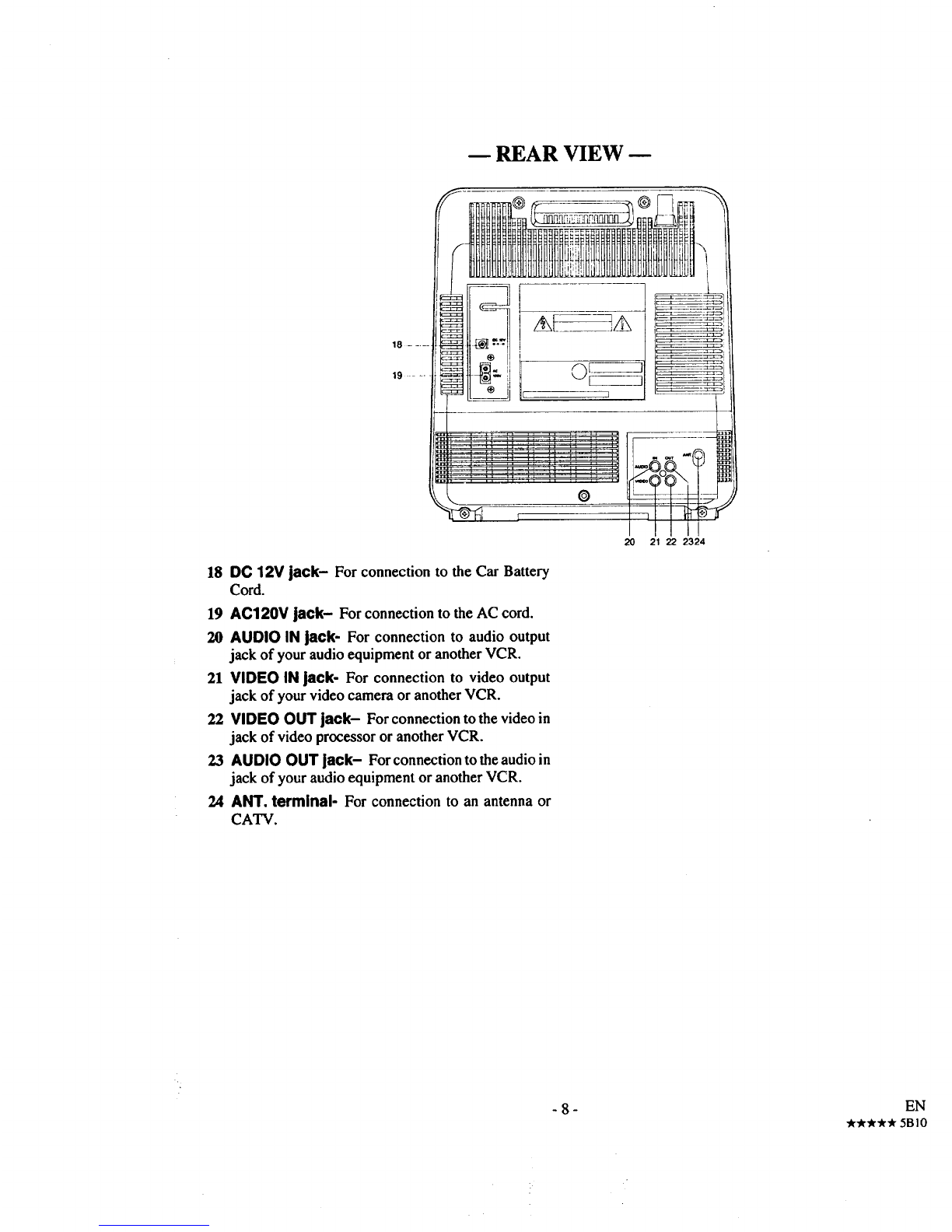

OPERATING CONTROLS AND FUNCTIONS ..... 7

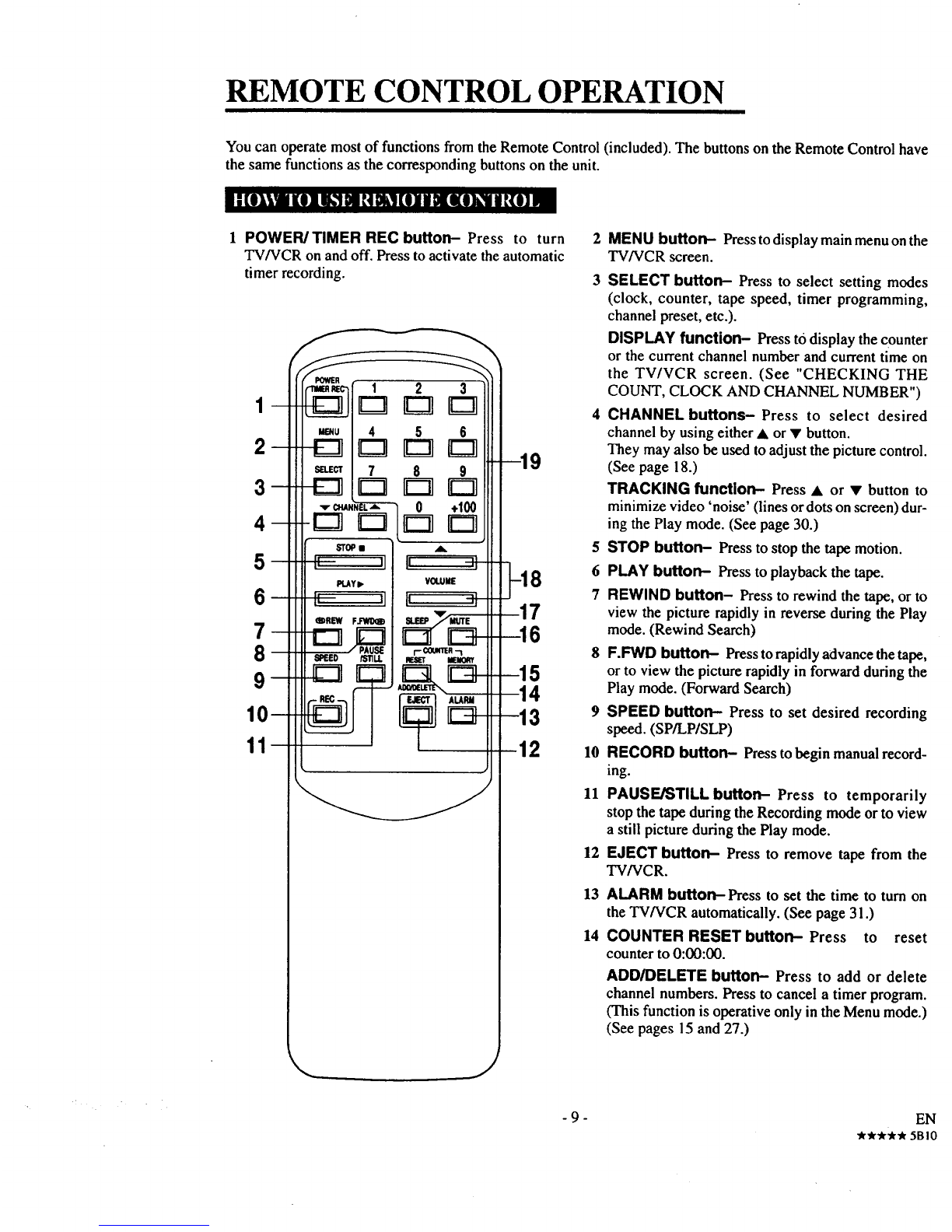

REMOTE CONTROL OPERATION ....................... 9
HOW TO USE REMOTE CONTROL ................ 9
INSTALLING THE BATrERIES ..................... 10
CHECKING THE COUNT, CLOCK AND
CHANNEL NUMBER ....................................... 10

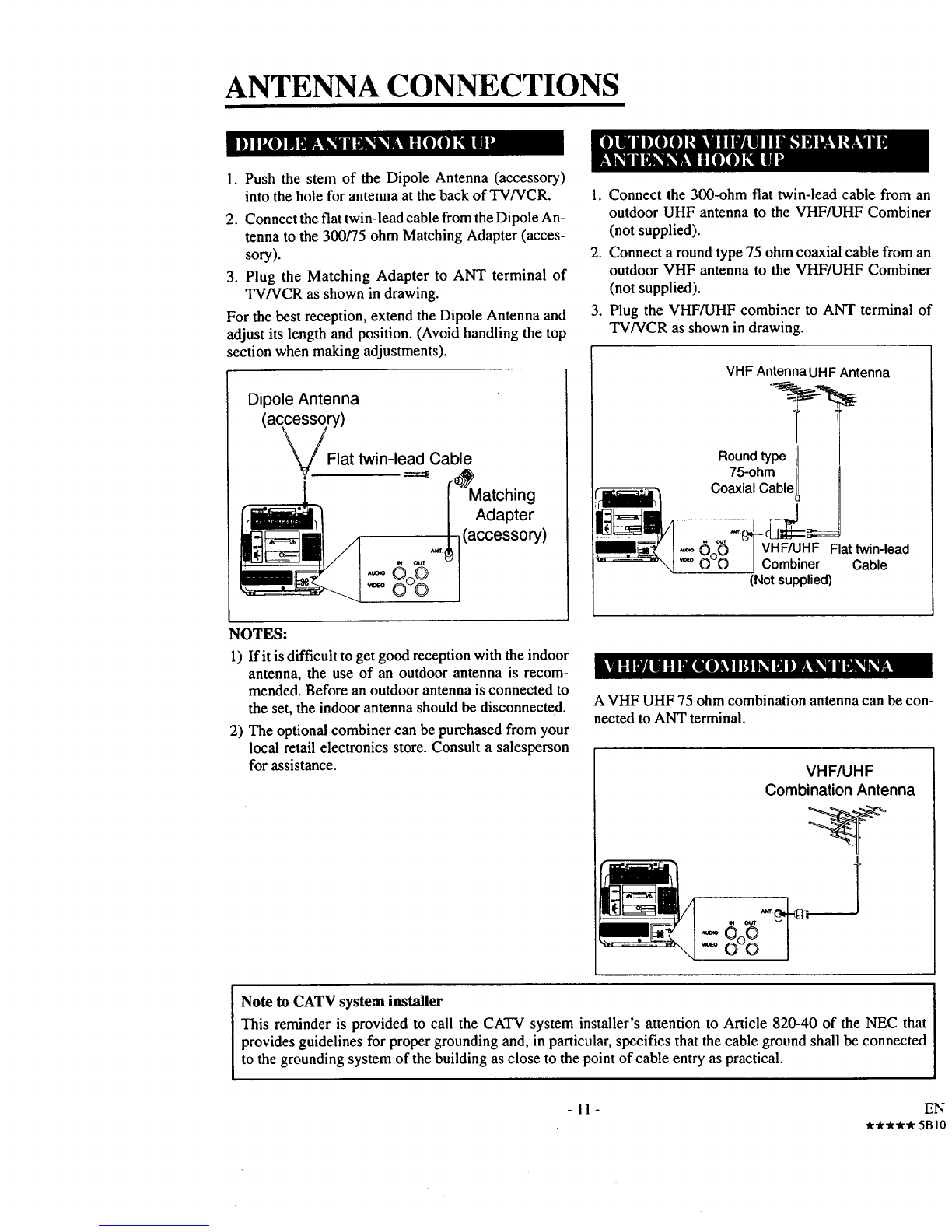

ANTENNA CONNECTIONS ................................ 1I
DIPOLE ANTENNA HOOK UP ....................... 11
OUTDOOR VHF/UHF SEPARATE
ANTENNA HOOK UP ...................................... 1l
VHF/UHF COMBINED ANTENNA ................ I 1
CABLE WITHOUT
CONVERTER/DESCRAMBLER BOX ............ 12
EXTERNAL INPUT MODE .............................. 12
CABLE WITH
CONVERTER/DESCRAMBLER BOX ............ 13
MOBILE CONNECTION .................................. 13
TV/CATV CHANNEL MEMORY PROGRAM-
MING ....................................................................... 14
AUTOMATIC CHANNEL MEMORY .............. 14
TO PRESET CHANNEL MEMORY AGAIN... 14
TO DELETE OR ADD PRESET CHANNEL... 15

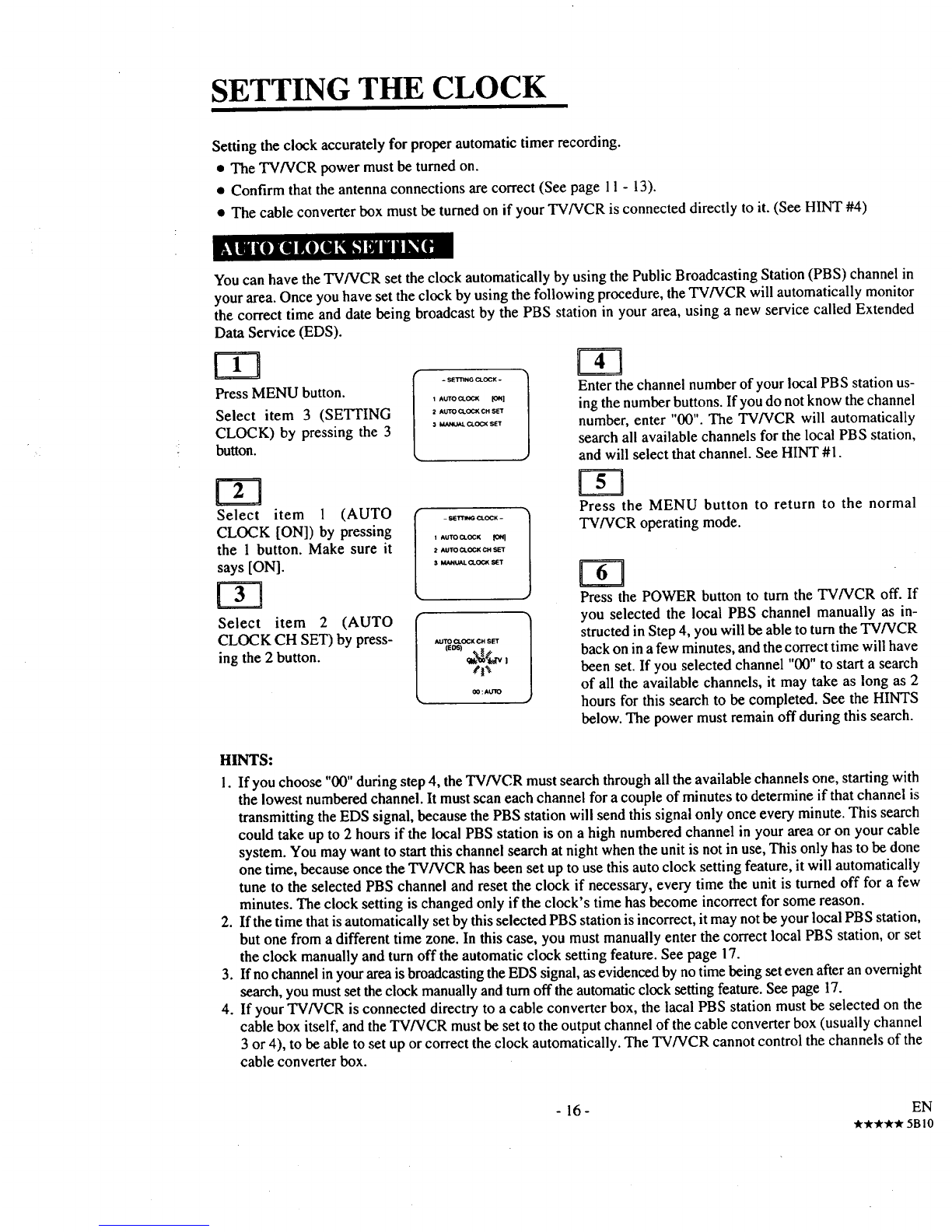

SETTING THE CLOCK ......................................... 16
AUTO CLOCK SETYING ................................. 16

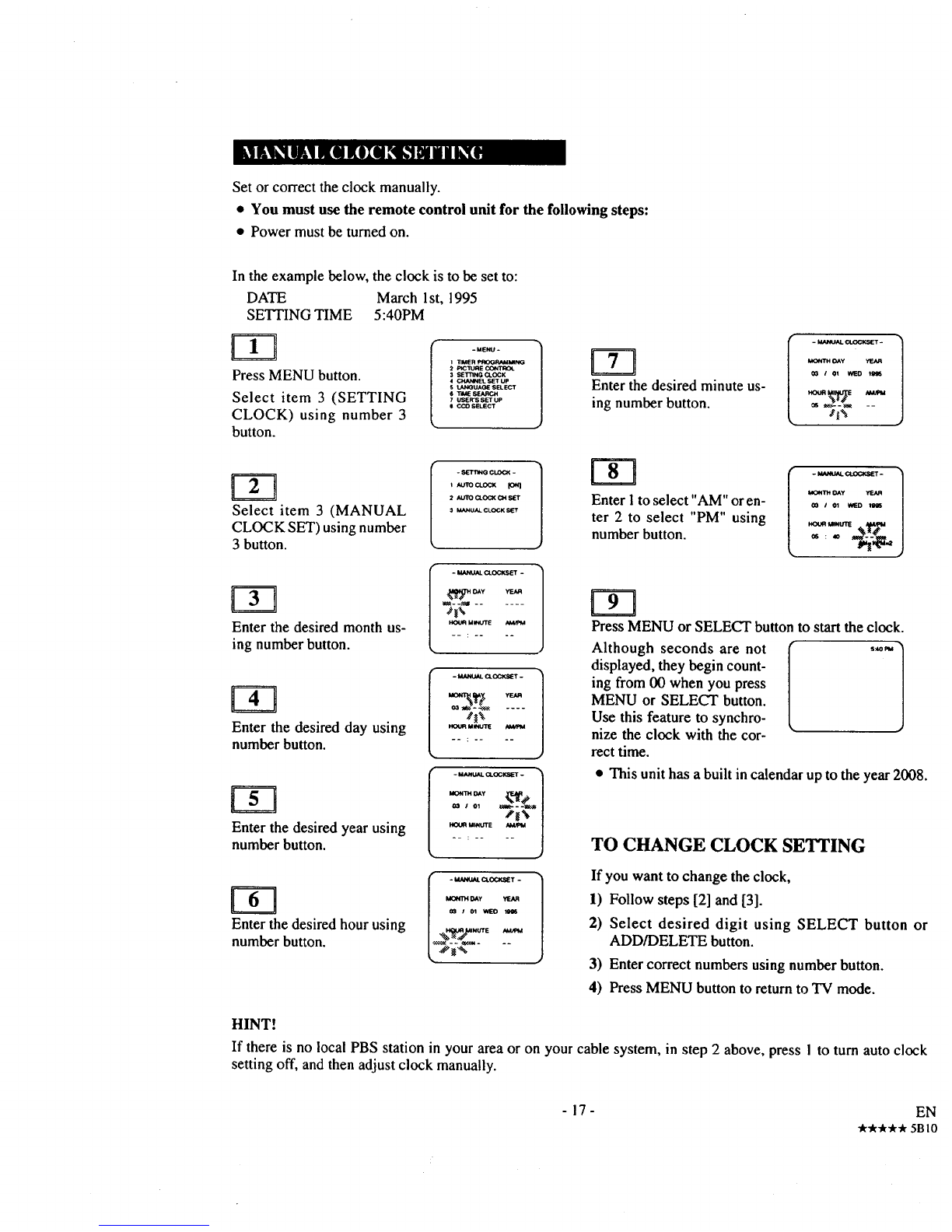

MANUAL CLOCK SETTING .......................... 17

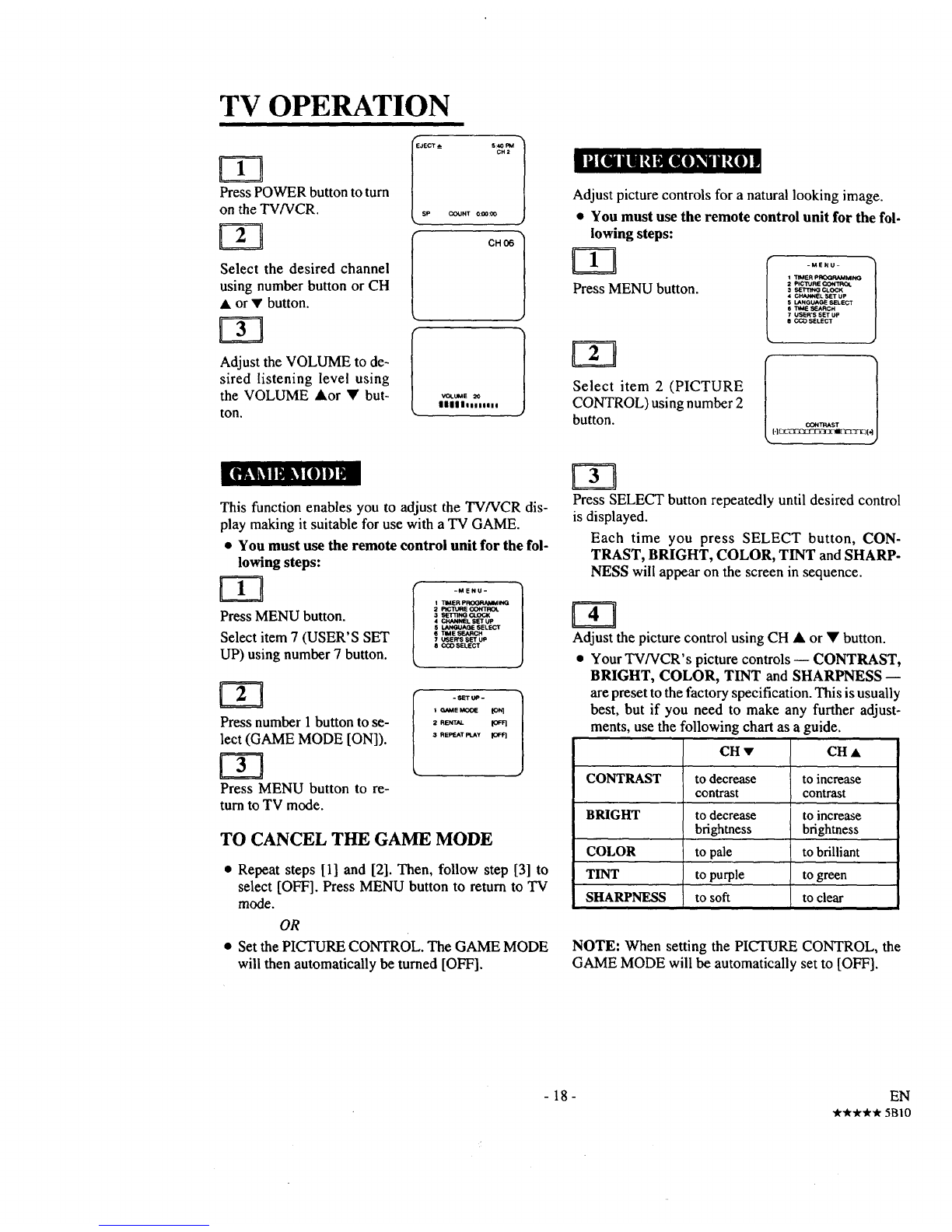

TV OPERATION .................................................... 18
GAME MODE ..................................................... !8
PICTURE CONTROL ........................................ 18

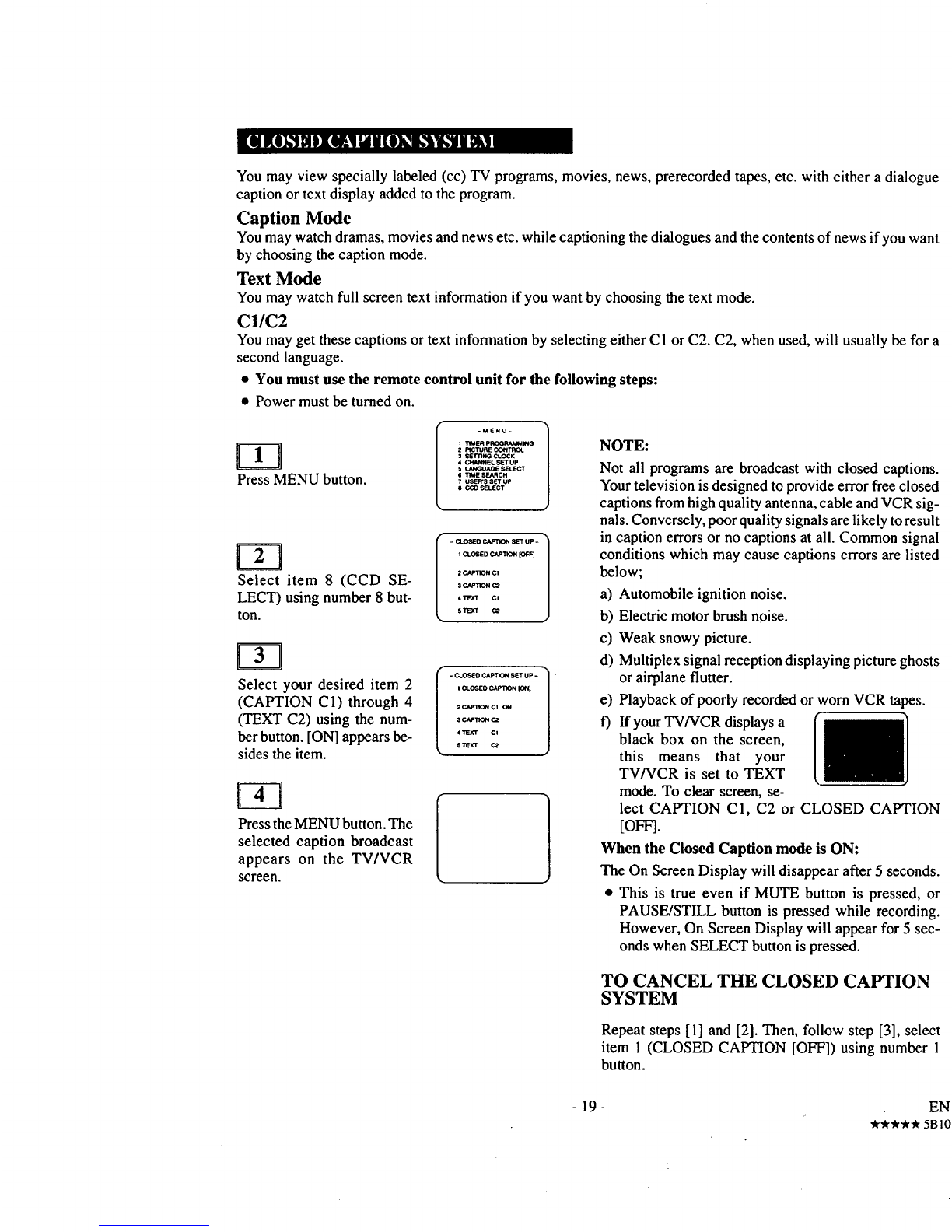

CLOSED CAPTION SYSTEM .......................... 19

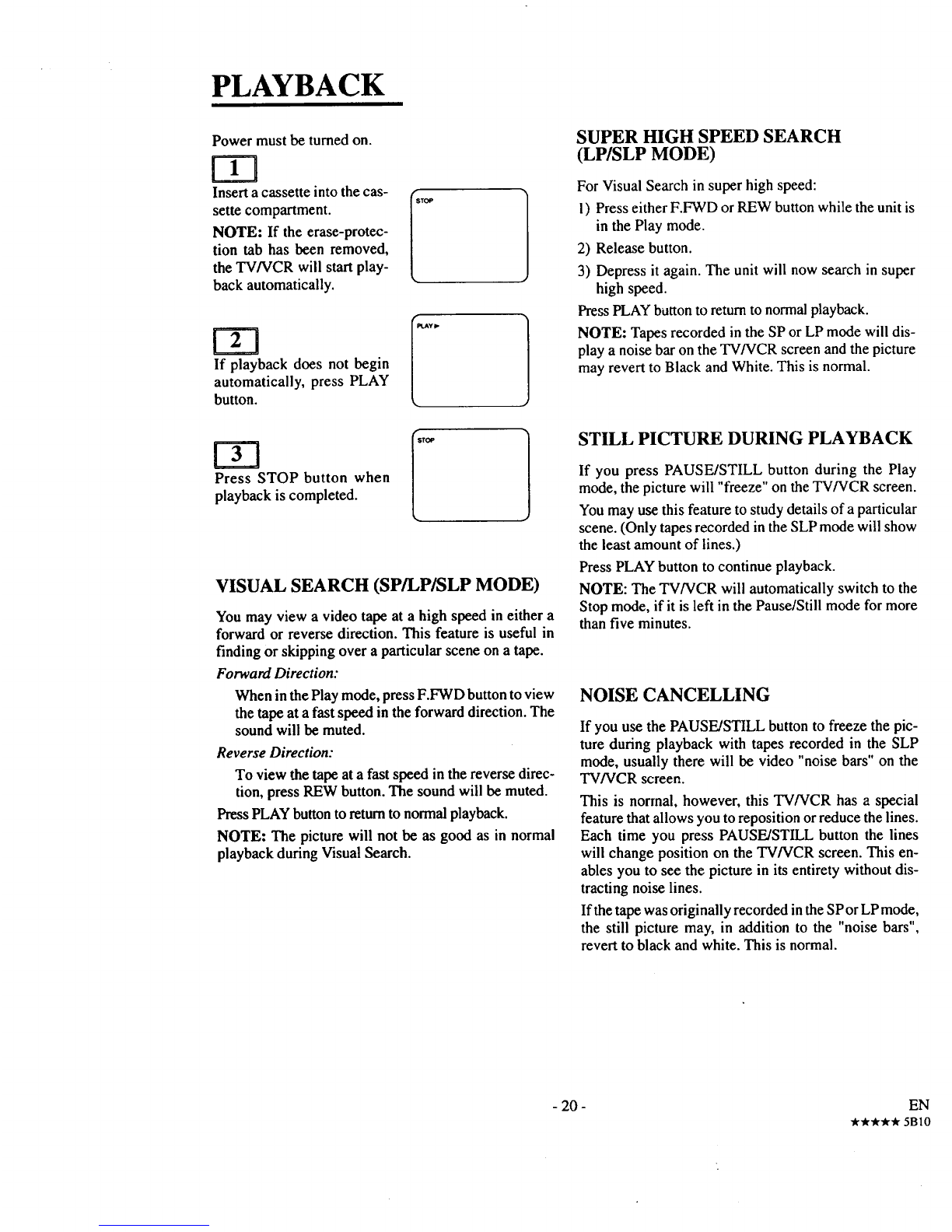

PLAYBACK ............................................................ 20
SPECIAL PLAYBACK ........................................... 21
RENTAL PLAY .................................................. 21
AUTO REPEAT PLAYBACK ........................... 2!
COUNTER MEMORY ............................................ 22
TIME SEARCH ....................................................... 23
VIEWING AND RECORDING THE SAME
PROGRAM .............................................................. 24
OTR (ONE TOUCH RECORDING) ....................... 25
AUTOMATIC TIMER RECORDING .................... 26
QUICK SET PROGRAM ........................................ 28
HINTS ON AUTOMATIC TIMER RECORDING
AND QUICK SET PROGRAM .......................... 29
SPECIAL FEATURES ............................................ 30
DEGAUSSING .................................................... 30
AUTO REWIND-EJECT .................................... 30
TRACKING ADJUSTMENT .......................... _..30
TO CHANGE THE LANGUAGE ...................... 30
SETYING THE SLEEP TIMER ......................... 30
SETTING THE ALARM TIMER ...................... 31
VIDEO CASSETTE ................................................. 32
TROUBLESHOOTING GUIDE ....................... Z..... 33
MAINTENANCE ..................................................... 34
CABINET CLEANING ...................................... 34
HEAD CLEANING ............................................ 34
SERVICING ........................................................ 34
SPECIFICATIONS .................................................. 35
GENERAL SPECIFICATIONS ......................... 35
ELECTRICAL SPECIFICATIONS .................... 35
OTHER SPECIFICATIONS ............................... 35
-4- EN

PRECAUTIONS
gtIM3llID]_
For safe operation and satisfactory performance of your
unit, keep the following in mind when selecting a place
for its installation:
• Shield it from direct sunlight and keep it away from
sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes
at the top and bottom of the unit. Do not place the
unit on a carpet because this will block the ventila-
tion holes.
• Install unit in a horizontal position.
• Avoid locations subject to strong vibration•
• Do not place the unit near strong magnetic fields.
• Do not move the unit from a cold to a hot place or
vice versa.
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting
it from an AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your unit, unplug
the power cord immediately and take the unit to an
authorized service center for servicing.
• Do not put your fingers or objects into the TV/VCR
cassette holder.
Do not place anything directly on top of the unit.
Moisture condensation may occur inside the unit when
it is moved from a cold place to a warm place, or after
heating a cold room or under conditions of high humid-
ity. If a tape is played in a TV/VCR which has moisture,
it may damage the tape and TV/VCR. Therefore when
the condensation occurs inside the unit turn the
POWER button on and allow at least 2 hours for the
unit to dry out.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications [
to this equipment may cause harmful interference unless the modifications are expressly approved in the I
instruction manual. The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted
material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication,
use or other acts which infringe upon the rights of copyright owners.
SUPPLIED ACCESSORIES
RemoteControl Unit
(UREMT31MM004)
With 2 AA Batteries
__I
VHF/UHF
Rod Antenna
(0EMN00723)
MatchingAdapter
(300 ohm-75 ohm) Car Battery Cord
(WPZ0202GA004)
AC Cord
(WAV0182LW001)
• If you need to replace these accessories, please refer to the PART NO. under the illustrations and contact the
SEARS parts department for ordering.
- 5 - EN
"k'k_'k 5BI0

FEATURES
•Auto Power On and Off system-
Automatically turns the TV/VCR on as you insert
the cassette, and turns off after auto-rewind, ejects
when the beginning of the tape is reached.
• Three Different Record/Playback Speed-
Select SP mode (Standard play), LP mode (Long
play) and SLP mode (Super long play) for up to eight
hours of recording/playback with a T- 160 tape.
• On Screen Programming- All major operating
and programming functions appear on your
TV/VCR screen for operating convenience.
•Bilingual on screen menu display selectable
in English or Spanish
•Auto Clock Set-Allows you to use the PBS
broadcast for setting clock automatically.
•Automatic Playback Speed Selection-
Automatically selects the proper playback speed
even if you select a different speed.
•1 Year, 8 Events Timer (including Today,
Daily and Weekly Timer Recording)-- T he
built-in timer allows you to record up to 7 programs
at different times on different channels up to 1year
in advance. The Quick Set Program feature uses pro-
gram number 8. The daily timer will allow record-
ings to be made of daily broadcasts and the weekly
timer will allow recording to be made once a week
up to the end of the tape.
•Quick Set Program- Allows you to easily re-
cord one program within 24 hours.
•Visual Search- Allows you to view a video tape
at a high speed in either a forward or reverse direc-
tion.
•STILL- "Freeze" the picture at any time, for close
viewing of a particular scene.
•181 Channel Capability PLL Frequency Syn-
thesizer Tuner with Direct station Call- (A
CATV Box may be necessary to view scrambled
CATV channels.)
•Infrared Remote control unit- Allows you to
use most of the controls from a remote location.
• Game Mode- Allows TV/VCR display to be suit-
able for use with a TV game.
• CCS (Closed Caption System)- You may
view specially labeled (cc) TV programs, movies,
news, prerecorded tapes, etc. with either a dialogue
caption or text display added to the program.
•Rental Play Mode- Improves playback picture
quality of worn tapes, especially rental tapes.
•Auto Repeat Playback- Allows you to repeat a
tape indefinitely without using the PLAY button.
You can select all feature (that repeat playback from
the beginning to the end of the tape) or blank freature
(that repeat only recorded part, not blank part).
•OTR (OneTouch Recording)- Automatic
timed recording from 30 to 480 minutes is possible
at the push of OTR button. (Timer adjustments for
recording are not required.)
•Time Search- Allows you to set the TV/VCR to
advance the tape by entering the desired playback
time you want to skip.
•Sleep Timer- Allows you to turn off the TV/VCR
without using the POWER button after a desired
time period.
•Two- Way Power- Allows you to power the
TV/VCR with standard household AC or your vehi-
cle's battery, using the supplied car-battery cord.
•Alarm Function- Allows you to turn on the
TV/VCR without using the POWER button at a de-
sired time.
The serial number of this product may be found on the back of the unit. No others have the same serial number as
yours. You should record the number and other vital information here and retain this book as a permanent record
of your purchase to aid identification in case of theft.
Date of Purchase
Dealer Purchased from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
- 6 - EN
***** 5B10

OPERATING CONTROLS AND FUNCTIONS
FRONT VIEW
IIIIIOOOOOOOOOO¢
0000000000¢
0000000000(
0000000000¢
0000000000(
0000000000(
8888°88888_
1716 15
J
_ I ,I I ,_ _ , ,I I,v'--_, I \\
2 3 4 56 7 8 9 10 11 12 13 14
r
1EARPHONE jack- Connect to earphone (not
supplied) for personal listening.
2 VIDEO INjack- Connect to video output jack of
your video camera or another VCR.
3AUDIO IN jack- Connect to audio output jack of
your audio equipment or another VCR.
4Remote Sensor- Receives the infrared control
signals from the handheld remote control unit.
5POWER button- Press to turn TV/VCR on and
off. Press to activate the automatic timer recording.
6 STOP/EJECT button-- Press to stop tape mo-
tion. Press to remove tape from TV/VCR.
7 REW button- Press to rewind tape, or to view
video inreverse duringthe Play mode atafaster than
normal speed. Press PLAY button to return
TV/VCR to normal playback speed.
8PLAY button- Press to begin playback of a tape.
9 F.FWD button- Press toadvance tape, orto view
video in forward during Play mode at a faster than
normal speed. Press PLAY button to return
TV/VCR to normal playback speed.
10 RECORD/OTR button- Press to begin manual
recording. Press again to activate One Touch Re-
cording.
11 VOLUME "_" button- Press to adjust the vol-
ume level.
CLEAR function- Press to cancel Quick Set Pro-
gram.
12 VOLUME "/x" button- Press to adjust the vol-
ume level.
SELECT function- Press to select the next step
when setting Quick Set Program.
13 CHANNEL "_"/"_" buttons- Press to select
thechannelfor viewing or recording.
TRACKING +/-function-Press to minimize
video 'noise' (lines or dots on screen) during the
Play mode.
SET function - Press to adjust time using'i or/,,.
button in the Quick Set Program.
14 MONITOR button- Press to turn the TV/VCR
screen on and off when in the Recording mode.
Quick Set Program function-
Press to set Quick Set Program.
15 CASSETTE COMPARTMENT
16 TIMER REC indicator-Lights when in the
Timer Recording mode.
17 RE¢ indicator- Lights up in the Recording
mode.
-7-
!

mREAR VIEW
20 21 22 2324
18 DC 12V jack- For connectionto the Car Battery
Cord.
19 AC120V jack- For connectionto theAC cord.
20 AUDIO IN jack- For connectionto audio output
jack of youraudioequipmentor anotherVCR.
21 VIDEO IN jack- For connectionto video output
jack of yourvideocameraoranotherVCR.
22 VIDEO OUT jack- For connectiontothevideoin
jack of videoprocessoror anotherVCR.
23 AUDIO OUT jack- Forconnectiontotheaudioin
jack ofyouraudio equipmentor anotherVCR.
24 ANT. terminal- For connectionto anantennaor
CATV.
-8-

REMOTE CONTROL OPERATION
You can operate most of functions from the Remote Control (included). The buttons on the Remote Control have
the same functions as the corresponding buttons on the unit.
I I [01_| [Oll._! DI _t_1 [OIli D[l[l_ll i_{O]m
1POWEPJTIMER REC button- Press to turn 2
TV/VCR on and off. Press to activate the automatic
timer recording. 3
m
2--
3--
4--
5
F(3WER .
_ _-c_i I 2 3
nmll i j
mu , 4 5 6
"-7:D r"_ O
SELEC_=789
S1"0Pm
PI.AYI,.
6 L_ ,J
7
8
9-
10-
11
A
V_,.UYE
1, -_-
,,,@ I--_R.- 1
--19
8
17
--16
--15
14
--13
12
MENU button- Press to display main menuon the
TV/VCR screen.
SELECT button- Press to select setting modes
(clock, counter, tape speed, timer programming,
channel preset, etc.).
DISPLAY function- Press tOdisplay the counter
or the current channel number and current time on
the TV/VCR screen. (See "CHECKING THE
COUNT, CLOCK AND CHANNEL NUMBER")
4CHANNEL buttons- Press to select desired
channel by using either • or•button.
They may also be used to adjust the picture control.
(See page 18.)
TRACKING function- Press •or • button to
minimize video 'noise' (lines or dots on screen) dur-
ing the Play mode. (See page 30.)
5 STOP button- Press to stop the tape motion.
6 PLAY button- Press to playback the tape.
7REWIND button- Press to rewind the tape, or to
view the picture rapidly in reverse during the Play
mode. (Rewind Search)
8 F.FWD button- Presstorapidly advance the tape,
or to view the picture rapidly in forward during the
Play mode. (Forward Search)
9SPEED button- Press to set desired recording
speed. (SP/LP/SLP)
10 RECORD button- Press to begin manual record-
ing.
11 PAUSE/STILL button- Press to temporarily
stop the tape during the Recording mode orto view
a still picture during the Play mode.
EJECT button- Press to remove tape from the
TV/VCR,
12
13
14
ALARM button-Press to set the time to turn on
theTV/VCR automatically,(Seepage31.)
COUNTER RESET button- Press to reset
counterto 0:00:00.
ADD/DELETE button- Press to add or delete
channelnumbers.Pressto cancela timer program.
(This function isoperativeonlyin theMenu mode.)
(See pages 15 and 27.)
J
-9-

15 COUNTER MEMORY button- Press to use the
Counter Memory mode. (See page 22.)
16 MUTE button- Press to mute sound. Press it again
to resume sound.
17 SLEEP button- Press to activate the sleep timer
function. (See page 30.)
18 VOL buttons- Press to adjust desired volume
level by using either • or • button.
19 NUMBER buttons- Press to select desired chan-
nels and select item in the Menu mode. They cannot
be used to set desired channel during Timer Record-
ing. To select channels i to 9, first press the 0 button
and then ! to 9.
+100 button- Press to select cable channels
which are equal or greater than number 100.
To check the Count, Clock and Channel number on the
TV/VCR screen, press SELECT button on the remote
control.
Each time you press SELECT button on the remote con-
trol, the TV/VCR screen will change as follows:
When the Closed Caption mode is OFF:
OFF mode COUNT mode
sP CO_',_ro-_234
t
CLOCK mode
Slide the battery compartment cover by pressing the
cover on the remote unit in the direction of the arrow.
Insert 2 "AA" batteries into the battery compartment in
the direction as indicated by the polarity (+/-) markings.
[313
Replace the cover.
When the Closed Caption mode is ON:
The On Screen Display will disappear after 5 seconds.
OFF mode CLOCK/COUNT mode
S:4OPM 1
OOUHT0:12_1
This is true even if MUTE button is pressed, or
PAUSE/STILL button is pressed while recording.
However, the On Screen Display will appear for 5 sec-
onds when SELECT button is pressed.
0)
- 10- EN
"k_t _'-k_ 5BI0

ANTENNA CONNECTIONS
_]_1 D_€.q_liII/L_II_K5i_[ILTO]l_LIHU
1. Push the stem of the Dipole Antenna (accessory)
into the hole for antenna at the back of TV/VCR.
2. Connect the fiat twin-lead cable from the Dipole An-
tenna to the 300/75 ohm Matching Adapter (acces-
sory).
3. Plug the Matching Adapter to ANT terminal of
TV/VCR as shown in drawing.
For the best reception, extend the Dipole Antenna and
adjust its length and position. (Avoid handling the top
section when making adjustments).
Dipole Antenna
(accessory)
Flat twin-lead Cable
==, @
I Matching
|Adapter
/(accessory)
,'_ 0o0
"_" 0 0
1. Connect the 300-ohm flat twin-lead cable from an
outdoor UHF antenna to the VHF/UHF Combiner
(not supplied).
2. Connect a round type 75 ohm coaxial cable from an
outdoor VHF antenna to the VHF/UHF Combiner
(not supplied).
3. Plug the VHF/UHF combiner to ANT terminal of
TV/VCR as shown in drawing.
VHFAntennaUHFAntenna
Round type
75-ohm
CoaxialCable
i rr_.J,
,""6_" cUN;:=_
() _ I VHF/UHF Flattwin-lead
_* O°_) I Cornbiner Cable
(Not supplied)
NOTES:
1) If it is difficult to get good reception with the indoor
antenna, the use of an outdoor antenna is recom-
mended. Before an outdoor antenna is connected to
the set, the indoor antenna should be disconnected.
2) The optional combiner can be purchased from your
local retail electronics store. Consult a salesperson
for assistance.
A VHF UHF 75 ohm combination antenna can be con-
nected to ANT terminal.
VHF/UHF
Combination Antenna
_
Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building as close to the point of cable entry as practical.
- !i - EN
_r_r_-k-t_ 5BI0

Use this connection if your cable system connects di-
rectly to your TV/VCR without a converter box.
With this connection you, I) can use your TVNCR Re-
mote Control to select channels,
2) program one or more unscrambled channels for
automatic timer recording.
From Cable System
75-ohm
axial Cable
Ilik'NliHDIt_ii_ lit _51111 I_![O]IOD!
When using an external input signal(another VCR or
video camera), connect the player's audio/video output
cables to the AUDIO IN, VIDEO IN jacks of your
TV/VCR. Then press CH. "A" or "V" button or enter
"00" with number button so that AUX appears on the
screen.
AUX
TO COPY A VIDEO CASSETTE
(Requires another VCR)
Connect your TV/VCR and a Source (Playing) VCR
using the following diagram:
1. Insert a pre-recorded video cassette into the Source
(Playing) VCR.
2. Insert a blank video cassette, orone you want to re-
cord over, into the TVNCR's cassette compart-
ment.
3. Press SPEED button on the remote control to select
the desired recording speed (SP, LP or SLP).
4. Press CHANNEL • or • button repeatedly so that
"AUX" appears on the screen.
5. Begin playback of the tape in the Source (Playing)
VCR.
6. Press RECORD button on the TV/VCR.
NOTE: For best results during dubbing, use the
TV/VCR's front panel controls whenever possible. The
remote control might affect the Source (Playing) VCR's
)layback operation.
[Source(Playing)VCR]
9 '
Audio/Videoadaptercordlnotsupplied)
"r ""
- 12- EN
_ _ _,llr ,A,5BI0

If your cable service supplies you with a converter box
you can use the basic connection shown here.
With this connection you can record and view any chan-
nel, including scrambled channels. However channel
selection must be made with the converter box. This
means that channels cannot be changed using the
TV/VCR Remote Control. Unattended recording is
limited to one channel at a time.
TO RECORD AND VIEW A SCRAMBLED/UN-
SCRAMBLED CHANNEL
1. Set the TV/VCR channel to the output channel of
the Cable Converter Box. (Ex. CH3)
2. Select the channel to be recorded or viewed on the
Cable Converter Box.
ANTENNA CONNECTION
The supplied indoor antenna is adequate when your ve-
hicle is stationary. For best reception on the road, use a
high-quality VHF/UHF mobile TV antenna.
VHF/UHF Combination Mobile Antenna
(Not Suppliers.._ -I
I
[m_
OoO
oo
From Cable System
I
CATVBox r "l -,
(N°t supplied) _V _,J
I 75-ohm
._, ,.,oaxiallcCable
9o°
--00
NOTE:
When using a cable converter box you can not record
one channel and view.
i_ [IKI]i_liiilLEi_l
WARNING:
never watch the TV/VCR while driving.
CAUTION
If you use the TV/VCR with the vehicle's engine off,
recharge the vehicle's battery after about every 4hours
of use to prevent it from running down. After you finish
using the TV/VCR be sure you unplug the car-battery
cord from the cigarrette-lighter socket.
CAR BATTERY CORD CONNECTION
Attach the car battery cord to the DC 12V connector on
the back of the TV/VCR. Then, connect the other end
to your vehicle's cigarette-lighter socket.
Car battery cord
(accessory)
To the vehicle's
cigarrete-lighter socket
Notes:
•Be sure your vehicle has a 12-volt, negative-ground
electrical system.
•Be sure you use only the supplied car battery cord.
Using another cord could damage the TV/VCR.
• Be sure the socket is free of ashes and other debris.
• Be sure to push the car battery cord's plug com-
pletely into the cigarette-lighter socket.
• Always unplug the car battery from the cigarette-
lighter socket before you unplug it form the
TV/VCR.
• You must disconnect the car battery cord from the
TV/VCR before you can use AC power.
• Be sure to replace fuse with only same type, 5A,
250V.
-13-

TWCATV CHANNEL MEMORY PROGRAMMING
You can program the tuner to scan only the channels you receive in your area.
NOTE: Channel memory programming is not needed when using a converter/descrambler box.
You must use the remote control unit for the following steps:
Attach the smaller end of the_,_,, F_
supplied AC cord to the AC "_-x_
120V connector on the back \\
of the TV/VCR. Then, plug
the other end into a standard
AC outlet. Press POWER button to turn on the
TV/VCR.
Note: You must disconnect the car battery cord from
the TVNCR before you can use AC power.
Select item 1 (ENGLISH) or 2 (ESPAI_IOL--SPANISH)
using number i or 2 button.
I- LANGU_ SELECT -
tENGUSH ON
2ESPNrK_.
i CHO,]
Press SELECT button on the
remote control unit. The
tuner scans and memorizes
all the active channels in
your area.
•The TV/VCR distinguishes between standard TV
channels and CATV automatically.
After scanning, the tuner stops on the lowest memo-
rized channel.
(TV mode: from CH 02/CATV mode: from CH 01)
If you want to recall the selected channels, you can se-
lect the desired channel directly by number button or
CH • or • button on the remote control unit.
TO RETURN TO TV MODE WHEN
SCANNING
Press MENU button in scanning mode.
Press MENU button.
Select item 4 (CHANNEL
SET UP) using number 4
button.
Press number 1 button re-
peatedly to select [TV] or
[CATV].
-MENU-
I TI_ER PAOGR_IWNG
2 P_,TURE CONTROL
3 SETTN_ CROCK
4 CHANNELSET UP
5 LANGUAGESa.ECT
6T_E SEMEN
? USER'SSET up
s CCD SELECT
-CHAk_EL SET UP-
I PtP._.w I'_t]
2NJTO PP_SET
3 .I.DI_LETE CH
f
Select item 2 (AUTO PRE- i CH 02
SET) using number 2 button.
The tuner scans and memo-
rizes all the active channels
in your area.
After scanning, the tuner stops on the lowest memo-
rized channel.
(TV mode: from CH02 /CATV mode: from CH01)
If you want to recall the selected channels, you can se-
lect the desired channel directly by number button or
CH • or • button on the remote control unit.
TO RETURN TO TV MODE WHEN
SCANNING
Press MENU button in scanning mode.
-14-

mai[O]_NIIIDUN1)[O . ,. •
You can delete or add the desired channels.
7rq
Press MENU button.
Select item 4 (CHANNEL
SET UP) using number 4
button. -MENU- 1
I TIMER PROGRAMMING
2 PICTURE CO_IRO[
3 sETrlNG CLOCK
4 CHANNEL SET UP
s IJ_NOUAGE $B.ECT
eTNE SEXRCH
?USER'S SET UP
e CCO SEtECT
Select item 3 (ADD/DE-
LETE CH) using number 3
button.
- CHANNEL SET UP -]
J
I TV_TV I TV1
2 AUTOPRESET
3 ADDIOELETE CH
Enter the desired channel
number using the number
button or the CH • or • but-
ton.
DELETING PRESET CHANNEL
Press ADD/DELETE but-
ton. The channel number
changes to light red. The
channel is deleted from
memory.
•To delete another channel, repeat steps [3] and [4].
•If you press the ADD/DELETE button again, the
channel is memorized again.
ADDING PRESET CHANNEL
Press ADD/DELETE but-
ton. The channel number
changes to light blue. The
channel is added to memory.
• To add another channel, repeat steps [3] and [4].
•If you press the ADD/DELETE button again, the
channel is deleted again.
Added channel is in light blue.
Deleted channel is in light red.
Press MENU button. The
TV/VCR screen returns to
TV mode.
NOTE: To confirm that channel(s) has been deleted or
added, press CH • or • button.

SETTING THE CLOCK
Setting the clock accurately for properautomatic timer recording.
• The TV/VCR power must be turned on.
• Confirm that the antenna connections are correct (See page 11 - 13).
• The cable converter box must be turned on if your TV/VCR is connected directly to it. (See HINT #4)
llni I[OXll I[lIOI ,"qR!HII NI_ln
You can have the TV/VCR set the clock automatically by using the Public Broadcasting Station (PBS) channel in
your area. Once you have set the clock by using the following procedure, the TV/VCR will automatically monitor
the correct time and date being broadcast by the PBS station in your area, using a new service called Extended
Data Service (EDS).
7rq
Press MENU button.
Select item 3 (SETTING
CLOCK) by pressing the 3
button.
Select item 1 (AUTO
CLOCK [ON]) by pressing
the 1 button. Make sure it
says [ON}.
vrl
Select item 2 (AUTO
CLOCK CH SET) by press-
ing the 2 button.
1 AUTO CLOCK [Otq
2 AUTOCLO_CH S_
_CLOC_ SET
- SEI"_ CLOCK-
1NJTO CLOCK
2NJTO _O_K C_ S_T
$M_N_L CL(_ SET
AUTOO,.OC_ CH SET
Enter the channel number of your local PBS station us-
ing the number buttons. If you do not know the channel
number, enter "00". The TVNCR will automatically
search all available channels for the local PBS station,
and will select that channel. See HINT #1.
Press the MENU button to return to the normal
TV/VCR operating mode.
or1
Press the POWER button to turn the TVNCR off. If
you selected the local PBS channel manually as in-
structed in Step 4, you will be able to turn the TV/VCR
back on in a few minutes, and the correct time will have
been set. If you selected channel "00" to start a search
of all the available channels, it may take as long as 2
hours for this search to be completed. See the HINTS
below. The power must remain off during this search.
HINTS:
1. If you choose "00" during step 4, the TV/VCR must search through all the available channels one, starting with
the lowest numbered channel. It must scan each channel for a couple of minutes to determine if that channel is
transmitting the EDS signal, because the PBS station will send this signal only once every minute. This search
could take up to 2 hours if the local PBS station is on a high numbered channel in your area or on your cable
system. You may want to start this channel search at night when the unit is not in use, This only has to be done
one time, because once the TV/VCR has been set up to use this auto clock setting feature, it will automatically
tune to the selected PBS channel and reset the clock if necessary, every time the unit is turned off for a few
minutes. The clock setting is changed only if the clock's time has become incorrect for some reason.
2. If the time that is automatically set by this selected PBS station is incorrect, it may not be your local PBS station,
but one from a different time zone. In this case, you must manually enter the correct local PBS station, or set
the clock manually and turn off the automatic clock setting feature. See page 17.
3. If no channel in your area is broadcasting the EDS signal, as evidenced by no time being set even after an overnight
search, you must set the clock manually andturn offthe automatic clock setting feature. See page 17.
4. If your TV/VCR is connected directry to a cable converter box, the lacal PBS station must be selected on the
cable box itself, and the TV/VCR must be set to the output channel of the cable converter box (usually channel
3 or 4), to be able to set up or correct the clock automatically. The TV/VCR cannot control the channels of the
cable converter box.
- 16- EN
****_r 5BI0

Set or correct the clock manually.
• You must use the remote control unit for the following steps:
• Power must be turned on.
In the example below, the clock is to be set to:
DATE March 1st, 1995
SETTING TIME 5:40PM
m
Press MENU button.
Select item 3 (SETTING
CLOCK) using number 3
button.
-MENU- 1
j TIMERPAOGI_
P_TURE CONTROL
SEI"I1NG CLOCK
C_U_NEL SET UP
$ UkNGUAGE SELECT
_r_so_c.
USErs SETUP
ICCO SELECT
Enter the desired minute us-
ing number button.
- MANUALCt.OCKSET-
MONTH OAY YF.AR
,' 01 WED tram
WOLIR E
Select item 3 (MANUAL
CLOCK SET) using number
3 button.
Enter the desired month us-
ing number button.
Enter the desired day using
number button.
Enter the desired year using
number button.
Enter the desired hour using
number button.
-SETTINOCLOC_ -
t AU110Q..OCK [O_1
2 AUTOCLOCKO.I S_I"
3 M,q,NU_,LCLOC,K SEX
%M_t_Y YENa
MINUTE N,t_M
M_trl'E
I
Enter I to select "AM" or en-
ter 2 to select "PM" using
number button.
-MN4UN. CU)CK.,_T -
MONTH OAY 'rEAR
_O *' 01 WED 1_
HOt)R f,W_UTE _
or1
Press MENU or SELECT button to start the clock.
Although seconds are not
displayed, they begin count-
ing from 00 when you press
MENU or SELECT button.
Use this feature to synchro-
nize the clock with the cor-
rect time.
•This unit has a built in calendar up to the year 2008.
TO CHANGE CLOCK SETTING
If you want to change the clock,
1) Follow steps [2] and [3].
2) Select desired digit using SELECT button or
ADD/DELETE button.
3) Enter correct numbers using number button.
4) Press MENU button to return to TV mode.
HINT!
If there is no local PBS station in your area or on your cable system, in step 2 above, press I to turn auto clock
setting off, and then adjust clock manually.
- 17- EN
_k,lk-llrak-k 5BI0

TV OPERATION
7r7
Press POWER button to turn
on the TV/VCR.
vrl
f
E[E JECT A_ S:,t0 PM
[CH2
SP CO_IN T 0:00 O0
Select the desired channel
using number button or CH
• or • button.
CH 06
Adjust the VOLUME to de-
sired listening level using
the VOLUME •or •but-
ton.
VOLUME
IIInnllhoutoane
[flUkll_l[OD] M
This function enables you to adjust the TV/VCR dis-
play making it suitable for use with a TV GAME.
• You must use the remote control unit for the fol-
lowing steps:
Press MENU button.
Select item 7 (USER'S SET
UP) using number 7 button. -MENU- 1
_T_ER PROGRAM_G
FICTUR_ CONI_)L
4 SETT1NGCLOCK
CHANNEL SETUP
S_AGE SELECT
TedE SEARCH
_USEFrS SET UP
COD SELECT
Press number 1button to se-
lect (GAME MODE [ON]).
Frl
Press MENU button to re-
turn to TV mode.
-SETUP-
IGAME MOOE (ON]
2 RENTAL IOFFI
3REPEAT PLAY tOFF]
TO CANCEL THE GAME MODE
•Repeat steps [1] and [2]. Then, follow step [3] to
select [OFF]. Press MENU button to return to TV
mode.
OR
• Set the PICTURE CONTROL. The GAME MODE
will then automatically be turned [OFF].
I Uloll Ill t4|KO]kl II_O] II
Adjust picture controls for anatural looking image.
• You must use the remote control unit for the fol-
lowing steps:
Press MENU button.
-MENU-
1I_MER PROGRAMkmNG
2 PICTURECO_
3_ _OCK
4 CHANNELSET UP
S LANGUAGESELECT
s T_4ESEARCH
7 USER'SSET UP
0 CC_ SELECT
Select item 2 (PICTURE
CONTROL) using number 2
button.
Press SELECT button repeatedly until desired control
is displayed.
Each time you press SELECT button, CON-
TRAST, BRIGHT, COLOR, TINT and SHARP-
NESS will appear on the screen in sequence.
Adjust the picture control using CH • or • button.
• Your TV/VCR's picture controls- CONTRAST,
BRIGHT, COLOR, TINT and SHARPNESS
are preset to the factory specification. This is usually
best, but if you need to make any further adjust-
ments, use the following chart as a guide.
CONTRAST
BRIGHT
COLOR
TINT
SHARPNESS
CH •
to decrease
contrast
to decrease
brightness
to pale
to purple
to soft
CH A
to increase
contrast
to increase
brightness
to brilliant
to green
to clear
NOTE: When setting the PICTURE CONTROL, the
GAME MODE will be automatically set to [OFF].
-18-

Youmayviewspeciallylabeled(cc)TVprograms,movies,news,prerecordedtapes,etc.witheitheradialogue
captionortextdisplayaddedtotheprogram.
Caption Mode
You maywatch dramas, movies and news etc. while captioning the dialogues and the contents of news if you want
by choosing the caption mode.
Text Mode
You may watch full screen text information if you want by choosing the text mode.
Cl/C2
You may get these captions or text information by selecting either Ci or C2. C2, when used, will usually be for a
second language.
•You must use the remote control unit for the following steps:
•Power must be turned on.
7fq
Press MENU button.
Select item 8 (CCD SE-
LECT) using number 8 but-
ton.
7Yq
Select your desired item 2
(CAPTION C 1) through 4
(TEXT C2) using the num-
ber button. [ON] appears be-
sides the item.
oq
Pressthe MENU button. The
selected caption broadcast
appears on the TV/VCR
screen.
-MENU-
II"_ER PROGRAMMING
2 FICI_JRE
3 SETI_ CLOCK
4 C_N_l_. SET UP
s_AOE ,_dELEC_"
e TIME SEARCH
7 USE!_S SET uP
ii co) SELECT
- CLOSEO CAPTK_NSET UP-
1 Ct.OSEDCAPTION [OFF]
2 CAPTK)N CI
3_C2
4TEXT C1
STEX'r C2
- CLOSEDCAPTION SETUP -
IQ.OSEO CAPTION(ONI
2_CI ON
3 CAPT_t_ C2
41F.XT CI
SlT.XT C2
NOTE:
Not all programs are broadcast with closed captions.
Your television is designed to provide error free closed
captions from high quality antenna, cable and VCR sig-
nals. Conversely, poor quality signals are likely to result
in caption errors or no captions at all. Common signal
conditions which may cause captions errors are listed
below;
a) Automobile ignition noise.
Electric motor brush noise.b)
c)
d)Weak snowy picture. Multiplex signal reception displaying picture ghosts
or airplane flutter.
e) Playback of poorly recorded or worn VCR tapes.
f) If your TVNCR displays a
black box on the screen,
this means that your
TV/VCR is set to TEXT
mode. To clear screen, se-
lect CAPTION CI, C2 or CLOSED CAPTION
[OFF].
When the Closed Caption mode is ON:
The On Screen Display will disappear after 5 seconds.
• This is true even if MUTE button is pressed, or
PAUSE/STILL button is pressed while recording.
However, On Screen Display will appear for 5 sec-
onds when SELECT button is pressed.
TO CANCEL THE CLOSED CAPTION
SYSTEM
Repeat steps [I] and [2]. Then, follow step [3], select
item I (CLOSED CAPTION [OFF]) using number i
button.
-19-

PLAYBACK
Power must be turned on.
or?
Insert a cassette into the cas- l.T.
[
sette compartment.
NOTE: If the erase-protec-
tion tab has been removed,
the TV/VCR will start play-
back automatically.
If playback does not begin
automatically, press PLAY
button.
Press STOP button when
playback is completed.
VISUAL SEARCH (SP/LP/SLP MODE)
You may view avideo tape at a high speed in either a
forward or reverse direction. This feature is useful in
finding or skipping over a particular scene on a tape.
Forward Direction:
When in the Play mode, press F.FWD button toview
the tape at a fast speed in the forward direction. The
sound will be muted.
Reverse Direction:
To view the tape ata fast speed in the reverse direc-
tion, press REW button. The sound will be muted.
Press PLAY button to return to normal playback.
NOTE: The picture will not be as good as in normal
playback during Visual Search.
SUPER HIGH SPEED SEARCH
(LP/SLP MODE)
For Visual Search in super high speed:
I)Press either F.FWD orREW button while the unit is
in the Play mode.
2) Release button.
3) Depress it again. The unit will now search in super
high speed.
Press PLAY button to return to normal playback.
NOTE: Tapes recorded in the SP or LP mode will dis-
play a noise bar on the TV/VCR screen and the picture
may revert to Black and White. This is normal.
STILL PICTURE DURING PLAYBACK
If you press PAUSE/STILL button during the Play
mode, the picture will "freeze" on the TV/VCR screen.
You may use this feature to study details of a particular
scene. (Only tapes recorded in the SLP mode will show
the least amount of lines.)
Press PLAY button to continue playback.
NOTE: The TV/VCR will automatically switch to the
Stop mode, if it is left in the Pause/Still mode for more
than five minutes.
NOISE CANCELLING
If you use the PAUSE/STILL button to freeze the pic-
ture during playback with tapes recorded in the SLP
mode, usually there will be video "noise bars" on the
TVNCR screen.
This is normal, however, this TV/VCR has a special
featurethat allows you to reposition orreduce the lines.
Each time you press PAUSE/STILL button the lines
will change position on the TV/VCR screen. This en-
ables you to see the picture in its entirety without dis-
tracting noise lines.
If the tape was originally recorded in the SP orLP mode,
the still picture may, in addition to the "noise bars",
revert to black and white. This is normal.
- 20-
