Sears 134542000 Manual

P12L0051.eps P12C0341.eps P12V0070.eps P12T0084.eps 134542000.eps
REPAIR
PARTS
LIST
417.44252500
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
FRONT-LOAD WASHING MACHINE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the serial plate
located on the inside of the washer door.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 134582000 Publication number 5995443503

417.44252500
08/05 2
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.

417.44252500
# Functional Parts 3 08/05
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 # 134484021 Control Board, printed circuit, with housing
2 134415600 Knob, function, with bushing
3 134415200 Knob, program, with bushing
4 134347700 Pin, program knob
5 134347300 Pin, function knob
6 134429100 Light Pipe, array, 1 row of 5
7 134429300 Light Pipe, array, 3 row of 3
8 134429200 Light Pipe, array, 2 row of 4
9 134429400 Light Pipe, array, 4 start group
10 134385100 Push Button, function
11 134385201 Push Button, start
12 134385301 Push Button, pause
13 134349400 Spring, push button
14 134385400 Push Button, soil
15 # 134399300 Switch, reed
16 134364800 Bracket, top front
17 # 134431101 Switch, pressure
18 131302800 Screw, 10-16AB x 0.375
19 134402900 Screw, phillips pan hd, 6-19 x 0.650, type p
20 134452600 Cover, hole plug
21 134407900 Dampener, vibration
23 # 134435300 Wiring Harness, controls
23*# 134543000 Wiring Harness, main
26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive
27 134584200 Panel, control console
28 131205300 Screw, 10-16 x 0.750
32 134371700 Hose, disp-to-bellows
33 131306215 Clamp
34 134446300 Clamp, hose, bellows
35 134371800 Gasket, disp hose seal
36 # 134371220 Valve, dispenser
36* 131311900 Screw, quadrex ph, 8-18AB x 0.500
37 134372300 Hose, disp-to-tub
38 134372400 Clamp, tub hose
39 134446110 Housing, dispenser, w/valve, cover
39* 134371300 Gasket, disp-to-valve
40 134372100 Tube, disp-to-overflo
41 134372200 O-ring, overflow tube
42 131168200 Screw, pan head, 8-18B x 0.31
44 134370200 Cover, disp drawer
45 134370000 Drawer, dispenser
46 134349500 Spring, door latch
47 134386500 Latch, disp drawer, slider lock
48 134453600 Handle, disp drawer, front
49 134386300 Frame, drawer handle
50 134370100 Conveyor, disp drawer, lower
51 131373800 Magnet
60 134520400 Shield, pressure switch
60* 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
61 5304449156 Insulator, switch terminal

417.44252500
08/05 4

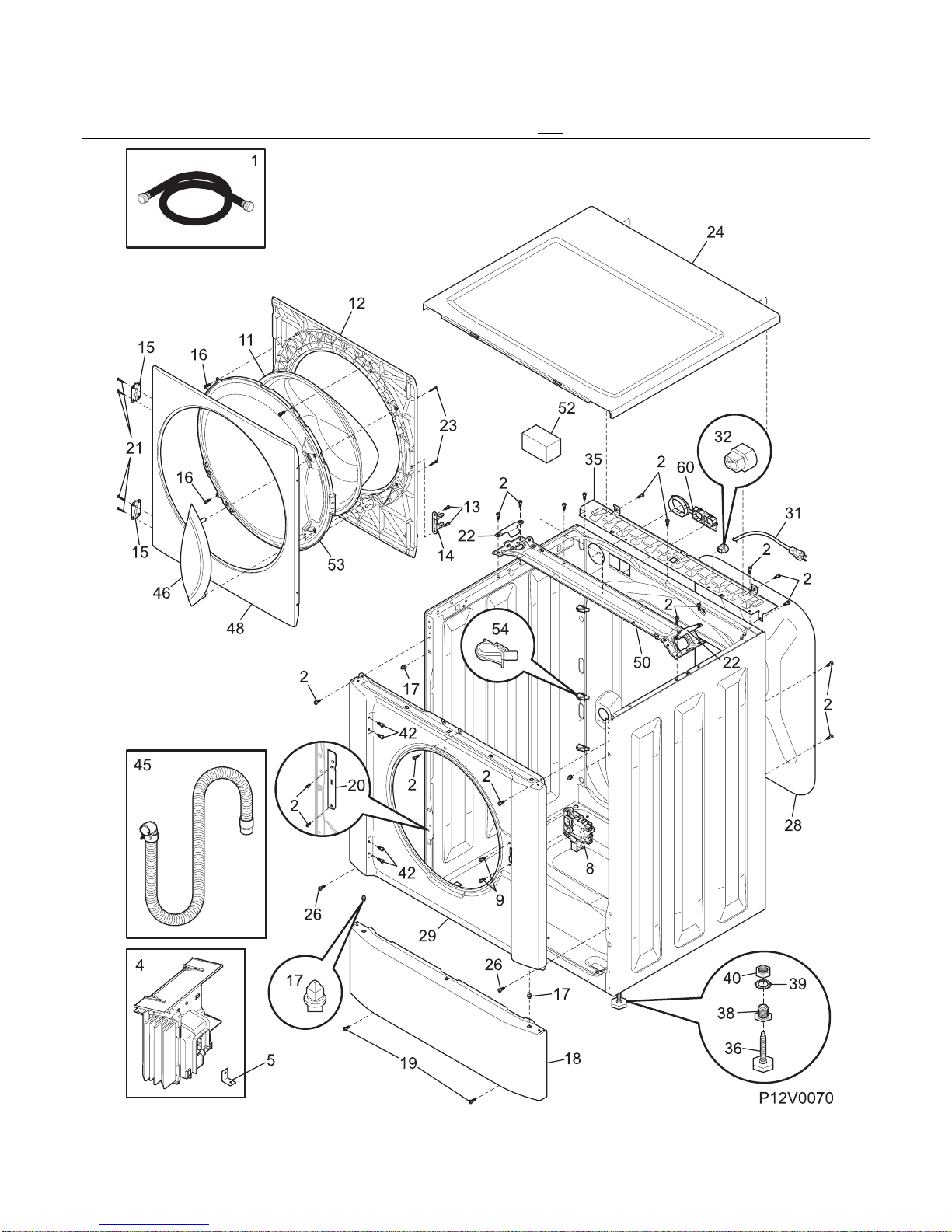

CABINET/TOP
CAUTION: Use the Kenmore part number to order part, not the illustration number.

417.44252500
# Functional Parts 5 08/05
* Non-Illustrated Parts
CABINET/TOP
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 131454100 Hose, water inlet, 4 ft., hose & washer
2 131168200 Screw, pan head, 8-18B x 0.31
4 # 134409900 Control Board, motor
4* # 134547600 Wiring Harness, motor control
5 134522900 Bracket, L, motor control
8 # 131763200 Door Lock/Switch Assy
8* # 134530800 Wiring Harness, door lock/sw
9 131303300 Screw, pan head, 10-16AB x 0.500, locking
11 134366400 Panel, door glass
12 134507300 Panel, inner door
13 131302901 Screw, 10-16 x 0.750
14 131763310 Striker, door/lock/sw
15 134412400 Hinge, door
16 134178901 Screw, 8-18AB x 0.455
17 134408700 Clip, assembly
18 134321702 Panel, front service, white
19 131258400 Screw, 10-16AB x 0.500
20 134434901 Bracket, reinforcement, LH side panel
20* 134434900 Bracket, reinforcement, RH side panel
21 134424700 Screw, comb flat head, 8-18AB x 0.75
22 134364700 Retainer, spring steel
23 134522100 Screw, #12 flat head, 10-14P, quad drive
24 134365000 Panel, work top, white
26 134521600 Screw, hex washer head, M5 0.8 x 15
28 134364300 Panel, service access, rear
29 134363300 Panel, cabinet front, white
31 # 134501000 Power Cord, electric svce
32 5303209428 Bushing, power cord
35 134365100 Bracket, top support, rear
36 131841602 Leveling Leg Assy, bolt, pad & nut
38 134548400 Bushing, leveling leg
39 134364100 Washer, spring lock
40 134364000 Nut, leveling leg
42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive
45 # 134369400 Hose, drain, external
46 134412600 Handle, door
48 134412103 Panel, outer door, white
50 134364600 Bracket, tub suspension
52 131931202 Dampener, vibration, foam
53 134507400 Adapter, door glass ring
54 134364900 Fastener, wire harn clip
60 134372000 Grommet, dispenser, back panel
* 134511500 Shipping Support Kit
* 134514100 Plug Assy, shipping holes, unit back

417.44252500
08/05 6

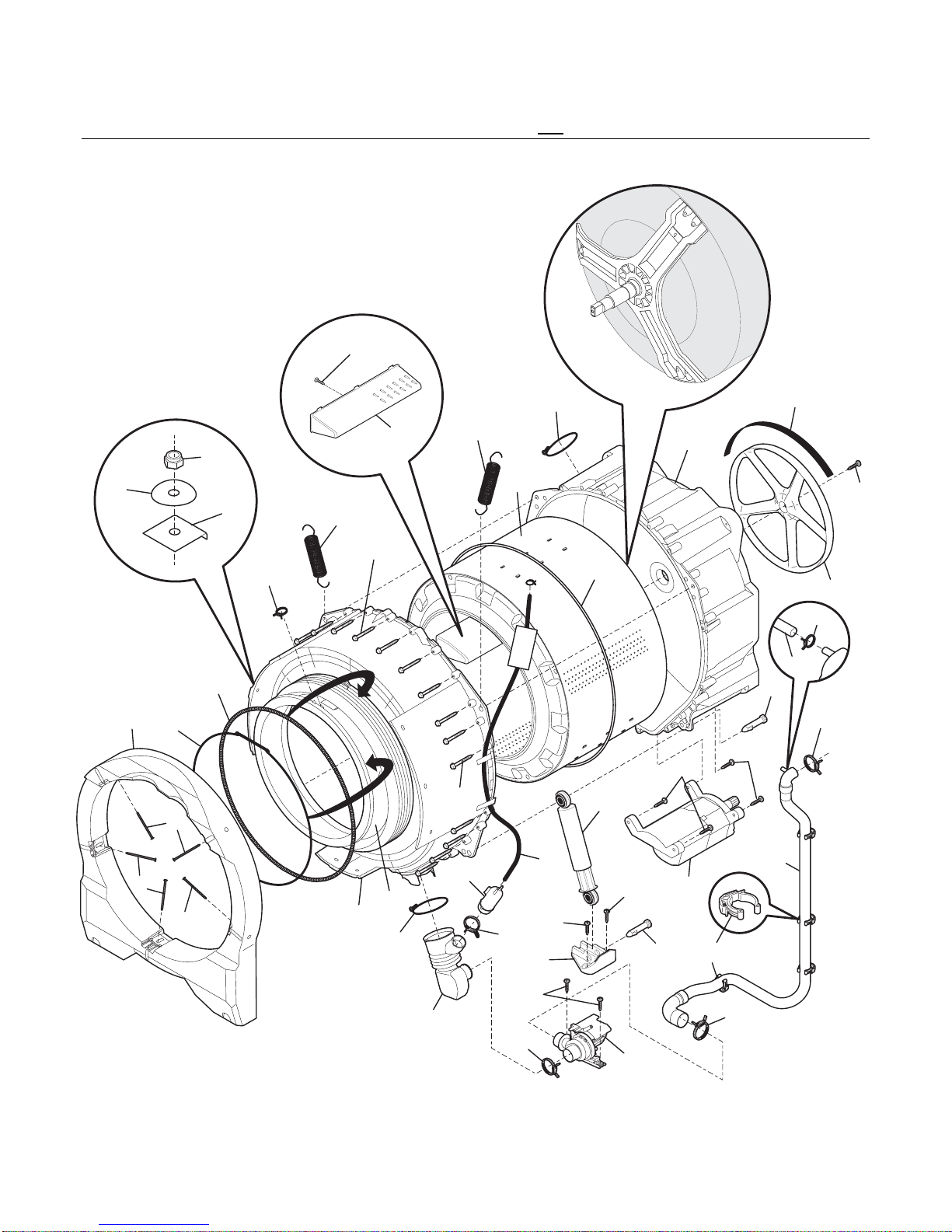

MOTOR/TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.
22
25
29
26
42
14
17
18
10
11
12 14
34
15
13
41
42
43
48
48
35
33
30
52
52
32 31
48
56
55
P12T0084
19
20 20
48
31
45
46
44
21
16
15
49
3
3
3
6
7
8

417.44252500
# Functional Parts 7 08/05
* Non-Illustrated Parts
MOTOR/TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
3 131793303 Bolt, carriage, 1/4-20 x 2.60
6 134362200 Counterweight, front, one piece
7 134365300 Spring, bellows clamp, boot retainer
8 134365200 Bellows, door boot
10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)
11 131276900 Washer, Bellville, spring steel
12 134430600 Plate, counterweight
13 134362000 Shell, tub, front
14 # 134362800 Spring Assy, suspension
15 134408300 Screw, hex head, 6.5 x 51 mm
16 134360900 Drum Assy, spin basket
17 134509600 Vane Kit, drum
18 131302800 Screw, 10-16AB x 0.375
19 # 134362500 Motor, 120 V
20 131303500 Screw, hex washer head, 12-14AB x 1.50, motor mtg.
21 134361900 O-ring, tub
22 134509500 Shell, outer tub, rear, w/bearing, seal
25 134051001 Belt, drive, elastic poly-V
26 # 134362600 Pulley, drum drive, large, rear
29 134408400 Screw, 10.9 class, M10 x 25 mm
30 131268200 Shock Absorber, air, stabilizer
31 131268300 Pin, shock mtg.
32 134363200 Bracket, shock mtg.
33 134160900 Screw, quadrex, 10-16AB X 0.750
34 134446300 Clamp, hose, bellows
35 # 134051200 Pump, drain
41 134455900 Hose, drain, tub-to-pump
42 131333101 Clamp
43 134369000 Chamber, air
44 134369900 Hose, air pressure
45 131306202 Clamp, hose
46 134436100 Syphon/Braker Assy, hose, with clamp
48 131306234 Clamp, pump to trap
49 134527100 Clamp, bellows, spring held
52 131202300 Screw, 10-16AB x 0.625
55 134458300 Hose, internal drain
56 134369800 Fastener, hose clip
* 134454200 Use & Care Guide
* 134472600 Instructions, installation
* 134581600 Instructions, operating
* 134542000 Wiring Diagram, Tech Data Sheet
* 5995443503 Repair Parts List
* 134582300 Energy Guide

417.44252500
08/05 8
WIRING DIAGRAM

® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
MarcadeFábrica/
SM
MarcadeServiciodeSearsBrands,LLC
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC © Sears Brands, LLC
