Sears 417.24182301 Manual

P12L0045.eps P12C0342.eps P12V0071.eps P12T0083.eps 134578300-1.eps
134578300-2.eps
REPAIR
PARTS
LIST
417.24182301
For Parts or Service:
Call
1-800-4-MY-HOME®
(1-800-469-4663)
Or Visit
www.sears.com
FRONT-LOAD WASHING MACHINE
In all orders or correspondence, avoid delays and misunderstandings
by always giving the complete model number shown on the serial plate
located on the inside of the washer door.
All repair parts listed are available for immediate purchase or special
order when you visit your nearest Sears Parts & Repair Center, or the
Service Department at most Sears stores. To order parts by phone, call
the toll-free number listed to the left or visit sears.com.
When requesting service or ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
P/N 134580700 Publication number 5995442570

417.24182301
08/05 2
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
MAX
LIQUID
BLEACH
LIQUID
BLEACH
MAX
FABRIC
SOFTEN
FABRIC
SOFTEN
26
46
12
26
42
27
13
50
16
17
21
18
29
24
19
6
1
2
3
7
9
8
P12C0342
45
51
47
49
48
53 41
31
37
33
32
33
36
38
43
39
44
33
69
80
81

417.24182301
# Functional Parts 3 08/05
* Non-Illustrated Parts
CONTROL PANEL
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 131272100 Cover, bleach
2 131272000 Cover, softener
3 131271910 Drawer, dispenser
6 131374500 Latch, disp drawer hdl
7 131427500 Spring
8 131373800 Magnet
9 131691261 Handle, disp drawer, w/insert & tape
12 # 131505902 Switch, reed
13 # 131656600 Switch, water temp.
16 131724700 Lamp, status light
17 # 134433700 Switch, pressure, w/o wtr optmztn
18 # 134568800 Timer
19 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point
21 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
24 134549100 Cam, timer
26 131823400 Screw, 8-18 x 2.00
27 131691029 Console, frame/trim assy
29 131264500 Knob, rotary, white
31 134549200 Dial, timer indicator
32 131786100 Hose, dispenser
33 131306216 Clamp
36 # 131974700 Valve, dispenser, w/seal
37 131271600 Hose, tub
38 131803710 Dispenser Assy
39 131863300 Siphon
39* 131307900 Clamp, siphon/bellows
41 131696601 Lens, timer pointer
42 131168200 Screw, pan head, 8-18B x 0.31
43 131749200 Gasket, seal
44 131786000 Hose, dispenser
45 5303321107 Bushing, idler
46 134191412 Panel, control mtg., wing bend
* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam
47 131981900 Spacer, security
48 131686000 Extension, switch shaft, push-to-start
49 131686601 Bolt, carriage, 3/8-16 x 3.50
50 # 131048000 Switch, push-to-start
51 131970200 Button, push/start, white
53 131724800 Lens, status light, clear
69 # 134580400 Wiring Harness, main
80 131734300 Catch, drawer
81 131302800 Screw, 10-16AB x 0.375

417.24182301
08/05 4

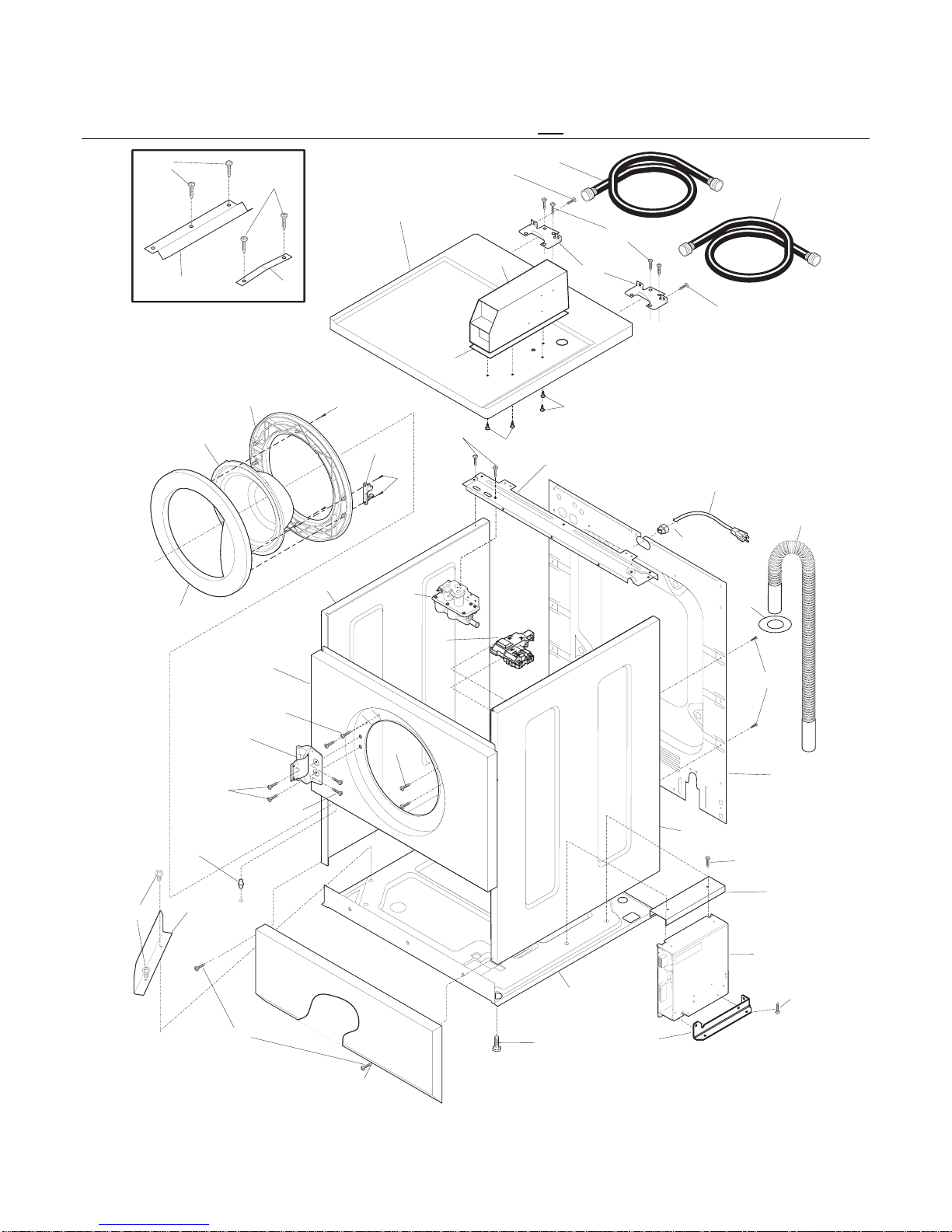

CABINET/TOP
CAUTION: Use the Kenmore part number to order part, not the illustration number.
18
21
2
20 22
1
3
26
25
2
31
32
44
8
33
35
13
13
14
2
45
28
4
70
71
77
76
76
21
21
36
9
9
17
19
30
39
7
15
29
16
10
11
12
P12V0071
23
23
24
49
50
61
61

417.24182301
# Functional Parts 5 08/05
* Non-Illustrated Parts
CABINET/TOP
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
1 131279602 Hose, water inlet, cold
2 131168200 Screw, pan head, 8-18B x 0.31
3 131279603 Hose, water inlet, hot
4 # 134149200 Controller Assy, speed, w/base & shield
7 131205300 Screw, 10-16 x 0.750
8 # 131763200 Door Lock/Switch Assy
9 131303300 Screw, pan head, 10-16AB x 0.500, locking
10 131278700 Frame, outer door, white
11 131278800 Panel, door glass
12 131278900 Frame, inner door, white
13 131302901 Screw, 10-16 x 0.750
14 131763310 Striker, door/lock/sw
15 134264600 Hinge, door
16 131696300 Screw, quad pan head, 10-16 x 0.312
17 131346400 Pin, panel locator
18 131279300 Panel, service, white, kick plate
19 131358400 Screw, hex washer hd, 8-18AB x 1.125
20 131460900 Bracket, top panel mtg., front
21 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive
22 131279500 Retainer, spring steel
23 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point
24 134086852 Panel, top
25 131668200 Bracket, top panel mtg.
26 131662200 Screw, 8-18AB x 0.500, 6 lobe
28 131978500 Panel, back
29 131752030 Panel, cabinet front, white
30 131859600 Shield, overflow
31 # 134501000 Power Cord, electric svce
32 5303209428 Bushing, power cord
33 # 5303207418 Valve, water
35 131732902 Bracket, reinforcement, top rear
36 131841600 Leveling Leg Assy, bolt, pad & nut
39 134178901 Screw, 8-18AB x 0.455
44 131707800 Ring, drain hose
45 134049200 Hose, drain
49 # 134308600 Housing, meter assy, white, coin box
50 134028000 Gasket, meter housing
61 131901700 Screw, mcn point, 1/4-20, (4)
70 134048600 Shield, drip protector
71 134048400 Base, controller mtg
76 134390701 Panel, side, white, RS/LS, (2)
77 131458240 Base Plate
* 5303937142 Shipping Brace Kit

417.24182301
08/05 6

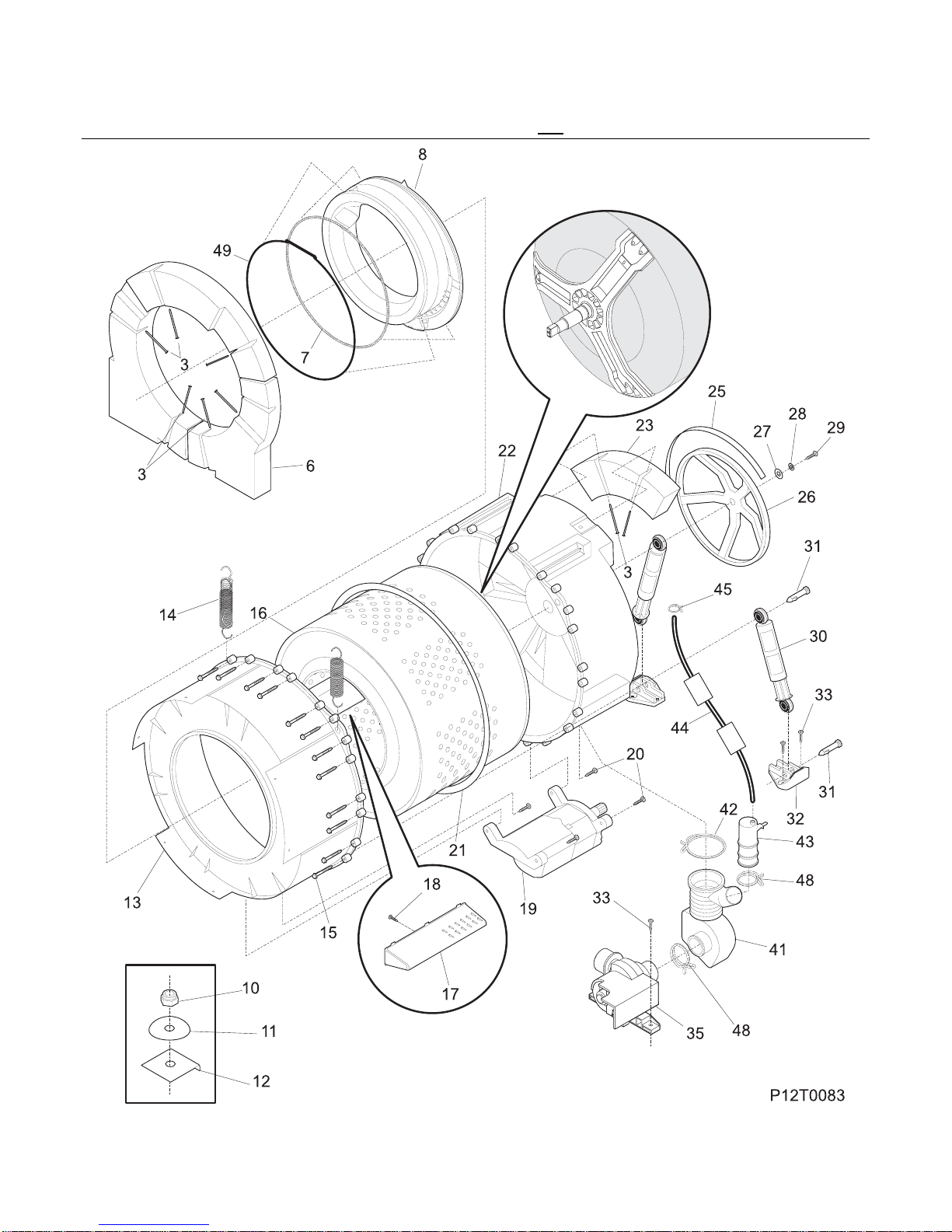

MOTOR/TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.

417.24182301
# Functional Parts 7 08/05
* Non-Illustrated Parts
MOTOR/TUB
CAUTION: Use the Kenmore part number to order part, not the illustration number.
POS. NO PART NO. DESCRIPTION
3 131793302 Bolt, carriage, 1/4-20 x 4.00
6 131975300 Counterweight, one piece
7 131277300 Spring, boot retainer
8 134177600 Bellows, door boot
10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)
11 131276900 Washer, Bellville, spring steel
12 131793500 Plate, counterweight
13 131618600 Shell, outer tub, front
14 134144700 Spring Assy, suspension, w/sleeves
14* 131592200 Sleeve, protector, upr spring hook
14* 131560000 Sleeve, protector, lwr spring hook
15 131303900 Screw, hex washer head, 1/4-10A x 2.165
16 131618500 Drum Assy, spin basket
17 131274600 Vane
18 131302800 Screw, 10-16AB x 0.375
19 # 131770600 Motor
20 131303500 Screw, hex washer head, 12-14AB x 1.50, motor mtg.
21 134146100 O-ring, tub
22 131462800 Shell, outer tub, rear, with bearing
23 134125900 Counterweight, drum rear
25 # 134051000 Belt, drive-V, 6-rib
26 131883400 Pulley, drum drive, large, rear
27 131304400 Washer, 0.41 x 1.50, 0.12 thick
28 131304500 Washer, lock, 3/8
29 131303700 Screw, pulley mtg., m10 x 0.92, metric
30 131268200 Shock Absorber, air, stabilizer
31 131268300 Pin, shock mtg.
32 131268100 Bracket, shock mtg.
33 134532200 Screw, 10-16AB x 0.500
35 134051100 Pump, drain
41 134044200 Coin Trap
42 131333101 Clamp
43 131277500 Chamber, air
44 131277600 Hose, air pressure
45 131306202 Clamp, hose
48 131306234 Clamp, pump to trap
49 134266500 Clamp, bellows/boot, 0.059 OD wire, spring held
* 134309800 Instructions, installation
* 134578300 Technical Data Sheet, wiring diagram
* 5995442570 Repair Parts List

417.24182301
08/05 8
WIRING DIAGRAM

417.24182301
# Functional Parts 9 08/05
* Non-Illustrated Parts
WIRING DIAGRAM

® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
MarcadeFábrica/
SM
MarcadeServiciodeSearsBrands,LLC
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC © Sears Brands, LLC
