Seasons Sentry UMB-956815 Guide

E
ITM. / ART. 1900675, 1237133, 1900766, 9636963
Model: # UMB-956815, UMB-956815OC
Assembly, Care & Use Manual
3.35 M / 11 FT Solar LED
Cantilever Umbrella
with Base
IMPORTANT: RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
ATLeisure, LLC
US Toll Free 1-855-880-7205 (English)
Canada Toll Free 1-888-692-1033 (French)
8:00am - 5:00pm, Monday through Friday, Eastern Standard Time
www.atleisure.com · Email: [email protected]
DO NOT RETURN TO STORE
For outdoor domestic use only. Not for commercial use.
Designed in USA
Made in China
For assistance with use, parts, or customer service, please contact:

2
Contents
Preparation ....................................2
Tools Required for Assembly (not included) ...........3
Hardware and Package Contents....................3
Assembly Instructions .......................... 4-6
Operation Instructions .......................... 6-8
Lighting Operation & Battery Replacement ............9
Battery Disposal...............................10
Care and Maintenance...........................10
Warning and Cautions ...........................10
Warranty .....................................11
Filing a Claim..................................11
Replacement Parts .............................12
E
Preparation
Before beginning product assembly, make sure all contents are present. Lay out all parts
on a clean, at surface. Compare parts with package contents list and diagram above. If
any part is missing or damaged, do not attempt to assemble product or return to place of
purchase. Contact our customer service toll free at 1-855-880-7205 (English) or 1-888-
692-1033 (French) for replacement parts or further instructions.
Estimated Assembly Time: 40 minutes
Tools Required for Assembly: Open-end wrench or adjustable wrench (not included)
C
GG
F
HH
D
N
EA
B
L
N1
M
G
G1
CAN
E2
JJ K

3

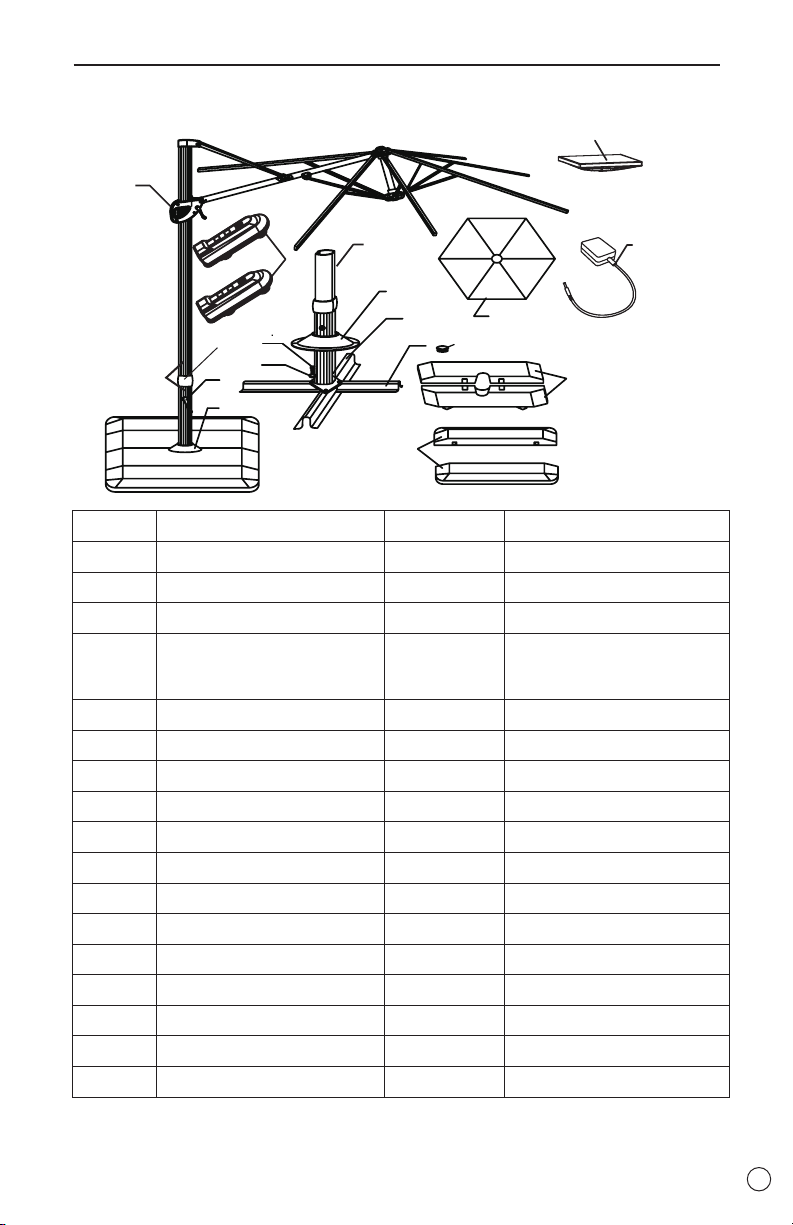

Hardware Contents
E
Part Picture Description Quantity
GG Outer Hex Bolt M10-1.5x20 A2-70 4
HH Flat Washer M10 A2-70 4
JJ Inner Hex Bolt M8 A2-70 2
KK Inner Hexagon Wrench M8 1
Picture Description Quantity
Adjustable Wrench 1
Tools Required for Assembly (not included)
Part Description Quantity
A Blow Molded Base Outside 2
B Blow Molded Base Inside 2
C Lower Cross Leg 1
CAN Canopy (on the umbrella frame) 1
D Upper Cross Leg 1
E360˚Crank Handle 1
E2 Canopy Crank Handle 1
F Holder Pole 1
G Battery 2
G1 Power Supply 1
K Pole Sleeve Collar 1
L Pole Support Cap 1
M Blow Molded Base Cap 4
N Umbrella Frame (with canopy) 1
N1 Solar Panel 1
Package Contents

4

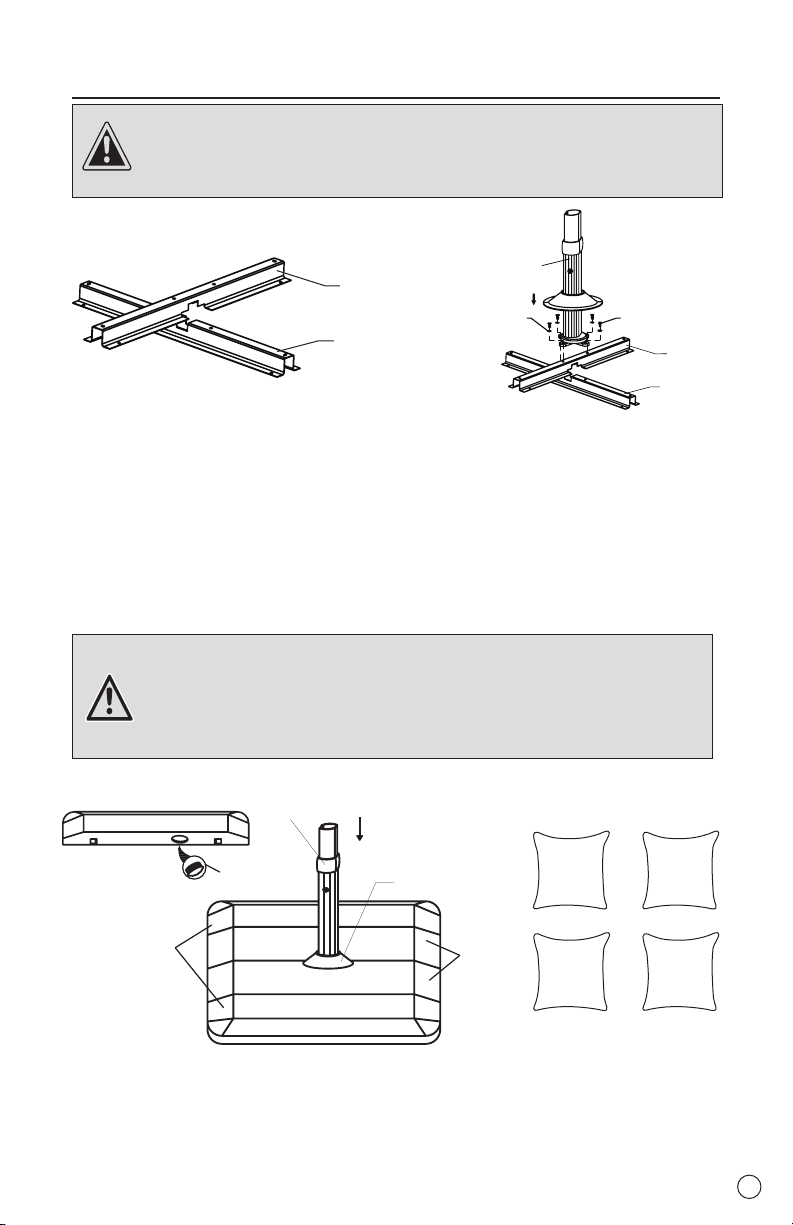

Step 3: Fill each base (A & B) with sand, cover with cap (M). Place pole support cup (L)
onto holder pole (F) and lay on top of blow molded base (B).
Step 1: Place lower cross leg (C) on
ground, line up notches and place upper
cross leg (D) over lower cross leg (C).
Assembly Instructions
Step 2: Attach holder pole (F) to base by
using bolts (GG) and washers (HH) (found
in blister pack). Be careful not to over
tighten. Adjust holder pole (F) to be sure
it is positioned correctly on base. Finally,
tighten with adjustabe wrench or open-
end wrench (not included).
CAUTION: Do not use sharp tools or equipment such as a knife or scissors when
removing the protective material, as it may damage the product. Be careful not to
throw away small parts such as bolts, washers, etc. that may be wrapped in the
protective materials.
E
D
C
F
HH GG
D
C
WARNING: Before opening umbrella, complete assembly as instructed in
manual. Fill each section of base with sand. Add WATER to wet the sand and
continue to fill each section with water up to top. Cover hole with cap. It is
recommended at least 91 kg (200 lbs) of weight be placed on cross legs to
ensure stability. Failure to do so will result in a weight imbalance and cause
umbrella to tip, causing damage and/or personal injury.
M
A
L
B
F
91 kg / 200 lbs
Sand (4 bags)
22.75 kg
50lbs 22.75 kg 50lbs
22.75 kg
50lbs
22.75 kg
50lbs

5
Assembly Instructions (cont.)
Step 4: Insert plug into socket under solar panel as shown above.
E
N1
Step 5. Put solar panel on top of umbrella and hide the plug and wire inside the
cavity at top. Then turn the solar panel clockwise. Do not over tighten.
Step 6: Remove battery (G) from accessories kit and place into the housing locat-
ed on the arm of the glide handle. Then put the solar umbrella in direct sunlight
outdoors to charge the solar panel for 8 hours before the first use.
MAKE SURE THE LED LIGHTS ARE OFF ON UMBRELLA TO ALLOW SOLAR PANEL
TO FULLY CHARGE BATTERY.
G

6
F
N

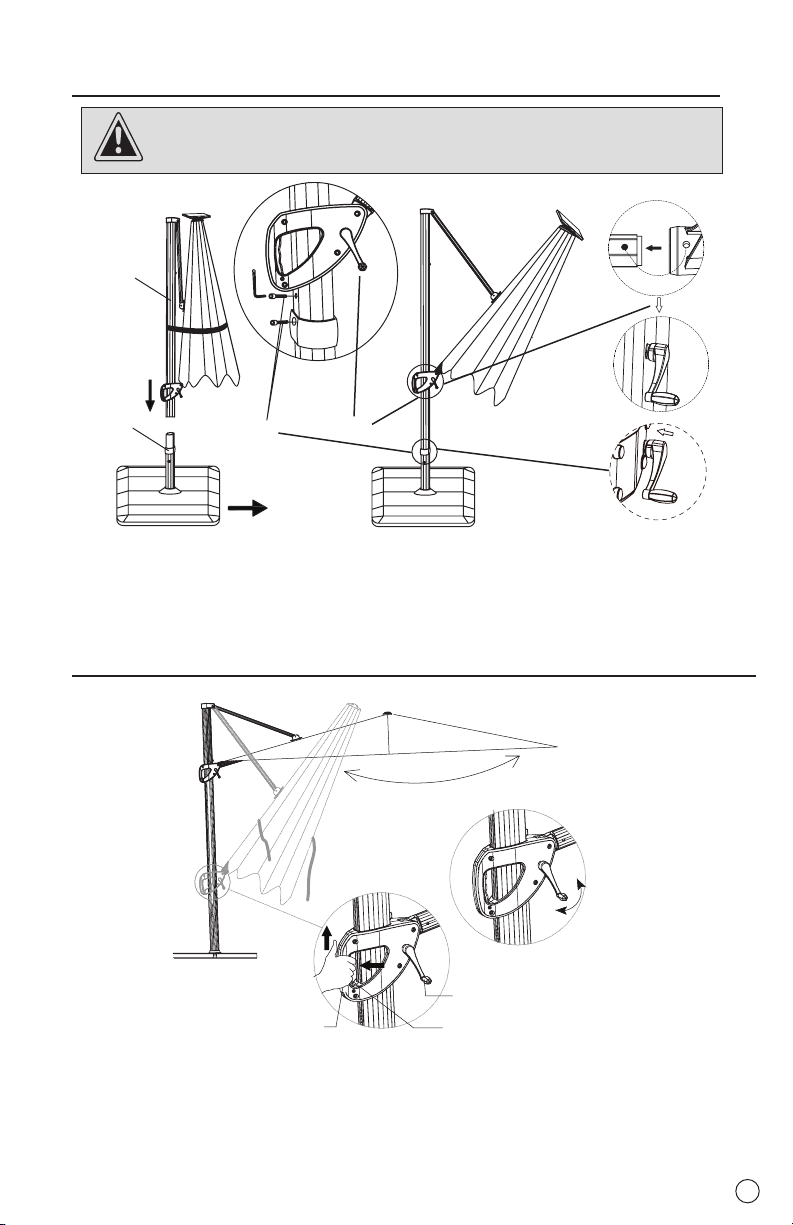

Assembly Instructions (cont.)
Step 7: Insert Umbrella Frame with Canopy (N) onto Holder Pole (F). At the same time,
slide holder pole collar onto holder pole. Tighten two Hex Bolts (JJ) into holder pole to
secure the umbrella using the hexagon wrench. Attach canopy crank handle (E2) onto
glide handle and 360˚crank handle (E) to pole.
E
CAUTION: An additional person is suggested to assist with inserting the
umbrella into the pole holder.
N
FJJ E2
Operation Instructions
Step 1: Unfasten storage straps around canopy and pole.
Step 2: To open umbrella, squeeze glide handle and grip together and slide up or down
pole to achieve desired tilting angle. Release grip to lock into place. To open canopy,
turn crank handle clockwise until canopy is fully open as pictured.
Close
Open
Crank
Glide Handle
Canopy open
Grip
E
E2
E

7E

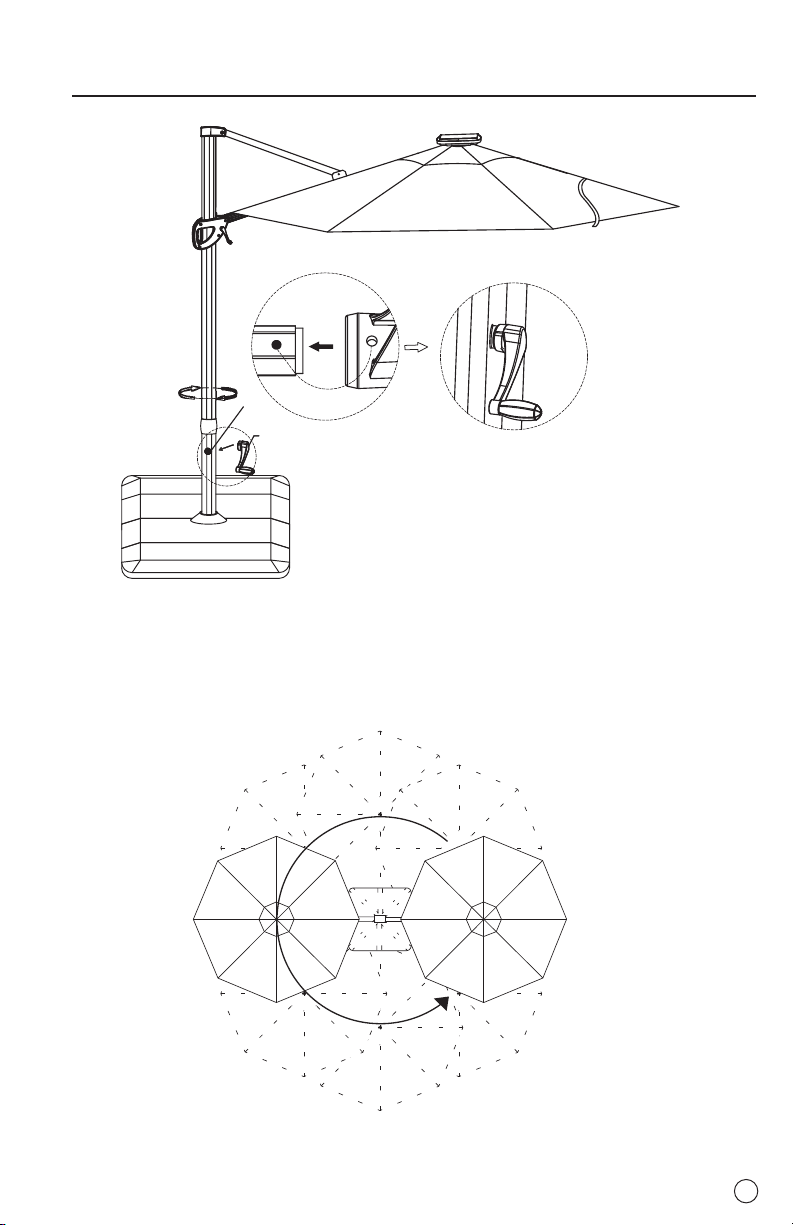

Operation Instructions (cont.)
Step 3: The canopy can be rotated 360˚. To rotate umbrella, insert crank handle (E)
onto holder pole (F) and turn the crank handle to the desired position.
E
F
360° E
Example of Canopy
Movement Using
360˚Rotation

8

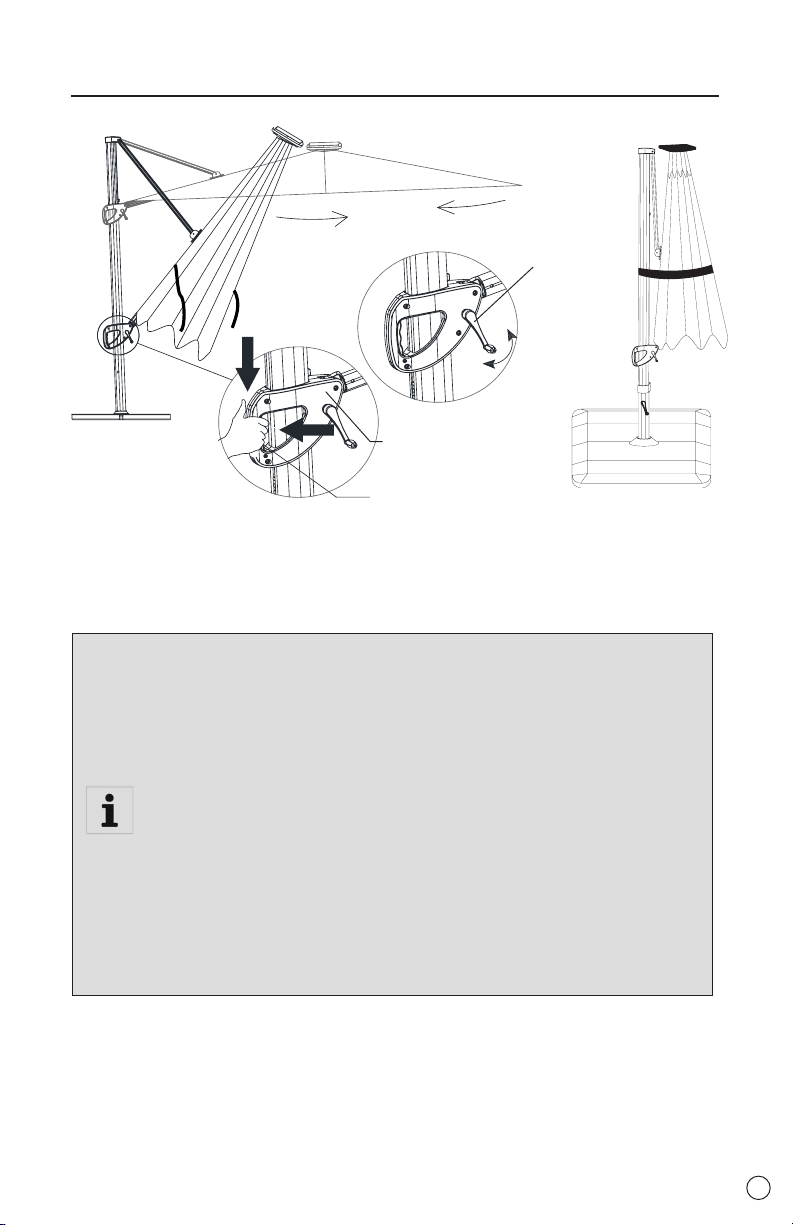

Operation Instructions (cont.)
L ever clamp
Open
Close
Glide Handle
Grip
Crank
Canopy Close
Step 4: To close umbrella, turn crank handle counter-clockwise until canopy is fully
closed. Squeeze glide handle and grip together, then slide it down pole and release grip
to lock it in place. Fasten storage straps around canopy and pole.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
E
-Consult the dealer or an experienced radio/TV technician for help.

9

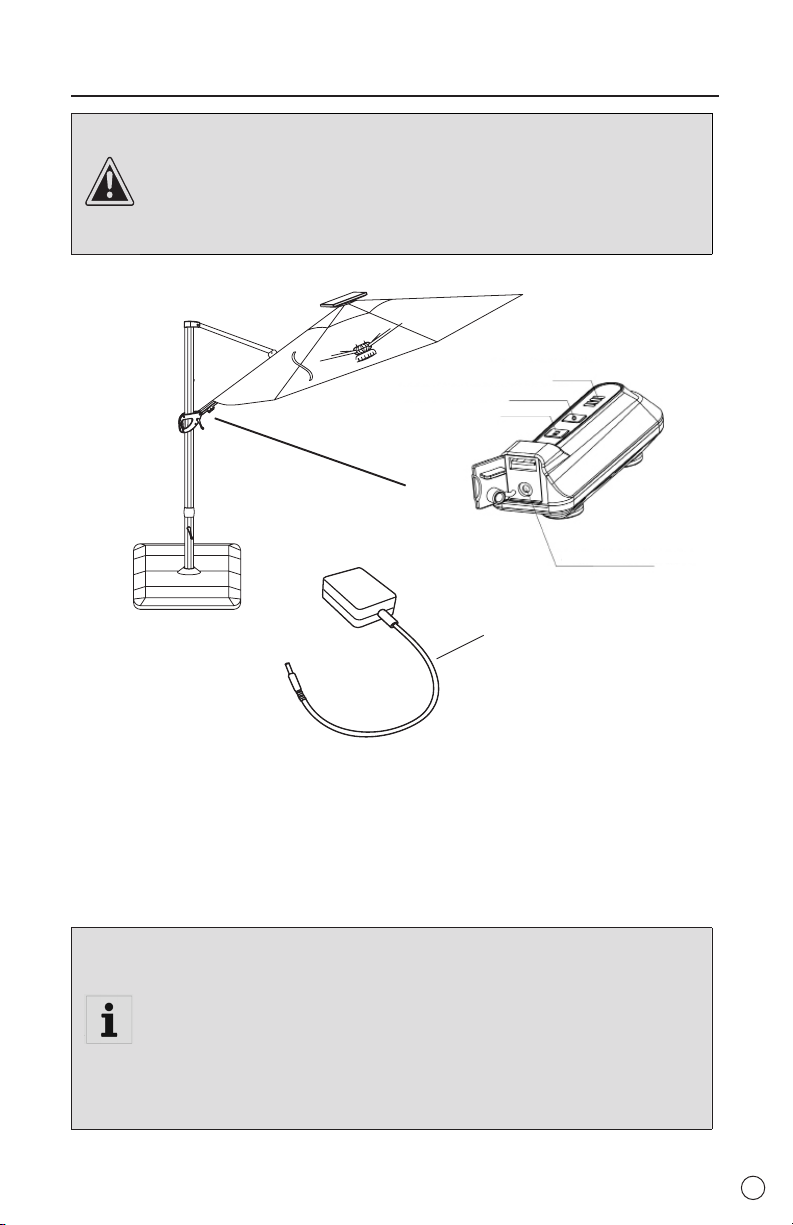

Power supply port for battery
Battery power meter
Battery power meter button
LED lights button (hub lights & rib lights)
Lighting Operation & Battery Replacement (cont.)
Step 1: Press light button to turn solar lights on and off. Press once to turn on rib
lights on and off. Press a second time to turn on hub light. Press a third time to turn on
both ribs and hub lights. Press a fourth time to turn off all lights. Umbrella is equipped
with 2 batteries. Remove battery from hub when the battery has drained. Replace bat-
tery once fully charged. When solar energy is insufcient, you can use the power supply
indoors to charge the battery. Charge level can be seen on battery power meter lights.
Power supply included
Input: 100-240V AC
Output: 5v DC
G1
INFORMATION: Battery is meant to be charged indoors. Leaving battery outside in
inclement weather will damage battery and power supply.
Battery charged after 3-4 hours using power supply or 6-8 hours of direct sunlight.
Battery life 6-8 hours when fully charged. Power supply is for indoor use only. Do not use
outdoors.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: YOU MUST CHARGE THE BATTERY BEFORE FIRST USE. Please note that battery
can lose charge if left unused or uncharged for a long period of time. Failure to charge the
battery will result in premature dimming of the lights in your new solar umbrella. Make sure
the light switch is in the off position when charging the solar panel. For everyday normal use,
turn light switch on at night when you want to use solar light and turn off switch after use.
MAKE SURE LIGHT SWITCH IS IN OFF POSITION DURING DAYTIME TO ALLOW THE SOLAR
PANEL TO CHARGE BATTERY.
E

10 E
Care and Maintenance
See the enclosed Sunbrella® care and cleaning label sewn into interior side of canopy.
Warning and Cautions
INFORMATION: Be sure to secure and/or weight the base of the umbrella.
INFORMATION: Close the umbrella and use the canopy storage straps when umbrella
is not in use. If the umbrella is stored off season in a box, the solar panel and battery pack
must be removed to avoid damage.
INFORMATION: Schematics in this manual are for assembly and operation illustration
only. They may differ from the umbrella’s actual appearance.
DANGER: Keep children out of the assembly area during assembly.
CAUTION: Assemble and use umbrella on at ground.
WARNING: Read all instructions before beginning and follow the steps outlined.
Failure to assemble and install as instructed could result in the umbrella tipping over
causing personal injury and/or property damage.
WARNING: Do not open umbrella in windy conditions, as it could be blown over and
cause personal injury or damage. To secure umbrella properly, either bolt it directly to
your deck or patio, or use a properly weighted umbrella base. Keep umbrella away from
glass tabletops during windy conditions to prevent breakage. Warranty does not cover
damage due to neglect, abuse or poor weather conditions.
CAUTION: Place the base in the desired location for use before filling. Once the base
is full, it will be harder to move
CAUTION: Before opening umbrella, insert the plug into the socket under the solar
panel. Put the solar panel at the top of umbrella and hide the plug and wire inside the
groove at the top of the umbrella. Then turn the solar panel clockwise. Do not over
tighten.
CAUTION: If leaving base out in winter months, it is recommended to add anti-freeze
to help prevent damage. When possible, bring umbrella indoors during the off season.
Battery Disposal
• Battery should be recycled or disposed of as per state and local guidelines.
• Do not open battery or try to replace battery by yourself.
• Do not dispose of batteries in re.
• Keep battery (batteries) out of reach of children

11 E
Warranty
This product is covered under a manufacturer’s 2-year warranty from date of purchase
against defects in materials and workmanship. This warranty does not cover damage
due to neglect, abuse or weather related damage. For full warranty disclosure, email
us at customerser[email protected], call toll free at 1-855-880-7205 (English) or
1-888-692-1033 (French) or send mail to:
Atleisure, LLC
Customer Service Dept.
1040 Boulevard SE Ste. B
Atlanta GA 30312.
NOT COVERED UNDER WARRANTY
This warranty excludes the following: acts of nature (i.e. wind, re or freezing);
damage caused by improper assembly, accident, disaster, misuse, abuse, or negli-
gence and discoloration or fading of the nish as a result of exposure to the elements.
Product not intended for commercial use. This warranty gives you specic rights, and
you may also have other rights which may vary from state to state.
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a major fail-
ure and compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of accept-
able quality and the failure does not amount to a major failure.
If you are within your warranty, you may le a claim by sending your receipt and
pictures of your damaged umbrella and send to ATLeisure at:
[e-mail]
or by mail to:
ATLeisure, LLC
Customer Service Dept.
1040 Boulevard SE Ste. B
Atlanta GA 30312
Filing a Claim
Made in China

12 E
Replacement Parts
For replacement parts, call our customer service department at 1-855-880-7205 (English)
or 1-888-692-1033 (French) 8:00am to 5:00pm., EST, Monday through Friday.
U.S. Patent No. 5,937,882, U.S. Patent No. 8,104,492, U.S. Patent No. 6,612,713, U.S.
Patent No. 7,753,546, U.S. Patent No. 8,069,868, U.S. Patent No. 8,375,966, U.S.
Patent No. 8,727,555, U.S. Patent No. 8,794,781
D
GG
HH
C
E
L
A
B
L
M
G
G1
CAN
N1
N2
F
JJ
K
Part Description Quantity Re-order No.
A Blow Molded Base Outside 2 BSE-ABMP-11-BWN-T-C2
B Blow Molded Base Inside 2 BSE-BBMP-11-BWN-T-C2
C Lower Cross Leg 1 CSL-C78RX-BWN-T-C2
CAN Canopy 1 CAN-1108RBS-T-T2-C2
CAN-1108RBS-T-N2-C2
CAN-1108RBS-T-R2-C2
D Upper Cross Leg 1 CSL-D78RX-BWN-T-C2
E360˚Crank Handle 1 CRK-E78RHP-BWN-T-C2
F Holder Pole 1 HDP-F78RX-BWN-T-C2
GBattery 2 SOL-G-RBP-11-T-C2
GG Bolts 4 HDW-JJ-T
G1 Power Supply 1 SOL-G1-CC-11-T-C2
HH Washers 4 HDW-GG-11-T
JJ Hex Bolts 2 HDW-HH-11-T
KPole Sleeve Collar 1 HDP-SLV-F78RX-BWN-T-C2
L Pole Support Cap 1 PSC-L78R-BWN-T-C2
M Blow Molded Base Cap 4 BSE-CAP-11-BWN-T-C2
N1 Solar Panel 1 SOL-P11-T-C2
N2 Canopy Crank 1 CRK-778RG-BWN-T-NS-C2

www.atleisure.com · Email: [email protected]
ATLANTA, GEORGIA, USA
US Toll Free 1-855-880-7205 (English)
Canada Toll Free 1-888-692-1033 (French)
8:00am-5:00pm, Monday to Friday, Eastern Standard Time
Distributed by :
Costco Wholesale Iceland ehf.
Kauptún 3-7, 201 Gardabaer
Iceland
www.costco.is
Distribué par :
Costco France
1 avenue de Bréhat
91140 Villebon-sur-Yvette
France
01 80 45 01 10
www.costco.fr
Importado por :
Costco Wholesale Spain S.L.U.
Polígono Empresarial Los Gavilanes
C/ Agustín de Betancourt, 17
28906 Getafe (Madrid) España
NIF: B86509460
900 111 155
www.costco.es
Imported by :
Costco Wholesale UK Ltd /
Costco Online UK Ltd
Hartspring Lane
Watford, Herts
WD25 8JS
United Kingdom
01923 213113
www.costco.co.uk
Distributed by:
Costco Wholesale Corporation
P.O. Box 34535
Seattle, WA 98124-1535
USA
1-800-774-2678
www.costco.com
Imported by / Importé par :
Costco Wholesale Canada Ltd.*
415 W. Hunt Club Road
Ottawa, Ontario
K2E 1C5, Canada
1-800-463-3783
www.costco.ca
*faisant affaire au Québec sous
le nom les Entrepôts Costco
Importado por :
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No. 4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
(55)-5246-5500
www.costco.com.mx
Imported by :
Costco Wholesale Australia Pty Ltd
17-21 Parramatta Road
Lidcombe NSW 2141
Australia
www.costco.com.au
Imported by :
Costco Wholesale Japan Ltd.
3-1-4 Ikegami-Shincho
Kawasaki-ku, Kawasaki-shi,
Kanagawa 210-0832 Japan
044-281-2600
www.costco.co.jp
Imported and Distributed by :
Costco Wholesale Korea, Ltd.
40, Iljik-ro
Gwangmyeong-si
Gyeonggi-do, 14347, Korea
1899-9900
www.costco.co.kr
Imported by / Manufactured for:
Costco PresidentTaiwan, Inc.
No. 656 Chung-Hwa 5th Road
Kaohsiung, Taiwan
CompanyTax ID: 96972798
449-9909 or 02-449-9909 (if cellphone)
www.costco.com.tw
Imported by and Distributed by:
Shanghai Minhang Costco Trading
Co., Ltd.
Unit 109, NO 388, Lian You Road
Minhang District, Shanghai
China 201107
[phone]

F
ART. 1900675, 1237133, 1900766, 9636963
No de modèle: # UMB-956815, UMB-956815OC
Manuel d’assemblage, d’entretien et d’utilisation
Parasol en porte-à-faux de
3,35 m (11 pi) avec pan-
neau solaire, éclairage à
DEL, et base
IMPORTANT : LIRE ATTENTIVEMENT ET CONSERVER
POUR CONSULTATION ULTÉRIEURE.
ATLeisure, LLC
Numéro sans frais (États-Unis) 1 855 880-7205 (en anglais)
Numéro sans frais (Canada) 1 888 692-1033 (en français)
De 8 h à 17 h (HE), du lundi au vendredi
www.atleisure.com · Courriel: [email protected]
NE PAS RETOURNER AU MAGASIN.
Pour usage extérieur domestique seulement. Non destiné à des fins
commerciales.
Conçu aux États-Unis
Fabriqué en Chine
Pour obtenir de l’aide concernant l’utilisation et les pièces ou pour joindre le service à la
clientèle :

15
Table des matières
Préparation ...................................15
Outils requis pour l’assemblage (non fournis) ........16
Quincaillerie et contenu de l’emballage .............16
Instructions d’assemblage .................... 17-19
Instructions d’utilisation ...................... 19-21
Utilisation de l’éclairage et remplacement de la batterie. . 22
Mise au rebut de la batterie ......................23
Entretien et nettoyage ...........................23
Mises en garde ................................23
Garantie ......................................24
Réclamation...................................24
Pièces de rechange .............................25
F
Préparation
Avant de commencer l’assemblage, s’assurer qu’il ne manque aucune pièce. Disposer
toutes les pièces sur une surface propre et plane, puis comparer le contenu de l’emballage
avec la liste des pièces et l’image ci-dessous. Si des pièces manquent ou sont endom-
magées, ne pas assembler le produit ni le retourner au magasin. Communiquer avec le ser-
vice à la clientèle au numéro sans frais 1-855-880-7205 (en anglais) ou 1-888-692-1033
(en français) pour obtenir des pièces de rechange ou de plus amples directives.
Temps d’assemblage estimé : 40 minutes
Outils requis pour l’assemblage : Clé à fourche réglable (non fournis)
C
GG
F
HH
D
N
EA
B
L
N1
M
G
G1
CAN
E2
JJ K

16
Quincaillerie
F
Pièce Image Description Quantité
GG Extérieur vis hexagonale M10, 1,5 x
20 mm, A2-70
4
HH Rondelle plate M10, A2-70 4
JJ Intérieur vis hexagonale M8, A2-70 2
KK Intérieur clé hexagonale M8 1
Image Description Quantité
Clé à molette 1
Outils requis pour l’assemblage (non fournis)
Pièce Description Quantité
A Cadre de la base moulée par soufage 2
B Intérieur de la base moulée par soufage 2
C Partie inférieure du pied en croix 1
CAN Toile (sur le châssis du parasol) 1
D Partie supérieure du pied en croix 1
E Manivelle pour rotation sur 360° 1
E2 Manivelle pour rotation de la toile 1
F Socle 1
G Batterie 2
G1 Bloc d’alimentation 1
K Socle collier 1
L Anneau de soutien 1
M Capuchon de la base moulée par soufage avec
joint torique
4
N Châssis du parasol (avec toile) 1
N1 Panneau solaire 1
Contenu de l’emballage

17
Étape 3 : Remplir chaque section de la base (A et B) de sable, puis boucher les trous
avec les capuchons (M). Glisser l’anneau de soutien (L) sur le socle (F) de sorte qu’il
repose sur la base (B).
Étape 1 : Placer la partie inférieure du pied
en croix (C) sur le sol, puis placer la partie
supérieure (D) par-dessus en alignant les
encoches.
Instructions d’assemblage
Étape 2 : Fixer le socle (F) à la base avec
les vis (GG) et les rondelles (HH) qui se
trouvent dans l’emballage-coque, mais
sans force excessive. Ajuster la position
du socle, puis serrer les vis avec une clé
à molette ou à fourche (non comprise).
ATTENTION : Pour éviter d’abîmer le produit, ne pas utiliser d’outils ou d’objets
tranchants tels qu’un couteau ou des ciseaux pour retirer le matériel de protection.
De plus, avant de jeter le matériel de protection, s’assurer qu’aucune petite pièce
comme les vis ou les rondelles ne s’y trouvent.
F
D
C
F
HH GG
D
C
AVERTISSEMENT : Avant d’ouvrir le parasol, l’assembler en suivant les
instructions du guide. Remplir chaque section de la base de sable. Y ajouter
de L’EAU pour imbiber le sable, puis pour remplir la base au complet. Fermer
à l’aide des capuchons. La base devrait peser au moins 91 kg (200 lb) pour
assurer la stabilité du parasol. Autrement, il y aura un déséquilibre, ce qui
fera renverser le parasol et pourrait causer des dommages et des blessures.
M
A
L
B
F
91 kg / 200 lbs
Sable (4 des sacs)
22.75 kg
50lbs 22.75 kg 50lbs
22.75 kg
50lbs
22.75 kg
50lbs

18
Instructions d’assemblage (suite)
Étape 4 : Brancher la che dans la prise sous le panneau solaire, comme illustré ci-dessus.
F
N1
Étape 5 : Placer le panneau solaire au sommet du parasol, puis dissimuler la che
et le l dans la cavité. Visser le panneau dans le sens horaire, sans trop serrer.
Étape 6 : Retirer la batterie (G) de la boîte d’accessoires. Placer la batterie dans
boîtier de batterie situé sur le bras de la poignée coulissante. Charger la batterie
en exposant le panneau solaire à la lumière du soleil pendant huit heures avant
la première utilisation.
ÉTEINDRE LES LUMIÈRES À DEL POUR QUE LE PANNEAU SOLAIRE RECHARGE
COMPLÈTEMENT LA BATTERIE.
G

19
Étape 4 : Brancher la che dans la prise sous le panneau solaire, comme illustré ci-dessus.
Instructions d’assemblage (suite)
Étape 7 : Insérer le châssis du parasol (N) dans le socle (F) tout en faisant glisser la
bague sur le mât. Visser les deux vis (JJ) avec la clé hexagonale dans le socle pour
xer le parasol. Fixer la poignée de la manivelle de la toile (E2) à la poignée coulissante
et manivelle pour rotation sur 360° (E) à socle.
F
MISE EN GARDE : Il est recommandé de demander l’aide d’une autre personne
pour insérer le parasol dans le socle.
Instructions d’utilisation
Étape 1 : Détacher les courroies de rangement entourant la toile.
Étape 2 : Étape 2 : Pour ouvrir le parasol, serrer la poignée coulissante et la prise
ensemble, puis les glisser à la hauteur donnant l’inclinaison désirée. Relâcher la prise
pour bloquer la position. Pour déployer la toile, tourner la manivelle dans le sens horaire
jusqu’à ce que la toile soit complètement ouverte, comme illustré.
Crank
Glide Handle Grip
Fermer
Ouvrir
Poignée coulissante
Manivelle
Prise
Toile ouverte
F
N
N
FJJ E2
E
E2
E

20 F
Instructions d’utilisation (suite)
Étape 3 : La toile peut pivoter sur 360°. Pour ce faire, insérer la manivelle (E) dans
le socle (F), puis tourner à la position désirée.
E
F
360° E
Exemple de rotation
sur 360° de la toile
