Seating Matters DENVER User manual

Instruction Manual
DENVER™

Version 2

CONTENTS
2. Safety Instructions
4. Technical Specification
5. Operating Instructions
9. Cleaning & Maintenance of Fabric
10. Recycling Policy
11. Intellectual Property
11. Maintenance and Servicing
This Instruction Manual is frequently updated to ensure safe use of your product. Visit
www.seatingmatters.com where you can find a free copy of the most up to date version.
DENVER ™ Instruction Manual 1

SAFETY INSTRUCTIONS
All instructions must be read and understood before the product
may be used.
Terminologies
Patient: The person sitting in the chair.
Care Giver: Competent person with responsibility for the persons sitting in the
chair as well as the suitability of the equipment for the Patient. The care giver is
responsible for checking the chair for faults during the course of its use.
The DENVER™ is CE marked to show conformance to the Medical Devices Directive
93/42/EEC and conforms to BS ISO 7176 at medium hazard.
Assembly, Installation, Warnings & Hazards.
1. This chair should be fully assembled, all fixings secured and the chair checked for
safety by a competent person before use.
2. The care giver must ensure that the product is in good condition before use (check
all nuts and bolts are fastened, fabric in good condition etc). If there are any
problems, these must be reported to your Seating Matters provider and corrected
before the chair is put into use.
3. Keep all body parts away from the mechanisms under the chair. Repairs and
maintenance should only be carried out by fully trained technicians.
4. Pressure ulcer or pressure injury reduction is not a guarantee with this equipment.
The care giver must ensure that the patient has a period out of the chair after
prolonged sitting to raise tissue oxygenation levels. Although the chair oers
pressure management, the body tissue still needs time to recover. In many places,
local or national guidelines recommend a maximum of 2 hours sitting at any one
time. You must also observe patient specific recommendations and guidelines as set
by their health professional with regard to the use of tilt and recline for appropriate
pressure management.
5. The product may not be left in an outdoor environment. More information on fabrics
and their environment can be found later in this manual (pg 10).
6. A competent person, trained in the use of the chair, should make adjustments and
2

set it up according to the care giver requirements and patient dimensions before
the patient sits in the chair. Where possible, adjustments should be made when the
patient is not in the chair to avoid injury to the care giver and patient.
7. Ensure there is more than one competent person there when making adjustments to
ensure they are correct and safe for the patient.
8. Under no circumstances must the care giver or patient stand or sit on the leg rest of
the chair.
9. This chair should not be moved whilst a patient is seated in the chair. Castors are for
chair transport only.
10. This product should not be lifted at any time unless by competent persons trained
in such manual handling.
11. When operating the leg rest and recline features on the chair please ensure there is
a 450mm gap around the chair to prevent the back or leg rest coming into contact
with a wall or any other object.
12. The chair needs to be plugged into a mains power outlet at all times in order to be
used.
Please call your Seating Matters provider or contact Seating Matters direct at
[e-mail] if you have any questions on these points.
DENVER ™ Instruction Manual 3

Motor Functions
Dual Motor Back Recline, Leg Rest Elevation &
Rise Function
Single Motor Fixed Back Angle, Leg Rest Elevation
& Rise Function
Seat Height
C
16"/400mm (3" Seat Cushion*)
18"/450mm (Standard)
20"/500mm (75mm Castors)
Basic Dimensions
AOverall height 43"/1090mm
BBack height 27"/690mm
DInside back width 20-24"/495-595mm
Seat Width
E (Seat width) F (Overall widths)
450mm/18in 28"/700mm
500mm/20in 30"/750mm
Seat Depth (Acheived by Adjusting Back Position)
IPosition A 18"/450mm
JPosition B 22"/550mm
Rise Angle
KRise Angle 35�
Tilt in Space Angle 20�
Overall Length
G32"/800mm
H23"/1600mm
DENVERTM
TECHNICAL SPECIFICATION
Chair weight unloaded is 10.56 Stone/57 Kg/125.6 lb.
Max user weight limit is 21.5 Stone/136.5 Kg/301 lb.
*Please note when adapting cushion thickness arm height will be
aected.
Contact [e-mail] for further information.
4

OPERATING INSTRUCTIONS
A competent person, trained in the use of the chair, should make adjustments and
set it up according to the care giver requirements and patient dimensions before the
patient sits in the chair. Ensure there is more than one competent person present when
making adjustments to ensure they are correct and safe. Ensure all fixings are secure
before allowing the person to sit in the chair, this includes lateral supports and seat
adjustments. Please call your Seating Matters provider if you have any questions on
these points.
• Braking Castors (20"/500mm Seat Height Only):
If the chair is used on a plane or hard surface with the brakes engaged to ensure
stability and to avoid the device moving undesirably during use. Braking castors,
where provided, must be in the braked position while in use.
• Back Angle Recline:
To recline the back of the chair, use the buttons on the handheld remote to move the
back of the chair slowly until it is in the required position. Exercise care in case of
injury to the patient or damage to the surrounding environment.
• Rise Function:
Using the handset adjust the seat angle to a desired position. The seat will rise which
will assist the patient to a standing position. The patient should be encouraged to use
their armrests during this elevation for stability and balance.
• Leg Elevation:
Using the handset, elevate the legrest to the desired position.
• Chair Movement:
To move the chair around, ensure the brakes are disengaged and push the chair in the
desired direction. Only a competent person should move this chair.
5

(fig.2)

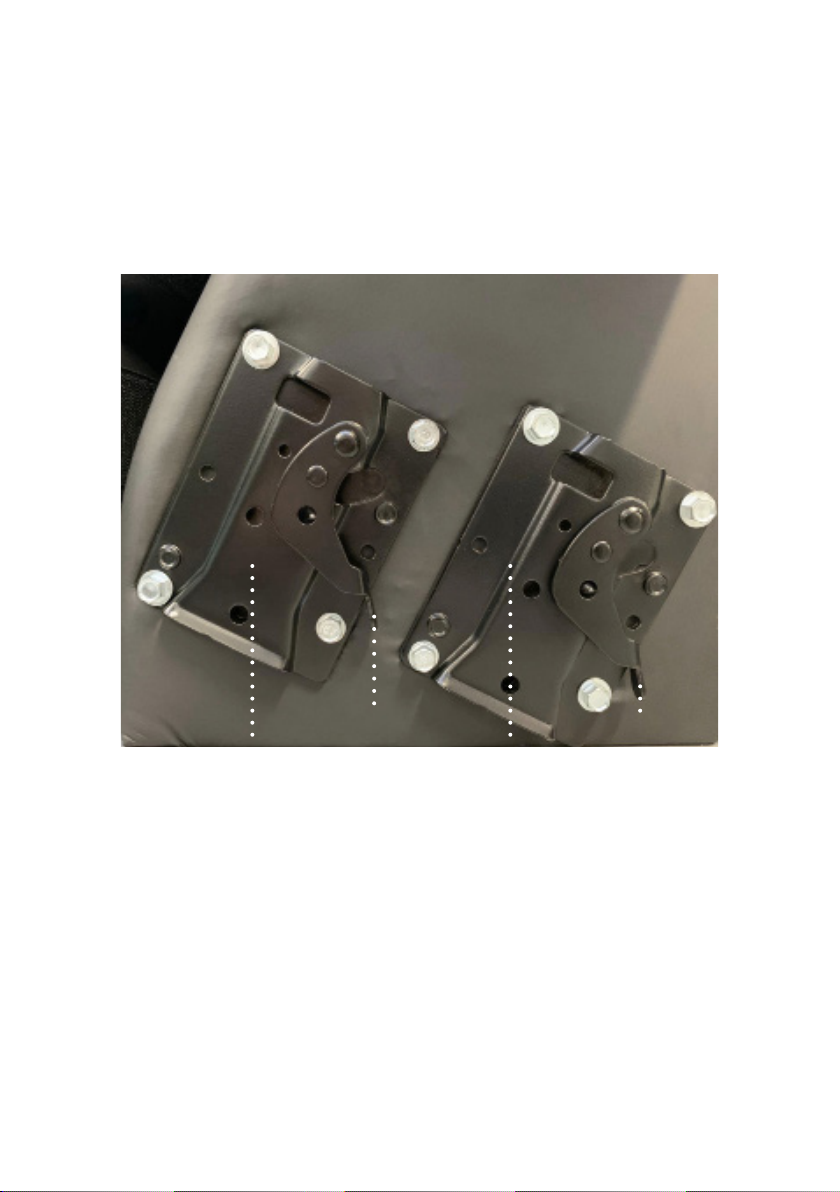

• Seat Depth Adjustment:
Changing the seat depth is achieved through moving the back position.
To adjust the seat depth stand at the back of the chair and lift the lock levers at the
base of the backrest. Lift the back from it's hinges. Place the back into the desired
postion (fig. 2). Position A is the standard position.
Please note: Do not attempt to adjust the seat depth while the patient is in the chair.
AB
Lock
Lever
Lock
Lever
6

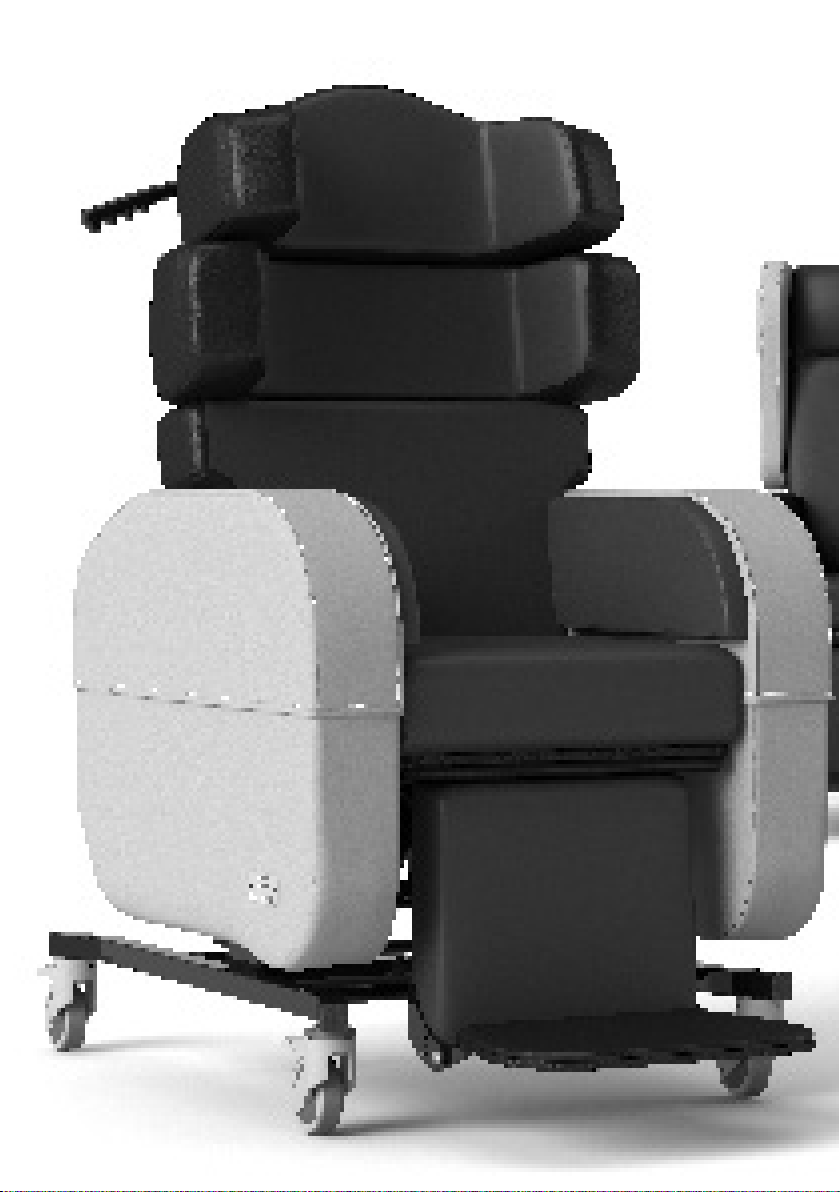

• Configurable Back Options (if requested):
Back cushions can be reconfigured to change from a horizontal position (fig 3.a) to a
vertical position (fig 3.b) using the velcro on the front of the backrest. (fig 3.c).
• Lateral Supports:
Lateral supports can be purchased seperately as additional side support. To add
lateral supports, insert the silver tube, with lateral pads to the front of the chair, into
the lateral support bracket on the backrest and tighten the wing screws. (fig 3.d).
(fig.3.c)
(fig.3.a) (fig.3.b)
(fig.3.d)
DENVER ™ Instruction Manual 7

• Stand Transfers:
Ensure transfer area is clear of hazards before allowing the patient to get on or o
the chair. Ensure the braking castors are engaged (20"/500mm seat height only) for
stability and safety. The back recline and rise angle must be in a safe position before
the patient can perform the stand transfer or engage the rise function.
• Rise Transfer:
Using the handset, adjust the back recline and seat angle to a desired position. The
seat will elevate which will assist the patient to a standing position. The patient should
be encouraged to use their armrests during this elevation for stability and balance.
• Handset:
The rise angle and back angle recline functions are controlled by the electric handset,
simply push the button to operate the corresponding function.
• Powering your chair:
The chair must be plugged into the mains at all times. In the case of a power outage,
there are two 9V batteries located in the control box for backup power. They are
not meant to be used for a prolonged period and the chair will operate slower when
powered soley by internal batteries.
Single Motor:
Leg Rest &
Rise Angle
Adjustment
Dual Motor:
Back Angle, Leg
Rest & Recline
Adjustment
8

CLEANING & MAINTENANCE OF FABRIC
Non-absorbent, anti-bacterial, flame retardant, strong, durable material for outer arms,
outside back etc.
Vinyl is resistant to urine, most household stains, mild acids/alkalis, drinks and
beverages as they are not absorbed by the vinyl and can be wiped o without any
problem or lasting damage. Some dicult substances such as lipstick, ball point
pen ink and food colourings should be cleaned o immediately to avoid permanent
staining.
• Cleaning:
To ensure proper cleaning and longevity of the fabrics, the chairs should be cleaned
with warm soapy water followed by a clean water rinse to help retain the attractive
appearance and durability. Heavy, ingrained soiling may be removed by scrubbing
with a soft brush. Strong detergents, solvent cleaners, polishes or patent chemical
cleaners should not be used as they are unnecessary and may cause embrittlement
and cracking of the material.
• Additional Care:
Special attention should be given to head rest and arm rest areas, as build-up of body
oils in these areas will gradually cause the vinyl to harden.
Dartex Multi Stretch Fabric (Patient Contact Surface)
Waterproof, stain resistant, flame retardant, multidirectional stretch fabric for direct
contact surfaces – i.e. seat cushion, calf pad, lateral supports and seat back.
• Properties:
This fabric is waterproof, can be wiped clean and has biostatic (anti-mycotic) coatings
to provide an impenetrable barrier to virus and bacteria. Superficial dirt may be
removed by wiping with a soft cloth, moistened with water, containing a neutral
detergent. More persistent contamination may be treated by wiping with alcohols
or turpentine substitute, followed by hot water and detergent. Routine cleaning
and disinfection in situ may be carried out on the coating with hand hot water and
a neutral detergent, or with a sodium hypochlorite solution (0.1% or 1000 parts per
million available chlorine). The material is compatible with the 10,000ppm available
chlorine in solution required for the decontamination of blood spills. Excess solution
must be removed and the surface thoroughly rinsed and dried prior to reuse or
storage. Proprietary disinfectants may be used, provided manufacturer's instructions
are followed. All cleaning agents, and disinfectants, must be thoroughly rinsed o
and the item dried before storage. Failure to do this may result in damage to the
polyurethane coating, react with the chair frame, or negate the biocompatibility
results of the fabric. It is essential that articles be thoroughly dried after all cleaning
procedures and before storage.
9

RECYCLING POLICY
Seating Matters are committed to reducing waste and improving our care for the
environment. We aimed to construct our chairs with as many recyclable materials as
possible that could be repurposed indefinitely.
The WEEE Directive
The WEEE Directive, 2012/19/EC, urges producers of Electrical and Electronic
Equipment (EEE) to provide information on how these products can be treated,
reused or recycled.
In order to comply with this directive in the European Union, Seating Matters
electrical components are marked with a crossed out wheelie bin. This indicates
that the electrical components should be treated in accordance with the WEEE
regulations after their useful life.
Advice on Recycling
• Your Seating Matters product may contain batteries which
should not be disposed of in household waste.
• Never dispose of the battery in a fire. This may cause an
explosion.
• The product may contain substances that could be harmful to
the environment.
• Electrical components must be taken to a proper recycling
facility.
• Your Seating Matters product contains component parts which
can be recycled.
• We thank you for being environmentally responsible and for making eorts to
recycle your Seating Matters product at the end of its’ safe and useful life.
• Contact your local authority or governmental agency for the regulations that apply
in your area.
• If you wish to have Seating Matters recycle your product and your behalf, you are
welcome to return the product to our company.
Plastic Components
Many of our plastic components are made from polypropylene and can
be recycled as long as they are recycled with other polypropylene resin
materials. Polypropylene sheets can be recycled with any other materials
that have this symbol.
Regional Variations
The device referred to as a "DENVER™ " is a Seating Matters product
category and the information included in this document reflects common
features of this group of products. In some regions of the world, we
supply product design variations of equivalent function and ease-of-use
but with alternative specifications or reinforcements.
DENVER ™ Instruction Manual 10

Seating Matters are at the forefront of seating research and design, therefore we
take the protection of our intellectual property very seriously and have our designs,
patents and trademarks protected in many jurisdictions throughout the world.
• The Seating Matters Trademark is registered throughout the European Union and
various countries globally.
• Patent Pending: No. GB1915470.7
• US Design Patent: No. 601360S, No. D611718; No. 600932, No. D602704S.
• Australian Design Registration: No. 325536, No. 324011, No. 325537, No. 324012.
• Community Design Registration: No. 001016364-002, No. 000942180-0004, No.
002428813-0001, No. 001016364-001, No. 012673018.
• Canadian Design Registration: No. 130224, No. 128763, No. 130217, No. 128764.
MAINTENANCE AND SERVICING
Regularly servicing your Seating Matters chair will prevent untimely and inconvenient
breakdowns, reduce repair costs and extend the chair's life. Damage to the chair can
also cause excess strain for the patient and care giver.
Important
Parts can only be changed by service persons trained in Seating Matters products and
use only Seating Matters parts. We recommend that your chair is serviced every year
by a Seating Matters approved provider for any running repairs and maintenance.
Maintenance
Carry out the following regular checks to ensure the operation and safety of the
chair. If you are in any doubt about the functioning of your chair contact your Seating
Matters approved provider immediately.
Daily
• Check that the castors are not damaged.
• Check that the castors turn freely.
• Make sure that the castor forks run free and are not bent.
• Check all fabrics for damage or contamination and replace where necessary.
*See cleaning and maintenance of fabrics section in manual for cleaning instructions
INTELLECTUAL PROPERTY
11

Weekly
• Check the castors fittings for hair and dirt etc. which could restrict the castor
movement.
• Pick out any such material with tweezers or take the spindle out, clean it and then
replace it.
• If it is still not free (one continuous turn without it sticking) contact your Seating
Matters approved provider for replacement.
Monthly
• Castors: Make sure the top of the castor housing is parallel with the floor. Any
variation will cause restricted movement. If it is damaged contact your Seating Matters
approved provider for replacement.
• Mechanisms: Check all tilting mechanisms are working smoothly, check that all nuts
and bolts are present and secure.
Please note: If nuts or bolts need attention, contact your Seating Matters approved
provider IMMEDIATELY and DO NOT use the chair until it has been serviced.
• Leg rests: Check that all leg rests are easily removed/swung-away and replaced or
repositioned easily. Ensure that parts lock in place securely. If parts are not locking
try lubricating. If the problem still remains contact your Seating Matters approved
provider.
• Frame: Check the visible parts of the frame for cracks, splits, large dents or other
damage. If you find any of these things do not use. Contact your Seating Matters
approved provider immediately.
WE ARE HERE TO HELP
For any questions or queries regarding your Seating Matters chair please contact:
[e-mail]
DENVER ™ Instruction Manual 12

WE ARE HERE TO HELP
For any questions or queries
regarding your Seating Matters
chair please contact:
[e-mail]

VIEW OUR FULL
RANGE OF CHAIRS
& ACCESSORIES
ONLINE.
WWW.SEATINGMATTERS.COM

Australia
9/256 New Line Road
Dural
NSW 2158
Australia
Tel: [phone]
[e-mail]
Canada
269 Maplegrove Rd
Colborne
ON, Canada
K0K 1S0
Tel: [phone]
[e-mail]
USA
300 International Drive
Suite 100
Bualo, NY 14221
USA
Tel: [phone]
[e-mail]
www.seatingmatters.com
UK & Europe
131 Carnamu Road
Limavady
Northern Ireland
BT49 9JG
Tel: [phone]
Tel: [phone]
[e-mail]
