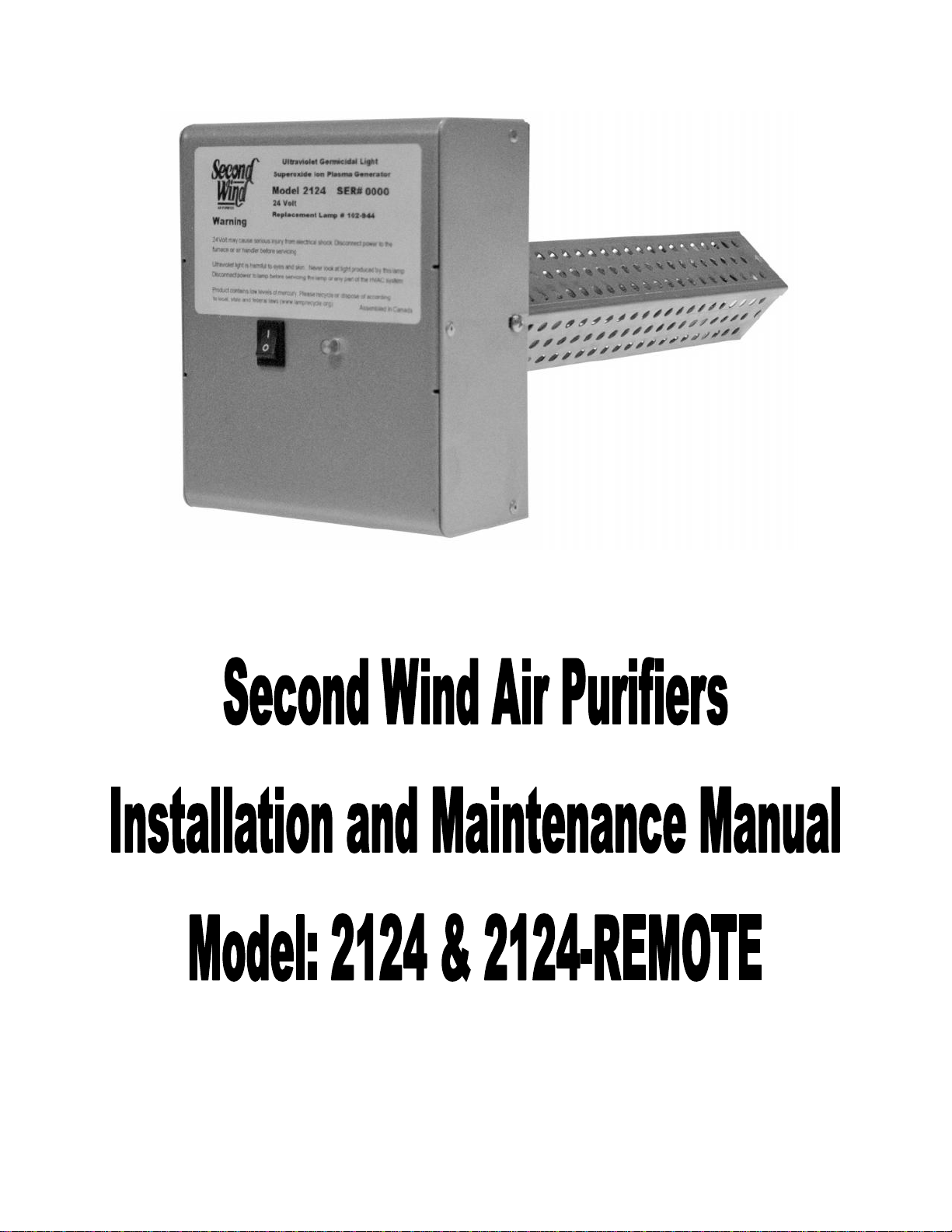

Second Wind 2124 Manual

Revision: D Issued 04/15/2013
Model 2124

2
Product 2
Safety Procedures 2
Mounting Location 3
Tools 3
Installation 4,5
Lamp Replacement/Disposal
And Parts List 6
Troubleshooting
Warranty
7
7 & 8
Index: Page
WARNING
Ultraviolet (UV) light can be harmful to eyes and skin,
causing loss of sight and sunburn. When installing, do
not put unit in an area that allows the UV lamp to be
visible . Turn off electrical service before servicing
unit.
Electrical shock hazard from 24Volt or 120/277 VAC
may cause serious injury or death. Disconnect power
before starting installation or maintenance.
Each UV lamp contains a small amount of mercury. In
case of breakage use proper disposal techniques.
(pg.6)
Wear protective gloves and safety glasses when han-
dling lamp. To prevent injury, unplug lamp connector
and allow to cool for 10 minutes before servicing.
CAUTION
1. Ultraviolet (UV) light can cause color shift or
surface degradation and sometimes structural deg-
radation of non-metallic components. Select
mounting location that prevents exposure to plas-
tic flexible duct components, polyurethane foam
insulation material, rubber hoses, wire insulation,
etc. If mounting options are limited, items above
should be protected with ultraviolet resistant ma-
terial such as aluminum foil, aluminum duct tape,
or metallic shields.
2. Ultraviolet lamps
Do not install lamp inside coil.
Do not install lamp below any water source.
Failure to remove fingerprints from lamp could
shorten lifespan. (clean with denatured alcohol)
Dispose of broken and replacement lamps at your
local waste management office. For information
on local disposal laws refer to
www.lamprecycle.org
Please read all instructions carefully to help ensure a correct and SAFE installation of your Second Wind Ultravio-
let Germicidal Air Purifier. Failure to do so could damage the equipment or cause harm to yourself or others. Only
qualified Heating Ventilation and Air Conditioning (HVAC) technicians should perform the installation.
READ ALLWARNINGS AND CAUTIONS
All Second Wind Air Purifiers are designed to for use in
Heating and Air Conditioning air handling units. Second
Wind air purifiers use ultraviolet germicidal light at a fre-
quency of 254 nanometers to disinfect biological growth in
return or supply air stream . Some key features of the 2124
& 2124-REMOTE model purifier are:
Lamp lengths (14 inches)
24 VAC power supply
Improves efficiency, reduces maintenance
High intensity lamps
Over 16,000 hours lamp expectancy
Lifetime unit warranty
Lifetime ballast warranty
1 year lamp warranty

3
1. Install the lamp where you have easy access.
2. Make sure before drilling into equipment that there is nothing in the way that would be damaged.
3. The lamp should be installed a minimum of 2-3 inches, maximum 36 inches away from the coil or pan
surface.
4. When looking for a mounting location, try to install the unit away from non UV resistant plastics, rubber,
and other non metallic materials. Shield these components using sheet metal, aluminum tape, or metal con-
duit (see page 2, CAUTION notes)
5. 2124 REMOTE unit can be mounted in secure location within 4-5ft of predetermined lamp location. Lamp
leads can reach approximately 5ft from chassis mount location. Measure and check mount location for chas-
sis and lamp before securing in place
Electric Drill
Phillips screwdriver
2-3/4”-3” hole cutter
1/8” drill bit
Eye protection
Marker
Installation Template
Tape measure
Aluminum tape and sealant
Nut driver, 8/32 & 5/16”
Multimeter
Tinsnips

4
Lamp hole Wingnut Enclosure
Screw
Lamp Module separate from
Chassis in 2124-REMOTE
Lamp leads extend from top
of chassis

5
1 Mark mounting hole locations with Ø1/8” drill tip or market on mounting surface. Drill
Ø1/8” holes in mount locations.
2 For 2124 Model Only. Trace location of lamp cutout opening. OPTION: If you will not be
using a hole saw, punch Ø1/2” hole in center of lamp cutout opening.
For 2124-REMOTE Model -go to step 4
3 Cut Lamp hole with 2-3/4 to 3” diameter hole saw. OPTION: if you are not using a hole
saw, trace Ø3” circle as shown (Fig 2) on template on intended mount surface. Cut-out
Rectangular shape with tinsnips.
4 Unscrew enclosure screw from chassis and open. Remove adhesive from back of enclo-
sure (if present) and position over mounting holes on already drilled. Press unit against
mounting surface and secure with self tapping screws provided.
5 Carefully install system into prepared hole saw or tinsnip cutout (2124 model only).
6 Ensure that the unit base fully contacts the mounting location.
7 2124-REMOTE unit only -position UVC Lamp/PCO Module in position above coil as
desired with magnets. Install lamp connector from chassis to 4-pin lamp end of UVC
Lamp/PCO Module. Install LED lens provided in hardware kit so lamp operation is visible
from outside of air handler
8. Close the cover of chassis and secure.
9. With the power switch in the off position, connect the 2124 purifier to 24 volt power
supply. Turn the switch to the on position for 2124 Models.
10 The air purifier is designed to remain on continuously with the fan of the HVAC system
running also. If lamp is operating, the sight glass will illuminate. If it is not refer to the
troubleshooting section of this manual.
Installation should be done by a qualified HVAC contractor.
Read all safety instructions (Page 2) at the beginning of this manual.
Make sure unit is installed so that the UV light can not be seen directly through any ducts.
See Page 4 for Installation Photographs and Figures

6
The Second Wind 2124 Model Air Ultraviolet Germicidal Lamp is designed for 16,000 hours of continuous opera-
tion. After 16,000 hours intensity of the lamp inside the duct diminishes and should be replaced. Even if the lamp
is still illuminated, replacement of the lamp is recommended by a qualified HVAC Service Technician.
The installation should be done by a
qualified HVAC contractor.
1. Disconnect or turn off electrical service
2. Remove cover.
3. Disconnect the lamp connector from the
lamp base.
4. Unscrew the nut for the lamp bracket and
remove old lamp ( Be careful old lamp
may still be hot ! ).
5. Replace the old lamp with the new lamp,
making sure the new lamp is clean. Re-
move fingerprints and dirt with an alcohol
wipe before installing in PCO module.
6. Ensure ceramic end of lamp opposite con-
nector pins securely rest in grommet end
of PCO module. Secure lamp to unit with
supplied 8-32 wing nut (Fig 4).
7. Attach lamp connector to the lamp base.
8. Close enclosure cover and screw tight.
9. Turn on electrical service.
UV lamps contain mercury like other household lamps and must be disposed of properly. State requirements and
recycling opportunities vary, go to www.lamprecycle.org for State Regulations & Contacts. Please contact
your county waste collection department for proper disposal details.
USE GLOVES AND EYE PROTECTION
If a lamp is broken, do not use a vacuum cleaner to pick up the waste . Instead, sweep up the waste into a plastic
bag and seal. Contact your county waste collection department for proper disposal details.
14” SIPT replacement lamp ….. …..102-944
Ballast replacement……….………..2414EL-R (2124)
2414L-R (2124 REMOTE)
Duct Board Kit f/ 2124……………..102-945
Lamp Connector……………….……102-411

7
If the unit does not work, check the following:
Electrical Supply/Wiring—Verify that the electrical
service is operating correctly.
Ballast—If lamp still is not illuminating check the wir-
ing to the ballast. If the ballast is wired properly and the
lamp still does not illuminate, replace the ballast. With a
fully electronic ballast there is no resistance testing.
Lamp—Verify that the lamp is not broken and is
properly seated in the lamp connector. To check this,
follow steps in the ’Lamp Replacement’ section with
one exception : you should not remove and replace the
lamp. If the lamp still does not light, rotate the lamp
connector 180°, re-attach to lamp., close cover and turn
power back on. If the lamp is broken read the ‘Lamp
Disposal’ section of this manual.
This Second Wind Model 2124/2124-REMOTE 24volt Air Purification systems that is
attached to your Heating, Ventilation and Air Conditioning System (HVAC) has a Limited
Lifetime unit warranty. Units must be registered through
www.secondwindairpurifier.com or contact Customer Service at 800-387-4565 to reg-
ister your product. Unregistered products will not receive warranty consideration.
ONE (1) YEAR COVERAGE LAMPS AND LIFETIME COVERAGE BALLAST
The lamps are warranted by Second Wind for a period of one (1) year from the date of the
original installation. The ballast is warranted for the lifetime of the product when the unit is
installed. Ballast warranty is not valid if unit is removed from original air handling system.
This is effective only when installed and operated in accordance with Second Wind guide-
lines. If during these periods listed a lamp or ballast fails, Second Wind will provide a free
replacement. You must pay shipping charges and all other costs of warranty service. Sec-
ond Wind will not pay labor involved in diagnostic calls or in removing, servicing, or
replacing parts. Second Wind recommends replacement of the UV lamp every 9,000 hours,
the intensity of the lamps will diminish over time.
LIFETIME COVERAGE UNIT
The covered equipment and covered components are warranted by Second Wind for a Life-
time from the date of the original unit installation, when installed and operated in
accordance with Second Wind recommendations. If during this period a covered component
fails,Second Wind will repair or replace the part. You must pay shipping charges and all
other costs of warranty service. Second Wind will not pay labor involved in diagnostic calls
or in removing, servicing, or replacing parts.
REPAIRS
All repairs of covered components must be made with authorized service parts. Labor
charges resulting from diagnostic calls or service are not covered by this warranty.
CARE OF EQUIPMENT
Your new Second Wind Purifier must be properly installed, operated and maintained in
accordance with the unit installation, operation, and maintenance instructions provided with
each unit. Failure to provide maintenance per Second Wind instructions will void warranty.

8
If you intend to submit a warranty request to Second Wind Air Purifiers, please be follow
the instructions below and be prepared to furnish the following information:
1 a-Complete model number and serial number
b-Proof of installation date if warranty claim is made by other than a qualified
service dealer who maintains records of your installation date and service history.
c-An accurate description of the problem.
d-Date of failure.
2 Call the installing dealer that you purchased your unit from.
3 If the installing dealer is unable to provide warranty parts, contact:
Call, write, fax or e-mail: Second Wind Air Purifiers
255 Great Arrow Avenue
Unit 20C
Buffalo, NY 14207
1-800-387-4565 PHONE
716-875-5751 FAX
[email protected] E-Mail
WARRANTY LIMITATIONS
This warranty will be voided if the covered equipment (only Second Wind replacement
parts or units are warranted) is removed from the original installation site. This warranty
does not cover damage or defect resulting from:
1 Accident, neglect or unreasonable use or operation of the equipment, including operation of
electrical equipment at voltages other than the range specified on the unit name plate.
2 Modification, change or alteration of the equipment, except as directed by Second Wind Air
Purifiers The furnishings of replacement parts under terms of this warranty will apply to the
original warranty period and will not extend the warranty.
Second Wind Air Purifiers makes no express warranties other than the warranty specified
above. All implied warranties, including the implied warranty of merchantability and fitness
for a particular purpose, are limited to the duration of the warranty specified above. Liability
for incidental and consequential damages is excluded and is not covered by this warranty.
Some States do not allow limitations on the duration of an implied warranty or the exclusion
or limitation of incidental or consequential damages, so the limitations or exclusions may not
apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Second Wind Air Purifiers shall not be liable for any default or delay in performance under this
warranty caused by any contingency beyond their control.
