Security Chimneys International BIS Tradition CE User manual

Installation and Operating
Instructions
This installation manual will help you
obtain a safe, efficient, dependable
installation for your fireplace and
chimney system. Please read and
understand these installation instructions
before beginning your installation.
CAUTION Do not attempt to modify or
alter the construction of the fireplace or
its components. Any modification or
alteration of construction may void the
warranty, listings and approvals of this
system. In that case, Security Chimneys
International Ltd will not be responsible
for damages. Install the fireplace only as
described in these instructions.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
WARNING The fireplace cannot be
operated without a door. Consult your
dealer to select the correct door model of
your choice.
This fireplace is also certified for use in
mobile or manufactured homes
2125 Monterey St., Laval, Quebec, Canada, H7L 3T6
Printed in Canada Rev. 07 July 2009 PIBISTRADCE
•
Hot! Do not touch! The glass
and surfaces of this appliance
will be hot during operation and
will retain heat for a while after
shutting off the appliance.
Severe burn may result.
•Carefully supervise children in
the same room as appliance.
•
If small children are present in the home, it
is recommended that this appliance be used
with a fire screen kit. See page 35 for
ordering information.
Listed to standards
ULC-S610,UL-127
Report # 3074084
TM

ii
TABLE OF CONTENTS
Page
1. SAFETY RULES and Specifications for Mobile or Manufactured Homes Installation .. 1
2. CERTIFICATION LABEL ................................................................................ 2
3. THE FIREPLACE ............................................................................................... 3
3.1 INTRODUCTION .................................................................................................................. 3
3.1.1 Parts Required
3.1.2 Additional Equipment (optional)
3.2 OPERATING THE BIS TRADITION™ CE ........................................................................ 4
3.2.1 Fuel
3.2.2 First Fires
3.2.3 Building a Fire
3.2.4 Primary Air and Air Boost Controls
3.2.5 Accelerated Combustion
3.2.6 Medium Combustion
3.2.7 Slow Combustion
3.2.8 Refuelling For Best Performance
3.2.9 Smoking – Causes and Troubleshooting
3.3 MAINTAINING YOUR BIS TRADITION CE ..................................................................... 8
3.3.1 Creosote
3.3.2 Chimney Maintenance
3.3.3 Top Baffle Removal Prior to Cleaning The Chimney
3.3.4 Dealing with a Chimney Fire
3.3.5 Finish Door Casing Care
3.3.6 Ashes
3.3.7 Refractory Installation
3.3.8 Door Installation
3.3.9 Door Adjustment
3.3.10 Glass Care – Replacement
3.3.11 Glass Care – Cleaning
3.3.12 Gasket Replacement
3.4 FIREPLACE INSTALLATION ............................................................................................ 12
3.4.1 Locating The BIS TRADITION CE
3.4.2 Hearth Extension Requirements
3.4.3 Framing, Facing And Mantel
3.5 HOT AIR DUCTING INSTALLATION .............................................................................. 18
3.5.1 Gravity Kit
3.5.2 Central Forced Air Kit
3.6 OUTSIDE AIR KIT ............................................................................................................... 22
3.6.1 Outside Air Kit Installation
4. THE CHIMNEY .................................................................................................... 23
4.1 CHIMNEY INSTALLATION NOTES ................................................................................. 23
4.2 CHIMNEY INSTALLATION INSTRUCTIONS ................................................................. 24
4.3 OFFSET CHIMNEY INSTALLATION .............................................................................. 27
4.4 ANGLED WALL RADIATION SHIELD ............................................................................ 30
4.5 CHIMNEY SUPPORTS INSTALLATION .......................................................................... 31
4.6 MULTIPLE TERMINATIONS ............................................................................................ 31
4.7 CHIMNEY ADAPTOR (S 2100+ / HT6000+) ...................................................................... 32
4.8 INSTALLATION INSTRUCTIONS FOR MASONRY APPLICATION ............................ 33
. PARTS AND COMPONENTS LIST ................................................................. 34
6. OPTIONS ............................................................................................................. 3
7. APPENDIX (Specifications, Clearances, Replacement Parts) ......................... 36

1
1. SAFETY RULES FOR OPERATING YOUR
FIREPLACE MODEL BIS TRADITION
TM
CE
•Use only a Security Fireplace glass door, specifically designed for the model BIS
TRADITION CE fireplace.
•When cleaning the fireplace, the ashes should be placed in a metal container with a tight
fitting lid. The closed container of ashes should be placed on a non-combustible floor or
on the ground outside the house, pending final disposal. If the ashes are disposed of by
burial in soil or otherwise locally dispersed, they should be retained in the closed
container until all cinders have thoroughly cooled.
•When installed in a mobile or manufactured home:
•Mobile or manufactured home installations must be installed in accordance with
the requirements of the Department of Housing and Urban Development (HUD)
“Mobile Home Construction and Safety standards” for US or Canada Mortgage
and Housing Corporation (CMHC) for Canada.
•The fireplace must be fastened to the floor by unfolding and screwing the small
tabs on both sides at the bottom of the fireplace.
•It is necessary to have access openings, for inspection purpose only, into built-in
enclosures surrounding the fireplace installation. Such openings to require a
household tool for access.
•The vapor barrier of the mobile home shall be as close as possible of the location
where the chimney assembly penetrates the ceiling and roof structure with no
interference to the required clearance to combustible material.
•When the mobile or manufactured home has a flat roof, the Attic Radiation Shield
must be installed from below going through the roof (See figures 28a & 29a).
•Warning Do not install in a sleeping room.
Warning: The fireplace must be operated with the door fully opened or fully closed. If the door
is left partly opened, smoke may be drawn into the room. If the unit is operated with
the door fully opened, the optional firescreen must be used.
Warning: To avoid the risk of damaging fireplace materials and increasing the risk of
fire, do not use the fireplace to cook or warm food.
Caution: Never use gasoline, kerosene, charcoal lighter fluid or similar liquids to start
or rekindle a fire in this fireplace. Keep all such liquids well away from the
fireplace at all times.
Caution: Keep combustible materials at least 48 inches away from the front of the
fireplace opening. Use special care when choosing the window treatments.
Caution: Never leave children unattended when there is a fire burning in the fireplace.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED OR
VENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO
NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS FIREPLACE.
WARNING: The Bis Tradition
TM
CE fireplace must be installed with a outside air kit
intake, which is included with the fireplace. Always ensure that the air inlet is
free of debris or any other obstruction that can block the entrance of air.

2
2. CERTIFICATION LABEL

3
3. THE FIREPLACE
3.1 INTRODUCTION
The BIS TRADITION
TM
CE fireplace is an energy efficient, heat circulating, close
combustion fireplace. You will receive a lifetime of comfort and enjoyment from your
fireplace provided it is installed, maintained and operated properly.
•Please read these instructions and retain this manual for future reference.
•Before beginning the fireplace installation, consult the local authorities to obtain your
building permit and check your local building codes. Install the fireplace only as
described in these instructions and using only Security Chimneys International (CSIL)
components.
•The BIS TRADITION CE is NOT intended for use with a gas log set. Do not use a
fireplace insert or any other product with this fireplace unless it is specified by CSIL. For
use with this appliance. Failure to follow these instructions will void the certification
and the warranty of the fireplace and may result in an unsafe installation.
•These appliances are design to provide supplemental heat to the immediate area only.
Therefore, it is advisable to have an alternate heat source when installed in a dwelling.
3.1.1 Parts Required
•Fireplace model BIS TRADITION CE
•Door
•Front facade kit
•UZY5 blower (included in the fireplace)
•VRUW blower speed control (included)
•Outside air kit (included with the fireplace)
•6" diameter chimney model ASHT+, S-2100+, HT6000+, HT6103+ or AC
manufactured by Security Chimneys International only, including
- Chimney lengths
- Elbows (where necessary)
- Associated components as per these installation instructions
3.1.2 Additional Equipment (optional)
•5" flexible venting system (central forced air kit- Not EPA certified)
•Gravity venting system
•Rigid firescreen

4
3.2 OPERATING THE BIS TRADITION CE
TM
3.2.1 Fuel
The BIS TRADITION CE fireplace is designed to work best when fuelled with seasoned
cordwood. Hardwoods are preferred to softwoods since the energy content of wood is
relative to its density. Hardwoods will result in a longer burning fire and less frequent
refuelling. A moisture content of 15% to 20% (seasoned) is recommended. Wood that has
been cut and split and let to dry under a cover for a period of one year will usually meet that
criteria. Excessively wet wood will be difficult to burn and will result in lower efficiency,
increased creosoting and deposits on the glass and in the chimney. Excessively dry wood
will burn well but will also have higher emissions and shorter burning time.
Do not burn scrap or garbage, treated wood or wood such as driftwood from the ocean which
has been exposed to salt or other chemicals. Salt or chemicals can corrode the firebox and
chimney. Do not burn large amounts of paper, cardboard, Christmas tree branches or
building construction materials. Intense firing with these materials may overheat the
fireplace, causing damage to the unit, a fire or even possibly igniting a chimney fire if the
chimney is creosoted.
3.2.2 First Fires
Before using the fireplace make sure to remove the plastic wrapping on the door. Remove all
remaining glue with mild soap.
The first or 6 fires should be small fires of short duration (about 30 to 60 minutes).
This will help cure the refractory bricks. The first fires may produce slight smoking due to
drying of the paint and steel and any dust accumulated on the fireplace will burn off at this
time. It may set off a smoke alarm located in the same room. For this reason the room
should be well ventilated for the first few fires.
3.2.3 Building a Fire
To start a fire, place several crumpled up balls of newspaper in the firebox. Place small dry
pieces of kindling on top of the paper, criss-crossing the kindling so that there are air spaces
in between. Keep the fuel far back enough so that air can get underneath. Open the air
controls fully and light the newspaper. Once the newspaper and the kindling is well ignited,
close the door. Once the kindling fire is well established, cordwood can be added. (see
Primary Air Combustion Control section for proper operation of the air controls)
The unit will burn best with 2-3 pieces of cordwood spaced 1 to 2 inches apart and allowing
air to get under the fuel. Criss-crossing or arranging the fuel so that air can get underneath,
will help the fire to get started easily. The unit should be operated with the air control fully
open long enough to get the cordwood well ignited.

5
3.2.4 Primary Air and Air Boost Controls
There is no flue damper in the BIS TRADITION
TM
CE fireplace. As is common with air
tight stoves, the combustion air control sets the flow of air entering the firebox. This allows
for a more precise control of the fire. The combustion air control is located below the door
on the left side. The main source of air (primary air) entering the firebox can be diminished
by moving the air combustion control from left to right. The primary air is fully opened when
the air control is completely moved to the left. The air control device can also be used to add
an extra boost of air especially during fire start up and reloading of the unit. Pulling the air
combustion control will induce an air boost at the base of the fire allowing an easier fire start
up. When the fire is well established, the control can be pushed forward to shut down the air
boost allowing for a longer burn time. The combustion air control should be in the closed
position (primary air and air boost) when the fireplace is not in use. This will minimize air
leakage up the chimney. The combustion air control should be opened before opening the
door to minimize the possibility of back draft coming into the room.
Figure 1
3.2.5 Accelerated Combustion
The maximum heat output for the BIS TRADITION CE fireplace is achieved by burning
with the door closed and the combustion air opened and pulled back. By this method, the
BIS TRADITION CE fireplace can produce up to 55,000 BTU of heat per hour. However, it
will be necessary to reload with wood every one or two hours. This is the least efficient
method of burning the BIS TRADITION CE fireplace.
Use caution when firing with the combustion air control wide open. Only burn cordwood in
this manner. Small dry pieces of softwood and construction scraps will burn very intensely
using this method and may damage the firebox.

6
3.2.6 Medium Combustion
This is the recommended mode of operating the BIS TRADITION
TM
CE fireplace and
should be the one normally used since it will deposit the least amount of creosote on the
glass and in the chimney. The combustion air control must be 3/4 closed and pushed forward
to close the air boost. The precise setting will depend on many factors, including chimney
length and the moisture content of the wood.
For instance, a long chimney will necessitate closing the damper more. To obtain the proper
combustion, close the damper completely, then open it about 1/4" to 1/2". Three medium
size pieces of wood should be burning on a bed of hot coals. The heat output will be
approximately 30,000 BTU per hour and the loading time will be about every 3-4 hours.
Softwoods may be burned using this method but the time will be substantially reduced.
3.2.7 Slow Combustion
When the air combustion control is completely closed, the fireplace is in a slow combustion
phase. If the hearth is hot enough, slow combustion will not stop the fire, but there will be a
noticeable change in the flame pattern. The flames will be slow and may appear dirty if the
wood is too wet (moisture content of 20% and more). Do not allow the wood to burn without
flame, since this will produce excessive creosote in the unit.
Creosote may accumulate on the glass door. This method of burning should be used only
after operating the BIS TRADITION CE fireplace with the air control opened to produce a
hot fire for about an hour or at medium pace for at least 3 hrs. Slow combustion can be used
at night in order to reduce the heat output and to prolong the burn. The loading time will be
between 6-8 hours.
3.2.8 Refuelling For Best Performance
The BIS fireplace will operate best if attention is given to operating the unit with the damper
fully opened after refuelling in order to bring the firebox and the chimney system up to their
optimum operating temperature. Combustion efficiency is relative to firebox temperature. A
temperature of 500º C and up, with a visible flame, in the upper part of the firebox indicates
a maximum efficiency. To obtain this temperature, the fireplace must be operated with the
primary air and air boost controls fully opened during 10 to 20 minutes after reloading,
depending on the heat and on the moisture content of the wood. Once you have reached the
desired temperature, the air boost can be closed and the primary air set to a medium setting.
You know you have reached the desired temperature when, closing the primary air control,
you can see a flame at the top of the firebox. The benefit of this technique will be cleaner
glass, less creosoting, greater efficiency and the most pleasing fire for your enjoyment. If
your fireplace is equipped with a central forced air system, make sure the central blower is
turned off during reloading to avoid smoking problems.

7
3.2.9 Smoking – Causes and Troubleshooting
To reduce the likelihood of smoking when opening the door, set the combustion air controls
to the left before opening the door. Your fireplace has been designed and tested to provide
smoke free operation. Occasionally, there may be a small amount of smoking upon lighting
the fire, until the chimney heats up but this should not continue. If the fireplace continues to
smoke it is probably for one of the following reasons
A. Negative pressure in the house
As the fire burns, air goes up the chimney. This air must be replaced through leakage
into the house or through the outside air duct. When operating the BIS TRADITION
TM
CE, open a nearby window temporarily to check if there is adequate air supply
replacement.
B. Fans operating (e.g.: range hood)
These fans draw air out of the house and may actually cause a negative pressure in the
house. Turn off all fans and open a nearby window to determine if this is the cause of the
problem.
C. Wet wood
Wet or tarred wood will smoulder and smoke instead of burn properly.
D. Dirty or blocked chimney
Check to make sure the chimney is clear and clean.
E. Chimney not long enough
The minimum chimney height is 12 ft. not including the fireplace height. The chimney
must extend at least 3 feet (915 mm) above its point of contact with the roof and at least 2
feet (610 mm) higher than any roof or wall within 10 feet (3 m) of it. When installed
with offsets, the minimum chimney height is 15 ft. Additional height will increase
draught and will decrease the tendency to smoke.
F. Poor chimney draft
With no fire, there should be sufficient draught to exhaust cigarette smoke introduced
under the baffle. Chimneys installed against an outside wall without protection may
generate back draught problems which will cause start-up problems. To prevent this,
open a nearby window, roll up a piece of paper and light it. Then, hold it in the upper
part of the firebox to warm up the chimney. Wait until the draught is sufficient, then start
the fire.
G. Blower for central forced air kit operating
Make sure that the blower is at the "off" position when you open the fireplace door for
reloading.

8
IMPORTANT NOTES
A. Do not block the hot air vents to the fireplace as this will cause the fireplace to overheat.
B. Never start or ‘freshen up’ a fire using gasoline, kerosene, charcoal lighter fluid or any
other combustible liquid. Keep all such liquids well away from the fireplace while it is in
use.
C. Do not burn coal. The sulphur in coal will corrode the firebox.
D. Do not burn driftwood which has been in the ocean or salt water. The salt will corrode
the firebox and chimney.
E. Do not burn wood in the area in front of the grate.
F. Do not abuse the unit by burning paper, or cardboard or construction material such as
pressed wood, plywood or lumber.
G. Do not allow the wood to smoulder or burn without flame, since this will produce
excessive creosote in the unit.
3.3 MAINTAINING YOUR BIS TRADITION
TM
CE
3.3.1 Creosote
When wood is burned slowly without a flame, it produces tar and other organic vapors which
combine with expelled moisture to form a black deposit called creosote which accumulates
on the flue lining. When ignited, this creosote makes an extremely hot fire. If the creosote
accumulation is large, a creosote fire in the chimney can damage the chimney and overheat
the surrounding wood framing. Creosote formation in a chimney can be minimized by
making sure there is always visible flame burning, avoid smouldering fires and by proper
refuelling techniques.
3.3.2 Chimney Maintenance
Regular chimney inspection and maintenance combined with proper operation will prevent
chimney fires. Keep your chimney clean. Do not allow more than 1/16" creosote build up in
your chimney. The amount of creosote will depend on variables such as frequency of use
and type of fire. We recommend that you
A. Initially inspect the chimney system weekly. From this, you will learn how often it will
be necessary to clean your chimney.
B. Have your chimney cleaned by a qualified chimney sweep. If you wish to clean it
yourself, we recommend using a stiff plastic or non-metallic brush. If a metal brush is
used, its size should be slightly smaller than the flue to avoid damaging the chimney. Do
not use a brush that will scratch the stainless steel interior of the chimney.
C. Do not expect chemical cleaners to keep your chimney clean. The rain cap can be
removed for inspection and/or cleaning of the chimney.

9
3.3.3 Top Baffle Removal Prior to Cleaning the Chimney
Before starting to clean your chimney, we recommend that you remove the top baffle to
avoid creosote dust collection at the top of the baffle. Follow these steps to set the top baffle
out of the way
1. Remove the side refractory holder. They are located at the top of the refractory.
2. Lift the front baffle.
3. Slide the back baffle under the front baffle. You now have access to the chimney.
3.3.4 Dealing with a Chimney Fire
Regular chimney maintenance and inspection can prevent chimney fires. If you have a
chimney fire, follow these steps
1. Close the fireplace door and the combustion air controls.
2. Alert your family of the possible danger.
3. If you require assistance, alert your fire department.
4. If possible, use a dry chemical fire extinguisher, baking soda or sand to control the fire.
Do not use water as it may cause a dangerous steam explosion.
5. Check outside to ensure that sparks and hot embers coming out of the chimney are not
igniting the roof.
6. Do not use the fireplace again until your chimney and fireplace have been inspected by a
qualified chimney sweep or a Fire Department Inspector.
3.3.5 Finish Door Casing Care
Use a glass cleaner and a soft cloth to polish the casing. Do not use abrasives such as steel
wool, steel pads or an abrasive polish for they may scratch the casing’s finish.
3.3.6 Ashes
Remove ashes only when the fire is out and the ashes are cold (24 to 48 hours after the fire is
out).

10
3.3.7 Refractory Replacement
The intense heat of the fire will normally cause hairline cracks in the refractory. These
cracks can be minimized by proper curing as described in "First fires". They will not
normally diminish the effectiveness of the refractory. If large cracks develop, then the
refractory should be replaced. To replace the refractory bricks, follow these steps
1. Remove the front refractories
2. Remove the bottom refractory
3. Remove the left side refractory
4. Remove the right side refractory
5. Remove the back refractory
6. Remove the front ceramic baffle
7. Remove the rear ceramic baffle
To install the new refractories, follow
the above steps in reverse.

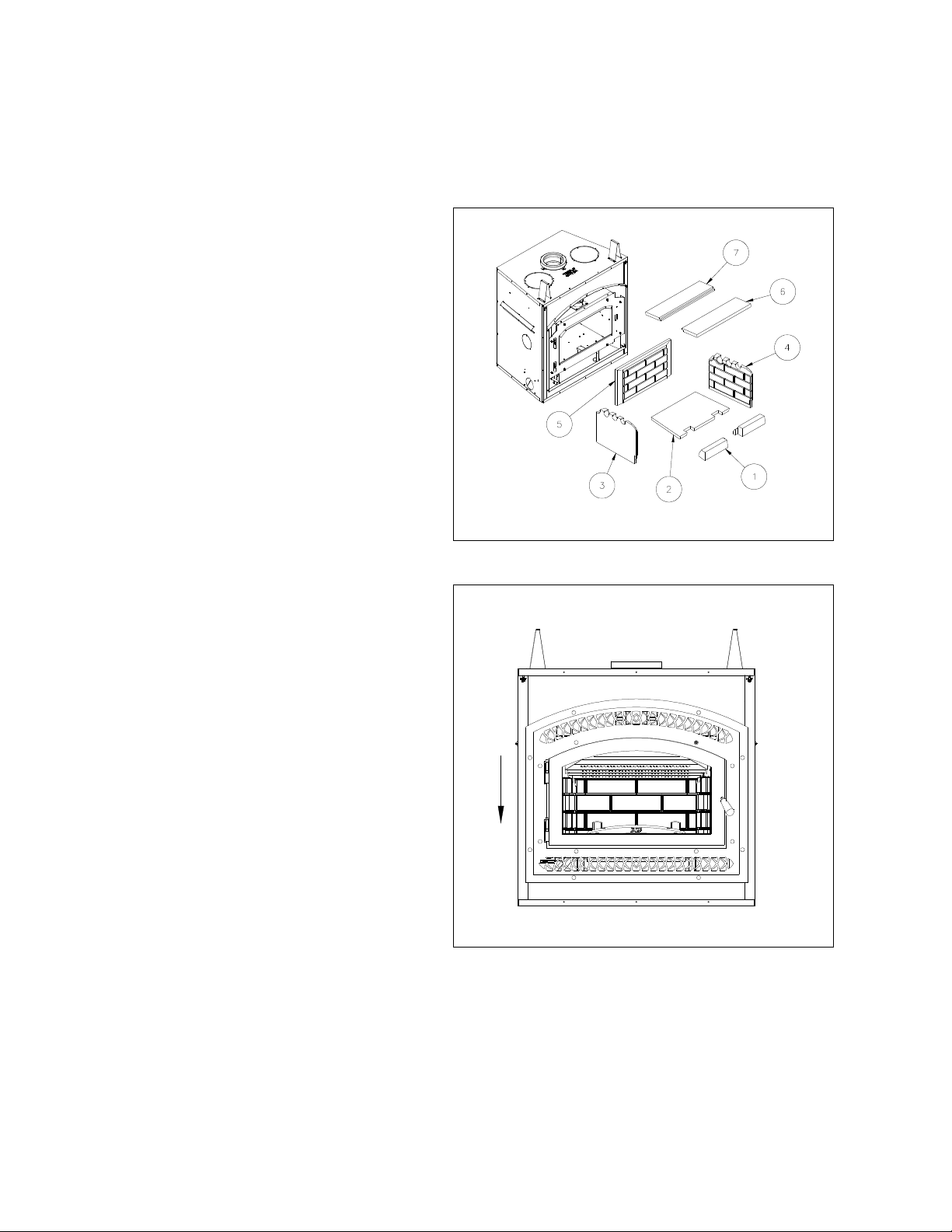

Figure 2
3.3.8 Door Installation
The door must be installed only when
the installation of the BIS
TRADITION
TM
CE is completed. All
you have to do is fit the male part of
the hinge, already on the door, to the
female part, which is on the fireplace.
To remove the door, simply pull the
door up from the hinges.
The door adjustment has been set at
the factory. If the fit is still not
perfect, you can adjust the door using
the hinge screws.
Figure 3

11
3.3.9 Door Adjustment
The door may need to be adjusted to
be completely airtight. The gaskets’
air-tightness can be adjusted using the
adjustment screw located on the right
side of the fireplace façade. (An Allen
key #1/8 – not supplied - will be
necessary for this adjustment)

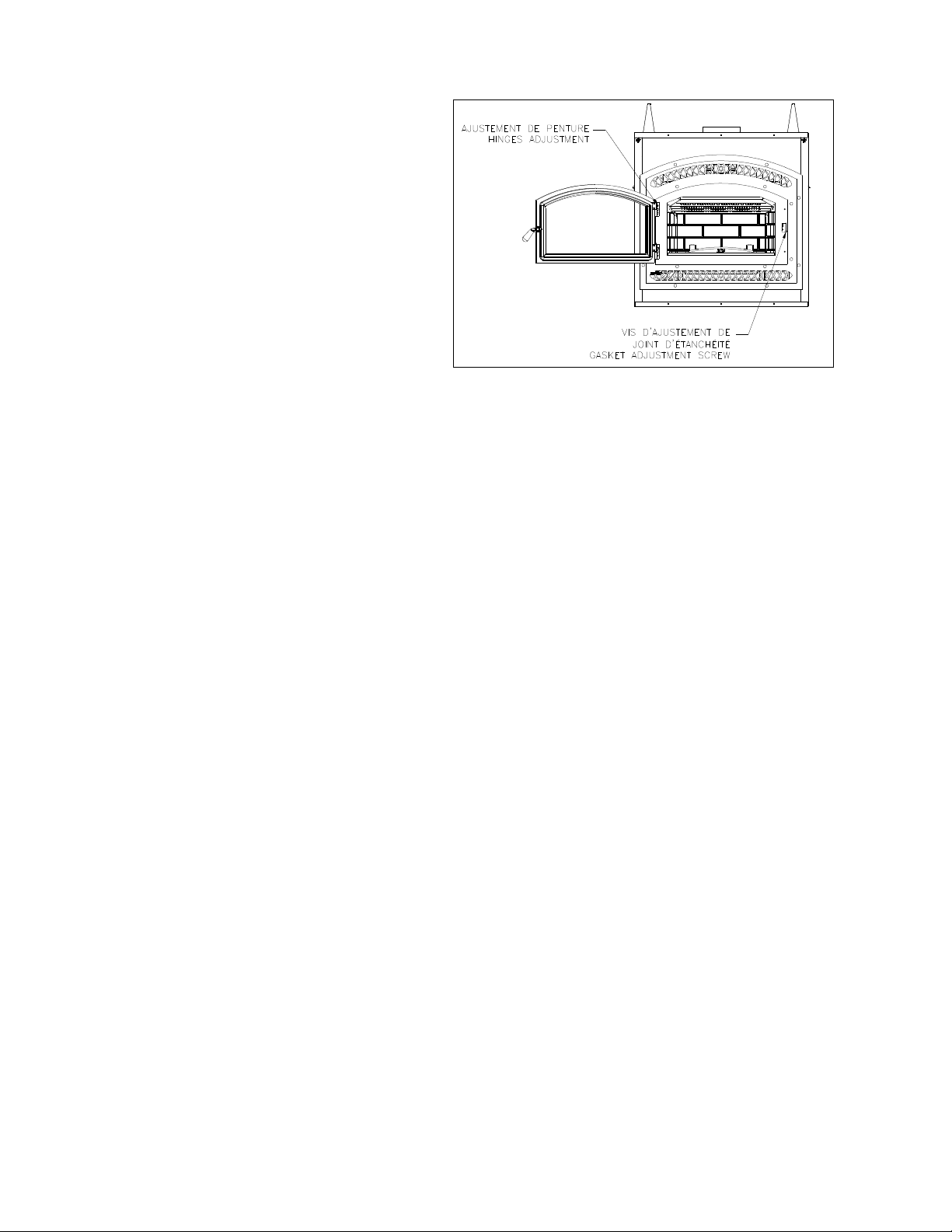

Figure 4
3.3.10 Glass Care Replacement
The glass used for the BIS TRADITION
TM
CE is a high temperature ceramic glass (1400°
F). If the glass breaks, it must be replaced with an identical ceramic glass. Tempered glass
or ordinary glass will not withstand the high temperatures of the BIS TRADITION CE.
Replacement glass should be purchased from a Security Chimneys International dealer (see
“Replacement Parts”, page 34). Do not operate the unit with cracked or broken glass.
3.3.11 Glass Care Cleaning
The BIS TRADITION CE is designed to keep the glass clean under normal operating
conditions. If the BIS TRADITION CE is operated continuously with the combustion air
controls closed, the glass will tend to get dirty unless the fuel, firebox and glass are
maintained at hot temperatures (see "Refuelling for best performance”). To clean the glass,
there are a number of specially designed cleaners. Your authorized Security dealer can
recommend a suitable cleaner which is available in your area. Regular household glass
cleaners will not clean creosote. Do not use abrasives such as steel pads, steel wool or oven
cleaner as they will scratch the glass.
DO NOT USE CHEMICAL GLASS CLEANERS ON PAINTED SURFACES AS IT MAY
CAUSES THE PAINT TO PEEL.
CAUTION: Do not allow window cleaner to get in contact with door gasket or paint on the
facade. Once closed, contact of glass cleaner with the fireplace facade can provoke paint
peeling off.

12
3.3.12 Gasket Replacement
Remove the door from the unit (see page 10) and lay them on a clean unabrasive surface. To
replace the gasket, first remove all of the old gasket and gasket cement. Make sure that the
surface is totally clean before applying new cement (a high temperature silicone caulking
rated at 500°F, 260°C, is suitable) or adhesion problems may result. Apply gasket cement to
the gasket channel and install the new gasket. This replacement part is available from your
Security dealer in the following dimensions
Gasket Length Dimensions # Pièce
Porte d’acier
Around glass 69" 1 x 3/16 po. PR-SR1685D
On door frame 73" 5/8" dia. PR-SR1823G
Porte de fonte
Around glass 69" 5/16 dia. PR-SR1823H
On door frame 73" 5/8 dia. PR-SR1823G
3.4 FIREPLACE INSTALLATION
3.4.1 Locating the BIS TRADITION
TM
CE
A. The best location to install your fireplace is determined by considering the location of
windows, doors, and the traffic flow in the room where the fireplace is located, allowing
space in front of the unit for the hearth extension and the mantel, and taking into
consideration the location of the hot air ducts (optional), outside air kit and chimney. If
possible, you should choose a location where the chimney will pass through the house
without cutting floor or roof joists (see fireplace dimensions page 13).

13

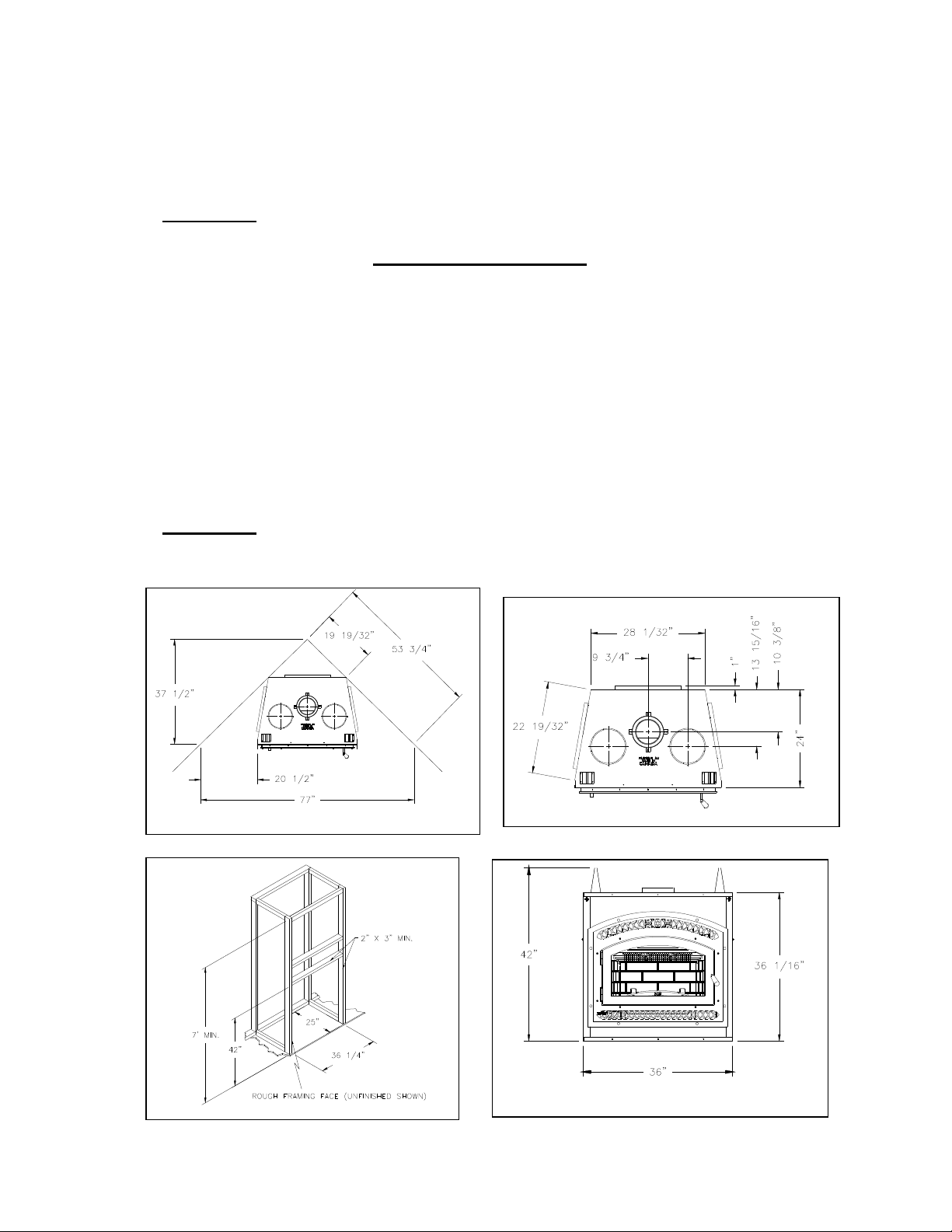

B. Usually, no additional floor support is needed for the fireplace. The adequacy of the
floor can be checked by first estimating the weight of the fireplace system. Weights are
given in the appendix. Next, measure the area occupied by the fireplace which is
normally 36" X 24 ½". Note the floor construction and consult your local building code
to determine if additional support is needed.
C. The BIS TRADITION CE may be installed directly on the floor or on a raised base (for
proper guidelines, refer to "Hearth Extension Requirements") and a minimum of 6'8"
measured from the base of the appliance to the ceiling is required.
D. When selecting the location, the chimney outlet position and the direction of the wind are
important factor affecting the chimney performance. To allow a maximum draft and to
reduce wind turbulence, the chimney must
•Penetrate the highest part of the roof.
•Be installed as far as possible of roof offsets, trees or any other obstructions that may cause
wind turbulence and back drafts in the chimney.
•The least amount of offsets (elbows) possible.
3.4.2 Hearth Extension Requirements
The BIS TRADITION
TM
CE fireplace may be installed directly on a combustible floor;
however, the combustible floor in front of the fireplace must be covered with a non-
combustible material (tile, marble, stone, etc.) (Figure 5a).
The supplied safety metal strip must be positioned as follows One half under the front of
the fireplace and the other half must extend on the floor over which the hearth extension will
be built (figure 5b).
* The safety metal strip must cover the entire width of the fireplace.
Elevated fireplace (figure 5c)
Elevated fireplace installations require a special ‘Z’ metal
safety strip (field provided) in place of the safety metal strip
shown on figure 5b.The safety strip should extend the full
width of the fireplace. When more than one safety strip is used
they must overlap by a minimum of 1 inch.

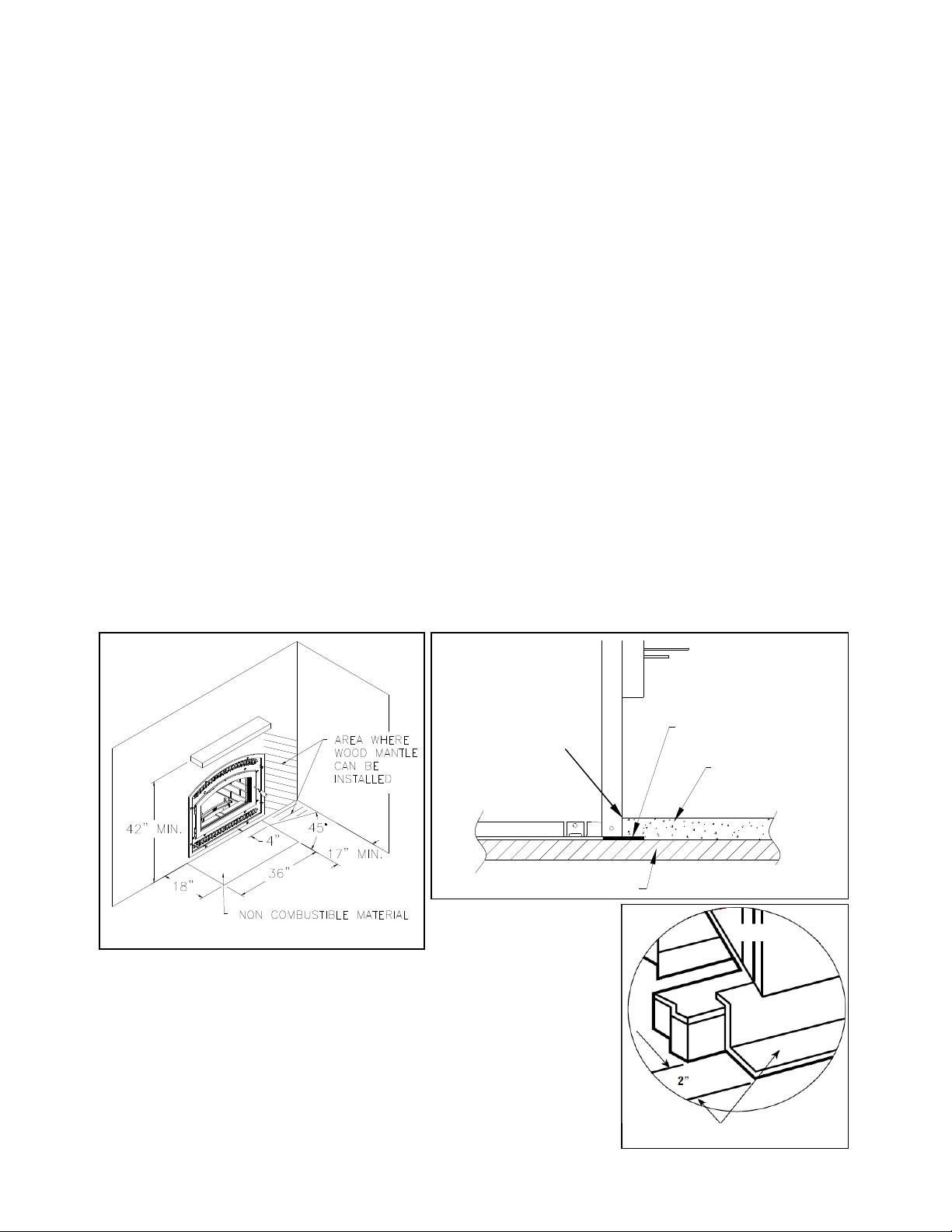

Figure 5a
Figure 5b
Hearth extension
Non
-Combustible
Finish Material
Safety Metal Strip
Floor
The crack between
the fireplace and the
hearth extension must
be sealed with a non-
combustible material
such as sand-cement
grout
Figure 5c
‘Z’ metal strip
Fireplace

14
3.4.3 Framing, Facing and Mantel
The construction of the framing, facing, and mantel must be in accordance with the standards
and the following illustrations (figures 7 to 11)
A. Frame the fireplace using 2" x 3" or heavier lumber.
B. WARNING: Combustible materials cannot be used in the space directly above the
fireplace, except for the studs above the facade that support the facing and mantel. This
area must remain empty for a height of 6'8" (2032 mm) measured from the base of the
appliance.
C. Frame the fireplace with vertical studs at the sides of the fireplace running from floor to
ceiling (see figure 9). If combustible facing is to be used, position the studs back, from
the front edge of the fireplace, a space the thickness of the facing material so that the
facing can be installed flush with the fireplace facing. Frame headers between the
vertical studs only as follows
- Place 2" x 3" or 2" x 4" headers, only along the upper part of the front, side and back
faces. Do not put wood or any combustible material within the area above the
fireplace except on the front facing.
-Place headers only as required to support the facing and mantel.
D. WARNING: The fireplace must not be in contact with any insulation or loose filling
material. Cover the insulation with drywall panels or any rigid material around the
fireplace.

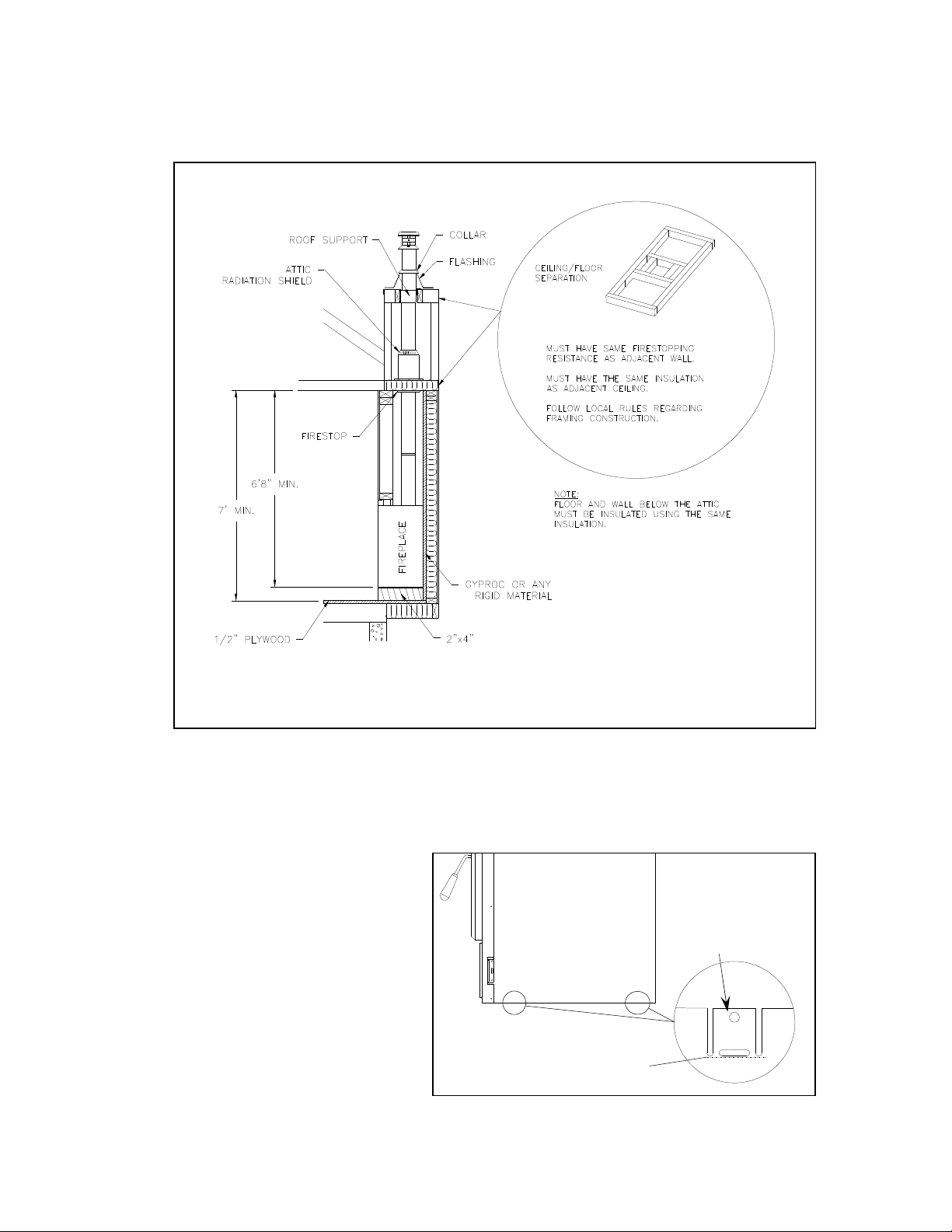

Figure 7
Figure 8
Figure 9
Figure 10

15
INSULATED CHASE CONSTRUCTION
Figure 11
Nailing flanges
Four nailing flanges are provided to
secure the fireplace on the floor (see
figure beside). Bend the nailing
flanges down so each flange is flush
with the floor, then using nails or
screws, secure the fireplace to the
floor (2 places each side). The heads
of the screws or nails must be large
enough to cover the holes in the
nailing flanges.
Nailing flange
Unbend to floor
and nail/screw

16
Facing
Note: The facade must be removable once installed. The facade is
designed to overlap any facing material installed on the front of
the fireplace. If thicker material is installed, use the facade as a
template and make sure it can be easily removed for servicing.
1. Combustible material must be installed flush with the fireplace. It may not project in
front of and on the fireplace (i.e. the steel facade of the fireplace) (figure 13b).
2. Non-combustible materials such as brick, stone or ceramic tile may project in front of
and onto the fireplace facing (figure 13c).
1. Fireplace
2. Front of fireplace
3. Wood frame (2” x 3” min)
4. Drywall
5. Tiles
6. Rock board or other
7. Brick
Mantel
The mantel must be installed at least 42" (1067 mm) above the base of the fireplace (figure
12).

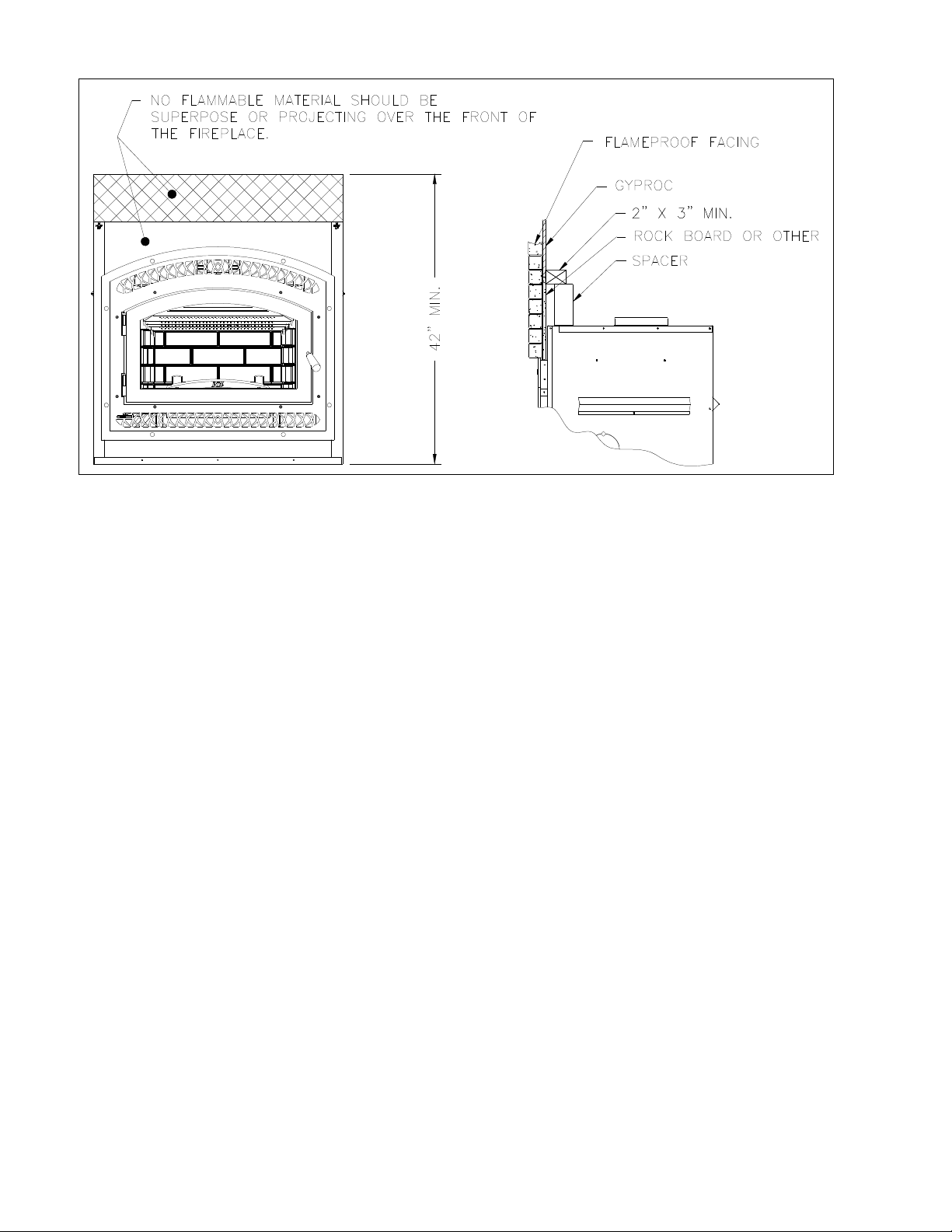

Figure 13a

17
Figure 13b Figure 13c
3.4.4 Fireplace Blower
The fireplace comes equipped with a heat activated blower. It is located in the bottom of the
fireplace, towards the back. It uses regular 120V and must be connected to the main
electrical circuit by a qualified electrician. For connection, use the electrical box supplied
with the unit located on the bottom right corner of the fireplace.
If you wish to adjust the blower speed, an optional variable speed control (VRUW) can be
installed in line with the wiring. Again, use a qualified electrician for installation.
If the blower requires servicing,
1- Remove the doors and the decorative facade
2- Remove the screw located below the blower motor that holds it to the back of the
fireplace
3- Pull the blower out of the unit through the square hole located in the front bottom
right corner.

18
3. HOT AIR DUCTING INSTALLATION
Different hot air ducting systems can be installed with the BIS TRADITION
TM
CE
- Gravity kit
- Forced air kit
3.5.1 Gravity Kit
Double hot air outlet including: (See Fig.15)
- 2 telescopic lengths 8" I.D.
- 2 90º elbows 8" I.D.
- 2 hot air outlet kits (grill and frames)
- 2 adaptors
NOTE : If the fireplace is vented using the AC chimney and the single hot air outlet is
installed, the chimney must be offset towards the back using 2 – 30 deg. elbows back to back on
the fireplace.
NOTE: For the double hot air outlet it is mandatory to install both outlet pipes. Any other
installation can cause fire and void warranty.
See components list page 33.
The only fan that can be used with the gravity kit is the is the one sold with the fireplace.

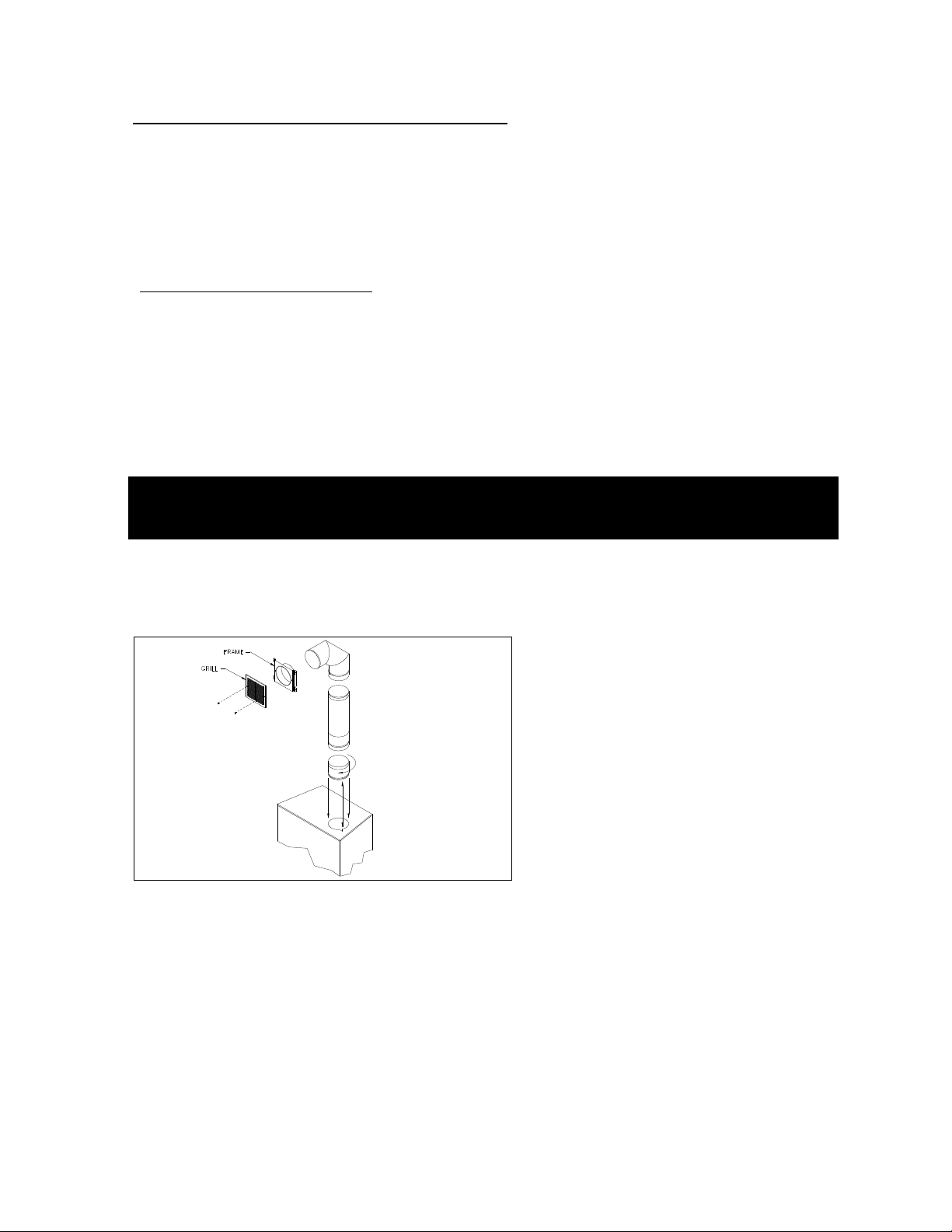

Figure 15
The safety rules for hot air ducting gravity kit installations are the following
Minimum height * 68" (1727 mm)
Maximum length See figure 16
The height of the louver must be measured from the base of the BIS to the middle point of
the louver.
