Robinson Willey Sahara User guide

1SERVICE AND INSTALLATION
INSTALLATION, SERVICING & OPERATING INSTRUCTIONS
L E AV E T H E S E I N S T R U C T I O N S W I T H T H E U S E R
IMPORTANT - This fire is for use on Natural Gas ONLY (G20)
SAHARA with Safeguard
Sahara (Pewter) G.C. No. 32 689 38
Sahara (Antique Bronze) G.C. No. 32 689 39
RADIANT/CONVECTOR
GAS FIRE
Sahara
300001229_2
DON’T FORGET
T
o register your guarantee!
Call 0344 879 3588
THIS LEAFLET IS INTENDED TO HELP YOU UNDERSTAND AND USE YOUR NEW GAS FIRE EFFICIENTLY.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THE FIRE AND KEEP FOR FUTURE REFERENCE.

2
Introduction
The SAHARA with Safeguard is a radiant convector gas fire. It is suitable for conventional brick chimney,
pre-cast flues, various proprietary flues and metal flue box conforming to BS 715. The fire can be either
hearth mounted or wall mounted on a non-combustible hearth or wall. The control system consists of a
duplex burner and a duplex gas tap with flame supervision device. Ignition is by an integral piezo or
battery powered electronic spark operated by turning the gas tap knob. There is an oxygen depletion
sensing pilot fitted to the fire.
Purpose built ventilation bricks or additional air vents are not normally required in the room in which the
fire is fitted unless specified by the rules in force.
The fire is suitable for use with lightweight surrounds whose continuous working temperature is not less
than 100°C.
IMPORTANT: "SOFT FURNISHINGS”
When considering fitting any heating appliance or wallpapering a room in which one is fitted, if 'soft
furnishings" or other heat sensitive materials are used in the vicinity of the heat source, they may become
heat damaged or discoloured.
DRESSGUARD: The guard on this appliance conforms to the requirements of BS 1945 : 1991 and
satisfies the Heating Appliances (Fireguards) (Safety) Regulations 1991.
The guard is to prevent risk of fire or injury from burns and should not be permanently removed.
IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN, THE ELDERLY OR THE INFIRM. A
fireguard conforming to B.S. 8423 (Fireguards for heating appliances for domestic use) should be used for
the protection of children, the elderly or the infirm. Such a guard is also recommended for pet animals.
Cat. I (G20) at 20mbar in GB and IE.
2H
Gas Safety (Installation and Use) Regulations .
It is the law that all gas appliances are installed by competent persons
(i.e. a Gas Safe registered Engineer) in accordance with these installation instructions, all the relevant parts
of the local and national Building Regulations and all relevant recommendations of the following British
Standard Codes of Practice:
1. BS 5871 : Part 1
2. BS 5440 : Part 1 : (Flues)
3. BS 5440 : Part 2 : (Air Supply)
4. BS 715
5. BS 6891
6. BS 1289 : 1975
7. BS 1289 : Part 1 : 1986 and part 2 : 1989
8. The Building Regulations issued by the Department of Environment and the Building Standards
(Scotland) (Consolidation) Regulations issued by the Scottish Development Department.
9. Any other relevant British Standard Code of Practice and/or Local Building Regulations, and in
accordance with ‘the rules in force’.

3
Specifications
1.1 OVERALL DIMENSIONS (mm)
SAHARA
Height 640
Width 727
Depth 232
Height to top
of flue spigot 412
Weight (Kg) 24
1.2 HEAT INPUT (GROSS)
Maximum Input 6.04kW 20,600 Btu/h
Minimum Input 1.55kW 5,290 Btu/h
Maximum Output 4.78kW 16,320 Btu/h
Setting Pressure
Cold 17.0 mbar ± 1
6.8in w.g. ± 0.4
Supply Pressure 20 mbar (8in w.g.)
1.3 BURNER - Aerated Duplex Burner
Aeration Adjustment - None
Injector 2 off - Marked RY/220
Ignition - Piezo or battery powered
ignition integral with tap.
Control Tap - Duplex Plug Type (with
flame supervision device)
Pilot Burner - OP NG9031 OR NG9077
Inlet Connection - Rp ¼ (¼ BSP)
1.4 SETTINGS - OFF, PILOT ,1, 2, 3, 4.
Fig. 1A
Fig. 1B
SAHARA DE LUXE
SAHARA
The efficiency of this appliance has been measured as
specified in BS 7977-1:2002 and the result is 78.8%.
The gross calorific value of the fuel has been used for
this efficiency calculation. The test data from which it
has been calculated has been certified by Notified Body
No. 2797. The efficiency value may be used in the UK
Government’s Standard Assessment Procedure (SAP)
for energy rating of dwellings.
The above exceeds the minimum requirement of 63%.
1.0 Technical Data

4
Site Requirements
2.0 Site Requirements
2.1 THE FIREPLACE AND SURROUND
The fireplace must be of non-combustible material having an opening size to the dimensions shown in Fig. 2 for Hearth
Mounting and Fig. 3 for Wall Mounting respectively. It is IMPORTANT that there is no combustible material or cladding in
the vertical flat area shown in dotted lines in Figs. 2 and 3. The fire should be installed so that no part of the combustible
side wall is less than 508mm (20in) from the radiant source. If this is not possible, the combustible side wall must be
suitably protected.
Some curvature of the surround is permissible but should this mean that there would be a gap between the back of the
fire and the surround exceeding 13mm (½in) then a flue spigot extension (not supplied) must be used. The maximum
projection of the spigot extension measured from the back of the fire is 150mm (6in). A 150mm extended spigot RW Part
No. 991134 is available. It may need shortening to suit the installation.
A wooden shelf may be fitted above the fire. The underside of any combustible shelf of 150mm (6in) depth must be at
least 115mm (4½in) above the top of the fire. For shelves of greater depth allow an increase of 13mm (½in) in shelf
height for every 25mm (1in) increase in shelf depth. (Refer to shelf height in Users Instructions).
A clearance of 50mm (2in) measured from the case side is required at each side for access / servicing.
NOTE: For battery replacement, the RH side clearance should be increased to around 115mm.

5
Site Requirements
a) Hearth Mounting (Fig. 2)
The hearth must be non-combustible material at
least 13mm (½in) thick and measuring at least
710 mm (28in) wide by 305mm (12in) deep with
the fireplace opening central. Its top surface
should preferably be 50mm (2in) above the floor
level to discourage placing of rugs or carpets
over it.

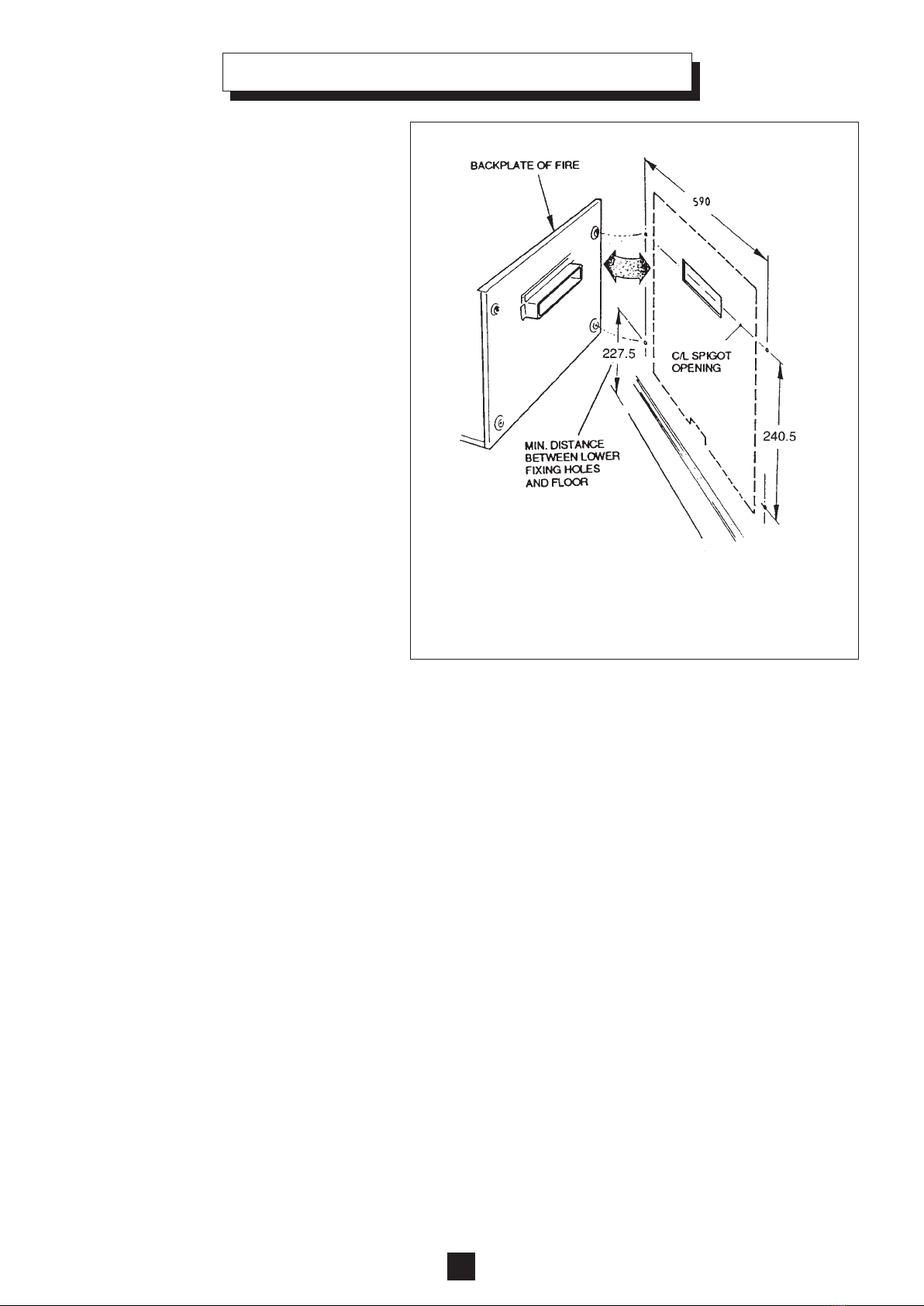

b) Wall Mounting (Fig. 3)
The fire may be fitted onto a suitable non-
combustible wall so that the top of the spigot
opening in the closure plate is at least 488mm
above the finished floor level.
Fig. 3
Fig. 2
NB IF A NEW FIREPLACE
OPENING IS BEING
CONSTRUCTED, THE
MINIMUM DIMENSIONS
SHOULD BE 508mm (20in)
HIGH x 305mm (12in) WIDE

6
Site Requirements
less that 120cm² (19in² )
(g) It must have a positive updraught.
(h) It must have at least a 3 metre effective flue
height.

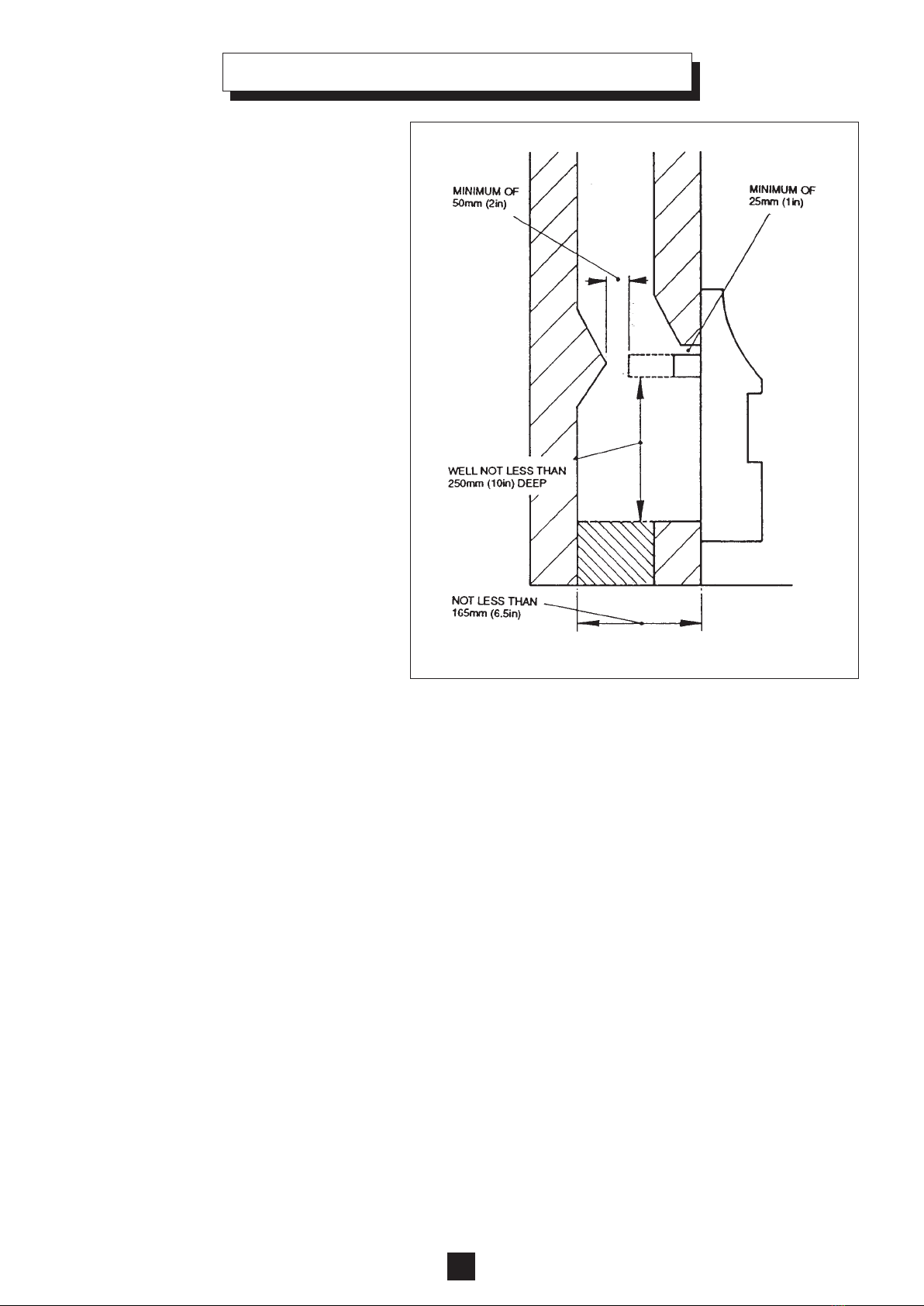

2.2.1. Fireplace Dimensions (Fig. 4)
The dimensions of the catchment space behind the
closure plate must meet the following
requirements:
(a) The flue spigot/spigot extension must pass
through the closure plate by at least 25mm
(1in) and have a minimum clearance of 50mm
(2in) between its open end and the nearest
obstruction.
(b) The catchment space below the flue spigot
must be at least 250mm (10in) deep
measured from the bottom of the flue spigot to
the top of the catchrnent space or any
'bricking up' at the bottom of the fireplace
opening.
(c) There must be a minimum clearance of
165mm (6½in) between the back of the
closure plate and the fireplace back brick
(d) The top of the spigot opening in the closure
plate (See Fig. 4) must be at least 25mm (1 in)
below the top edge of the fire place opening.
(e) Ensure that the base of the fireplace is level
with or lower than the hearth.
2.2 BRICK CHIMNEY
228mm x 228mm (9in x 9in)
A chimney previously used to burn solid fuel must
be swept prior to installation.
The chimney must be inspected to ensure that:-
(a) It serves only one fireplace
(b) It is properly sealed so that combustion
products do not escape from the flueways into
the room.
(c) It is not blocked by paper, rubble etc.
(d) Any restriction such as a damper, register
plate etc. must be removed or secured in the
fully open position
(e) Any underdraught ventilation or additional air
supply entering the fireplace or on the hearth
must be sealed off.
(f) The cross-section area of the flue must not be
Fig. 4

7
Site Requirements
2.3 PRE-CAST FLUE OF MINIMUM
CROSS SECTION (Fig. 5)
198mm x 67mm (7¾in x 2 / ln).
This fire is suitable for installation into a
properly constructed pre-cast flue conforming to
BS 1289 :1975 and BS 1289: Part 1 :1986 and
Part 2 : 1989 of at least 3m (10ft) effective height
and having flueways of at least 198mm x 67mm
(7¾ x 2 / in) or equivalent cross-sectional area
with no dimension less than 63mm (2½in).
The fireplace opening width must be between a
maximum of 457mm and a minimum of 305mm.
The opening height must be between a maximum
of 630mm and a minimum of 441 mm and a depth
of at least 100mm.
Ensure that any mortar fangs between the blocks
do not protrude into the flueways and, if raking
blocks are used, they are fitted according to the
manufacturers instructions and mortar is not
allowed to drop down and accumulate in the raked
positions.
2.4 TWIN-WALLED FLUES (Fig. 6)
This fire may be installed in a double walled or
insulated metal box built to the requirements of BS
715 with a twin-walled or insulated flue at least
125mm (5in) in diameter and a minimum effective
height of 3 metres (10ft). The depth of the opening
must be at least 165mm.
5
5
8
8
Fig. 6
Fig. 5

8
Installation
Fig. 7
Check these items and keep in a safe place.
3.2 FIT THE CLOSURE PLATE (Fig. 7)
IMPORTANT NOTES
(a) It is recommended that in the event of the
proprietary closure plate not being available
on site, one should be obtained from British
Gas or your Local Supplier.
(b) The top of the closure plate may be trimmed
to prevent sealing tape being seen above the
fire. Ensure that there is at least 10mm
overlap on fireplace opening. When wall
mounting, it may be necessary to trim the
bottom of the closure plate to prevent it
showing below the fire.
After Trimming a new air relief opening 50mm
wide x 38mm high must be cut in such a
position that it is unobstructed by any
brickwork.
(c) If a hole is cut in the closure place for access
to gas supply pipe, seal the opening between
the gas pipe and the closure plate.
A 660mm
B 460mm
C 415mm
D 40mm
E 240mm
F 50mm
G 38mm
3.0 Installation
3.1 UNPACK THE FIRE AND
ACCESSORIES
1. Remove the top fitment.
2. Lift the carton clear of the fire pack.
3. Remove the front fitment which contains the
following:-
(i) Fender Assembly.
(ii) Closure Plate.
(iii) Cooler Plate.
(iv) Spigot.
(v) Spigot Restrictor.
(vi) Control Knob Adaptor
CLOSURE PLATE - TRIM OFF TOP AND BOTTOM AS NECESSARY
WHILST ENSURING THAT THE FIREPLACE OPENING IS FULLY
COVERED. A NEW AIR RELIEF OPENING MUST BE CUT IN THE
CLOSURE PLATE TO THE REQUIRED SIZE.

9
Installation
Fig. 8
3.2.1. When Hearth Mounting.
Fit the closure plate centrally across the fireplace
opening and seal all four edges.
3.2.2. When Wall Mounting
Ensure that the top of the spigot opening is at
least 488mm above the finished floor level and at
least 25mm below the top edge of the fireplace
opening and that the air relief opening is
unobstructed. Fit and seal the closure plate as
described in Section 3.2.1.
3.2.3. Pre-Cast Flue Installations
Before fitting it will be necessary to fit the flue
cooler plate supplied to the back of the closure
plate. Bend the cooler plate along the two dotted
lines to form a shape shown in Fig. 8. Push the
tags through the slots in the closure plate. Bend
the tags over to hold the closure plate firmly
against the back of the closure plate. Fit and seal
the closure plate as described in Section 3.2.1.
3.3 CHECK THE FLUE PULL
Apply a lighted match, lighted paper or smoke
match to the spigot opening in the closure plate.
Observe if there is any up or down draught and if
there is a definite flow into the spigot opening in
the closure plate, proceed with fitting the fire. Any
tendency to down draught must be corrected. If
no flow is indicated, heat the chimney with, for
example, a roll of burning paper or a blow lamp for
two or three minutes. If there is still no definite
flow into the spigot opening, the chimney may
require attention;
DO NOT FIT THE FIRE - SEEK EXPERT ADVICE!

10
Installation
Fig. 9
3.4 PREPARATION OF FIRE
3.4.1. Remove outer Case
Stand the fire upright. Pull off the control knob.
Remove the Canopy, by removing two screws from
each side and lifting to clear the knob spindle.
Recover the spindle washer.
Place carefully aside.
The outer case is held to the backplate by four
screws two on each side. Undo the four screws.
Lift the outer case , ease it out and put in a safe
place.
3.4.2 Remove Radiants and Transit
Packing
Remove and discard the cardboard packing
retaining the radiants. Remove the radiants by
sliding upwards and outwards base first and place
to one side in a safe place. Discard the paper
packing in the radiant support plate.
3.5 FLUE SPIGOT RESTRICTOR (Fig. 9)
(a) Standard 228mm x 228mm (9in x 9in) Brick
Chimney. The flue spigot restrictor must not be
used if the chimney height is less than 4.3m
(14ft) or if poor draught is suspected. If over
4.3m (14ft) in height with good draught, the
flue spigot restrictor (Fig. 9) must be fitted.
(b) Pre-cast flues
The flue spigot restrictor must not be used.
(c) 175mm (7in) and 125mm (5in) diameter lined
flues. The requirements in (a) apply.

11
Installation
Fig. 10
50mm (2in) No. 10 round-head screws (not
supplied). Drill and plug the wall at the four fixing
point positions (Fig. 10). Partially insert the top
two screws and mount the fire to the wall via the
keyhole slots. Secure the fire by fitting the lower
two screws and fully tightening the four screws.
(to a non-combustible wall)
3.7.2 Wall Mounting
They should be locked after adjustment using the
lock nuts provided. If the fire is fitted in a well-type
hearth, ensure that any kerb on the hearth does
not obstruct the air inlet to the appliance.
adjusted to take up any irregularities in the hearth.
screws are fitted on the front legs and can be
Place the fire in position against the wall. Levelling
3.7.1. Hearth Mounting
3.7 FIT GAS FIRE
If required a flue spigot extension is permissible
up to a maximum projection of 150mm (6in) from
the back of the fire.The flue spigot restrictor must
not be used.
The flue spigot consists of two identical pieces
and is held to the back of the fire by four screws.
The four screws are already fitted around the flue
outlet. Remove the top two screws but only loosen
the bottom screws. If required engage the flue
spigot restrictor on the bottom screws (with the
words 'spigot restrictor' uppermost) so that the
slots fit under the screwheads. Loosely secure the
upper part of the flue spigot with the top two
screws. Remove the bottom two screws and fix the
other part of the flue spigot, sliding the side flange
up the side of the upper part of the flue spigot.
Tighten all four screws (trapping the top and
bottom of the flue spigot restrictor if fitted).
(and Flue Spigot Restrictor if Required)
3.6 FIT FLUE SPIGOT (Fig. 9)
Undo the locknut on each of the levelling screws
fitted to the legs and adjust the screws upwards as
far as possible. It is essential that the minimum
clearance from the floor level as indicated in fig.
10 is observed. Keyhole slots and securing holes
are provided in the backplate of the fire. These
holes are suitable for size 10 rawlplug fixing, using
CLOSURE PLATE - TRIM OFF TOP AND BOTTOM AS NECESSARY
WHILST ENSURING THAT THE FIREPLACE OPENING IS FULLY
COVERED. A NEW AIR RELIEF OPENING MUST BE CUT IN THE
CLOSURE PLATE TO THE REQUIRED SIZE.

12
Installation
Fig. 11
cock again and check that the pressure gauge
reads zero which indicates that the FSD is
the pressure gauge and re-fit the test point
cock. Wait 3 minutes then turn on the service
for 5 minutes then turn off the gas at the service
uniform and undistorted. Leave the fire running
starving the gas fire. Check that the flames are
appliances served by the same meter are
in the installation pipework, or whether other
at the meter to determine if there is a restriction
1.0mbar (0.4in w.g.). If it is not, take the pressure
that the burner pressure is 17mbar (6.8in w.g.) ±
on at full rate (Refer to Users Instructions). Check
gauge to the test point. Light the fire and leave
located in the control tap and attach a pressure
functioning. Turn off the fire gas tap, disconnect
4.3 TEST FOR CORRECT SETTING
PRESSURE AND FSD OPERATION
Remove the pressure test point sealing screw,
N.B. The spark electrode is positioned as shown in
Fig. 11.
Check that the spark ignition functions reliably. The
piezo will ‘click’ twice as you turn the control to
pilot position.
A) Piezo ignition
sealing screw.
4.4 CHECK IGNITION
sealing screw. Test for gas soundness around the
The gas installation, including the meter, should be
(Refer to BS 6891)
4.2 TEST FOR GAS SOUNDNESS
or concealed connection. Connect the fire to the
gas supply via the union elbow provided. This
union elbow should be fitted to the end of the
supply pipe then held in position under the flare
nut whilst this is engaged. Reach beneath the
burner to perform this operation. Tighten the flare
nut with a spanner. The union elbow has a Rp ¼
(¼in B.S.P. internal) thread for the supply pipe.
The gas inlet is suitable for right hand, left hand
4.1 MAKE GAS CONNECTION
(2) Ensure that a service cock is provided
for isolation of the fire for servicing.
NOTE: (1) The appliance must be connected to
gas with rigid or semi rigid tubing.
4.0 Connect to Gas Supply
Temporarily fit the control knob.
inspected and tested for soundness and purged.
3
.0
/
5.
0
the pilot lights correctly.
position several times to ensure that
Depress and release knob at PILOT
B) Battery ignition

13
Installation
If the fire is wall mounted, first remove the foot
assembly by undoing the foot guide at each end of
the fender. Engage the retaining screw heads of the
fender in the keyhole slots of the outer case and let
the fender slide down to locate and secure itself.
6.6 FIT FENDER
6.3 REFIT OUTER CASE AND CANOPY
Offer the outer case to the fire. Fit the top two
screws and tighten. Also fit and tighten the two
lower screws.
Raise the canopy over the fire and lower it gently to
locate the knob spindle ensuring that the back of the
canopy locates behind the backplate of the fire and
that the screw holes line up. Fit and secure the four
screws. Refit (drop) the spindle washer over top of
spindle.
Refit the control knob (and adaptor if required, see
Fig. 13).
edge behind the front lip of the radiant support
plate.
beneath the firebox canopy then locate the bottom
Replace the radiants by inserting them top first
6.2 REPLACE RADIANTS
Pull out the knob and keep in a safe place
6.1 REMOVE CONTROL KNOB
6.0 Assembly of Fire
Fig. 13
WHITE INDICATOR
DIMPLE TO BE
ABOVE WHITE
MARK ON
CONTROL KNOB
ADAPTOR
SECURING SCREW
CONTROL KNOB
WHITE MARK ON
CONTROL KNOB

A spillage test must be made before the installed fire is left with the user. This carried out in the following manner: Light
the fire and leave on at full rate. Close all doors and windows in the room and after the fire has been alight for five
minutes, insert a lighted smoke match under the canopy above the centre radiants 25mm (1 in) inside (See Fig 15). If
the smoke is drawn into the fire the installation is satisfactory. If the smoke is not drawn into the fire leave for another
ten minutes and repeat the test, if the smoke is still not drawn into the fire remove the fire and check the sealing of the
closure plate. If this is satisfactory remove the spigot restrictor, if fitted, re-fit the fire then check for spillage. If the
spillage still persists DO NOT LEAVE THE FIRE CONNECTED TO THE GAS - SEEK EXPERT ADVICE
7.0 Test for Spillage
If there is a fan or fan operated appliance in a nearby room, then the spillage test must be repeated with the fan running
and all inter-connecting doors between the fan and the fire left open. If the fan and the fire are in the same room, close
all windows and doors connected to the room, switch on the fan and repeat the spillage test.
14
Installation
Fig. 15
CANOPY
SMOKE
MATCH
TUBE
RADIANT
Align with inner
edge of canopy

15
User Instructions
8.0 Make sure that the user knows that:
1
The control knob must be pressed in before turning and always
set to one of the stated positions.
2
The fire can be lit with a match if necessary as detailed in the
Users Instructions.
3
The fire should be serviced annually by a competent person for
continuing efficient and safe operation.
4
When the new fire is first lit, a slight smell might be noticed. This
should soon pass away after a few hours of use.
5
Explain to the user the functioning of the combined flame supervision and atmosphere monitoring device as detailed in
Section 9.6. Stress that if the device repeatedly shuts off the fire, the fault must be rectified immediately by a competent
person.

16
Servicing Instructions
9.0 Important Notes
TURN OFF MAIN GAS SUPPLY TO THE FIRE. ALWAYS TEST FOR GAS SOUNDNESS AFTER SERVICING OR
EXCHANGING ANY COMPONENT.
N.B. To avoid damage to the radiants during servicing, it is
recommended that these are removed and put to one side, in a safe place. It is also recommended that other items like
log spinners and bulbs be put in a safe place (if applicable).
9.1 REMOVAL OF THE OUTER COMPONENTS.
Remove the fender assembly by first lifting it upwards and pulling it away from the fire. Pull off the gas tap knob. Undo
the four screws securing outer case, two on each side of the fire. Lift and ease out the outer case and canopy.
9.2 GAS TAP/FSD ASSEMBLY
Remove outer components (9.1 above).
(a) Removal: Withdraw the lower spring clip securing the spindle extension to the gas tap spindle and
remove. Disconnect the piezo igniter spark lead at the electrode or, for battery ignition, the leads from the
switch. Undo the union nut on the inlet to the gas tap. Disconnect the union nut connecting the pilot feed to the
gas tap.
Disconnect the thermocouple at the gas tap end.
Remove the large nut securing the gas tap to the burner at the lower injector. Ease off the gas tap.
(b) Replacement: Ensure that the tap is in the off position.
Transfer the two injectors from the old tap to the new
one. Refit the gas tap to the burner. Re-assemble in the
reverse manner to removal ensuring that the flat of the
extension spindle is facing to the right.
9.3 INJECTORS
Remove outer components (9.1 above). Remove gas tap/fsd
assembly (9.2 (a) above). Unscrew injectors from the tap and replace with new ones. Re-assemble in the reverse
manner.
9.4 BURNER ASSEMBLY
Remove other components (9.1 above). Withdraw the lower spring clip securing the spindle extension and remove
extension. Disconnect the union nut at the inlet of the gas tap and the piezo igniter spark lead at the electrode or, for
battery ignition, the leads from the switch.
Remove the three brass nuts, two on the left side of the firebox which hold the burner in position.
Remove the burner, gas tap, and pilot as a complete assembly then detach the gas tap and pilot as a unit from the old
burner. Transfer these to the new burner and re-assemble in the reverse manner.
9.5 REPLACING SPARK GENERATOR
Having removed the case, disconnect all three leads from the generator. Slacken the knurled locking ring and slide the
generator out of it’s location bracket. Fit the replacement in reverse order and transfer the battery from the old generator or fit a
new one. Take care not to cross-thread the plastic parts.
NOTE: The lead from the spark electrode connects to the top LH corner (viewed from front).

Servicing Instructions
9.6 PILOT FILTER
Remove the pipe connecting the pilot to the gas
tap (2 nuts). The pilot filter is located in the outlet
from the tap, prise it out with a pin. Insert new
pilot filter (it may be convenient to balance the
new filter on the outlet and push home using a
matchstick). Re-fit the pipe, tighten the nuts and
check
operation.
9.7 PILOT ASSEMBLY
The pilot is an atmosphere sensing device and
must be replace as a complete unit. Repair must
not be undertaken.
NOTE: If the fire keeps going out or exhibits signs
of nuisance shut off, check the operation of the
pilot as follows:-
(a) Inspect the pilot flame, if suspect check gas
supply. Clear blockage if necessary, if flame is
still suspect replace pilot assembly.
(b) Check the thermocouple. If faulty replace the
pilot assembly.
(c) Check the magnet unit in the gas tap. If faulty
replace the tap.
(d) Check the ventilation in the room. Vitiation
may be due to lack of sufficient air supply.
(e) Check for satisfactory clearance of
combustion products. Vitiation may be due to
spillage of combustion products into the
room.
Disconnect the pilot feed pipe at the gas tap and
the pilot body at the main burner. Pull off the spark
lead at the electrode and disconnect the
thermocouple nut at the gas tap. Withdraw the
pilot complete with pipe. Swap the pipe onto the
new pilot. Re-assemble in the fire and make all the
connections. Check the operation of the fire.
9.8 PIEZO IGNITER
The ingniter is not renewable as a separate item. If
the igniter is faulty, the gas tap/fsd assembly must
be replaced.
A lint filter has been fitted to the pilot of this
appliance to filter out any dust or lint which may
present in normal household room air.
9.9 PILOT LINT FILTER
If you notice that the appliance has a floppy yellow pilot
flame and/or there is difficulty in lighting the appliance
then the lint filter may need cleaning. Cleaning should
be carried out by vacuuming the dust and lint from the
filter. If vacuuming alone is not successful in curing the
ignition problem then a Gas Safe registered engineer
must be called to investigate the problem.
To remove the lint filter for cleaning or to gain access to
the aeration hole simply slide the lint filter downward.
Refit by pushing up against the pilot bracket, ensure it is
crimped to hold it in place.
When supplied as a spare part the lint trap must be fitted
as shown and crimped to fix in place, ensuring it is
‘butted up’ to the pilot bracket.
Lint Filter
ODS PILOT ASSEMBLY WITH LINT FILTER FITTED
To remove slide downward
after disconnecting the
pilot gas supply tube.
17

Shortlist of Parts
18
6
5
3
4
7
1
2a
2
KEY No. G.C. PART No. RW PART No. DESCRIPTION
1 154 371 995971 Radiant
2 378 946 822187 Gas Tap c/w lead
2a E37-459 SP987645 Gas Tap Assembly c/w switch
3 398 319 822089 Injector
4 822345 Pilot outlet filter
5 159 584 992495 Pilot Assembly
6 159 453 992851 Dressguard
7 138 913 820863 Knob
8 159 581 992505 Control Knob Adaptor (see page 13)
NOTE:
After the fire has been installed, you may wish to
fix a shelf of combustible material above. This is
quite acceptable provided you comply with the
dimensions shown in the table.
The distance between the case side of the fire and
any permanent fittings must be at least 50mm
(2in). The battery powered ignition option requires
around 115mm clearance at the RH side in order to
change the battery.
When the fire is first used, a slight smell may be
given off, but this will soon clear.
DEPTH OF SHELF HEIGHT OF SHELF
mm (in) mm (in)
152 6 115 4½
165 6½ 122 4¾
178 7 128 5
191 7½ 135 5¼
201 8 141 5½
(above fire)

The Benchmark Scheme
Glen Dimplex UK is a licensed member of the Benchmark Scheme which aims to improve the standards of installation
and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise
safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council.
Please ensure that the installer has fully completed the Benchmark Checklist on the back pages of the Installation &
Servicing instructions supplied with the product and that you have signed it to say that you have received a full and
clear explanation of its operation. The installer is legally required to complete a commissioning checklist as a means of
complying with the appropriate Building Regulations (England and Wales).
Installations carried out in England and Wales must be notified to Local Area Building Control either directly or through
a Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to the customer who
should, on receipt, write the Notification Number on the Benchmark Checklist.
The filled in Benchmark Checklist/Service Record by the installer will be required in the event of any warranty (UK and
Ireland installation)
After servicing, complete the relevant “Service Interval Record” section of the Benchmark Checklist contained in the
Installation & Servicing instruction booklet.
19
Robinson Willey
Glen Dimplex UK Ltd, Millbrook House,
Grange Drive, Hedge End, Southampton, SO30 2DF.
Telephone: [phone]
Website: www.robinsonwilley.co.uk
Robinson Willey is a Trading Division of the Glen Dimplex UK Ltd

A control knob adaptor to assist the operation of the fire is included if required. If not, keep it for possible future use.
To Light and Operate
(Refer to Fig. 1)
Fig. 1
WARNING
WARNING
TO TURN OFF
Push in the control knob slightly and turn it clockwise to the OFF position. If you wish, instead of turning to OFF you
may turn to PILOT and leave the pilot running permanently. The pilot consumes very little gas (0.2kW).
WITH
SAFEGUARD
SAHARA
LIFT
1
2
34
OFF
PILOT
Battery Spark ignition
Depress the control knob and turn it slowly anticlockwise to
the pilot position. Depress the control knob, sparks will
be heard and the pilot should light which can be seen
below the right centre radiant. If the pilot did not light try
again, by depressing the control knob. When the pilot has
lit keep the knob depressed for a further 10 seconds to
activate the flame supervision device, otherwise the pilot
will go out again. Once the pilot is established turn the
control knob to the desired setting.
Piezo Spark Ignition
Push in the control knob and turn it anti-clockwise from
OFF position towards the pilot position until you feel
some resistance. With the knob still pushed in, pause for
one to two seconds and then continue to turn to pilot .
The piezo operates and two ‘clicks’ will be heard and the
pilot lights. Keep the control knob pushed in for a further
10 seconds before releasing. The pilot should remain lit
and can be seen below the right centre radiant. If the pilot
did not light or failed to remain alight, push in the control
knob slightly and turn clockwise to OFF position and
repeat the lighting procedure. Once the pilot is
established turn the control knob to the desired setting.
If the flames are found to be extinguished and the control knob is NOT in the OFF position, the control knob must
be turned to OFF and no attempt should be made to relight the gas until at least 3 minutes have elapsed.
Control Knob
Setting Radiant Picture
1 Centre 2 radiants on low
2 Centre 2 radiants on full on
3 Centre 2 radiants on full on,outer 2 on low
4 All 4 radiants on full on
The fire is fitted with a flame supervision and Oxygen depletion device. This will shut the fire off if the pilot goes out for
any reason. This may be caused by the Oxygen level in the room falling below a prescribed level due to a poor flue pull
etc. If the fire keeps going out you must have it checked by a ‘Gas Safe’ registered engineer.
The pilot burns at all settings, giving a localised extra glow to the left of the centre right hand radiant. This localised
glow will be more visible at the lower settings, and is quite normal.
CHANGING THE BATTERY
The ignition spark generator, containing the battery (size
AA), is located at the lower rear RH side. Unscrew the cap,
anti-clockwise, off the battery holder. Remove the battery,
and replace with a new one. This should be inserted ‘flat
end first’ - this is the negative terminal. Replace the cap
carefully to avoid cross-threading it.
Please note: Consumable items, such as batteries, are
not covered by the guarantee.
If you want to relight a hot fire, wait 3 minutes before
doing so.
LIGHTING WITH A TAPER
In the unlikely event of failure of the ignition spark, the
fire can be lit with a taper. First light the taper and apply
it to the pilot and then press the control knob and turn it
anti-clockwise to pilot position. After the pilot is lit,
keep the knob pushed in for a further 10 seconds before
releasing. The pilot should still remain lit.
NOTE: The control knob is situated
on the top right hand side of the
fire and is marked with the symbols
OFF, Pilot , 1, 2, 3, 4.
The control knob is connected to the gas tap by a universal
coupling and will have a ‘loose feel’ to it, which should not
cause concern.
NOTE 1: Instructions for lighting are also in the lift up lid of the bezel on the fire.
NOTE 2: The control knob should be pushed in slightly before turning and always set to one of the stated positions.
20
