SEERS F23HT User manual

ECO INSTANT WATER (i ) HEATER
INSTALLATION MANUAL
MODEL: F23HT, R23RT
* Please read manual carefully before installation.
* SEERS reserve the rights to change the contents and illustrative diagrams
without prior notice.

Introduction 1
Important Safety Information 2
Part Contents Checklist 4
Parts Description 5
Hand Shower Installation Guide 7
Water requirements 8
Installation 9
Operating Mode 10
Model Specication 11
Troubleshooting 12
CONTENT

Congratulation!
Thank you for making excellent choice by purchasing the Seers Eco Instant
Water Heater. This is low power consumption water heater. The design is
carefully crafted for its distinctive use in all household, hotel and any
applicable vicinity. User safety is our priority in accordance to be the rst ever
water heater without submersible electric heating coil. This product has
obtained numerous patents and certication in design, invention and utility
model.
Read all of these instructions and retain this guide for later use.
Pass on this guide in the event of change of ownership of the installation site.
All warnings, cautions and instruction contained in this guide must be
followed.
When this appliances has rejected the end of its serviceable life, its should be
disposed of in a safe manner, in accordance with current local authority
recycling. or waste disposal policy.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
INTRODUCTION
1

IMPORTANT SAFETY INFORMATION
THIS APPLIANCE MUST BE EARTHED, TO MAKE SURE EARTH WIRE AND
HEATER UNIT HAVE PROPER GROUNDING IN HOUSEHOLD.
Earthing requirements
The earthing installation should be carried out in accordance with the local
wiring regulation. Where EARTHING of the premises is not evident, it is
necessary to run an EARTH CONDUCTOR and solidly connect an earth rod local
to the installation. As it's a safety factor, earthing is essential and mandatory.
It's an electrical connection between the exposed metallic parts of an electrical
appliance or installation and the earth, regarded to have zero potential. Proper
earthing provides an alternative and easy path for leakage or faulty current to
ow. It ensures that any exposed conductive part of the appliance does not
reach a dangerous level of potential or voltage that endangers the user's life. A
proper earthing system should have least electrical resistance, good corrosion
resistance and ability of dissipating high faulty current.
Consideration should be given by the young, the elderly, the inrm or anyone
inexperienced in the correct operation of the control as well as children should
be supervised to ensure that they do not play with the appliances.
When the Shower is used by someone such as child, elderly person, sick person
and physically handicapped person, the concern person is kindly requested to
pay attention and check the shower temperature by using hand from time to
time. User is advised to test and adjust the water temperature before bathing.
WARNING: Metallic / chromed hose and conductive control valve shall not be
used.
Test the build-in RCD at least once a month.
The spray head shall be descaled regularly.
WARNING: Do not switch on the heater if there is a possibility that water in the
heater is frozen.
WARNING: Whenever there’s a trip, switch OFF the incoming supply and turn ON
again than press the reset button for returning to normal operation.
2

3
Cautions !
1) The unit must be installed by qualied electrician and plumber.
2) The shower heater unit must be connected to its own independent electrical circuit.
3) Before beginning any work on the electric installation be sure that main breaker
panel switch is“O”to avoid any danger of electric shock. All mounting and
plumbing must be completed before proceeding with electrical hook-up. Lead the
power cable from the indoor fuse distributor board or Miniature Circuit Breaker
(MCB) to a 10mA RCD and from RCD to ON/OFF Double-Pole switch outside the
bathroom.
Recommended MCB rating:
Model MCB rating
F23HT 20A
R23RT 20A
4) The unit must be permanently connected to the electricity supply through a
double-pole linked. Switch having a contact of separation of at least 3mm in all
poles incorporated in xed wiring.
5) This switch must be out of reach of a person using a shower.
6) The use of a plug and socket is not recommended.
7) Correct size of wire conductor corresponding to dierent electrical loading should
be used.
Recommended power cable size:
Model Cable size
F23HT 4mm²
R23RT 4mm²
8) In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this
appliances must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and o by the utility.
9) For ease of servicing, the unit must always be mounted on the surface of tiled walls.
Never conseal the unit and MUST be positioned vertically.
10) The unit operates at a minimum water ow rate of 2.0 litre/min and maximum
working pressure of 4 bar. For direct connection from the water storage water tank,
the unit must have an installation minimum 1.5m below the water storage tank.
11) The unit shall not be connected to any tap or tting and those not specied.
IMPORTANT SAFETY INFORMATION

PART CONTENTS CHECKLIST
Model: R23RT , F23HT
1 x Shower Holder
complete with
sliding bar
1 x Rubber Hose
1 x Hand Shower
1 x Regulator Valve
1 x Seers Heater Unit
4 x Green Wall Plug & Screw Set
4

PART DESCRIPTION
1. AC Supply Cable Inlet
2. Regulator Valve (water Inlet)
3. Hand Shower
4. Shower Holder
5. Hose
6. Sliding Bar
1
2
3
4
6
5
5
Model: R23RT , F23HT

PART DESCRIPTION

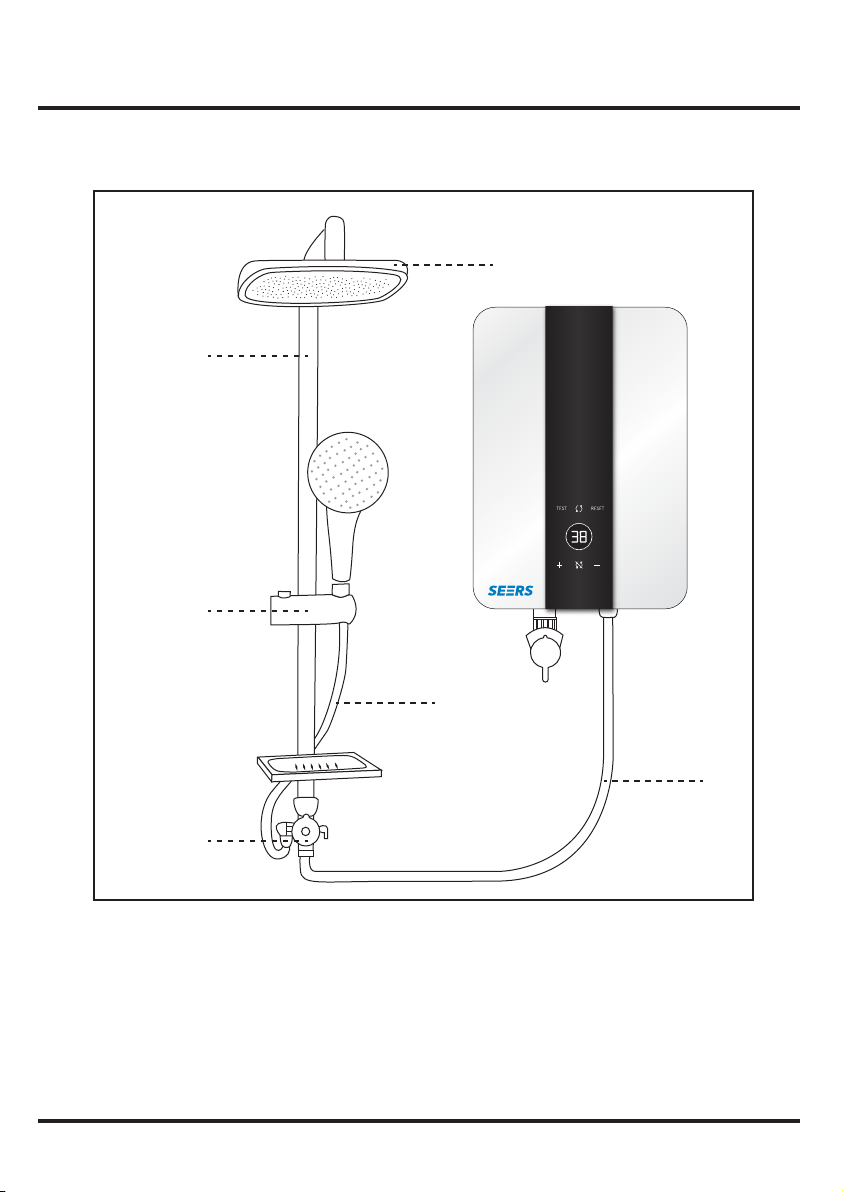

Optional with Rain Shower
1. Rain Shower Head
2. Rain Shower Sliding Bar
3. Shower Holder
4. 3way Diverter Valve
5. Hose
6. Hose
1
2
3
5
6
4
6

HAND SHOWER INSTALLATION GUIDE
7
WALL
SIDE VIEW FRONT VIEW

8
WATER REQUIREMENTS
Ceiling
Water Storage Tank
NB: Heater unit works at minimum
water ow of 2 litre/min 1.5 m
(min)
Plumbing Schematic Diagram
Seers Eco Instant Water Heater can be tted in your home regardless of the the
type of plumbing system as in most cases they can operate directly o main
cold water supply.

9
INSTALLATION
The installation of the product must comply to national guidelines for electrical
wiring in residential buildings.

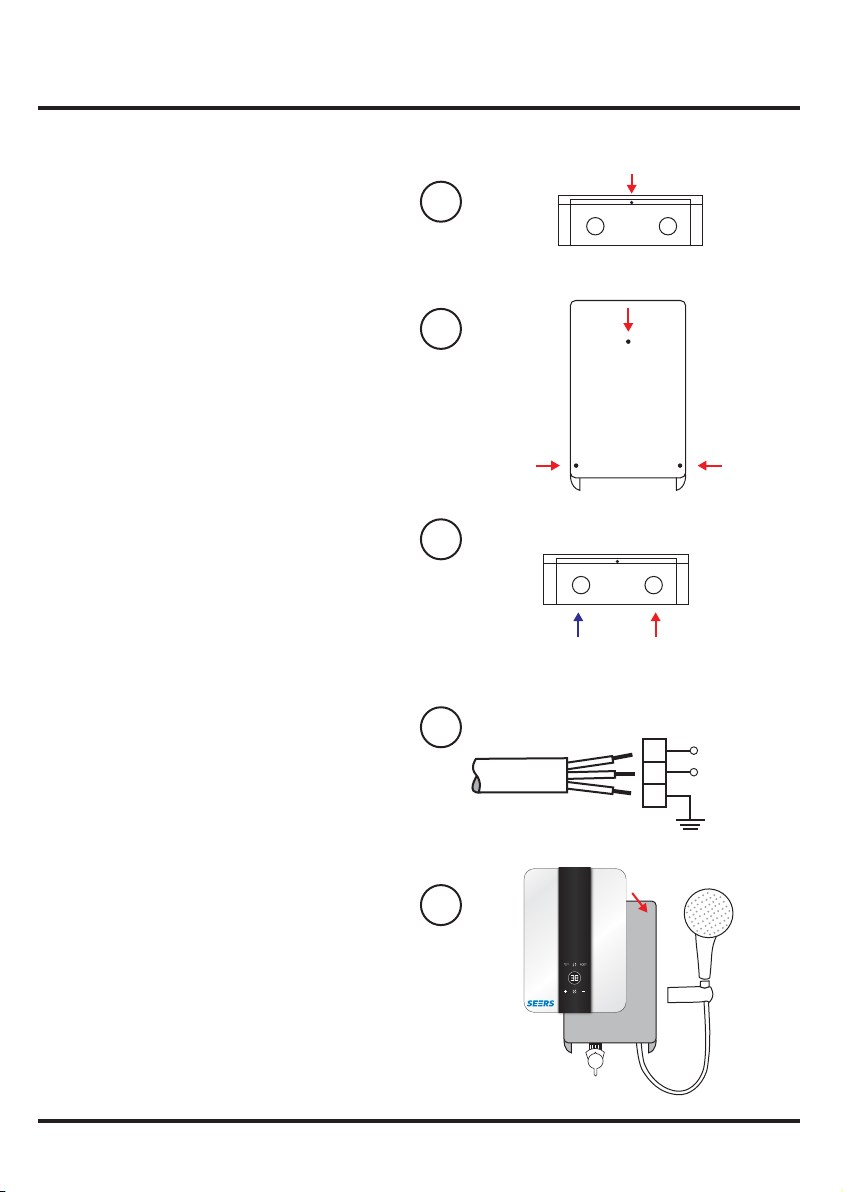

1) Unfasten the screw at the
bottom to remove front cover.
2) Drill hole on wall to mount heater
according to hole position.
3) Ax exible hose at outlet (red) and
cold water supply to inlet (blue).
4) Connect AC Supply cable
to terminal blocks.
5) Fix front panel and fasten screw.
1
2
4
5
3
L
N
E
RED
BLUE
GREEN / YELLOW
BROWN
BLUE
GREEN/YELLOW
Cold Water IN
(Blue)
Hot Water OUT
(Red)

10
OPERATING MODE
Earth point must be connected to grounding source
STEP 1: Switch ON MAIN AC SUPPLY (white indicator light ON)
STEP 2: Press + or - button activate heating.
P0 = O
P1 = Low Temperature
P2 = Medium Temperature
P3 = High Temperature
STEP 3: Turn ON water supply.
STEP 4: For R23RT, pump opreation is default, press to o pump. Press‘pump’to
activation if needed.
Remarks: Without water supply will stop the heating system and pump operation.
TESTING THE Residual Current Device (RCD)
STEP 1: Press TEST button to test bulid in RCD. Display E1 on
screen.
STEP 2: Press RESET to reset the system and back to normal
operation.
Remarks: As long as incoming main supply is present, the white indicator light is ON.
P2
e 1

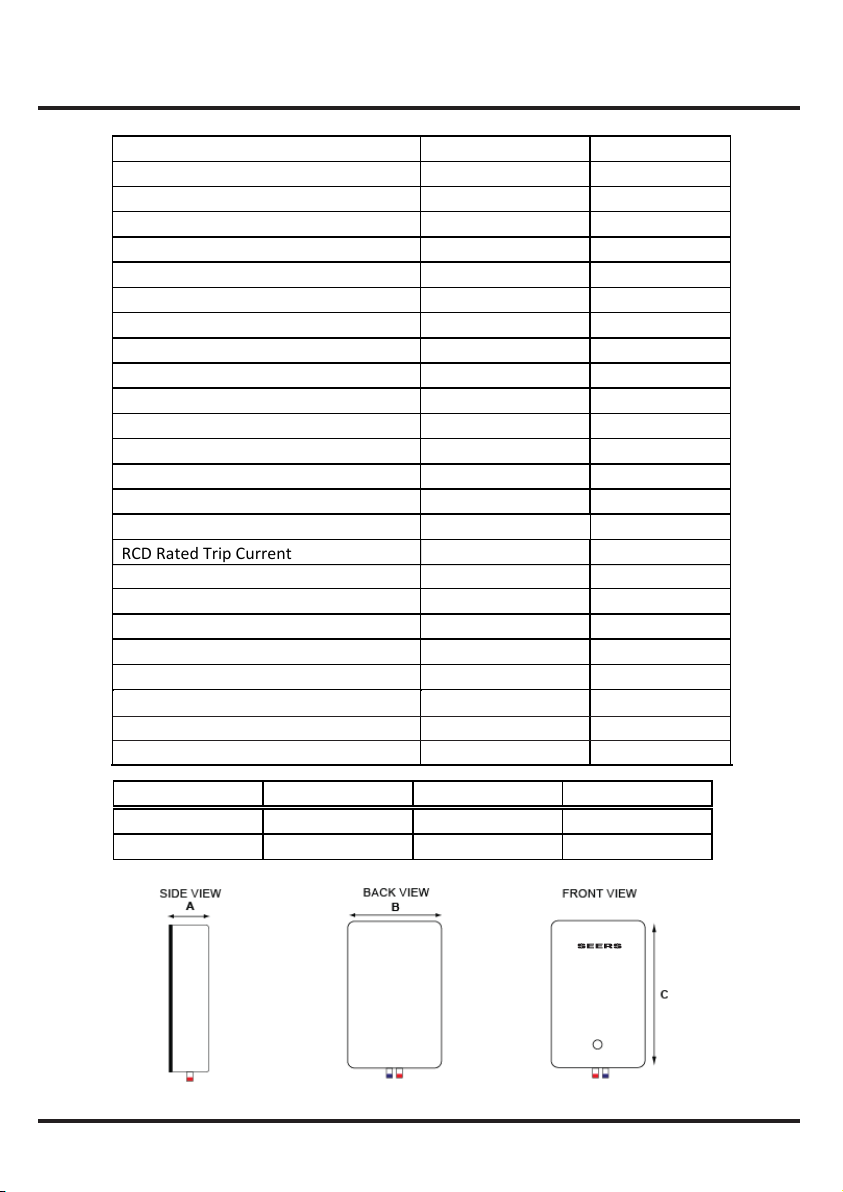

Model Specificaon / Descripon F23HT R23RT
Overtemp cutoff
Yes
Yes
Water flow sensor Yes Yes
Easyfit mounng Yes Yes
Leakproof heat module Yes Yes
Adjustable temperature Yes Yes
Heang element
No
No
Installaon:
Shower holder set Yes Yes
Hand shower set
Yes
Yes
Rain shower set Oponal Oponal
Pump
No
Yes
Technical:
Rated power 3.0 Kw 3.0 Kw
Rated voltage 220~240VAc/1phase 220~240VAc/1phase
Rated current 13 Amp 13 Amp
Connecng cable size
4.0mm
2
4.0mm
2
Output temperature 35°c ~ 45°c 35°c ~ 45°c
IP IP25 IP25
Minimum Flow
2L/min
2L/min
Maximum Flow 6L/min 6L/min
Min Inlet Water Pressure (pascals)
Max Inlet Water Pressure (pascals)
100,000
100,000
350,000 350,000
Inlet and Outlet BSP ½” BSP ½”
RCD Rated Trip Current
Model
A-Wide (mm)
B-Length (mm)
C-Height (mm)
F23HT 65mm 222mm 367mm
R23RT 65mm 222mm 367mm
12mA 12mA
MODEL SPECIFICATION
11

12
Please be assured that following situation is normal:
1) There will be a slight sound while the pump is in operation. (i.e model R23RT)
2) Water temperature will vary according to inlet water ow rate.
DESCRIPTION POSSIBLE CAUSE REMEDIES
Heater not operating 1) No Power Supply 1) Check incoming power source
2) Water shortage 2) Check incoming water
3) Filter clogged 3) Clean Filter
Water not hot 1) System trip 1) Press reset
2) Heating position not set 2) Press +
3) Water ow rate too high 3) Control water at regulator valve
TROUBLESHOOTING
Error Code
ELCB trippedE1 Press RESET button
OverheatE2 Please refer to customer service /

SEERS MARKETING SDN BHD (917949-V)
No. 4, Jalan Utarid U5/18A, Seksyen U5,
40150 Shah Alam, Selangor Darul Ehsan,
Malaysia.
Tel: [phone] Fax: [phone]
Email: [email protected]
Website: www.seers.com.my
