Segway SGW500F-A7 User manual

WELCOME
Thank you for buying this vehicle Segway. Segway off-road vehicles
will bring you a new driving experience.
For your driving safety, you must read this manual before riding.
This manual contains a large number of safety instructions,
operation instructions, maintenance instructions and safety
warnings.
A careful reading of this manual will help you to quickly
understand the vehicle and your full driving to help.
Periodic maintenance procedures are included in this manual and
are performed regularly to assist in your vehicle safety.
!WARNING
Read, understand, and follow all of the
instructions and safety precautions in this
manual and all product labels.
Failure to follow the safety precautions could
result in serious injury or death.

IMPORTANT NOTICE
This vehicle is designed and manufactured for on-road use and
complies with all applicable on-road noise, vibration and emission
regulations.
Before driving the vehicle, please understand the local laws and
regulations, choose the allowed road driving, abide by the local
traffic regulations.
This manual is applicable to the ATV fuel series and describes all
equipment including optional components. Therefore, some of the
optional equipment described in the manual may be not installed
on your vehicle.
All specifications provided in this manual are up to date at
the time of printing. However, due to continuous product
improvement, the contents of this manual will be updated at any
time without prior notice. The descriptions and/or procedures
in this publication are for informational purposes only. Take no
responsibility for omissions or inaccuracies. Express prohibition
or reuse of descriptions and/or programs contained in whole or in
part.
If your vehicle needs any service and repair matters, please
contact our dealer, our dealer will provide satisfactory service in a
timely manner.
Login on http://powersports.segway.com query the
nearest Segway dealer or service locations.

TABLE OF CONTENTS
1
24
58
82
144
162
151
168
SAFETY INTRODUCTION
VEHICLE DEVICE
OPERATION
MAINTENANCE, STORAGE AND
TRANSPORTATION
SPECIFICATIONS
TROUBLESHOOTING
EMISSION CONTROL SYSTEM
WARRANTY

INTRODUCTION BEFORE YOU RIDE
This SEGWAY vehicle is an on-road vehicle. Familiarize yourself
with all laws and regulations concerning the operation of this
vehicle in your area.
!WARNING
• Failure to heed the warnings and safety precautions
contained in this manual an result in severe injury
or death. Your SEGWAY vehicle is not toy and can be
hazardous operate .This vehicle handles differently than
cars, trucks or the on-road vehicles .A collision or rollover
can occur quickly, even during routine maneuvers like
turning, or driving on hills or over obstacles, if you fail to
take proper precautions.
• Read this owner's manual that came with your vehicle
.
Understand all safety warnings, precautions and
operating procedures before operating the vehicle. Keep
this manual with the vehicle.
• Never operate this vehicle without proper instruction
.Take an authorized training course .See the Safety
Training section for more information.
• This vehicle is an ADULT VEHICLE ONLY .You MUST be at
least age 16 and have a valid driver's license to operate
this vehicle.
• Always use the cab nets (or doors) while riding in this
vehicle. Always keep hands, feet and all other body parts
inside the vehicle at all times.

• Always wear a helmet, eye protection, gloves, long-sleeve
shirt, long pants and over-the-ankle boots.
• Never operate this vehicle under the influence of drugs or
alcohol, as these conditions impair judgement and reduce
the operator's ability to react.
• Complete the New Operator Driving Procedures outlined
this manual Never allow a guest to operate this vehicle
until the guest has completed the New Operator Driving
Procedures.
• Never permit a guest to operate this vehicle unless the
guest has reviewed the owner's manual and all safety
labels and has completed a safety training.

The meaning of these signs
The Prohibition
Safety Sign
indicates an
action NOT to
take in order to
avoid a hazard.
The Mandatory
Action Sign
indicates an action
that NEEDS to be
taken to avoid a
hazard.
!WARNING
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
!DANGER
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
!CAUTION
CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, could result in minor or moderate injury.
CAUTION
CAUTION, used without the safety alert symbol, is used to address
practices not related to personal injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
!

SAFETY INTRODUCTION
1
WARNING LABELS...........................................................................................3
SPECIAL SAFETY MESSAGES .........................................................................8
IMPORTANT SAFETY INFORMATION..............................................................11
READING THE MANUAL............................................................... 11
SAFE DRIVING AGE ...................................................................... 12
USING ALCOHOL OR DRUGS ...................................................... 13
RIDING EQUIPMENT..................................................................... 14
VEHICLE MODIFICATION............................................................. 16
PASSENGERS ............................................................................... 17
CONTACT EXHAUST..................................................................... 18
UNAUTHORIZED USE OF THE VEHICLE..................................... 19
FUEL SAFETY................................................................................ 19
FAILURE TO INSPECT BEFORE OPERATING .............................. 20
IMPROPER TIRE MAINTENANCE................................................ 20
OPERATING ON FROZEN BODIES OF WATER............................ 21
OPERATING AT EXCESSIVE SPEEDS.......................................... 21
HOT EXHAUST SYSTEMS............................................................. 22
OPERATING A DAMAGED VEHICLE ............................................ 22
SKIDDING AND SLIDING ............................................................. 22
OPERATING IN UNFAMILIAR TERRAIN ...................................... 23
IMPROPER HILL CLIMBING......................................................... 23
DESCENDING HILLS IMPROPERLY............................................ 23

2
SAFETY INTRODUCTION
Failure to follow the warnings and safety precautions in this
manual may result in serious injury or death. It can be dangerous
to operate an ATV that is not regulated and is driven differently
from other vehicles, such as motorcycles and automobiles. If
proper precautions are not taken, a collision or rolled-over may
occur during normal maneuvers such as turning, climbing,
or overcoming obstacles. Understand all safety warnings,
precautions and operating procedures before operating the
vehicle. Bring this manual with you.

3
SAFETY INTRODUCTION

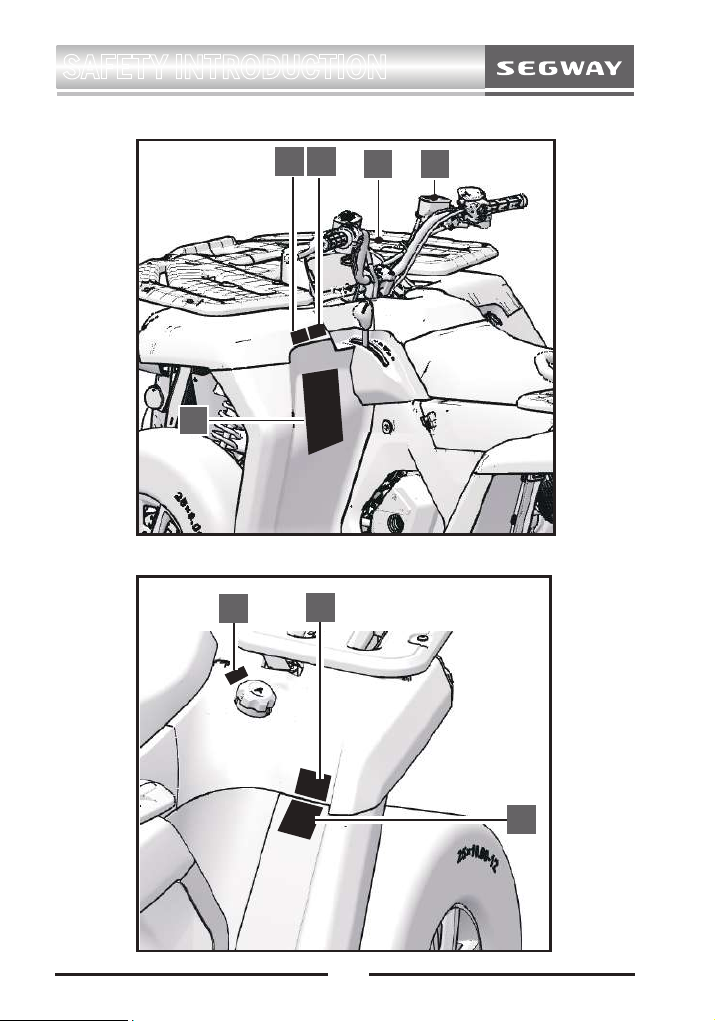

WARNING LABELS
Warning labels have been placed on the vehicle for your
protection. Read and follow the instructions on the labels
carefully. If any of the labels depicted in this manual differ from
the labels on your vehicle, always read and follow the instructions
on the vehicle. If any label becomes illegible or comes off, contact
Segway Powersports to obtain a replacement.

4
SAFETY INTRODUCTION
2
8
7
4 5 9 9
1

5
SAFETY INTRODUCTION
3
10
11
6

6
SAFETY INTRODUCTION
1 2
3
OPERATOR
UNDER
Operating this ATV if you are under
the age of 16 increases your chances of
severe injury or death to both operator
and passenger.
operate this vehicle if you are
under age 16.
4
Passengers under 12 are
prohibited.
Passenger should be well
seated & hold tight the
handgrip during public
road operation.
Passenger seat could be
used during public roads
operation.
Passenger seat shall not
be used during field
operation.
OPERATOR
UNDER
Operating this ATV if you are under
the age of 16 increases your chances of
severe injury or death to both operator
and passenger.
operate this vehicle if you are
under age 16.
● Max Rack Loads: Front 88 lbs (40kg)
Rear 132lbs (60kg)
Vehicle damage or tipover may result
in severe injury or death. Tow only
from tow hooks or hitch.

7
SAFETY INTRODUCTION
5
● Step on the brake pedal each time
the gear is changed.
When the ATV is unmanned, the
●
transmission must be placed in
parking gear.
6
Turning the vehicle in 4WD-LOCK
(“DIFF. LOCK”) takes more efforts.
Operate at a slow speed and allow
extra time and distance for
maneuvers to avoid loss of
control.
7
89
11
10
The air filter must be maintained in
accordance with the requirements
of the Segway Owner’s Manual，
otherwise it may seriously
damage your engine.
CAUTION
Maximum unbraked towing mass 150 kg (331 lb)
Maximum unbraked tongue mass 100 kg (220 lb)
Maximum inertiabraked towing mass 600 kg (1323 lb)
Maximum inertiabraked tongue mass 100 kg (220 lb)
A10-L100056-LEN-00
Unleaded fuel only

8
SAFETY INTRODUCTION
SEVERE INJURY OR DEATH can result if you do not follow
these instructions:
• The minimum recommended driving age for this vehicle is 16 years.
• Never operate this vehicle without wearing an approved
motorcycle helmet that fits properly. You should also wear
eye protection (goggles or a face shield), gloves, over-the-
ankle boots, long-sleeved shirt or jacket and long pants.
• Never consume alcohol or drugs before or while operating
this vehicle.
• Never attempt jumps of stunts.
• Never operate at speeds too fast for your skills or the
conditions. Always go at a speed that is proper for the
terrain, visibility, operating conditions and your experience.
• Always inspect your vehicle each time you use it to be sure it
is in safe operating condition.
• Never operate on excessively rough, slippery or loose terrain
until you have learned and practiced the skills necessary
to control the vehicle on such terrain. Always be especially
cautious on these kinds of terrain.
• Always follow the inspection and maintenance procedures
and schedules described in this manual.
• Never operate on hills that are slippery or ones where you
will not be able to see far enough ahead of you.
• Never go over the top of a hill at speed if you cannot see what
is on other side.
• Always keep both hands on the handlebars when driving.
SPECIAL SAFETY MESSAGES

9
SAFETY INTRODUCTION
• Always go slowly and be extra careful when operating
on unfamiliar terrain. Always be alert to changing terrain
conditions when driving the vehicle.
• Never turn at excessive speed. Practice turning at slow
speeds before attempting to turn at faster speeds. Do not
attempt turns on steep inclines.
• Always follow proper procedures for going uphill. If you lose
control and cannot continue up a hill, back down the hill with
the engine in reverse gear. Use engine braking to help you go
slowly. If necessary, use the brakes gradually to help you go
slowly.
• Never operate the vehicle on hills that are too steep for it
or for your abilities. Go straight up and down hills where
possible.
• Never operate the vehicle in fast flowing water or water
deeper than the floorboards on this model. Remember that
wet brakes may reduce stopping ability. Test your brakes
after leaving water. If necessary, apply the brake several
times to let friction dry out the linings.
• Always be sure there are no obstacles or people behind you
when you operate in reverse. When it is safe to proceed in
reverse, go slowly.
• Always check terrain before going down hills. Go as slowly as
possible. Never go down a hill at high speed.
• Always check for obstacles before operating in a new area.
• Do not brake abruptly when carrying loads.
• Always use the size and type of tires specified in this manual.
• Always maintain proper tire pressure as described in this
manual.
• Never exceed the stated load capacity. Cargo should be

10
SAFETY INTRODUCTION
distributed evenly between the front and rear racks. Be
sure cargo is secured so that it cannot move around during
operation. Reduce speed and follow instructions in this
manual for carrying cargo or pulling a trailer. Allow greater
distance for braking.
• Brake discs can be over-heated after continuous braking.
Allow brake disc to cool before servicing.
• Be aware of burn and fire risks related to contact with hot
surfaces, including residual risks such as filling of oil or
coolant, hot engines or transmissions.
• Exhaust system components are very hot during and after
use of the vehicle. Hot components can cause burns and fire.
Do not touch hot exhaust system components. Always keep
combustible materials away from the exhaust system.
• Use caution when traveling through tall grass, especially dry
grass. Always inspect the underside of the vehicle and areas
near the exhaust system after driving through tall grass,
weeds, brush, and other tall ground cover. Promptly remove
any grass or debris clinging to the vehicle.
