WELCOME
Thank you for buying Segway ATV.
Segway Off-road vehicles will bring you a
new driving experience.
For your driving safety, please read this manual before
riding. This manual contains important safety
instructions, operation instructions, maintenance
instructions and safetywarnings.
A careful reading of this manual will help you to
quickly understand the vehicle and will help your driving.
Periodic maintenance procedures are included in this
manual. They must be performed regularly to maintain
vehicle´s safety.
!
WARNING
Read, understand, and follow all of the instructions
and safety precautions in this manual and all product
labels.
Failure to follow the safety precautions could result
in serious injury or death.
Read this manual carefully, it contains important safety information.

3
IMPORTANT NOTICE
This vehicle is designed and manufactured foroff-road
use and complies with all applicable off-road noise, vibration and
emissionregulations.
Before driving the vehicle, please understand the local laws
and regulations, follow local trafficregulations.
This manual is applicable to the Segway ATV fuel series
and describes all equipment including optional components.
Therefore, some of the optional equipment described in the
manual may be not installed on your vehicle.
If your vehicle needs service or repair, please contact our dealer.
He willprovide you professional service in a timely manner. All
specifications provided in this manual are up todate at the time
of printing. However, due to continuous product improvement,
the contents of this manual can be updated at any time without
prior notice.The descriptions and/or procedures in this manual
arefor informational purposes only. We takeno responsibility for
omissions or inaccuracies. Express prohibition or reuse of
descriptions and/or programs contained in whole or in part.

4
TABLE OF CONTENTS
SAFETY INTRODUCTION
VEHICLE DEVICE
OPERATION
MAINTENANCE
SPECIFICATIONS
TROUBLESHOOTING
EMISSIONCONTROLSYSTEM
8
30
75
107
173
181
190

5
INTRODUCTION
BEFORE YOURIDE
This Segway ATV is an off-road vehicle. Familiarize
yourself with all laws and regulations concerning the
operation of this vehicle in yourarea.
! WARNING
◆Failure to observe warnings and safety precautions
in this manual can result in severe injury or
death. Your Segway ATV is not a toy and can be
hazardous to operate. ATVs handle differently
from cars, trucks or the off-road vehicles. A
collision or rollover can occur quickly, even during
routine maneuvers like turning, driving on hills
or over obstacles, if you fail to take proper
precautions.
◆Read this manual that came with your vehicle.
Understand all safety warnings, precautions and
operating procedures before operating the
vehicle. Keep this manual with the vehicle.
◆Never operate this vehicle without proper instruction.

6
◆This vehicle is an ADULT VEHICLE ONLY. You MUST
be at least of age 16 and have a valid driver's
license to operate this vehicle.
◆Always wear a helmet, eye protection, gloves,
long- sleeve shirt, long pants and over-the-ankle
boots.
◆Never consume alcohol or drugs before or
while operating this vehicle, as these they
impair judgment and reduce the operator's ability
to react.
◆Complete the New Operator Driving
Procedures outlined this manual. Never allow a
other person to operate this vehicle until he/she
has completed the New Operator Driving
Procedures.
◆Never permit other person to operate this vehicle
unless he/she has read this owner's manual and
all safety labels, and has completed safety training.

7
The meaning of the signs：
Failure to follow WARNING instructions could result in
severe injury or death to the operator, a bystander or a
person inspecting or repairing themachine.
CAUTION
YOU CAN be HURT if you don't follow these instructions.
NOTE
NOTE provides key information by clarifyinginstructions.
The Prohibition
Safety Sign
indicates an
action NOT to
take in order to
avoid a hazard.
The Must Action
Sign indicates an
action that
NEEDS to be
taken to avoid a
hazard.
!
WARNING

8
SAFETY INTRODUCTION
WARNING LABELS ………….……..…… 11
GENERAL SAFETY PRECAUTIONS …… 18
IMPORTANT SAFETY INFORMATION ... 22
Reading the manual ………………………………… 22
Safe driving age …………………………………… 23
Riding equipment ………………...………………… 24
Vehicle modifications ……………..………………… 26
Passengers …………………………………………… 27
Exhaust gases are dangerous ……………………… 28
Fuel safety………………………………..……………. 29

SAFETY INTRODUCTION
9
Failure to follow the warnings and safety precautions in
this manual may result in serious injury or death. It can be
dangerous to operate an ATV that is not regulated and
drives differently from other vehicles, such as motorcycles
and cars. If proper precautions are not taken, a collision
or roll-over may occur during normal maneuvers such as
turning, driving on hills or over obstacles. Understand
all safety warnings, precautions and operating procedures
before operating this vehicle. Bring this manual with you.

SAFETY INTRODUCTION
11
WARNING LABELS
Warning labels have been placed on the vehicle for your
protection. Read and follow the instructions on the labels
carefully. If any of the labels depicted in this manual differ
from the labels on your vehicle, always read and follow the
instructions on the vehicle. If any label becomes
unreadable or comes off, contact your Segway
Powersports dealer for a replacement.

SAFETY INTRODUCTION
12

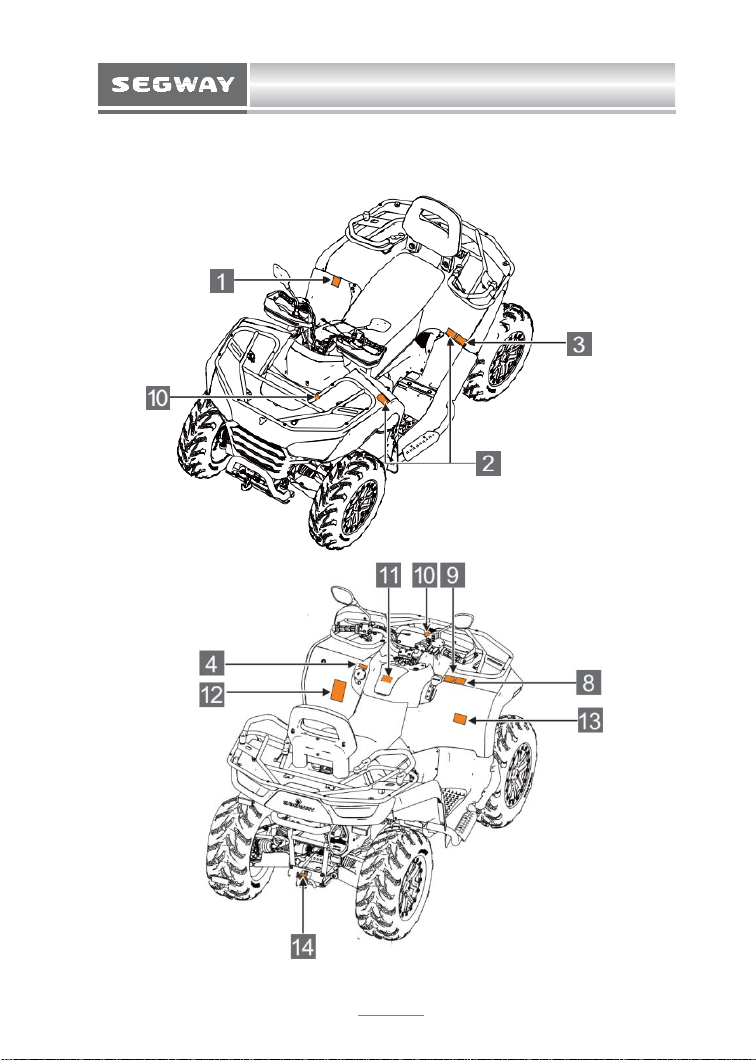

Model:AT6 S

SAFETY INTRODUCTION
13

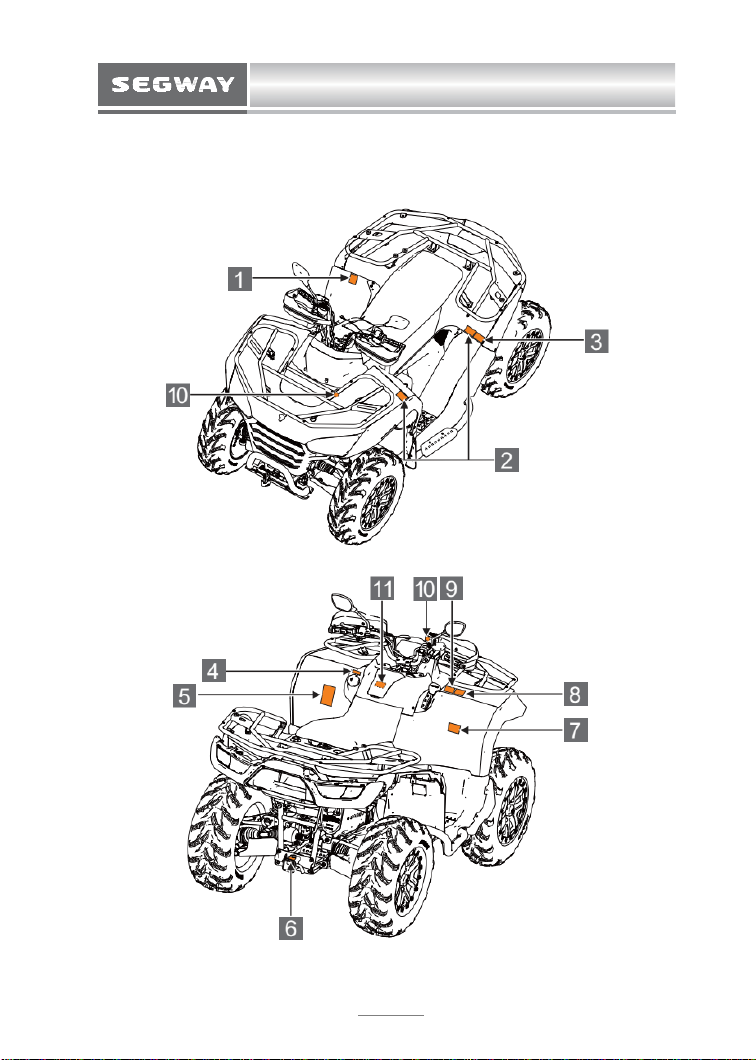

Model:AT6 L

SAFETY INTRODUCTION
14

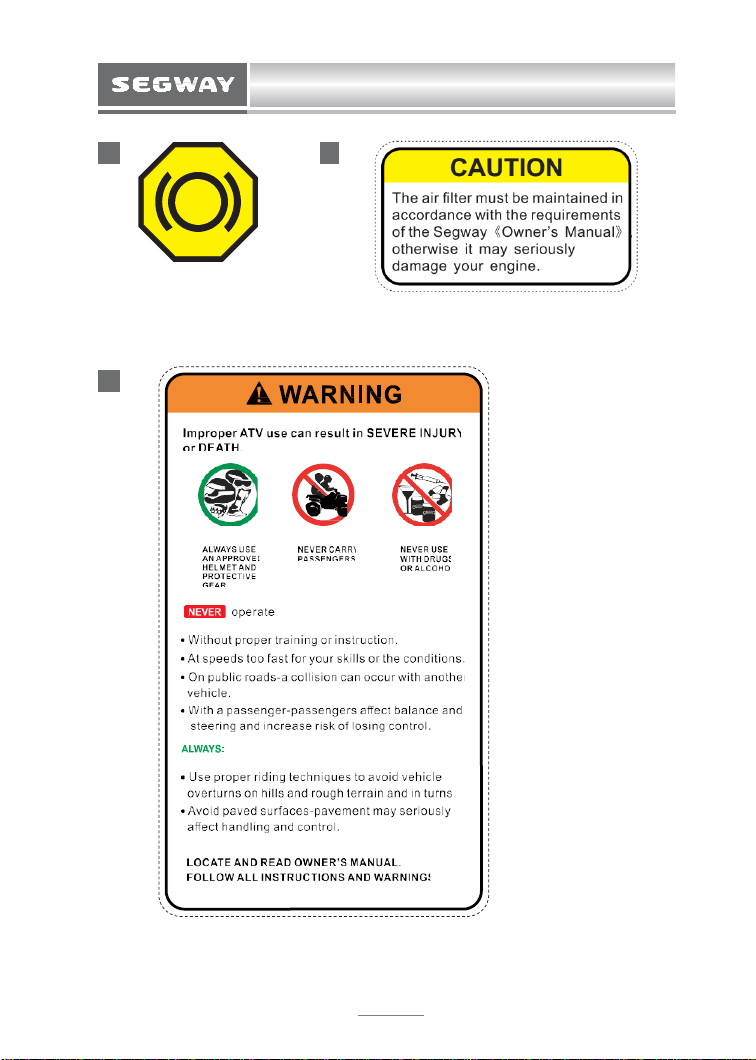

5
6

SAFETY INTRODUCTION
15
7
8
9

SAFETY INTRODUCTION
16
10 11
12

SAFETY INTRODUCTION
17
13
14

SAFETY INTRODUCTION
18
GENERAL SAFETY PRECAUTIONS
SEVERE INJURY OR DEATH can result if
you do not follow theseinstructions:
◆Minimum recommended driving age for this
vehicle is 16 years.
◆Never operate this vehicle without wearing an
approved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or a face
shield), gloves, over-the-ankle boots, long-sleeved
shirt or jacket, and long pants.
◆Never consume alcohol or drugs before or while
operating this vehicle.
◆Never attempt jumps, wheelies or other stunts.
◆Never operate at speeds too fast for your skills or
the conditions. Always go at a speed that is proper
for the terrain, visibility, operating conditions and
your experience.
◆Always inspect your vehicle every time you use it to
be sure it is in safe operating condition.
◆Never operate on excessively rough, slippery, or

SAFETY INTRODUCTION
19
loose terrain until you have learned and practiced
the skills necessary to control the vehicle in such
terrain. Always be especially cautious on these kinds
of terrain.
◆Always follow the inspection and maintenance
procedures and schedules described in this manual.
◆Never operate on hills that are slippery or ones where
you will not be able to see far enough ahead of you.
Never go over the top of a hill at speed if you
cannot see what is on other side.
◆Always keep hands, arms, feet, and legs inside the
vehicle at all times during operation. Keep your
feet on the floorboard. Never hold onto the
enclosure. Otherwise, your hands could be injured
if it is caught between the enclosure and an
obstacle outside the vehicle.
◆Always keep both hands on the handlebars when
driving.
◆Always go slowly and be extra careful when
operating on unfamiliar terrain. Always be alert to
changing terrain conditions when driving.
◆Never turn at excessive speed. Practice turning at

SAFETY INTRODUCTION
20
slow speeds before attempting to turn at faster
speeds. Do not attempt turns on steep inclines.
◆Always follow proper procedures when going uphill.
If you lose control and cannot continue up a hill,
back down the hill with the engine in reverse
gear. Use engine braking to help you to slow
down. If necessary, use the brakes gradually to
help you go slowly.
◆Never operate the vehicle on hills that are too
steep for it or for your abilities. Go straight up and
down the hills where possible.
◆Never operate the vehicle in fast flowing water or
water deeper than the floorboards on this model.
Remember that wet brakes may have reduced
stopping ability. Test your brakes after leaving water.
If necessary, apply the brake several times to let
friction dry out the linings.
◆Always be sure there are no obstacles or people
behind you when you operate in reverse. When it is
safe to proceed in reverse, go slowly.
◆Always check the terrain before going downhill. Go
as slowly as possible. Never go down a hill at high

SAFETY INTRODUCTION
21
speed.
◆Always check for obstacles before operating in a
new area.
◆Do not brake abruptly when carrying loads.
◆Always use the size and type of tires specified in
this manual.
◆Always maintain proper tire pressure as described
inthis manual.
◆Never exceed stated load capacity. Cargo should be
distributed evenly on front and rear rack. Be sure
that cargo is secured so that it cannot move
around during t h e ride. Reduce speed and
follow instructions in this manual for carrying
cargo or pulling a trailer. Allow greater
distance for braking.
◆Brake discs can be over-heated after continuous
braking. Allow brake disc to cool before serving.
◆Risks related to contact with hot surfaces, including
residual risks such as filling of oil or coolant, hot
engines or transmissions.
