SEIKAKU TECHNICAL GROUP CS-201 User manual

1
Please read the instructions in details before you use, and follow the contents to do the most
proper installation. After you have made the proper installation, please keep this instruction
well for your references at any time.
If you would like to do any changes for the installation regarding this product, please must
make sure if the specifications are correct or not. Otherwise, the incorrect installation will
probably result in the permanent damage to this product, therefore, please use it with caution.
Cautions:
1. Absolutely not to do the installation that exceeds the specifications of this products because
it will result in affecting the life and the capacity with regard to this product.
2. CS-2XX / 3XX Series Keep away from the place that wets in rain directly if installing at outside.
3. Do not clean the appearance of the column speaker with an organic solvent or alcoholic
detergent.
4. Do not repair or disassemble the product yourself if there is any damage or unusual
situation, please should contact the person in charge of service immediately.
Installation Methods:
1. Please make sure that if the fixed methods for the fixed support firmly undertake the weight
of this product when you install, so as to avoid causing the injury to the facilities and a
worker if there is a falling.
2. Please definitely use the exclusive design of the speaker frame to do the fixation.
3. Recommend you to install the bottom of the speaker whose distance shall be 1.5m from the
ground when you sit to listen to the conditions. If you stand up, the bottom of the speaker
whose distance shall be 1.7m from the ground, which will get a better effect.
4. In case of needing to hang the speaking at a higher position, please install it in an inclined
direction to get a good effect. ( Recommend you to choose a big angle of fixed support that
exclusively designed for this product, CS-201/202/203, such as the attached chart.)
5. The fixed support that hangs on the wall. The methods of operating are as the following
chart. (In addition to the standard accessories, there are a wide variety of accessories for
you to choose.)
Fixed Support Installation Methods
Revolution of
Left & Right
(General accessory)
Inclined
Forward
(Purchased accessory)
Revolution of
Left & Right
(General accessory)
Inclined
Forward
(Selected accessory)
4
Spezifikation Erklaerung der Elektrische Anlage
Types of Models
Input Power
Output Power
Input Impedance
Input Voltage
Frequency of Reaction
Sound Pressure Level
Model Size
Weight
20W Column Speaker 4 unites of 5" 7" Wide Band Speakers
2 unites of 2.5" Tweeter
Rated 20W / Max. 40W
1.25W / 2.5W / 5W / 10W / 20W
(100V):8KW / 4KW / 2KW / 1KW / 500W
( 70V ):3.9KW / 2KW / 1KW / 490W / 245W
( 25V ):500W / 250W / 125W / 62W / 31.3W
25V / 70V / 100V
100~16000Hz
98dB(1W / M)
(Width)169 (length)868 (height)113mm
6.6Kg/14.6 Ibs
Types of Models
Input Power
Output Power
Input Impedance
Input Voltage
Frequency of Reaction
Sound Pressure Level
Model Size
Weight
30W Column Speaker 6 unites of 5" 7" Wide Band Speaker
2 unites of 2.5" Tweeter
Rated 30W / Max 60w
2W / 3.75W / 7.5W / 15W / 30W
(100V):5KW/ 2.67KW/ 1.33KW/ 670W/ 330W
( 70V ):2.5KW/ 1.3KW/ 650W/ 320W/ 163W
( 25V ):312W/ 166W/ 83.5W/ 41.5W/ 20.8W
25V / 70V / 100V
100~16000Hz
99dB(1W / M)
(width)169 (length)1271 (height)113mm
9Kg/19.84 Ibs
CS-201
Specification:
196 25 2t
Quantity: 2
Specification:
60 35 30
Quantity:3
Specification:
77 64 50
Quantity:1
Specification:
M8 12
Quantity:8
Specification:
M8 18 1.5
Quantity:8
CS-202
Specification:
296 25 2t
Quantity:2
Specification:
60 35 30
Quantity:3
Specification:
77 64 50
Quantity:1
Specification:
M8 12
Quantity:
8Specification:
M8 18 1.5
Quantity:8
CS-203
Specification:
396 25 2t
Quantity:2
Specification:
60 35 30
Quantity:3
Specification:
77 64 50
Quantity:1
Specification:
M8 12
Quantity:8
Specification:
M8 18 1.5
Quantity:8
Model
Connecting Plate
-Shaped Fixed
Support
-Shaped Fixed
Support
Hexagon Zinc Screw
Zinc Washer
Attachment of component parts for Column Speaker
COLUMN SPEAKER
NF00567-2

2

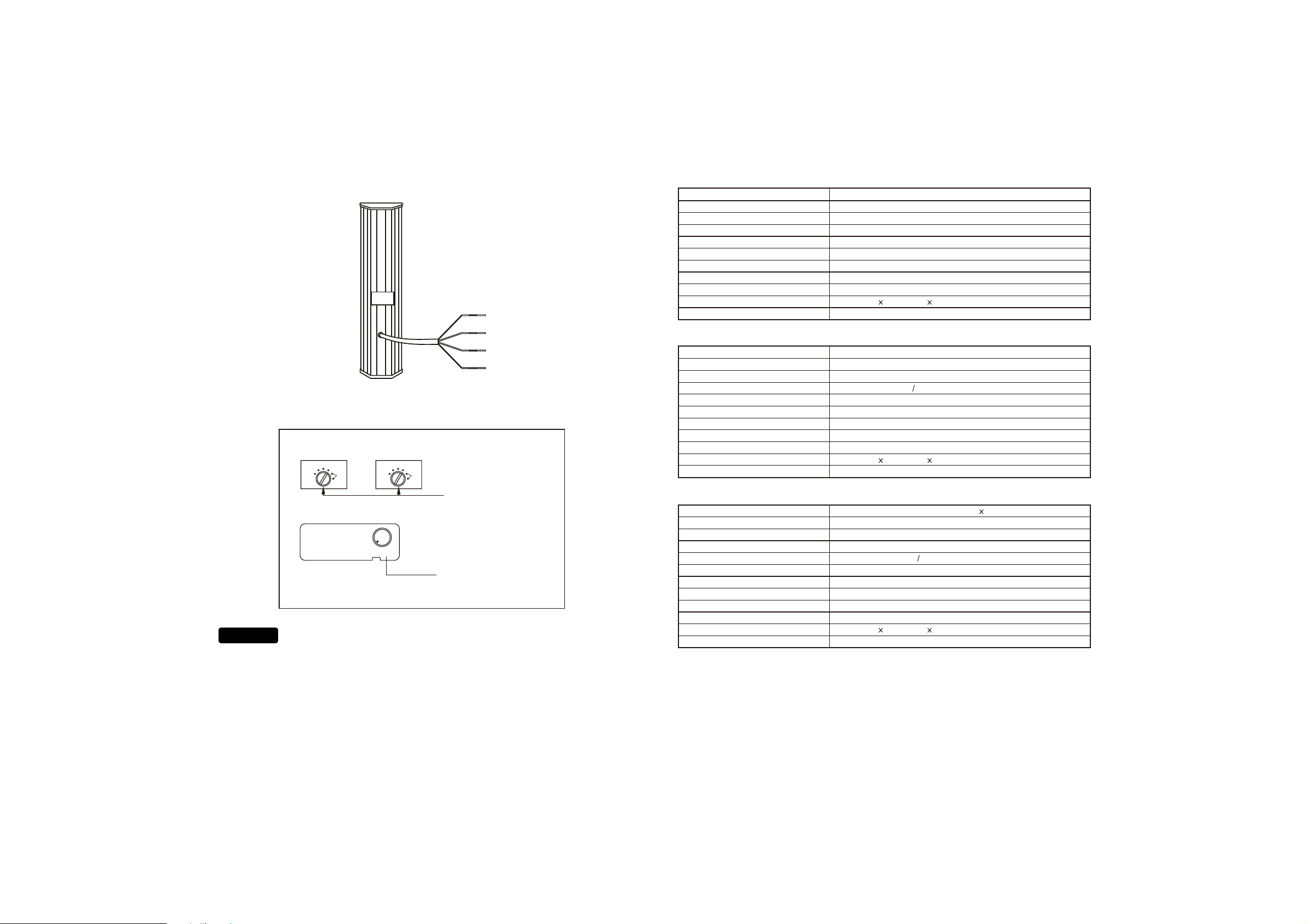

6. Please firstly confirm the system you connect is the output connection of 100V,
70V or 25V before you connect the voltage for this product. You should choose
as the cables color on the speaker to the proper position. (as the following
pictures)
BLACK COM
BROWN 25V
RED 70V
ORANGE 100V
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
1.5W
3W
6W
12W
2.5W
5W
10W
20W
15W
7.5W
3.75W 2.5W 1W
Warning
7. If requiring to adjust the output power (low or loud of volume),you can switch the
volume on the speaker to choose what you want. The switch position is as follows:
Output Power Switch
Output Power Switch
" This product shall be installed by an expert. Before you install it, please turn off the
power that connects to the amplifier to avoid getting an electric shock! "
1. Before you send the signal to the speaker, please confirm if the installation of the
input voltage or the circuits is short or not because these will cause the damage of
the speaker.
2. The end of input voltage on the speaker whose voltage shall be the same as the
input voltage on your instrument.
OFF OFF
3
Types of Models
Input Power
Output Power
Input Impedance
Input Voltage
Frequency of Reaction
Sound Pressure Level
Model Size
Weight
Instructions of Appliance Specification
Types of Models
Input Power
Output Power
Input Impedance
Input Voltage
Frequency of Reaction
Sound Pressure Level
Model Size
Weight
12W Column Speaker 4 unites of 2.5" Wide Band Speaker
Rated 12W / the biggest 24W
1.5W / 3W / 6W / 12W
(100V):6.6KW/ 3.3KW / 1.66KW / 833W
( 70V ):3.26KW / 1.63KW / 816W / 408W
( 25V ):416W / 208W / 104W / 52W
25V / 70V / 100V
250~16000Hz
94dB(1W / M)
(width)106 (length)405 (height)75mm
2.2Kg / 4.85 Ibs
Types of Models
Input Power
Output Power
Input Impedance
Input Voltage
Frequency of Reaction
Sound Pressure Level
Model Size
Weight
20W Column Speaker 7 unites of 2.5" Wide Band Speaker
Rated 20W / Max. 40W
2.5W / 5W / 10W / 20W
(100V):4KW/ 2KW1KW/ 500W
( 70V ):2KW/ 1KW/ 500W/ 250W
( 25V ):250W/ 125W/ 62W/ 31W
25V / 70V / 100V
250~16000Hz
94dB(1W / M)
(width)106 (length)619 eight)75mm
3.6Kg/7.94 Ibs
15W Column Speaker 3 unites of 5" 7" Wide Band Speakers
1 unite of 2.5" Tweeter
Rated 15W / Max. 30W
1W / 2W / 3.75W / 7.5W / 15W
(100V):10KW/ 5KW2.67KW/ 1.33KW / 670W
( 70V ):4.9KW/ 2.5KW/ 1.3KW/ 650W/ 320W
( 25V ):625W/ 312W/ 166W/ 83.5W /41.5W
25V / 70V / 100V
100~16000Hz
97dB(1W/M)
(width)169 (length)667 (height)113mm
5Kg/11.02 Ibs
15W(20W/30W)
