Selectronic LD200-12 User manual

Notes
Part No ST-M-LD200 Rev 4 18/11/04
USTRALIA
ELECTRONIC
A
S
LD200-12 Operating Manual
Serial No _____________________________ Purchase Date ______________
Note -Your 2 Year Warranty can only be valid once your warranty card is completed and returned to Selectronic Australia
USTRALIA
ELECTRONIC
A
S

LD200-12 Volt Owners Manual
Contents Page No.
Introduction 1
Warranty Card 1
Installation 1
Batteries and Connections 4
Getting Started Quickly 6
Parts Identification 6
Operation 7
Status Indicators 7
Maintenance 8
Inverter 8
Batteries 8
Radio Frequency Interference 9
Fault Finding 10
Product Warranty Conditions 11
Specifications 12
Selectronic Service Network 13
Legend for Symbols
Warnings and
electrician’s notes
Hints and Pointers
Examples
LD200 Manual Selectronic Australia
13
Selectronic Authorised Service Network
Selectronic Australia
Suite 5, 20 Fletcher Road
Mooroolbark
Victoria 3138
Australia
Ph: [phone]
Fax: [phone]
[email protected]
Burley TV Service Rainbow Power Company
278 Edmondson Ave. 1 Alternative Way
Austral Nimbin
NSW 2171 NSW 2480
Australia Australia
Ph: 02 9606-0279 Ph: 02 6689 1430
Fax: [phone]
Reid Technology Ltd
3-5 Auburn Street
Solar Inverter Services Takapuna
13 Thirteenth Ave. North Shore City
Sawtell Auckland NZ
NSW Ph: 9 489-8100
2452 Fax: [phone]
Ph: 02 66581733 [email protected]

LD200 Manual Selectronic Australia
12
LD200 12 Volt Specifications
Inverter Type Microprocessor control circuit with PWM full bridge power
stage. True sine wave AC output.
Current draw from Battery
Condition Amperage
Inverter ON, with no Load
Maximum Continuous Load (200 Watt)
Surge rating (600 Watt)
0.30 Amps
20.0 Amps
55 Amps
Inverter Power Ratings @ 25ºC
Total Inverter outputCondition
Wattage @ 1.0pf Current
Continuous
Half hour rating
Surge rating (3 seconds)
200 Watt
250 Watt
600 Watt
0.83 Amps
1.04 Amps
2.0 Amps
Battery Voltage Range Voltage
Low DC Volts Cut Out–10 second delay
Low DC Volts Cut In
High DC Volts Cut Out–Instantaneous
11 volts
12 volts
17 volts
Miscellaneous Specifications
Reverse Polarity Protection
Output Voltage Accuracy 0-200 watts
Output Frequency
Total Harmonic Distortion
Operating Temperature Range
Socket Outlet
Chassis
Full Electronic Protection
±4% @ 12 volt input
50Hz ± 0.01%
<4%
-10º C to 50º C
10 Amp Single Pole
Powder Coated Zinc Steel
LD200 Manual Selectronic Australia
1
Introduction
Thank you for choosing to purchase the Selectronic LD200 True Sine
Wave Inverter. Many hours of Research and Development have gone
into the LD200 to ensure this inverter provides you with many years of
reliable service
Warranty Card
It is imperative that you complete your warranty card NOW. Your LD200
is covered by a TWO year warranty; this warranty is in addition to your
rights under the trade practices act of your state or territory.
Returning your completed warranty card will register your warranty and
avoid any possible delays should service be required. If you have any
comments about our product that will not fit on the warranty card please
feel free to drop us a line. Yes, constructive criticism will also be welcome.
Installation
200mm
200mm200mm
LD200
Inverter
Front
200mm
LD200 Inverter
Please leave a clearance of 200mm on all sides and top of the Inverter.
The LD200 must be installed in a dry, cool, dust-free environment.
It is recommended that the inverter be placed as far from any radio
receivers as possible.

LD200 Manual Selectronic Australia
2
Large amounts of DC current can be drawn by your LD200, care
must be taken.
Fixed Installation
All fixed installation battery connections must be securely bolted,
using stainless steel nuts and bolts. To protect the connection from
corrosion smear a small amount of Vaseline or similar over the
joint. Never place batteries directly onto a concrete floor, place
timber or similar material beneath the batteries.
Electricians Note
•All Earths, AC and DC, should be bonded
•RFI/Lightning Earth stake should be within 3m of the inverter
•The LD200 is suitable for connection to MEN wiring
•Any AC changeover switch must be a ‘break before make’ type
Warning
As a matter of safety, Selectronic strongly recommend that all fixed
installations be designed and installed by appropriately qualified person. The Business
Council for Sustainable Energy in your state or territory can provide names of
accredited system designers and installers.
All AC wiring MUST be carried out by an accredited electrician and must conform to
AS3000 and/or any relevant local standards.
The output voltage from an inverter is as lethal as mains electricity.
LD200 Manual Selectronic Australia
11
Product Warranty Conditions
Warranty
Selectronic Australia Pty Ltd warrants your inverter to be free from
defects in materials and workmanship under normal use and
service, for an initial period of two (2) years. Defective parts will
be replaced or repaired free of charge within this period.
Conditions
This warranty is applicable only from the date of original purchase.
The provision of this warranty shall not apply if the unit has been
subject to misuse, neglect, act of God, accidental damage or has
been used for a purpose for which it is not intended.
Unauthorised modification or repair will void your warranty.
To ensure a smooth and speedy response to your warranty claim,
please complete and return your reply paid warranty card within 30
days from date of purchase.
Within Australia & New Zealand
The inverter must be returned, at the owner’s cost, to an authorised
service centre listed in this manual. There will be no charge for the
return of the inverter.
Outside Australia & New Zealand
Product purchased for use outside Australia & New Zealand must
be returned to Selectronic Australia’s Service Centre to enable
warranty claims to be processed. Freight cost to be borne by the
customer. No charge will be made for the product return.

LD200 Manual Selectronic Australia
10
Fault Finding
No indicators ON when power is first applied
When first connected, if the LD200 shows no indicators the battery
connections may be reversed. Check that the red battery wire (6) is connected
to the battery positive, and the black battery wire (7) is connected to the
battery negative.
Inverter shuts down during the middle of the day, and comes
back ON late in the afternoon
This is more than likely caused by high battery volts during peak charging
times from Solar Panels. Battery volts should never exceed 17 volts. If this is
the case, have your Solar Regulator checked.
LD200 Manual Selectronic Australia
3
Portable Use
By connecting battery clips, the LD200 can be clipped directly to a vehicle
battery. When using battery clips ensure they have a tight grip around the
battery post. Wherever possible battery connections should be bolted. If
connecting the LD200 through a cigarette lighter socket the maximum
power output of the LD200 will be severely restricted, this practice should
be avoided. Check with your supplier or installer if you are unsure.
Do not use battery clips in a moving vehicle
Auxiliary Battery
Earth (to chassis)
LD200 Inverter
Start Battery
Earth (to chassis)
Isolator
Vehicle
Alternator
By incorporating an auxiliary battery in the manner above, the starting battery
should remain charged for vehicle starting (see your auto electrician).
The LD200 has sufficient battery cable length to allow it to sit underneath the
vehicle whilst in use. If the ground is wet, place the LD200 on a waterproof
liner.

LD200 Manual Selectronic Australia
4
Batteries and Connections
Batteries are the key to maximum performance from your LD200, if a
battery is too small or not fully charged it may result in de-rated
performance from your LD200.
Battery ratings
Batteries can be rated in one of two ways:
1. CCA = Cold Cranking Ability. This is the amount of power or current
that a battery can deliver for a short period, typically a few seconds. This
how a car battery would normally be rated.
2. Ah = Ampere Hours. This is the maximum amount of energy that can be
stored in a battery; this figure will generally be stated at a particular hour
rate. This is how a deep cycle or storage battery would normally be rated.
100Ah @100hr, this means that when this battery is discharged over
a period of 100 hours, the battery has a capacity of 100Ah. This in
theory means 1 Amp for 100 hours, although this would in practice
result in a totally discharged battery that may not then recover.
To achieve maximum performance from your LD200 you must have a
battery capable of delivering 50 Amps for a short period whilst maintaining
at least 10.5 volts. To increase the capacity of your battery you may need to
join more than one battery together.

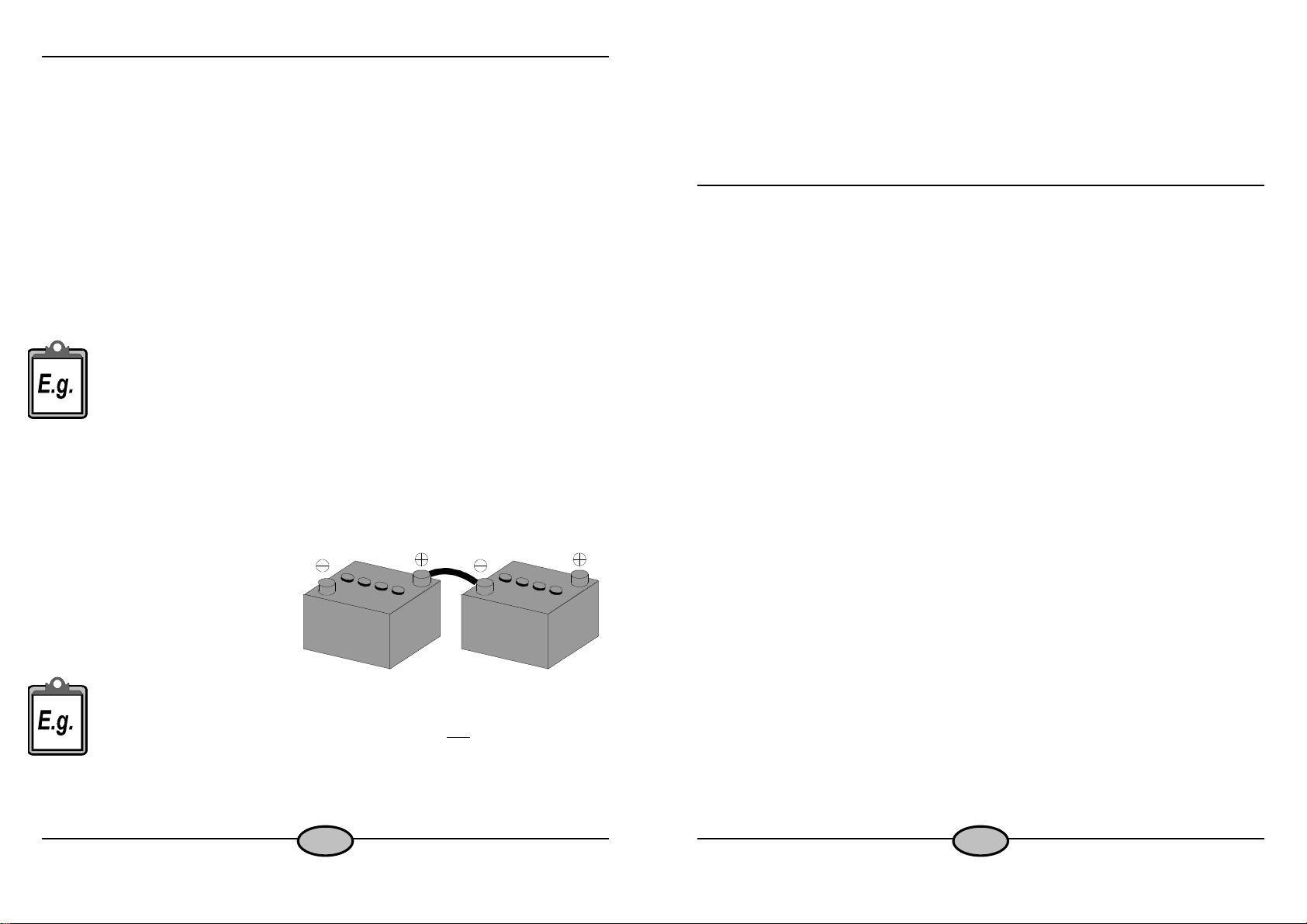

•Where batteries are joined
in series, add the voltage of
each battery.
The capacity will equal the capacity of the smallest battery. 2 x 12
Volt 100 Ah batteries connected in series would have a total
capacity of 24 Volts –100 Ah. This would not suit your 12 Volt
LD200.
LD200 Manual Selectronic Australia
9
3. Once a fortnight or as directed in your battery manufacturer, check the
specific gravity (SG) of each battery cell using a hydrometer, to ensure
that all cells are performing correctly and are properly charged. Any
serious imbalance should be reported to your system designer in case
remedial action needs to be taken.
Radio Frequency Interference
Radio Frequency Interference (RFI) can be a problem for owners of inverters.
RFI in a domestic situation may produce noise or interference on a radio or
TV receiver.
Considerable development time has resulted in a reduction of the RFI
generated by the inverter to a level that complies with C-tick requirements.
Compliance to this standard means RFI is low, but how well the inverter
performs in a particular installation can vary. Below are some suggestions to
help reduce the effects of RFI in your installation;
•It is recommended that the power system including the inverter be
housed at least 15 metres from the home.
•Ensure an earth stake is placed as close to the inverter as possible and
connected to the inverter via a short length of wire. See page 2 for
wiring details.
•Avoid running DC cables into the home, if at all possible. If this
cannot be avoided, run DC and AC in separate conduits separated by
as much distance as practicable. All DC wiring should also be kept
together and be as short as possible.
•If your inverter is to be installed in a mobile home or similar, try to
keep your inverter at least one metre away from your radio or audio
equipment. The further the better.

LD200 Manual Selectronic Australia
8
Maintenance
Inverter
Periodic maintenance of your LD200 inverter involves little more than
checking for any obstructions to the black cooling heatsink at the rear of the
inverter. The heatsink must be cleared of any accumulated foreign matter that
may have lodged itself between the fins since the last maintenance check, e.g.
insect nests. Also verify that airflow around the inverter has not become
restricted.
Batteries
1. Every week, carry out a thorough visual inspection of all battery
wiring, taking particular note of the condition of inter-connections
between cells. This maintenance should be carried out in conjunction
with the battery manufacturers recommended maintenance.
Safety Hint
When working on batteries of such high capacity it is
essential that you wear protective clothing, some form of eye
protection and rubber-soled work boots. Please regard your
batteries with a great deal of caution, and if in any doubt,
entrust this work to your supplier / installer.
2. Check that the stainless steel inter-connecting bolts are tight and have
no corrosion. If corrosion is evident, carefully follow the following
procedure.
•Disconnect the system battery fuse before working on the battery
bank.
•Unbolt the stainless steel bolts and nuts of any corroded
connections and thoroughly clean the joint with a wire brush or
file, taking extreme care not to short circuit any battery cells with
any tools.
•Re-assemble and smear a small amount of Vaseline or similar
grease over the surface of the joint to slow down any future
corrosion.
LD200 Manual Selectronic Australia
5
•Where batteries are joined
in parallel, add the capacities
together, the voltage will
remain the same as each
batteries voltage.
2 x12 Volt 100 Ah batteries connected in parallel would have a
capacity of 12 Volts –200 Ah.
Only use identical batteries when joining batteries together.
How long will my battery last
To work out how long your battery will last follow this basic guide.
This guide presumes commencing with a fully charged battery.
Take the total rating of the appliance being run
1 light globe 25watts
1 20 inch TV 67watts
1 VCR 30watts
Total load =122watts
Divide this figure (122) by 10 to know the approximate DC current draw
=12.2Amps
To convert this to Ampere hours, multiply by the number of hours used -
Say 1 hour =12.2Ah
So if we have a 50Ah battery, then with the above example we should have
50 minus 12.2 = 37.8 Ah remaining in the battery.
As a general guide never discharge a battery below 50%. The deeper
a battery is discharged on a regular basis, the less life you can
expect from the battery. See you battery specifications for full
details.

LD200 Manual Selectronic Australia
6
Getting Started Quickly
If you want to get powered up quickly here are the 10 simple steps.
1. Familiarise yourself with the details in the first 6 pages on this manual.
2. Unpack the LD200 from the packaging.
3. Check unit for any damage that may have resulted during transport, if any
damage is evident report this to your supplier immediately.
4. Make sure the LD200 ON/OFF switch (8) is in the off position.
5. Connect battery positive wire (red) (6) to battery positive or battery fuse.
6. Connect battery neg. wire (black) (7) to battery negative or battery fuse.
7. Plug a 230 -240V appliance into inverter front power point (4) but do
not switch on.
8. Turn ON/OFF switch (8) to ON.
9. LED (1) will illuminate. If no LEDs light, check for correct connection to
battery.
10. You’re away.
Parts Identification.
LED (1)
LED (2)
LED (3) Socket Outlet (4)
ON/OFF Switch (8)
Positive (Red) Battery lead (6) can be viewed from the rear.
Negative (Black) Battery Lead (7) can be viewed from the rear.
LD200 Manual Selectronic Australia
7
Operation
Three LEDs are provided on the front panel to indicate the operating Status
of the LD200 Inverter.
STATUS indicator LED’s
LED 1, “ON”. Indicates that the inverter is supplying power to the load.
LED 2, DC Volts Low / DC Volts High.
“Flashing” If the inverter shuts down due to low battery voltage ( the battery
is flat) then LED 2 will flash. Charge the battery by starting the vehicle or use
a battery charger. When the battery is charged the battery voltage will rise,
LED 2 will turn OFF and the inverter re-activate.
“Permanently ON” If the inverter shuts down due to high battery voltage
then LED 2 will stay ON. When the battery voltage is reduced LED 2 will
turn OFF and the inverter re-activate.
LED 3, Over temperature / AC Overload.
“Flashing” If the inverter shuts down due to internal components getting too
hot, then LED 3 will FLASH, and will FLASH until the temperature has
dropped to a safe level. LED 3 will then turn OFF and the inverter re-
activate.
•If LED 3 is FLASHING regularly, either reduce the amount of load on
the inverter or, if possible, move the inverter to a cooler location.
“Permanently ON” If the inverter shuts down due to too much AC load
being drawn from it then LED 3 will come ON. The inverter will remain in
this condition for 1 minute after the AC load has been decreased to a safe
level.
•If the inverter remains in this overload condition beyond one minute,
switch 8 (ON /OFF Switch ) should be turned OFF and then back ON to
re-activate the inverter.
