Selkirk Chardonnay User manual

PREFABRICATED WOOD-BURNING FIREPLACE
INSTALLATION AND OPERATION MANUAL
Keep this manual for future reference
Standards: ULC-S610
UL-127
E.P.A. Standards Exempt
Revised: June 2009 Web Site: www.maxfireplaces.com

2
TABLE OF CONTENTS
Page
INTRODUCTION..........................................................................................................................3
FIREPLACE DIMENSIONS.........................................................................................................3
INSTALLATION...........................................................................................................................4
Fireplace Installation.................................................................................................................6
Electrical Installation Instructions for Optional Blower...........................................................7
Chimney Installation.................................................................................................................9
Masonry Chimney Installation..................................................................................................9
Fireplace Finish.......................................................................................................................14
USE AND SAFETY.....................................................................................................................18
Creosote...................................................................................................................................19
Chimney Fire Safety Procedures.............................................................................................19
MAINTENANCE.........................................................................................................................19
Replacing Glass.......................................................................................................................20
Replacing Chardonnay Refractory Brick................................................................................20
TROUBLESHOOTING...............................................................................................................21
HEAT DISTRIBUTION SYSTEMS...........................................................................................22
Gravity Air Distribution Kit................................................................................................... 22
Forced Air Distribution Kit.....................................................................................................23
WARRANTY...............................................................................................................................25
Warranty Registration Card .........................................................................................................26
Certification Plate.........................................................................................................................27

3
INTRODUCTION
This manual contains all the information required for safe, efficient installation and use of your
Chardonnay fireplace. Read carefully all the instructions contained herein and keep this manual handy so you
may refer to it whenever necessary.
Before starting to install the fireplace, consult local authorities to obtain a construction permit and learn
about all applicable regulatory requirements.
Do not install this fireplace in a mobile home.
Figure #1: Chardonnay Fireplace Dimensions

4
INSTALLATION
The Chardonnay fireplace is designed and approved for installation with the following brands of
chimneys measuring 7” (178 mm) in diameter as well as a minimum of 15’ (4.6 m) and maximum of 45’ (13.7
m) in height.
CANADA USA
Selkirk, Sentinel(CF); Supe
r
Pro 2100(ALT);
SuperVent 2100 (JM), SuperPro(SPR), Ultra-
Temp(UT), SuperVent (JSC).
Selkirk, Ultra-Temp(UT); Sure-Temp(ST);
SuperPro(SPR), SuperVent(JSC); Hart&Cooley(TLC)
Install the fireplace strictly according to the methods described herein and ensure proper clearance is
provided between the walls. Use only the parts and chimneys specified in this manual. Any non-compliance
with these directions could create a hazardous situation, thus voiding the certification and the warranty.
ATTENTION: Do not modify or adapt the fireplace’s construction or components. This would void the
warranty. In this event, Selkirk would not be held responsible for any damages which
may occur.
No other device must be added to the chimney connected to the fireplace.
Choose the best location for your fireplace based on the position of the doors and windows. Provide for
the positioning of the outside air inlet as well as the chimney. Remember to leave sufficient space for the hearth
extension and mantel. If possible, install the fireplace where it will not be necessary to cut any floor or ceiling
joists.
For optimal performance, install the chimney indoors if possible. In areas where temperatures are
consistently below freezing (32°F/0°C), installing the chimney outdoors promotes functional problems such as
insufficient draw, excessive creosoting, and difficult fire ignition. In addition, outdoor chimneys are subject to
decreases in pressure and smoke flow reversal. Fireplaces with outdoor chimneys installed on lower floors
(basements) are particularly prone to smoke flow reversal.
As for the chimney’s configuration, there are several possibilities. See Figure #2 and 3 to determine the
appropriate configuration for your home. The straighter the chimney, the easier it will be to clean and maintain.

5
Figure #2: Various Fireplace Locations
Figure #3: Possible Chimney Configurations Figure #4: Fireplace Framing

6
FIREPLACE INSTALLATION
The table below shows the minimum chimney height requirements, fireplace included, according to the
number of elbows:
Chimne
y
Number of Elbows Minimum Hei
g
ht
Straight installatio
n
--------------- 15’ (4.6 m)
1 - 15° offset 2 - 15° elbows 15’ (4.6
m
)
2 - 15° offsets 4 - 15° elbows 18’ (5.5 m)
1 - 30° offset 2 - 30° elbows 15’ (4.6 m)
2 - 30° offsets 4 - 30° elbows 20’ (6.1 m)
* 1 - 45° offset * 2 - 45° elbows 16’ (4.9 m)
* 2 - 45° offsets * 4 - 45° elbows 23’ (7.0 m)
* Permitted only in Canada.
1. Before beginning installation, remove the fireplace trim to protect it from damage. The fastening screws are
located behind the upper and lower louvers. Make sure no masonry products or acids come into contact
with the trim as these may discolor the finish which is not under warranty.
2. Remove all combustible floor coverings, e.g. carpeting, linoleum, etc., from the area where the fireplace is
to be installed.
3. The fireplace can be installed directly on the floor or on a platform made of combustible materials, such as
wood or plywood or any other hard, sturdy surface.
4. A 48” x 16” (1220 mm x 407 mm) minimum hearth extension made of non combustible material is
required. The extension can be installed below the base of the fireplace or flush mounted. (Figures #6)
5. To prevent any burning embers falling between the fireplace and the hearth extension from coming into
contact with the floor, insert a metal sheet under the front of the fireplace. This sheet must extend 4”
(100 mm) on both sides of the fireplace and 2” (50 mm) in front. The non combustible hearth extension
should rest on the 2” (50 mm) band of sheet metal in front. You can also prevent embers from falling in the
joint between the fireplace and the hearth extension by filling it with mortar grout. (Figure #6)
6. To anchor the fireplace to the floor, unfold the lower metal attachments and screw them to the floor using
1” (25 mm) screws.

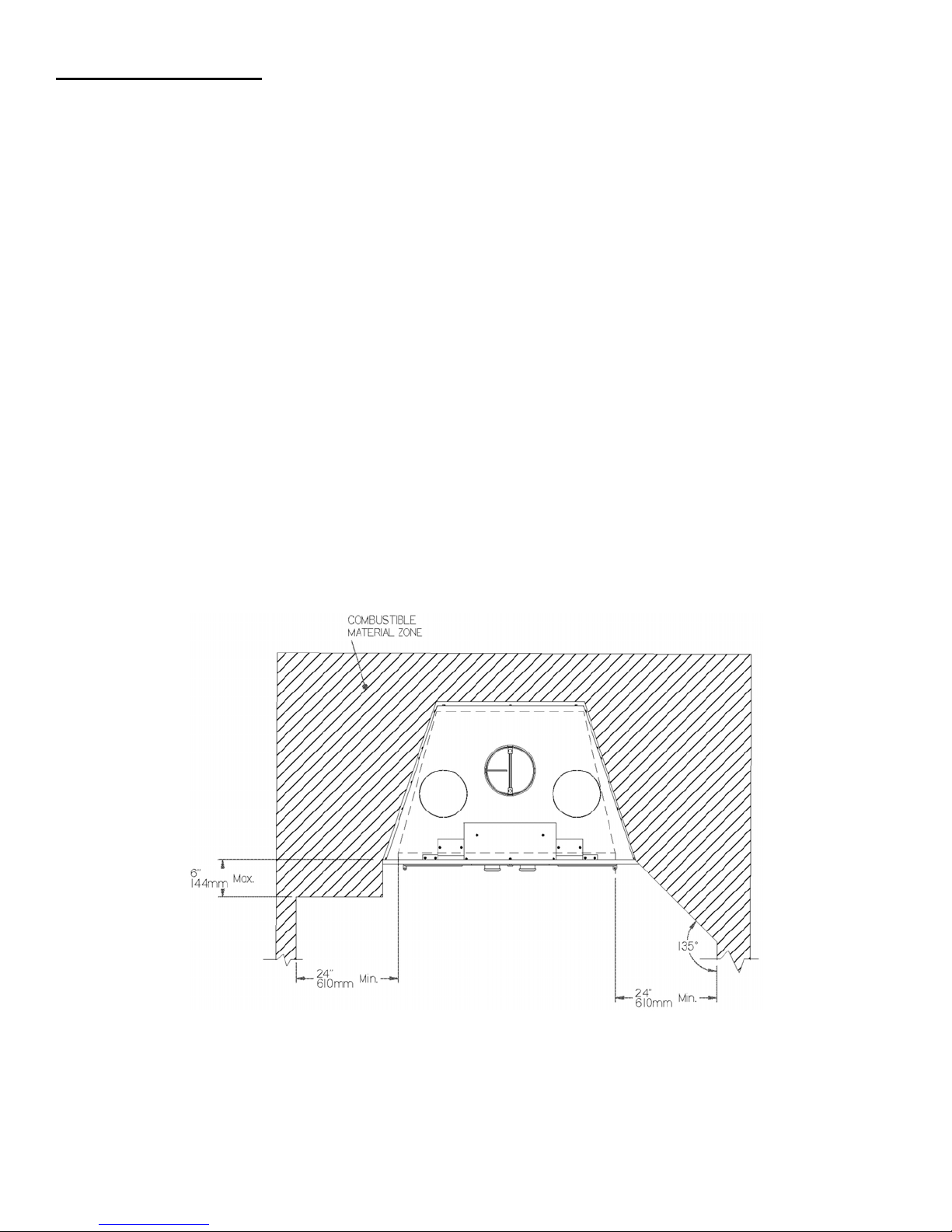

7. The opening must be at least 24” (610 mm) away from any wall at a right angle with the appliance’s face.
(Figure #14)
8. Place the appliance in the desired location. It must directly abut against the finished wall and not insulation
or a vapor barrier. Do not add any insulation.

7
9. The standards in your area may require an outside air inlet. Even if such is not the case, it is beneficial to do
so since this will improve the fireplace’s performance. Install a flexible air duct that is 4” (102 mm) in
diameter and a maximum length of 20’ (6.1 m). If a longer duct is required, increase diameter to 6”
(152 mm) but maximum length will then be 40’ (12.2 m). The outside air intake must not come from a
garage, carport, basement, attic or the chimney’s enclosure.
10. Install the outside air inlet in a place where it is unlikely to become blocked by snow and is sheltered from
high winds. Make sure it is far from the gas meter or any other device that may emit fumes or gases, such
as automobile exhaust.
11. Once you have decided on the location of the outside air inlet, drill a 4¼” (108 mm) hole in the wall. Insert
the inlet grill in the hole from the outside and screw it to the wall with four 1” (25 mm) screws.
12. From the inside, insert the insulated flexible duct and attach it to the inlet grill with aluminum duct tape or
¾” (19 mm) metal screws.
13. On the lower left side of the fireplace, remove the metal piece blocking the air intake. Cut the insulating
wool, insert the adaptor included with the fireplace and screw it in place using two ¾” (19) metal screws.
Using an adjustable collar or aluminum duct tape, attach the flexible duct to the adaptor.
14. Chardonnay fireplaces may be equipped with an optional blower with an automatic or manual switch
located behind the lower louver at your right. When switch is place on auto, the blower will activate when
fireplace reaches minimum starting temperature 43°C (110°F). When placed on manual, you control the
function of the blower with the speed control. Have the wiring installed by a qualified electrician (Figure
#5).
Electrical Installation Instructions For Optional Blower :
14.1 Remove the cover of the connection box located on the right behind the lower louver.
14.2 Insert a 110-volt wire into the box through the appropriate hole.
14.3 Connect the wiring in the box.
14.4 Test the wiring.
14.5 Close the connection box.

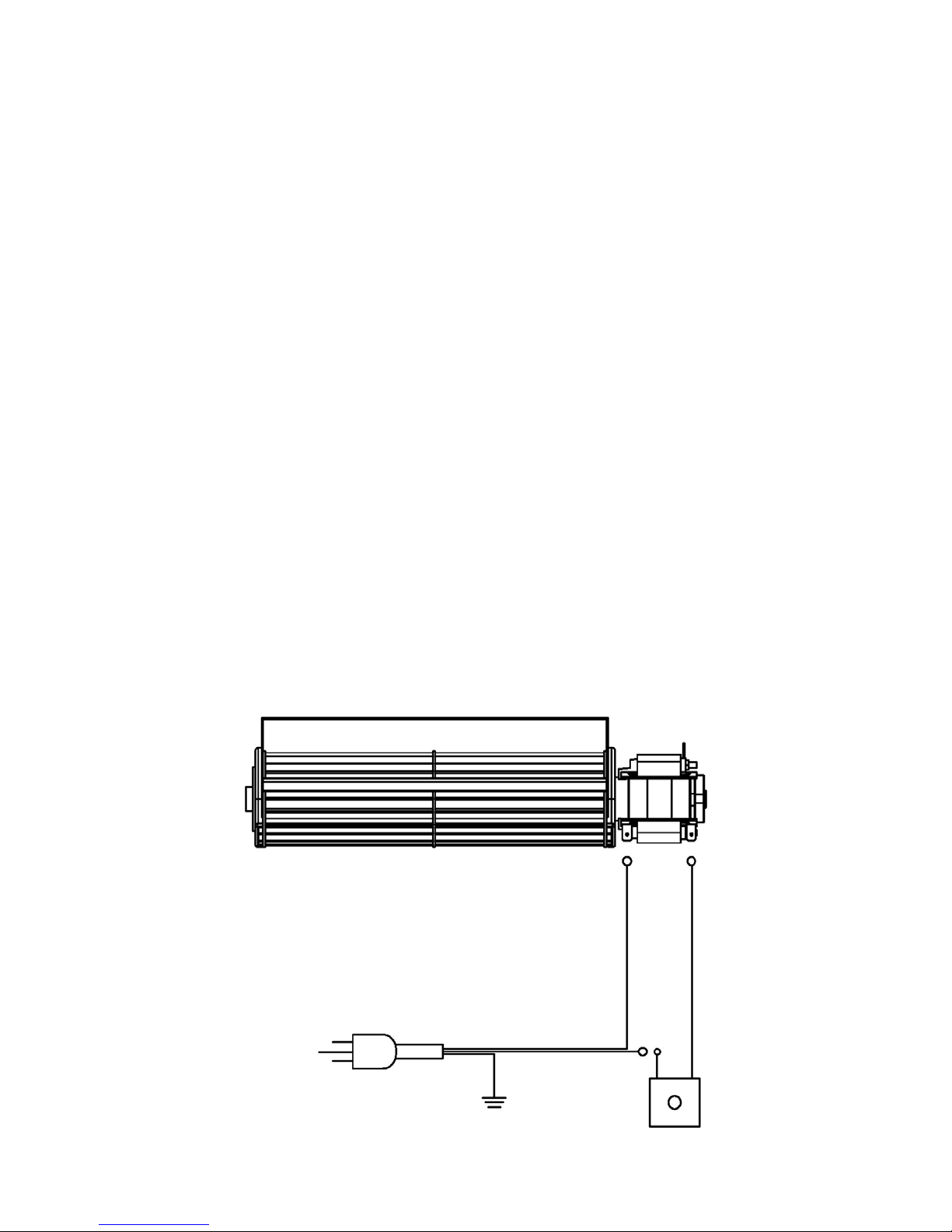

Figure #5: Circuit Diagram

8
You can also install a decorative gas appliance in the hearth. To do this, install an automatic shut-off
valve. Comply with ANSI Z21.60 (1991) standards governing “Decorative Gas Appliances” in vented
fireplaces and ANSI Z233.1 with regards to the National Gas Code.
ATTENTION: ALWAYS OPEN THE CHIMNEY DAMPER TO ITS MAXIMUM POSITION WHEN
USING A DECORATIVE GAS APPLIANCE.
THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS LOG
APPLIANCE. TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL A GAS
LOG APPLIANCE WITHOUT A VENT PIPE.
Figure #6: Chardonnay Fireplace and Hearth Extension Positioning

9
CHIMNEY INSTALLATION
1. Assemble the first chimney section with the adaptor or anchor plate (provided by the chimney
manufacturer) using three ¾” (19 mm) screws.
2. Screw this assembly to the fireplace using four ¾” (19 mm) screws, taking care not to block the rotation of
the flue damper key.
3. Continue the installation as per the instructions in the chimney manufacturer’s manual. (Figures #10, #11,
#12 and #13)
4. Provide a 2” (51 mm) clearance between the chimney and any combustible material. To prevent
overheating, never obstruct this clearance nor fill it with insulation or any combustible material.
(Figures #15)
5. The chimney must rise at least 3’ (914 mm) over its juncture with the roof (Figure #7) and exceed by at
least 2’ (610 mm) any wall, roof or building located within a radius of 10’ (3 m). Any length of chimney
exceeding the roof by 5’ (1.5 m) or more, must be braced using tie rods or guy wires.
6. To limit creosoting, it is strongly recommended that an empty enclosure space be left between the chimney
stack and the outer framing of the chimney. Make sure that at all points a minimum clearance of 2”
(51 mm) separates the chimney and any combustible materials.
NOTE: Since May 1997, whatever the type of fireplace or building, safety standards require that the
fireplace and the full length of the chimney up to the ceiling be enclosed. (Figure # 14)
WARNING: Before starting installation, the masonry chimney must be inspected by a qualified sweep.
INSTALLATION INSTRUCTION FOR MASONRY APPLICATION
The following requirements must be respected:
1. The chimney must be absolutely clear of any soot residue or creosote. Check for cracks, loose or missing
bricks that could inhibit correct installation of the liner.
2. The clearance to combustible must be a minimum of 1” between the outside of the masonry and any wood
framing or loose insulation.
3. The chimney must be built in accordance with the current building code.
4. No other appliance can be connected to the same chimney.
5. The connector parts are not necessary if the connection between the insulated length and the stainless steel
liner is done within the masonry chimney.
CANADA USA
Selkirk, Sentinel(CF); Supe
r
Pro 2100(ALT);
SuperVent 2100 (JM), SuperPro(SPR), Ultra-
Temp(UT), SuperVent (JSC).
Selkirk, Ultra-Temp(UT); Sure-Temp(ST);
SuperPro(SPR), SuperVent(JSC); Hart&Cooley(TLC)

10
Installation
The chimney must be relined with a stainless steel liner (rigid or flexible) listed liner or flexible liner to
ULC-S635, ULC-S640 or UL777 of the same diameter as the outlet of the fireplace.
Follow these steps:
1. Position the fireplace in its location. Temporarily install the elbow on the top of the fireplace and, using a
level, mark with an oval the location where the flue liner will enter the masonry chimney.
2. In the middle of the oval, drill a hole in the masonry chimney at 45 or 30
3. Increase the size of the hole until a 45 or 30 liner elbow can be easily slipped through.
4. Slide the liner down from the top of the masonry chimney until you reach the hole level.
5. Slip through the hole a 45 or 30 liner elbow and connect it to the liner.
6. Add a small liner section to the liner elbow which will allow the liner to extend at least 12” (measured at
the top of the liner) from the masonry chimney.
7. Seal the opening around the liner with high temperature refractory cement.
8. The next steps must be done in the following order:
8.1 Select the length that will fit between the elbow and the liner so that it will slide at least 2” over the
liner section. (you may need to cut the liner for a better fit)
8.2 Take that section and slide it over the liner. Make sure you have enough opening to be able to install
the elbow without difficulty.
8.3 Install the 45 or 30 elbow on the fireplace.
8.4 Slide the length section back down on the elbow and twist lock the two together.
8.5 Pull the cover down over the length and install the insulation pad over the liner; be careful to cover the
liner completely.
8.6 Slide back the cover over the insulation and fix it in place using the 3 screws supplied.

11
Figure #7: Minimum Chimney Height

12

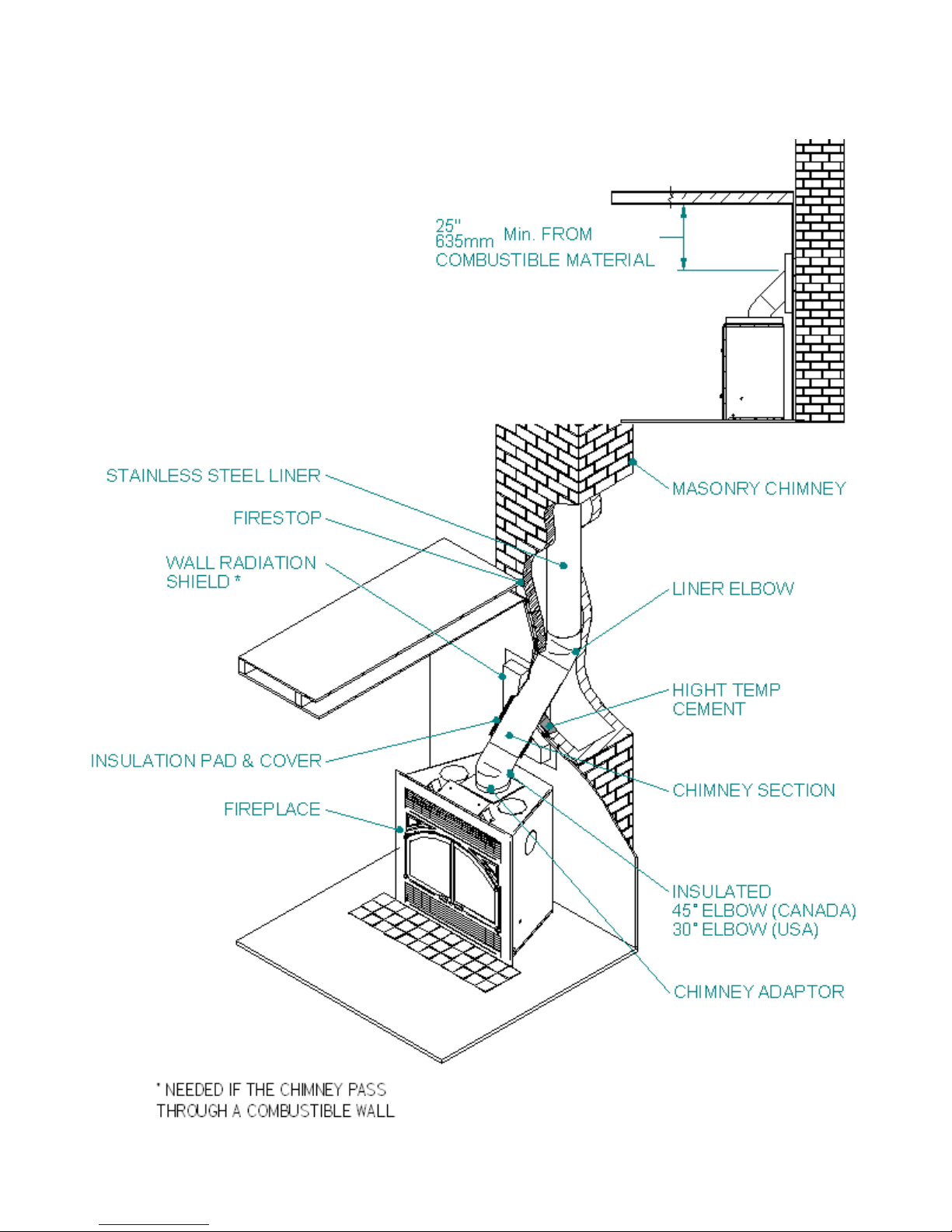

Figure #8: Masonry Chimney Installation

13

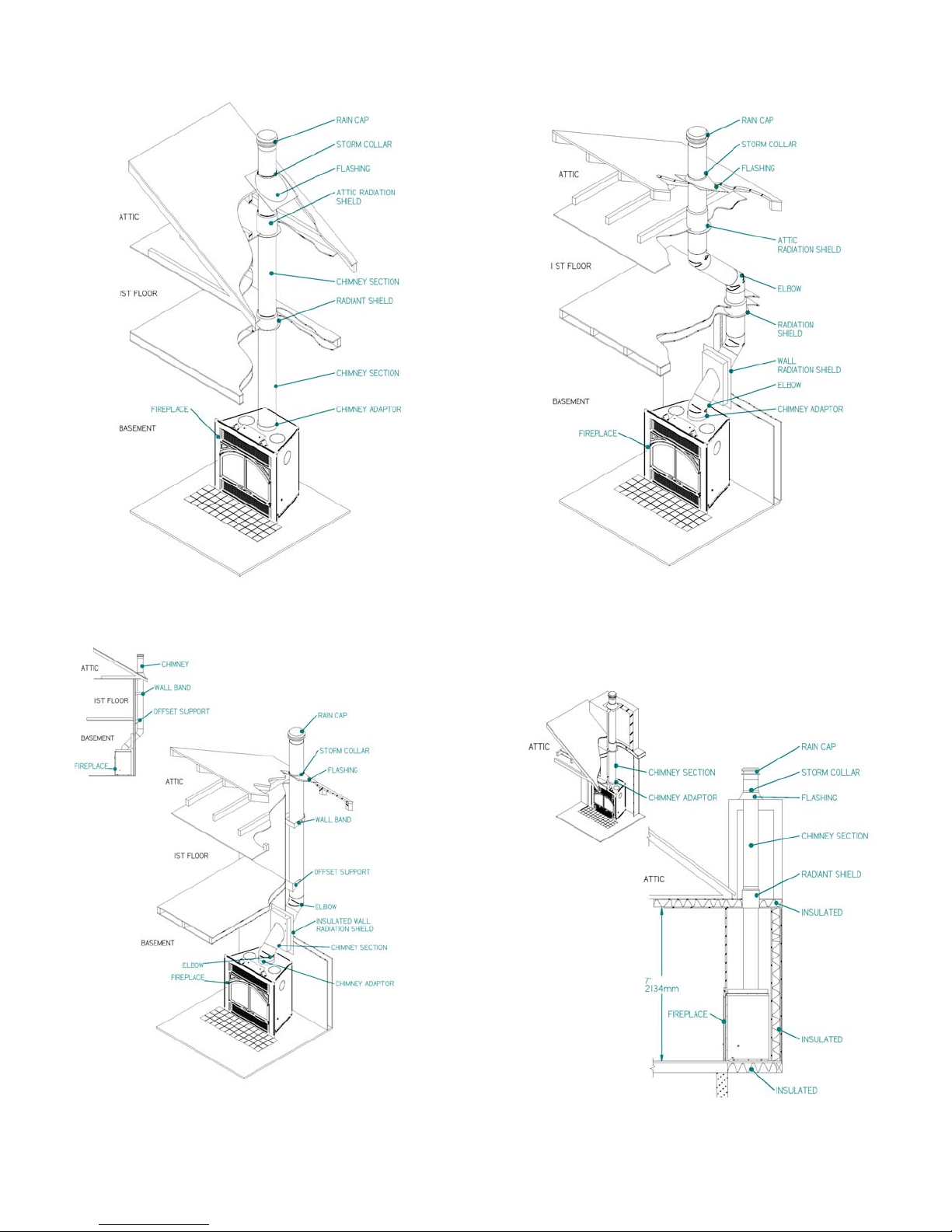

Figure #10: Straight Chimney Installation Figure #11: Chimney Installation with Elbows
Figure #12: Chimney Installation through an Exterior Wall Figure #13: Isolated Chase Chimney Installation

14

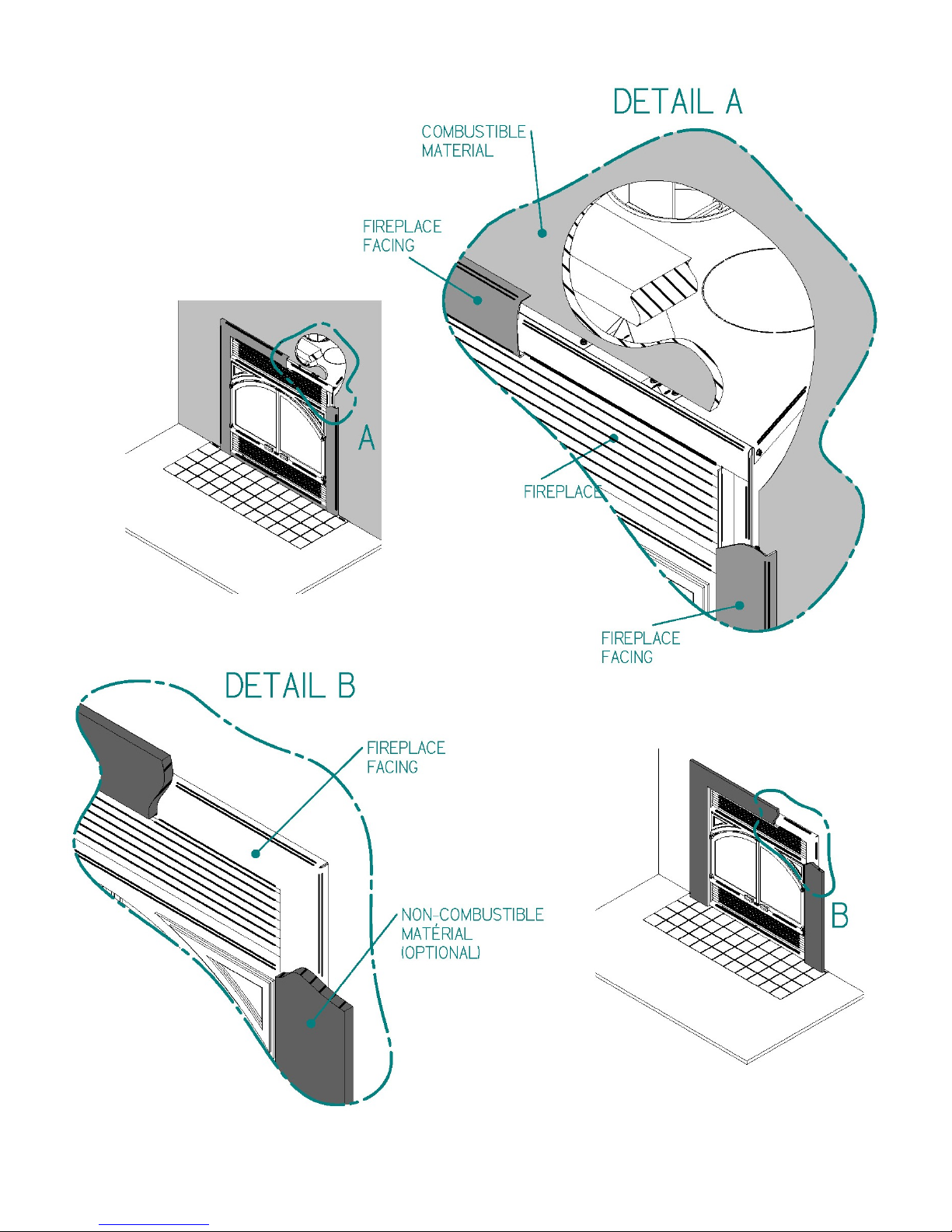

FIREPLACE FINISH
1. Combustible materials can be used to finish the fireplace. The framing can be built directly on the sides of
the appliance. (Figure #17)
2. Side walls can exceed the appliance’s face by a maximum of 6” (152 mm). (Figure #14)
3. Adjoining walls may also be built at a 458 angle from the edge of the face. However, any right angle wall
must be located at least 24” (610 mm) away from the fireplace opening. (Figure #14)
4. Combustible framing can cover the sides or the back of the appliance (Figure 14 and Figure 17, detail A). If
you wish to cover the facing, it is possible but you may use only non-combustible material. (Figure 17,
detail B)
5. In all cases, the enclosure must reach at least 84” (2133) in height from the base of the fireplace. Do not
insert insulation in the chimney enclosure. (Figure #15)
6. It is possible to enclose the top and sides of the appliance but a minimum clearance of 2” (51 mm) must be
provided around the chimney. (Figures #15)
6.1 In the U.S., it is not permitted to enclose the top of fireplace appliances. (Figure #15)
7. If the mantel is made of combustible materials, it must be installed at a height of at least 46” (1169 mm)
from the base of the fireplace. (Figure #16)
8. The fireplace’s facing must be made of non-combustible materials only.
NOTE: Make sure nothing obstructs or interferes with the front hot air outlets. The enclosure could overheat.
Any accessible chimney must be fenced off or finished to prevent contact.
Figure #14: Fireplace Finishing

15
Figure #15: Chimney Enclosure
Chimney enclosure : USA and Canada
Chimney enclosure : Canada only

16

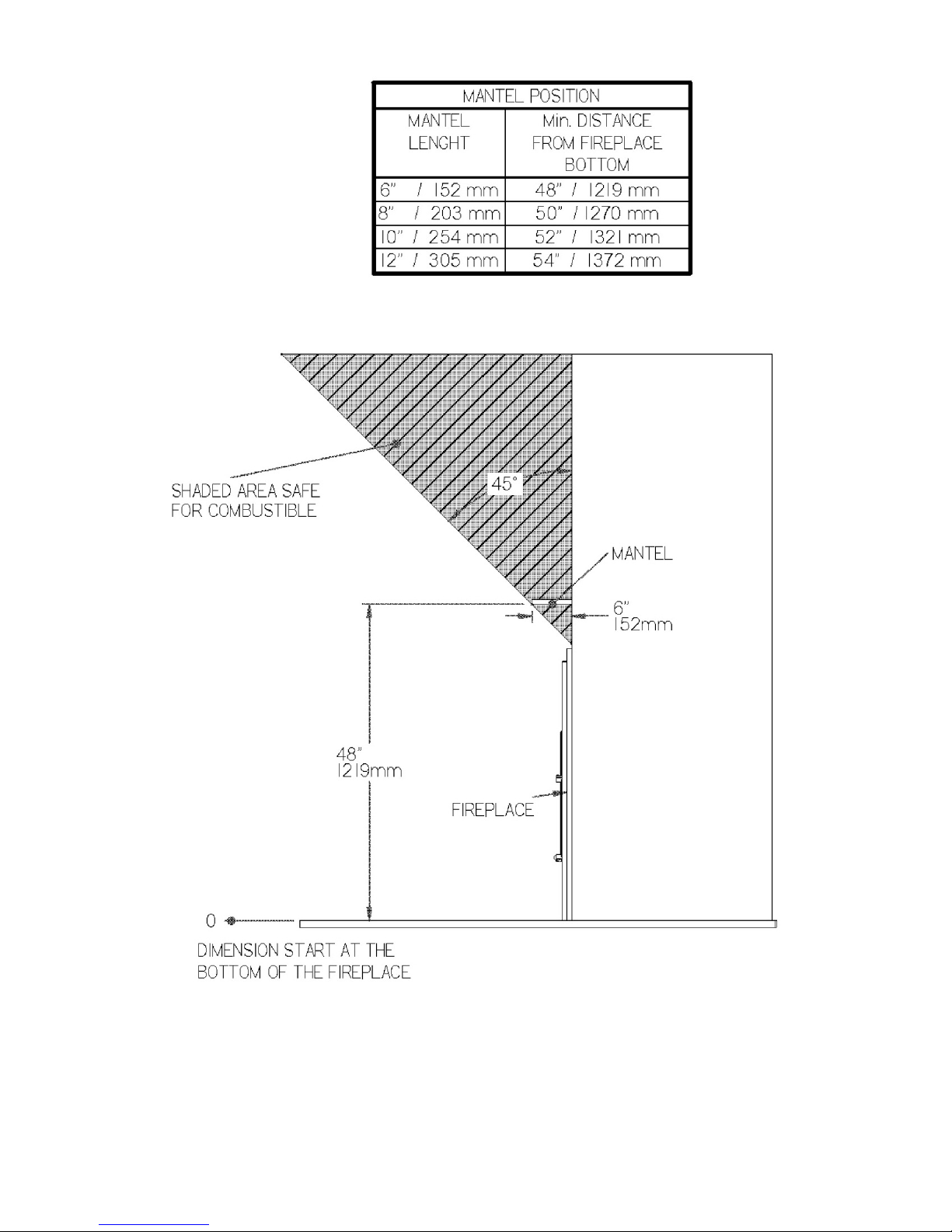

Figure #16a: Mantel Positioning

17
Figure 16b : Combustible materials positioning
A : 48 in.
B : Radius of 84 in.
C : 84 in. Min.

18
Figure #17: Installation of Fireplace Facing

19
USE AND SAFETY
1. Teach children fireplace safety rules.
2. Do not use the fireplace under the following conditions:
2.1 Whenever a firebrick is missing or broken.
2.2 Whenever the ceramic glass is cracked or broken.
3. Never use flammable liquids to light or revive a fire and keep such products away from any heat source.
Before lighting a fire, make sure there are no flammable liquids, gases or fumes in the room.
4. Before starting each fire, open the flue damper using the key located in the middle behind the upper louver.
When the fireplace is hot, do not touch the damper key with your bare hands.
5. Open the air intake lever located on the left behind the lower louver.
6. Prevent smoke flow reversal by preheating the chimney flue. Just hold a torch made of rolled up newspaper
towards the smoke chamber for a few minutes.
7. Do not overfire unit. Selkirk fireplaces are designed to burn reasonable quantities of wood. Avoid making
overly intense fires that would damage the appliance.
DO NOT OVERHEAT
8. Use the grate made by Selkirk. Burn only the quantity of combustible it can contain. Do not burn garbage,
painted wood or wood that has been exposed to salt water.
9. Always have minimum of 1” accumulation of ashes at the bottom of the fireplace. The grate may deform if
no ashes are left.
10. When using the fireplace for the first times, make small fires to give the firebrick time to dry properly. The
appearance of fine cracks in the firebrick is normal and therefore not hazardous. It is not a matter for
concern.
11. During the first fires, you may detect a certain odor and the coating and oil protecting certain appliance
parts may smoke a little. If you open a window, these will quickly dispel.
12. It could also become necessary to open a window if the house is too airtight or if a fan is running.
13. Keep the firescreen closed at all times. If the fireplace is left unattended while the fire is still burning,
carefully close the glass doors. Adjust the air intake lever to its maximum position.
14. Expansion and contraction noises during the heating and cooling cycle are normal. It is not a matter for
concern.
15. Once the fire is out and the embers have cooled, close the flue and the air intake dampers until you prepare
to light the next fire.
NOTE: Make sure furniture, draperies, and any extra logs are at least 48” (1220 mm) away from the fireplace.

20
CREOSOTE
When wood burns slowly, it produces tar and other organic vapors which combines with humidity to
produce creosote. Creosote vapor condenses in the chimney left relatively cool by the slow fire and coats the
inside of the flue with residue. When creosote ignites, it produces a red-hot, extremely dangerous fire.
It is therefore recommended to make small, brightly burning fires rather than lazy, smoldering fires. Not
only will it keep your glass doors and flue cleaner but, what is most important, it will lessen the likelihood of
chimney fires.
CHIMNEY FIRE SAFETY PROCEDURES
What to do if you suspect a chimney fire has started:
1. Close the fireplace doors.
2. Alert everyone in the house.
3. Call the Fire Department if necessary.
4. Put out the fire in the fireplace with a dry-chemical extinguisher, baking soda, sand or ashes. (Never use
salt because it is corrosive, nor water because it could cause a steam explosion.)
5. Make sure the sparks coming from the chimney do not set fire to the roof.
6. Before reusing the fireplace, have it inspected by the Fire Department.
MAINTENANCE
1. Clean metal trim with soapy water and a soft cloth. Do not use any metal polish or abrasives.
2. Keep the glass clean. Dirty windows will make the fireplace overheat. Wait until the glass is cool before
attempting to clean it. Wash the glass with a fireplace glass cleaner, dishwashing liquid or just soap and
water. Spray the cleaner on a soft cloth and not on the glass, since overspray may discolor coating or metal
plating (not covered by the warranty). DO NOT use steel wool, soap pads (S.O.S.) or any other abrasive
product since these may scratch the glass.
3. To remove the ashes, lift the log support. Put the ashes in a metal container with an airtight lid. Place the
container on a non-combustible surface away from any flammables until the ashes are cold.
4. Before each heating season, inspect the interior and exterior of the fireplace and chimney for any defects or
deterioration.
5. To reduce the risk of chimney fires, keep it relatively clean and regularly check for creosote buildup. To
open the rain cap, just unscrew it counter-clockwise. Any layer of creosote greater than 1/8” (3 mm) thick
should be swept. Use a plastic brush to avoid scratching the flue.
