Sencor STX 046 Repair manual

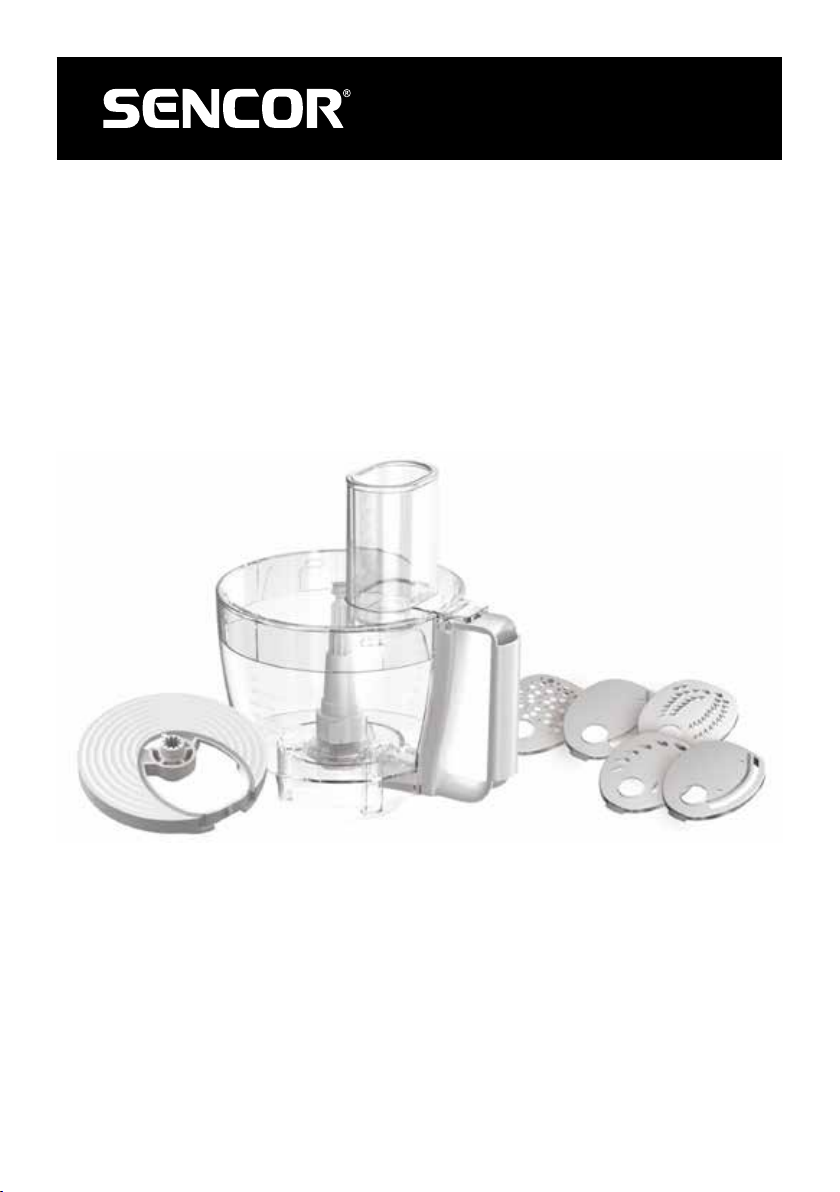

EN ACCESSORIES FOR CHOPPING AND GRATING
(FOOD PROCESSOR)
Translation of the original manual
STX 046

STX 046

A
9
2
3
4
5
7
12
13
6
8
10
11
1
14

B C

D

E
1
F
1

- 1 - Revision 09/2022
Copyright © 2022, Fast ČR, a.s.
EN Accessories for chopping and grating
(Food processor)
Important safety instructions
READ CAREFULLY AND STORE FOR FUTURE USE.
General warnings
• These accessories may be used by children 8 years of
age and older and by persons with physical, sensory or
mental impairments or by inexperienced persons, if they
are properly supervised or have been informed about how
to use the accessories in asafe manner and understand
the potential dangers.
• Children must not play with the accessories.
• Cleaning and maintenance performed by the user must
not be performed by children unless they are older than
8years of age and under supervision.
• The surfaces of the accessories that come into contact
with food must always be cleaned according to the
instructions in this user'smanual.
• Be especially careful not to injure yourself on the sharp
parts when handling the chopper and grating and slicing
attachment, especially when removing these from the
bowl or holder, when emptying the bowl and when
cleaning them.
• Before replacing the accessories or accessible parts
that move during use, turn the food processor off and
disconnect it from the power supply.

- 2 - Revision 09/2022
Copyright © 2022, Fast ČR, a.s.
• Never push the food into the feed tube using fingers or
other utensils. Always use the provided pusher.
• Do not remove the lid off the accessories until the chopper
or attachment comes to acomplete stop.
Safety during use
• These accessories are designed for household use and are intended for chopping ingredients.
• Do not use use the accessories together with the food processor in industrial environments or outdoors. Do not use for any other purposes than
those intended.
• The accessories are intended for domestic use and similar locations such as:
- kitchens in stores; offices and other workplaces;
- in agriculture;
- for guests of hotels, motels and other similar locations;
- in bed and breakfast establishments.
• Use the accessories in accordance with the instructions contained in this user'smanual.
• Only use the accessories with the original parts that came with them.
• Before every use, check the accessories and their parts for damage. Never use the accessories with damaged parts.
• Do not expose the accessories to the outdoor environment, extreme temperatures, direct sunlight, excessive humidity or excessively dusty
environments.
• Do not place the accessories near heaters, open fires or other sources of heat.
• Check that both the robot and the accessories are correctly assembled before starting the food processor.
• Do not touch moving rotating parts during operation. Otherwise, this could result in injury.
• Do use the accessories when they are empty. Incorrect use of the accessories may negatively affect their lifetime.
• Do not push food into the feed tube with excessive force, this could overload the motor unit of the food processor.
• Do not perform any maintenance on the accessories other than cleaning the individual components as described in this user'smanual.
• Do not use the accessories if they have fallen on the floor, if they are not functioning correctly or if they are damaged in any way.
• In order to prevent ahazardous situation arising, do not repair the accessories yourself or modify them in any way. Have all repairs or adjustments
performed at an authorised service centre. By tampering with the accessories you risk voiding your legal rights arising from unsatisfactory
performance or quality warranty.
• Store the accessories in adry environment.

- 3 - Revision 09/2022
Copyright © 2022, Fast ČR, a.s.
• Thank you for purchasing aSENCOR brand product and we hope that
you will be happy with it.
• Prior to using this appliance, please read the user'smanual
thoroughly, even in cases, when one has already familiarised
themselves with previous use of similar types of appliances. Only use
the appliance in the manner described in this user’smanual. Keep this
user'smanual in asafe place where it can be easily retrieved for future
use. In the event that you hand this appliance over to somebody else,
make sure to also include this user'smanual.
• Carefully unpack the appliance and take care not to throw away any
part of the packaging before you find all its parts. We recommend
saving the original cardboard box, packaging material, purchase
receipt and responsibility statement of the vendor or warranty card for
at least the duration of the legal liability for unsatisfactory performance
or quality. In the event of transportation, we recommend that you pack
the appliance in the original box from the manufacturer.
Attention:
These accessories are intended only for use with
food processor SENCOR STM 635X, 637x and
787x. Prior to using these accessories, review the
safety instructions and instructions for use, which are
provided in the user'smanual of the food processor
and adhere to these instructions.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION OF THE APPLIANCE

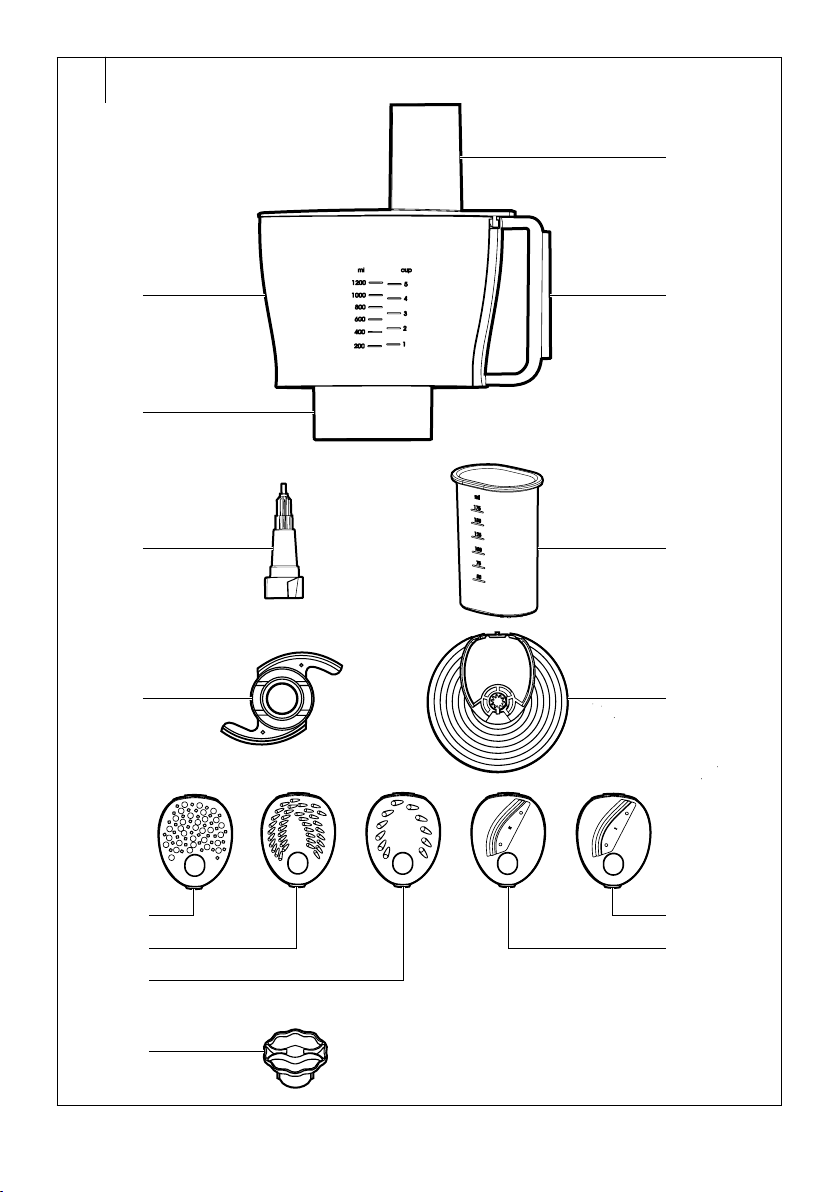

A1 Bowl
A2 Mount for food processor
A3 Lid with feed tube
A4 Handle
A5 Drive shaft
A6 Pusher
A7 Chopper
It is suitable for chopping
tougher ingredients such as
nuts, herbs, cheeses, fruit and
vegetables in their raw state
or even well diced meat. It is
suitable for preparing purée
and baby food.
A8 Attachment holder
A9 Grinding attachment
It is suitable for grinding herbs,
spices, poppy seeds and for
grinding various types of nuts
with shells removed.
A10 Coarse grating attachment
It is suitable for all types of
fruit and vegetables, bread
rolls, buns.
A11 Fine grating attachment
It is suitable for all types
of fruit and vegetables,
parmesan, chocolate, cheese
and nuts, e.g. hazelnuts, etc.
A12 Thick slicing attachment
It is suitable for all types of
fruit and vegetables, onions,
cabbage, cucumbers, carrots,
apples, potatoes, etc.
A13 Thin slicing attachment
It is suitable for all types of
fruit and vegetables, onions,
cabbage, cucumbers, carrots,
apples, potatoes, etc.

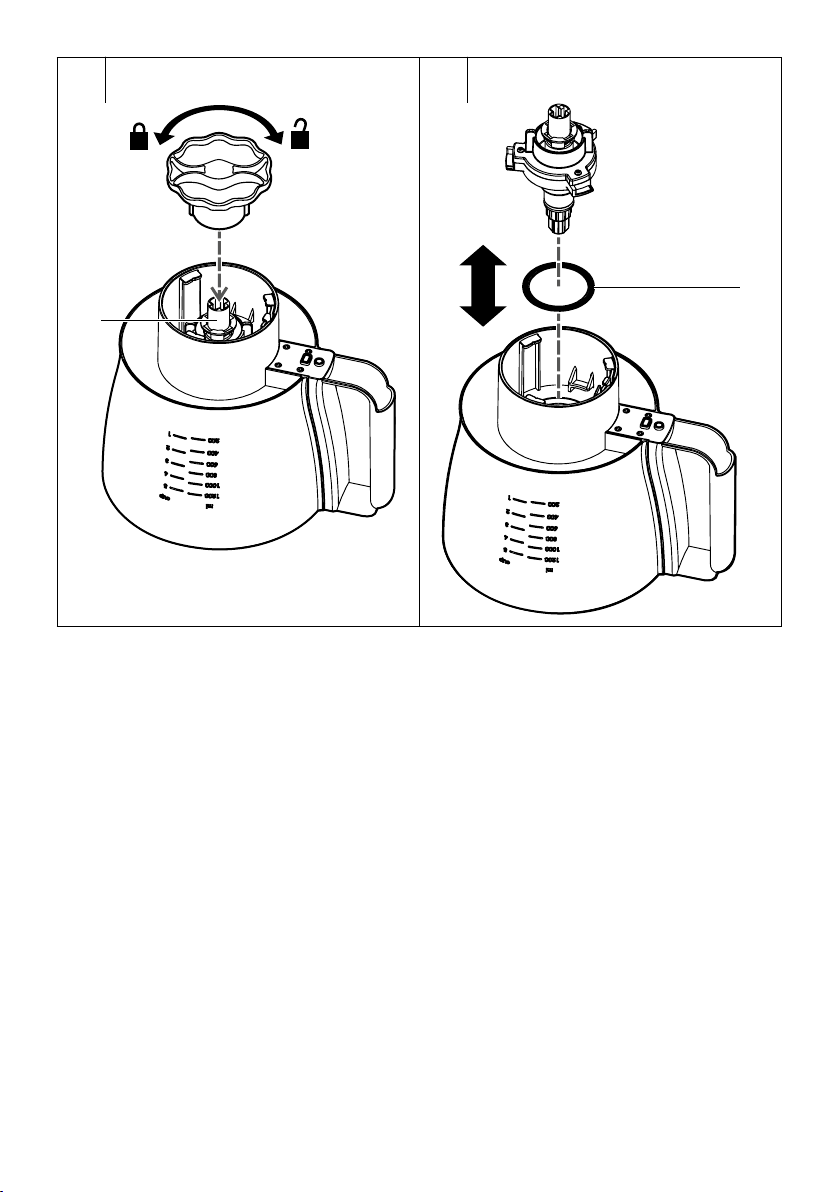

A14 Bowl gear box unit lock/
release key
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E1 Gearbox unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
F1 Gasket seal
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BEFORE FIRST USE
• Wash all the accessory parts in warm water using aneutral kitchen
detergent before first use. Then rinse these parts with clean water and
allow them to dry naturally or dry them out their using awiping cloth.
Warning:
When cleaning the chopper and attachments, be very
careful not to injure yourself on their sharp edges.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

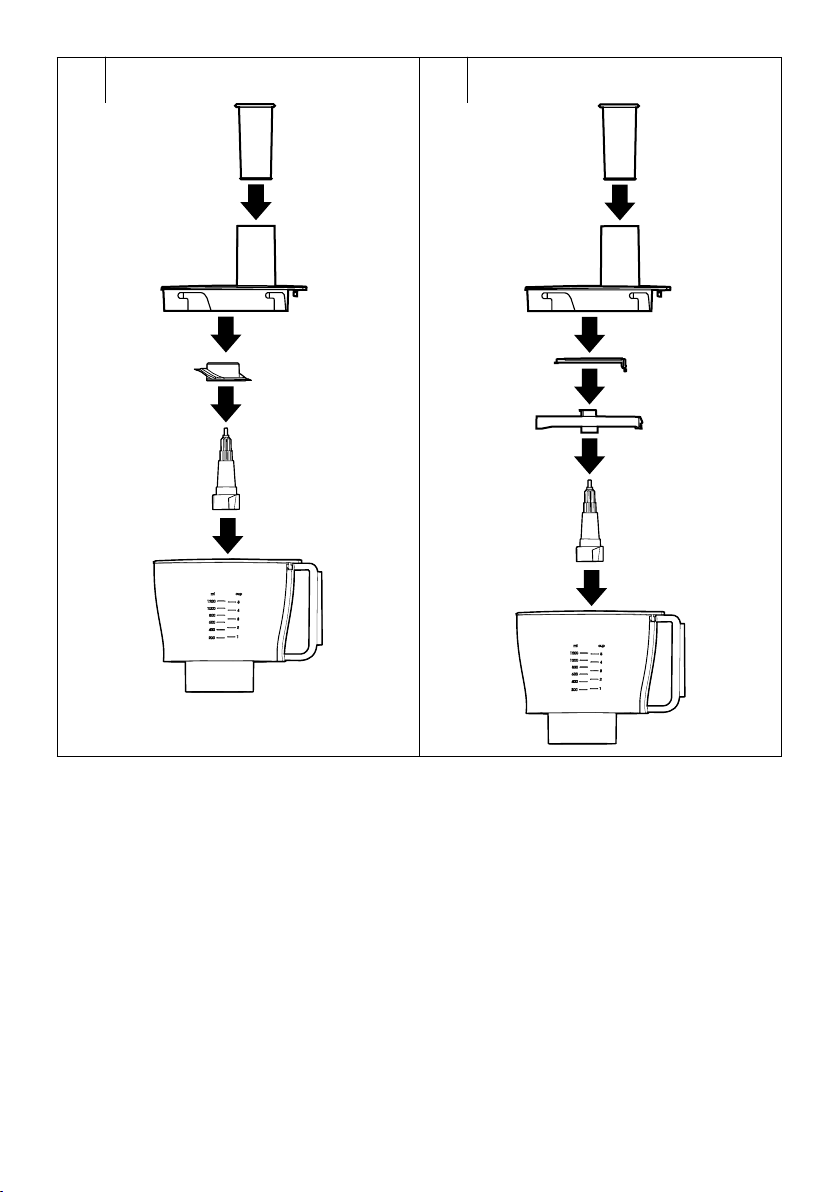

ASSEMBLING AND DISASSEMBLING FOR CHOPPING
(Fig. B)
• Seat the drive shaft into the bowl and place the chopper on to the
shaft.
Warning:
When handling the chopper, be very careful not to
injure yourself on its sharp cutting edges.
• Place the ingredients that you wish to process into the bowl. Do not fill
above the maximum level marked on the bowl.
• Put the lid on to the bowl and turn it to lock in correct position. Insert
the pusher into the feed tube.
• For disassembly, proceed in the reverse sequence.
ASSEMBLING AND DISASSEMBLING THE GRATING ACCESSORIES
(Fig. C)
• Seat the drive shaft into the bowl
• Insert the attachment that you wish to use into the attachment holder
and put the holder on to the drive shaft.
Warning:
When handling the attachments, be very careful not
to injure yourself on the sharp cutting edges.
• Put the lid on to the bowl and turn it to lock in correct position. Insert
the pusher into the feed tube.
• When changing or removing the attachments, proceed in reverse
sequence.
MOUNTING ON THE FOOD PROCESSOR
(Fig. D)
• Make sure that the food processor is turned off and disconnected from
the power socket. The multi-function head must be tilted down in the
horizontal position and the beater, whisk or kneading attachments
must be removed.
• Remove the top accessory hub cover from the food processor.
• Put the assembled bowl with the accessory on to the top attachment
hub and turn it to lock it into the working position. The safety
mechanism will not permit the accessory to be started if the bowl is
not properly secured in place.
REMOVAL FROM THE FOOD PROCESSOR
• Make sure that the food processor is turned off and disconnected from
the power socket.
• Turn the bowl to release the accessory and take it off in the upward
direction off the top hub of the food processor.
• Put the top hub cover back on to the food processor.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EN
Accessories for chopping and grating
(Food processor)
User'smanual

- 4 - Revision 09/2022
Copyright © 2022, Fast ČR, a.s.
USING THE ACCESSORIES
• The chopping accessories can be used for chopping tougher
ingredients such as nuts, herbs, cheeses, fruit and vegetables in their
raw state or even well diced meat. It is suitable for preparing purée
and baby food.
• The chopping accessories can be used for grating, peeling and
slicing practically all types of fruits and vegetables. Carrots, potatoes,
cabbage, cucumbers, zucchini, beetroot, mushrooms, onions, etc. can
be cut into slices.
• Cut the food into pieces that are suitable for insertion into the feed
tube.
• Make sure that the accessories are correctly assembled and secured
on the food processor, and that the control knob is set to the OFF
position. Connect the power cord of the food processor to apower
socket.
• Set the control knob of the food processor to the highest speed (MAX).
In the case of soft food, you can also use alower speed.
• If you wish to increase the speed to maximum speed for ashort while,
set the control knob to the P position (Pulse). Do not leave the food
processor running in this mode for longer than 30 seconds, there is
arisk of overheating.
• Insert the individual foods or food pieces into the feed tube and
gently push them down into the bowl using the pusher. Do not push
excessively on the pusher so that the motor unit of the food processor
is not overloaded.
Warning:
Always use only the supplied pusher to push food
into the feed tube. Never use your fingers or other
utensils!
• Insert the food evenly. If you need to process alarge amount of food,
process it in small batches and always empty out the bowl between
the individual batches.
• When you have finished using the grating accessory, move the
pusher up and down afew times. This will reduce the amount of food
that gets stuck in the attachment.
• Clean out the used accessories after each use according to the
instructions in chapter CLEANING AND MAINTENANCE.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FOOD PREPARATION AND PROCESSING TIPS
• Use only fresh foods.
• Slice large pieces into smaller ones so that they fit into the feed tube.
• First cut cabbage up into section chunks and remove the cabbage
stalk.
• Insert food into the feed tube gradually and evenly.
• To move the food through the feed tube into the bowl, always use the
pusher, moving it slowly and without exerting excessive downward
force.
• When processing alarge amount of food, check that it is not
accumulating underneath or above the attachment (only for grating
accessories).
• To process softer foods, such as for example cucumbers, we
recommend setting the speed to low or medium. To process harder
foods, for example carrots or hard cheeses, set the speed to medium,
higher or maximum speed.
• When chopping hard cheeses or chocolate, do not leave the food
processor running for along time. The chopping action excessively
heats up the ingredients, makes them soft and they may form into
clumps.
• In the event that the attachment becomes clogged with food, always
first turn off the food processor and disconnect it from the power
socket. Then remove the bowl, disassemble the accessories and
clean the attachment. Reassemble the accessories, mount them on
the food processor and after connecting it to mains power, continue
in your activity.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING AND MAINTENANCE
Warning:
Prior to any cleaning or maintenance, always turn
off the robot, disconnect it from the power socket
and remove the accessories from the food processor.
Never clean accessories that are mounted on the
food processor.
To clean the used accessories and its parts, never
use chemicals, dishwashing abrasive wool, steel
wool or cleaning products with abrasive components.
Otherwise the surface of the parts may be damaged.
• We recommend cleaning the accessories and its individual parts as
soon as possible after use, before the food scraps dry on. These are
harder to remove later.
• Thoroughly wash the used removable parts after every use in warm
water using aneutral dishwashing detergent. Then rinse these parts
with clean water and allow them to dry naturally or dry them out their
using awiping cloth.
Warning:
When cleaning the chopper and attachments, be very
careful not to injure yourself on their sharp edges.
• Regularly clean the gearbox unit on the underside of the bowl. Turn
the bowl upside down and insert the key A14 into the part of the bowl
used for mounting to the food processor. Turn the key clockwise to
release the gearbox unit, take the key out and remove the unit from
the bowl. Also take out the gasket seal of the unit.
• Clean dust and other dirty material from the gearbox unit and the
gasket seal.
• Put the gasket seal back on and slide the gearbox unit back in. Put the
key on to the unit and turn it anticlockwise to secure the unit in place.
• After removing the key, check with your hand that the unit is correctly
attached and that it is not possible to pull it out from the underside of
the bowl.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
STORAGE
• When you have finished using the accessories and its parts, store
them in aclean, dry place out of children'sreach. Do not expose
the stored accessories to extreme temperatures, direct sunlight and
excessive humidity and do not store it in an overly dusty environment.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF
USED PACKAGING MATERIALS
Dispose of used packaging material at asite designated for waste in your
municipality.
DISPOSAL OF USED ELECTRICALAND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that
used electric or electronic products must not be added to
ordinary municipal waste. For proper disposal, renewal and
recycling, hand these appliances over to determined
collection points. Alternatively, in some European Union
states or other European countries you may return your
appliances to the local retailer when buying an equivalent
new appliance.
Correct disposal of this product helps save valuable natural resources
and prevents potential negative effects on the environment and human
health, which could result from improper waste disposal. Ask your local
authorities or collection facility for more details.
In accordance with national regulations penalties may be imposed for the
incorrect disposal of this type of waste.

- 5 - Revision 09/2022
Copyright © 2022, Fast ČR, a.s.
For business entities in European Union states
If you want to dispose of electrical or electronic equipment, ask your
retailer or supplier for the necessary information.
Disposal in other countries outside the European Union.
This symbol is valid in the European Union. If you wish to dispose of this
product, request the necessary information about the correct disposal
method from the local council or from your retailer.
This product meets all the basic requirements of EU
directives related to it.

FAST ČR, a.s.
U Sanitasu 1621
CZ-251 01 Říčany
www.sencor.eu
