Impulse 400D
4K UHD Receiver/Decoder
User Manual

Impulse 400D –User Manual
Page 2 (87)
Copyright
© 2022 Sencore, Inc. All rights reserved.
3200 Sencore Drive, Sioux Falls, SD USA
www.sencore.com
This publication contains confidential, proprietary, and trade secret information. No part of this document may
be copied, photocopied, reproduced, translated, or reduced to any machine-readable or electronic format
without prior written permission from Sencore. Information in this document is subject to change without notice
and Sencore Inc. assumes no responsibility or liability for any errors or inaccuracies. Sencore, Sencore Inc,
and the Sencore logo are trademarks or registered trademarks in the United States and other countries. All
other products or services mentioned in this document are identified by the trademarks, service marks, or
product names as designated by the companies who market those products. Inquiries should be made directly
to those companies. This document may also have links to third-party web pages that are beyond the control
of Sencore. The presence of such links does not imply that Sencore endorses or recommends the content on
those pages. Sencore acknowledges the use of third-party open source software and licenses in some
Sencore products. This freely available source code can be obtained by contacting Sencore Inc.
About Sencore
Sencore is an engineering leader in the development of high-quality signal transmission solutions for the
broadcast, cable, satellite, IPTV, telecommunications, and professional audio/video markets. The
company’s world-class portfolio includes video delivery products, system monitoring and analysis solutions,
and test and measurement equipment, all designed to support system interoperability and backed by best-
in-class customer support. Sencore meets the rapidly changing needs of modern media by ensuring the
efficient delivery of high-quality video from the source to the home. For more information, visit
www.sencore.com.

Impulse 400D –User Manual
Page 3 (87)
Revision History
Date (MM/DD/YYYY)
Version
Description
Author
09/27/2022
1.0
First Draft
RAG

Impulse 400D –User Manual
Page 4 (87)
Safety Instructions
•Read these instructions
•Keep these instructions
•Heed all warnings
•Follow all instructions
•Do not use this apparatus near water
•Clean only with dry cloth
•Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions
•Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat
•Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Unplug this apparatus during lightning storms or when unused for long periods of
time.
•Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
•Do not expose this apparatus to dripping or splashing and ensure that no objects
filled with liquids, such as vases, are placed on the apparatus.
•To completely disconnect this apparatus from the AC Mains, disconnect the
power supply cord plug from the AC receptacle.
•The mains plug of the power supply cord shall remain readily operable.
•Damage Requiring Service: Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
oWhen the power-supply cord or plug is damaged.
oIf liquid has been spilled, or objects have fallen into the product.
oIf the product has been exposed to rain or water.
oIf the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as an improper adjustment of the controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation.
oIf the product has been dropped or damaged in any way.
oThe product exhibits a distinct change in performance.
•Replacement Parts: When replacement parts are required, be sure the service
technician uses replacement parts specified by Sencore, or parts having the
same operating characteristics as the original parts. Unauthorized part
substitutions made may result in fire, electric shock or other hazards.

Impulse 400D –User Manual
Page 5 (87)
SAFETY PRECAUTIONS
There is always a danger present when using electronic equipment.
Unexpected high voltages can be present at unusual locations in defective
equipment and signal distribution systems. Become familiar with the equipment
that you are working with and observe the following safety precautions.
•Every precaution has been taken in the design of your IMPULSE 400D to ensure
that it is as safe as possible. However, safe operation depends on you the
operator.
•Always be sure your equipment is in good working order. Ensure that all points
of connection are secure to the chassis and that protective covers are in place
and secured with fasteners.
•Never work alone when working in hazardous conditions. Always have another
person close by in case of an accident.
•Always refer to the manual for safe operation. If you have a question about the
application or operation call Sencore for assistance.
•WARNING –To reduce the risk of fire or electrical shock never allow your
equipment to be exposed to water, rain or high moisture environments. If exposed
to a liquid, remove power safely (at the breaker) and send your equipment to be
serviced by a qualified technician.
•To reduce the risk of shock the IMPULSE 400D must be connected to a mains
socket outlet with a protective earthing connection.
•For the IMPULSE 400D the mains plug is the main disconnect and should remain
readily accessible and operable at all times.
The IMPULSE 400D is equipped with an internal system battery. The IMPULSE
400D must be sent to Sencore service for replacement of this battery.
•When installing the IMPULSE 400D utilizing the DC power supply, the power
supply MUST be used in conjunction with an over-current protective device rated
at 50V, 5A, type: Slow-blo, as part of battery-supply circuit.
•To reduce the risk of shock and damage to equipment, it is recommended that the
chassis grounding screw located on the rearof the IMPULSE 400D –be connected
to the installation’s rack, the vehicle’s chassis, the battery’s negative terminal,
and/or earth ground.
CAUTION –Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.

Impulse 400D –User Manual
Page 6 (87)
FCC Class A Information
The IMPULSE 400D has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his or her own expense.
Shielded cables must be used with this unit to ensure compliance with the Class A FCC
limits.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
Dolby Digital Information
This product has been manufactured under license from Dolby Laboratories.
“Dolby Digital”, “AC-3”, and “Dolby Digital Plus”are licensed trademarks of Dolby
Laboratories.

Impulse 400D –User Manual
Page 7 (87)
Package Contents
The following is a list of the items that are included along with the IMPULSE 400D:
1. AC Power Cable
2. Datasheet.
Note: If any option cables were ordered with the IMPULSE 400D, they will be included in
the box as well.
If any of these items were omitted from the packaging of the IMPULSE 400D please call
1-800-SENCORE to obtain a replacement. Manuals for Sencore products can be
downloaded at www.sencore.com
1) AC Power Cable 2) Datasheet

Impulse 400D –User Manual
Page 8 (87)
Table of Contents
Section 1 Overview .....................................................................................................10
1.1 Product Introduction.....................................................................................11

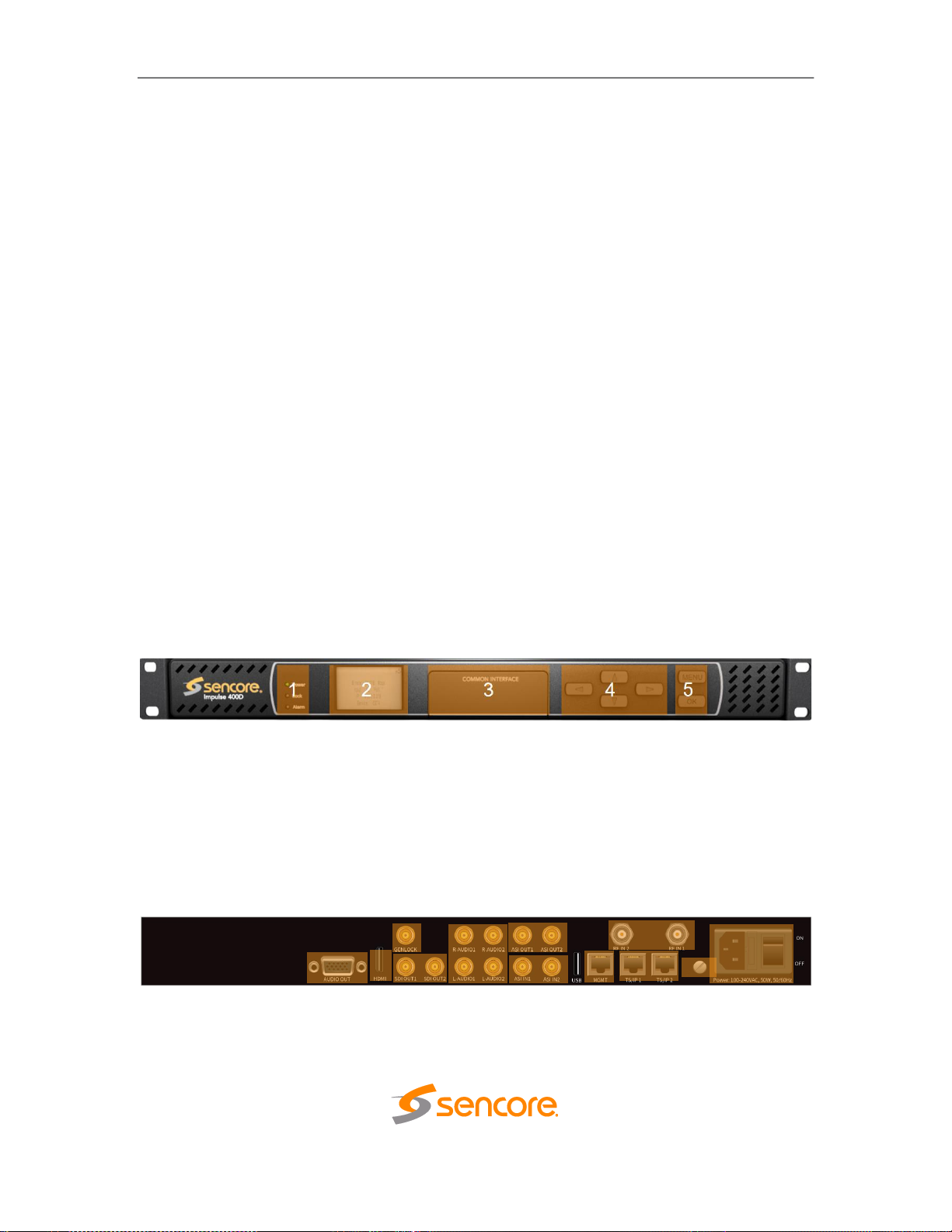

1.2 Front Panel Overview..................................................................................11
1.3 Rear Panel Overview...................................................................................11
1.4 Cooling........................................................................................................12
1.5 Rack Information .........................................................................................12
Section 2 Installation...................................................................................................13
2.1 Rack Installation..........................................................................................14
2.2 Power Connection.......................................................................................14
2.3 AC Power Connection .................................................................................14
2.4 DC Power Connection (optional) .................................................................15
2.5 Maintenance................................................................................................15
2.6 Network Setup via Front Panel....................................................................15
Section 3 Operating the Front Panel..........................................................................17

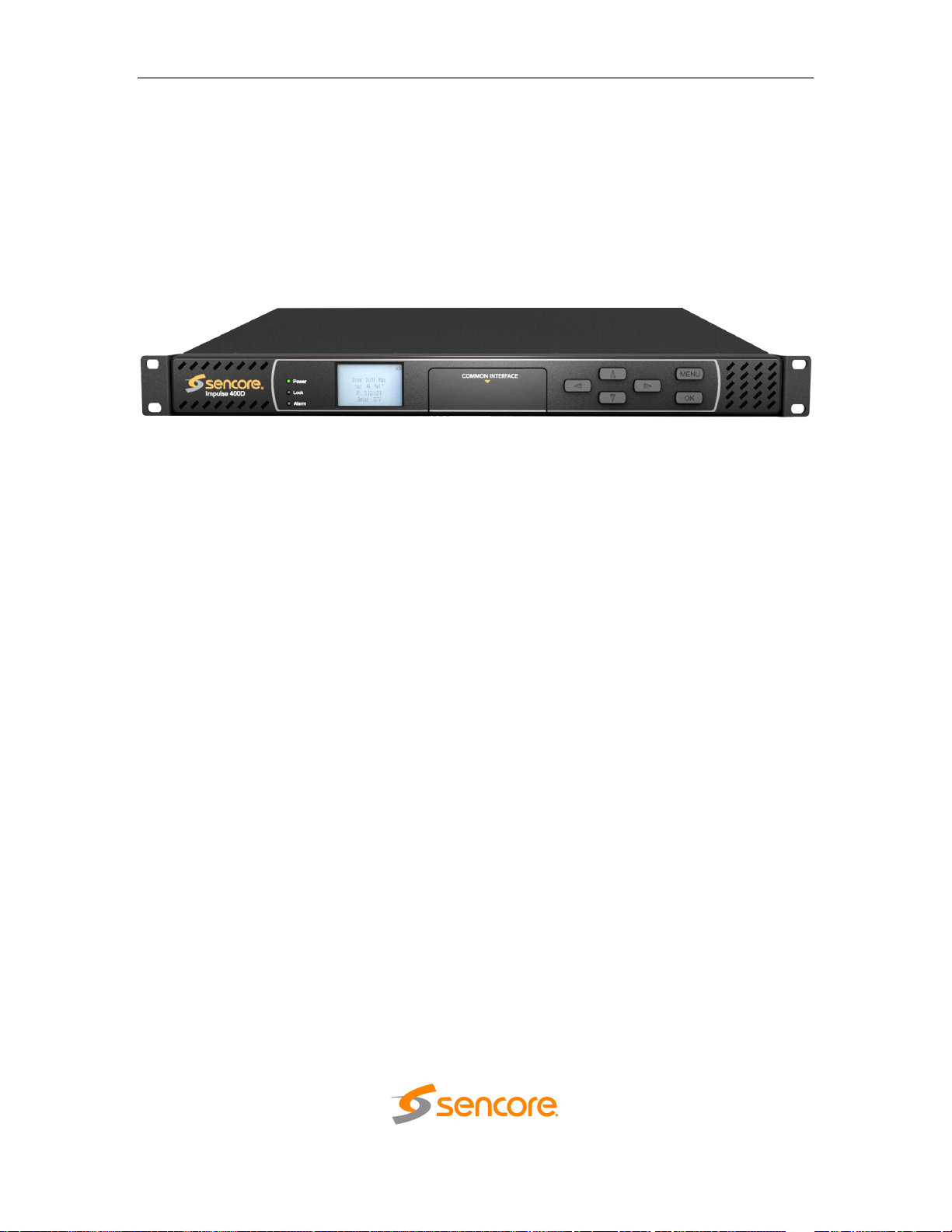

3.1 IMPULSE 400D Front Panel Overview ........................................................18
Section 4 Operating the Web Interface......................................................................19
4.1 IMPULSE 400D Web Interface Overview.....................................................20
4.1.1 Logging into the IMPULSE 400D Web Interface .............................20
4.1.2 Hiding Unused Inputs......................................................................20
4.1.3 Buttons and Status Indicators.........................................................21
4.1.4 Drag and Drop Menus.....................................................................22
4.2 Main Panel ..................................................................................................23
4.2.1 Configuring Active Inputs................................................................24
4.2.2 Configuring ASI Input......................................................................26
4.2.3 Configuring TS/IP Input...................................................................27
4.2.4 Configuring DVB-S/S2/S2X Input....................................................29
4.2.5 Configuring DVB-C/DTMB Input .....................................................30
4.2.6 Configuring DVB-T2 Input...............................................................31
4.2.7 Configuring ISDB-T Input................................................................32
4.2.8 Configuring 8VSB Input ..................................................................33
4.2.9 Configuring Network Protocol Input.................................................33
4.2.10 BISS 1 Descrambling......................................................................37
4.2.11 Configuring DVB-CI Descrambling..................................................38
4.2.12 Configuring T2MI Decapsulation.....................................................41
4.2.13 Configuring Service Selection.........................................................41
4.2.14 Configuring Video Services.............................................................44
4.2.15 Configuring Audio...........................................................................46
4.2.16 Configuring Genlock .......................................................................47
4.2.17 Configuring SDI Output Port ...........................................................48
4.2.18 Configuring Program Multiplex........................................................48
4.2.19 Configuring ASI Output...................................................................51
4.2.20 Configuring TS/IP Output................................................................51

Impulse 400D –User Manual
Page 9 (87)
4.3 Admin Panel................................................................................................54
4.3.1 Changing Unit Password ................................................................55
4.3.2 Profiles............................................................................................55
4.3.3 Diagnostics.....................................................................................56
4.3.4 General Settings.............................................................................57
4.3.5 DVB-S2X Preset.............................................................................57
4.3.6 Unit Network Configuration.............................................................60
4.3.7 MPEG/IP Network Configuration.....................................................62
4.3.8 Licensing ........................................................................................63
4.3.9 Date/Time.......................................................................................63
4.3.10 Configuring SNMP..........................................................................64
4.3.10.1 SNMP Communities........................................................................64
4.3.10.2 SNMP Trap Managers....................................................................65
4.3.10.3 Download SNMP MIB Files.............................................................66
4.3.11 Syslog.............................................................................................67
4.3.12 Updating the IMPULSE 400D .........................................................67
4.3.13 Reboot Unit.....................................................................................69
4.3.14 Reset Defaults................................................................................69
4.4 Reporting Panel...........................................................................................70
4.4.1 Active Alarms..................................................................................70
4.4.2 Event Logs......................................................................................71
4.4.3 Configuring the Logs.......................................................................72
4.5 About Panel.................................................................................................74
Section 5 Appendices.................................................................................................75
Appendix A –Acronyms and Glossary .................................................................76
Appendix B –Error and Event List ........................................................................79
Appendix C –Specifications..................................................................................81
Appendix D –Open Source Software ....................................................................84
Appendix E –Warranty...........................................................................................86
Appendix F –Support and Contact Information...................................................86

Impulse 400D –User Manual
Page 10 (87)
Section 1 Overview
Introduction
This section includes the following topics:
1.1 Product Introduction……………… ................................................................11
1.2 Front Panel Overview...................................................................................11
1.3 Rear Panel Overview ...................................................................................11
1.4 Cooling.........................................................................................................12
1.5 Rack Information..........................................................................................12

Impulse 400D –User Manual
Page 11 (87)
1.1 Product Introduction
The IMPULSE 400D 4K UHD Receiver/Decoder continues Sencore’s long history of
leadership in thereceiver/decoder space. The product boasts a full complement of cutting-
edge features, including 4:2:0 H.265 10bit decoding, and optional licensing added to
include 4K/UHD decoding 2160p60 video support with 3G-SDI output. Additionally, the
IMPULSE 400D has the ability of multiplexing, which allows the user to remultiplex the
services from various inputs. This feature set makes the IMPULSE 400D the ideal choice
for contribution reception or demanding distribution applications which require a future-
proof set of specifications.
Every IMPULSE 400D ships with a full complement of basic inputs and outputs built-in,
including ASI input and output, dual TS/IP input and output and dual SD/HD/3G-SDI
outputs. The addition of a digital video output means that video monitoring is as easy as
finding the nearest standard consumer television or PC monitor. In addition, available
factory-configurable DVB-S2X/S2/T2/T/C, 8VSB and ISDB-T receiver modules make
adapting the product to almost any use case easy.
The receiver also maintains Sencore’s long tradition of ease of use, with a straight-forward
web interface accessible via all major browsers and complete control of the unit via the
front panel keypad, and is backed by Sencore’s best-in-class staff of ProCare support
engineers.
1.2 Front Panel Overview
The IMPULSE 400D can be controlled from the front panel using the LCD screen and
buttons that are shown below. A detailed description of using the front panel can found in
Section 3.1.
1. Power/Locked/Alarm Indicator
2. LCD screen
3. 2x DVB-CI Slots
4. Up, Down, Left, Right buttons
5. Menu and OK Buttons
1.3 Rear Panel Overview
The IMPULSE 400D comes with all of the hardware listed below.
1. Digital Unbalanced AES/EBU Output Connector
2. HDMI Output Connector
3. External Genlock Reference Input
1
2
4
3
5
7
6
8
10
9
12
11

Impulse 400D –User Manual
Page 12 (87)
4. Two SD/HD/3G-SDI Output Connectors (mirrored)
5. Four Analog Audio Output Connectors
6. Two ASI Output Connectors
7. Two ASI Input Connectors
8. RJ45 Management Port
9. Two RF Reception Connectors (Optional)
10. Two RJ45 Data Port
11. Chassis ground
12. Power Supply and Power Switch
1.4 Cooling
The IMPULSE 400D is cooled via forced induction through the front of the unit and
exhausted through the vents in the rear of the chassis. The IMPULSE 400D is equipped
with a temperature-controlled status indicator. If the temperature inside the unit exceeds
60 C the red “Error”text will illuminate on the front panel and a description of the error will
appear in the “Error List.”
1.5 Rack Information
The IMPULSE 400D is intended to be mounted in a standard 19” rack. It occupies 1RU
of rack space and the connections are all on the rear of the unit.

Impulse 400D –User Manual
Page 13 (87)
Section 2 Installation
Introduction
This section includes the following topics:
2.1 Rack Installation...........................................................................................14
2.2 Power Connection........................................................................................14
2.3 AC Power Connection..................................................................................14
2.4DC Power Connection..................................................................................15
2.5Maintenance.................................................................................................15
2.6Network Setup via Front Panel.....................................................................16

Impulse 400D –User Manual
Page 14 (87)
2.1 Rack Installation
To install the IMPULSE 400D into a rack use the following steps:
1. Determine the desired position in the rack for the
IMPULSE 400D making sure that the air intake on the
front of the unit and the exhausts on the sides of the
unit will not be obstructed.
2. Insert the rack mount clips into place over the
mounting holes in the rack.
3. Slide the IMPULSE 400D into position in the rack.
4. Secure the IMPULSE 400D to the rack by installing the
four supplied screws through the front mounting holes
and tightening.
5. If needed, secure a grounding wire use the grounding
location on the rear panel of the IMPULSE 400D. See
Section Error! Reference source not found. for
grounding location.
2.2 Power Connection
Using the proper power connections is vital to the safe operation of the IMPULSE
400D. Only use the supplied 3-prong power connector or one with equal specifications.
NEVER tamper with or remove the 3rd –prong grounding pin. This could cause
damage to the IMPULSE 400D, personnel, or property.
2.3 AC Power Connection
The IMPULSE 400D is intended for use on either 120V or 240V systems. The power
supply will automatically detect the system it is connected to. To hook up the power
use the following steps:
1. Locate the AC power cord that was included with the IMPULSE 400D.
2. Plug the female end of the power cord (end with no prongs) into the back of the
unit.
3. Locate a protected outlet (usually inside of the rack) to plug the male end of the
power cable into.

Impulse 400D –User Manual
Page 15 (87)
2.4 DC Power Connection (optional)
The IMPULSE 400D with the DC chassis option is intended for use on 48V DC
systems. A power cable is not included for this option. In order to apply power to the
unit in this configuration, simply connect the screw terminals on rear of the unit to the
rack’s DC power rails.
Be sure that the power source and cable is used in conjunction with an over-current
protective device rated at 50V, 5A, type: Slow-blo fuse as part of battery-supply circuit.
Also, to reduce the risk of shock and damage to equipment, it is recommended that
the chassis grounding screw (1.3) located on the rear of the IMPULSE 400D –be
connected to the installation’s rack, battery negative terminal, and/or earth ground.
2.5 Maintenance
The IMPSULE 400D is virtually a maintenance-free piece of equipment. There are no
user serviceable parts on the inside of the unit
2.6 Network Setup via Front Panel
The IMPULSE 400D can be setup on a network connection to allow remote
management and SNMP configuration. For these features to work, the network settings
for the IMPSULE 400D must first be configured properly for the network it is connected
to.
Static IP Address
To setup the IMPULSE 400D with a static IP address, use the following steps:
1. Press the button.
2. Use the and buttons to
move the cursor to “System”, then
press the button.
3. Use the and buttons to
move the cursor to “Unit
Networking”, then press the
button.
Note: The first menu displayed is
status menu. In order to begin making
changes to networking settings press
the button.
Main Menu ↔↕
Inputs
Outputs
>System
System Menu ↔↕
>Unit Networking
Reboot
About Unit
Reset All Settings

Impulse 400D –User Manual
Page 16 (87)
IP Address/Subnet Mask/Gateway
1. Use the and buttons to
move the cursor to “IP”, then press
the button.
2. Use the and buttons to
select the column to edit and use
the and buttons to
change the IP, then press the
button to save the selection.
3. The cursor will now be on “Mask”.
4. Use the and buttons to
select the column to edit and use
the and buttons to
change the Subnet Mask, then
press the button to save the
selection.
5. The cursor will now be on
“Gateway”.
6. Use the and buttons to
select the column to edit and use
the and buttons to
change the Gateway, then press the
button to save the selection.
DHCP
The IMPULSE 400D can be configured to use DHCP to obtain an IP address/Subnet
Mask/Gateway.
1. Use the and buttons to
move the cursor to “DHCP:” then press
the button.
2. Use the and buttons to
change the selection to “Enabled” then
press the button to save the
selection.
Configure Network ↔↕
IP Mode: Static
>IP: 0.0.0.0
Mask: 0.0.0.0
GW:0.0.0.0
Configure Network ↔↕
IP Mode: Static
>IP: 000.000.000.000
Mask: 0.0.0.0
GW:0.0.0.0
>IP: 000.000.000.000
Mask: 0.0.0.0
Configure Network ↔↕
IP Mode: Static
IP: 0.0.0.0
>Mask: 000.000.000.000
GW:0.0.0.0
>IP: 000.000.000.000
Mask: 0.0.0.0
IP: 0.0.0.0
>Mask: 000.000.000.000
Configure Network ↔↕
IP Mode: Static
IP: 0.0.0.0
Mask:0.0.0.0
>GW:000.000.000.000
>IP: 000.000.000.000
Mask: 0.0.0.0
IP: 0.0.0.0
>Mask: 000.000.000.000
>Gateway:
000.000.000.000
Configure Network ↔↕
>IP Mode: DHCP

Impulse 400D –User Manual
Page 17 (87)
Section 3 Operating the Front
Panel
Introduction
This section includes the following topics:
3.1 IMPULSE 400D Front Panel Overview.........................................................18

Impulse 400D –User Manual
Page 18 (87)
3.1 IMPULSE 400D Front Panel Overview
The IMPULSE 400D front panel allows the user to configure most major settings that are
present in the web interface using the buttons located on the front of the unit. The
screen below is the idle screen of the IMPULSE 400D. This idle screen allows the user
to view the management IP and TS/IP port 1&2 addresses.
1. IP address of management port, DHCP mode by default.
2. IP address of TS/IP port 1.
3. IP address of TS/IP port 2.
The following figure shows the set of buttons available on the front panel of the
IMPULSE 400D. The button allows the user to return to the home screen,
cancel settings and go back a menu. In order to edit a selected parameter, the
button must be pressed. Once a parameter has been changed the button must
be pressed again before the change takes effect on the unit. The keys allow
you to navigate through the menus right, left, up and down with each respective button.
MENU
M
OK
OK

Impulse 400D –User Manual
Page 19 (87)
Section 4 Operating the Web
Interface
Introduction
This section includes the following topics:
4.1 IMPULSE 400D Web Interface Overview .....................................................20
4.2 Main Panel...................................................................................................23
4.3 Admin Panel.................................................................................................54
4.4 Reporting Panel............................................................................................70
4.5 About Panel..................................................................................................74

Impulse 400D –User Manual
Page 20 (87)
4.1 IMPULSE 400D Web Interface Overview
4.1.1 Logging into the IMPULSE 400D Web Interface
To open the IMPULSE 400D web interface use one of the following supported browsers
and navigate to the unit’s IP address:
•Internet Explorer
•Firefox
•Google Chrome
The user will need to login to the web interface. Press the button in order to
login to the web interface.
Default Credentials
Username: admin
Password: mpeg101
4.1.2 Hiding Unused Inputs
The IMPULSE 400D web interface allows the user to hide inactive inputs using the
button or show all available inputs by click the
button. Only the inputs configured as the Primary Input and Backup Input (see Section
4.2.1) will be displayed when unused inputs are hidden.
