Sennheiser CinemaConnect CS1-C User manual

1 2 3
4
1AUDIO BREAKOUT
2x RCA unbalanced
2ADAT/SPDIF
Toslink input
8 channels, 24 bit
4ANALOG IN
4x 1/4" (6.3 mm)
TRS jack
servo balanced
3SPDIF/AES
1x RCA
2 Connecting audio devices1 Connecting the product to the mains
http://192.168.0.10/
Open your browser and
navigate to: 192.168.0.10
Configure the laptop with the
static IP address 192.168.0.2
user name: admin
password: ******
Enter user name and
password for login.
new password:
1: Administrator Login
2: Configure Regulatory Domain
3: Configure Access Point
Follow the instructions in the Web
Interface to perform the initial setup
of your ConnectStation.
The configuration ist done. The system is ready to connect to a mobile
device containing the CinemaConnect App.
Default user name: “admin”
password: “sennheiser”
LAN cable to
5.4 Performing the initial setup
5.2 Configuring the laptop
5.3 Logging in to the system
5.1 Connecting a laptop
Power supply
access point
The ConnectStation provides DHCP
service to the access point and clients.
Connect the access point directly
to the ConnectStation.
Zoneflex 7372
access point
4 Connecting the access point3 Switching the product ON
< 1s on
Briefly press
the button
orange green green
boot up system running
AC Power
supply
ConnectStation CS1-C
CinemaConnect Quick Guide

www.sennheiser.com
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
Publ. 06/15, 560070/A02
orange orange
Warning
red
Alert: Fatal error
Briefly press
the button < 1s off
orange
shut down system off
Specifications
Dimensions W x D x H
Weight
Power supply
Power
Operating temperature
Storage temperature
Operating humidity
Storage humidity
AUDIO BREAKOUT
Input
Input impedance
Input sensitivity
Resolution AD
Frequency response AD
@ 44.1 kHz, -0.5 dB
ADAT/SPDIF
Input
Standard
Lock range
SPDIF/AES
Input
SPDIF compatible
Impedance
Lock range
ANALOG IN
Input
Input impedance
Input sensitivity
Resolution AD
Frequency response AD
@ 44.1 kHz, -0.5 dB
Sample rate
48.3 cm x 24.0 cm x 4.4 cm
(19.0" x 9.5" x 1.7")
2.9 kg (6.39 lbs)
100 - 240 V AC, 50/60 Hz,
max. 600 mA
60 W nominal
+5 °C to +45 °C (41°F to 113 °F)
-20 °C to +75 °C (-4°F to 167 °F)
10 % to 90 % @ 25 °C non-condensing
5 % to 95 % @ 25 °C non-condensing
2x RCA unbalanced
10 kΩ
Low gain, +4 dBu, -10 dBV
24 bit
5 Hz to 21.5 kHz
TOSLINK
8 channels, 24 bit, up to 48 kHz
31.5 to 50 kHz
1x RCA
IEC 60958
75 Ω
27 to 200 kHz
4x 1/4" (6.3 mm) TRS jack,
servo balanced
10 kΩ
Low gain, +4 dBu, -10 dBV
24 bit
5 Hz to 21.5 kHz
48 kHz
List of Audio Channels
Analog In 4 Channels
SPDIF
Analog I/O 2 Channels
ADAT Input
ADAT Output
Active
Active
Active
Active
N.A.

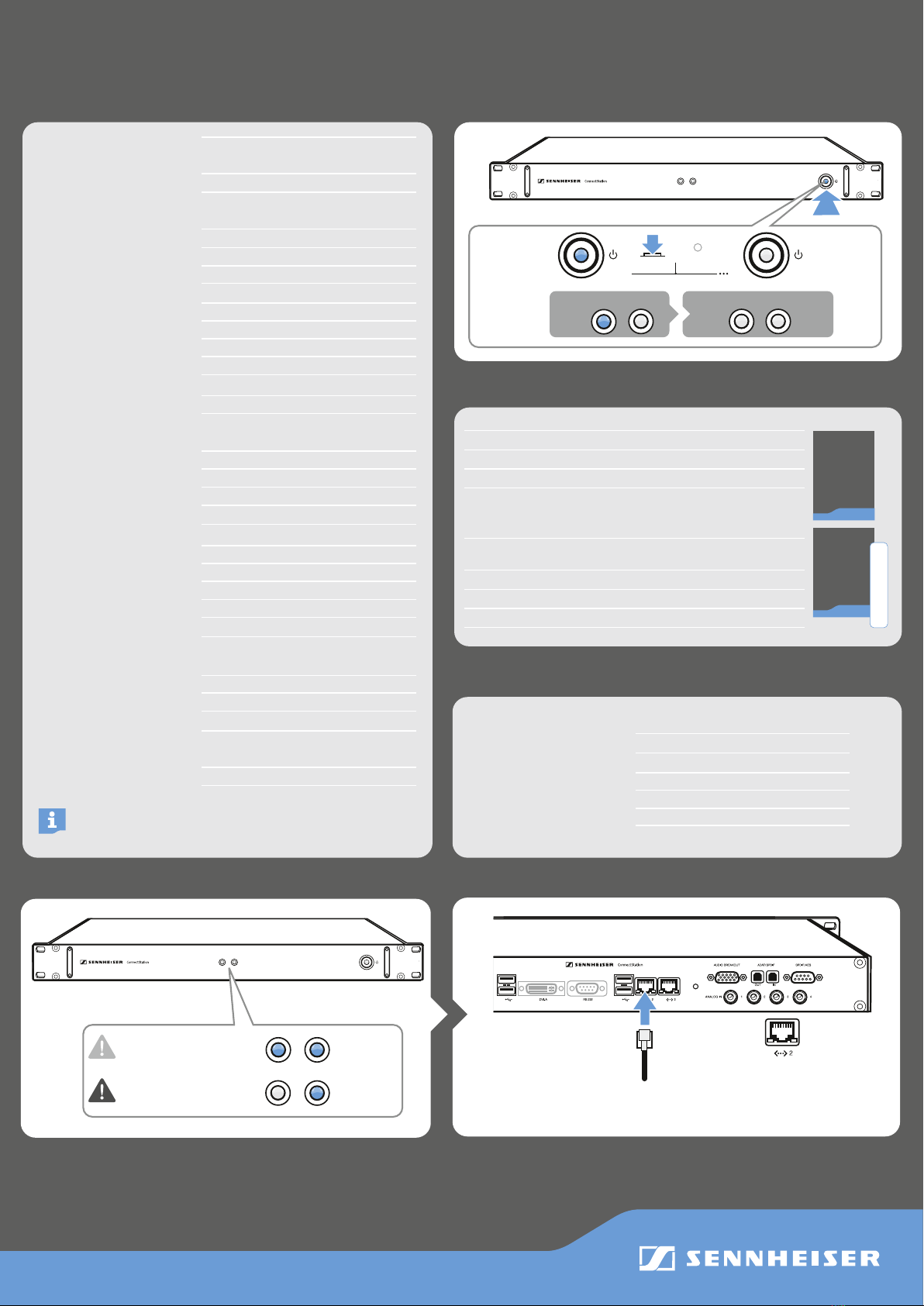

6 Switching the product OFF
Delivery includes
Specifications
1x ConnectStation CS1-C
1x Power Supply Cable 1.8 m (EU/UK/US)
1x Ruckus ZoneFlex 7372 Access Point (worldwide/US)
1x Ruckus Power Supply Adapter for Access Point (EU/UK/US)
INPUT: 100 – 240 V AC, 50/60 Hz, 0.4 A
OUTPUT: 12 V DC, 1.0 A
Audio Cables
1x 15-pin D-sub to 4 x RCA Analog, 2 x MIDI, 1 x Phones
1x 9-pin D-sub to 2 x RCA Digital (SPDIF)
1x Toslink Cable 2 mm, 2m
Quick Guide
Safety Guide
DE
EN
FR
IT
ES
NL
SV
For more detailed specifications please refer to the product
specification sheet in the download area of the product page
at www.sennheiser-connect.com.
Checking for errors – Troubleshooting
DHCP enabled,
ports 1194 +1195,
UDP open
Sennheiser Service:
Please send an email with the serial number of the ConnectStation CS1-C to
[email protected] for remote service .
For monitoring and remote diagnostics connect the device to the internet.
ConnectStation CS1-C
CinemaConnect
