Sensafe Chlorine eXact EZ User manual

QUICK START GUIDE
Chlorine
ADVANCED PHOTOMETER SYSTEM
DIGITAL ACCURACY FOR RELIABLE WATER CARE

2
©2017, Industrial Test Systems, Inc. Printed in USA
WELCOME TO YOUR NEW CHLORINE
EXACT
®
EZ PHOTOMETER.
Thank you for your Chlorine eXact
®
EZ purchase! This guide
will quickly walk you through the technical details of your new
photometer. After initial set-up, test procedures, and tips, you will be
on your way to digital water testing! Each test will require the use of
one or more of the testing methods outlined in this manual.
YOUR CHLORINE EXACT
®
EZ COMES WITH:
•Cleaning Brush
•Quick Start Guide (this booklet)
•30 foil packet strips (6 of each): Free Chlorine (DPD-1),
Combined Chlorine (DPD-3), Total Chlorine (DPD-4), Total
Chlorine High, and pH
WHAT YOU WILL NEED TO GET STARTED:
•Four (4) AAA batteries
•#4 Phillips head screwdriver
Note: This system has been calibrated for use with only our
eXact®Micro reagents.
CONTENTS
Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chlorine eXact®EZ Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Install “AAA” Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fill, Dip, Read
Free Chlorine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Combined Chlorine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
eXact®Strip Micro CL Interferences . . . . . . . . . . . . . . . . . . . . . 7
Total Chlorine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Total Chlorine High. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
pH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
For Best Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chlorine eXact EZ Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
About
Built-in Sample Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warranty (2 years) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Method Verification Ready Snap®3. . . . . . . . . . . . . . . . . . . . . 16
Compliance Testing (USEPA) . . . . . . . . . . . . . . . . . . . . . . . . . 17
Carrying Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
eXact® Micro Tests & Reagents . . . . . . . . . . . . . . . . . . . . . . . . 20
Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3
Sensafe.com
CHLORINE EXACT®EZ OVERVIEW
YOUR NEW CHLORINE EXACT EZ PHOTOMETER IS IDEAL FOR
TESTING AND MAINTAINING YOUR DRINKING WATER AND FOOD
PROCESS WATER.
SAMPLE CELL - 4 ML
Built-in plastic 4mL cell
for collecting your water
sample
LCD DISPLAY
Displays results
and test name
LIGHT SOURCE
Uses 525nm
wavelength and
11mm path-length
for testing
READ BUTTON
Starts test timer
MENU BUTTON
Cycles through
available tests
BASE
Install/replace batteries here
(IP67 rated waterproof)
RESULT
UNITS
LOW
BATTERY
LCD DISPLAY
ZERO/ON BUTTON
Turns the meter
on and creates a
baseline for your
water testing
CELL COVER
Covers the cell for
mixing and bright
light situations
Protected against the effects
of immersion in water to depth
between 15cm and 1m
Part no. 486204
SCREW
Unscrew to
remove base
INSTALL “AAA” BATTERIES (NOT INCLUDED)
1. Use a #4 Phillips head screwdriver to remove the screw
from the base of your Chlorine eXact®EZ
.
2. Remove the base.
3. Install Four (4) new AAA batteries as illustrated inside
your photometer’s battery compartment. We recommend
using high quality batteries.
4. Replace the base firmly with pressure while tightening the
screw. The meter will turn on automatically.
5. Tighten the screw with #4 Phillips head screwdriver. Be
sure not to over tighten.

4
©2017, Industrial Test Systems, Inc. Printed in USA
FREE CHLORINE
FILL, DIP, READ
Use the included cleaning brush to clean the cell after
each test to achieve the most accurate result.
TIP
FILL CELL
Rinse the cell 3 times with the water sample to
be tested and FILL to the top to begin test.
2
1
POWER ON PHOTOMETER
Press the button to power on the Chlorine
eXact
®
EZ.
3

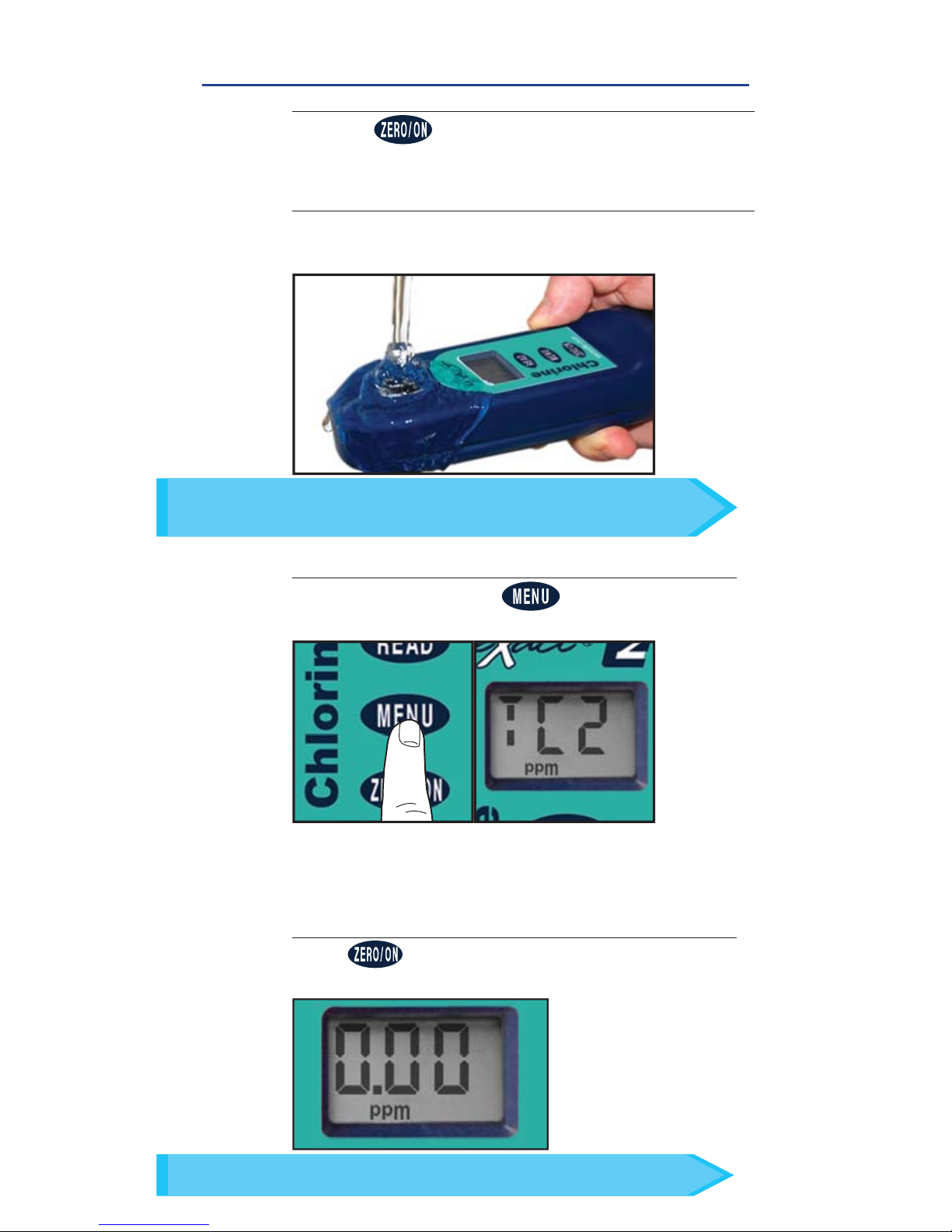

SELECT TEST
Press and re-press the button until the
display shows CL1.
ZERO METER
Press and the LCD Display reads 0.00PPM,
indicating the meter is ready for testing.
4
In bright light situations use cell cover for zeroing and reading.
TIP

5
Sensafe.com
FREE CHLORINE

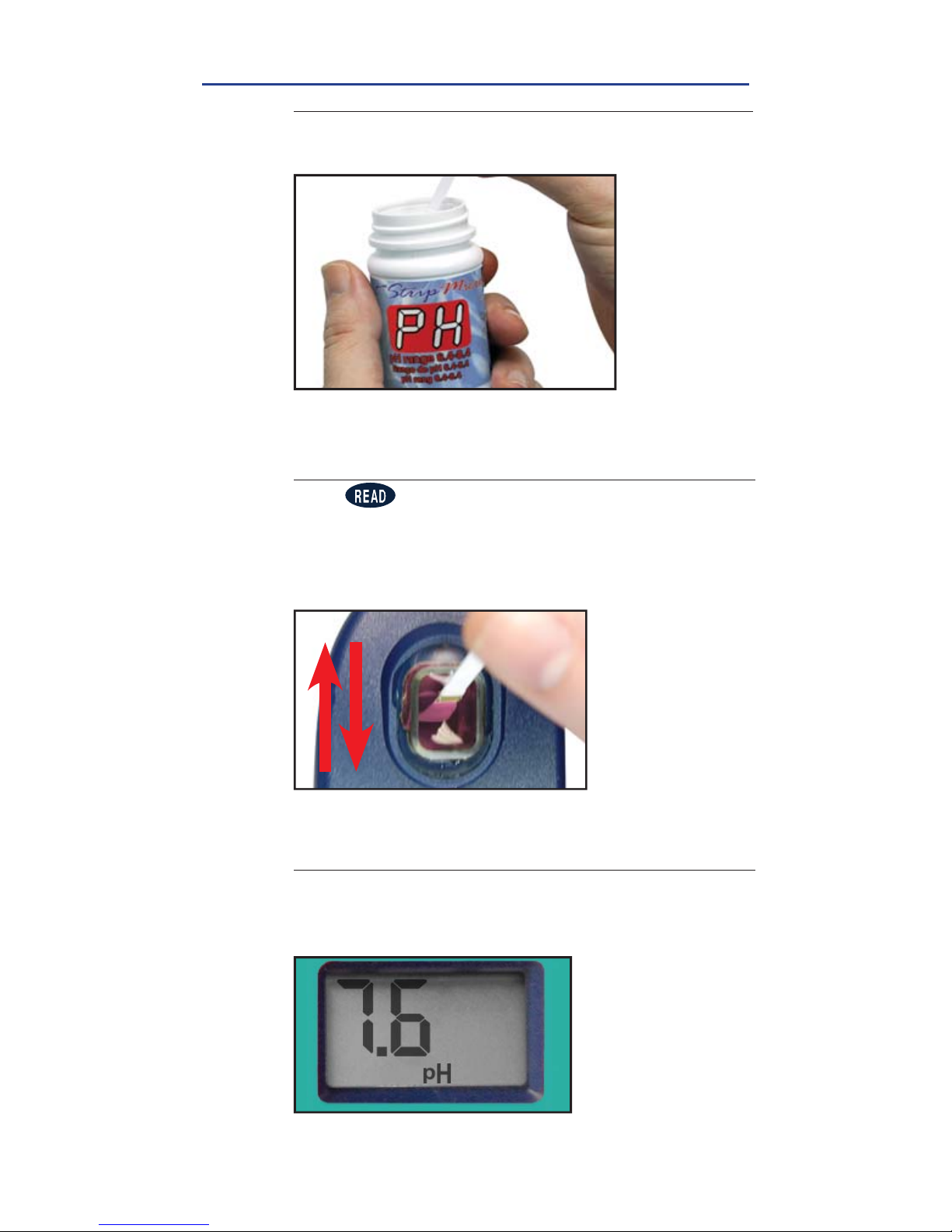

REMOVE STRIP
Remove one eXact
®
Strip Micro CL (DPD-1) Free
Chlorine and set in a dry, convenient place. Replace
cap on bottle
5
DIP STRIP AND PRESS READ
Press to initiate a 20 second countdown and
simultaneously DIP the eXact® Strip by submerging all
pads in the sample then use a gentle, constant, back
and forth motion (2 strokes per second) until the timer
displays ‘1’ . Remove and discard the strip.
6
READ RESULTS
READ result displayed as Free Chlorine. This
result is automatically stored in the CL1 menu.
After testing is complete, rinse the sample cell
immediately.
7
Important! Do not empty the CELL if you are also
testing for Combined Chlorine. You will need the sample.
FILL, DIP, READ
If result is 6.0 or greater, repeat steps 5-7 above
using same sample and a fresh strip.
TIP

6
©2017, Industrial Test Systems, Inc. Printed in USA
COMBINED CHLORINE
DIP STRIP AND PRESS READ
Press to initiate a 20 second countdown and
simultaneously DIP the eXact
®
Strip by submerging all
pads in the sample then use a gentle, constant, back
and forth motion (2 strokes per second) until the timer
displays ‘1’. Remove and discard the strip.
10
This procedure is a continuation from Free Chlorine Test Method
on previous pages. DO NOT DISCARD SAMPLE FROM FREE
CHLORINE TEST.
REMOVE STRIP
Remove one eXact®Strip Micro CL (DPD-3) Combined
Chlorine and set in a dry, convenient place. Replace
cap on bottle.
9
In bright light situations use cell cover for zeroing and reading.
TIP
8
ZERO METER
With the Free Chlorine sample still in the CELL,
press and the LCD Display reads 0.00PPM,
indicating the meter is ready for testing.
FILL, DIP, READ

7
Sensafe.com
COMBINED CHLORINE
11
READ RESULTS
READ result displayed as Combined Chlorine. This
result is automatically stored in the CL1 menu. After
testing is complete, rinse the sample cell immediately.
eXact
®
Strip Micro CL (DPD-1, DPD-3, DPD-4) Interferences
Interfering
Substance
Interfering Levels & Treatments
Acidity If sample has acidity above 150mg/L CaCO3
test may not develop full color. Neutralize to
pH 6.0 to 7.0 with 0.5N Sodium hydroxide.
Alkalinity If sample has alkalinity above 200mg/L
CaCO3 test may not develop full color.
Neutralize to pH 6.0 to 7.0 with 0.5N
Sulfuric acid.
Bromine &
Bromamines, Br
2
Color similar to free chlorine reaction at all levels.
Chlorine Dioxide, ClO2 Color similar to free chlorine reaction at all levels.
Copper, Cu
+2
Color development is reduced above 10
ppm (mg/L).
Iodine, I
2
Color similar to free chlorine reaction at all levels.
Manganese, Oxidized
(Mn
+4
, Mn
+6
) or
Chromium,
Oxidized (Cr
+6
)
See AWWA procedure 4500-CL F, 1(d) for
removal of interferences.
Monochloramines
(NH
2
Cl)
(applies to DPD-1 only)
Monochloramine interferences are known
to occur in free chlorine
DPD methods. This interference is
dependent on temperature and
monochloramine concentration.
Ozone, O
3
Color similar to free chlorine reaction at all levels.
Peroxides Interference is possible.
pH Typical pH samples of potable water with
a pH of 6.0 to 9.0 are OK. If outside this
range adjust to pH 6.0 to 7.0 using acid
(0.5N Sulfuric acid) or base (0.5N Sodium
hydroxide).
FILL, DIP, READ

8
©2017, Industrial Test Systems, Inc. Printed in USA
TOTAL CHLORINE
Use the included cleaning brush to clean the cell after
each test to achieve the most accurate result.
TIP
FILL CELL
Rinse the cell 3 times with the water sample to
be tested and FILL to the top to begin test.
2
1
POWER ON PHOTOMETER
Press the button to power on the Chlorine
eXact
®
EZ.
3
SELECT TEST
Press and re-press the button until the
display shows TC2.
ZERO METER
Press and the LCD Display reads 0.00PPM,
indicating the meter is ready for testing.
4
In bright light situations use cell cover for zeroing and reading.
TIP
FILL, DIP, READ

9
Sensafe.com
TOTAL CHLORINE
REMOVE STRIP
Remove one eXact
®
Strip Micro CL (DPD-4) Total
Chlorine and set in a dry, convenient place. Replace
cap on bottle.
5
DIP STRIP AND PRESS READ
Press to initiate a 20 second countdown and
simultaneously DIP the eXact® Strip by submerging all
pads in the sample then use a gentle, constant, back
and forth motion (2 strokes per second) until the timer
displays ‘1’ . Remove and discard the strip. The display
will automatically start to count up for 120 seconds.
*NOTE: Standard Method (4500-Cl G, procedure for total chlorine) requires
the reading to be made after 2 minutes from the time the KI is added. For
compliance testing, you must time the two minutes and then make your
measurement. NOTE: From testing in our lab, water samples above 70°F
(20°C), generally, reach a stabilized reading quicker than 2 minutes.
6
READ RESULTS
READ result displayed as Total Chlorine. This result is
automatically stored in the TC2 menu. After testing is
complete, rinse the sample cell immediately and clean
with brush.
7
FILL, DIP, READ
If result is 6.0 or greater, repeat steps 5-7 above
using same sample and a fresh strip.
TIP

10
©2017, Industrial Test Systems, Inc. Printed in USA
TOTAL CHLORINE HIGH
Use the included cleaning brush to clean the cell after
each test to achieve the most accurate result.
TIP
FILL CELL
Rinse the cell 3 times with the water sample to
be tested and FILL to the top to begin test.
2
1
POWER ON PHOTOMETER
Press the button to power on the Chlorine
eXact
®
EZ.
3
SELECT TEST
Press and re-press the button until the
display shows HR3.
ZERO METER
Press and the LCD Display reads 0.00PPM,
indicating the meter is ready for testing.
4
FILL, DIP, READ
In bright light situations use cell cover for zeroing and reading.
TIP

11
Sensafe.com
TOTAL CHLORINE HIGH
REMOVE STRIP
Remove one eXact
®
Strip Micro CLH High Range
Chlorine and set in a dry, convenient place.
Replace cap on bottle.
5
DIP STRIP AND PRESS READ
Press to initiate a 20 second countdown and
simultaneously DIP the eXact® Strip by submerging all
pads in the sample then use a gentle, constant, back
and forth motion (2 strokes per second) until the timer
displays ‘1’ . Remove and discard the strip. The display
will automatically start to count up for 120 seconds.
6
READ RESULTS
READ result displayed as Total Chlorine. This result is
automatically stored in the HR3 menu. After testing is
complete, rinse the sample cell immediately.
7
FILL, DIP, READ

12
©2017, Industrial Test Systems, Inc. Printed in USA
PH
Use the included cleaning brush to clean the cell after
each test to achieve the most accurate result.
TIP
FILL CELL
Rinse the cell 3 times with the water sample to
be tested and FILL to the top to begin test.
2
1
POWER ON PHOTOMETER
Press the button to power on the Chlorine
eXact
®
EZ.
3
SELECT TEST
Press and re-press the button until the
display shows PH4.
ZERO METER
Press and the LCD Display reads 0.0pH,
indicating the meter is ready for testing.
4
FILL, DIP, READ
In bright light situations use cell cover for zeroing and reading.
TIP

13
Sensafe.com
PH
REMOVE STRIP
Remove one eXact
®
Strip Micro PH and set in a dry,
convenient place. Replace cap on bottle.
5
DIP STRIP AND PRESS READ
Press to initiate a 20 second countdown and
simultaneously DIP the eXact® Strip by submerging all
pads in the sample then use a gentle, constant, back
and forth motion (2 strokes per second) until the timer
displays ‘1’ . Remove and discard the strip.
6
READ RESULTS
READ result displayed as pH. This result is
automatically stored in the PH4 menu. After testing is
complete, rinse the sample cell immediately.
7
FILL, DIP, READ

14
©2017, Industrial Test Systems, Inc. Printed in USA
FOR BEST ACCURACY
The Chlorine eXact
®
EZ photometer has a 5 minute auto-shutoff timer.
Each test menu can store 20 results. To retrieve the stored results,
go to the desired test using the MENU key. When the desired test is
displayed, press and hold down the MENU key. Continue holding down
the MENU key to scroll the stored results for that test, starting with the
most recent result. The meter will display, from memory, the last 20
readings in sequence beginning with -20, which is the latest result,
followed by -19, which is the 2nd latest result, etc; and finally -01,
which is the oldest result retained. Only the last 20 readings are stored
in each menu. This meter is able to store 100 results in memory (20 in
each menu).
Before testing, rinse the meter sample cell with the sample water 3 times.
Always fill the cell to capacity (4mL); be careful not to splash liquid over
the side.
Test immediately after filling the cell with the water sample.
To obtain optimal accuracy when testing outdoors (sunlight), use the
cell cover when zeroing and reading the sample.
Due to the strip slitting process, you may find one or two strips that are
noticeably smaller or larger in width than the normal strips in the bottle.
These should be discarded. Using these strips may give unreliable results.
Meter is not compatible for use with powder pillows, tablets, or liquids
from other manufacturers.
Dip strip for entire countdown.
Each eXact
®
Strip Micro is valid for ONLY one test. Discard strip after use.
Dry the outside of the meter before storage.
Remove batteries before storing for prolonged periods.
Store the meter and test materials out of direct sunlight and away from
chemical storage areas.
Minimize exposure of meter and test reagents to heat above 90°F (32°C).
When installing batteries, verify the O-ring is still attached to the screw
before tightening.
Cleaning the cell with water and brush after each test is recommended
for best accuracy and prior to storage of unit.

15
Sensafe.com
TROUBLESHOOTING
Listed below are possible situations that may arise while testing.
Please contact one of our knowledgeable customer service
representatives if you require further assistance .
Subject Cause Solution
Dim screen or no
response from meter
Low battery Replace batteries
“LO” on LCD while
zeroing
Low battery Replace batteries
Dirty cell Clean cell
Cloudy sample Dilute sample or use filter
Bad LED Contact ITS
“HI” on LCD while
reading
Result above
detection level
Re-run test to verify result
“LO” on LCD while
reading
Result below
detection level
Re-run test to verify result
“LO” flashes on
LCD, then "Err"
Improper test
procedure for
Combined Chlorine
Re-read test procedure
and follow directions
carefully
"HI" flashes on LCD,
then "Err"
Combined Chlorine
result above
detection limit
Re-run test to verify result
Dilute and re-run test
TECHNICAL SUPPORT
Please visit sensafe.com/photometers/chlorine-exact-ez/
for the latest technical information and how-to-videos.
For additional technical support, call [phone].
Industrial Test Systems, Inc.
1875 Langston Street, Rock Hill, SC 29730
800-861-9712 or 803-329-9712
[e-mail] | sensafe.com
ITS Europe, Ltd.
The UK Centre for Homeland Security
Building 7, Chilmark, Salisbury,
Wiltshire SP3 5DU UK [phone]
[e-mail] | itseurope.co.uk
C
E
L
E
B
R
A
T
I
N
G
E
X
C
E
L
L
E
N
C
E
years
28
1989
2017
Manufacturing quality products since 1989
CHLORINE EXACT®EZ ACCURACY
All tests have been calibrated using certified reference standards
and analytical spectrophotometric methods. The Chlorine eXact
®
EZ has been factory calibrated and will stay valid because of its
exceptional quality. We are so confident in the Chlorine eXact
®
EZ, we offer an industry leading 2-year warranty.
We built the Chlorine eXact
®
EZ to be easy, accurate and
environmentally friendly. We have achieved this by utilizing our
patented eXact
®
Strip Micro Technology, which uses 60% less
water and chemistry than alternative methods. Instead of using
a 10mL water sample, eXact
®
Strip Micro uses a 4mL water
sample. The accuracy of the meter is maintained by designing
the sample cell with an 11mm path-length.

16
©2017, Industrial Test Systems, Inc. Printed in USA
BUILT IN SAMPLE CELL
The built-in sample cell is made of transparent plastic;
the sturdy cell design will last for over 20,000 readings.
Our studies have shown that scratches on the cell will not
compromise the accuracy of your results because of the
cell’s fixed position.
WARRANTY (2 YEARS)
Registration of your eXact
®
photometer must be received within 30 days from
date of purchase to activate the warranty. Registration is available over the
phone [phone] Ext. 0) or online at sensafe.com/micro/warranty/
(Personal data is kept confidential). The eXact
®
photometer is warranted to
be free from defects in materials and workmanship for a period of two (2)
years from the date of purchase by the customer. ITS will repair or replace,
at its discretion, product which is deemed to be faulty due to manufacturing
defect. Warranty does not cover product damage caused by abuse (such as
crushing a tablet in the cell), battery corrosion damage, or improper use. If
the meter is faulty or otherwise defective contact ITS by phone [phone]-
9712 Ext. 0) or email ([e-mail]) to describe the problem and obtain
a return authorization form before returning the photometer to ITS. Damage
caused by improper packing of the photometer for return shipment to ITS
will not be covered by the warranty. Customer is responsible for shipping
charges to ITS. ITS pays postage when photometer is returned to customer. A
maximum processing fee of $75 will be charged for repair or replacement of
non-registered photometers and damages not covered by this warranty. The
repair or replacement of the photometer will not extend or renew the period of
guarantee. This warranty does not affect your statutory rights. The warranty is
not transferable.
ABOUT
Ready Snap®3 is a calibration verification
solution with predetermined color to verify
the accuracy of your Chlorine eXact®EZ
photometer.
The easy 3 step procedure (snap, fill, and
test) allows for quick verification of test
parameters. Each box contains 10 ampoules
of 10mL solution with no dilution necessary.
METHOD VERIFICATION
CHLORINE EXACT®EZ ASSIGNED VALUE FOR READY SNAP® 3
READY SNAP® 3FREE CHLORINE
DESIRED VALUE
FREE CHLORINE
ACCEPTABLE RANGE
Red dye # 505 1.5 ppm 1.46 – 1.59 ppm
Red dye # 22515 0.94 ppm 0.87 – 1.01 ppm
Note: Values indicated are specific to Chlorine eXact
®
EZ readings and current
concentrations as found at time of manufacture.

17
Sensafe.com
COMPLIANCE TESTING
This DPD test system for Chlorine and
Chlorine Dioxide are accepted for reporting
by most health departments because the
tests are USEPA (DIN Standard 38 408 G4/G5, ISO 7393/2)
accepted for testing requirements for Free Chlorine, Total
Chlorine, and Chlorine Dioxide.
The compliance requirement is a photometer wavelength to
measure between 490 and 530nm. The Chlorine eXact
®
EZ smart
photometer uses a 525nm wavelength and 11 mm path-length.
The eXact
®
Strip Micro CL/Cd (DPD-1) use the same reagents
and proportions, and the resulting solution pH is maintained
between 6.2 and 6.5 as specified by AWWA method 4500-Cl
G/ClO2-D. The USEPA does not “approve” commercial DPD
delivery systems. The eXact
®
Strip Micro CL (DPD-1) for Free
Chlorine, and the eXact
®
Strip Micro CL (DPD-3) for Combined
Chlorine, the eXact
®
Strip Micro CL (DPD-4) for Total Chlorine,
and the eXact
®
Strip Micro Cd (DPD-1) for Chlorine Dioxide meet
your reportable testing requirements because the eXact
®
Strip
Micro strips deliver the same chemicals in identical proportions.
Consult with your local health department for official regulations.
COMPONENT (FREE CHLORINE)
AWWA 4500-CL G CHLORINE EXACT
®
EZ
Anhydrous DPD sulfate 1.5% 1.5%
Anhydrous Na2HPO433.4% 33.4%
Anhydrous KH2PO4Na264.0% 64.0%
EDTA 1.1% 1.1%
ABOUT
ITEM INCLUDES PART NO.
Standard
Carrying case
Blue carrying case with foam inserts
(holds up to 7 bottles) 486111
XL
Carrying case
Black carrying case with foam inserts
(holds up to 14 bottles)
486001
Made of sturdy material lined with
foam, the carrying case offers storage
for a Chlorine eXact®EZ photometer
and eXact®Micro reagents.
CARRYING CASE FOR CHLORINE EXACT
®
EZ
Store all your necessary reagents together with your
Chlorine eXact
®
EZ in our convenient carrying case!
TIP

18
©2017, Industrial Test Systems, Inc. Printed in USA
NOTES

19
Sensafe.com
NOTES

†
Value provided represents best possible accuracy under laboratory conditions, but may vary throughout the detection
range. For a complete list of accuracies throughout all ranges, please visit sensafe.com/photometers/chlorine-exact-ez/.
1Requires the use of 2 strips if reading is above 6 ppm.
2
Combined Chlorine DPD-3 Test requires Free Chlorine DPD-1 (486637) to be run first.
For resellers and distributors - products sold in case quantities (12 units per case).
PATENT INFORMATION
US Patent #7,333,194; Euro Pat No. 1 725 864 DE FR UK; South Africa Pat No 2007/0628
by Industrial Test Systems, Inc., 1875 Langston Street, Rock Hill, SC USA.
EXACT®is a registered trademark of Industrial Test Systems, Inc. Rock Hill, SC USA.
EXACT®MICRO TESTS & REAGENTS
PARAMETER / TEST PART # RANGE
ppm
% BEST
ACCURACY
# OF
TESTS
Chlorine, Free (DPD–1) 1486637 0.01 – 12.0 5 100
Chlorine, Combined (DPD–3)
2
486638 0.01 – 12.0 5 100
Chlorine, Total (DPD–4) 1486670 0.01 – 12.0 5 100
Chlorine, Total High 486672 1 – 260 5 50
pH-II 486639-II 6.4 – 8.4 pH 0.2 pH 100
†
R053117-CEZQG
Visit us online:
sensafe.com/photometers/chlorine-exact-ez/
for up–to–date product information.
SENSAFE ITSSENSAFE
Industrial Test Systems, Inc.
1875 Langston Street, Rock Hill, SC 29730
1–800–861–9712—Inside the U.S.A.
1–803–329–9712—Outside the U.S.A.
Fax:[phone]
Email: [email protected]
WWW.SENSAFE.COM
ITS EUROPE, LTD
The UK Centre for Homeland Security
Building 7, Chilmark
Salisbury, Wiltshire, SP3 5DU, UK
Phone: [phone]
Fax: [phone]
Email: [email protected]
WWW.ITSEUROPE.CO.UK
MANUFACTURED BY
Chlorine
ADVANCED PHOTOMETER SYSTEM
